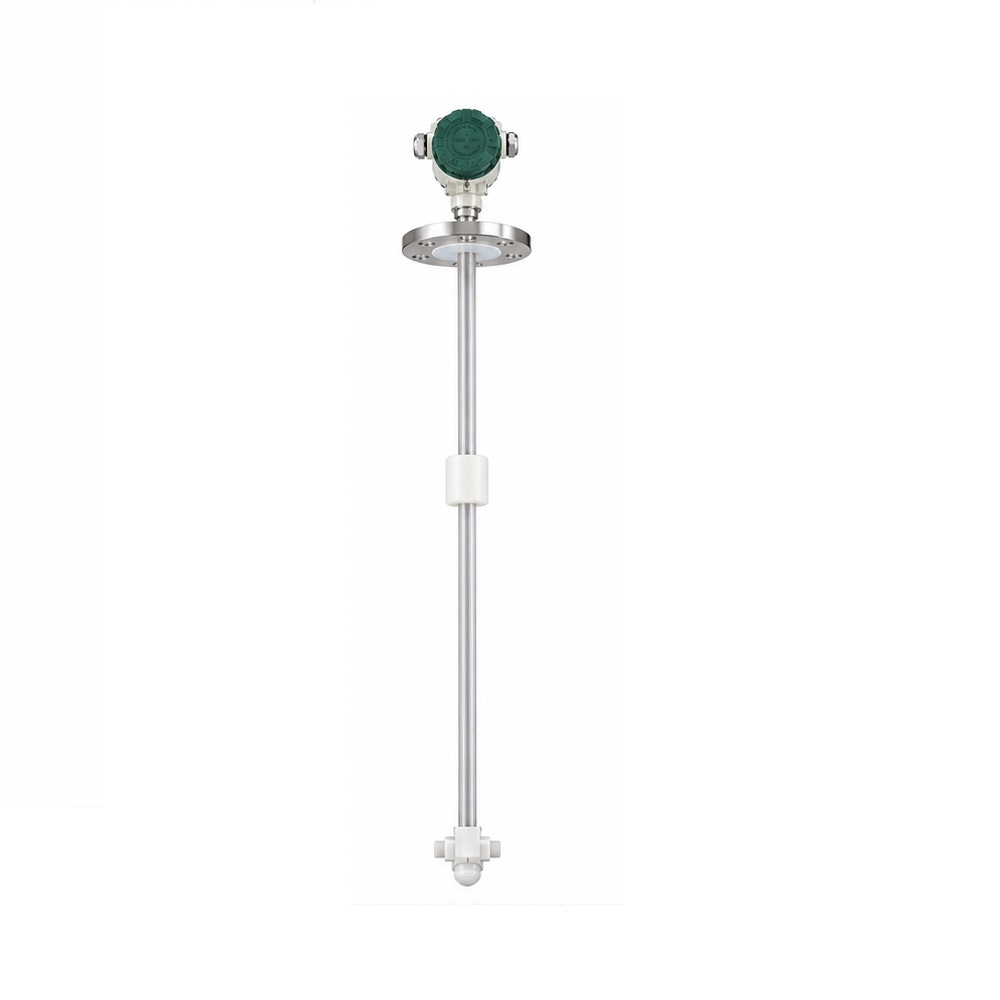

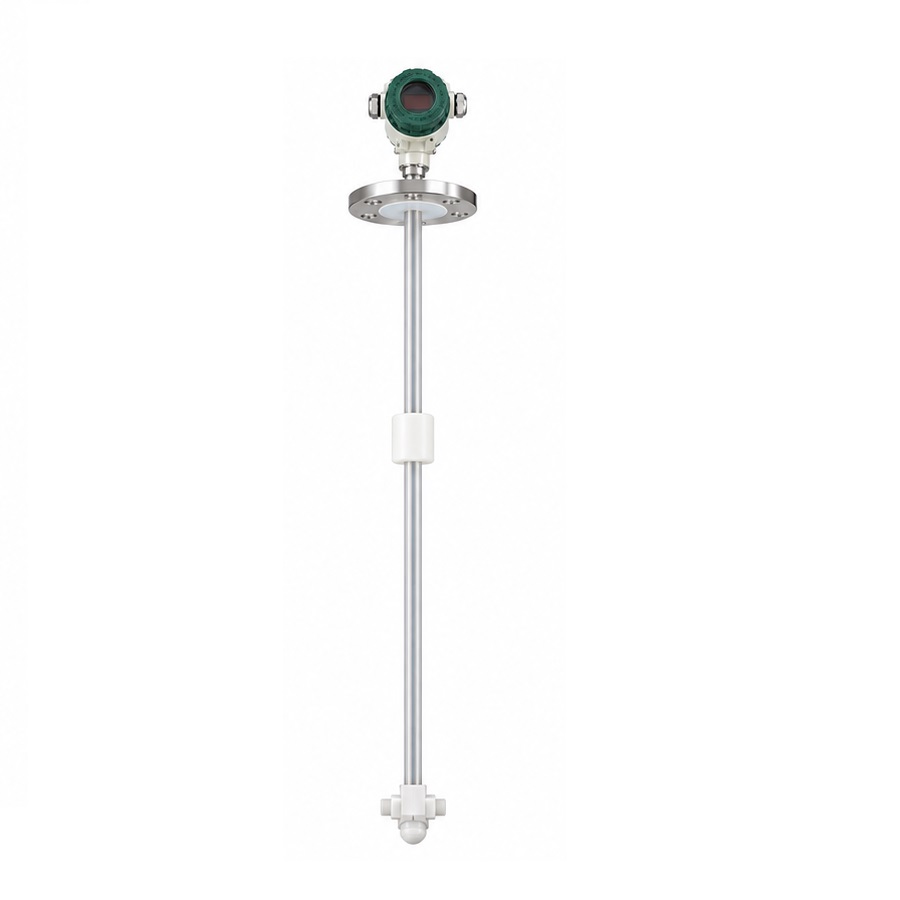

PTFE-Lined Top-Mounted Flange Type Magnetic Float Level Transmitter 4-20mA

Product Introduction

The PTFE-Lined Magnetic Float Level Transmitter is designed for continuous liquid level measurement in tanks and process vessels.

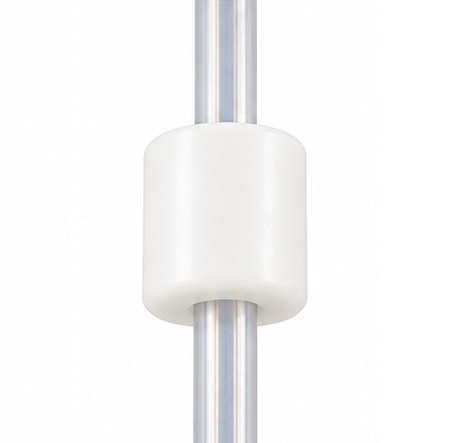

A magnetic float moves with the liquid level along the probe. The transmitter converts the float position into a standard 4-20 mA signal for PLC, DCS or other control systems.

PTFE-lined wetted parts provide good corrosion resistance for suitable chemical and process liquids.

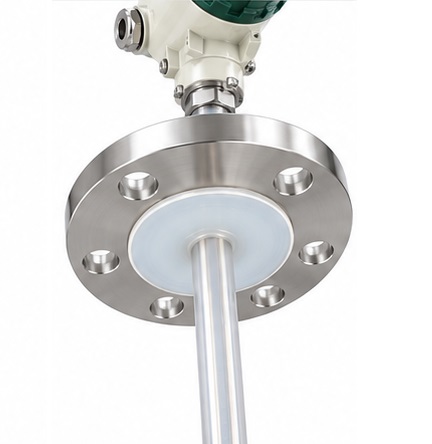

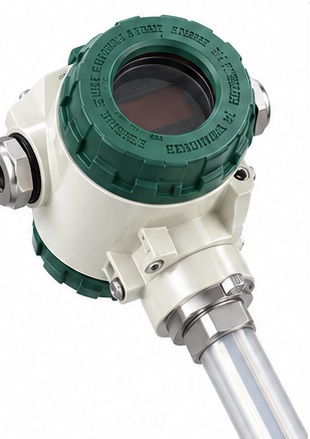

The transmitter uses top-mounted flange installation and supports local LCD display. The measuring range, probe length, flange size, output and wetted materials can be customized for different tank conditions.

Applications

• Chemical storage tanks

• Acid and alkali tanks

• Corrosive liquid tanks

• Water treatment systems

• Industrial process tanks

• Liquid storage vessels

• Chemical dosing tanks

• Wastewater treatment

• Oil and liquid storage

• PLC and DCS level monitoring

Suitable for clean and compatible liquids. Material compatibility should be checked for corrosive media.

PTFE float/probe structures are commonly used for chemical and corrosive-liquid level applications, while manufacturers also caution that float systems are less suitable for dirty or sticky liquids that may hinder float movement.

Features

• Continuous liquid level measurement

• Magnetic float sensing principle

• Standard 4-20 mA output

• 2-wire loop-powered design

• PTFE-lined wetted parts

• Good corrosion resistance

• Top-mounted installation

• DN80 PN16 flange connection

• Built-in LCD local display

• Ex db IIC T6 Gb version

• 304 stainless steel flange

• Compact and simple structure

• Suitable for PLC and DCS systems

• Measuring range can be customized

Technical Specifications


Note: Specifications can be customized according to customer requirements.
