Product Introduction

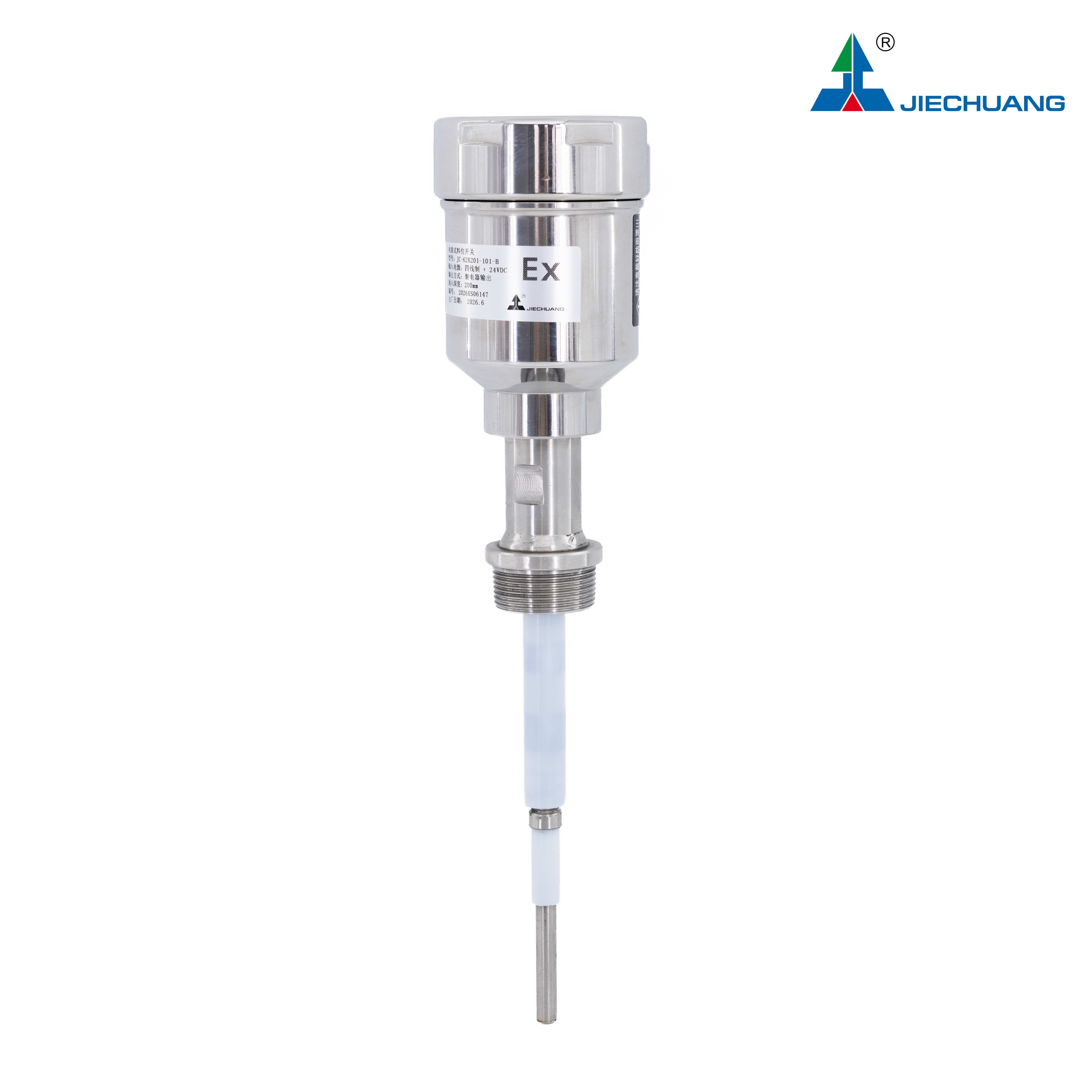

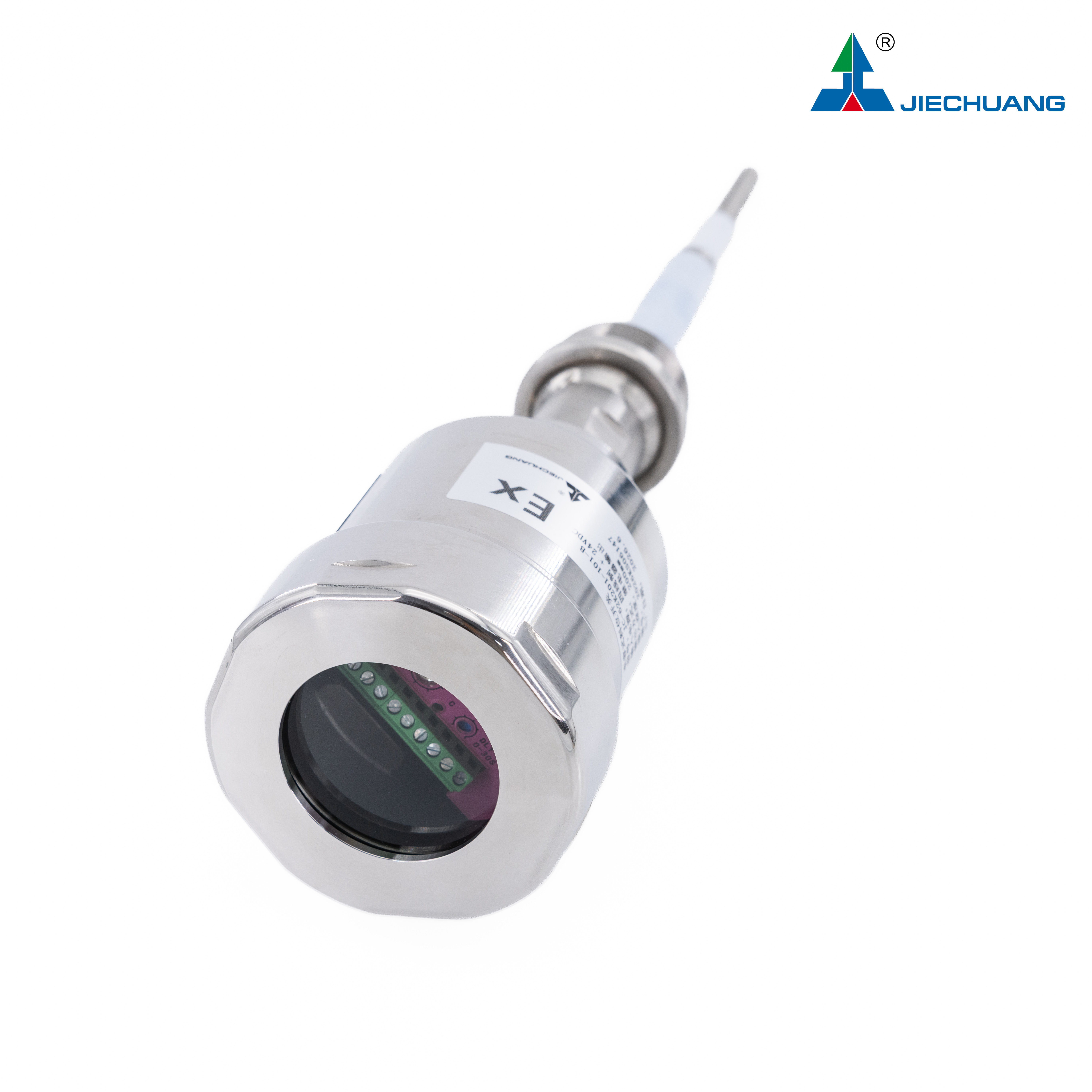

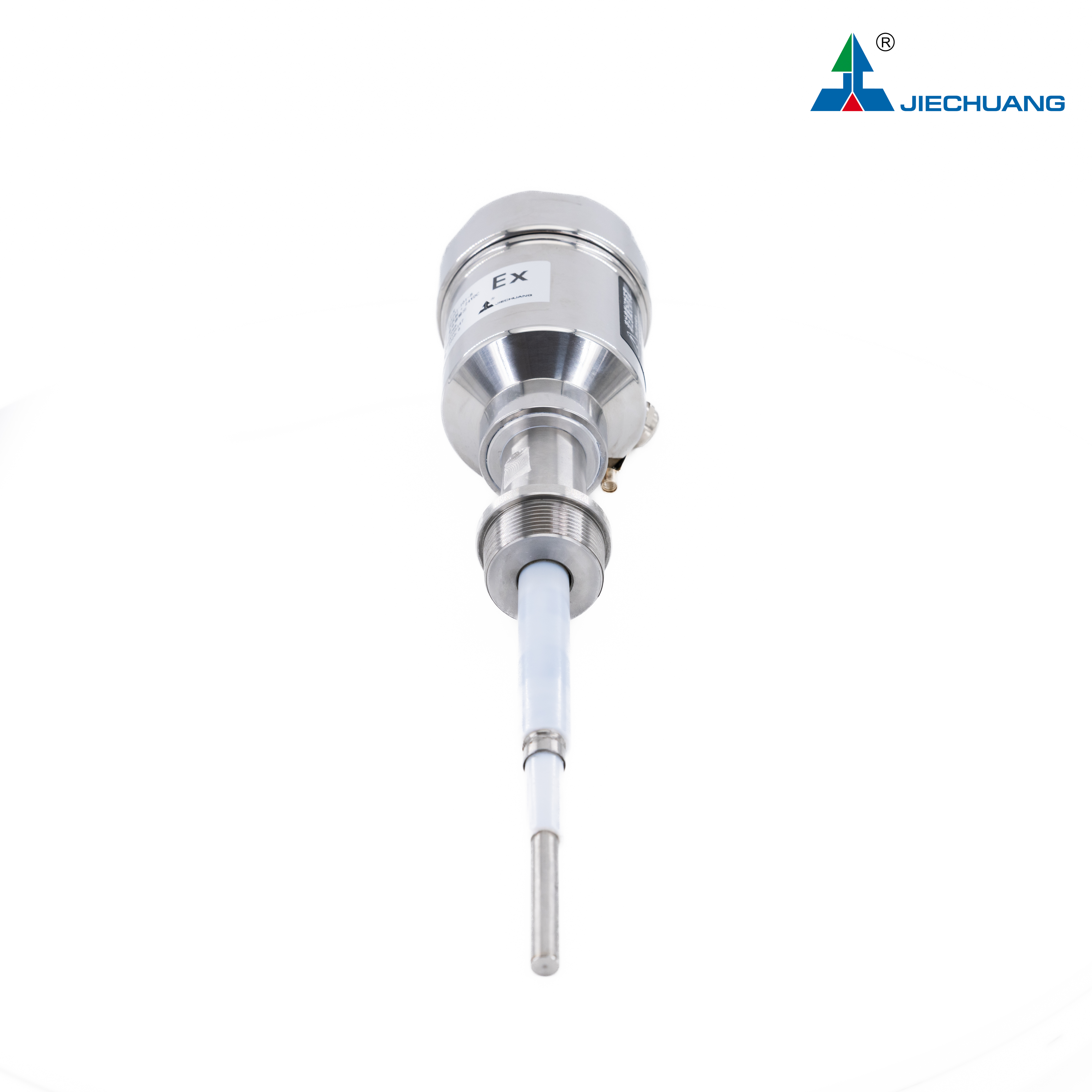

The JC-62K Series Explosion Proof Capacitive Level Switch is an industrial point level switch designed to detect whether a liquid, slurry, powder or other material has reached a preset level.

It uses capacitive sensing technology to detect changes around the probe when the medium approaches or contacts the sensing area. The switch provides a relay output for level alarm, pump control, overfill protection and process interlock.

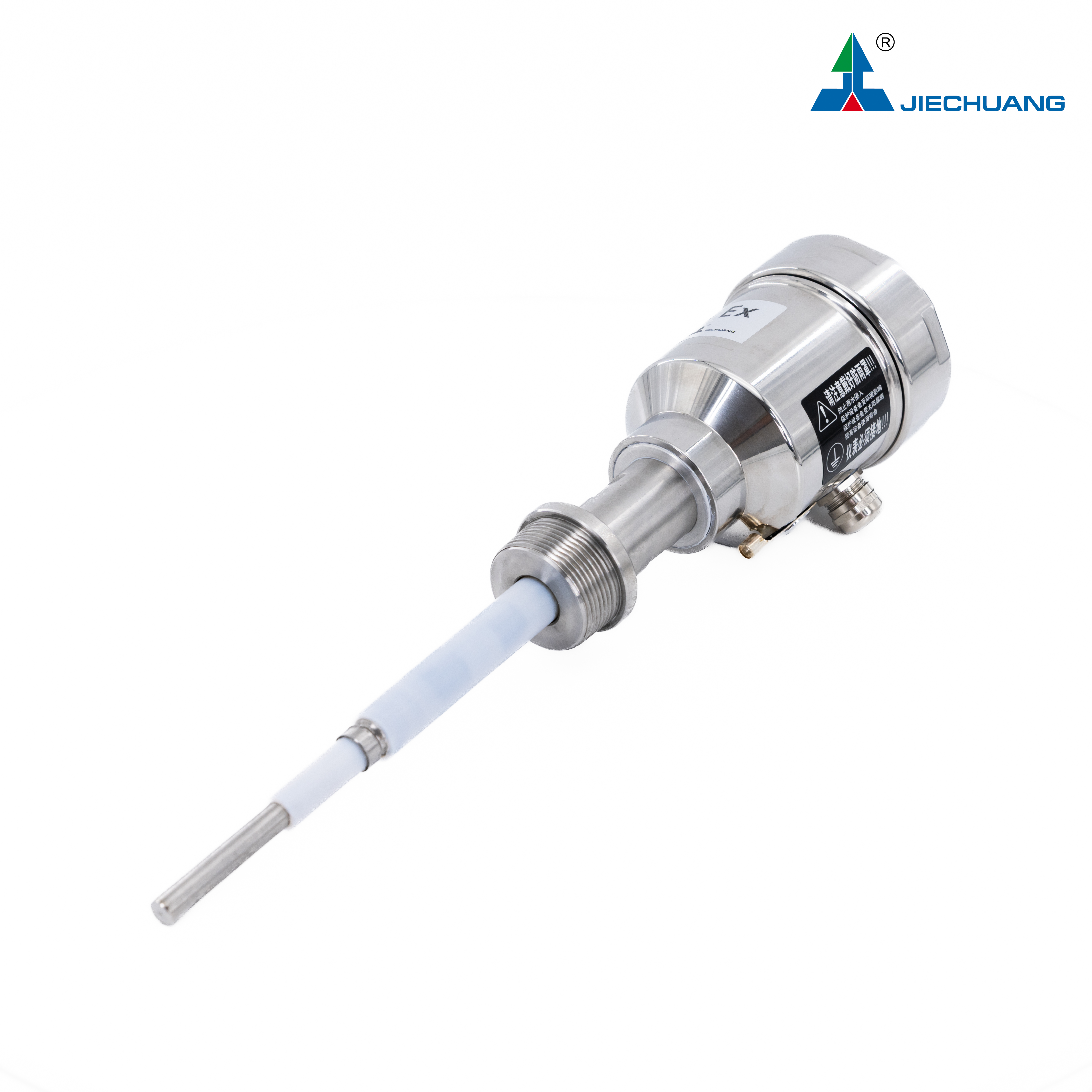

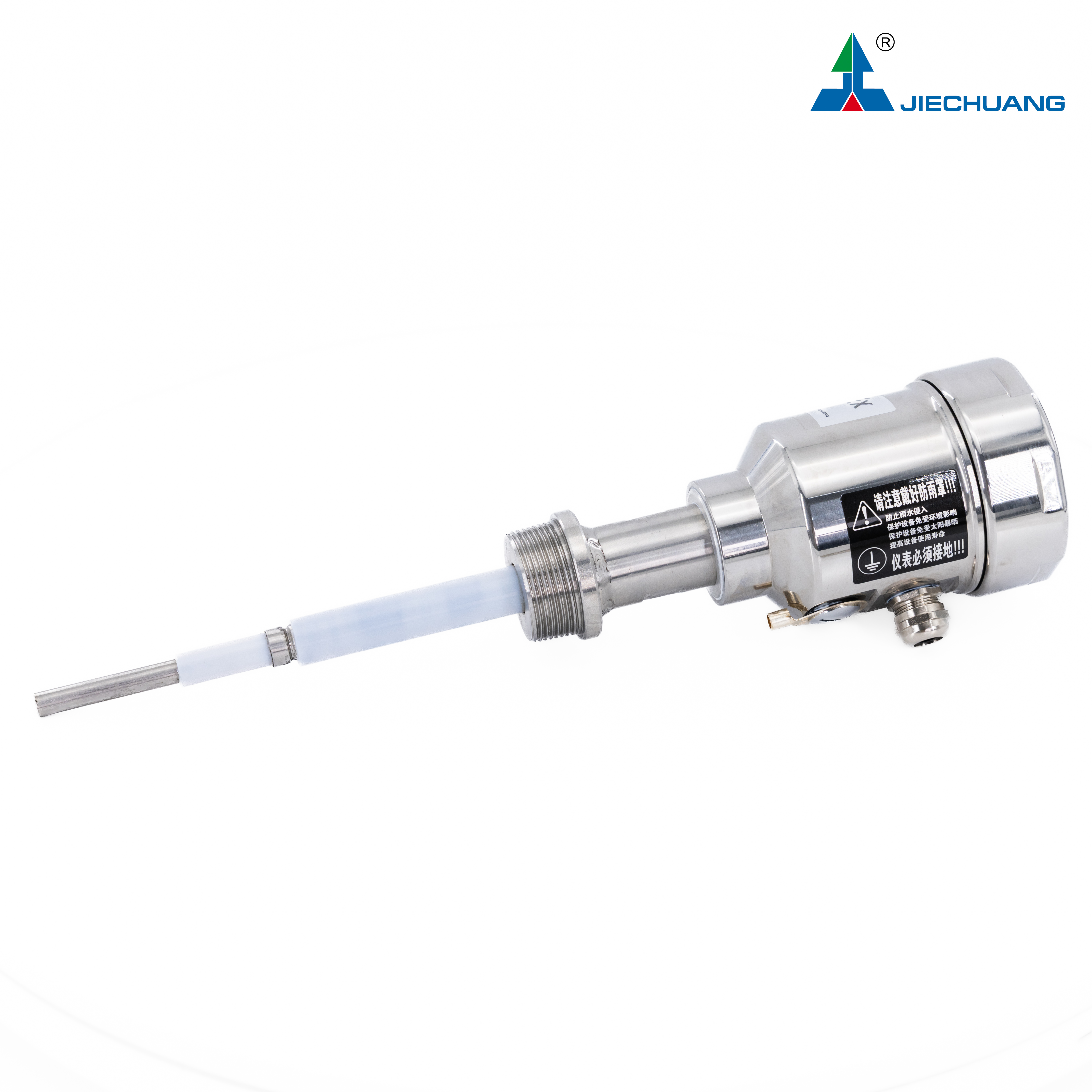

The unit features an integral construction, 316 stainless steel probe, PTFE insulation and sealed probe design. A 3/4" NPT process connection, 24 VDC power supply, adjustable sensing settings and 0-30 s time delay make it suitable for a wide range of industrial level control applications.

Applications

• Liquid level high/low alarm

• Tank overfill protection

• Pump start/stop control

• Dry-run protection

• Process interlock

• Chemical storage tanks

• Oil and petroleum equipment

• Water and wastewater systems

• Process vessels

• Slurry applications

• Powder and bulk-solid level detection

• Industrial storage tanks and hoppers

Note: Application suitability depends on the medium's dielectric properties, conductivity, buildup tendency and process conditions.

Features

• Explosion-proof construction for hazardous industrial applications

• Capacitive point-level detection for reliable level switching

• 24 VDC power supply

• Relay output for external control and alarm systems

• SPDT / DPDT relay options

• NO/NC contact configuration optional

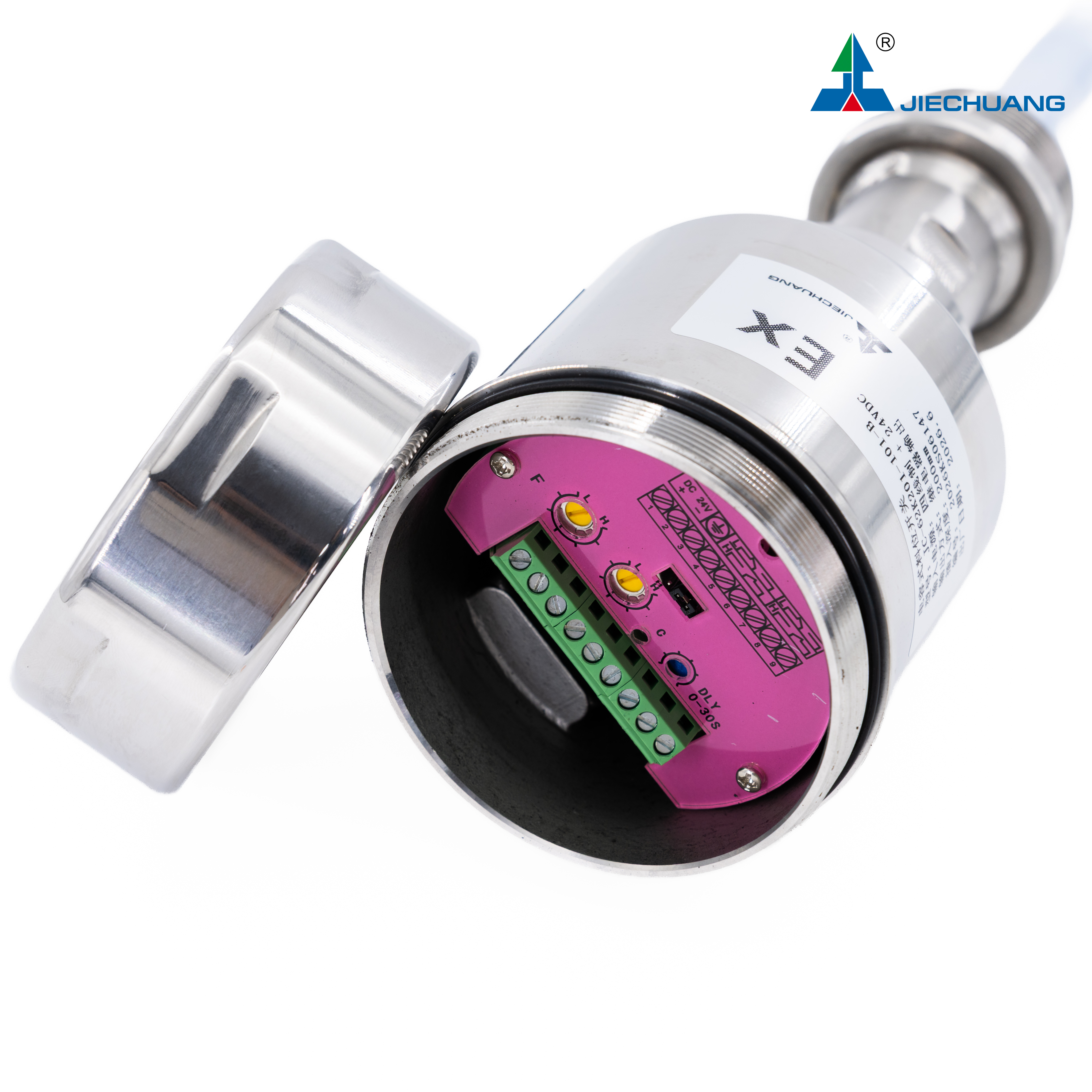

• 4-wire electrical connection

• 316 stainless steel probe

• PTFE-insulated sensing section

• Integral construction for compact installation

• 3/4" NPT process connection

• 200 mm probe/insertion length

• Adjustable sensing sensitivity

• Adjustable time delay: 0-30 s

• Sealed probe construction

• No moving mechanical parts in the sensing principle

Technical Specifications

Note: Specifications can be customized according to customer requirements.
