Product Introduction
The High Temperature 80GHz Radar Level Transmitter is a non-contact continuous level measurement instrument based on FMCW radar technology.
The transmitter emits high-frequency microwave signals toward the material surface and calculates the liquid level according to the reflected signal.

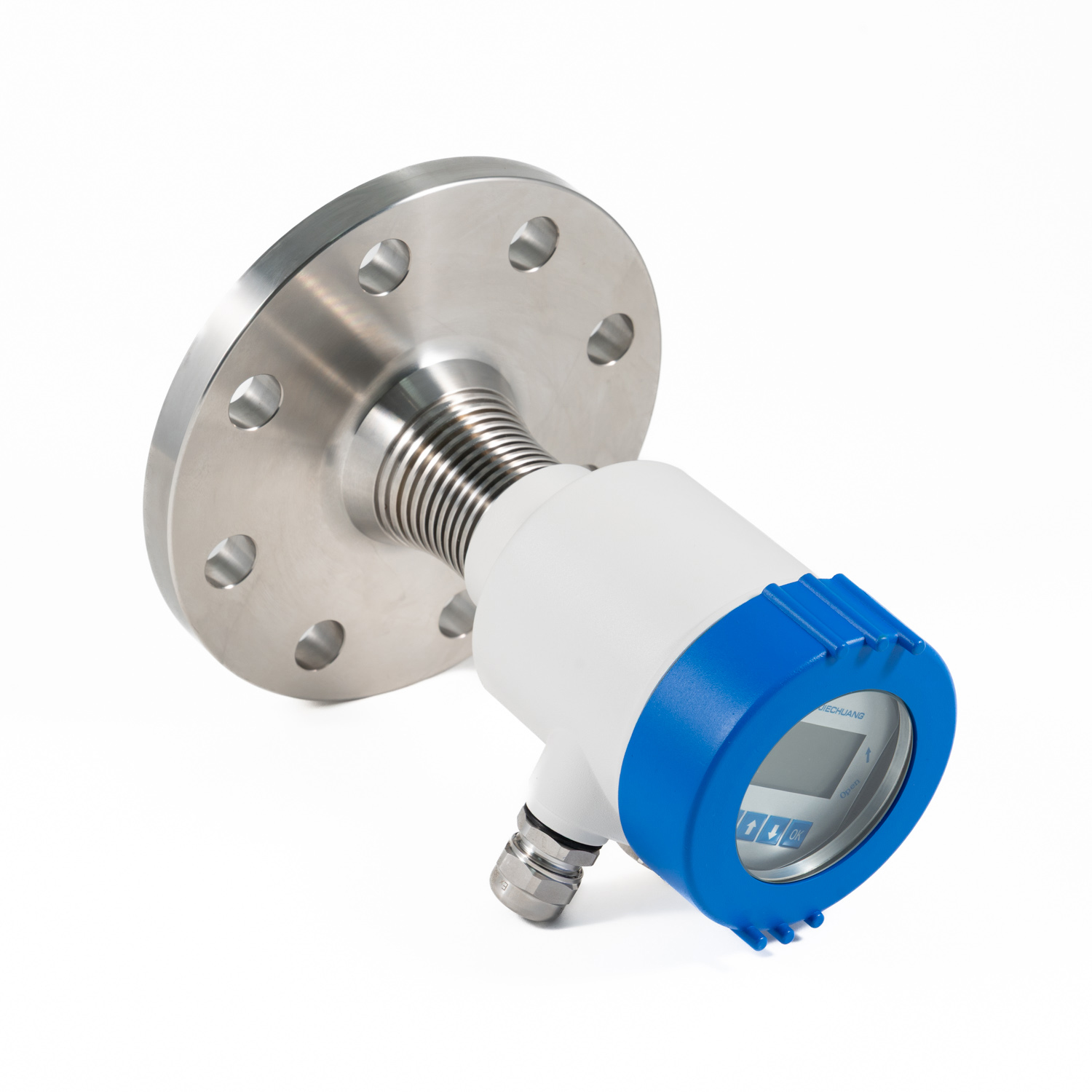

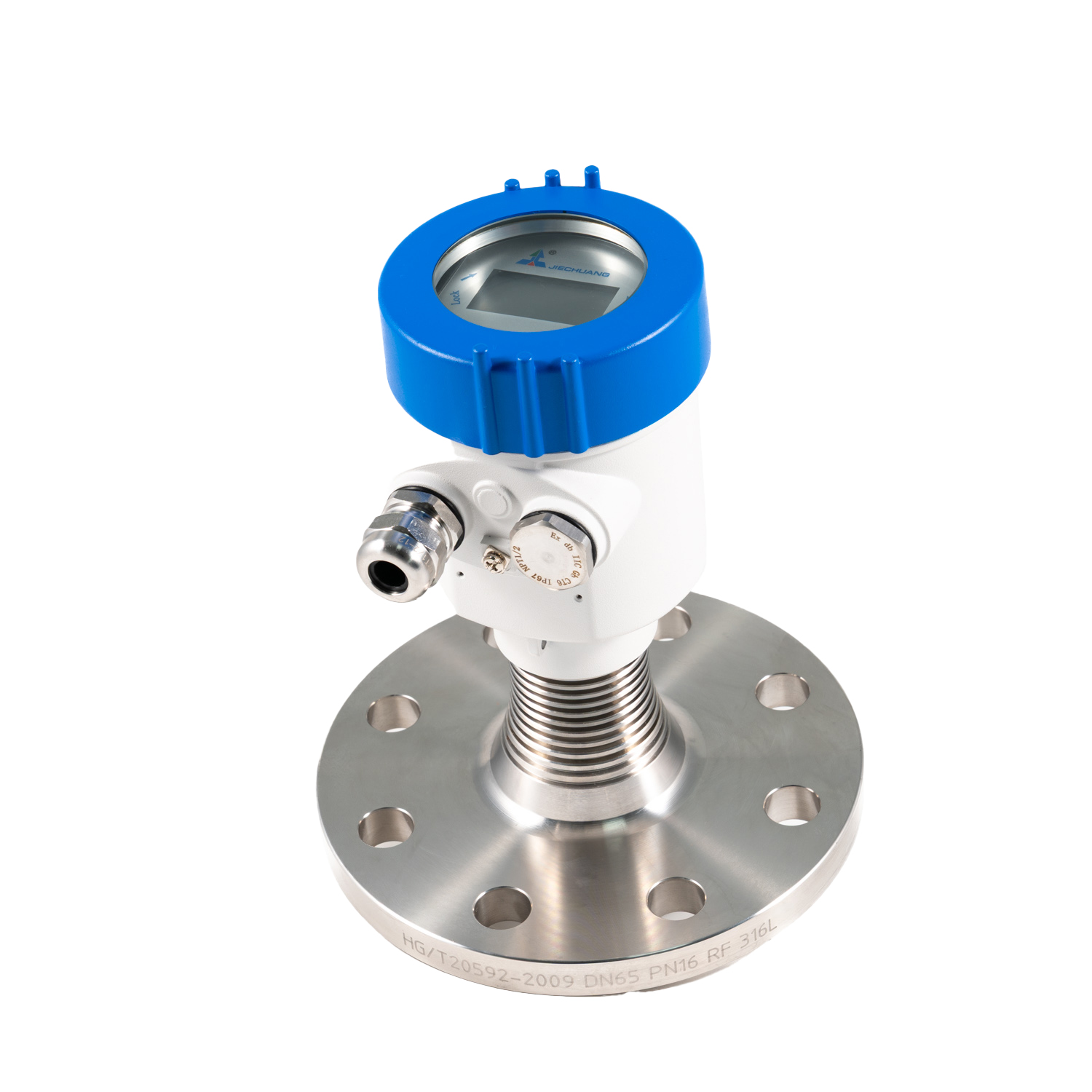

This model adopts a DN65 PN16 RF flange connection, 316L stainless steel process wetted parts and PTFE lined antenna, providing excellent corrosion resistance for aggressive chemical media.

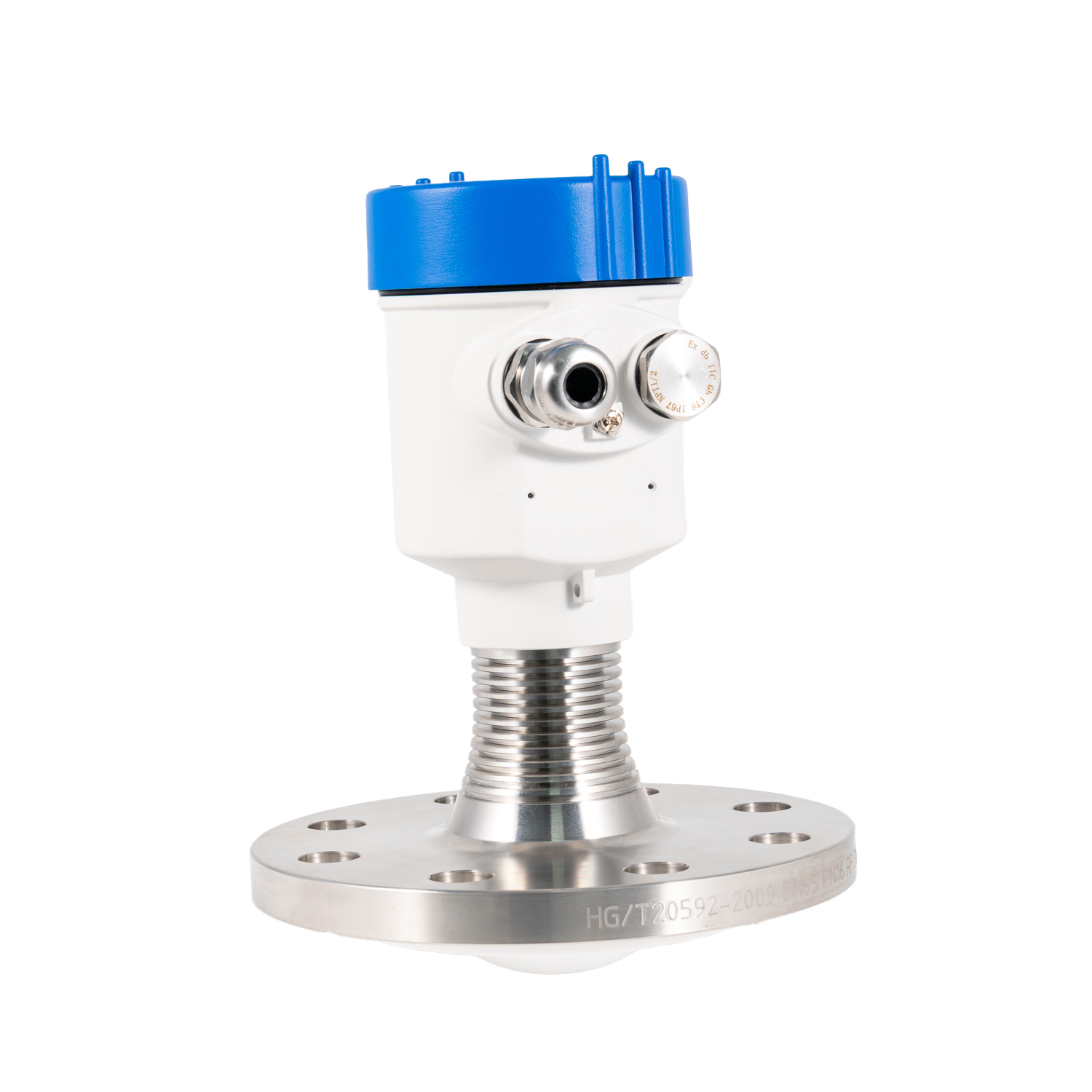

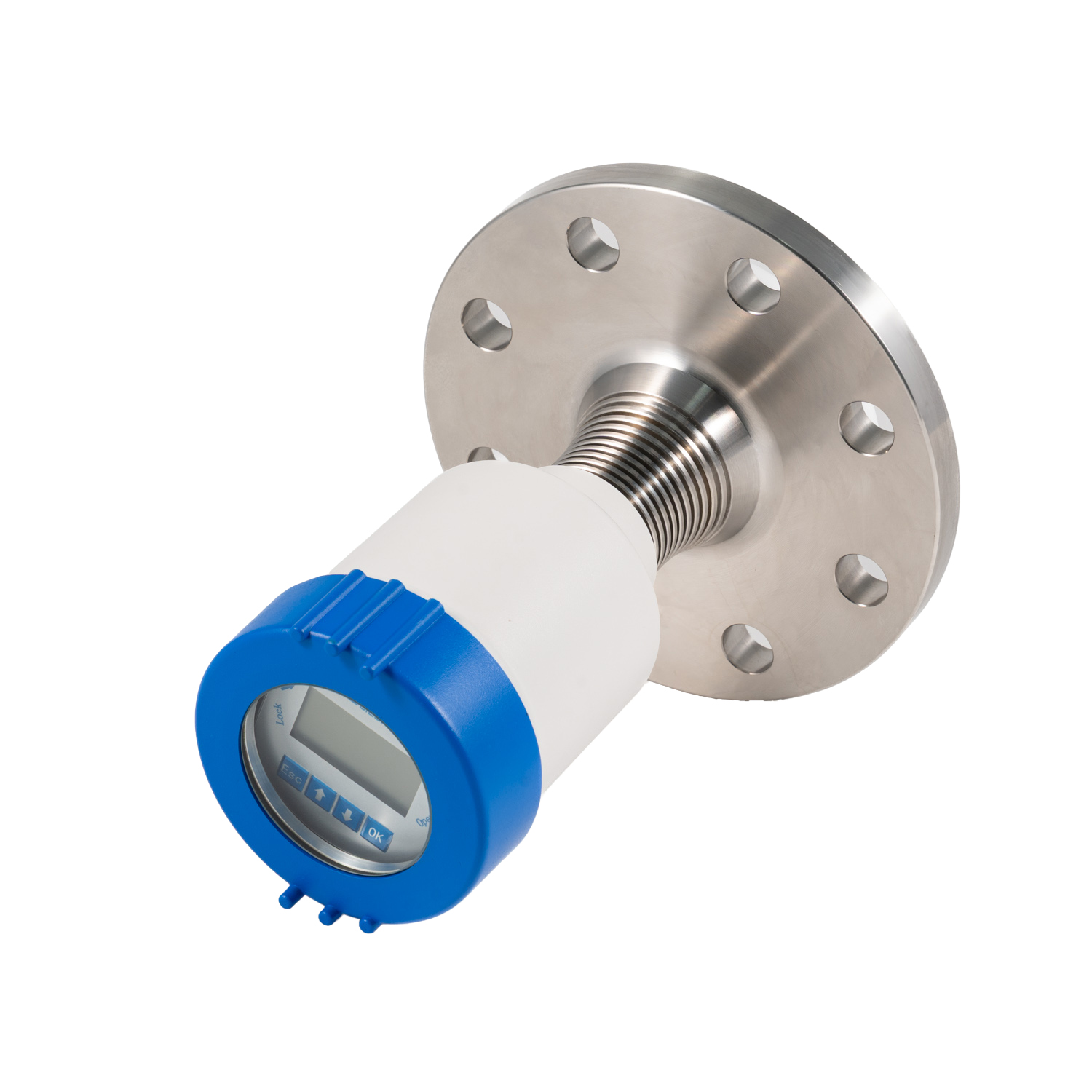

The integrated heat dissipation extension structure (temperature spacer) increases the distance between the high-temperature process connection and the electronic housing, reducing heat transfer and improving reliability in high-temperature applications.
With 80GHz high-frequency technology, narrow beam angle, small dead zone and high measurement accuracy, it is widely used in chemical tanks, reactors, storage vessels and other industrial process applications.
Applications
Chemical Industry
Acid storage tanks
Alkali tanks
Chemical reactors
Corrosive liquid vessels
Oil & Gas Industry
Oil storage tanks
Fuel tanks
Process vessels
Water Treatment
Wastewater tanks
Chemical dosing tanks
Industrial Process
High temperature liquid tanks
Closed vessels with vapor or steam
Pressurized process tanks
Features
1. 80GHz FMCW Radar Technology
High-frequency radar technology provides stable measurement performance and excellent signal focusing capability.
No direct contact with the measured medium, reducing maintenance requirements and avoiding contamination.

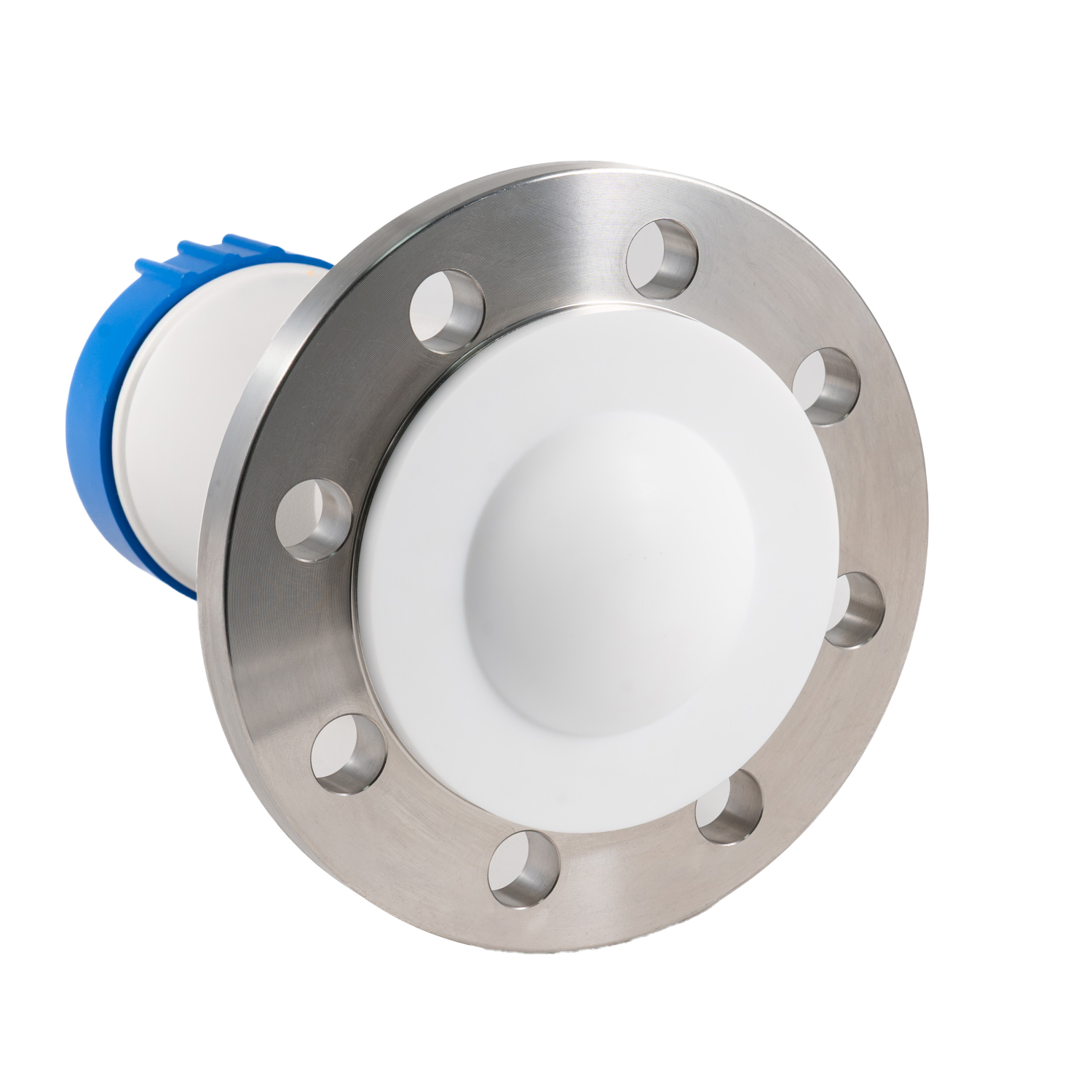

The PTFE lined antenna provides excellent chemical resistance and is suitable for aggressive liquids.
4. Heat Dissipation Extension Structure
The extended temperature spacer reduces heat transfer from the process connection to the electronic housing, improving performance in high-temperature applications.
5. 316L Stainless Steel Flange
316L stainless steel process connection provides excellent corrosion resistance and long service life.
6. Narrow Beam Angle Design
The small beam angle reduces interference caused by tank structures, agitators and internal obstacles.
7. Explosion-Proof Housing
Ex db IIC T6 Gb design supports hazardous area applications.
8. Multiple Communication Options
Supports 4-20mA, HART, RS485 and Modbus communication.
Technical Specifications
Item | Specification |
Product Name | 80GHz Radar Level Transmitter |
Measurement Type | Non-contact Continuous Level Measurement |
Measuring Range | 0~30m / 0~60m / Customized |
Accuracy | ±1mm |
Beam Angle | Approx. 3° |

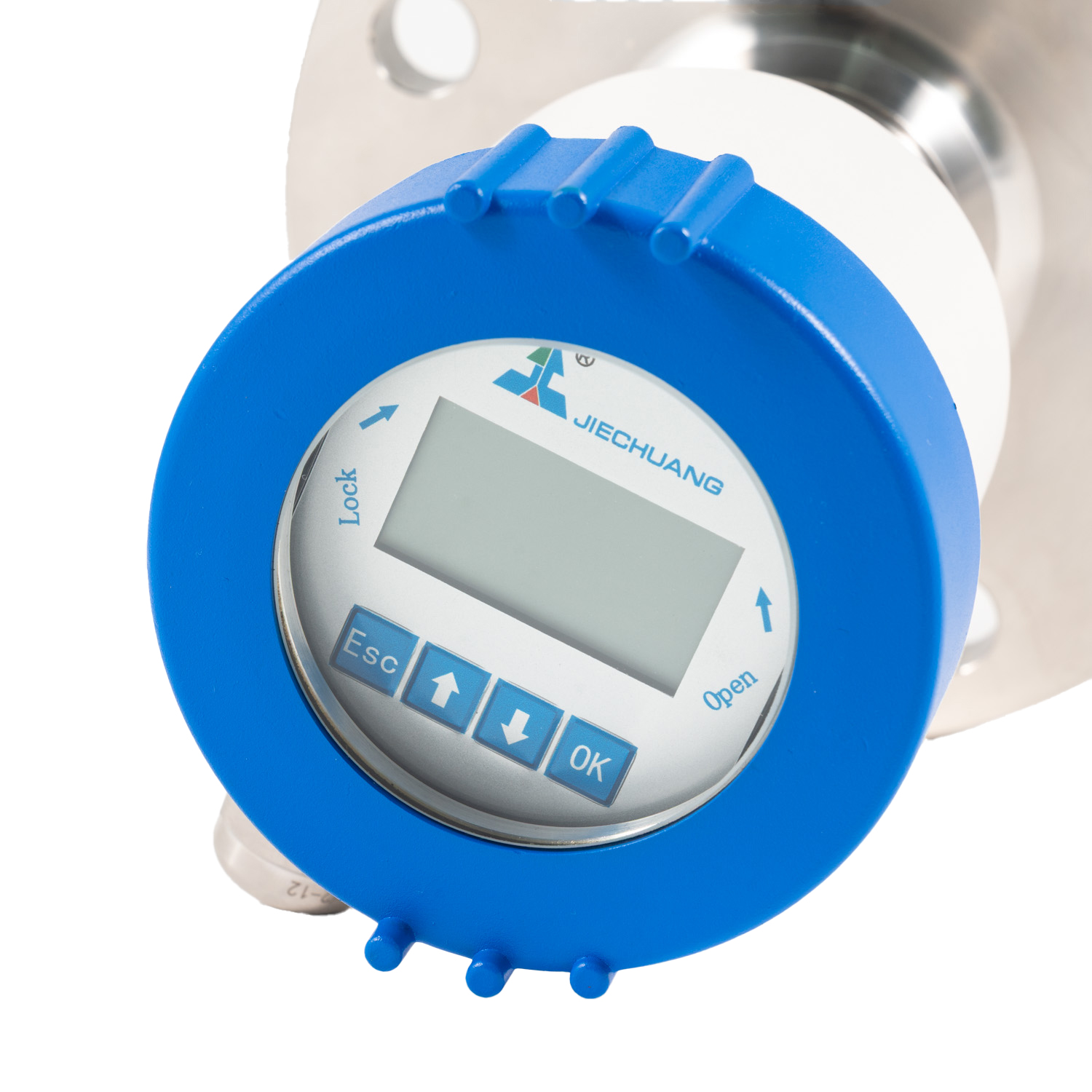

Display | LCD Display |
Power Supply | 24VDC |
Output Signal | 4-20mA / HART / RS485 Modbus Optional |
Process Connection | DN65 PN16 RF Flange |
Flange Material | Stainless Steel 316L |
Antenna Type | PTFE Lined Lens Antenna |
Heat Dissipation Structure | Temperature Spacer / Extended Heat Dissipation Neck |
Process Temperature | Up to +200ºC (depending on configuration) |
Process Pressure | -0.1~1.6MPa |
Electrical Connection | 1/2" NPT |
Protection Grade | IP67 |
Explosion-proof Grade | Ex db IIC T6 Gb |
Housing Material | Aluminum Alloy |
Measuring Medium | Liquid, Chemical Liquid, Corrosive Medium |
Note: Specifications can be customized according to customer requirements.
