Product Introduction

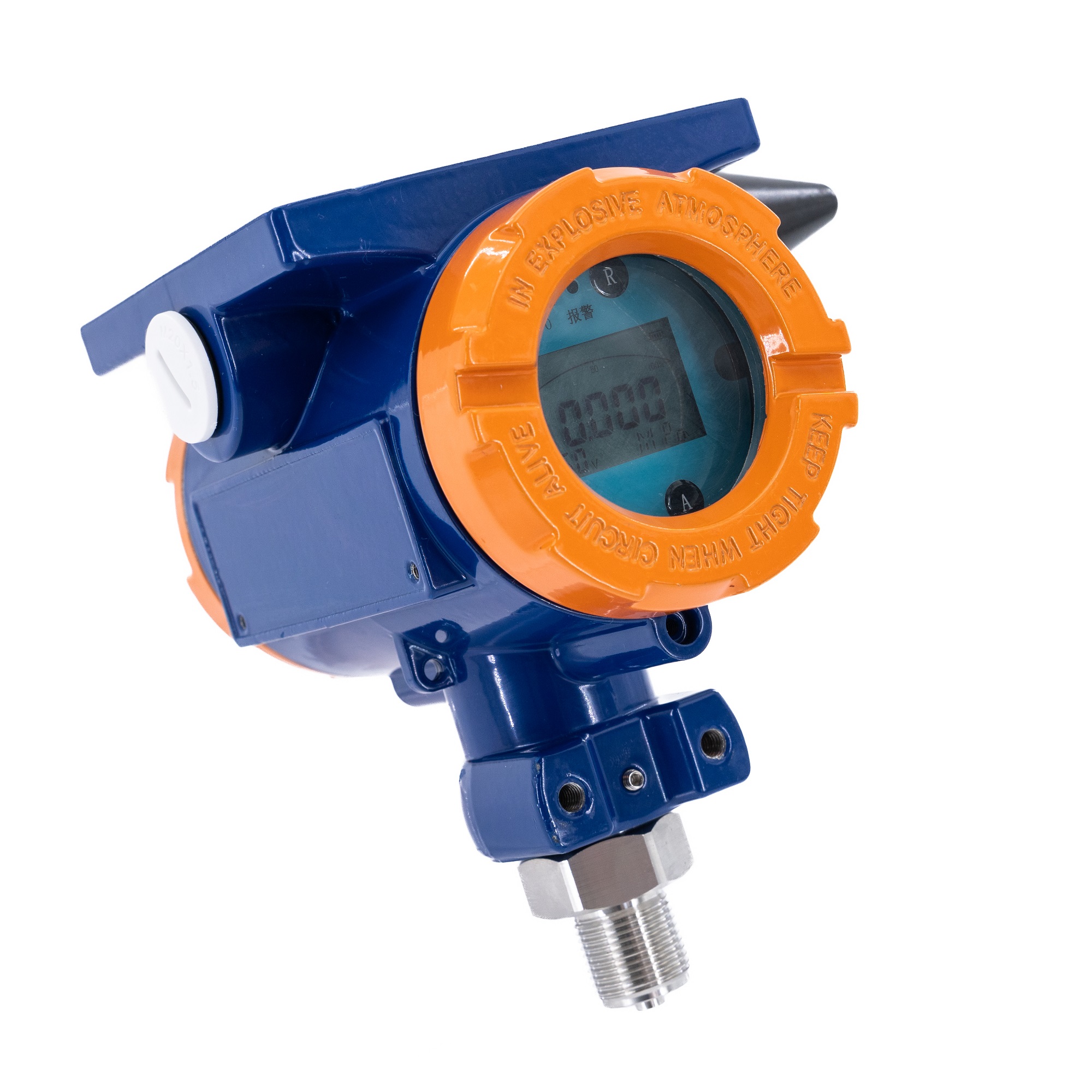

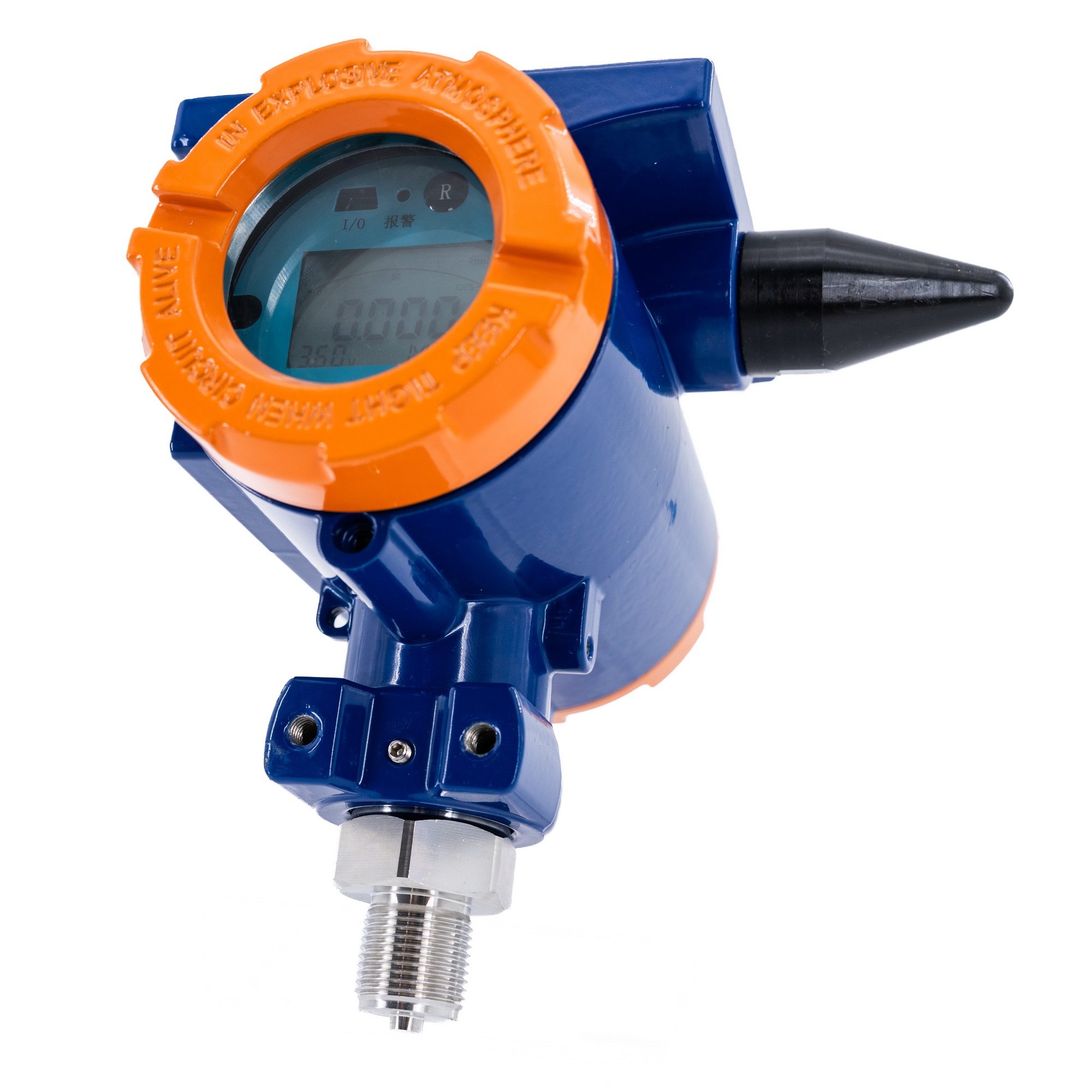

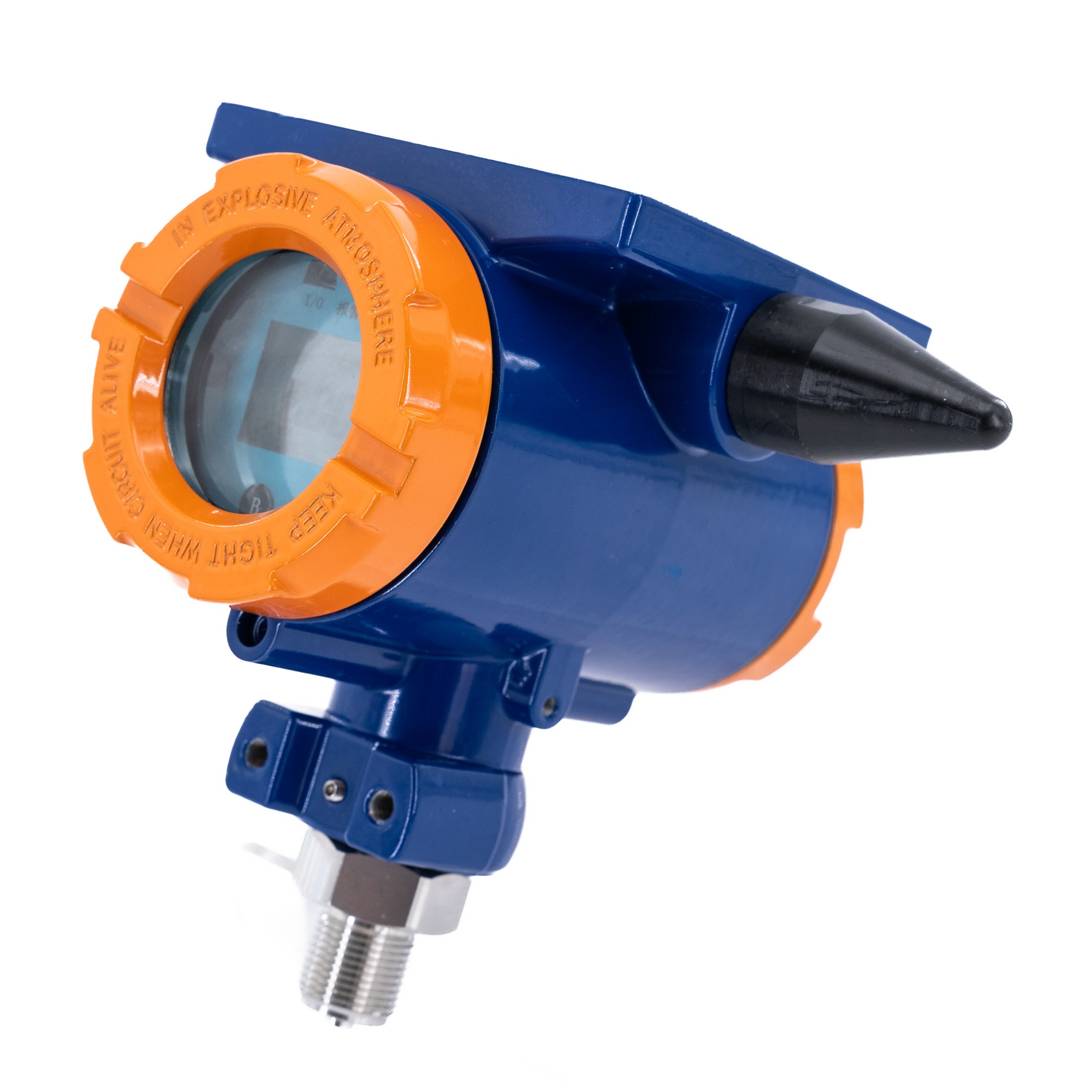

The JC-G Series Explosion-Proof Wireless Pressure Transmitter is designed for remote pressure measurement and monitoring in industrial applications. It integrates a pressure sensor, local LCD display, wireless communication module, and built-in lithium battery.
With LoRa or NB-IoT communication options, the transmitter enables wireless pressure data transmission for remote monitoring systems. Its IP67-rated enclosure provides protection against dust ingress and temporary immersion under specified test conditions.
The instrument is suitable for applications in oil and gas, chemical processing, tank monitoring, pipelines, and other industrial sites where conventional wired installation may be difficult or costly. Explosion-proof configurations are available subject to the applicable product model and certification.
Applications
Oil and Gas Industry
Remote pressure monitoring at suitable pipeline, tank and equipment measurement points.
Chemical and Petrochemical Plants
Pressure monitoring of compatible process equipment, subject to medium compatibility and installation conditions.
Storage Tanks
Remote pressure data collection for compatible tank systems.
Industrial Pipelines
Monitoring pressure at distributed measurement points where signal cable installation may be difficult.
Oilfield and Wellhead Equipment
Remote pressure monitoring at suitable installations, subject to the pressure rating, process connection and hazardous-area requirements.
Remote Industrial Sites
Pressure measurement at unattended or difficult-to-access locations.
Industrial IoT Monitoring
Wireless pressure data collection for compatible gateways and monitoring platforms.
Application suitability depends on the pressure range, pressure type, medium, process temperature, connection rating, communication coverage and applicable certification.
Features
Wireless pressure measurement for remote monitoring.
LoRa or NB-IoT communication options.

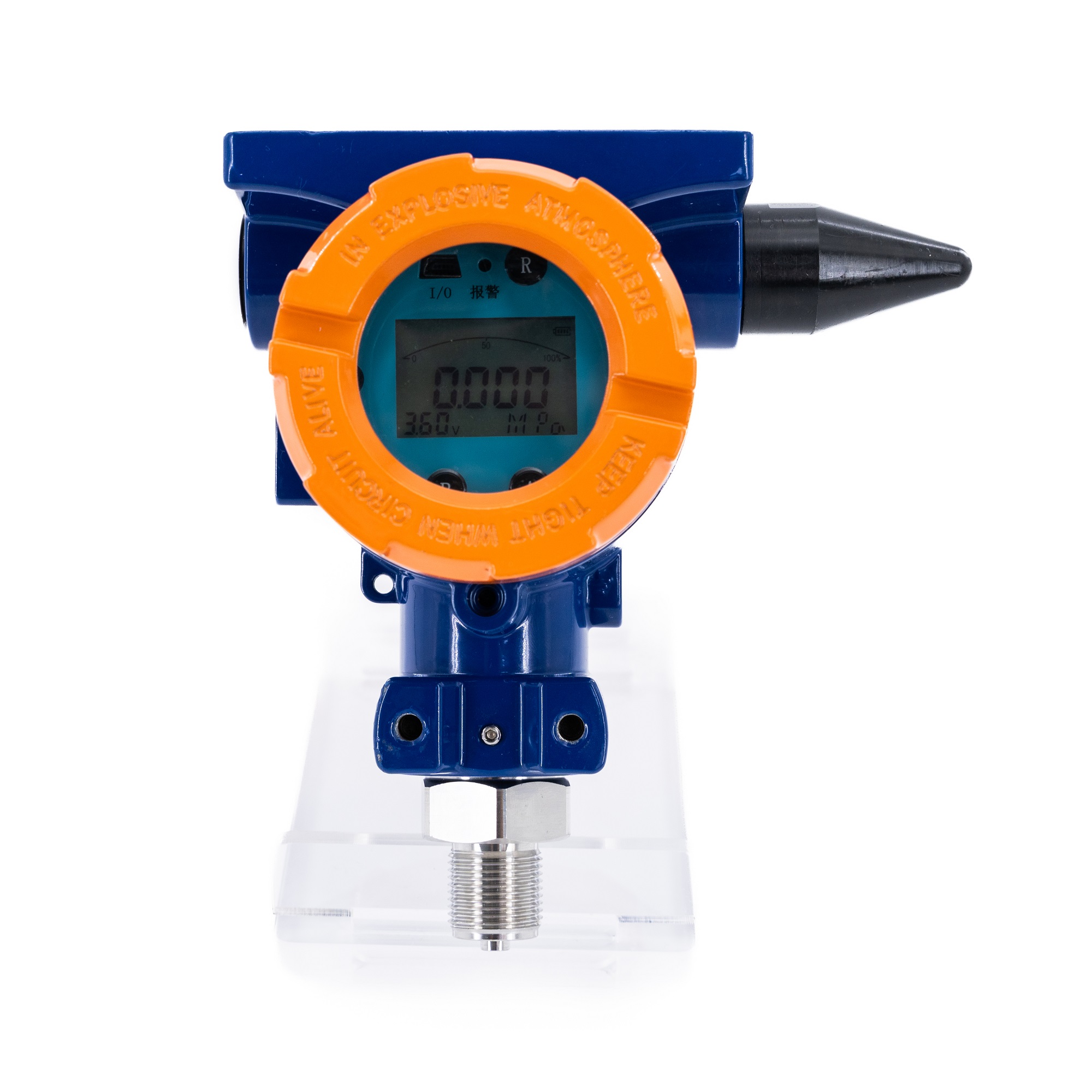

Local LCD display for on-site pressure reading.
Built-in lithium battery for battery-powered operation.
IP67-rated enclosure for dust and water-ingress protection.
316L stainless steel wetted parts for compatible process media.
Multiple pressure ranges and process connections available.
Explosion-proof configurations available for applicable industrial environments.
Technical Specifications
Parameter | Specification |
Product Name | Explosion-Proof Wireless Pressure Transmitter |
Model | JC-G Series |
Pressure Range | 0–1.6 MPa / -0.1–0 MPa / 0–60 MPa / Other Ranges Optional |
Accuracy | ±0.1% FS; ±0.075% FS Optional |
Wireless Communication | LoRa / NB-IoT Optional |
Display | Local LCD Digital Display |
Power Supply | Built-in Lithium Battery |
Process Connection | M20×1.5, 1/2" NPT, G1/2; Other Options Available |
Wetted Parts | 316L Stainless Steel |
Process Temperature | -20–70°C / Other Ranges Optional |
Protection Grade | IP67 |
Explosion-Proof Type | Ex d / Ex i Optional |
Application | Remote Pressure Measurement and Monitoring |
Note: Specifications can be customized according to customer requirements.
Inquiry Guide
Pressure type: gauge or absolute
Required pressure range and normal operating pressure
Process medium
Required accuracy
Process connection type and size
Wireless communication method: LoRa or NB-IoT
Order quantity
Special Requirements
Hazardous-area classification and required explosion-protection certification
Required transmission distance and monitoring platform
Gateway or network compatibility
Process temperature and environmental conditions
Wetted material requirements
Required ingress protection rating
Battery-life expectations and data reporting interval
Special installation or connection requirements
FAQ
Q1: What is the protection rating of this wireless pressure transmitter?
A: The transmitter has an IP67-rated enclosure, providing dust-tight protection and protection against temporary immersion under specified test conditions.
Q2: Does the transmitter support wireless remote monitoring?
A: Yes. LoRa and NB-IoT communication options are available. Please confirm the required communication method and compatibility with your monitoring system.
Q3: Is an explosion-proof version available?
A: Explosion-proof configurations may be available depending on the selected model. Please confirm the required hazardous-area classification and certification before ordering.
Ordering and Customization
Please provide the process conditions, required pressure range, communication method and installation details when requesting a quotation.
JIECHUANG can review the suitable pressure sensor configuration, process connection, wireless communication option and applicable certification before confirming the final specification and price.
