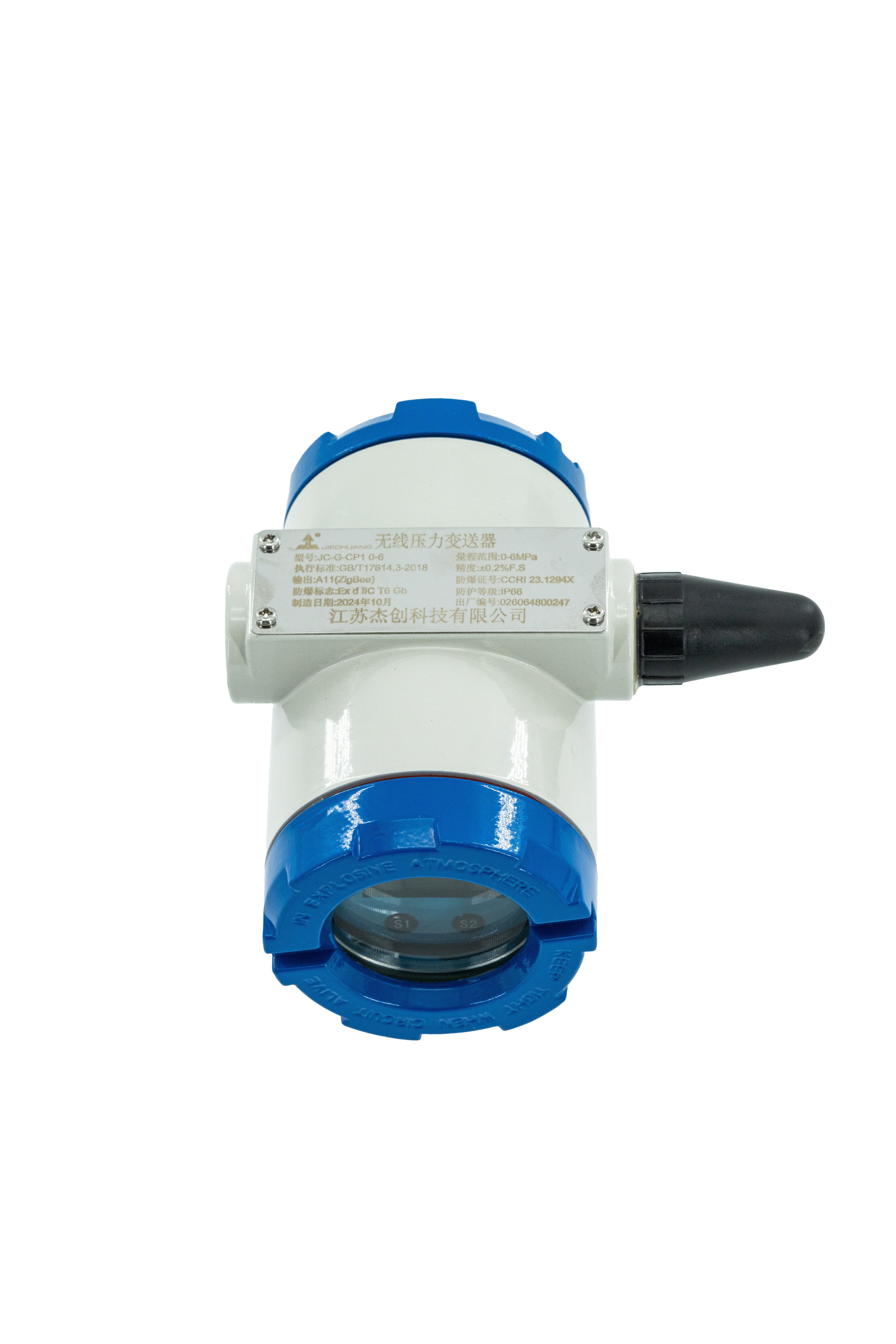

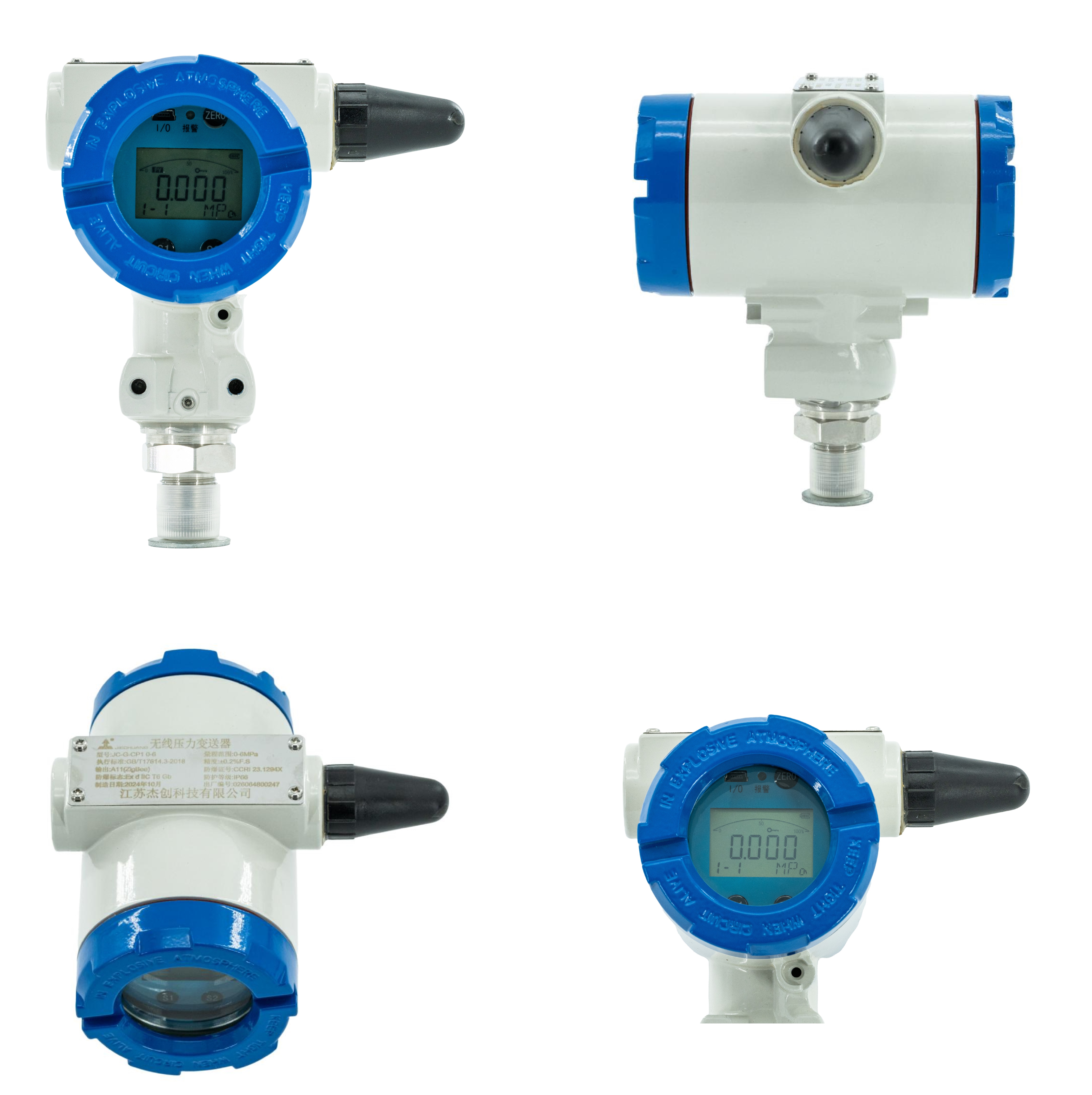

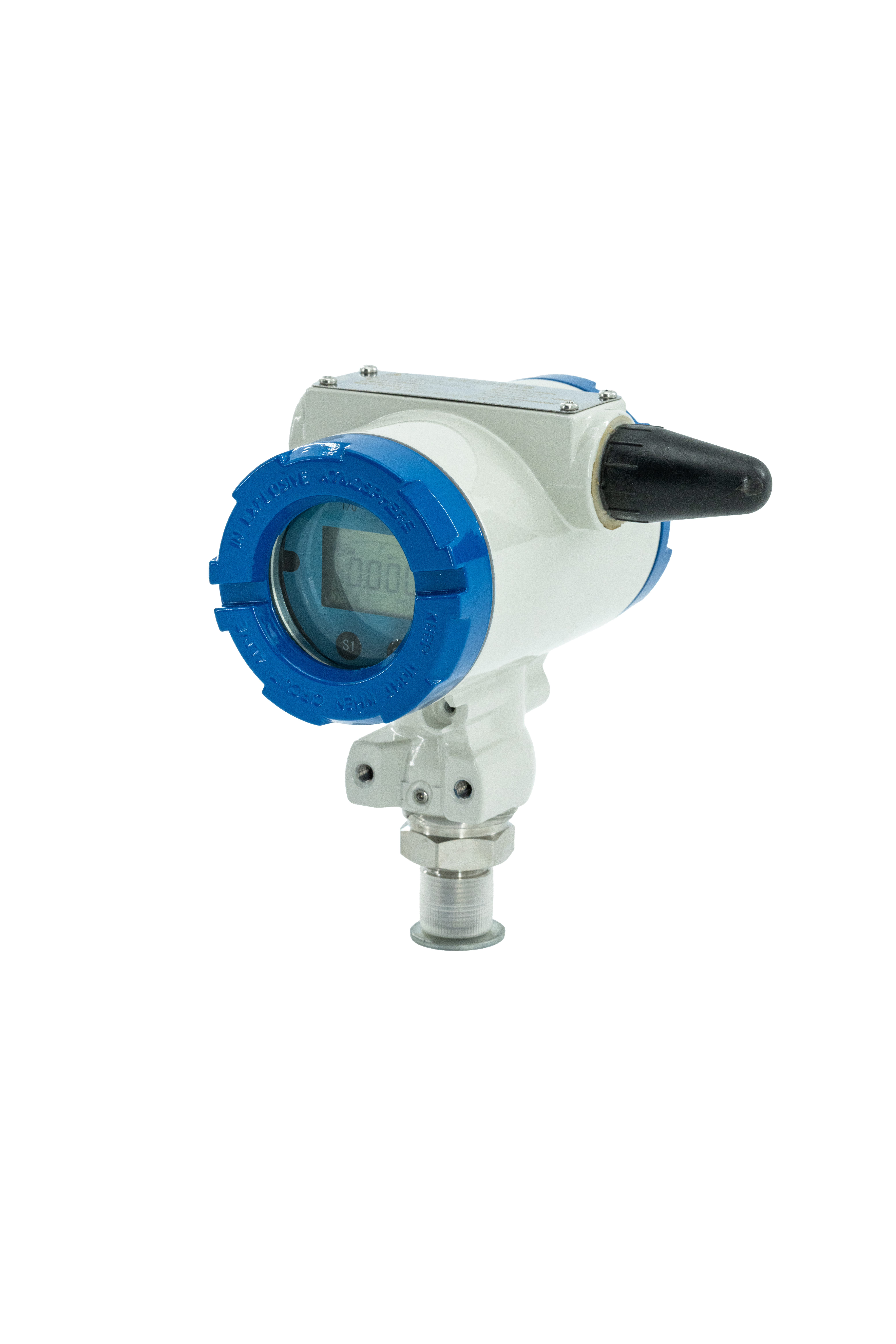

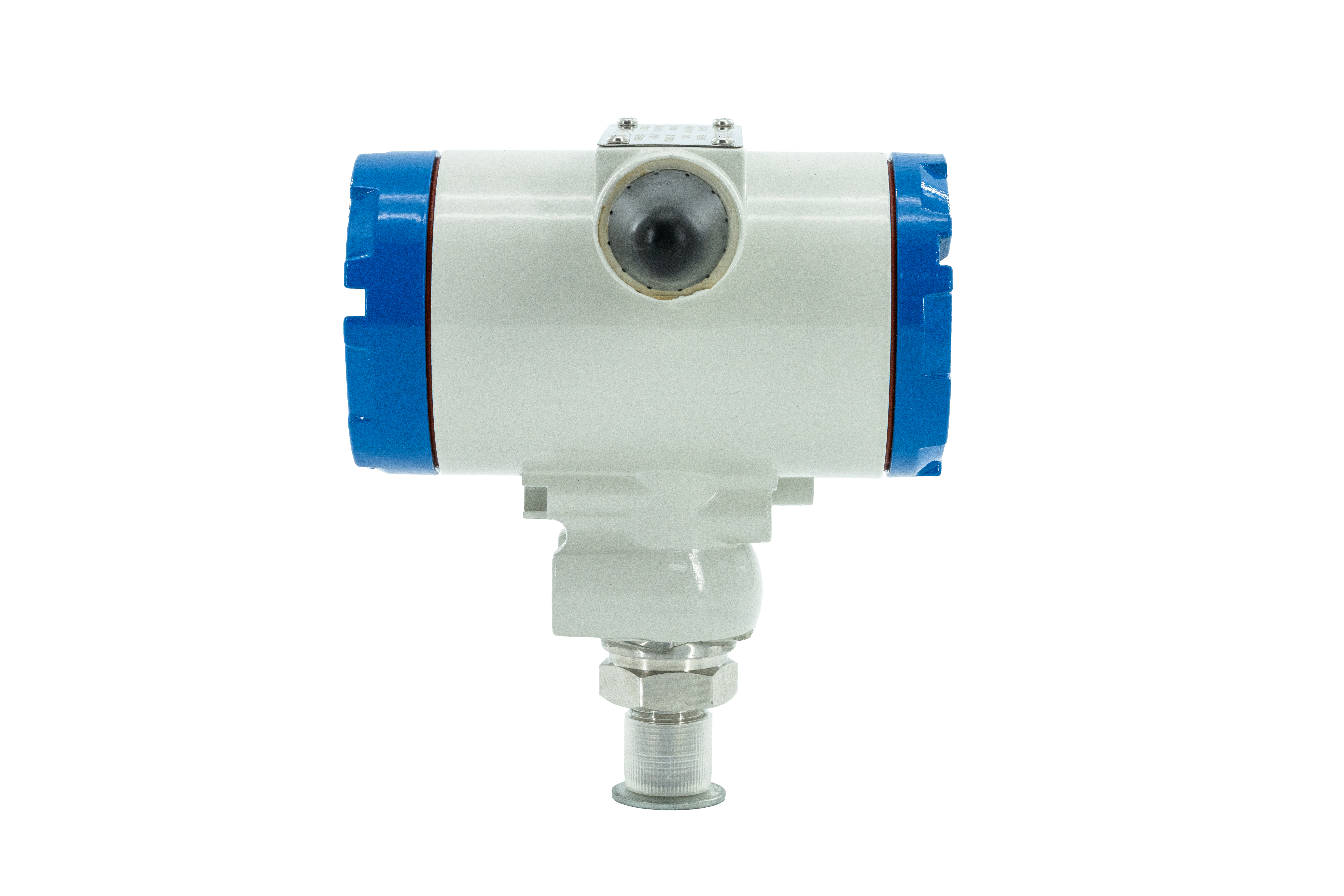

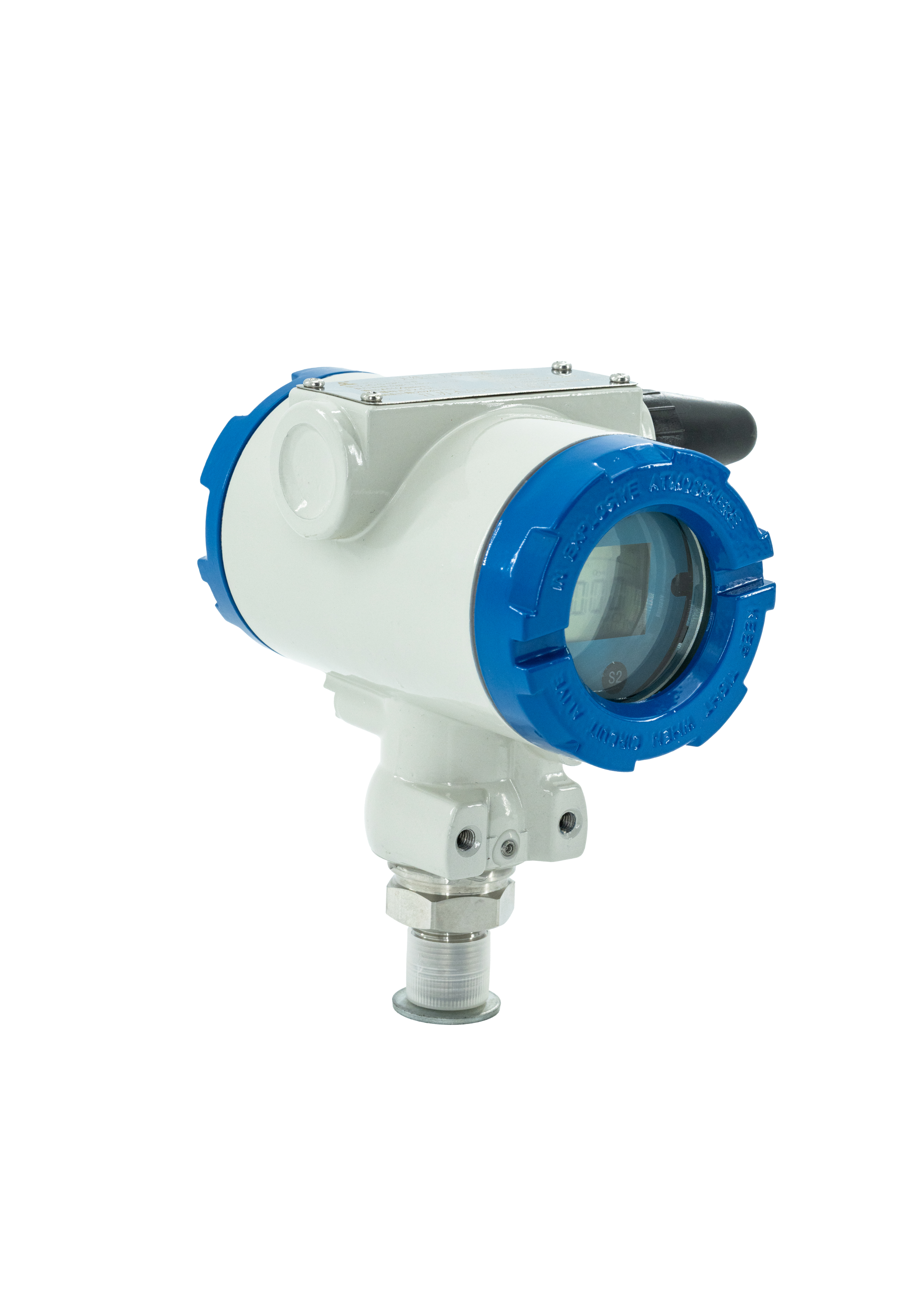

JC-G Series Wireless Pressure Transmitter with Display

JC-G Series Wireless Pressure Transmitter with Display

Overview

• This wireless pressure transmitter works without signal cables.

• It uses replaceable lithium battery for long-term outdoor monitoring.

• The wireless signal head matches all our standard mounting bases freely.

• You can choose thread, sanitary tri-clamp, remote flange, 3-valve or 5-valve manifold base for gauge, absolute and differential pressure test.

• LCD screen shows real-time pressure data for easy on-site check.

Application

1. Water treatment: pipeline & storage tank wireless pressure collection

2. Oil & gas: remote pipeline, wellhead differential pressure monitor with 3/5 valve manifold

3. Chemical plant: corrosive medium pressure test via remote flange capillary

4. Power station: boiler pressure, flow differential pressure remote monitoring

5. Food & pharmacy: hygienic tri-clamp wireless transmitter for bioreactor, dairy pipeline

6. HVAC & machinery: hydraulic equipment distributed pressure IoT monitoring

7. Unattended outdoor sites: mountain pipelines, remote storage tanks without power supply

Features

1. Modular interchangeable mounting base

Wireless signal head is separated from pressure measuring base, multiple options available:

• Thread direct mount (M20×1.5, 1/2NPT, G1/2): general gauge & absolute pressure

• Sanitary Tri-Clamp mount (1.5”,2”): food, beverage, pharmaceutical hygienic pipeline

• Remote flange seal with oil-filled capillary: viscous, corrosive, high temperature medium

• 3-valve / 5-valve stainless steel manifold: dedicated for differential pressure (flow & tank level monitoring)

2. Multiple low-power wireless communication modes

LoRaWAN / NB-IoT / 4G LTE / WirelessHART optional, long transmission distance, low power loss

3. Consistent high precision with wired JC transmitters

Accuracy ±0.075% / ±0.2% / ±0.5% FS optional, full temperature & static pressure compensation, tiny long-term drift

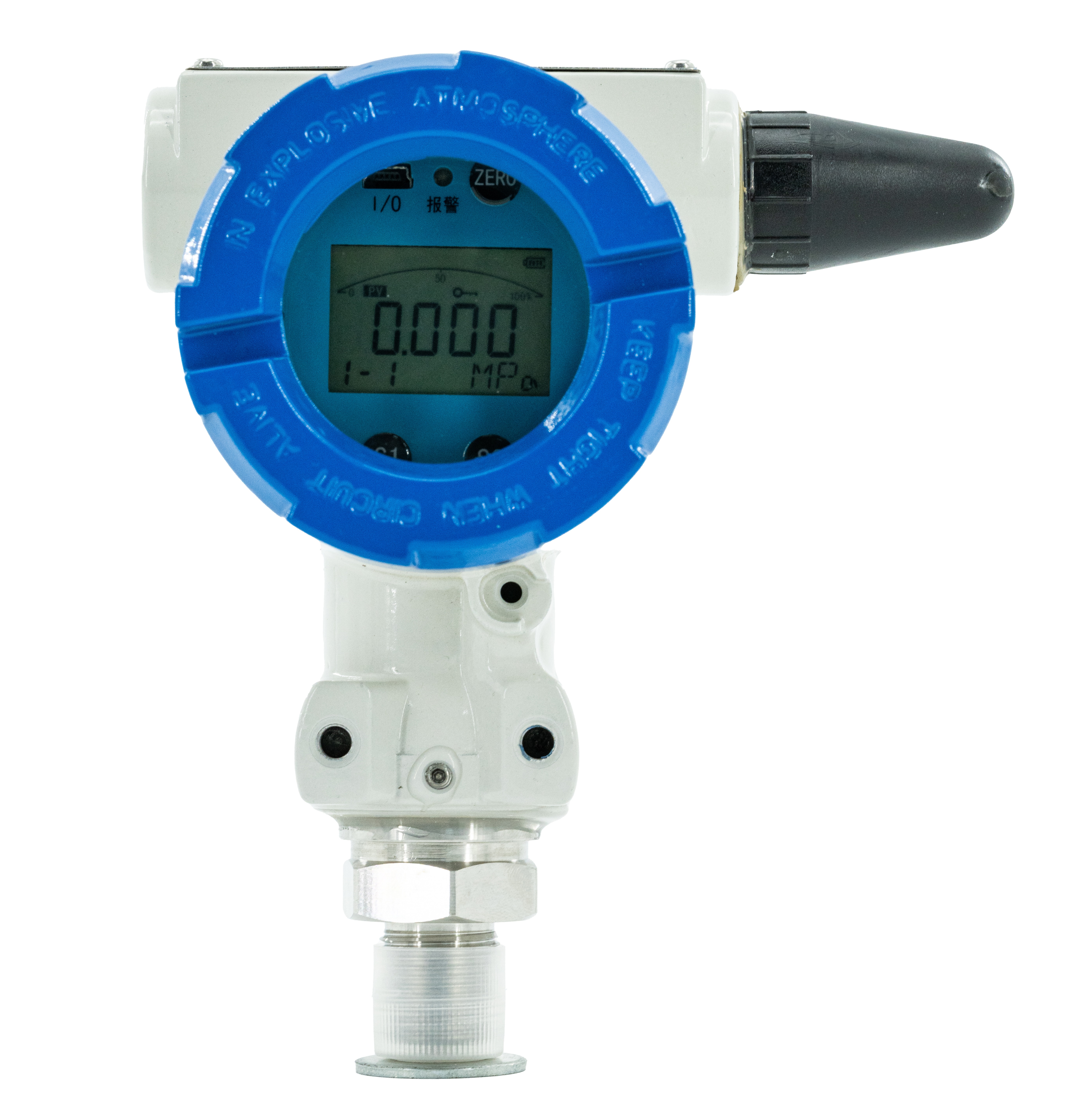

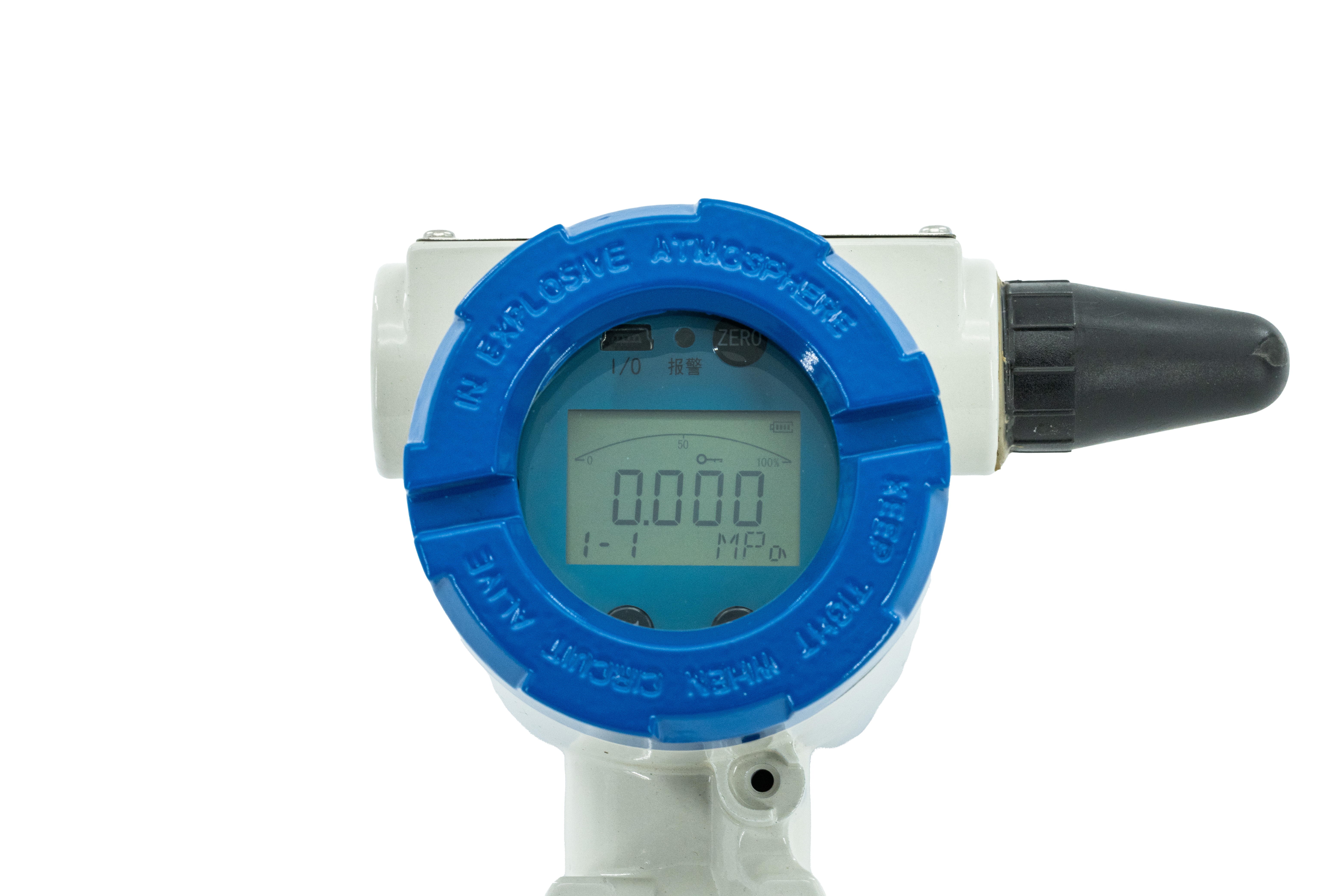

4. On-site digital LCD display

5-digit backlit screen, supports MPa, bar, psi, kPa, %FS multi-units, two physical buttons for zero/span calibration

5. Long service battery life

3.6V replaceable lithium battery, lasts 2–5 years under standard data upload frequency

6. Explosion-proof & robust housing

Die-cast aluminum housing, IP66 protection, optional Ex ia IIC T4 intrinsic safety for hazardous explosive areas

7. No wiring, quick installation

No 24V power supply or signal cable laying required, save construction labor and cost

8. Full pressure type coverage

Gauge pressure, absolute pressure, differential pressure, decided by your selected mounting base

Parameters

Parameters can be customized as required.
