JC-G Series
Jiangsu Jiechuang

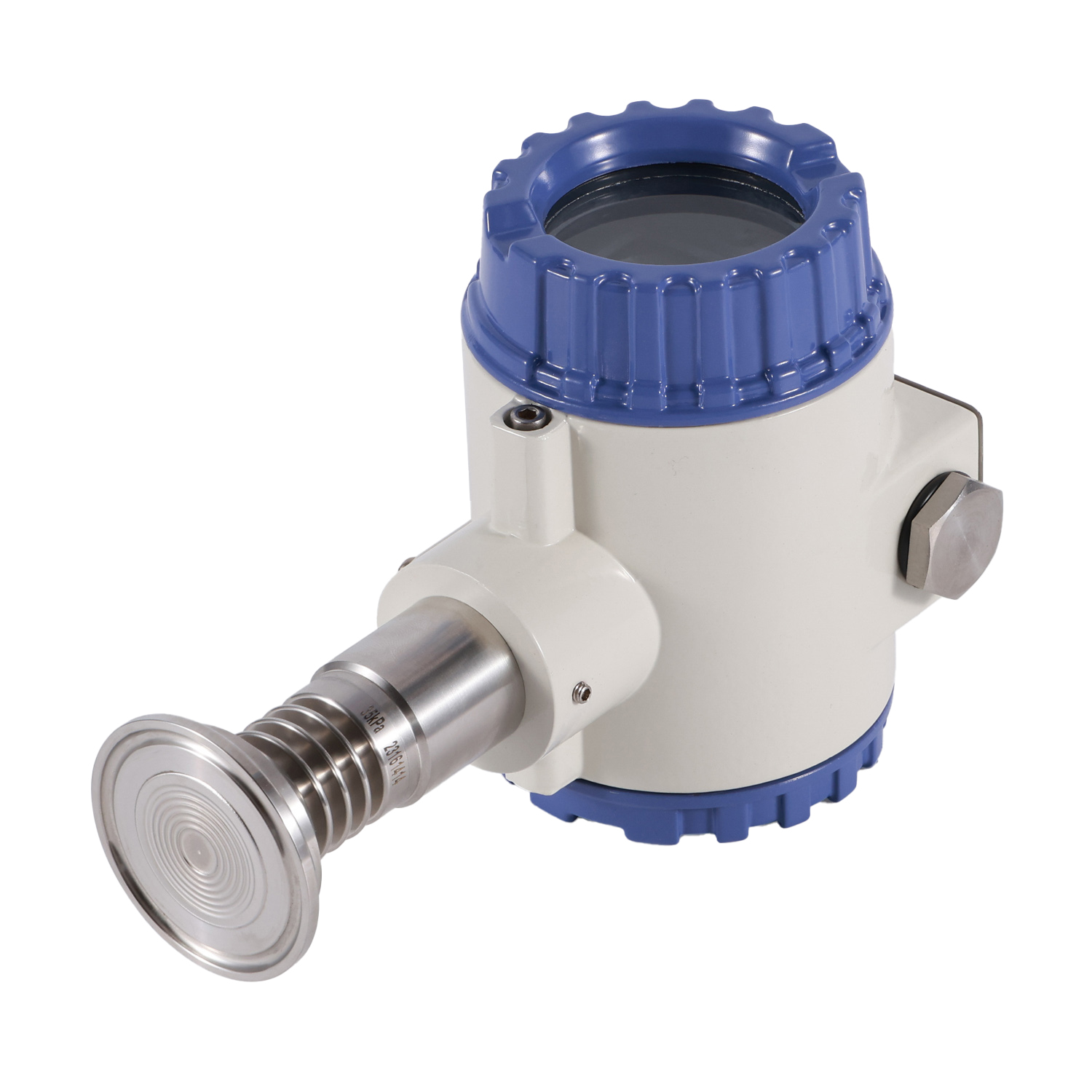

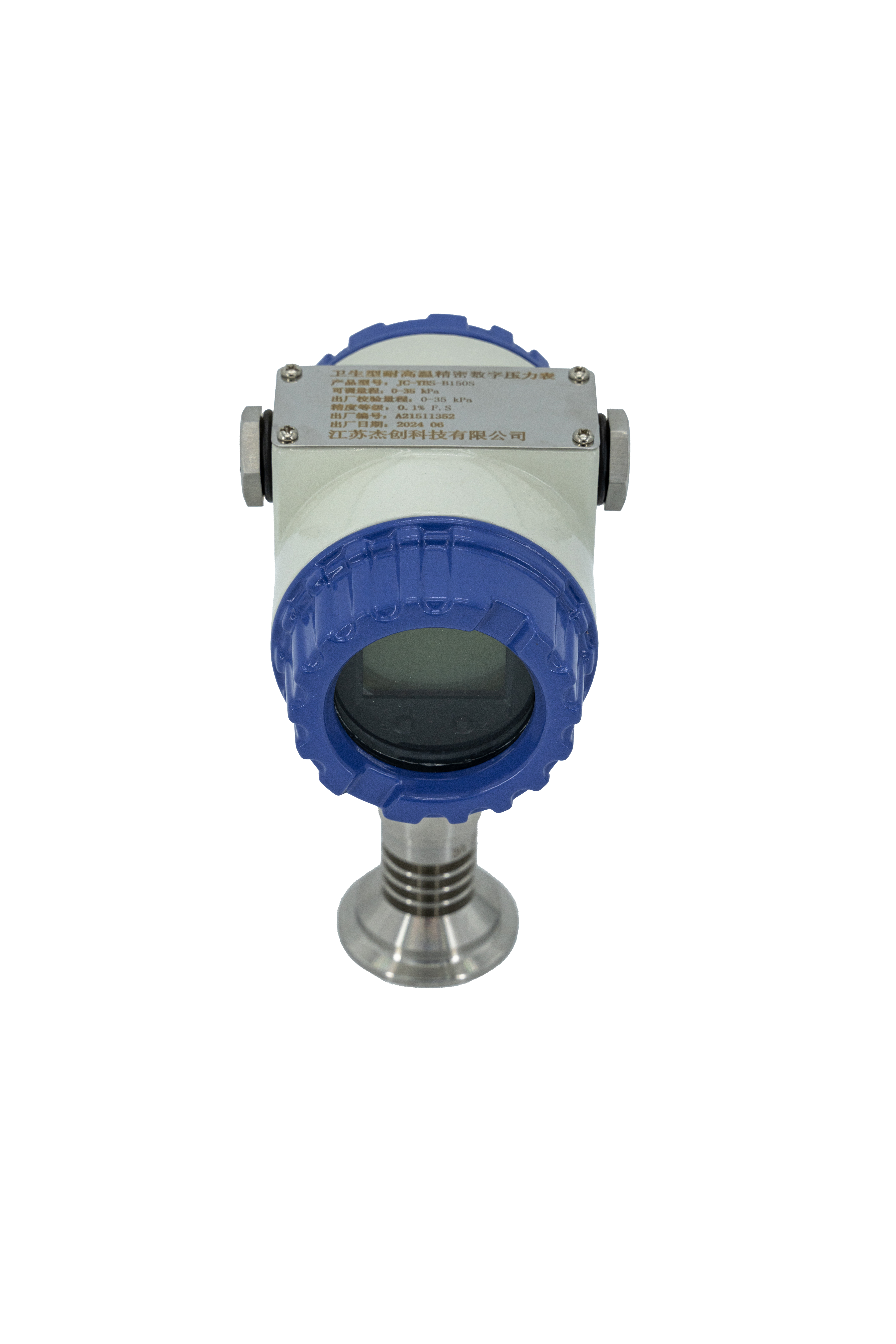

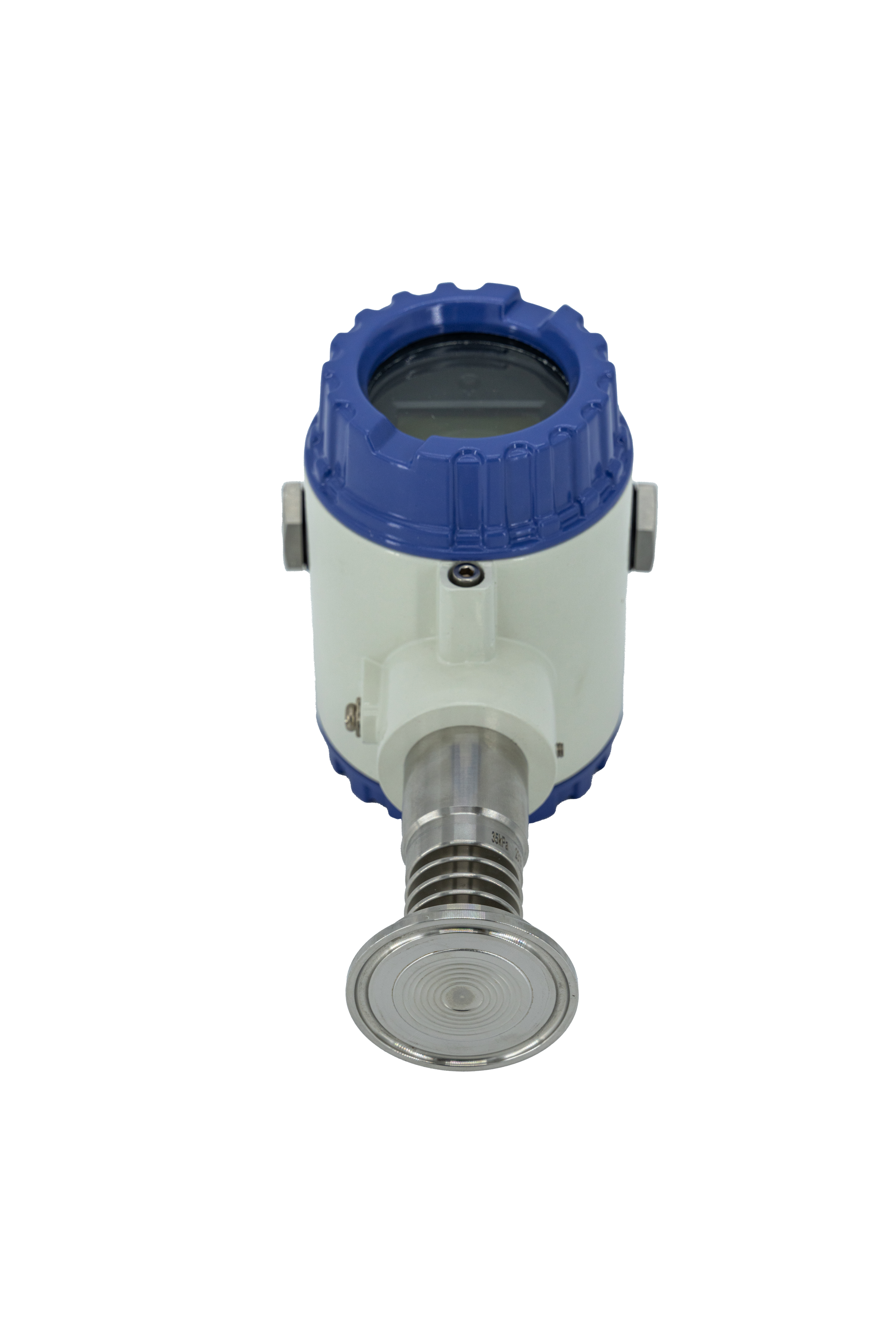

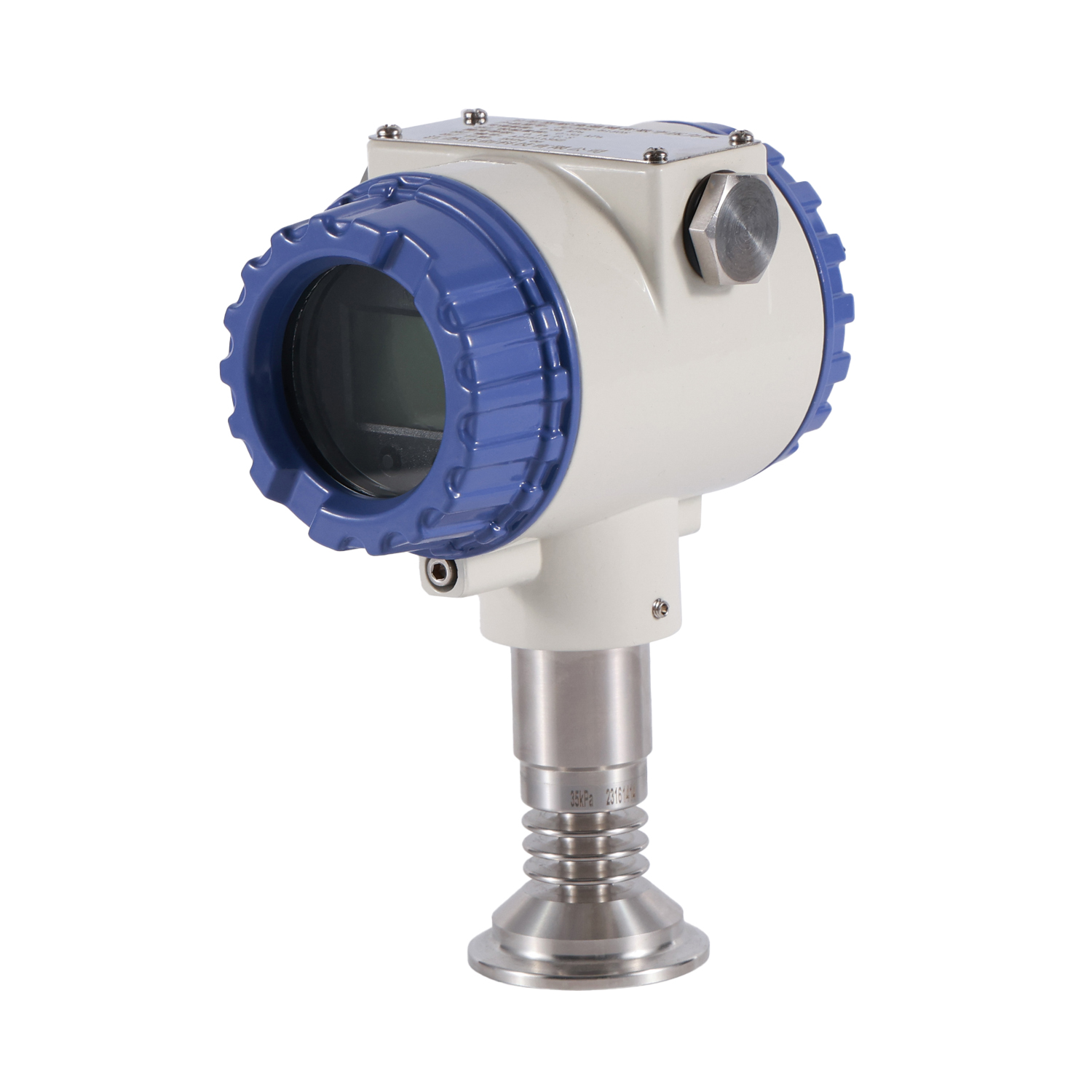

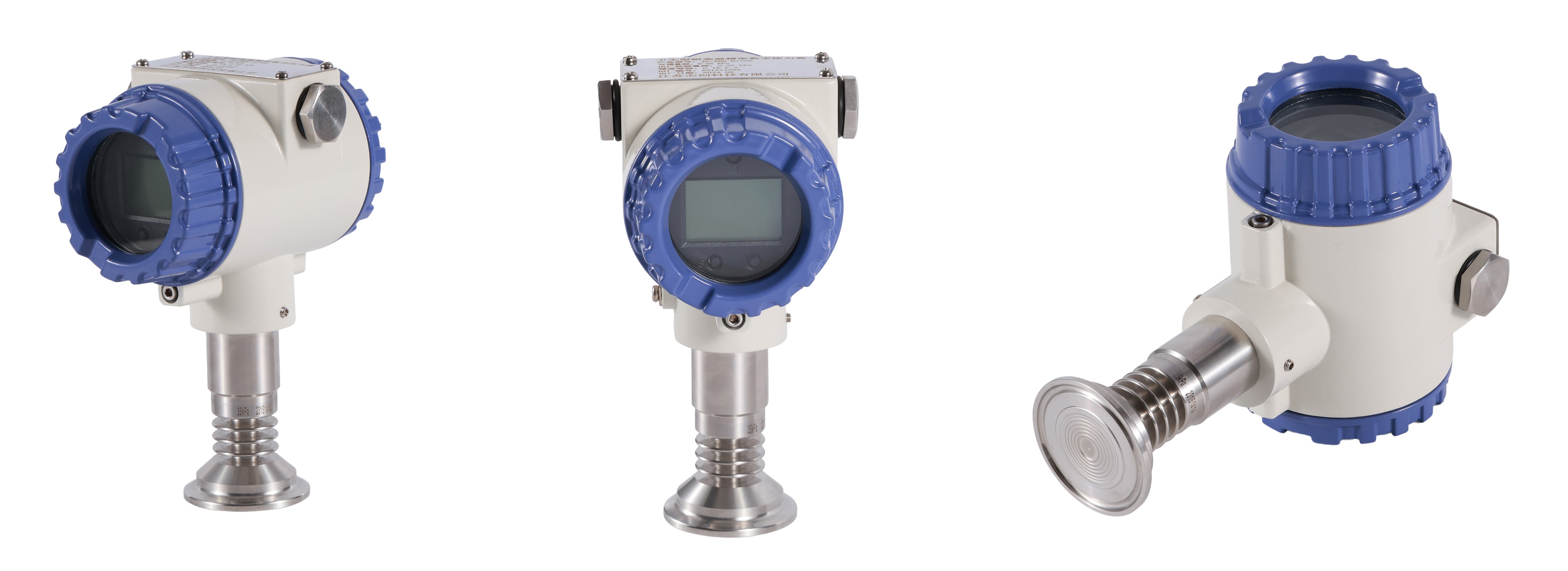

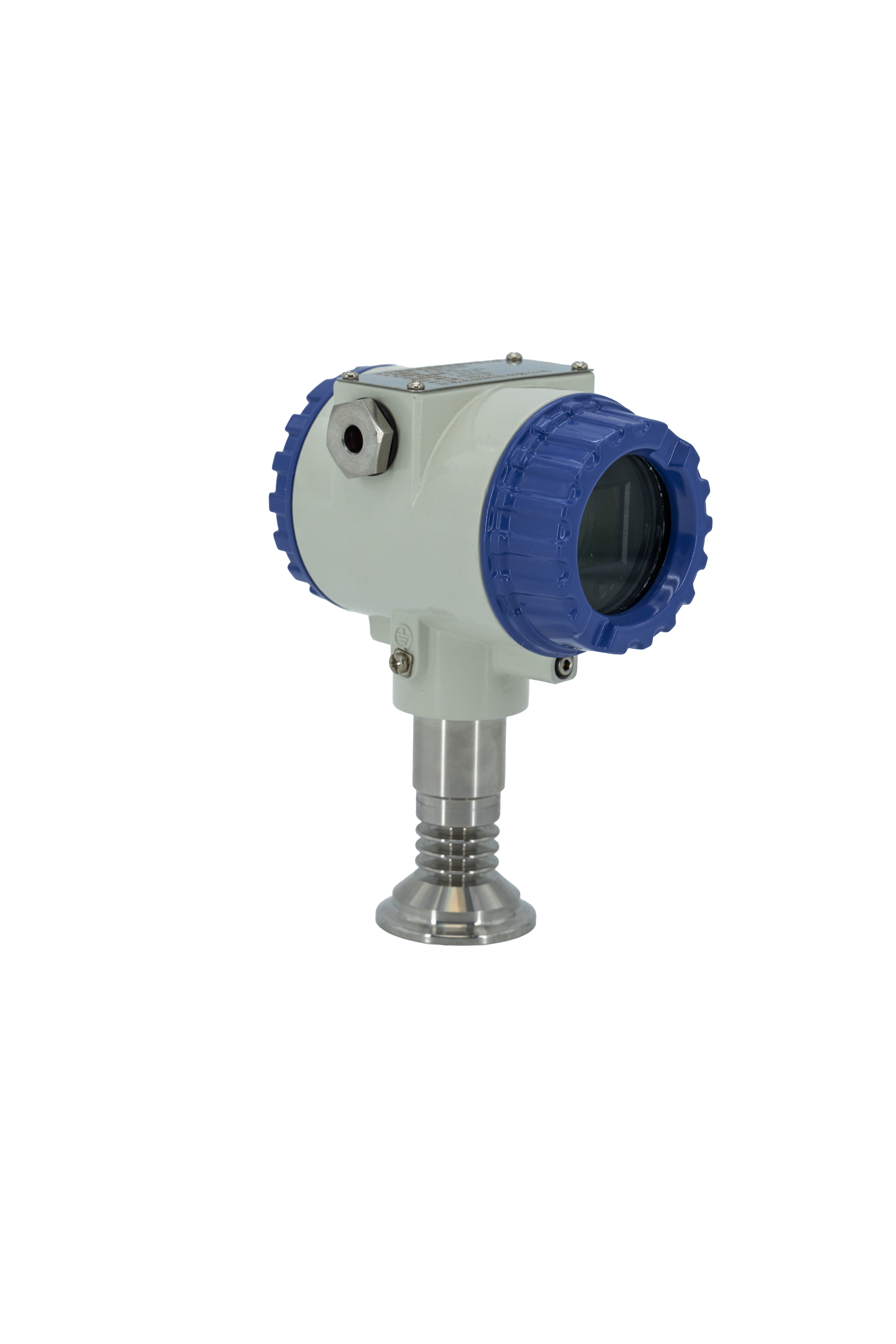

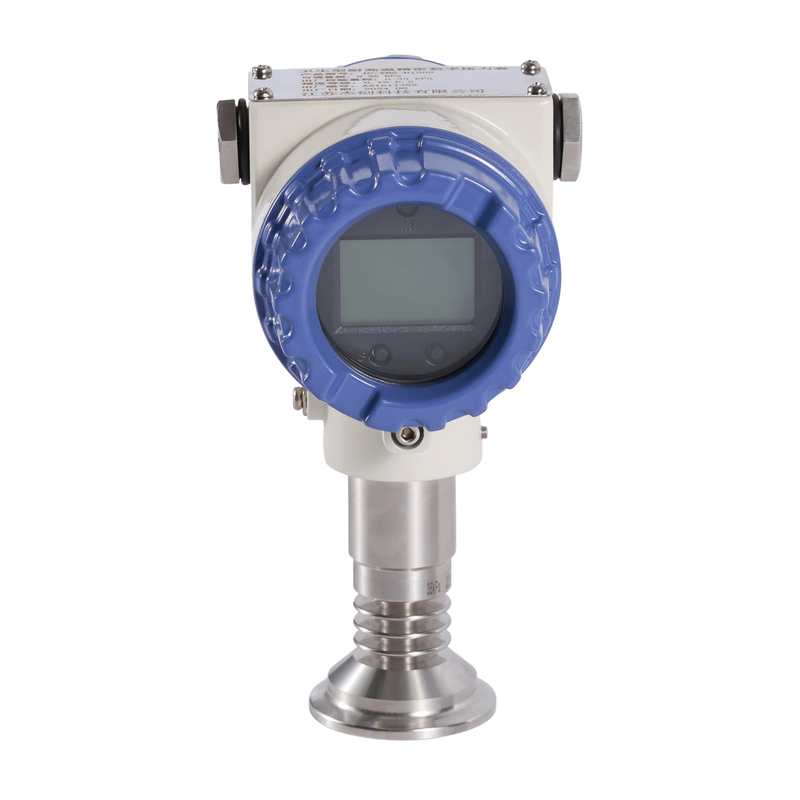

Sanitary Tri-Clamp Pressure Transmitter
This sanitary pressure transmitter uses tri-clamp quick installation structure.
It adopts flush diaphragm design without dead zone to avoid medium residue.
All wetted parts are SUS316L stainless steel, meet food and pharmaceutical hygiene standards.
Built-in LCD display shows real-time pressure value on site.
Standard 4-20mA signal output, HART communication optional.
Beverage factory: pipeline pressure monitoring for juice, beer, mineral water
Dairy production: milk, yogurt, cream pipeline hygienic pressure test
Pharmaceutical plant: bioreactor, injection liquid pipeline pressure measurement
Food processing: sauce, syrup, edible oil transport pipeline monitoring
Cosmetic workshop: lotion, cream mixing tank pressure collection
Brewery & winery: fermentation tank real-time pressure tracking
Hygienic Tri-Clamp Connection
Standard 1.5” / 2” tri-clamp size, fast disassembly for CIP/SIP cleaning.
Flush Diaphragm No Dead Space
Flat sensing diaphragm prevents material accumulation, ideal for viscous liquid.
3. Food Grade SUS316L Wetted Parts
Corrosion resistant, compatible with beverage, dairy, syrup and biologic medium.

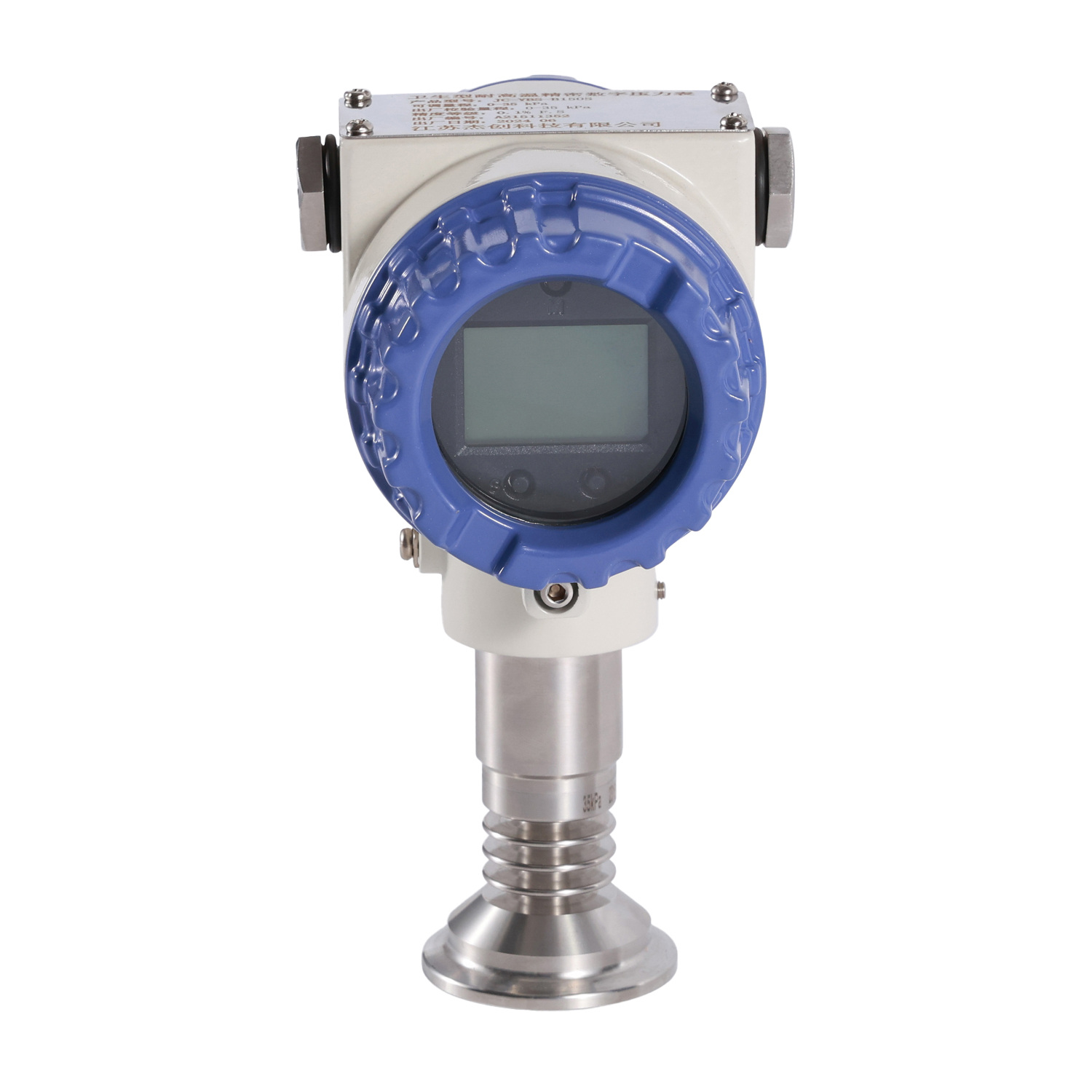

Local Digital LCD Display
Multi-units switch: MPa, bar, psi, kPa; zero & span calibration via two local buttons.
High Precision & Stable Performance
Accuracy ±0.2% / ±0.5% FS, long-term stability ≤±0.05%FS per year.
Multiple Signal Options
4-20mA standard output; HART protocol optional for remote parameter adjustment.
IP66 Protection & Optional Explosion Proof
Die-cast aluminum housing, Ex ia IIC T4 intrinsic safety available for hazardous workshops.
Fully Customizable
Pressure range, clamp size, cable length and wetted material can be customized.
Item | Specification |
Model | JC-G Series Sanitary Tri-Clamp Transmitter |
Pressure Type | Gauge Pressure / Absolute Pressure |
Measuring Range | -100kPa ~ 40MPa customizable |
Reference Accuracy | ±0.2%FS / ±0.5%FS optional |
Process Connection | 1.5 inch Tri-Clamp, 2 inch Tri-Clamp |
Sensing Diaphragm | SUS316L standard; Hastelloy C-276 optional |
Output Signal | 4-20mA DC, HART protocol optional |
Display | 5-digit backlit LCD multi-unit display |
Medium Temperature | -20℃ ~ +120℃ (SIP sterilization short time 150℃) |
Ambient Temp | -40℃ ~ +85℃ |
Protection Grade | IP66 |
Explosion Proof | Optional Ex ia IIC T4 Intrinsic Safety |
Long-term Stability | ≤ ±0.05%FS per year |
Overpressure Capacity | 150% FS |
Parameters can be customized as required.
