JC-YBS Series
Jiangsu Jiechuang

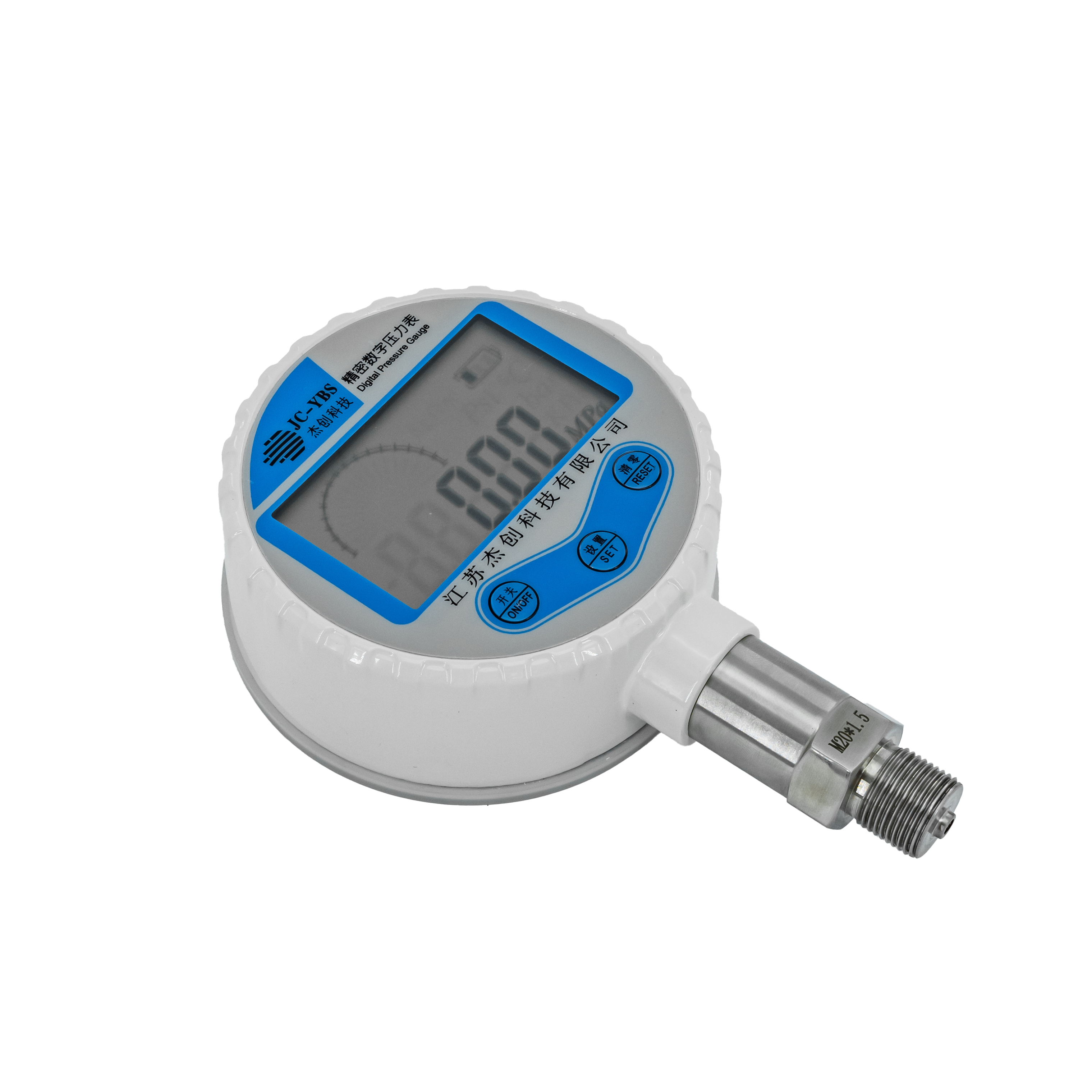

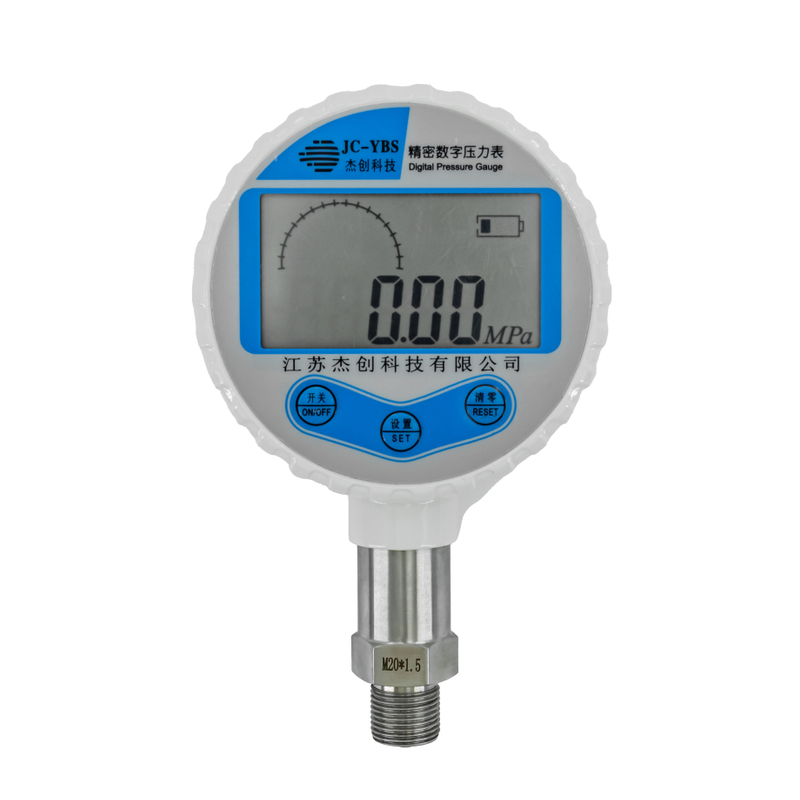

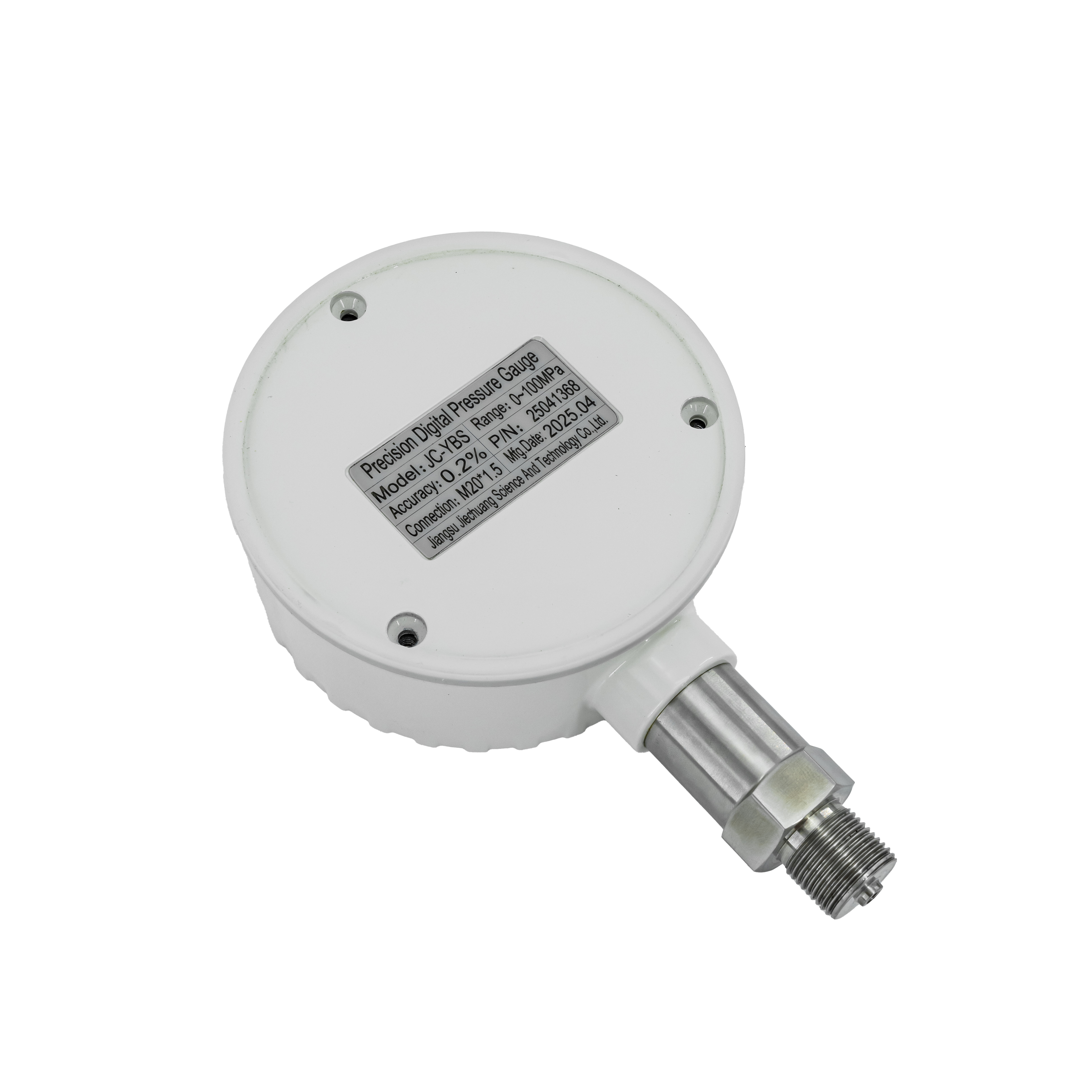

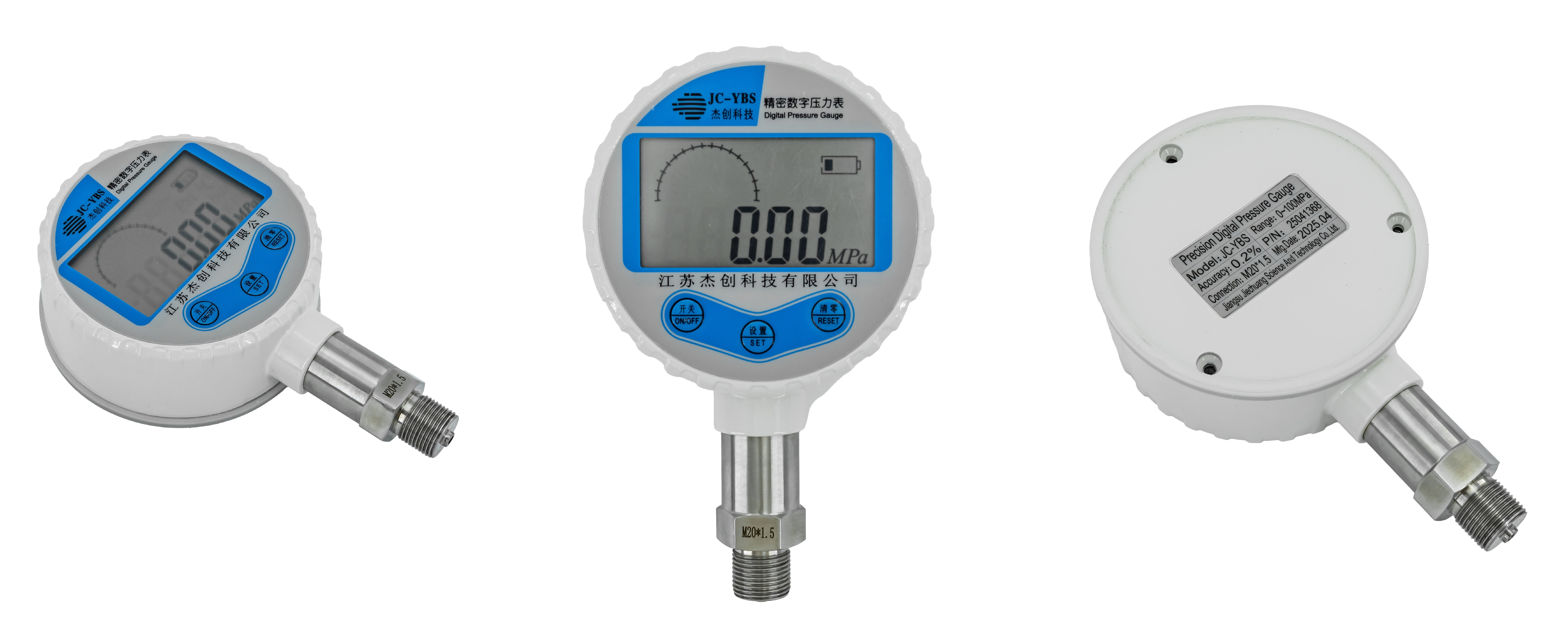

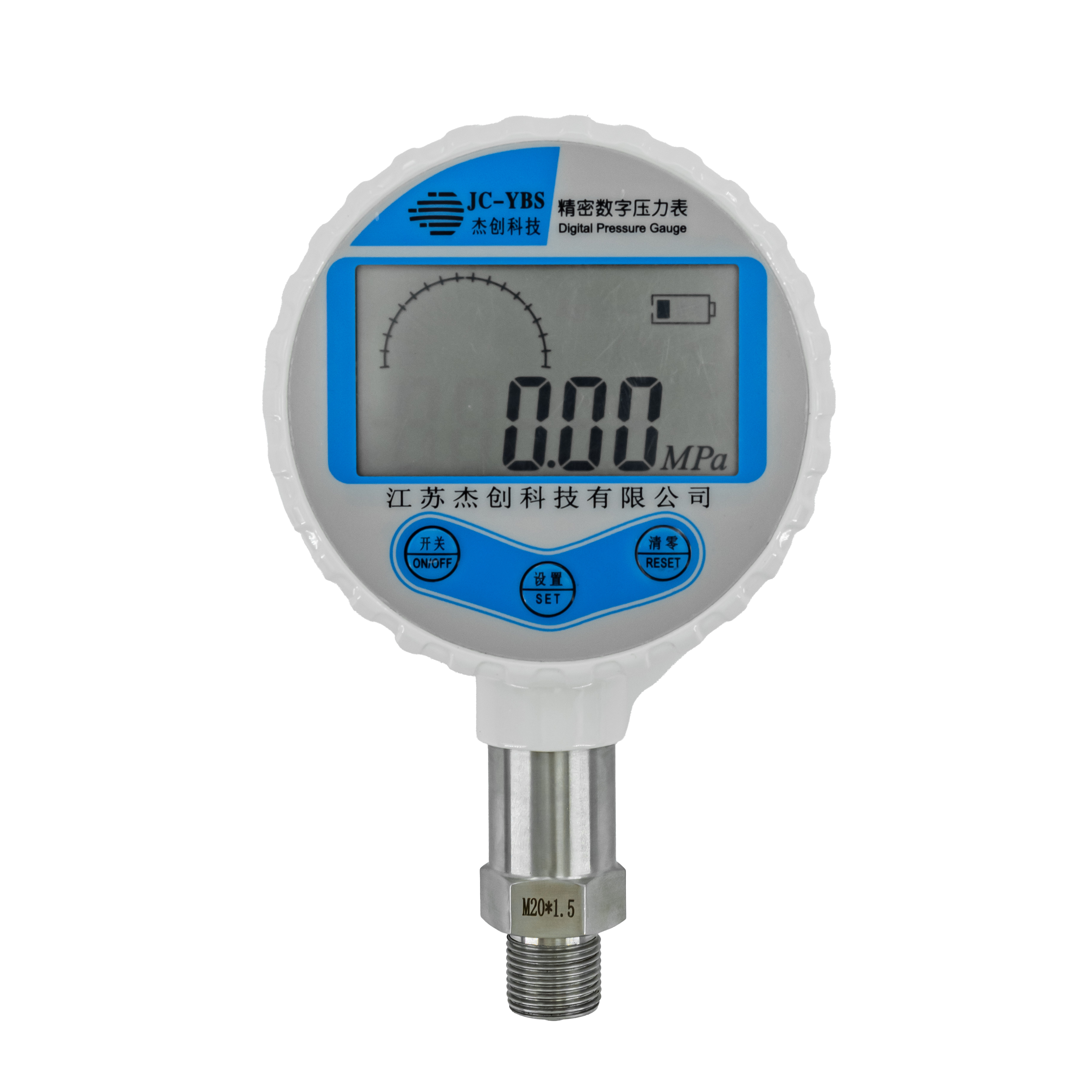

JC-YBS Aluminum Case Precision Digital Pressure Gauge
Overview
This is a high-precision digital pressure gauge with durable die-cast aluminum housing.
It replaces traditional mechanical pressure gauges with stable performance and clear digital readings.
It is powered by a built-in lithium battery without external power supply.
This gauge features low temperature drift and strong anti-interference ability.
It can work stably in various industrial and metrology environments.
Application
Pressure calibration on calibration bench
Calibration of pressure transmitters and pressure switches
Pressure testing in metrology laboratories
Pipeline pressure monitoring for chemical, petroleum and power industries
Hydraulic and pneumatic system pressure detection
On-site pressure inspection and equipment maintenance
Features
1. Robust Die-cast Aluminum Housing：Light weight, high strength, shockproof and anti-collision, better heat dissipation than plastic shell, suitable for harsh industrial environments.
2. Multiple Accuracy Options：Optional 0.2% / 0.25% / 0.4% / 0.5% FS, meet general industrial and metrology calibration standards.
3. Ultra-long Battery Life：Built-in 3.6V non-rechargeable lithium battery, continuous working time up to 2~3 years, no frequent battery replacement.
4. Full Range Pressure Measurement：Measuring range from -100 kPa to 100 MPa, covers vacuum, low pressure and high pressure working conditions.
5. Multi-unit Switchable：Support MPa, bar, kPa, psi, kgf/cm², mmHg and other common pressure units, flexible for global use.
6. Easy Operation：One-key zero reset, full range query and unit switching functions, simple button operation.
7. High Overload Resistance：1.5 times full scale overload capacity, effectively protect the internal sensor.
8. IP65 Protection Grade：Dustproof and splash-proof, adapt to indoor and outdoor industrial sites.
9. Excellent Stability：Adopt silicon diaphragm pressure sensor and microprocessor, low temperature drift, long-term stable measurement.
Technical Parameters
Classification | Item | Specification |
Basic Info | Product Model | JC-YBS Aluminum Case Precision Digital Pressure Gauge |
Dial Diameter | Φ110 mm | |
Housing Material | Die-cast Aluminum Alloy | |
Wetted Part Material | 316L Stainless Steel | |
Pressure Performance | Measuring Range | -100 kPa ~ 0 ~ 100 MPa (custom ranges available) |
Accuracy Class | 0.2% FS / 0.25% FS / 0.4% FS / 0.5% FS (optional) | |
Overload Capacity | 1.5 times of full scale | |
Display | 5-digit LCD dynamic display | |
Working Environment | Medium Temperature | -20 ~ 80 °C |
Ambient Temperature | -30 ~ 60 °C | |
Relative Humidity | ＜ 80% RH (non-condensing) | |
Protection Grade | IP65 | |
Power Supply | Power Type | Built-in 3.6V Lithium Battery (Non-rechargeable) |
Continuous Working Time | 2 ~ 3 years | |
Connection | Thread Interface | M20×1.5 / G1/4 / G1/2 (customizable) |
Operation Function | Core Function | Power on/off, one-key zero reset, full range query, unit switching |
All parameters can be customized as required.
