Hydraulic Calibrator Pump with Digital Pressure Gauge

Hydraulic Pressure Calibration Pump with Precision Digital Gauge

Overview

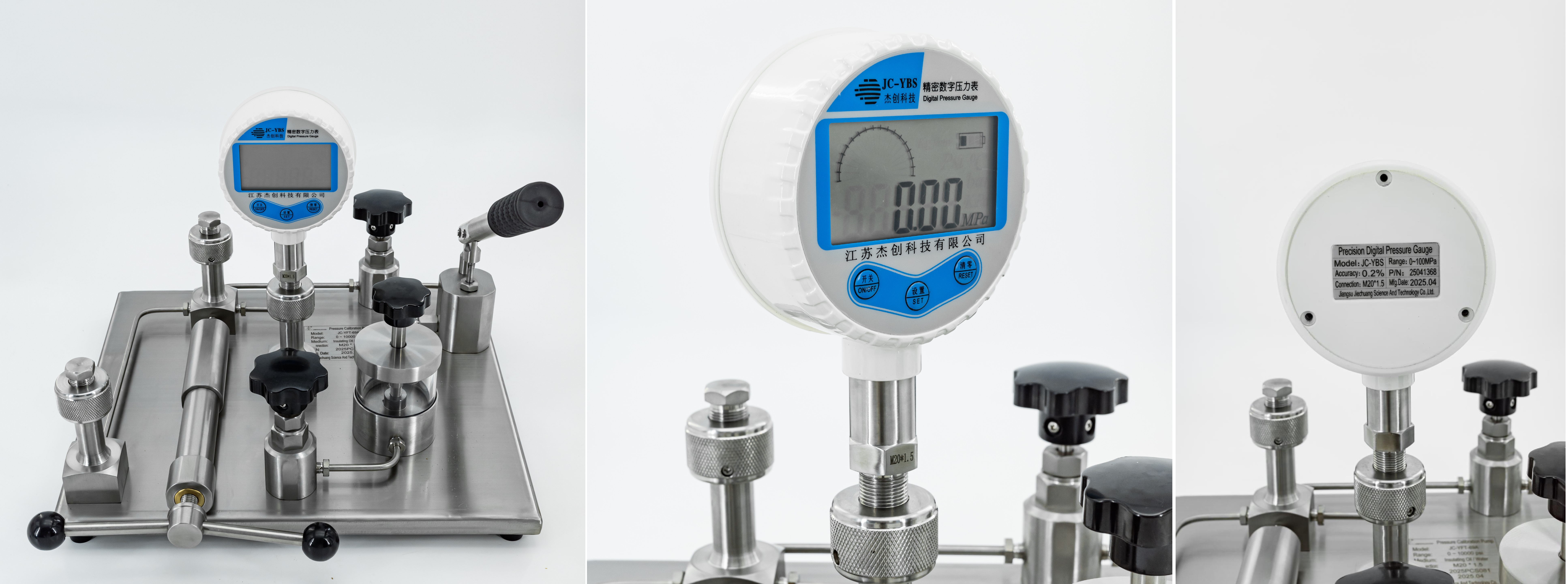

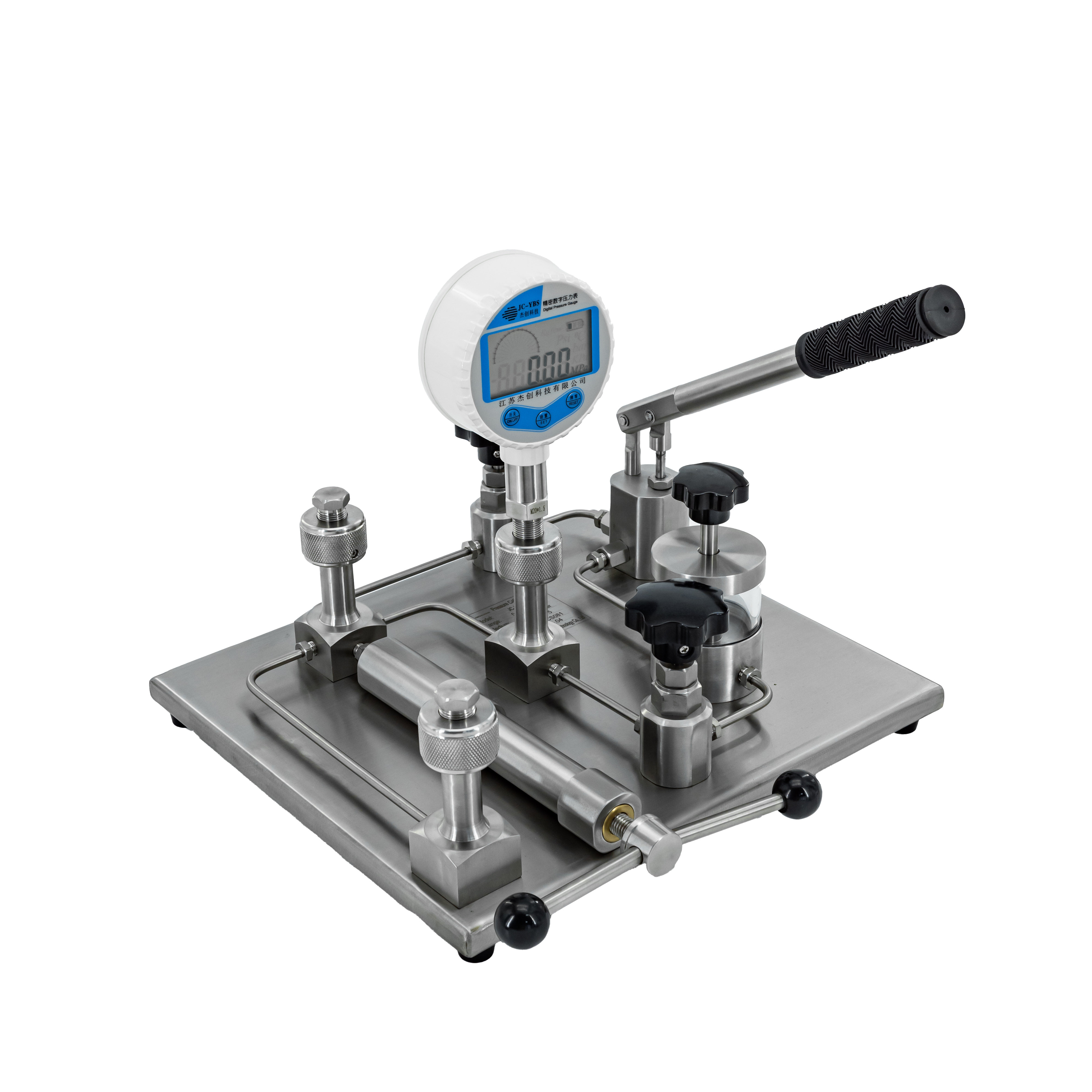

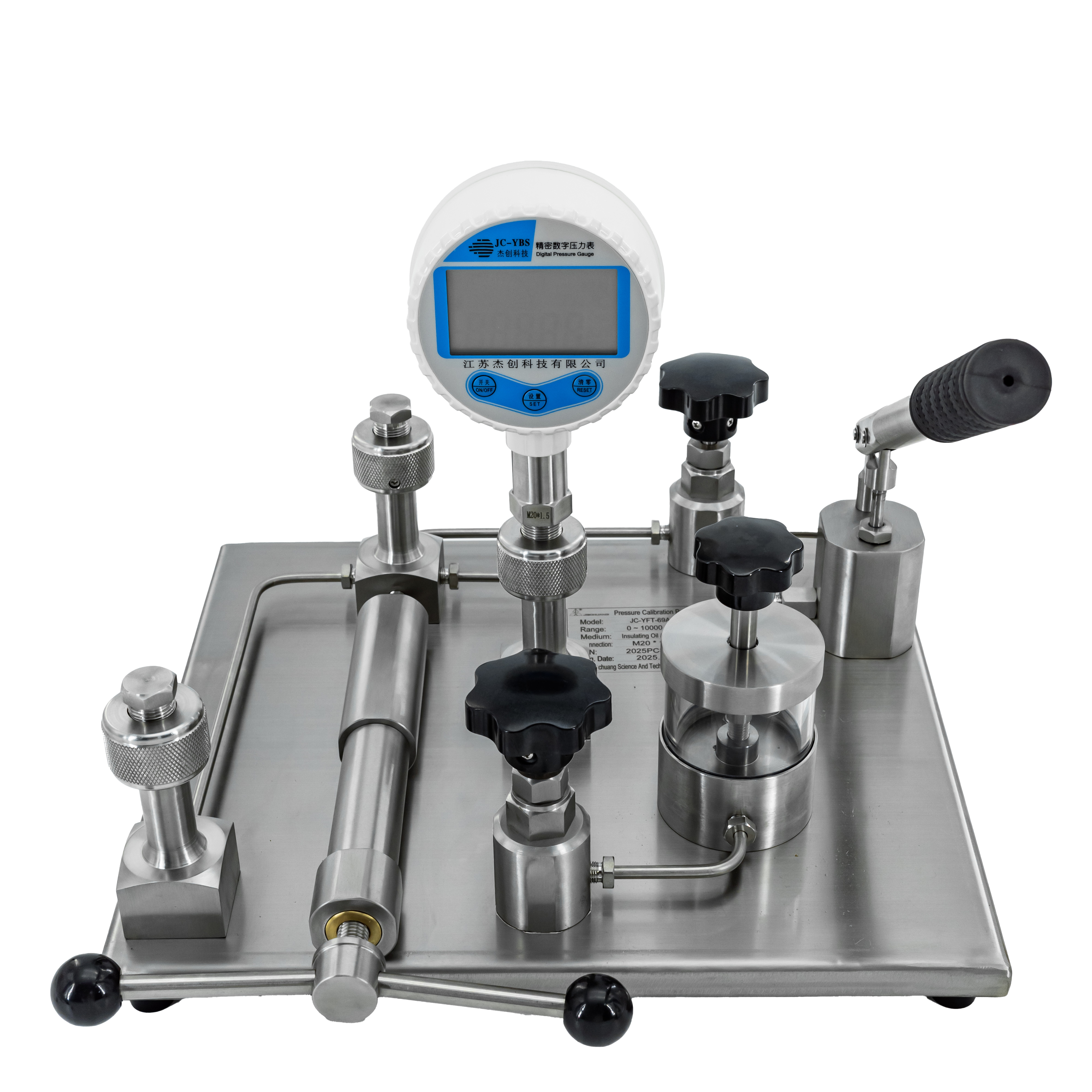

This is a manual hydraulic pressure calibration pump integrated with a high-precision digital pressure gauge.

It is designed for calibrating pressure gauges, pressure transmitters, and pressure switches in field or laboratory environments.

The system generates stable hydraulic pressure up to high range for accurate comparison and verification.

Application

1. Metrology institute laboratory for pressure gauge verification

2. Instrument factory production line quality inspection

3. Petrochemical plant on-site pressure instrument calibration

4. Power plant, boiler room regular pressure equipment testing

5. Water treatment, pharmaceutical industrial instrument maintenance

6. Third-party testing laboratory calibration service

7. Mining, hydraulic machinery pressure component inspection

 Features

1. Hand-operated hydraulic pressure generation

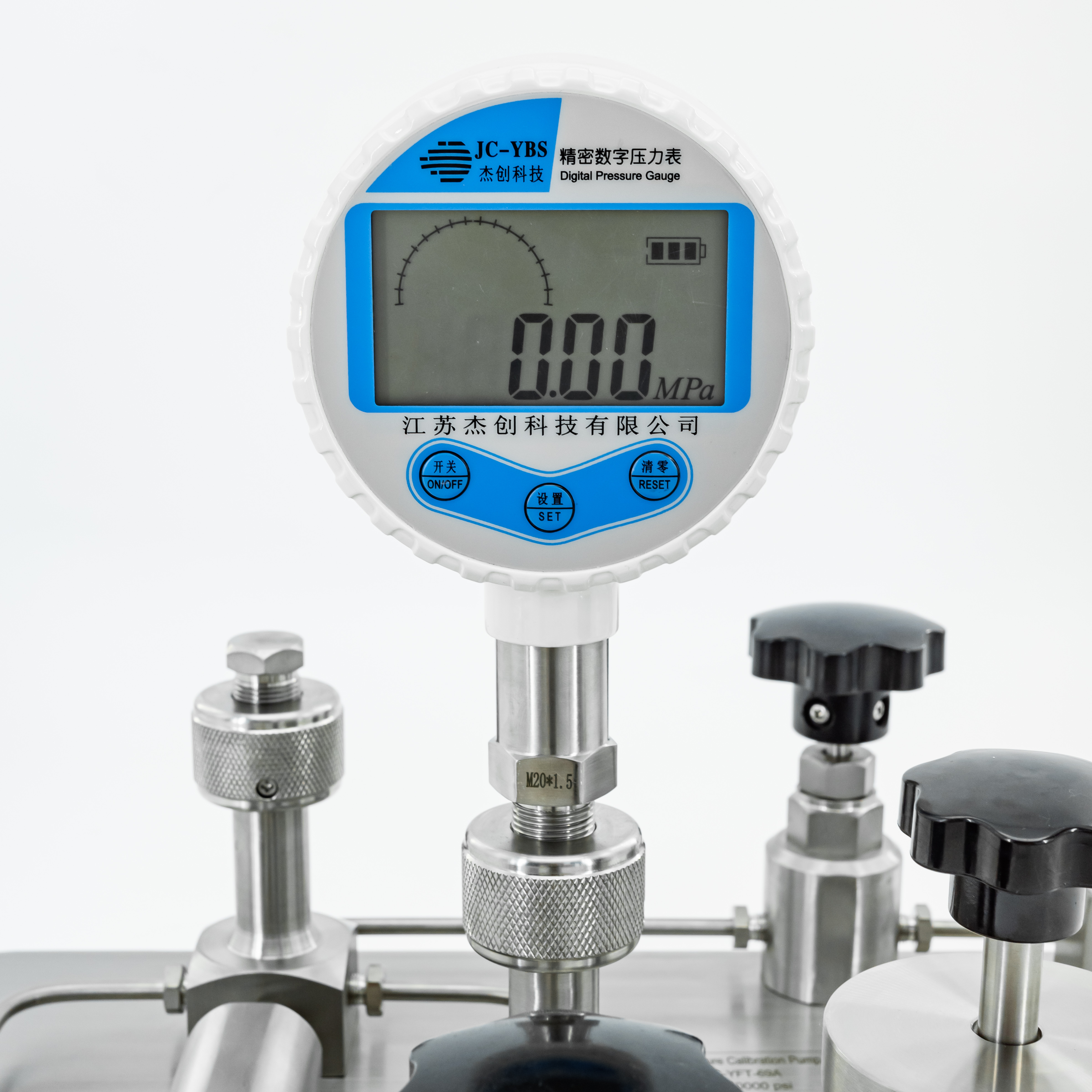

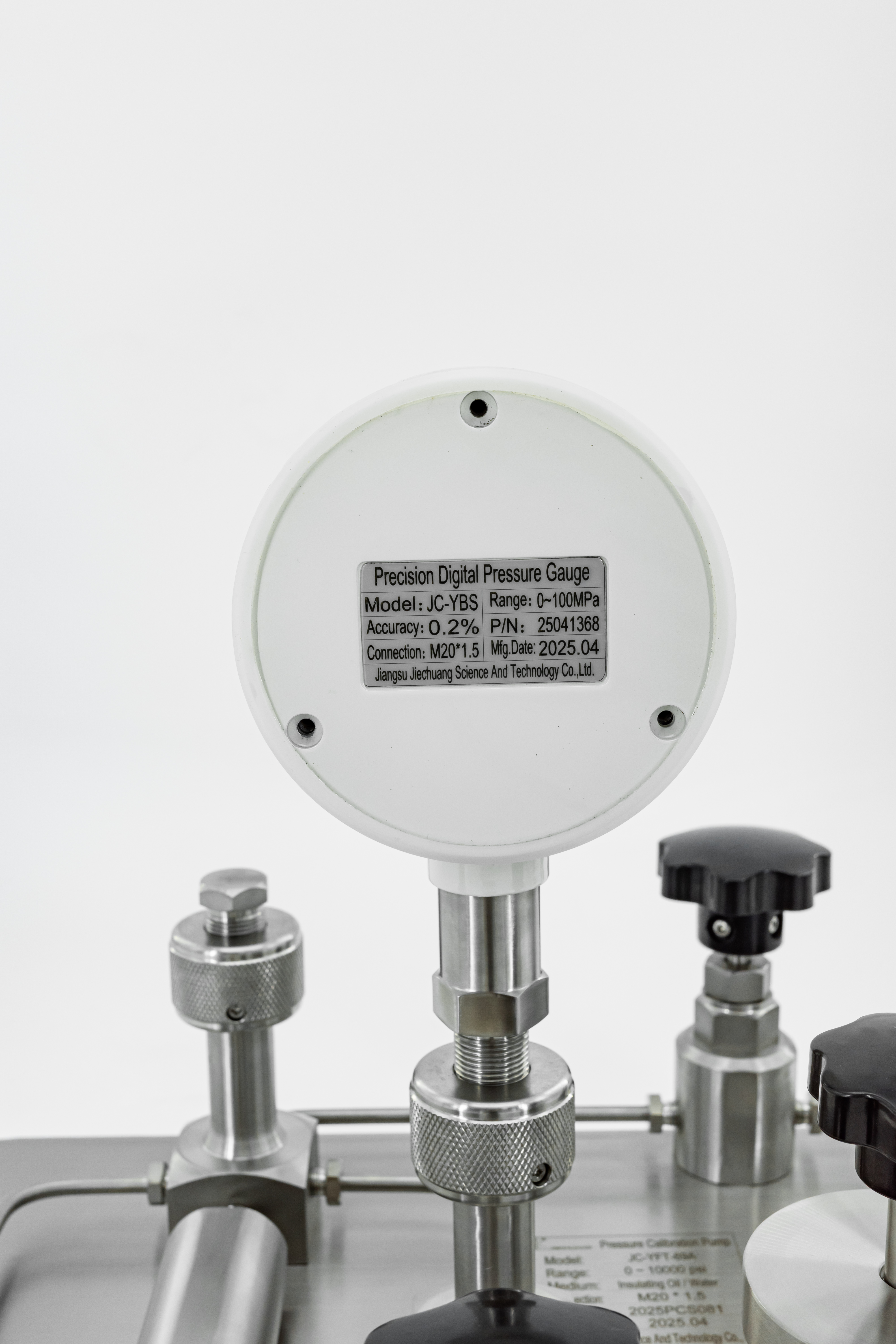

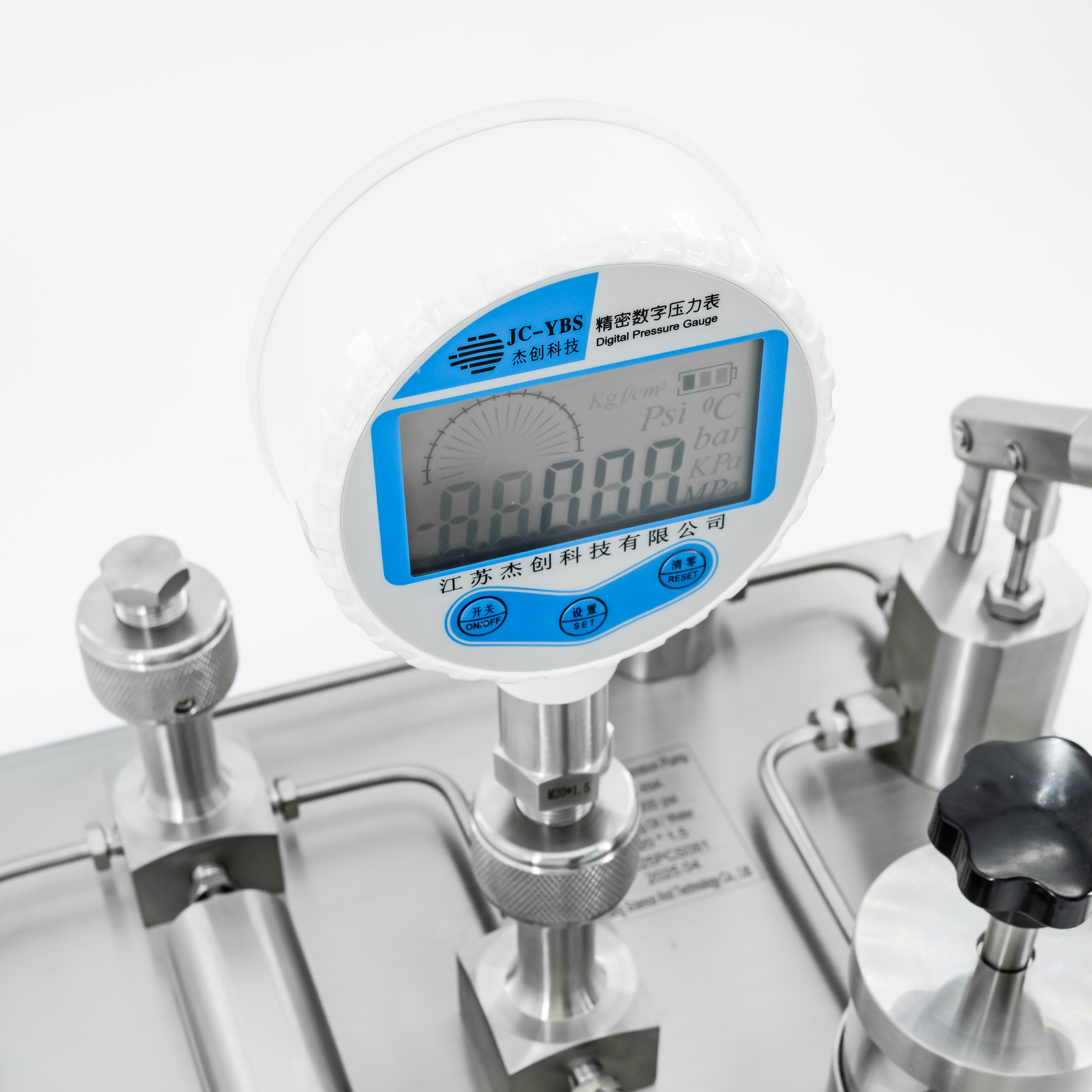

2. Integrated precision digital standard pressure gauge

3. High stability pressure output with fine adjustment

4. Portable stainless steel structure

5. Screw main pressurization + hand boost pump, fast & fine pressure adjustment

6. Dual test connection ports, simultaneous calibration of two pressure instruments

7. Easy operation, no external power required (pump part)

8. High accuracy measurement system

Working Principle

Hydraulic oil acts as pressure transmission medium inside closed pipelines. Rotate main screw and shake auxiliary hand pump to generate stable high pressure. The matched digital standard gauge displays accurate internal pressure value. Mount tested pressure gauges or transmitters on spare test ports, compare readings between standard gauge and tested instruments to complete calibration. Separate valves control boosting, stabilizing and pressure relief independently.

Parameters

Parameters can be customized as required.
