JC-YFT-Y
Jiangsu Jiechuang

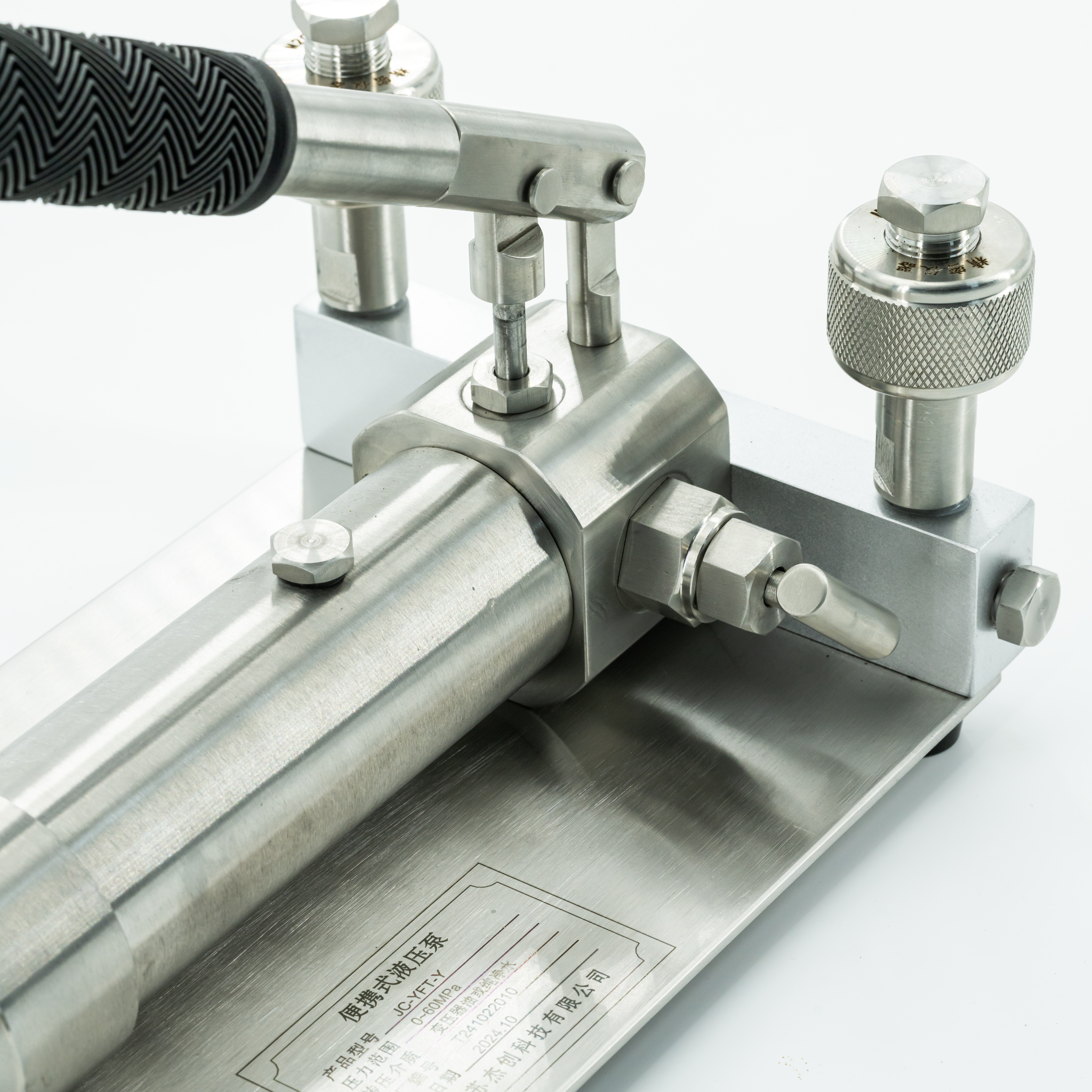

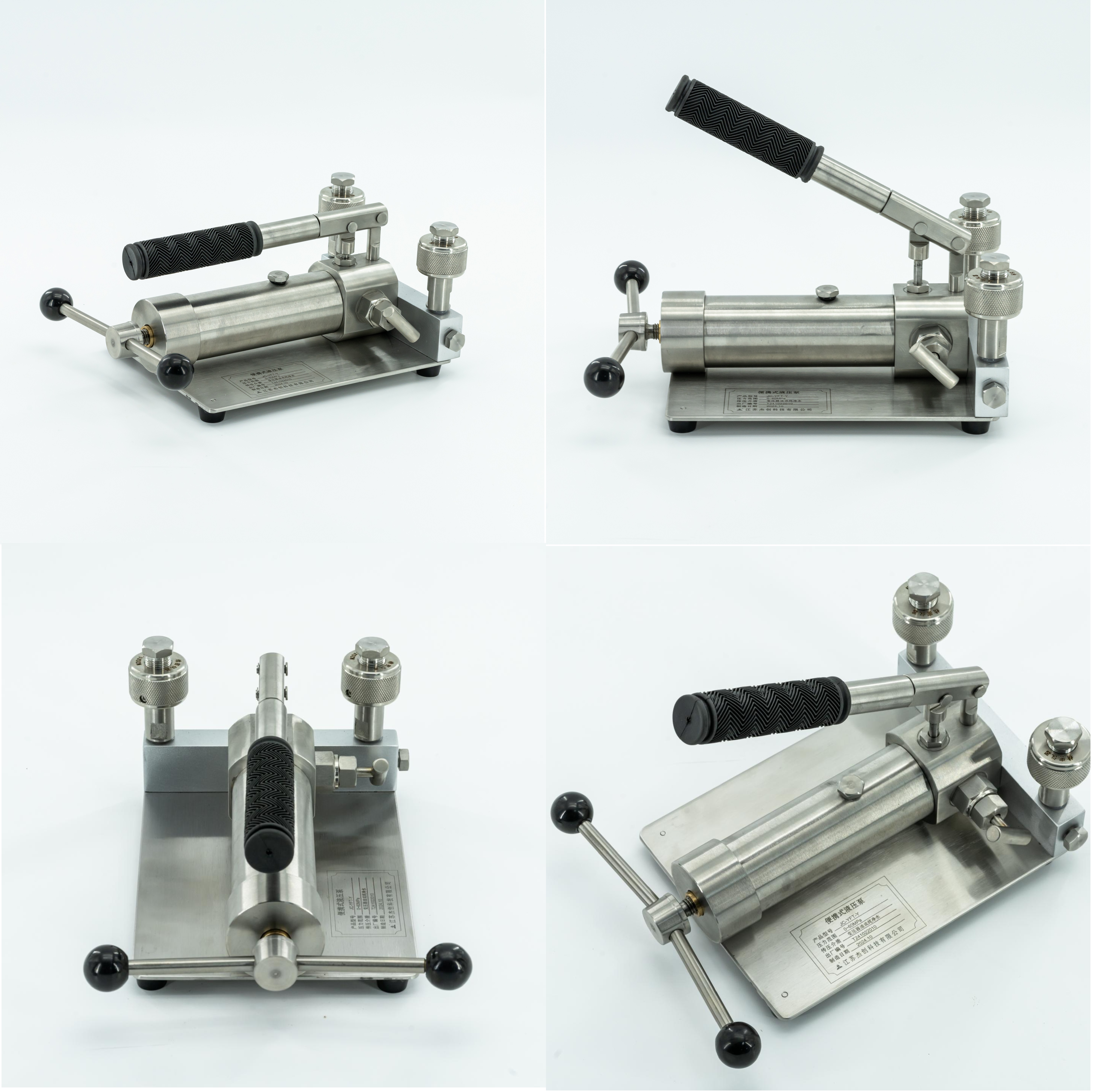

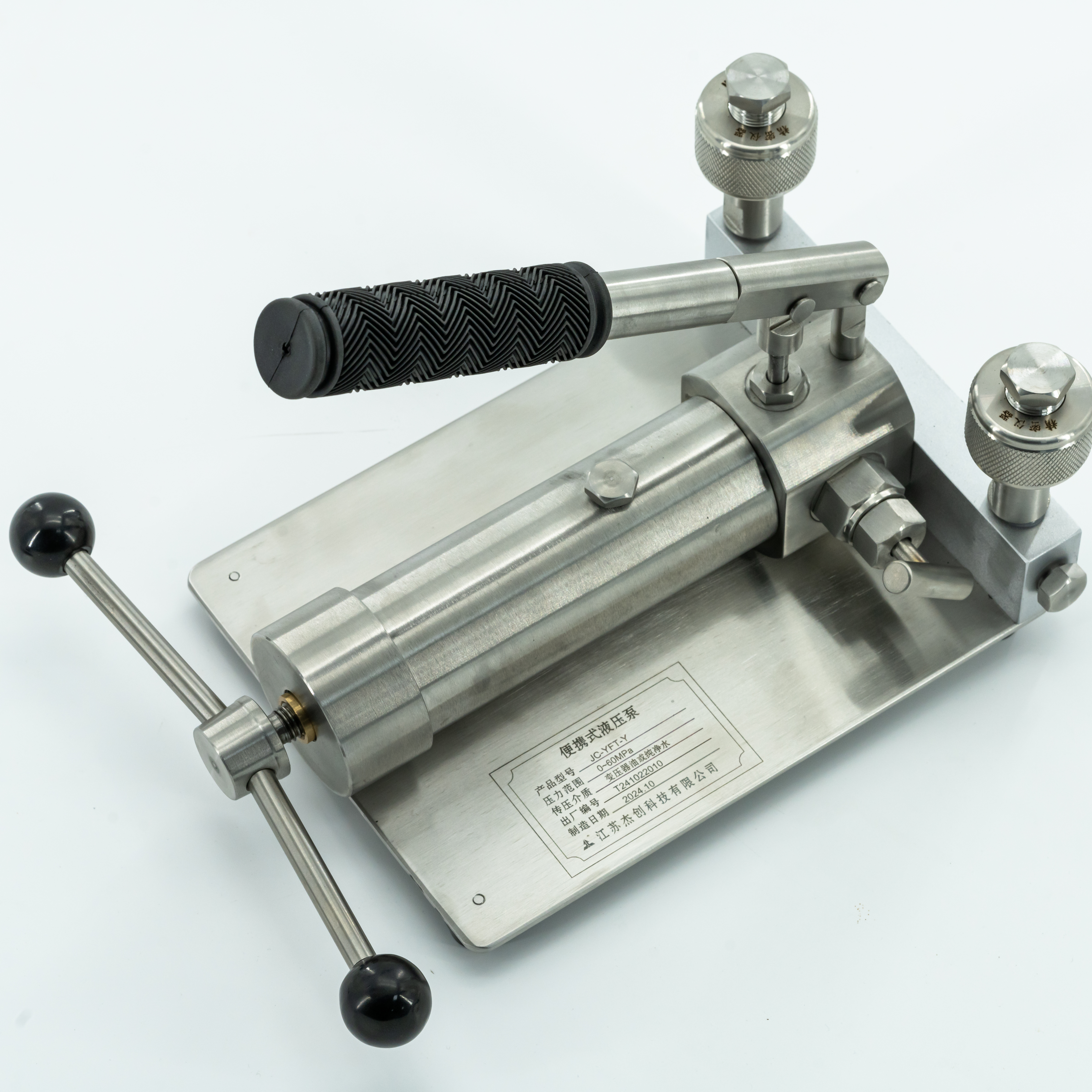

This manual hydraulic pressure calibration pump serves as a highly dependable pressure generation source, specifically engineered for testing, adjusting, and verifying industrial pressure gauges, transmitters, and pressure switches.
By delivering an exceptionally stable hydraulic output, it consistently generates precise pressure up to 60MPa, ensuring that critical measurement instruments maintain strict accuracy tolerances without relying on external electrical power.
Every wetted component within the fluid path is meticulously machined from premium 304 stainless steel, providing robust resistance against corrosive media and ensuring a remarkably long service life even under continuous daily usage.
Designed with a compact, integrated desktop architecture, this unit offers the perfect balance of benchtop stability and field-ready portability, allowing technicians to easily transport it from controlled laboratory environments directly to demanding on-site calibration locations.
Factory workshop routine instrument calibration: Provides a controlled, localized pressure source for the daily verification of mechanical gauges and sensors, ensuring manufacturing production lines maintain optimal safety protocols and strict process accuracy.
On-site maintenance for industrial transmitters: The lightweight 5.2kg profile allows field engineers to carry the pump directly to complex pipeline networks or storage tanks, facilitating immediate troubleshooting and calibration without the need to dismantle and transport heavy equipment.
Laboratory precision pressure detection and verification: Meets the rigorous stability and accuracy requirements of professional metrology labs, offering a highly reliable baseline for verifying sensitive pressure sensors and documenting compliance with stringent industry standards.
Petrochemical, power, and metallurgy industry calibration work: Built with corrosion-resistant 304 stainless steel, the pump effortlessly withstands the aggressive atmospheric conditions and harsh chemical environments typical in refineries and power generation plants, ensuring uninterrupted maintenance schedules.
Third-party metering inspection institution daily testing: Enables certification bodies to perform simultaneous testing on standard reference meters and devices under test via the dual independent ports, drastically improving the throughput and efficiency of daily certification workflows.
1. Full 304 stainless steel body and wetted parts deliver exceptional anti-rust and anti-corrosion capabilities. This rigorous material selection ensures the pump withstands prolonged exposure to harsh industrial fluids and atmospheric moisture, significantly extending the equipment's service life while maintaining a sleek, professional metallic finish that resists industrial wear.
2. Dual fine adjustment valves are engineered to realize ultra-smooth pressure fine-tuning. Operators experience highly responsive, tactile feedback when turning the precision-machined valves, allowing for a microscopic approach to target calibration points without overshooting, which is absolutely critical for verifying highly sensitive digital and mechanical instruments.

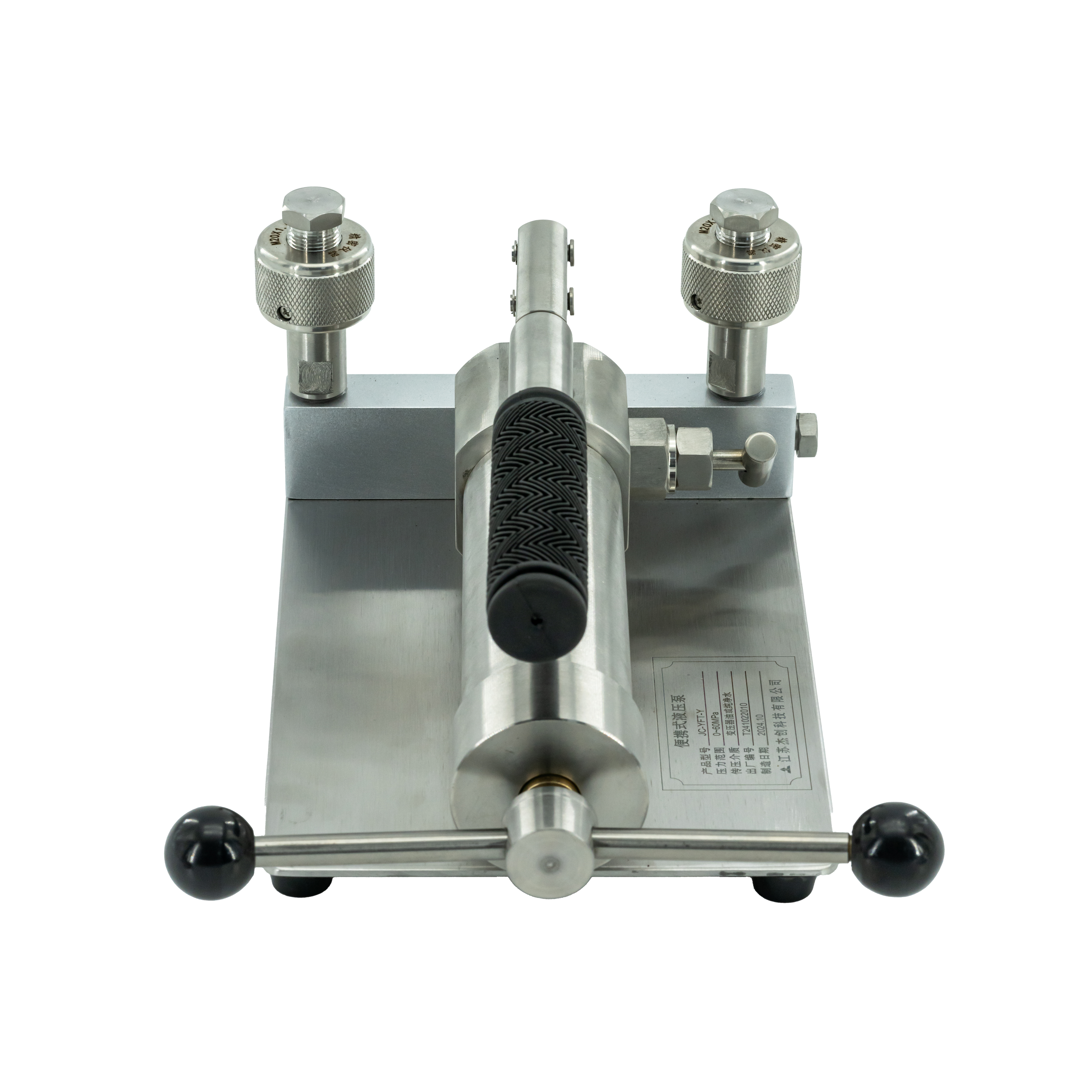

3. Double test ports design empowers technicians to calibrate a standard reference meter and a tested meter at the exact same time. This parallel configuration eliminates repetitive setup steps and fluid purging, effectively doubling the speed of batch calibration tasks in busy metrology environments and large-scale plant turnarounds.

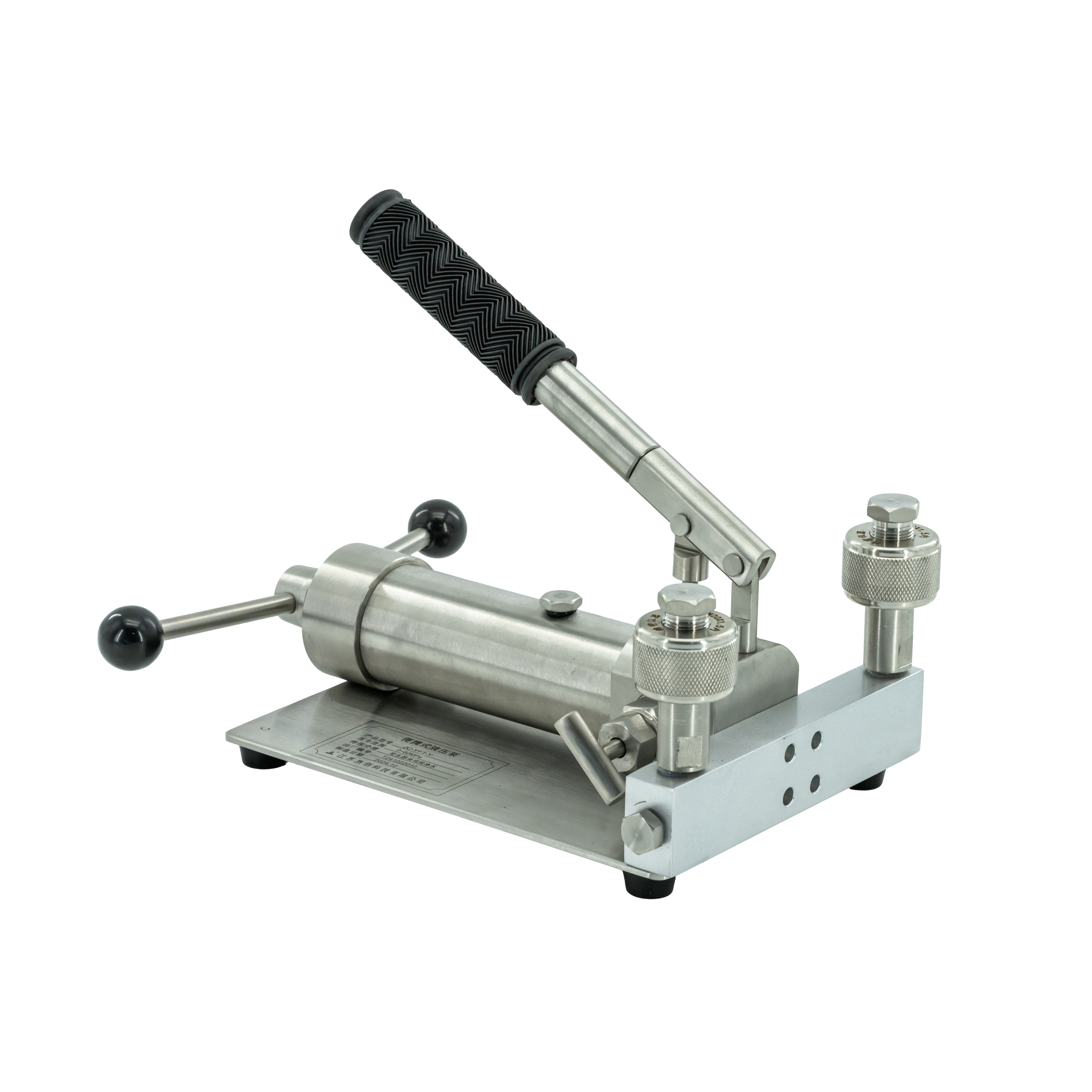

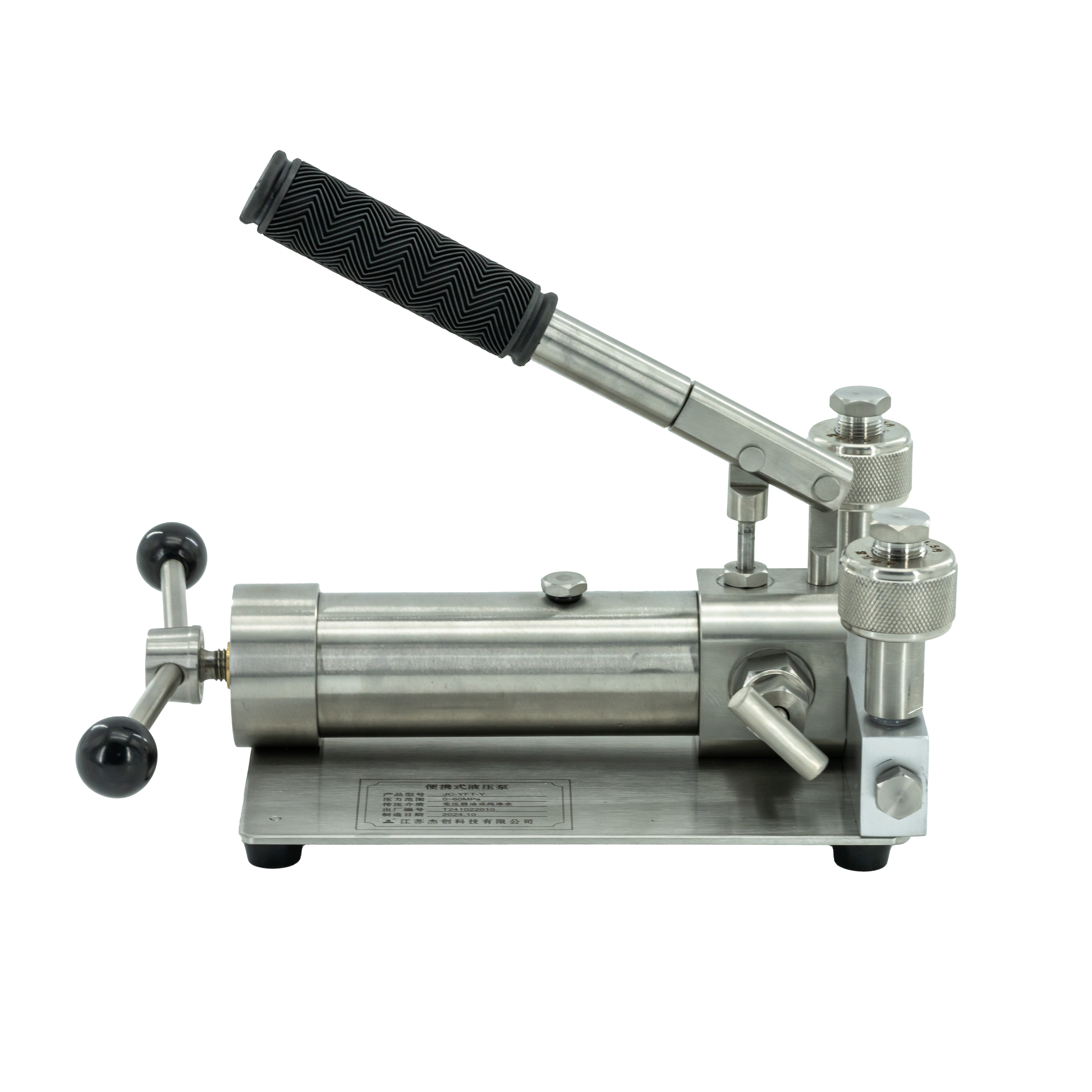

4. Labor-saving hand crank structure features a low operation torque design, ensuring remarkably easy pressure boosting. This mechanical advantage means that generating hydraulic pressure up to 60MPa feels fluid and effortless, minimizing operator hand fatigue during prolonged testing sessions and allowing for rapid pressure generation from zero to maximum scale.

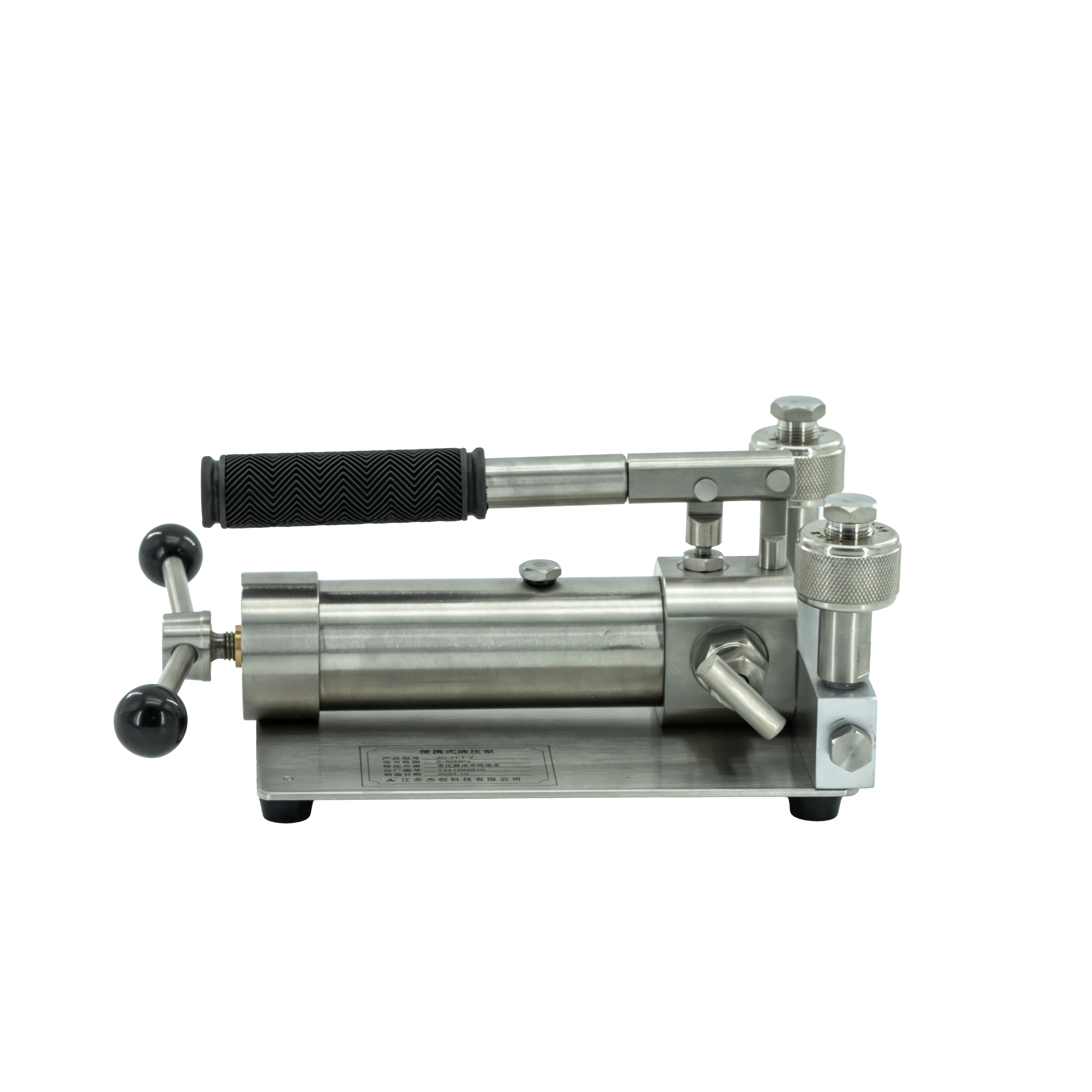

5. Integrated desktop portable base combines structural rigidity with a small footprint, making it exceptionally lightweight for outdoor carry. This thoughtful design strikes the perfect balance between stable, vibration-free benchtop operation and the practical necessity of transporting the unit across sprawling industrial complexes or remote field stations.
6. Stable pressure holding performance is guaranteed by advanced internal sealing technology, ensuring absolutely no obvious pressure leakage or drop occurs during a 10-minute calibration window. This impeccable leak-tight integrity provides the crucial stability needed for accurate, reliable gauge readings and strict compliance documentation.
7. Support custom pressure range, connection thread, and overall size modifications to match specific operational requirements. Whether your facility utilizes specialized NPT or BSP threaded connections, or requires a tailored pressure output for unique testing rigs, the equipment can be adapted to seamlessly integrate into your existing infrastructure.
8. No oil leakage design incorporates anti-clogging internal fluid channels, making routine oil filling, air venting, and system cleaning remarkably straightforward. This intuitive maintenance structure significantly reduces the downtime and labor costs associated with long-term upkeep, ensuring the pump remains in peak operational condition year after year.
Item | Standard Specification |
Product Model | JC-YFT-Y Portable Hydraulic Calibration Pump |
Pressure Range | 0 ~ 60MPa (customizable range available) |
Working Medium | Transformer oil / Purified water |
Connection Thread | Standard M20×1.5 (NPT/BSP thread customizable) |
Wetted Material | 304 Stainless Steel |
Adjustment Mode | Manual hand pressure + dual fine trim valves |
Test Ports | 2 independent calibration ports |
Pressure Holding Performance | Stable, no obvious pressure drop within 10min |
Overall Structure | Integrated desktop portable type |
Net Weight | About 5.2kg |
Overall Dimension | 360×225×115mm |
Parameters can be customized as required, ensuring the equipment perfectly aligns with your specific technical demands and regional connection standards.
