Portable 0-10000psi Hydraulic Pressure Calibration Pump

Portable 0-10000psi Hydraulic Pressure Calibration Pump

Overview

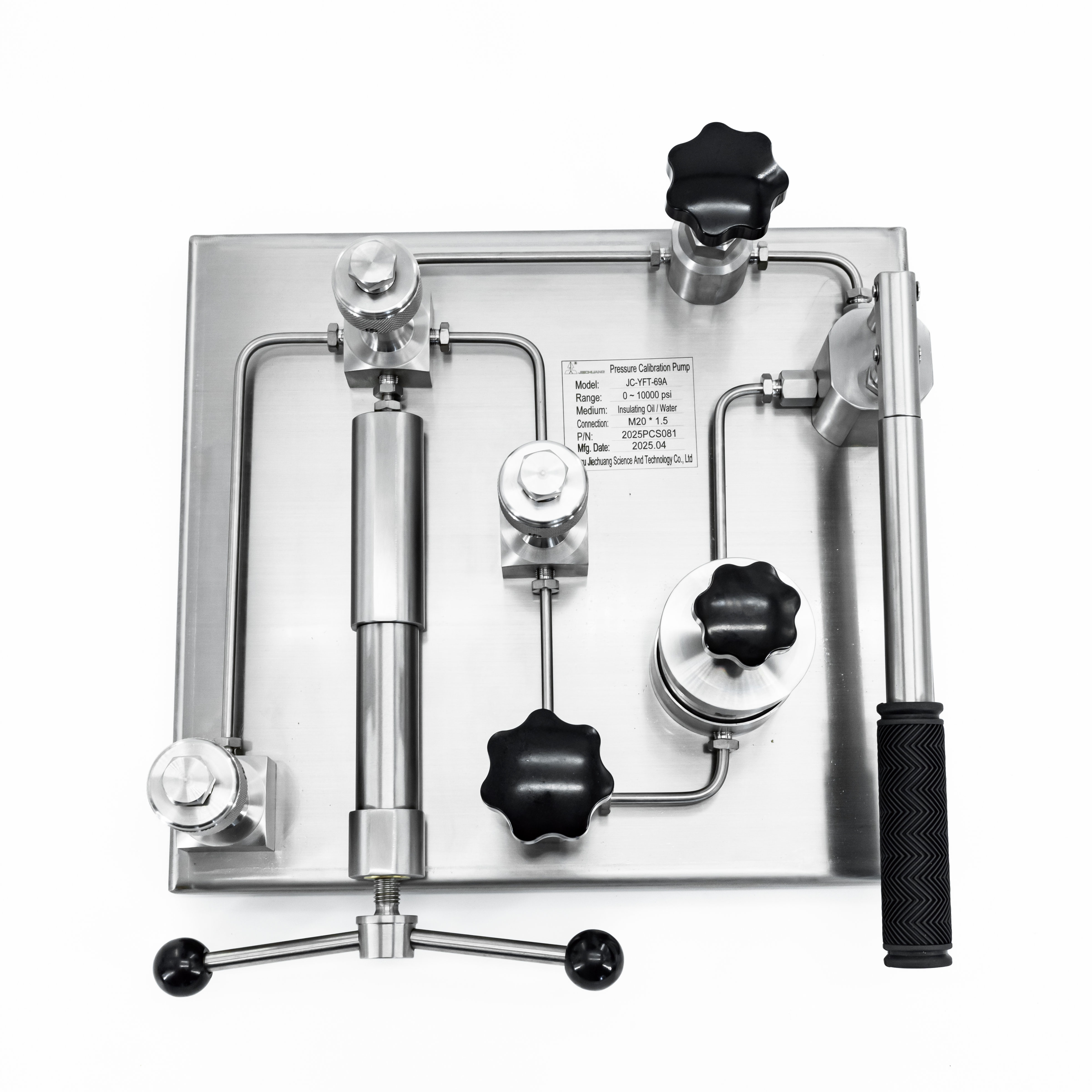

• The JC-YFT-69A serves as a highly reliable portable manual hydraulic pressure calibration pump, engineered to deliver precise pressure generation for demanding field and laboratory environments. Its tactile, smooth-operating hand pump mechanism ensures operators can achieve exact pressure targets with minimal physical exertion.

• Designed for versatility, this unit builds exceptionally stable high pressure utilizing either insulating transformer oil or purified water as the working medium, adapting effortlessly to specific testing requirements without risking cross-contamination.

• Every fluid-contact component is meticulously machined from premium 304 stainless steel, offering a reassuringly solid weight that resists harsh corrosive elements and guarantees a completely leak-proof operation over thousands of cycles.

• Equipped with dual independent test ports, the system facilitates the simultaneous connection and calibration of a reference standard gauge alongside the instrument under test, significantly streamlining workflow and reducing setup times.

• The compact, integrated desktop footprint combines the stability of a benchtop instrument with the lightweight portability required for on-site industrial maintenance, ensuring metrology-grade accuracy is always within reach.

Application

1. Routine Factory Instrument Calibration: Ideal for the daily verification of pressure gauges, transmitters, and pressure switches on the manufacturing floor. By pairing this pump with high-accuracy digital reference gauges, facilities can maintain strict alignment with NIST and other international metrology standards, ensuring every production batch meets rigorous traceability requirements.

2. Heavy Industry On-Site Maintenance: Engineered for the demanding environments of petrochemical refineries, power generation plants, and metallurgy facilities. Technicians can confidently transport this unit directly to the machinery, performing rapid, on-the-spot calibration of critical pressure monitoring equipment to prevent costly downtime and maintain operational safety.

3. Metrology Laboratory Verification: Serves as a foundational pressure generation tool for third-party inspection institutes and dedicated calibration labs. The exceptionally stable pressure holding capability allows metrologists to conduct prolonged verification procedures, capturing highly accurate readings without the interference of fluid fluctuations.

4. Resource Extraction and Processing Inspections: Perfectly suited for the harsh, unpredictable conditions found in mining operations, natural gas pipelines, and municipal water treatment plants. The heavy-duty stainless steel construction withstands environmental exposure, providing reliable pressure instrument checks in locations where delicate equipment would typically fail.

5. Mobile Engineering and Servicing: A critical asset for mobile engineering teams and independent maintenance contractors who require dependable, transportable calibration solutions. The pump's ability to utilize either purified water or insulating oil means technicians can adapt immediately to the specific fluid requirements of diverse client sites, from cleanrooms to heavy industrial zones.

Features

1. Uncompromising Durability and Construction: The entire body and all wetted components are forged from heavy-duty 304 stainless steel. This solid construction not only provides a satisfyingly premium feel but also delivers exceptional resistance to rust and industrial corrosion, ensuring a remarkably long service life even in punishing outdoor environments.

2. Optimized Workflow Efficiency: Featuring dual independent calibration test ports that allow operators to connect a standard reference meter and the tested product simultaneously. This parallel configuration drastically reduces repetitive setup tasks, maximizing operational efficiency during high-volume calibration sessions.

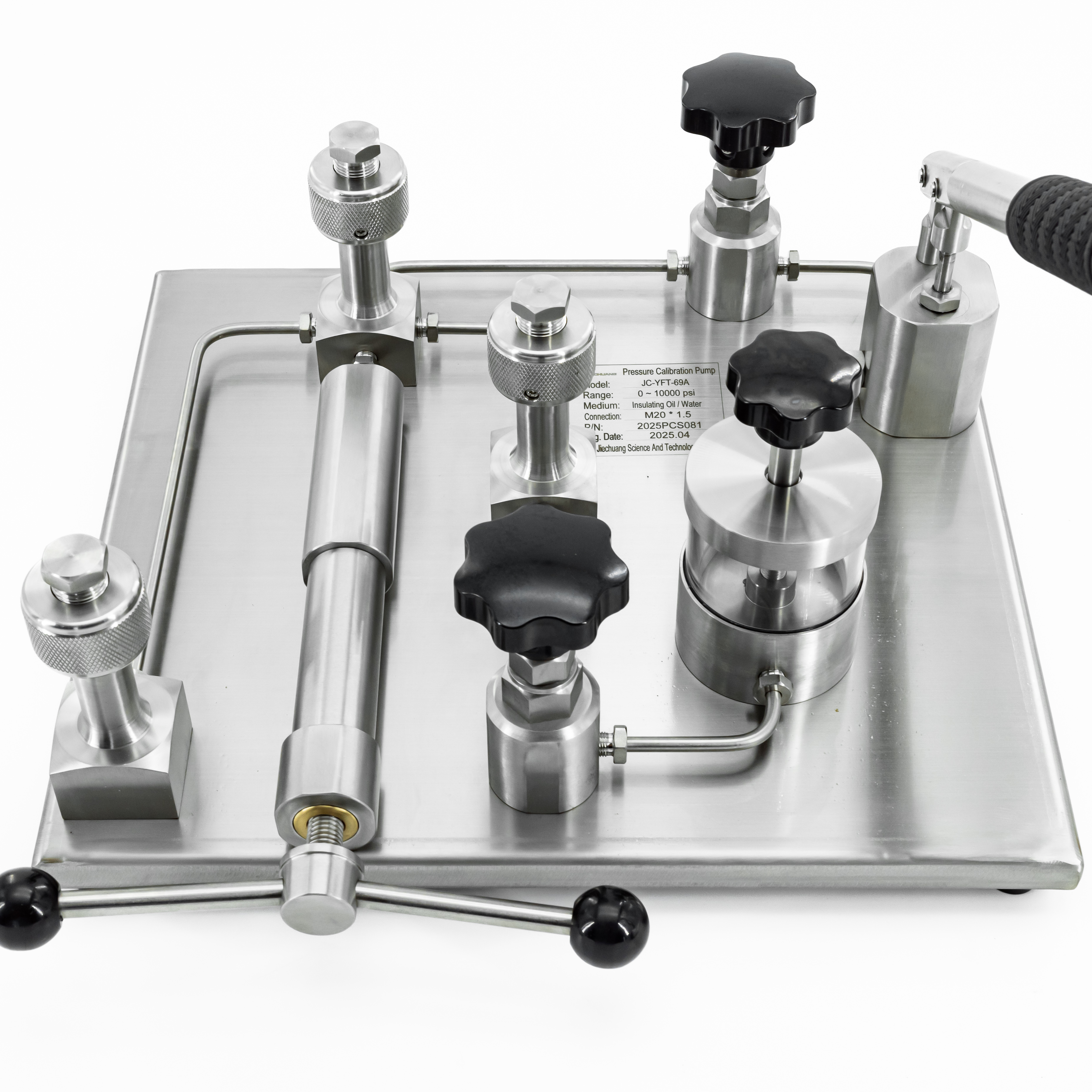

3. Ultra-Precise Pressure Control: Engineered with dual fine-adjustment hand valves that offer smooth, tactile feedback. This ergonomic design enables technicians to perform ultra-precise pressure trimming up to 10,000 psi with minimal physical effort, achieving the exact target value without overshooting.

4. Versatile Media Compatibility: Safely operates using either insulating transformer oil or purified water as the working medium. This flexibility allows the pump to meet diverse calibration demands across different sectors, preventing the risk of oil contamination in water-sensitive testing scenarios.

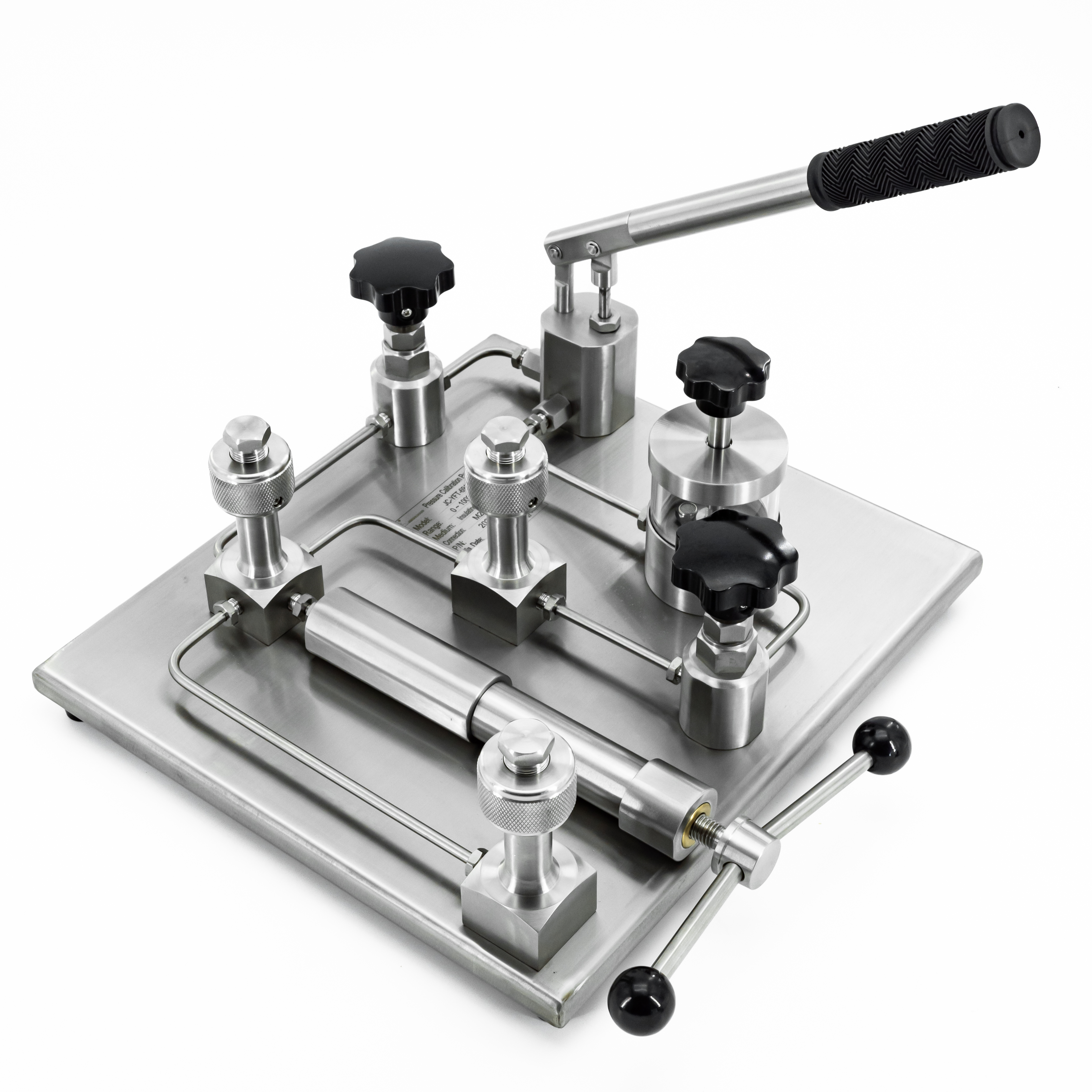

5. Ergonomic Hand-Boosting Mechanism: The labor-saving mechanical boosting structure is specifically designed to require exceptionally low operation torque. Operators can effortlessly generate immense high pressure up to 10,000 psi (60MPa) without experiencing the hand and wrist fatigue commonly associated with manual hydraulic pumps.

6. Portable Integrated Design: Built upon a compact, integrated desktop base that balances stability with portability. Weighing only about 5.5kg, it is remarkably convenient to carry, making it the perfect companion for technicians conducting rigorous outdoor field calibration work.

7. Industrial-Grade Sealing System: Incorporates an advanced, industrial-grade sealing architecture that guarantees zero oil or water leakage. This exceptional sealing performance ensures absolute pressure holding stability, allowing for long-time continuous calibration tests without any obvious pressure drop.

8. Comprehensive Accessory Compatibility: Ships ready to accommodate a wide array of standard gauges and tested instruments. Supported by various quick-connect adapters and high-pressure hoses, the customizable connection threads (including M20×1.5, NPT, and BSP) ensure fast, tool-free coupling for immediate testing readiness.

Parameters

Parameters can be customized as required.

Beyond our standard specifications, we offer comprehensive OEM solutions and deep customization capabilities tailored to your specific operational demands. Whether your field applications require a modified pressure measuring range beyond the standard 60MPa, specialized connection threads (such as M14×1.5 or specific NPT/BSP variations) to match legacy equipment, or tailored outer dimensions to fit within custom testing enclosures, our dedicated engineering team is fully equipped to adapt the JC-YFT-69A to your exact project requirements. This high degree of manufacturing flexibility ensures flawless integration into your existing metrology infrastructure, reducing the need for additional adapters and minimizing potential leak points during critical pressure verifications.

Comprehensive Technical Support & After-Sales Service

Long-Term Equipment Reliability

Investing in high-precision metrology equipment requires the assurance of continuous, reliable performance. We back the portable hydraulic pressure calibration pump with an extensive after-sales support framework designed to maximize your equipment's lifecycle. Our dedicated technical team provides comprehensive equipment maintenance guidance, ensuring your operators understand the nuances of fluid management and seal preservation.

Training and Spare Parts Supply

To guarantee smooth integration into your calibration laboratory or field service fleet, we offer detailed operational training resources. Furthermore, a complete inventory of OEM spare parts—including specialized O-rings, fine-adjustment valves, and quick-connect adapters—is maintained for rapid dispatch. This commitment to long-term warranty protection and technical assistance ensures your pressure verification processes remain uninterrupted and highly accurate year after year.
