YTN Series
Jiangsu Jiechuang
9026209090

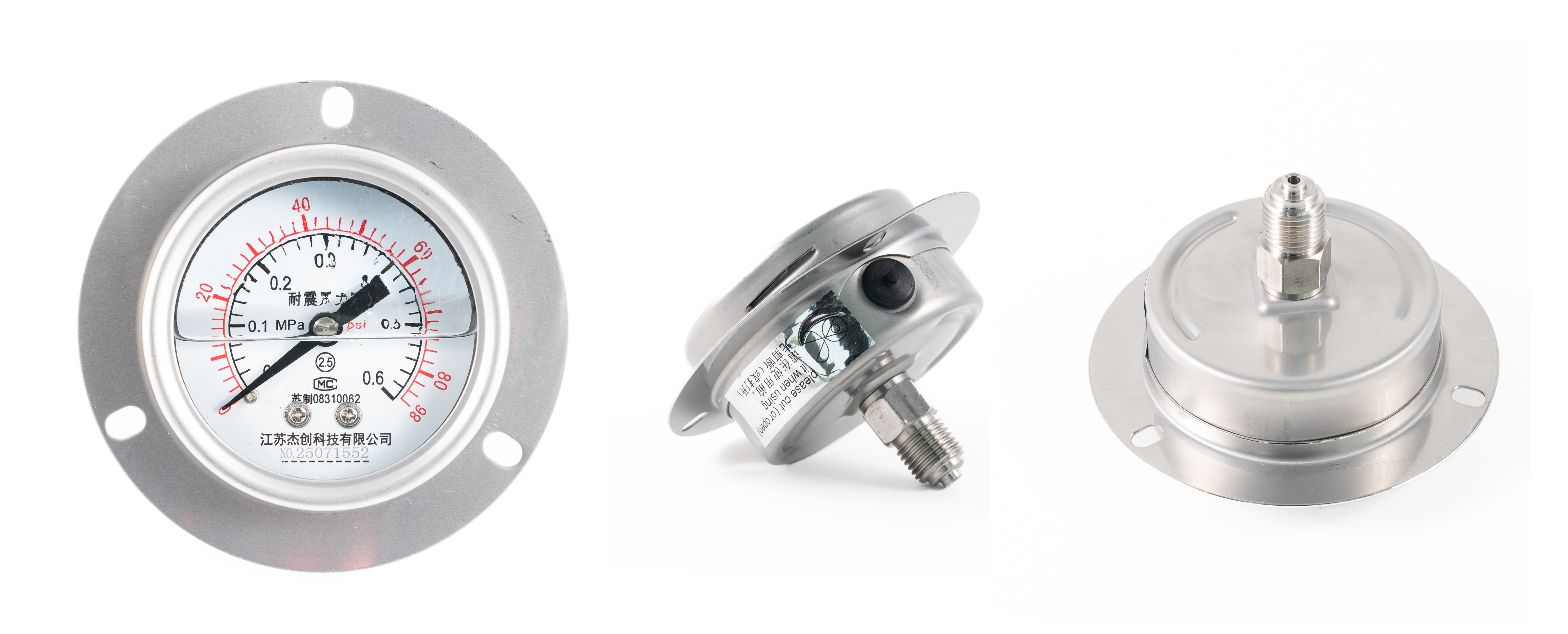

Dual Scale Panel Mount Shock Resistant Stainless Steel Pressure Gauge
Product Overview:
This is a YTN Series stainless steel shock resistant pressure gauge.

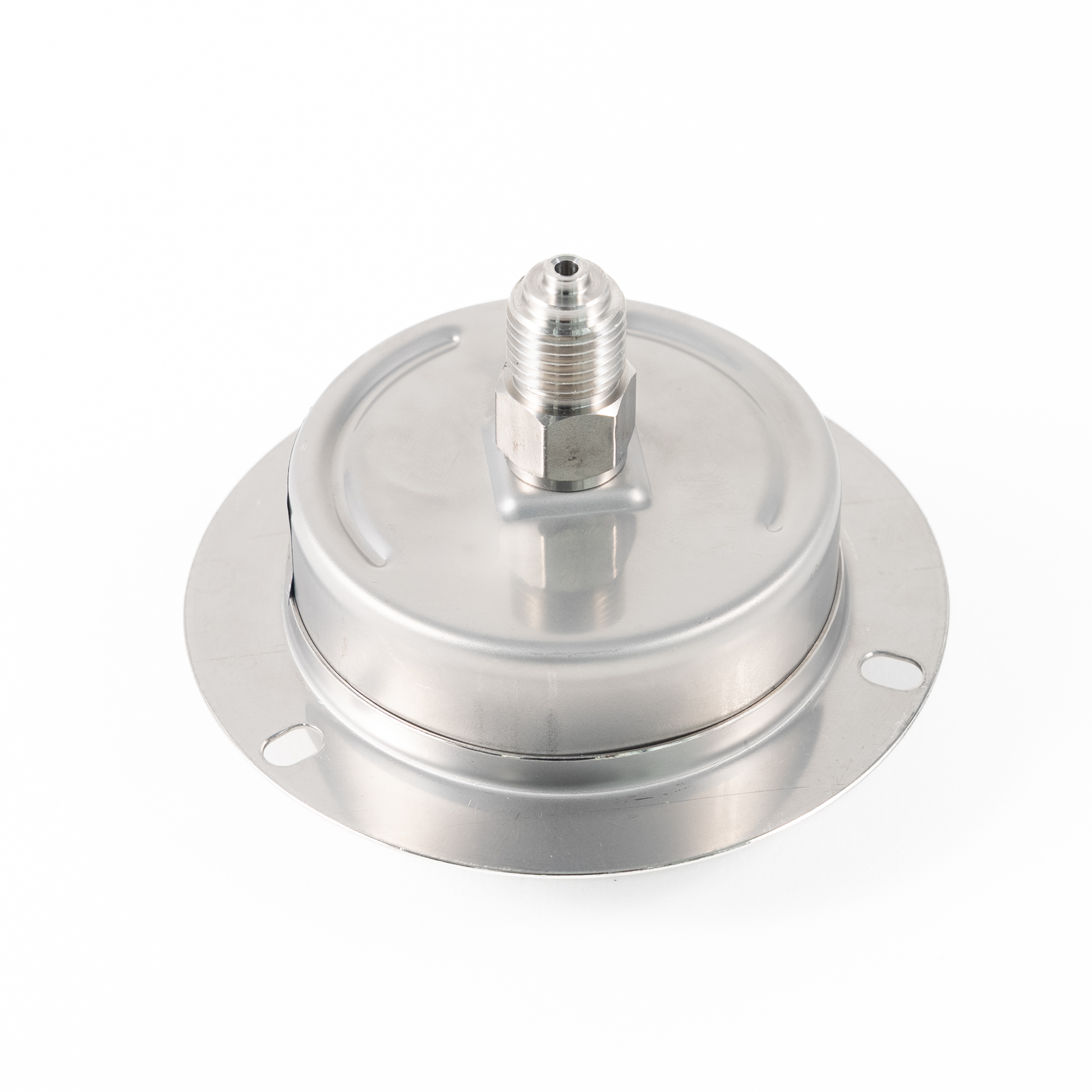

It has a front flange panel mount for easy installation.
It uses silicone oil inside to reduce vibration and pointer fluctuation.

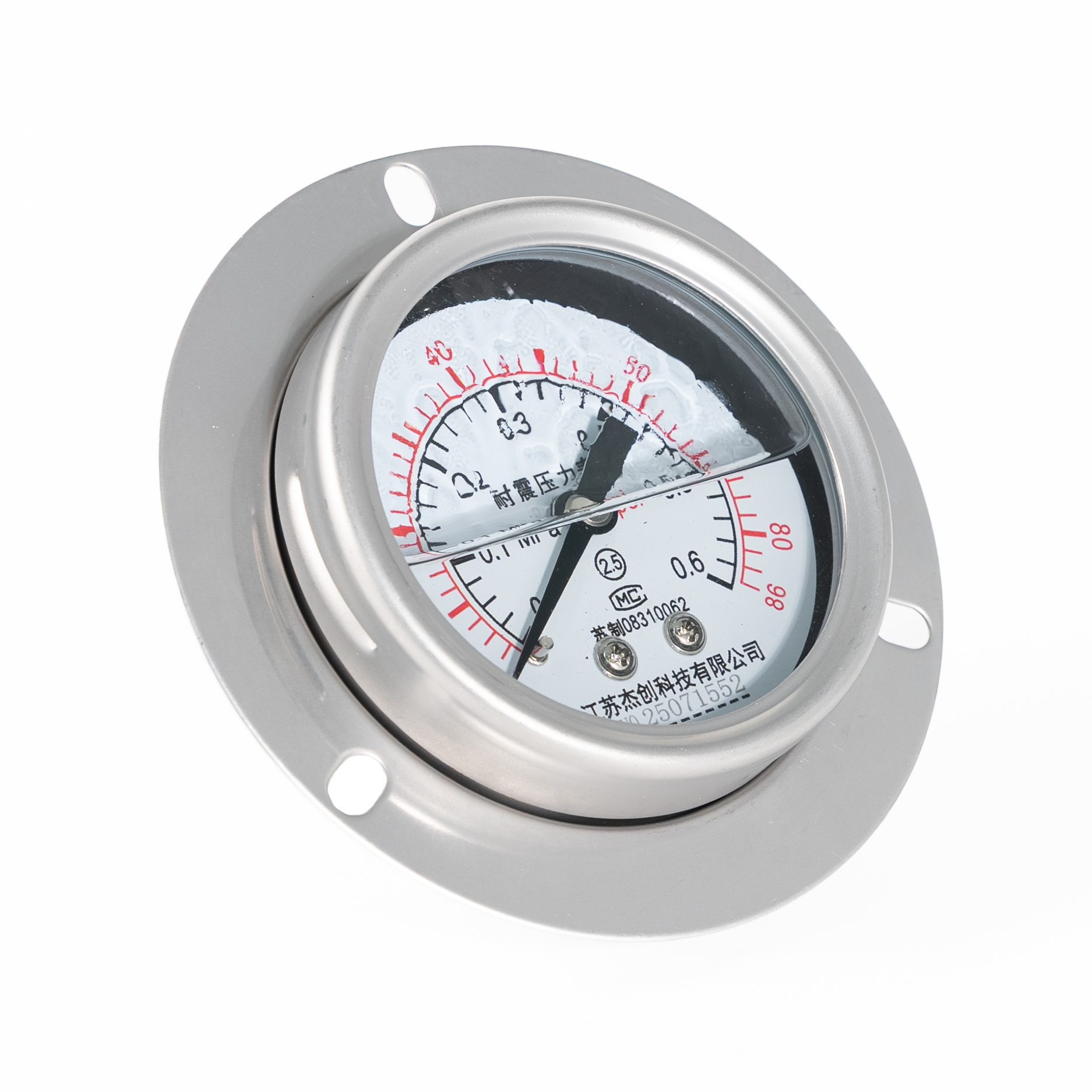

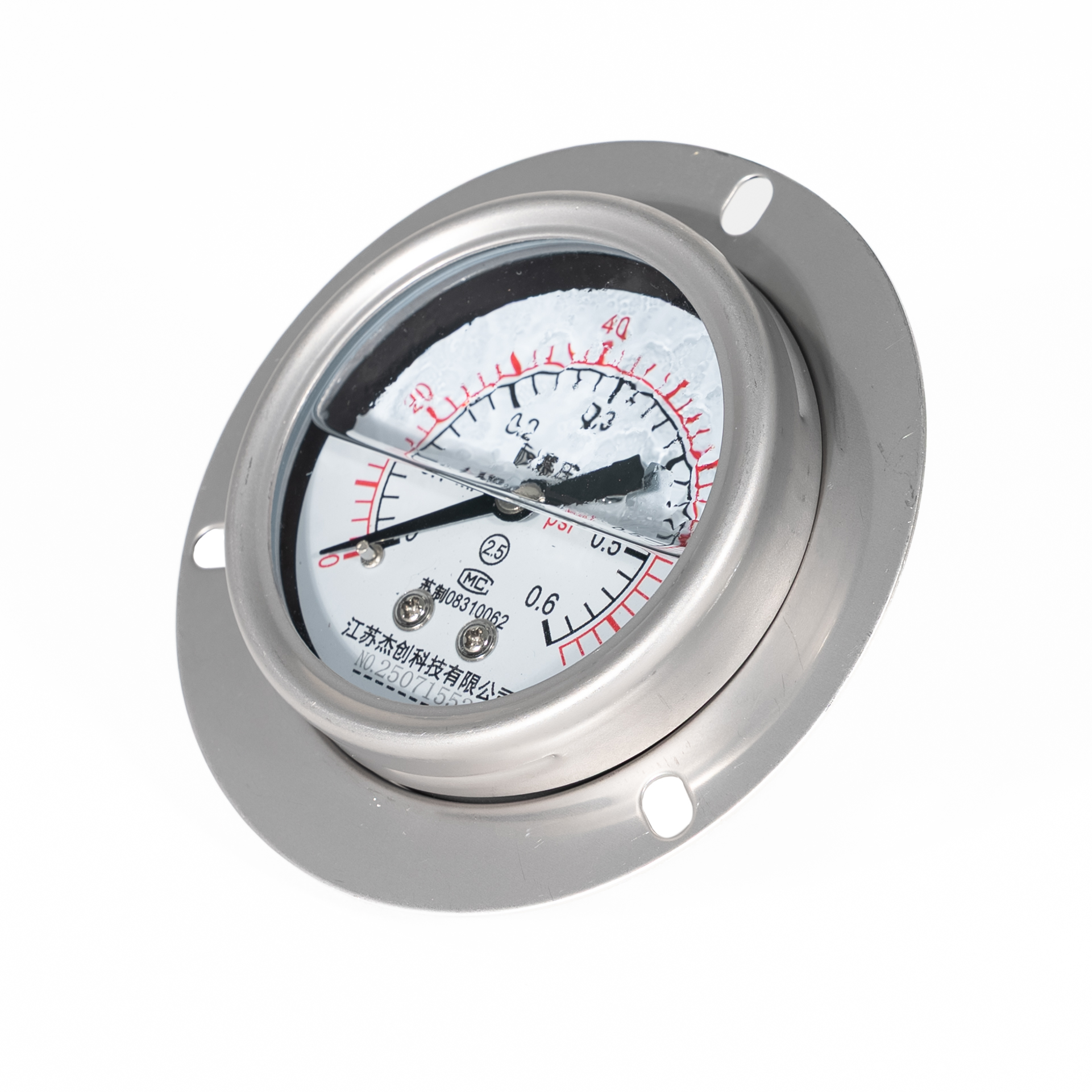

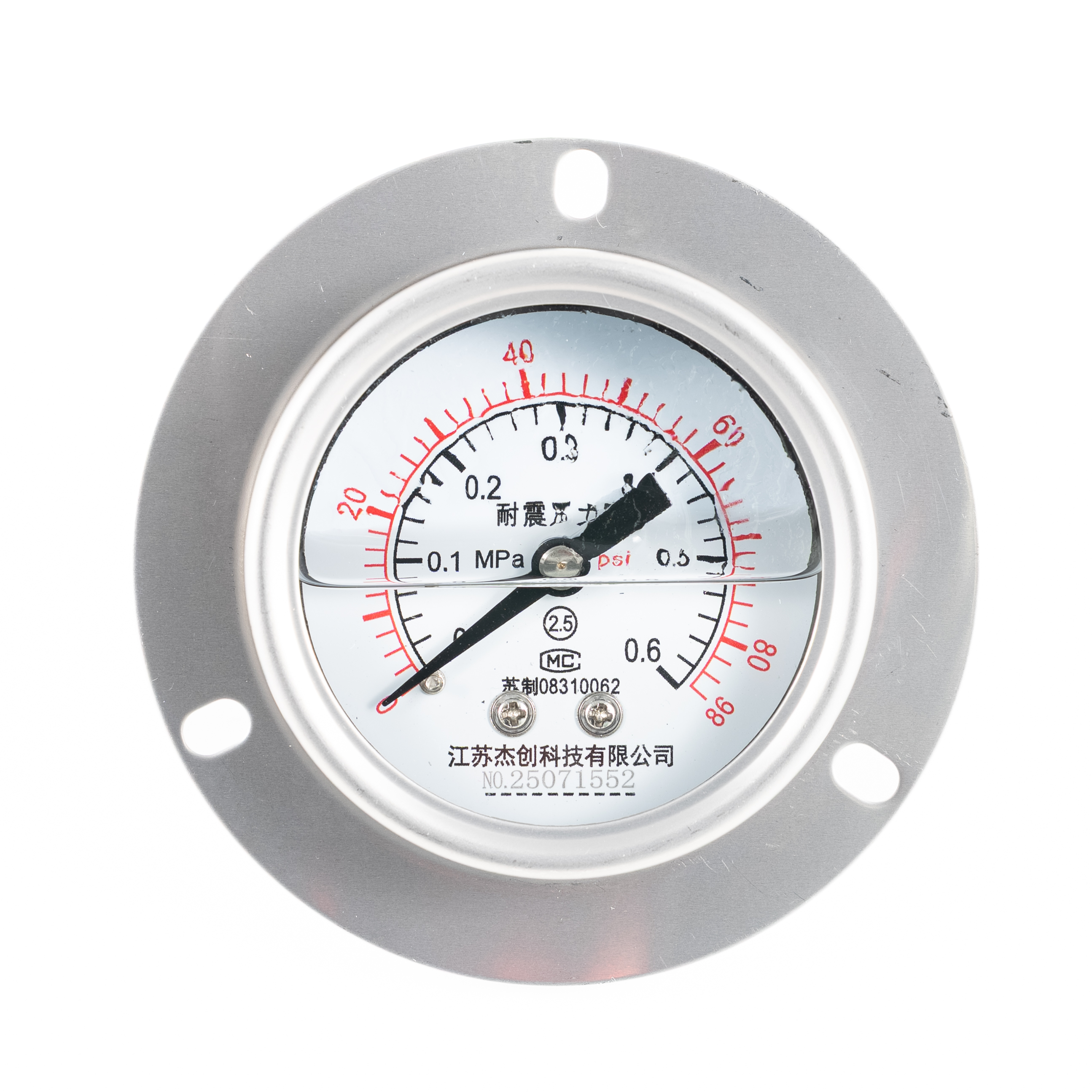

The dial is dual scale, with both MPa and psi units. You can read pressure directly without conversion.
It is made of stainless steel, so it resists corrosion and rust.
It works reliably in harsh industrial conditions, such as vibration and pressure fluctuation.

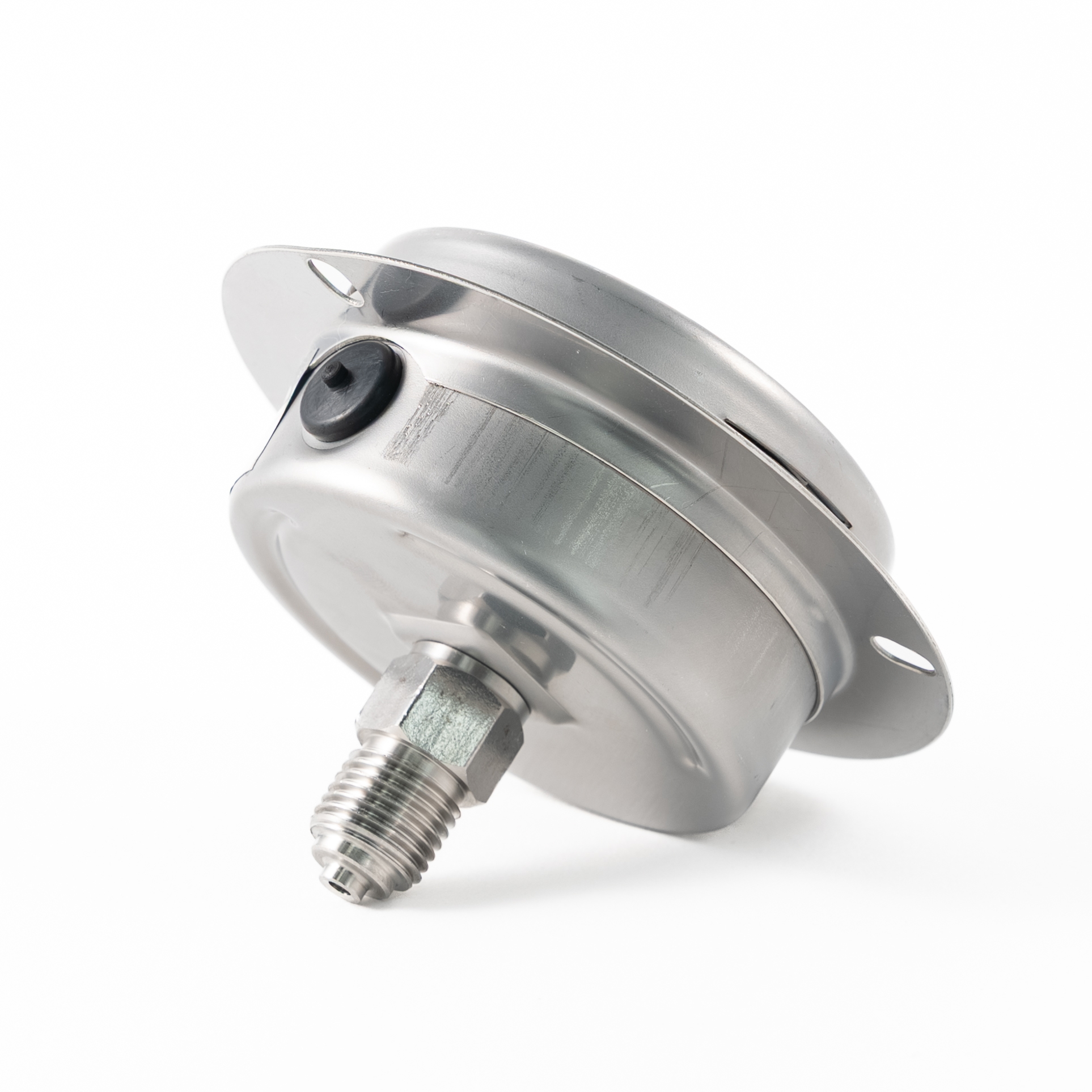

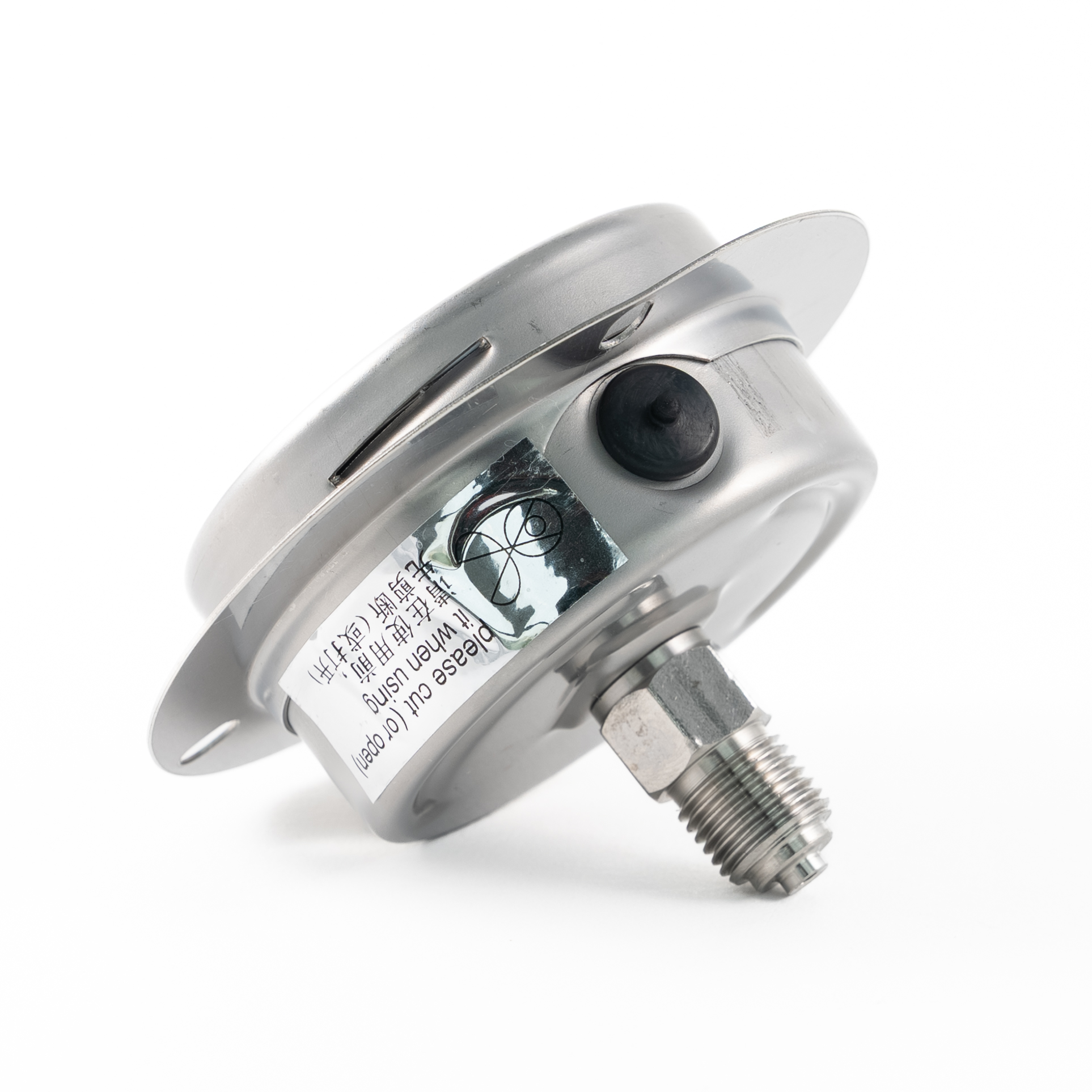

It supports threaded connection as standard, with other connection options available.
All specifications can be customized to meet your specific needs.
Main Applications:
1. Core Industrial Fields: Chemical processing, petroleum & petrochemical, water treatment, power generation, metallurgy, requiring corrosion resistance and reliable pressure monitoring.
2. Hydraulic & Pneumatic Systems: Pressure monitoring of hydraulic stations, pneumatic equipment, machinery and pipelines, suitable for vibration and pressure fluctuation conditions.
3. Food & Beverage / Pharmaceutical Industry: Sanitary-grade stainless steel with food-grade filling liquid, suitable for production lines and cleaning systems.
4. Global General Equipment: Applications requiring both metric (MPa) and imperial (psi) pressure units, such as export machinery, international projects and multi-region industrial facilities.
Parameters:
Parameter | Standard Specification |
Product Series | YTN Series Shock Resistant Dual Scale Pressure Gauge |
Nominal Case Diameter | 60mm/63mm, 100mm, 150mm/160mm |
Accuracy Class | Class 1.6, Class 2.5 (Class 1.0 optional) |
Pressure Range | -0.1MPa~0MPa (Vacuum); 0~0.1MPa up to 0~60MPa (custom ranges available) |
Dial Scale | Dual Scale (MPa / psi) |
Mounting Type | Front Flange Panel Mount (Standard, ZT Type), Rear Flange (Optional) |
Connection Type | Axial Back Mount (Back Connection, Standard), Radial Bottom Mount (Optional) |
Connection Method | Threaded Connection (Standard, Male Thread), Flange / Tri-Clamp Connection (Optional) |
Standard Thread Size | M14×1.5, M20×1.5, G1/2, NPT1/2, R1/2 |
Case Material | 304 Stainless Steel, 316L Stainless Steel |
Wetted Parts Material | 304 Stainless Steel, 316L Stainless Steel (Standard); Corrosion-resistant alloys optional |
Filling Liquid | Silicone Oil (Standard), Food-grade Glycerin (Optional) |
Sealing Material | NBR, FKM (Viton), PTFE, Silicone Rubber |
Dial Window | Acrylic, Tempered Glass, PC, Double-layer Explosion-proof Glass |
Protection Level | IP64 (Standard), IP65 (Optional) |
Operating Temperature | -40℃ ~ +70℃ (Extended high/low temperature range available upon request) |
Compliance Standard | GB/T 1226, EN 837-1 (Optional) |
Note: All parameters can be customized as required.
