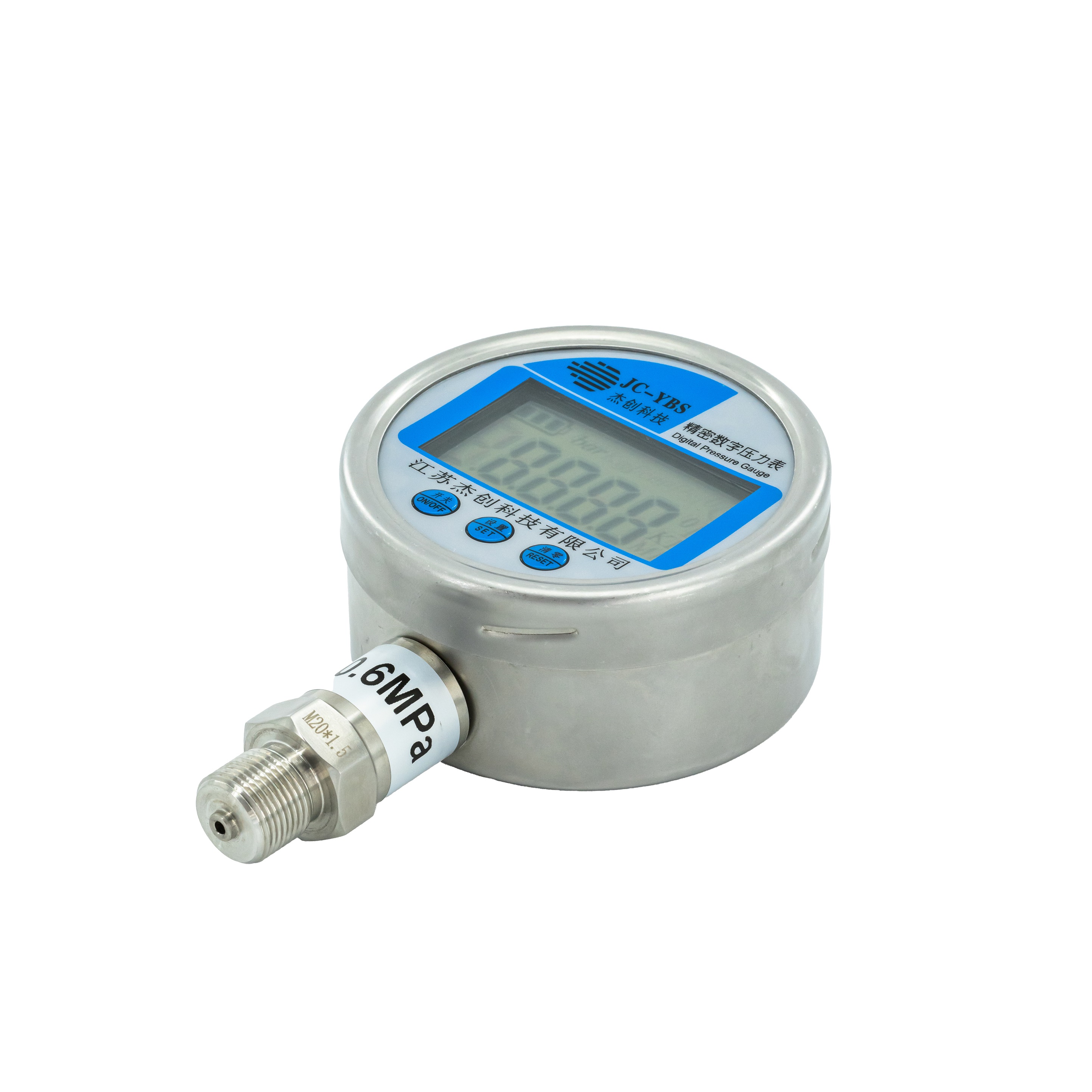

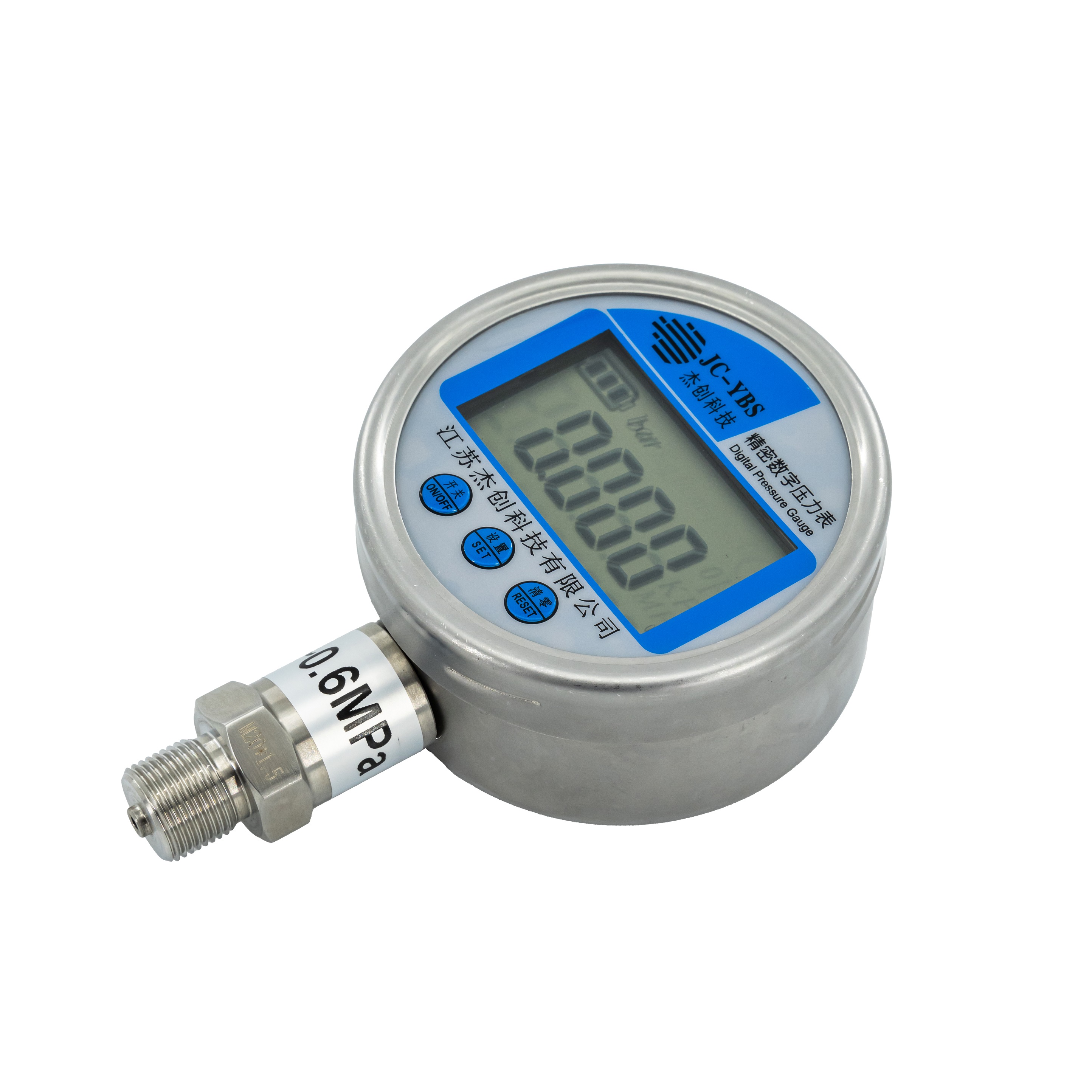

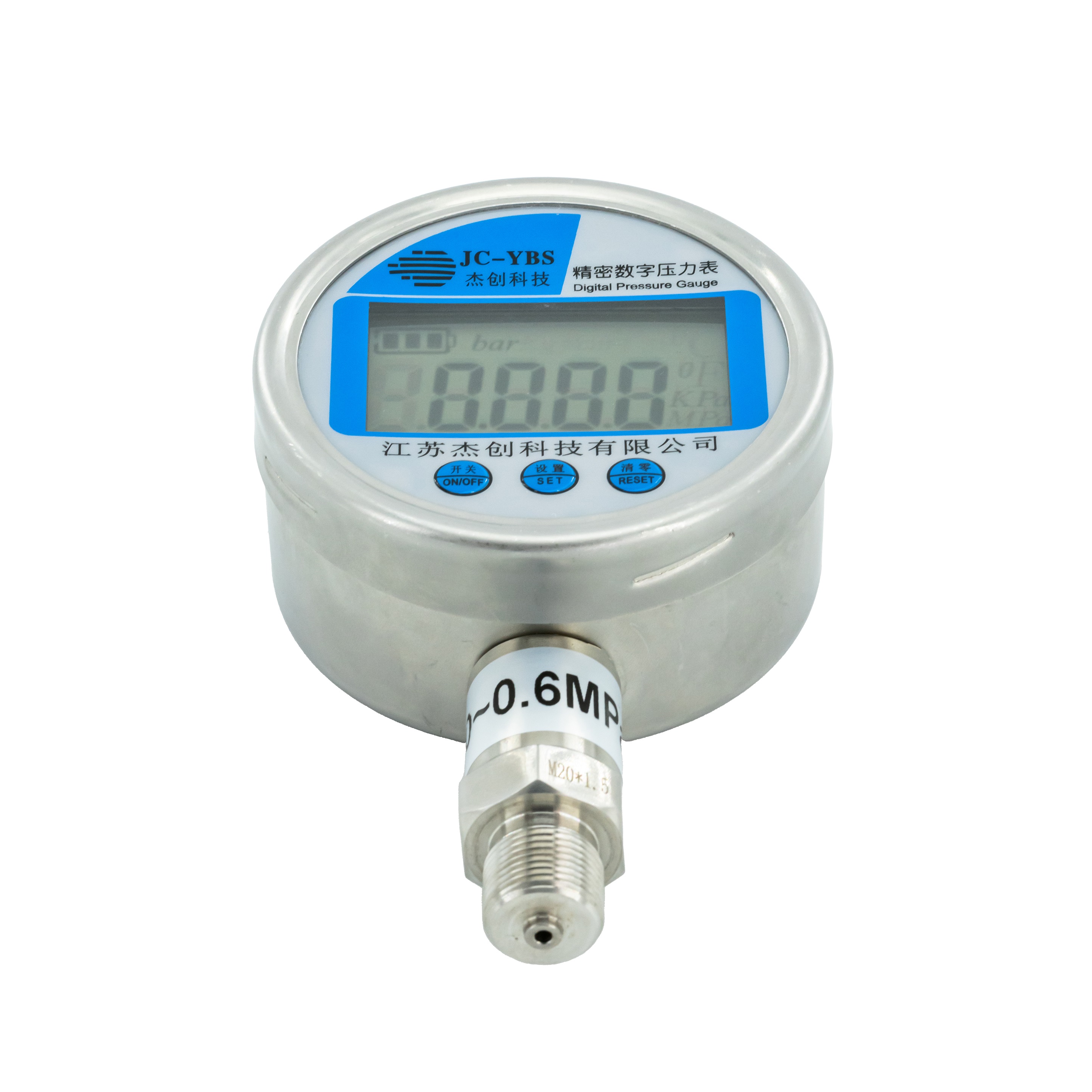

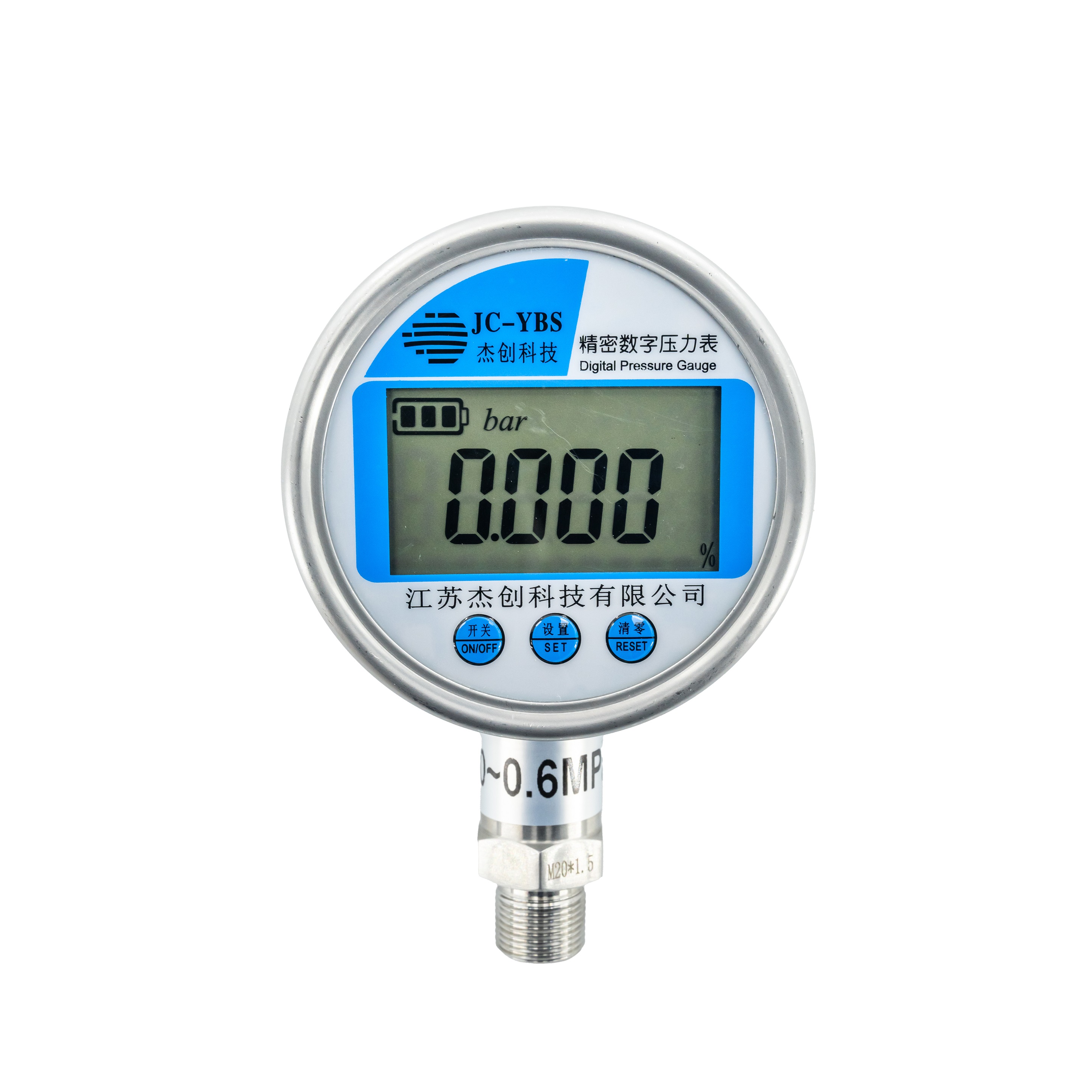

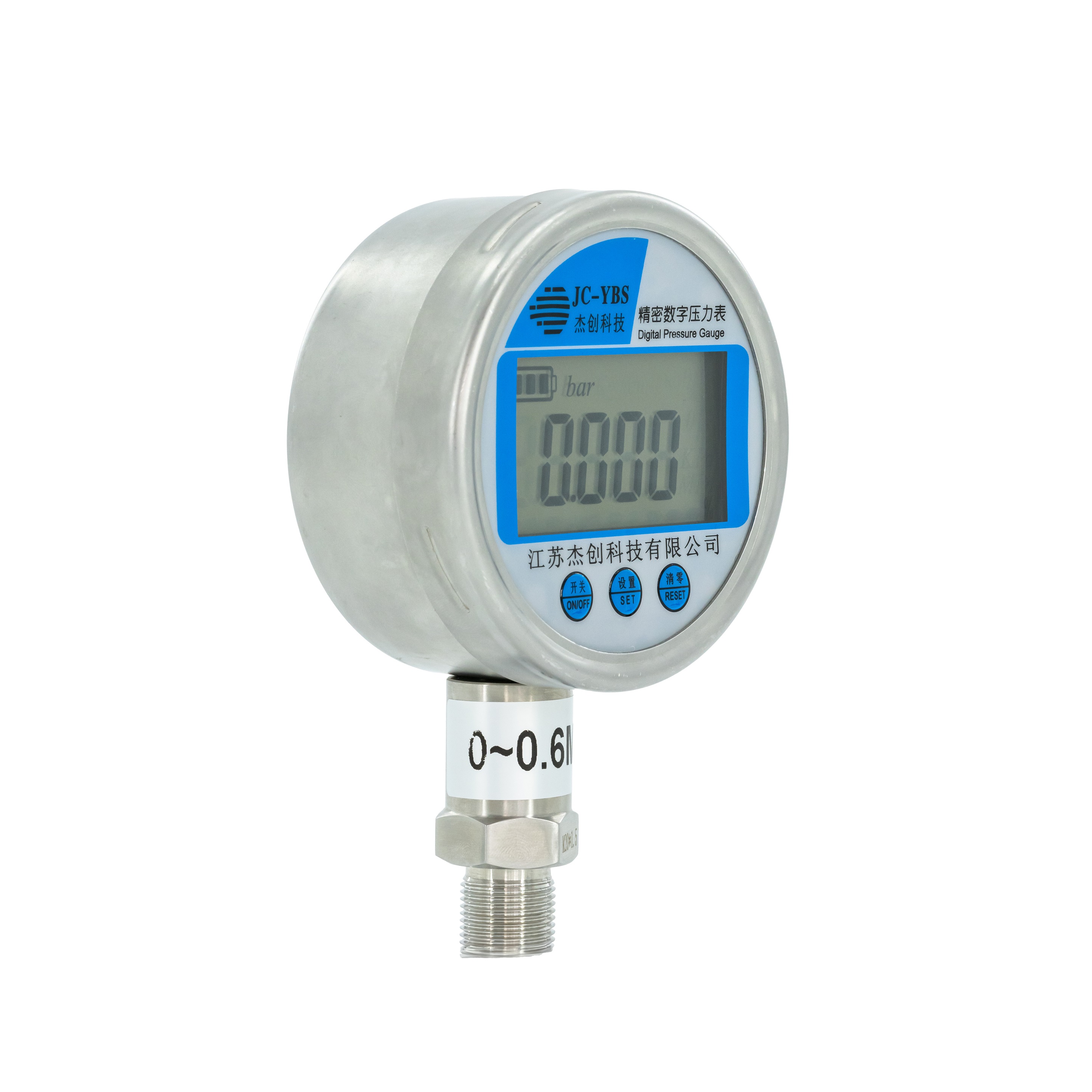

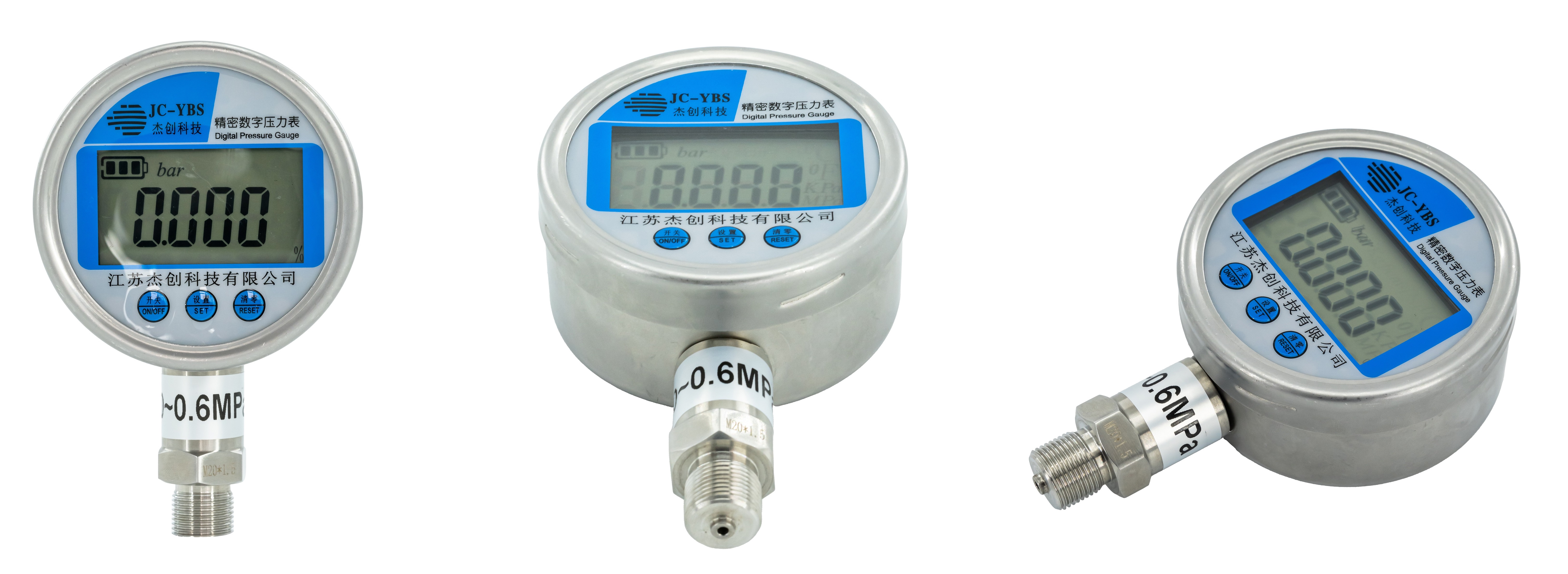

JC-YBS Series Stainless Steel Precision Digital Pressure Gauge
Overview
This is a precision digital pressure gauge with full stainless steel housing.
It can be used as a standard gauge for calibrating other pressure instruments.
It supports multi-unit display and long-term stable measurement.
This gauge is widely used in laboratories and industrial pressure calibration.
Application
Calibration of pressure transmitters and switches
Pressure gauge testing in metrology laboratories
Industrial pipeline pressure monitoring
Hydraulic and pneumatic system pressure detection
Field pressure verification and maintenance
As a reference standard on pressure calibration benches
Features
1. Full stainless steel housing: 304 stainless steel body and wetted part, durable and corrosion-resistant.
2. High accuracy: Optional 0.4% / 0.25% FS precision, meets calibration requirements.
3. Wide measuring range: From -100 kPa to 100 MPa, covers most industrial pressure applications.
4. Multi-unit display: Supports MPa, bar, kPa, psi, kgf/cm² and more units.
5. Long battery life: Powered by built-in 3.6V lithium battery, works continuously for 3~5 years.
6. High overload capacity: Withstands 1.5 times full scale pressure.
7. IP65 protection grade: Dustproof and water-resistant for industrial use.
8. User-friendly design: With zero reset, unit switching and LCD backlight display.
Technical Parameters
Item | Specification |
Product Model | JC-YBS Precision Digital Pressure Gauge |
Pressure Measuring Range | -100 kPa ~ 2 kPa ~ 100 MPa |
Accuracy Class | 0.4% FS / 0.25% FS (optional) |
Overload Capacity | 1.5 times of full scale |
Display | 5-digit LCD dynamic display |
Power Supply | Built-in 3.6V lithium battery |
Continuous Working Life | 3~5 years (depends on usage) |
Medium Temperature | -30 ~ 80 ℃ |
Working Environment Temperature | -30 ~ 80 ℃ |
Relative Humidity | ≤80% RH (non-condensing) |
Protection Grade | IP65 |
Housing & Wetted Part Material | 304 Stainless Steel |

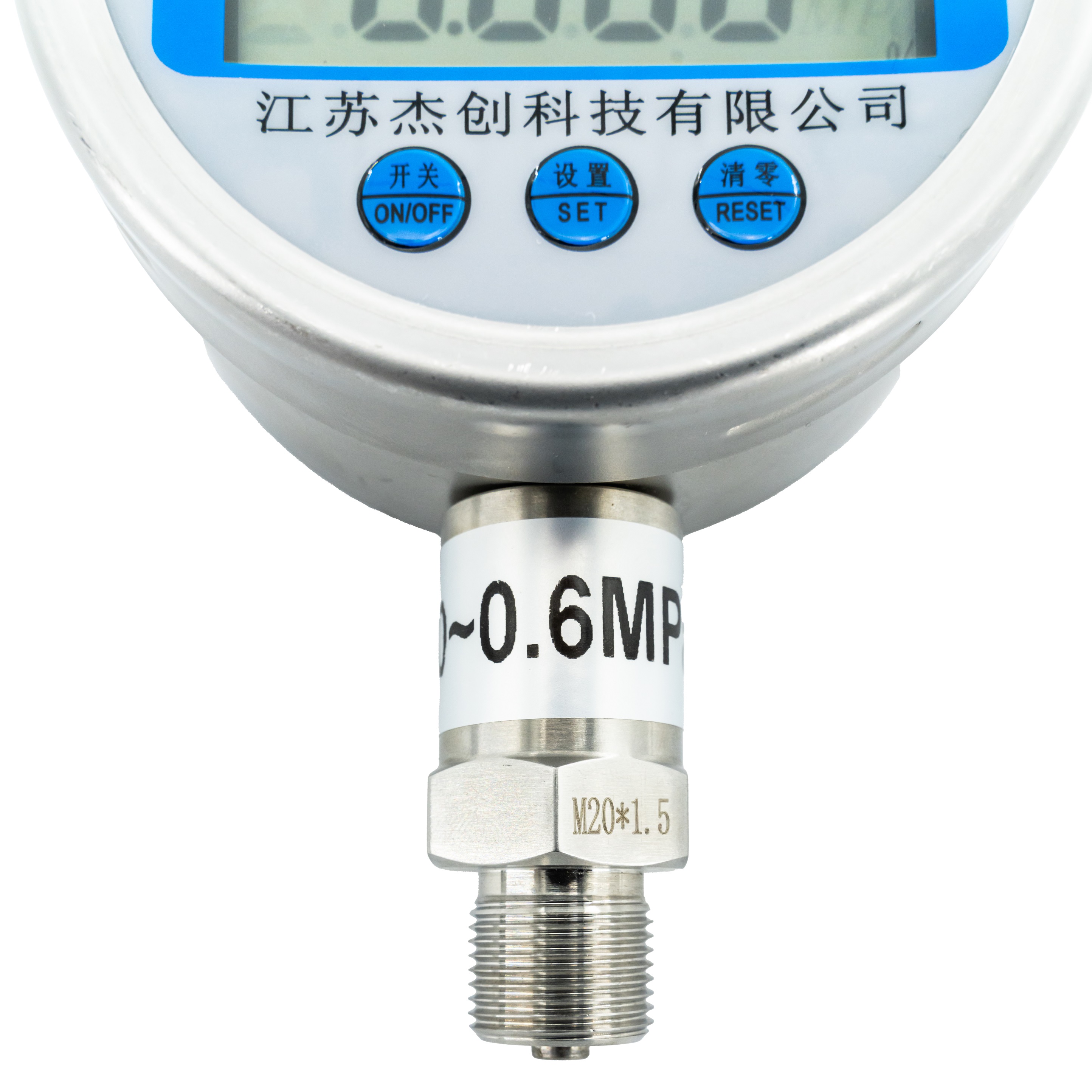

Pressure Connection | M20×1.5 (other threads available upon request) |
Overall Dimensions | Head: Ø100 mm × 50 mm, Total Length: 160 mm |
Unit Options | MPa, bar, kPa, psi, kgf/cm², mmHg, etc. |
All parameters can be customized as required.
