YTN Series
Jiangsu Jiechuang
9026209090

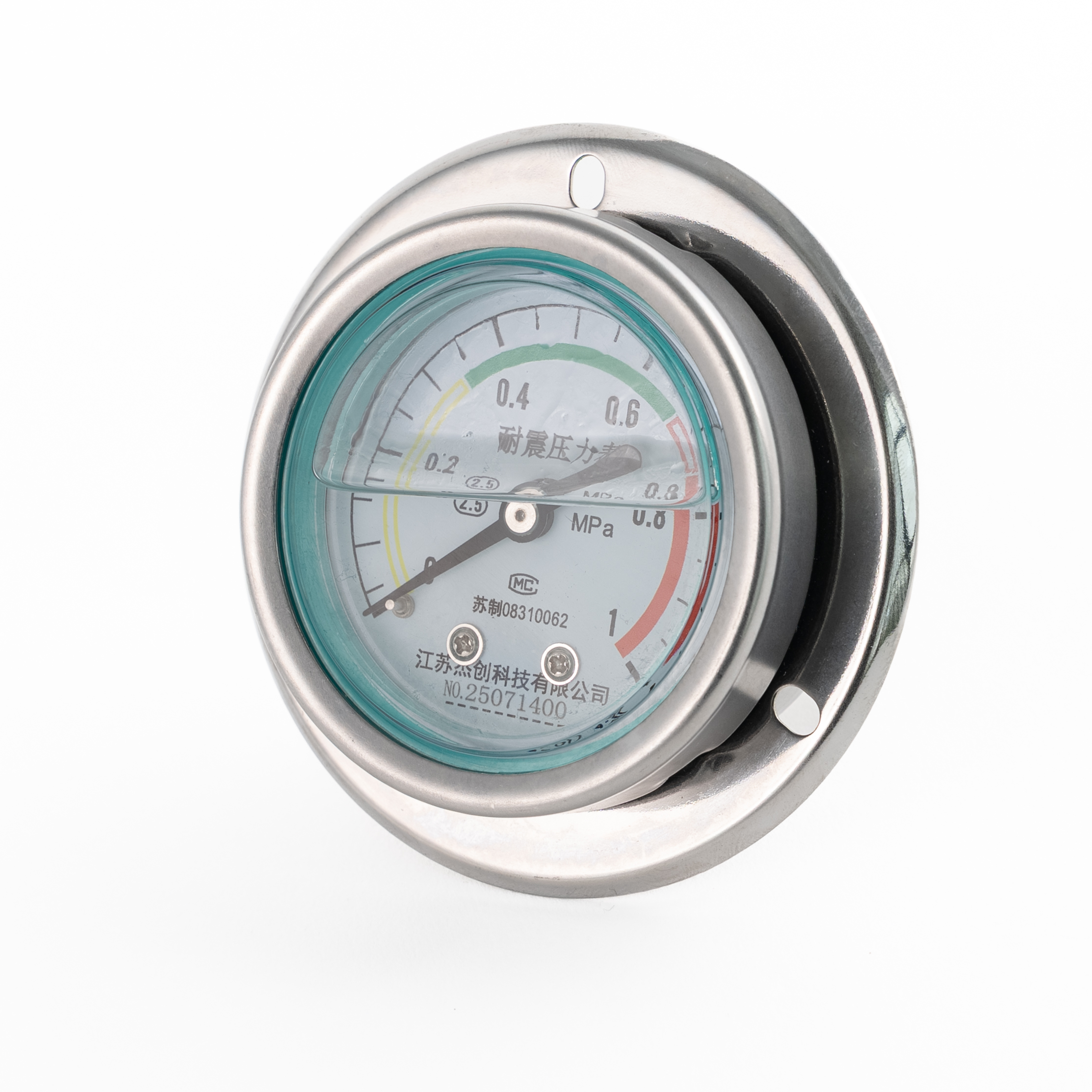

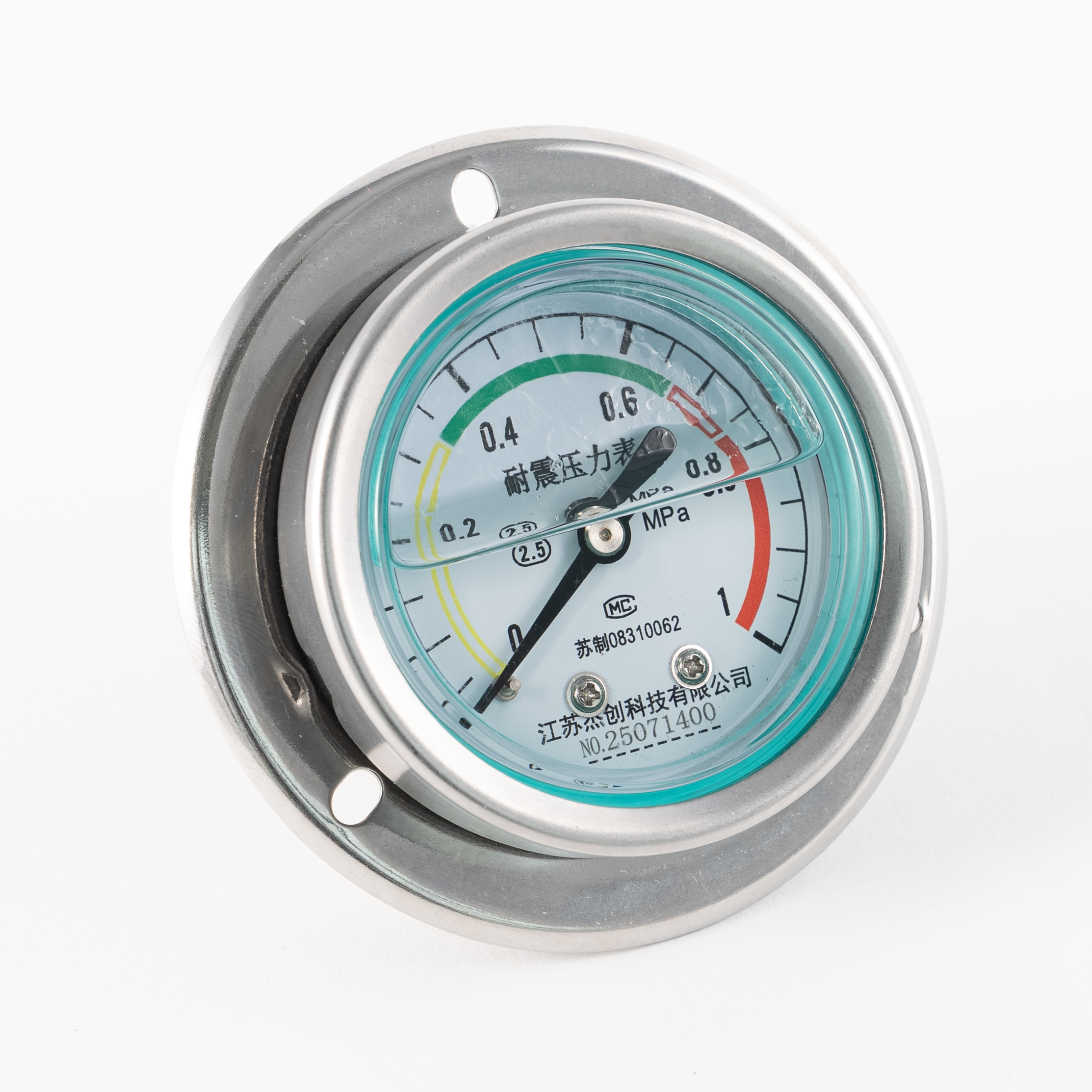

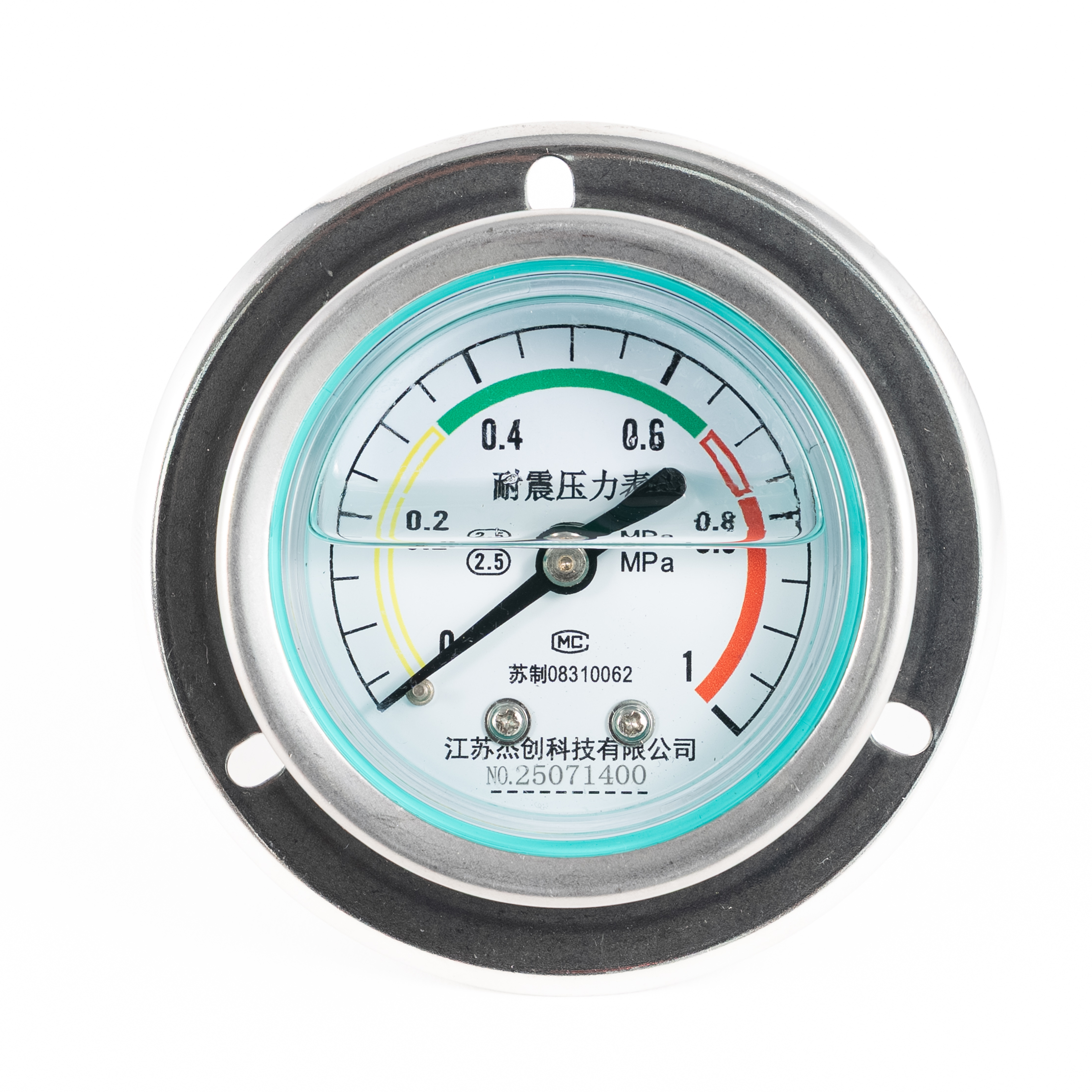

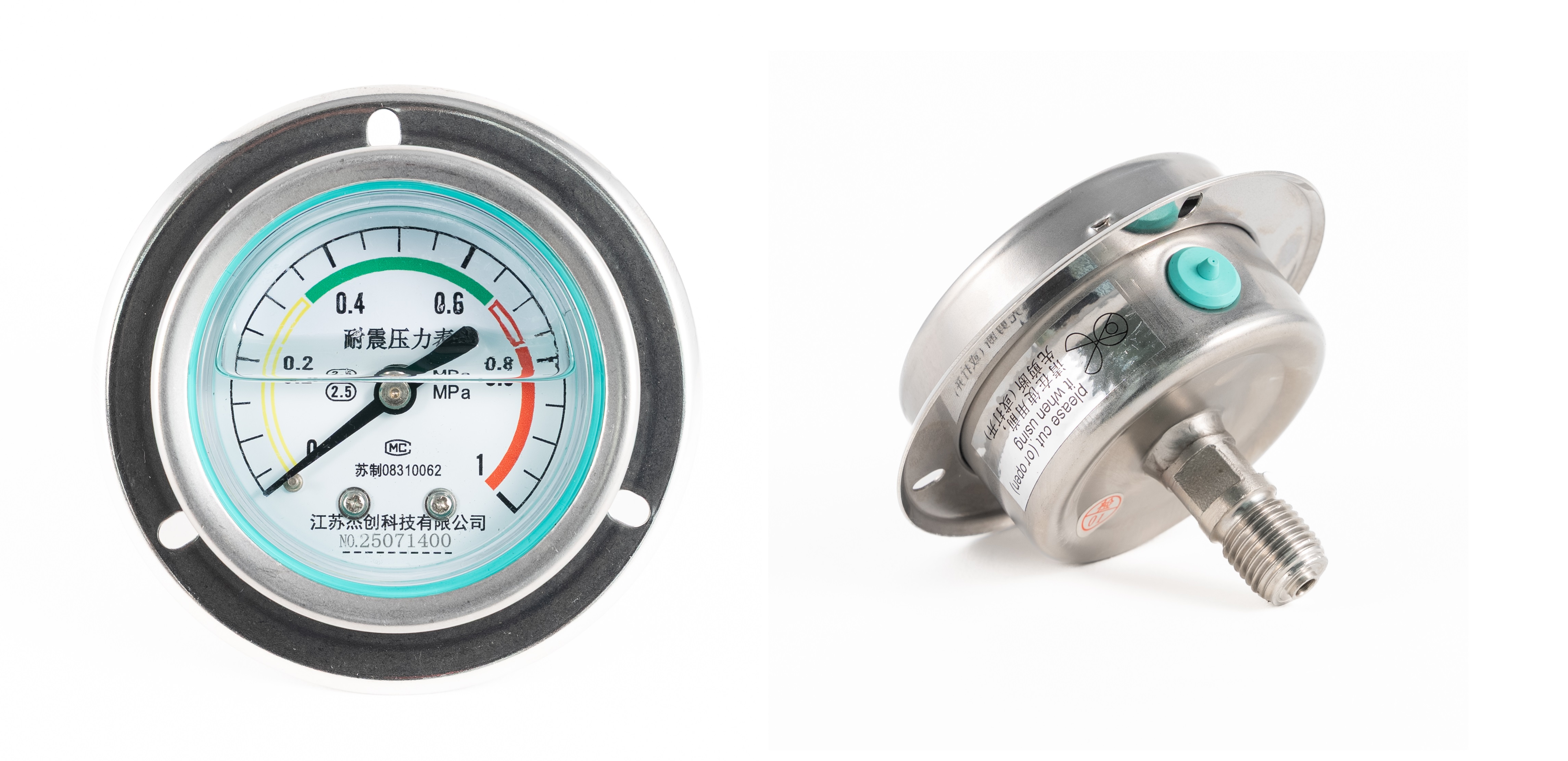

Stainless Steel Shock Resistant Pressure Gauge with Panel Mount
Product Overview:
This is a stainless steel shock resistant pressure gauge with a dedicated mounting panel.
It is designed to measure the pressure of liquid, gas and steam in various industrial working conditions.
The main body is made of high-quality stainless steel, with excellent anti-corrosion and anti-rust performance.
It is filled with silicone oil inside, which provides outstanding shock resistance and anti-vibration effect.
The integrated mounting panel makes the installation more stable, convenient and time-saving.
It has reliable measurement accuracy and long service life, suitable for long-term continuous industrial operation.
Main Applications:
Widely used in chemical processing, petroleum, petrochemical, water treatment and other core industrial fields.
Suitable for pressure monitoring of hydraulic and pneumatic systems, general mechanical equipment and industrial pipelines.
Can be applied to food & beverage, pharmaceutical production lines with sanitary and anti-corrosion requirements.
Perfect for working conditions with frequent vibration, pressure fluctuation and mild corrosive media.
Parameters:
Parameter | Standard Specification |
Product Name | Stainless Steel Shock Resistance Pressure Gauge with Panel Mount |
Nominal Case Diameter | 60mm/63mm, 100mm, 150mm, 200mm |
Accuracy Class | Class 1.6, Class 2.5 (Class 1.0 optional) |
Pressure Range | -0.1MPa~0MPa (Vacuum); 0~0.1MPa up to 0~60MPa (custom ranges available) |

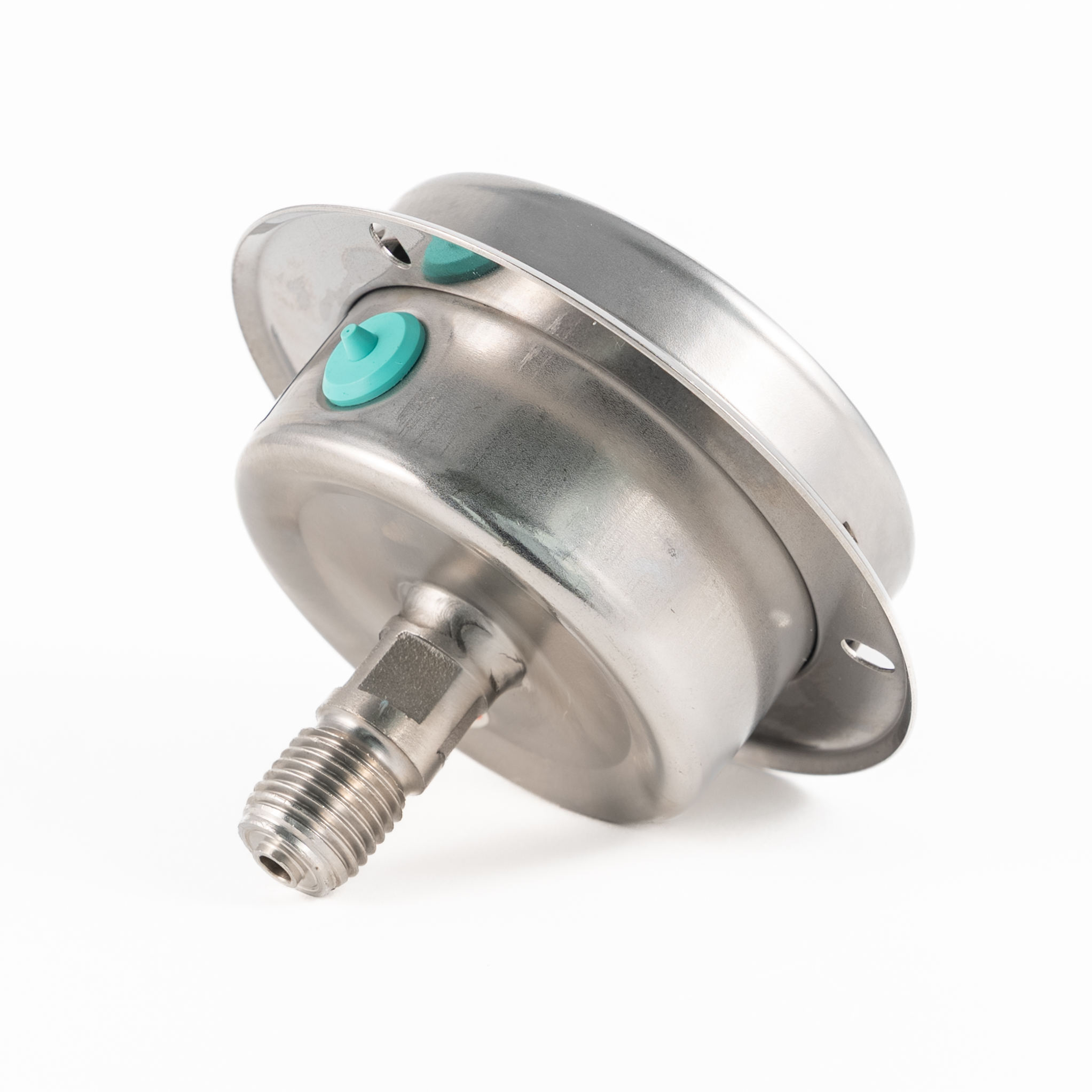

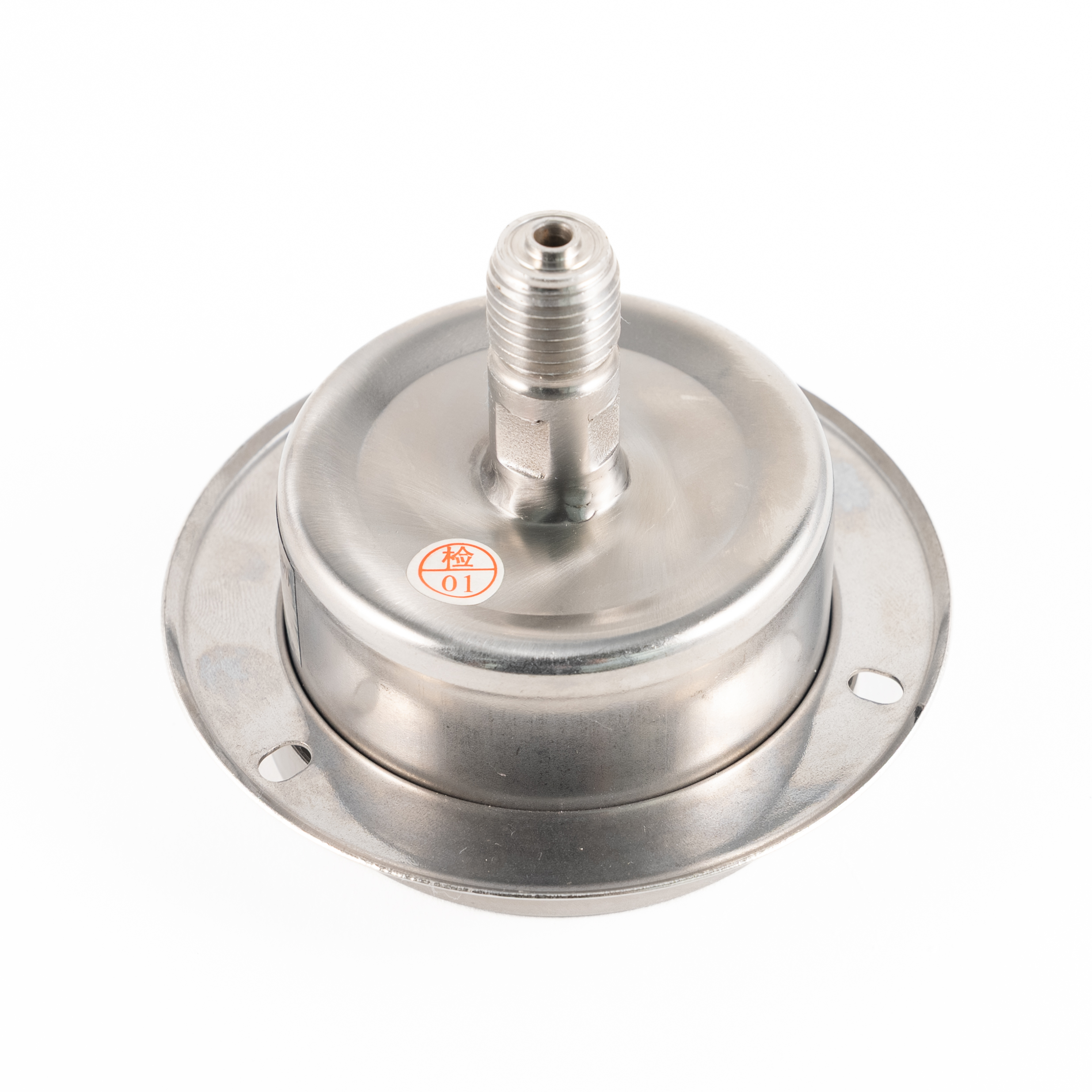

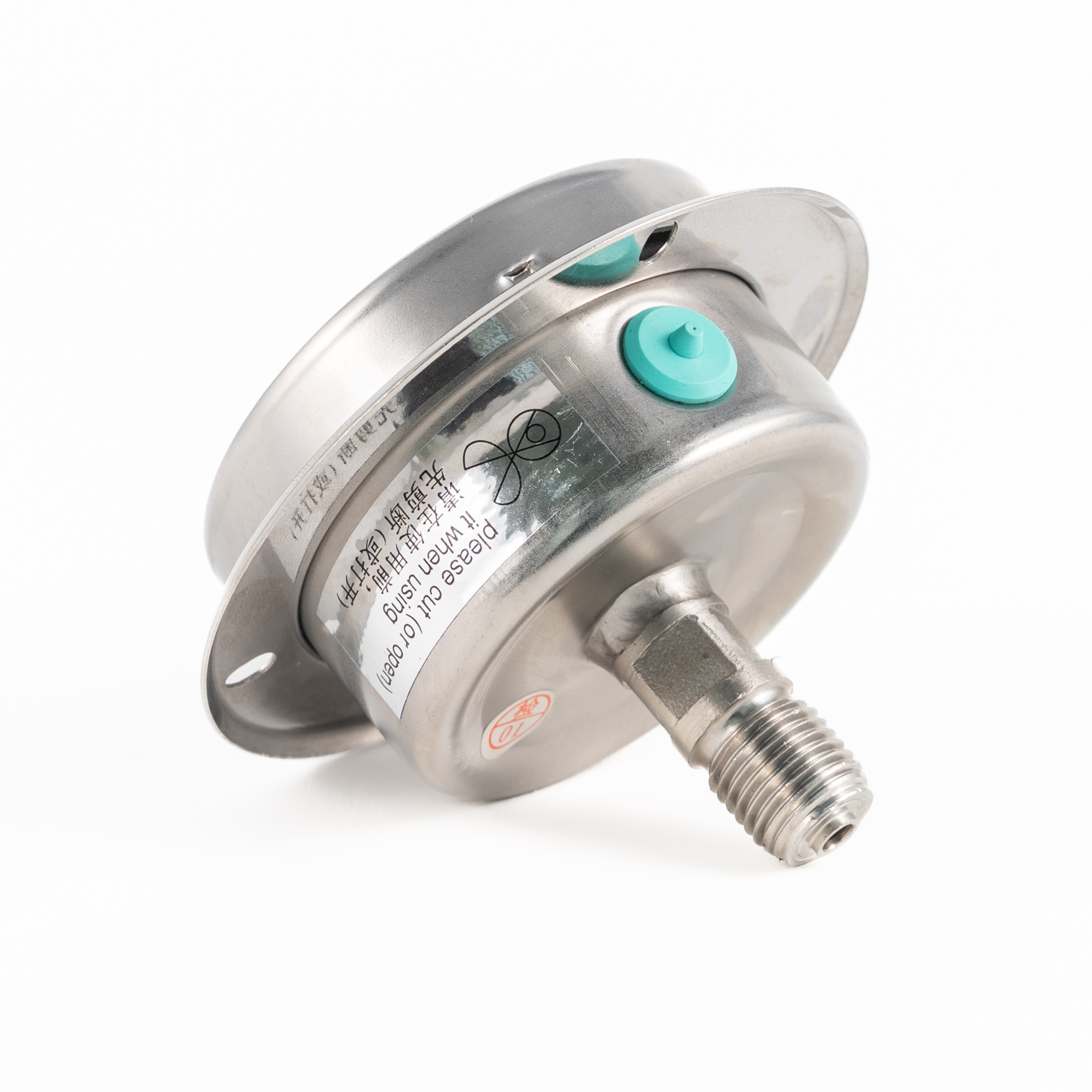

Mounting Type | Front Flange Panel Mount (Standard, ZT Type), Rear Flange (Optional) |
Connection Type | Axial Back Mount (Back Connection, Standard), Radial Bottom Mount (Optional) |
Connection Method | Threaded Connection (Standard, Male Thread), Flange Connection / Tri-Clamp Connection (Optional) |
Standard Thread Size | M20×1.5 (Most Common), M14×1.5, G1/2, NPT1/2, R1/2 |
Case Material | 304 Stainless Steel, 316L Stainless Steel |
Wetted Parts Material | 304 Stainless Steel, 316L Stainless Steel (Standard); Corrosion-resistant alloys optional |
Filling Liquid | Silicone Oil (Standard), Food-grade Glycerin (Optional) |
Sealing Material | NBR, FKM (Viton), PTFE, Silicone Rubber |
Dial Window | Acrylic, Tempered Glass, PC, Double-layer Explosion-proof Glass |
Protection Level | IP64 (Standard), IP65 (Optional) |
Operating Temperature | -40℃ ~ +70℃ (Extended high/low temperature range available upon request) |
Compliance Standard | GB/T 1226, EN 837-1 (Optional) |
Note: All parameters can be customized as required.
