Product Introduction

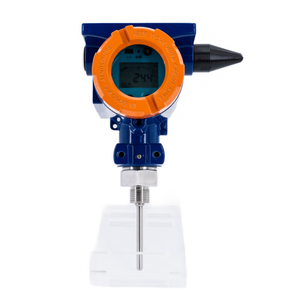

The JC-SBW Industrial Digital Wireless Temperature Transmitter is designed for industrial temperature measurement and remote monitoring.

It integrates a temperature sensing element, wireless communication module and LCD display into a compact instrument. Temperature data can be transmitted wirelessly to a compatible monitoring system, helping reduce signal cable installation in suitable applications.

The transmitter is available with a Pt100 RTD or thermocouple sensor, depending on the selected configuration. A stainless steel probe and threaded installation design support temperature measurement in pipelines, tanks and industrial equipment.

Wireless communication options can be selected according to the project requirements.

Applications

The JC-SBW wireless temperature transmitter can be used for temperature monitoring in:

• Oil and Gas: Pipeline and equipment temperature monitoring.

• Chemical Processing: Temperature monitoring of process equipment and storage tanks, subject to material compatibility.

• Power Plants: Temperature monitoring of selected industrial equipment.

• Steam and Heat Exchange Systems: Monitoring of compatible process points within the specified temperature and pressure limits.

• HVAC Systems: Temperature monitoring in suitable industrial and building systems.

• Smart Factories: Wireless temperature data collection for industrial monitoring systems.

• Remote Installations: Temperature monitoring points where signal cable installation is difficult or costly.

Application suitability depends on the sensor, process connection, operating conditions, communication method and required certifications.

Key Features

Wireless Temperature Data Transmission

Supports wireless monitoring in compatible industrial systems. Available communication options depend on the selected configuration.

LCD Local Display

Allows operators to check the measured temperature at the installation site.

Pt100 RTD or Thermocouple Options

Sensor selection can be matched to the measurement range and process requirements.

Battery-Powered Design

Built-in lithium battery power supports installations where an external power cable is undesirable. Battery life depends on the communication method, reporting interval and operating conditions.

Adjustable Probe Installation

The probe insertion depth can be adjusted if the selected compression fitting supports this function.

Stainless Steel Probe

SS304 or SS316L options are available for different installation and material compatibility requirements.

Configurable Industrial Connections

Probe diameter, insertion length and process connection can be selected according to the application.

Technical Specifications

Note: Specifications can be customized according to customer requirements.

Inquiry Guide

Required Information

• Measuring range and normal operating temperature

• Sensor type: Pt100 RTD or thermocouple

• Required accuracy

• Wireless communication protocol

• Probe diameter and insertion length

• Process connection type and size

• Required protection rating

• Order quantity

Special Requirements

• Explosion-proof certification and hazardous-area classification

• Required wireless transmission distance and monitoring system compatibility

• Battery-life expectations and data reporting interval

• Probe material and process medium compatibility

• Special operating temperature, installation or environmental conditions

FAQ

Q1: What does the JC-SBW measure?

A: It measures process temperature using a selected Pt100 RTD or thermocouple sensor and transmits temperature data wirelessly.

Q2: Which wireless communication methods are available?

A: LoRa, LoRaWAN, NB-IoT and 4G are listed as options. Availability and compatibility should be confirmed for the required configuration.

Q3: Does the transmitter require an external power supply?

A: The listed configuration uses a built-in lithium battery. Battery life depends on operating conditions and communication settings.

Q4: Can the probe insertion length and connection be customized?

A: Probe dimensions and process connections can be customized subject to the available product configuration.

Q5: Is an explosion-proof version available?

A: Explosion-protection options may be available. Please specify the required hazardous-area classification so the applicable model and certification can be checked.

Q6: What information is needed for a quotation?

A: Please provide the measuring range, sensor type, accuracy, wireless protocol, probe dimensions, process connection, required protection rating and quantity.

Ordering and Customization

Please provide your process conditions and monitoring requirements when requesting a quotation. JIECHUANG can confirm the suitable sensor configuration, wireless communication option, installation dimensions and applicable certifications before order confirmation.
