Product Introduction
The Explosion Proof Flanged Mineral Insulated RTD Temperature Sensor is designed for accurate and stable temperature measurement in industrial process applications.
The sensor adopts a high accuracy Pt100 platinum resistance element with a mineral insulated armored RTD insert, providing excellent vibration resistance, fast response and long service life.
The removable RTD insert is installed inside a heavy-duty SS316 tapered thermowell, which protects the sensing element from direct contact with process media and allows convenient maintenance or replacement without stopping the process.
With an explosion-proof terminal heas and flange connection, this RTD sensor is widely used in chemical, petroleum, power generation, pharmaceutical and industrial automation systems.
Main Structure
Main Components:

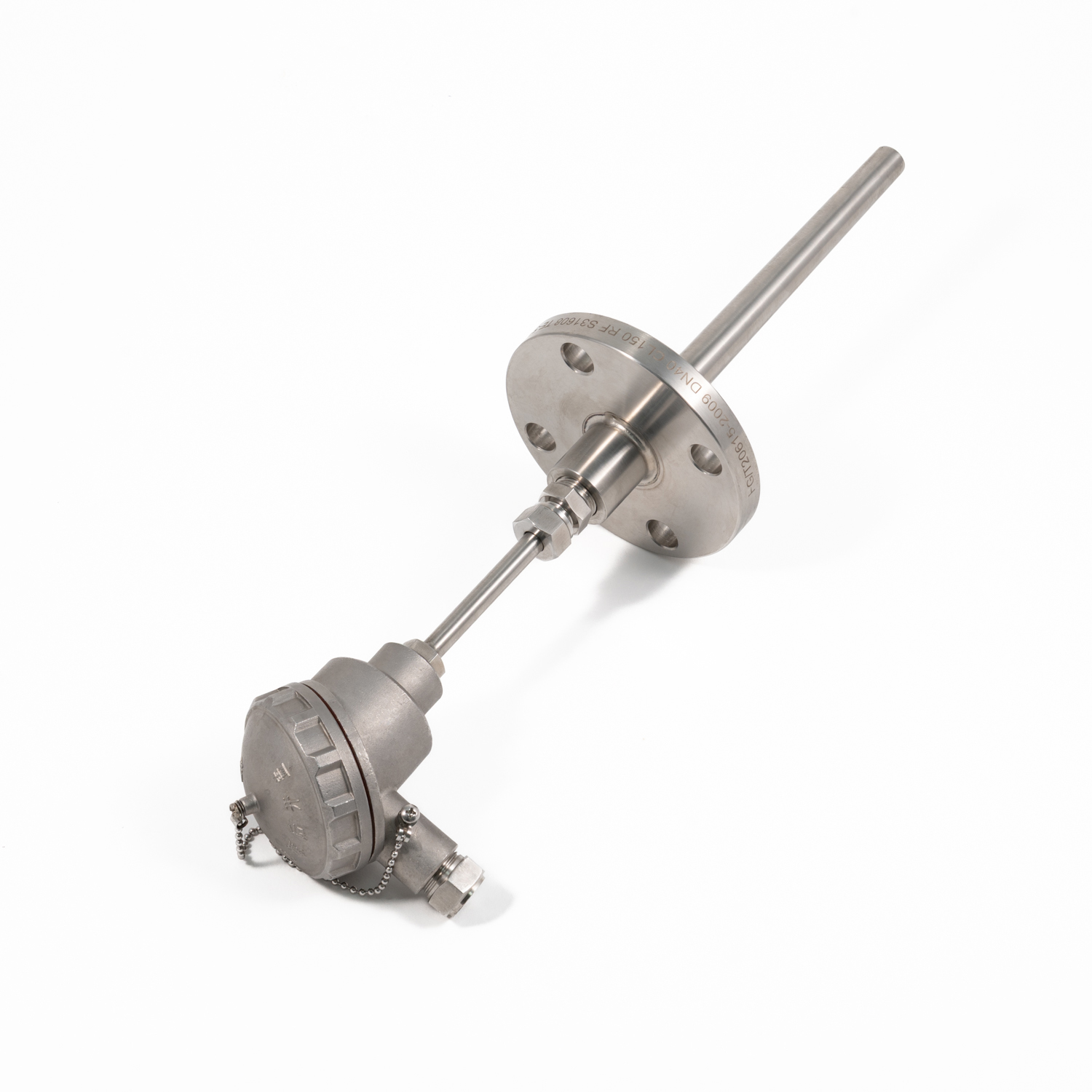

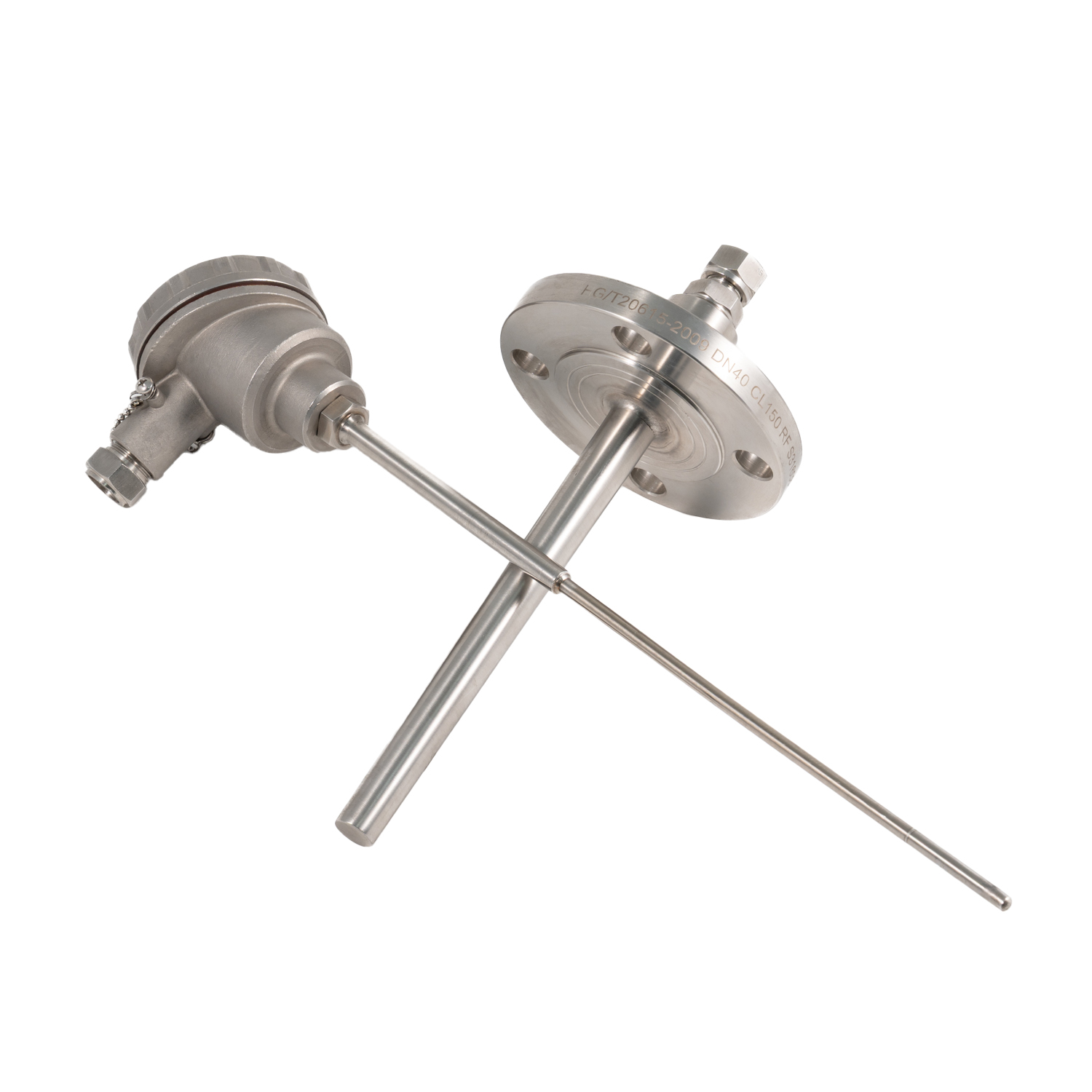

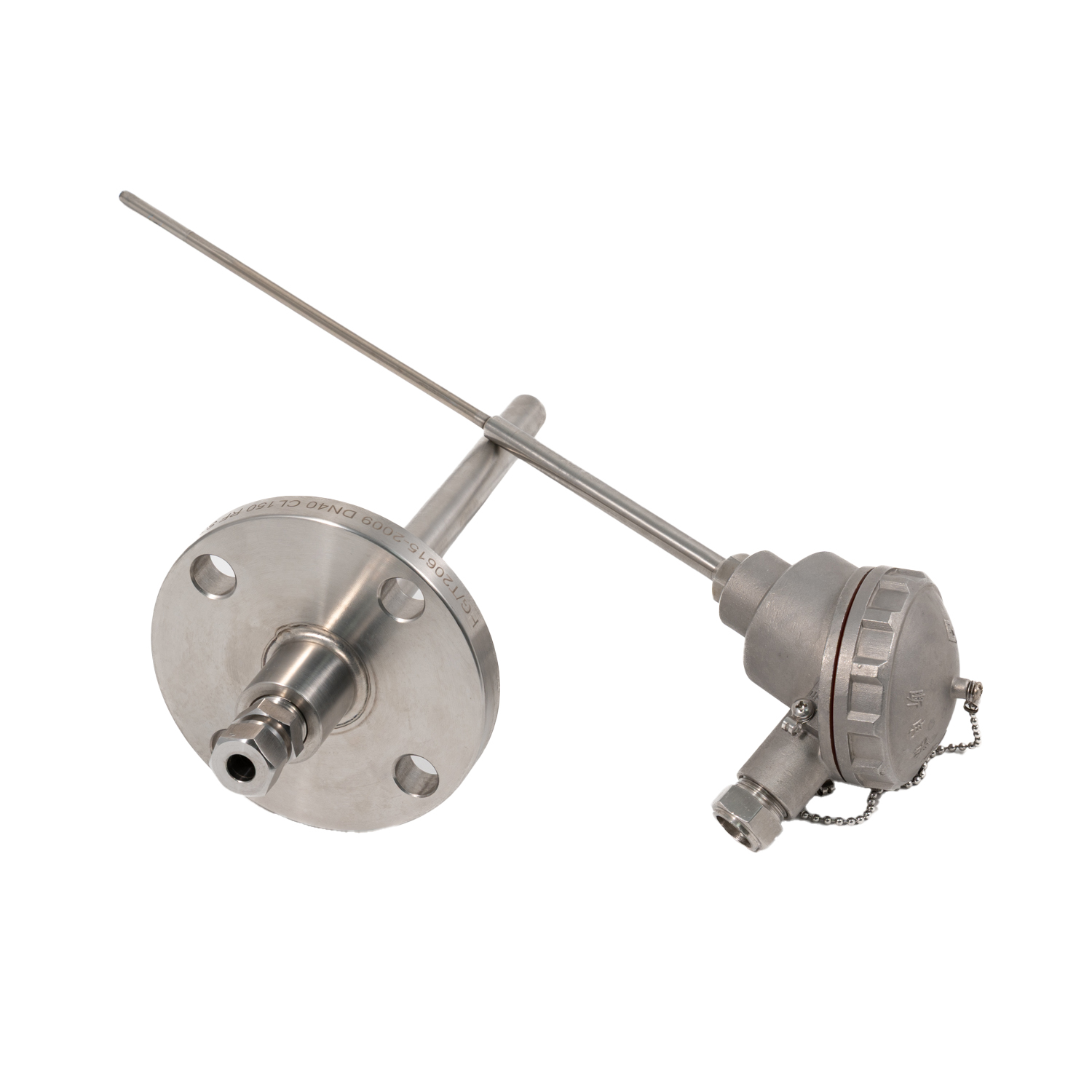

1. Mineral Insulated RTD Insert

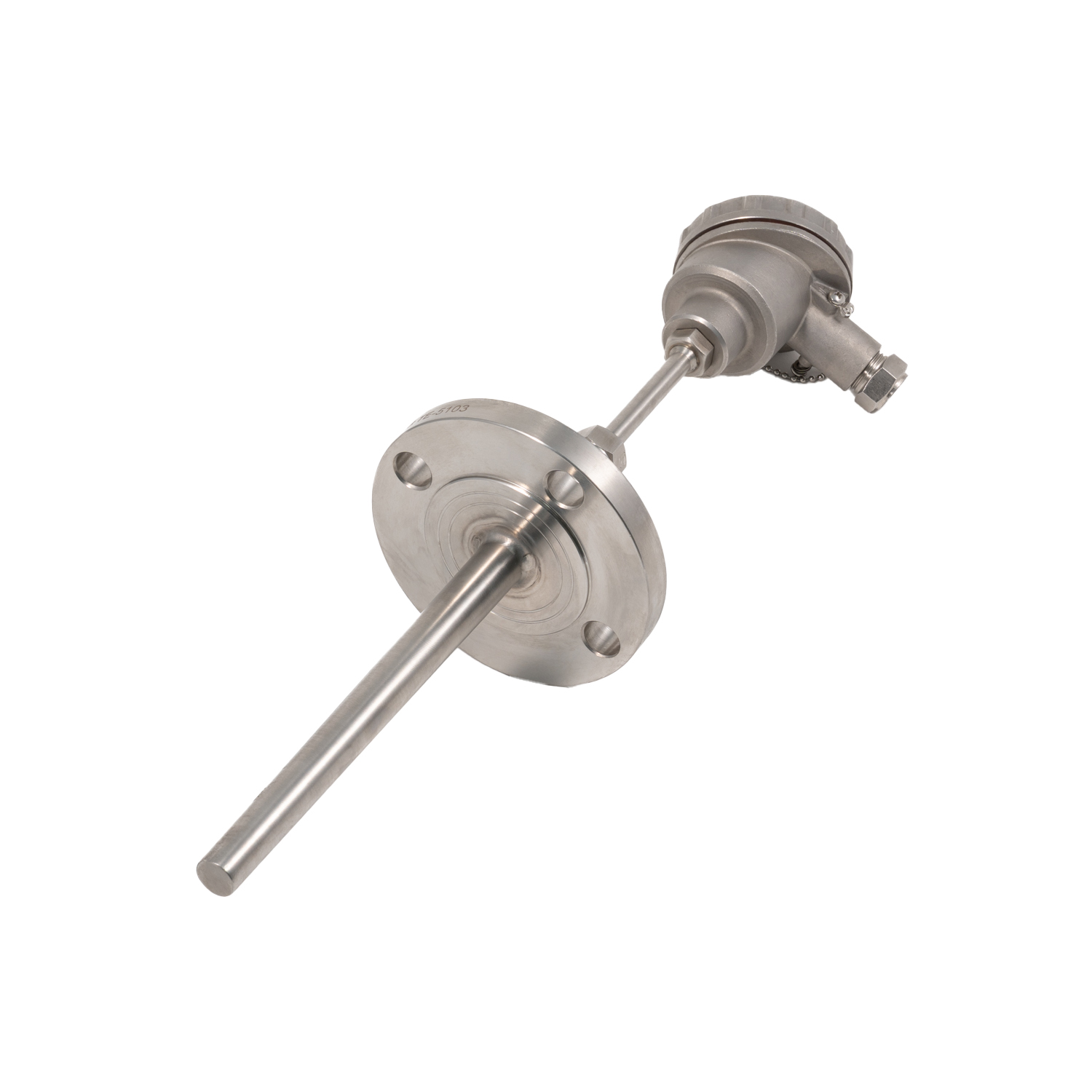

2. Flanged Thermowell
Applications
Features
High accuracy Pt100 platinum resistance element
Mineral insulated armored RTD design
Removable sensor insert structure
Heavy-duty SS316 thermowell protection

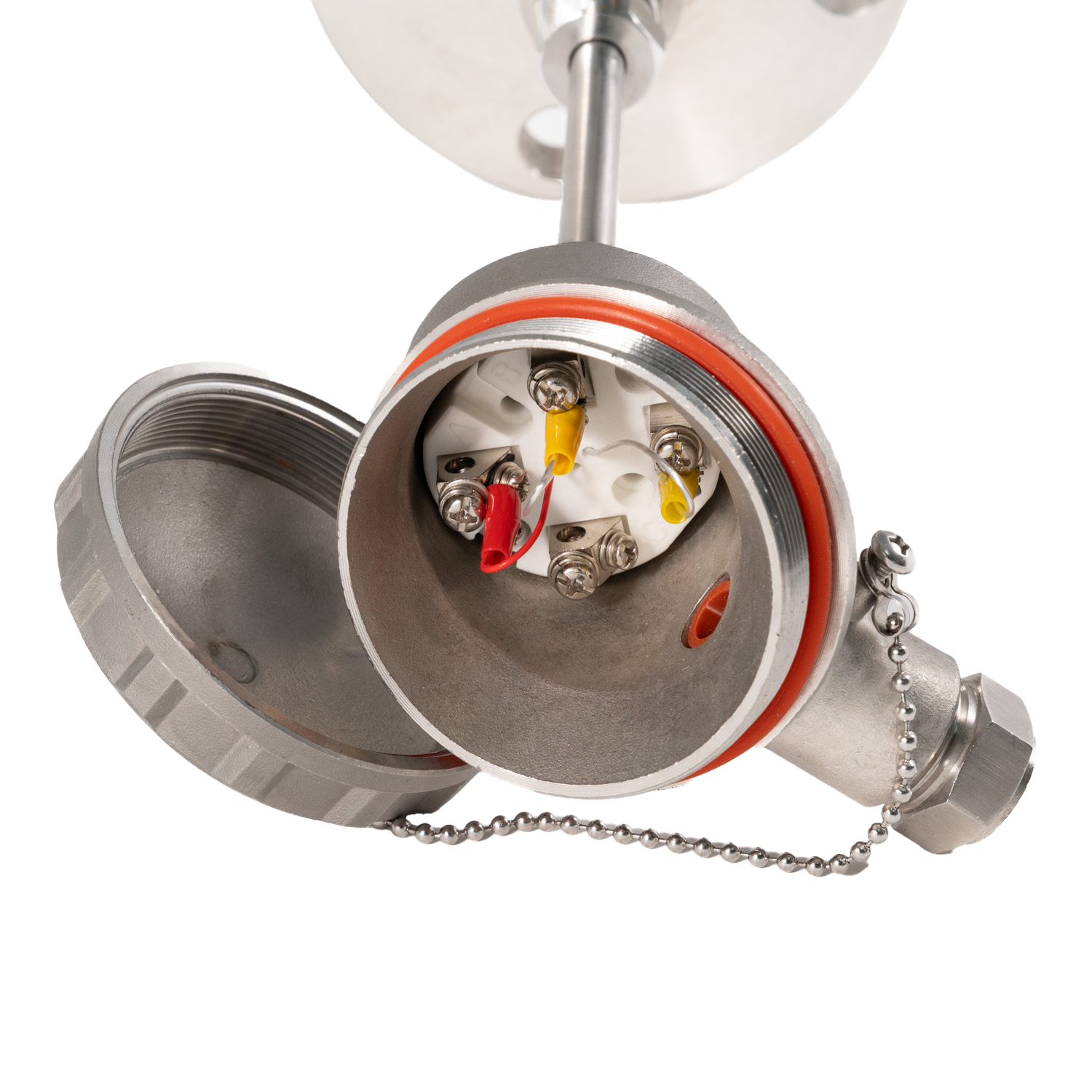

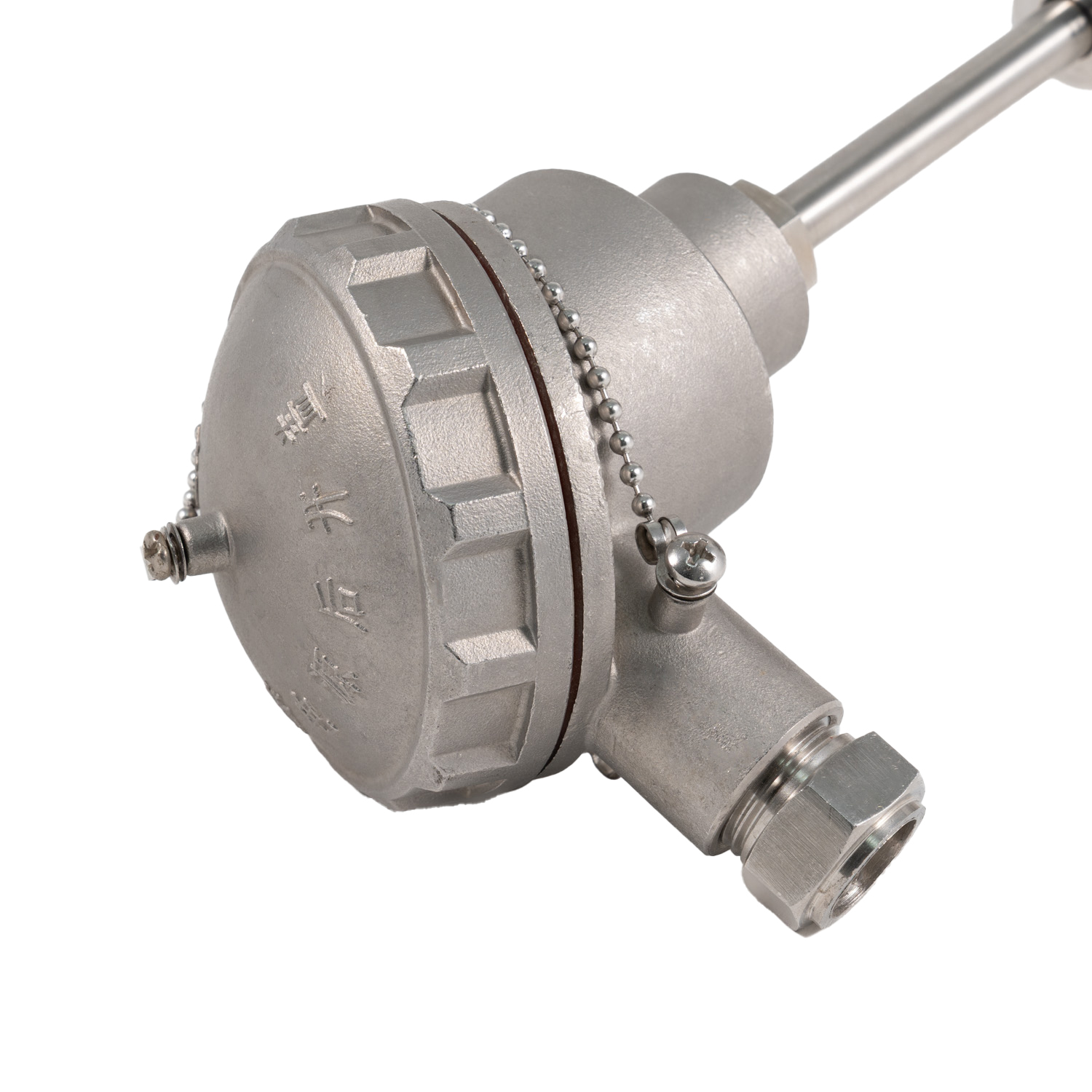

Explosion-proof stainless steel connection head
Fast thermal response
Excellent vibration resistance
Suitable for high pressure process applications
Easy maintenance and replacement
Customized flange and insertion length available
Technical Specifications
Item | Specification |
Product Type | Flanged Mineral Insulated RTD Temperature Sensor with Thermowell |
Model | WZPK Series |
Sensor Type | Mineral Insulated RTD |
Sensor Element | Pt100 Platinum Resistance Element |
Accuracy Class | Class A (IEC 60751) |
Number of Elements | Single Element |
Wiring Type | 2-wire / 3-wire / 4-wire Optional |
Measuring Range | 0~60ºC (Max. Instrument Range: -200~+600ºC) |
Response Time | Customized according to thermowell design |
RTD Insert Type | Removable Mineral Insulated RTD Insert |
RTD Sheath Diameter | Φ6 mm |
RTD Sheath Material | SS304 / SS316 Optional |
Thermowell Type | Tapered Drilled Thermowell |
Thermowell Material | SS316 |
Thermowell Profile | Φ20 / Φ16 / Φ7 mm (Tapered O.D.) |
Insertion Length | 350mm/Customized |
Process Connection | Flanged Connection |
Flange Size | DN40 |
Pressure Rating | CL150 |
Flange Facing | RF |
Flange Standard | HG/T20615-2009 |
Flange Material | Stainless Steel 316 |
Connection Head Type | Explosion Proof Connection Head |
Explosion Proof Grade | Ex ia IIC T6 Ga |
Electrical Connection | 1/2"NPT |
Protection Grade | IP65 / IP67 Optional |
Installation Type | Flanged Installation |
Note: Specifications can be customized according to customer requirements.
