Product Introduction
The Flanged Anti-Corrosion Bimetal Thermometer is a mechanical temperature measuring instrument designed for direct local temperature indication in industrial processes.
It uses a helical bimetallic sensing element to convert temperature changes into mechanical pointer movement. No external power supply or electrical signal is required.

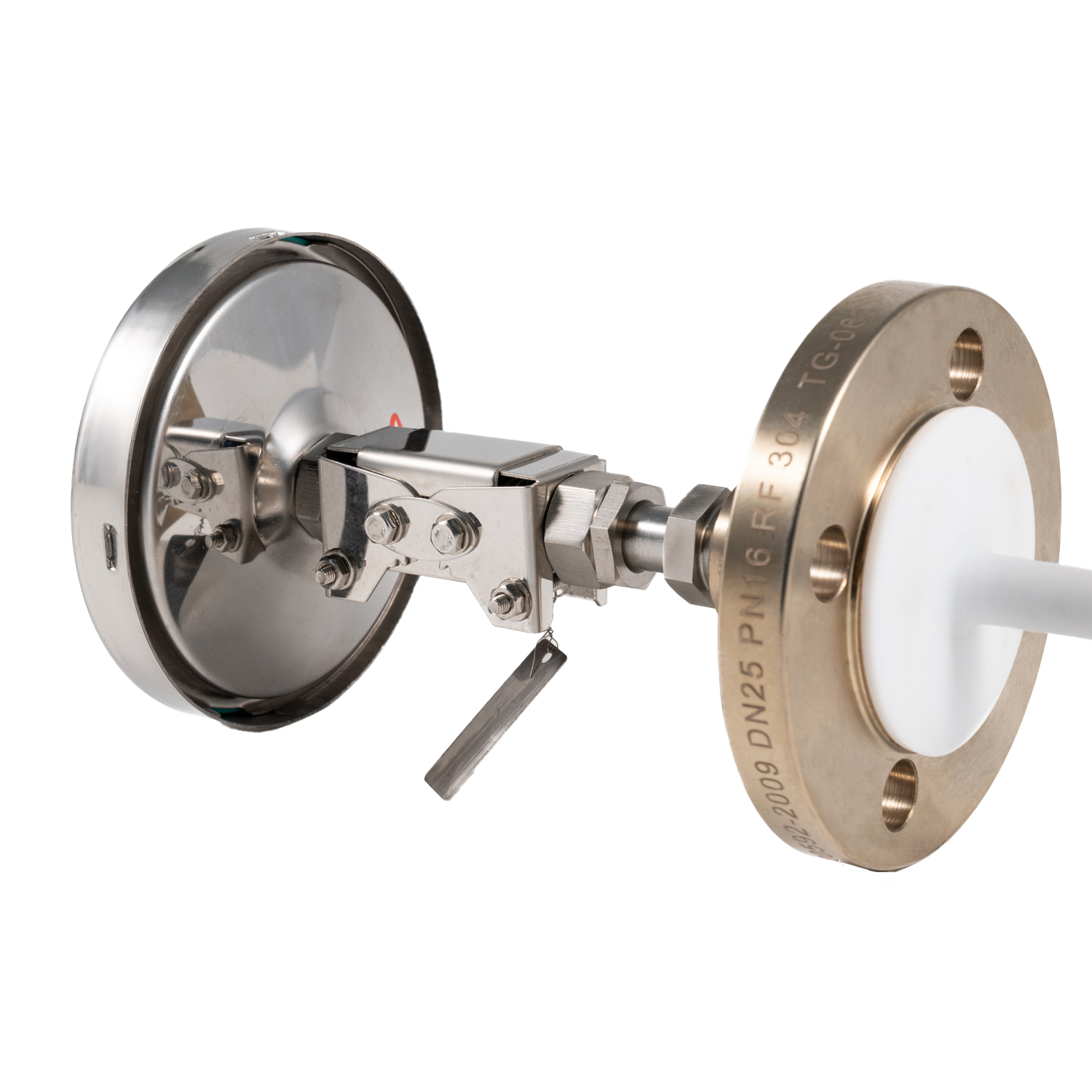

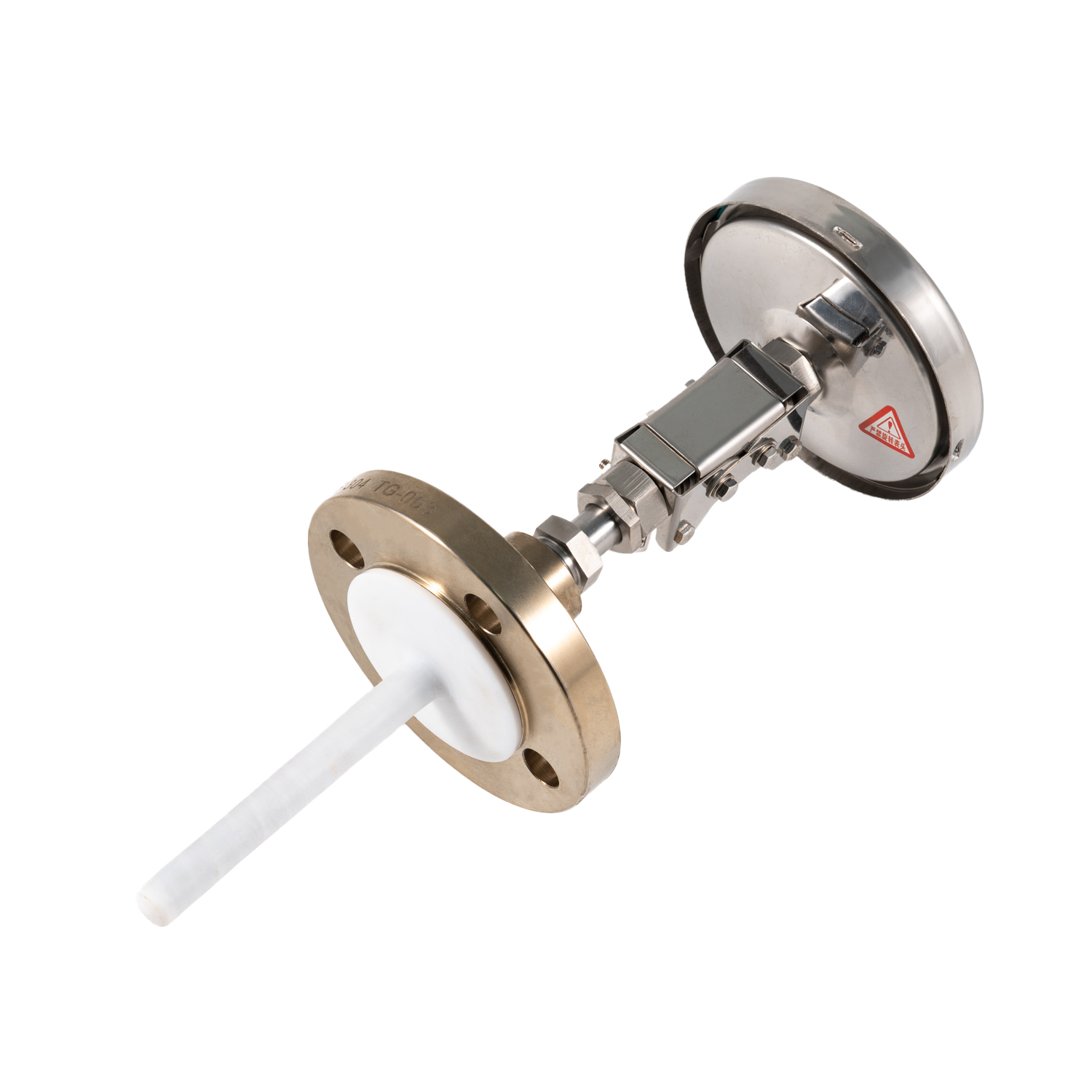

The thermometer features a DN25 PN16 RF flange and a sintered PTFE-lined protection tube, providing additional protection when measuring corrosive liquids, gases and vapors.

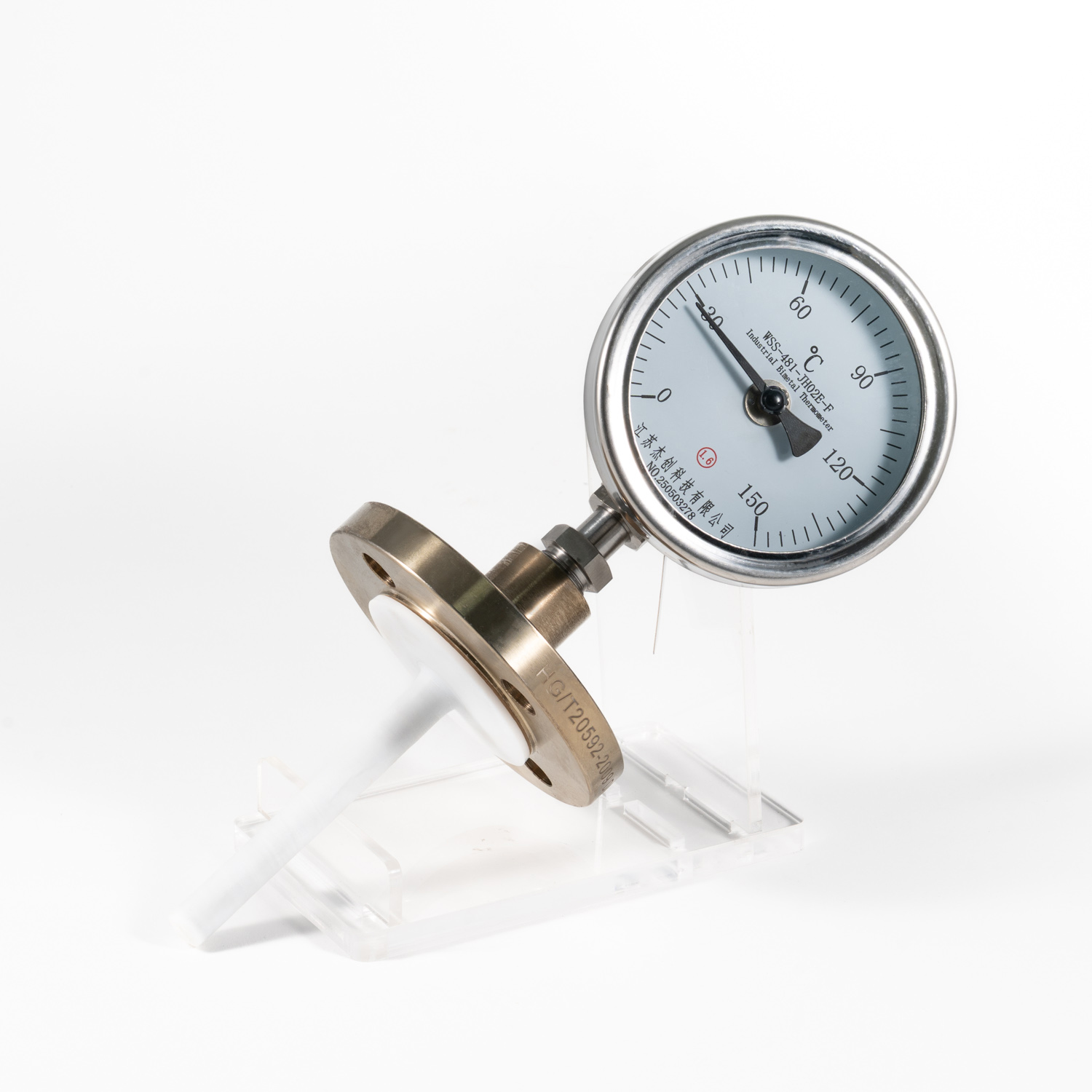

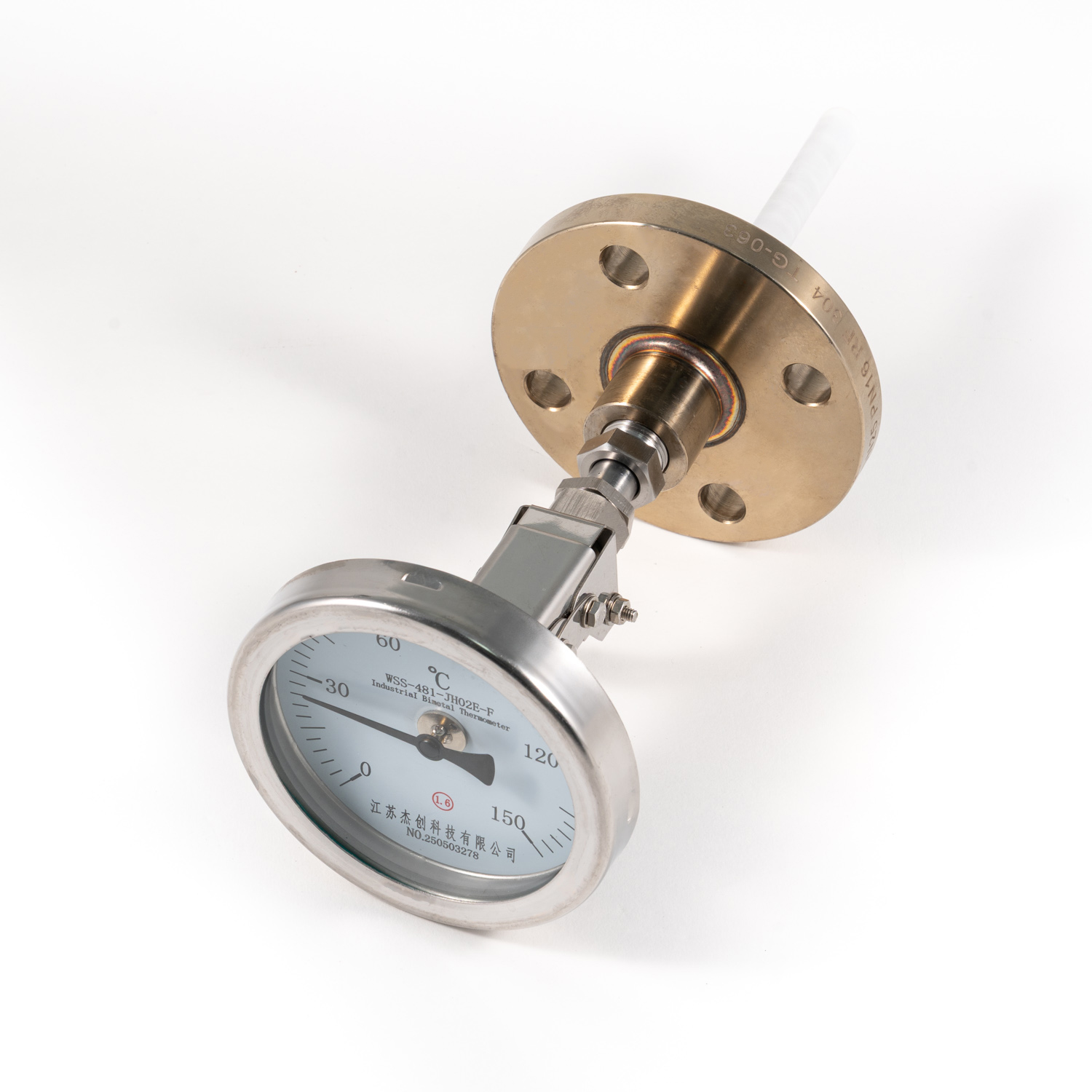

The adjustable-angle design allows the dial to be positioned for convenient reading after installation.

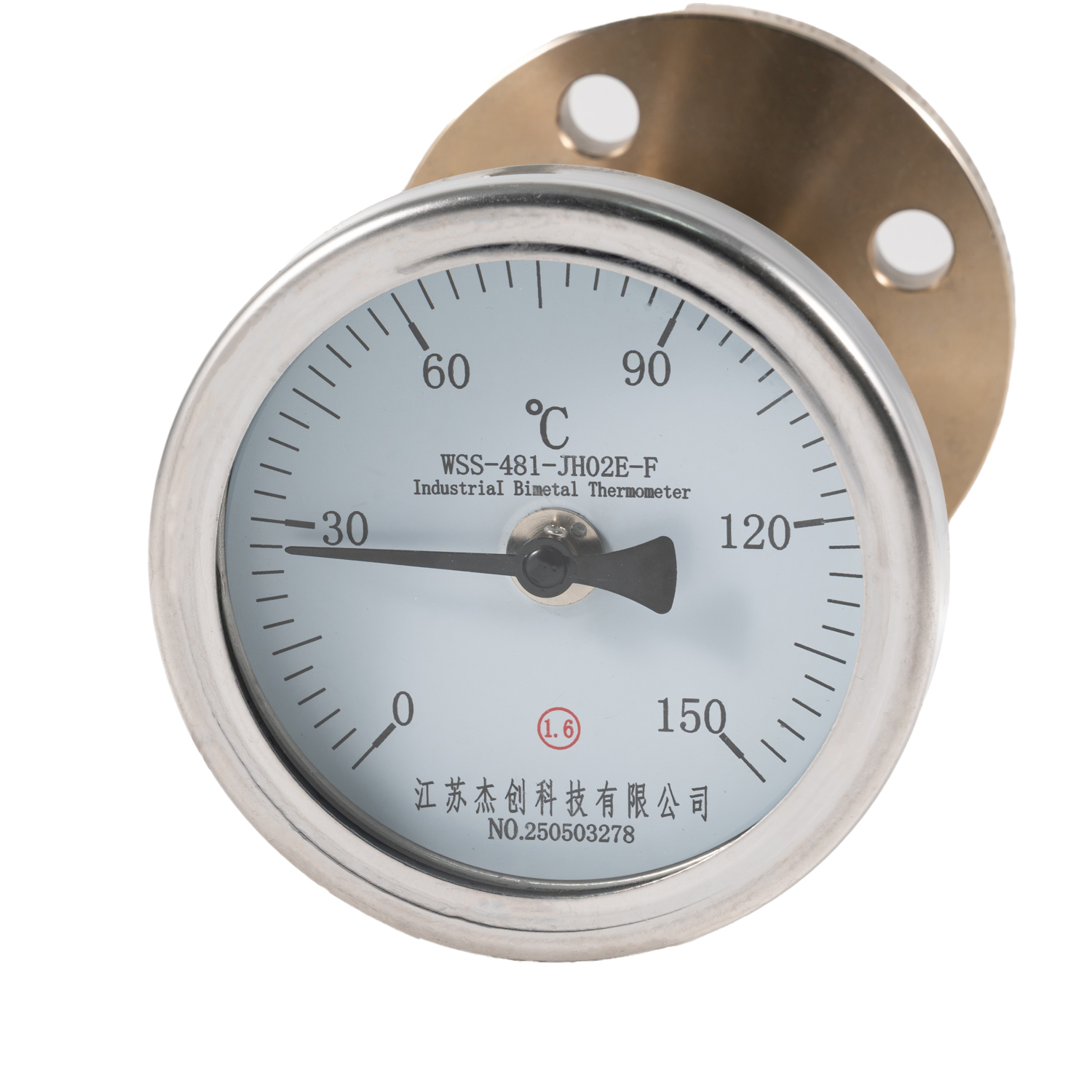

With a 100 mm dial, 0~150°C measuring range, Class 1.6 accuracy and 200 mm insertion length, it is suitable for chemical, petrochemical, water treatment and other process applications.
Applications
Chemical processing equipment
Petrochemical pipelines
Corrosive liquid temperature measurement
Water and wastewater treatment
Pharmaceutical process equipment
Industrial tanks and vessels
Process piping systems
Heat treatment and heating systems
General industrial temperature monitoring
Recommended for: applications where local mechanical temperature indication is required and the process medium may cause corrosion to conventional metal protection tubes.
Features
1. Pure Mechanical Operation
No power supply or wiring required.
2. Local Temperature Indication
Easy-to-read analog pointer display.
3. PTFE Corrosion Protection

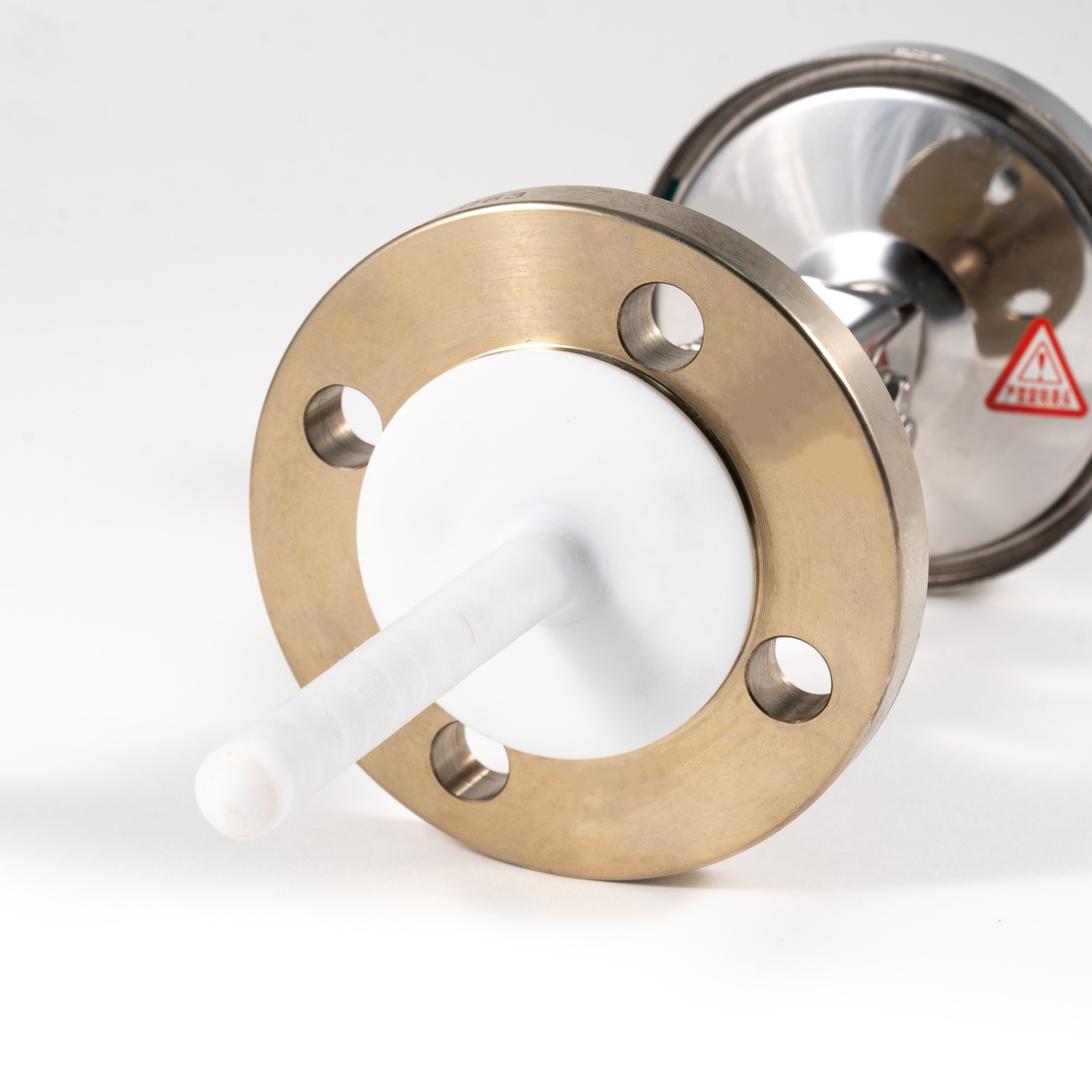

Sintered PTFE lining protects the sensing tube from corrosive media.
4. Flanged Process Connection
DN25 PN16 RF flange for process installation.
5. Adjustable Viewing Angle
The thermometer head can be adjusted for convenient on-site reading.
6. 304 Stainless Steel Construction
Good mechanical strength and corrosion resistance.
7. Fast Thermal Response
Standard response time ≤40 seconds.
8. Wide Industrial Compatibility
Suitable for liquids, gases and vapors within the specified temperature range.
Technical Specifications
Item | Specification |
Product Type | Flanged Anti-Corrosion Bimetal Thermometer |
Display Type | Analog Pointer |
Measuring Range | 0~150°C |
Scale Division | 3°C |
Nominal Dial Size | Ø100 mm |
Accuracy Class | Class 1.6 |
Mounting Type | Adjustable-Angle, Movable Male-Thread Design |
Process Connection | DN25 PN16 RF Flange |
Flange Material | Stainless Steel 304 (Golden yellow surface from PTFE sintering process, NOT brass) |
Connection Thread | M20×1.5 (NPT1/2 Optional) for angle adjustment between head and flange, NOT process connection |
Base Protection Tube | Ø16 mm Steel Tube |
Anti-Corrosion Layer | Sintered PTFE Protective Lining |
Finished Probe Diameter | Ø34 mm |
Insertion Length U | 200 mm |
Overall Length L | 345 mm |
Case Material | Stainless Steel 304 |
Thermal Response Time | ≤40 s |
Protection Grade | IP55 |
Angle Adjustment Error | ≤1.0% of Full Scale |
Local Indication | Mechanical Analog Display |
Lens | Glass |
Application | Corrosive Liquid, Gas and Vapor Temperature Measurement |
Note: Specifications can be customized according to customer requirements.
