JC-SBW
JIECHUANG

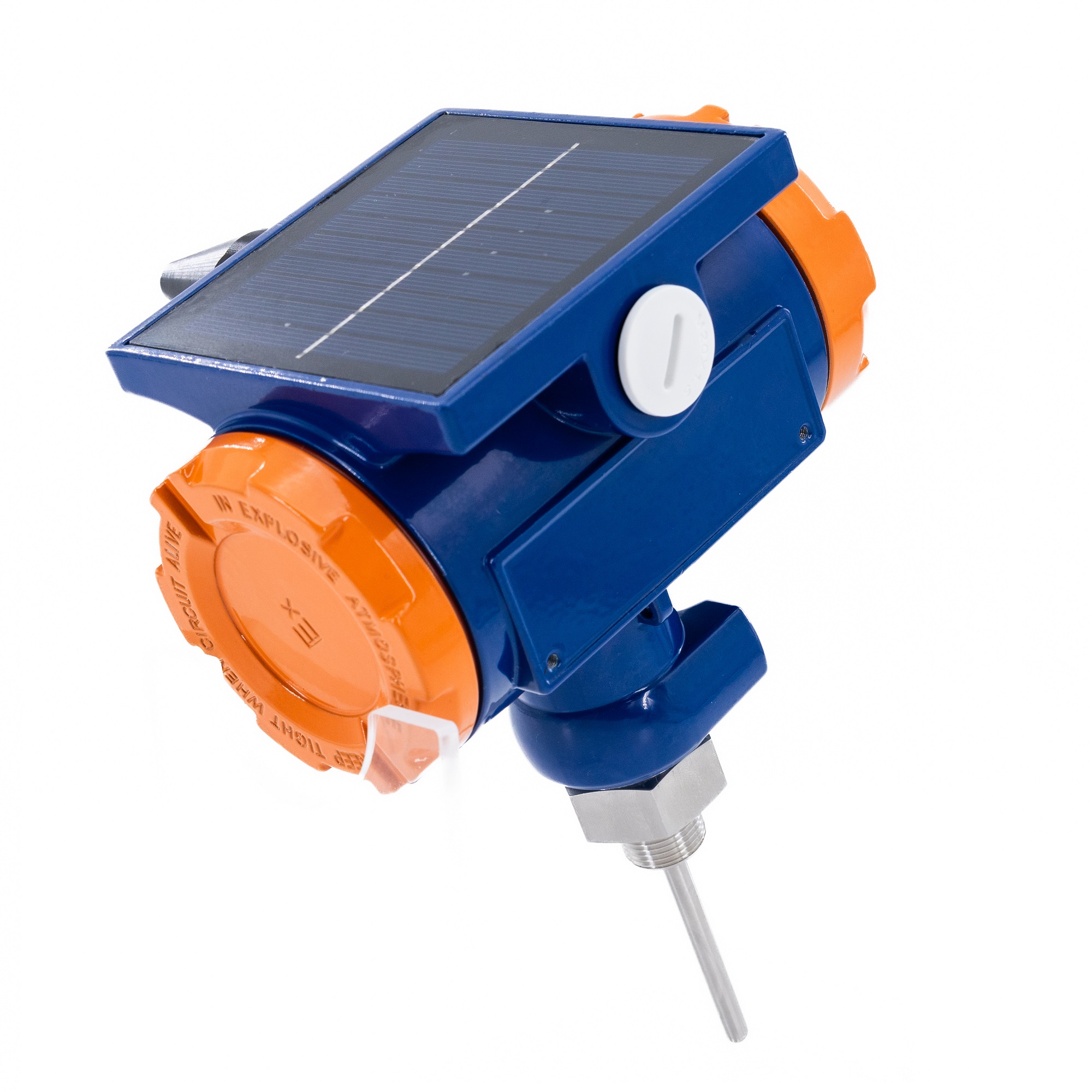

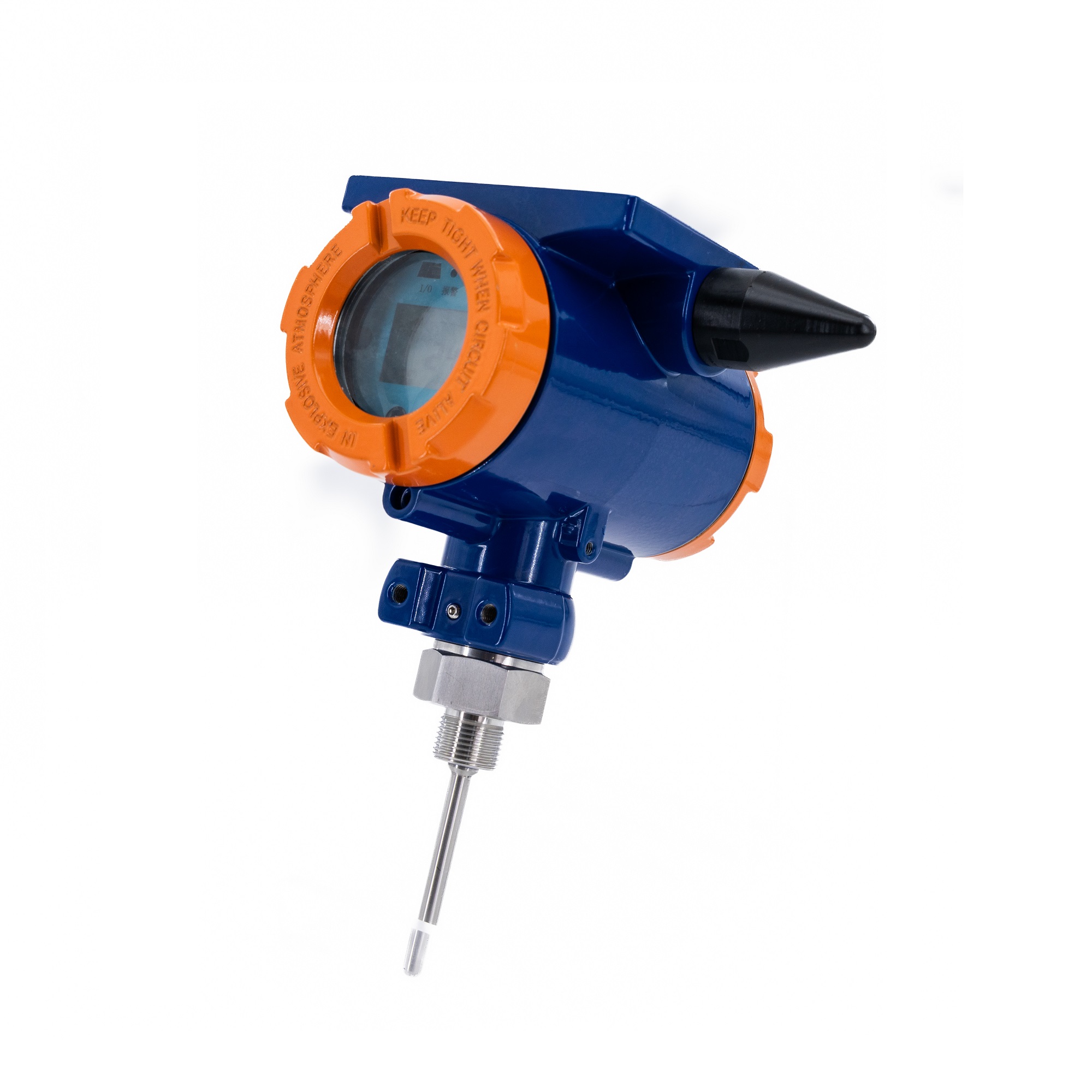

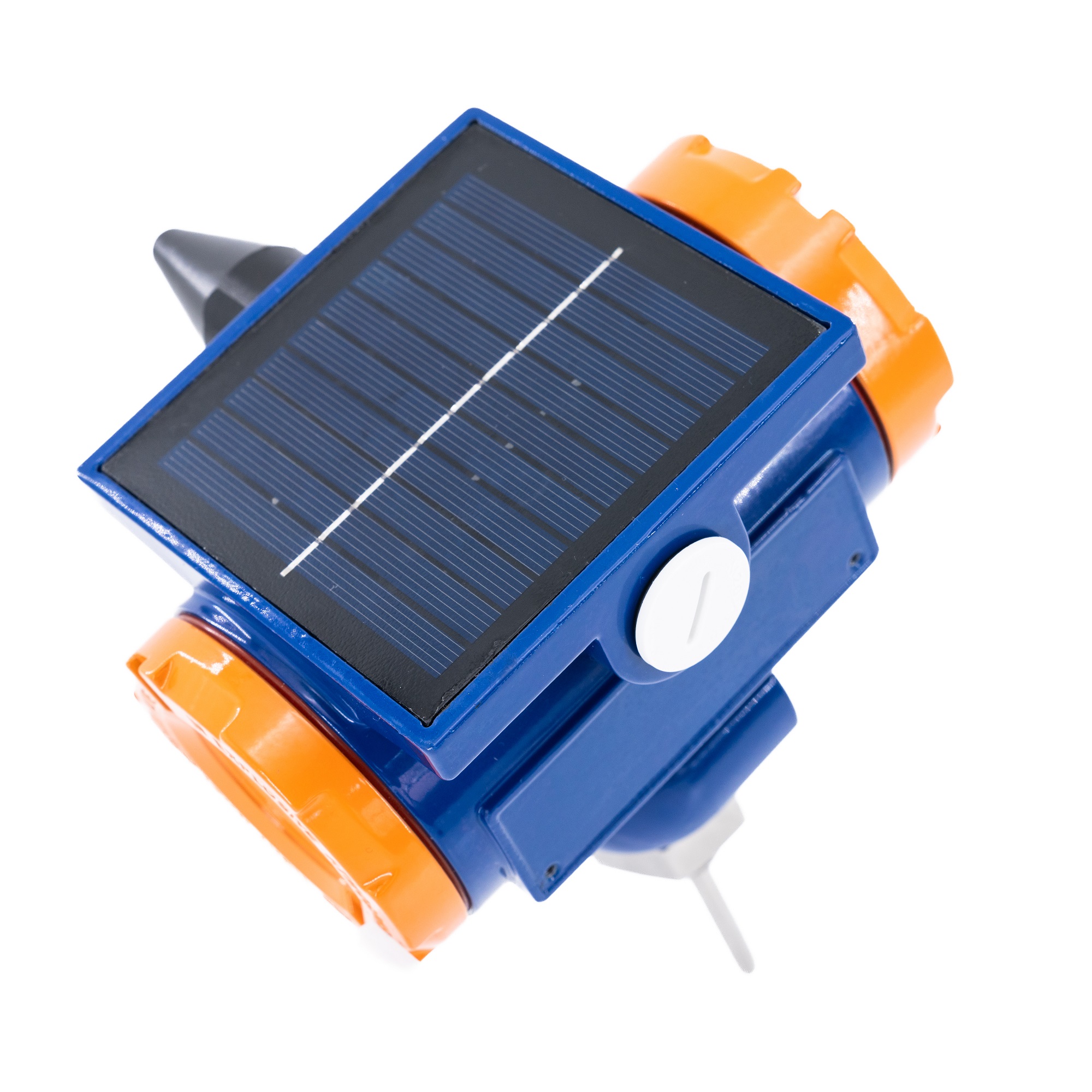

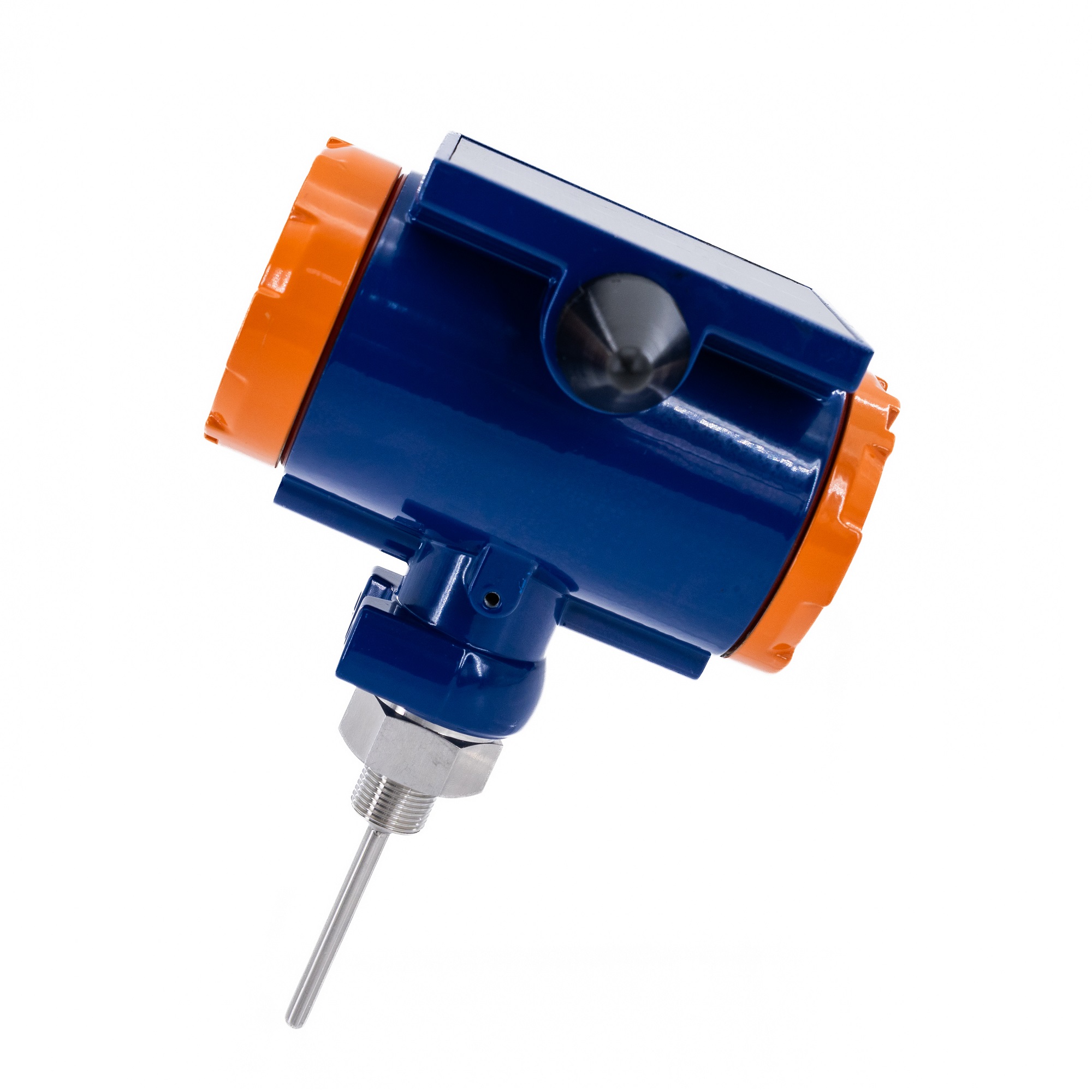

The JC-SBW Explosion Proof Wireless Temperature Transmitter is designed for temperature monitoring in industrial applications where wireless data transmission and suitable explosion protection are required.
The device integrates a temperature sensor, wireless communication module and LCD display into a compact instrument. It measures process temperature and transmits the data to a compatible gateway or remote monitoring system.
Depending on the selected configuration, the transmitter can use a Pt100 RTD or thermocouple sensor and support wireless communication options for industrial monitoring projects. Battery-powered configurations can help reduce the need for signal cables at remote or difficult-to-wire measurement points.
The suitable sensor, probe dimensions, process connection, communication method and explosion-protection configuration should be selected according to the application requirements.
Remote temperature monitoring at suitable pipeline, tank and equipment measurement points in accordance with the area's hazardous-area requirements.
Temperature monitoring of selected process equipment and storage facilities, subject to process conditions and material compatibility.
Remote monitoring of compatible equipment and auxiliary systems.
Wireless temperature data collection at suitable tank measurement points.
Temperature monitoring where signal cable installation is difficult or costly.
Wireless temperature data collection for compatible gateways and remote monitoring platforms.
Important: Application in a hazardous area requires confirmation that the complete instrument configuration, certification, installation method and associated equipment are suitable for that area.
An explosion-protection option is listed for suitable hazardous-area applications. The exact certification and permitted installation conditions must be confirmed before selection.
Temperature data can be sent to a compatible gateway or monitoring system using the selected communication protocol.
Communication options may include LoRa, LoRaWAN, NB-IoT or 4G, subject to model availability and system compatibility.

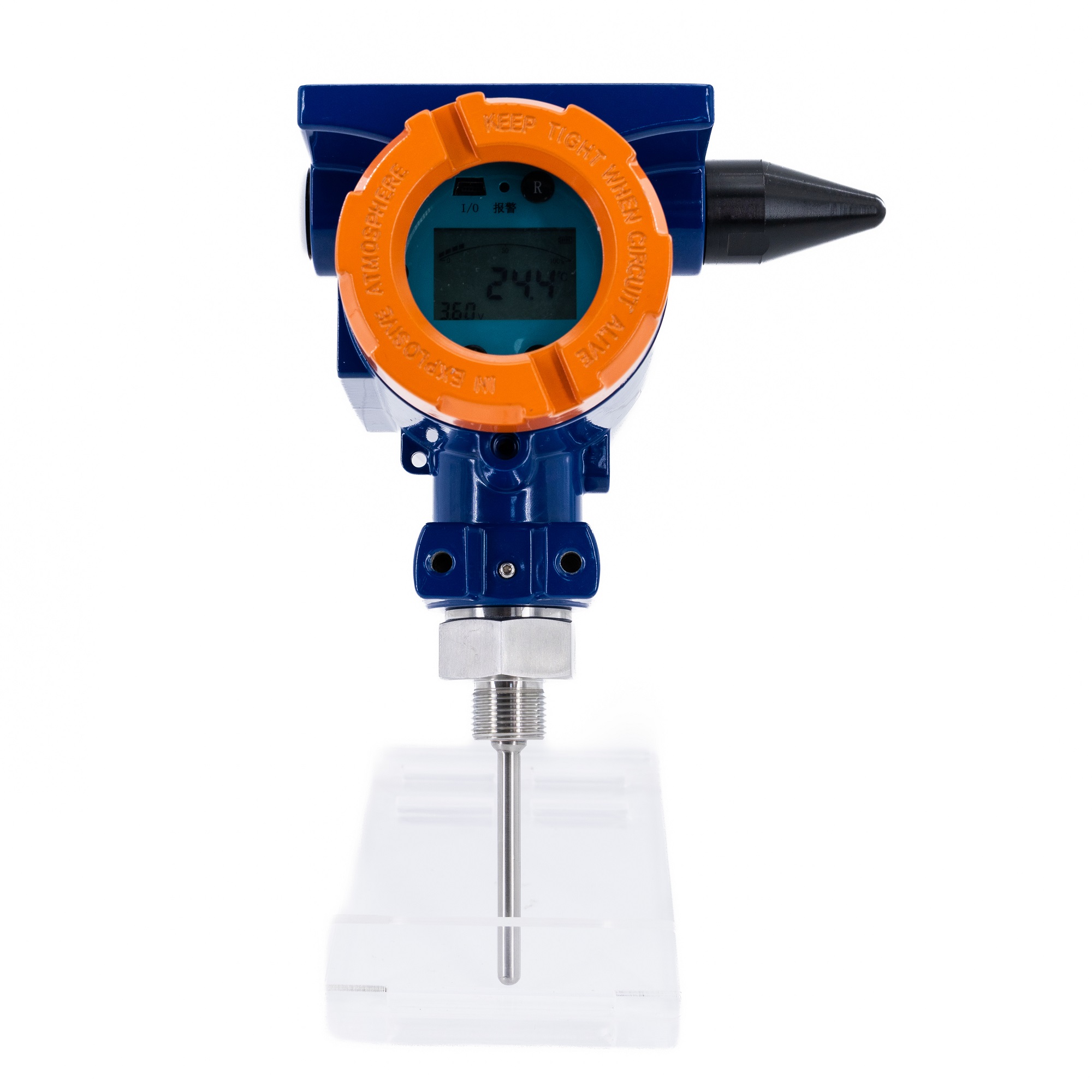

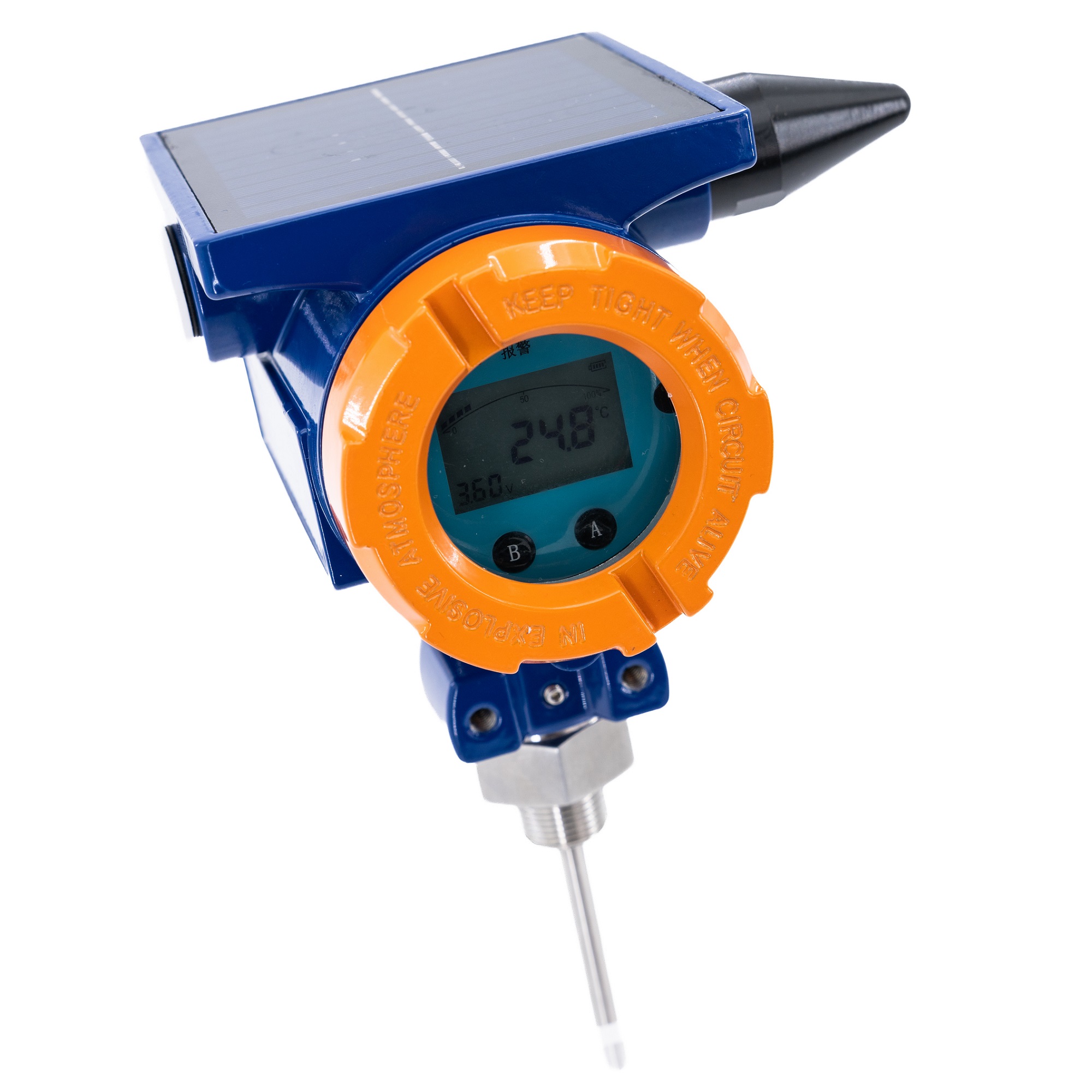

The integrated LCD allows operators to read the measured temperature locally.
Pt100 RTD and thermocouple configurations can be selected according to the required temperature range and measurement application.
Built-in lithium battery and 24 VDC configurations are listed as options. Power supply availability must be confirmed for the selected explosion-proof version.
Probe diameter, insertion length and process connection can be specified according to the installation requirements.
Item | Specification |
|---|---|
Product Type | Explosion Proof Wireless Temperature Transmitter |
Model | JC-SBW |
Temperature Sensor | Pt100 RTD / Thermocouple, optional |
Measuring Range | -20~60℃， To be confirmed for the selected sensor configuration |
Accuracy | ±0.2% FS / ±0.5% FS |
Display | LCD Digital Display |
Wireless Communication | LoRa / LoRaWAN / NB-IoT / 4G, optional configurations |
Transmission Distance | Up to 1~5km (Depends on communication protocol and site conditions) |
Power Supply | Built-in Lithium Battery / 24 VDC |
Probe Diameter | Φ6 mm / Φ8 mm / Φ10 mm, customizable |
Insertion Length | 200 mm, customizable |
Probe Material | SS304 / SS316L, Optional |
Process Connection | M20×1.5 / G1/2 / 1/2 NPT Optional |
Installation Type | Threaded / Flanged / Customized |
Ingress Protection | IP65 / IP66 / IP67 Optional |
Explosion Protection | Ex db IIC T6 Gb |
Note: Specifications can be customized according to customer requirements.
Required measuring range and normal operating temperature
Sensor type: Pt100 RTD or thermocouple
Required accuracy
Wireless communication protocol
Probe diameter and insertion length
Process connection type and size
Power supply preference
Order quantity
Hazardous-area classification and required explosion-proof certification
Required wireless transmission distance
Gateway, network and monitoring platform compatibility
Ambient temperature and process operating conditions
Probe material and medium compatibility
Required ingress protection rating
Battery-life expectations and data reporting interval
A: It measures process temperature using a selected Pt100 RTD or thermocouple sensor and transmits the temperature data wirelessly to a compatible monitoring system.
A: An explosion-protection configuration is listed as an option. Please provide the hazardous-area classification so the applicable model and certification can be checked.
A: LoRa, LoRaWAN, NB-IoT and 4G are listed as options. Availability depends on the selected configuration and compatibility with the customer's network or gateway.
A: Built-in lithium battery and 24 VDC configurations are listed. The available power supply should be confirmed for the required explosion-proof version.
A: Probe diameter, insertion length and process connection can be specified according to the installation requirements, subject to the available configuration.
A: Please provide the measuring range, sensor type, hazardous-area classification, communication protocol, probe dimensions, process connection, power supply preference and quantity.
To select a suitable configuration, please share the operating conditions, hazardous-area requirements and wireless monitoring system details.
JIECHUANG can review the required sensor, probe dimensions, process connection, power supply and communication options before confirming the final specification and quotation.
