WR Series
Jiechuang
High Temperature Alumina Ceramic Sheathed Thermocouple

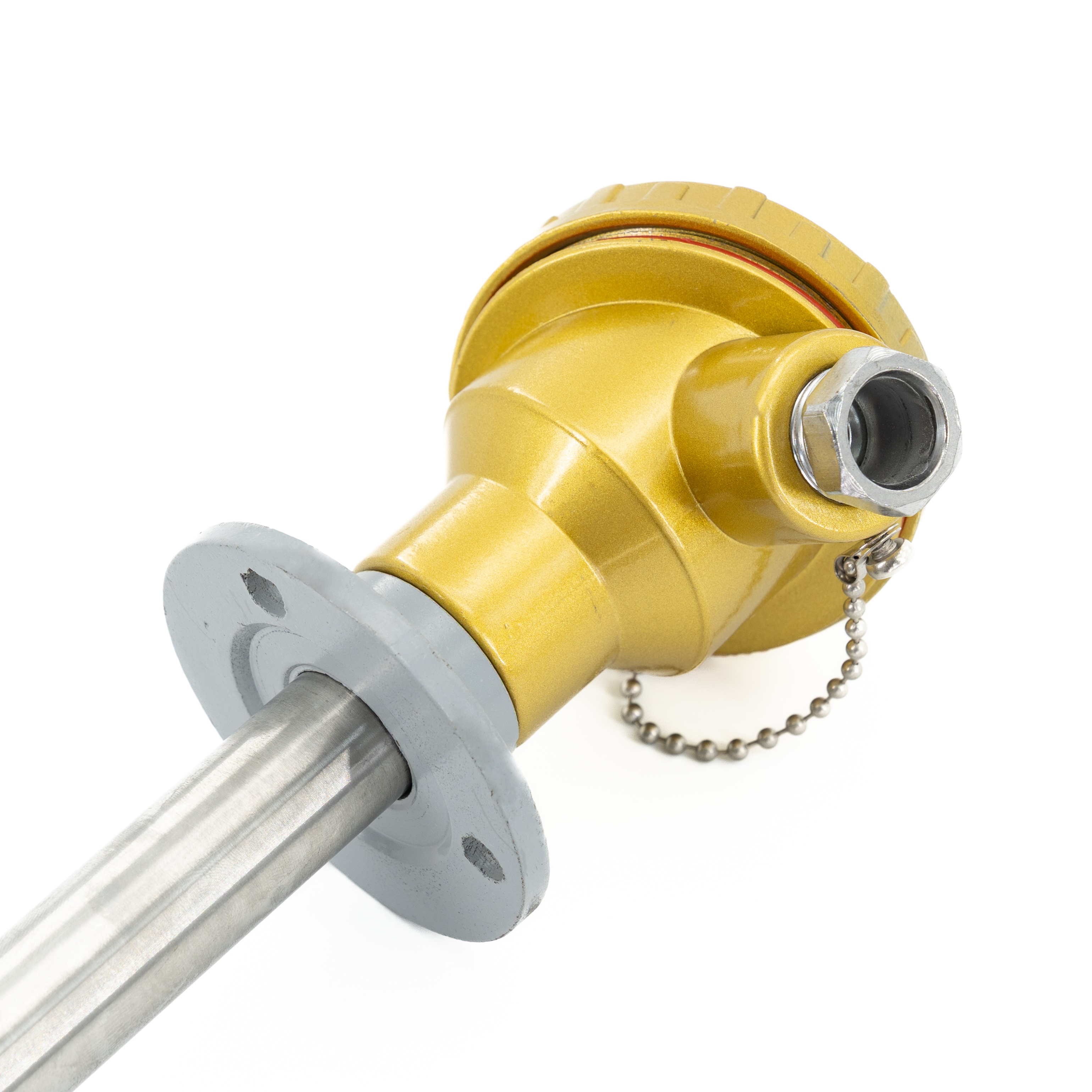

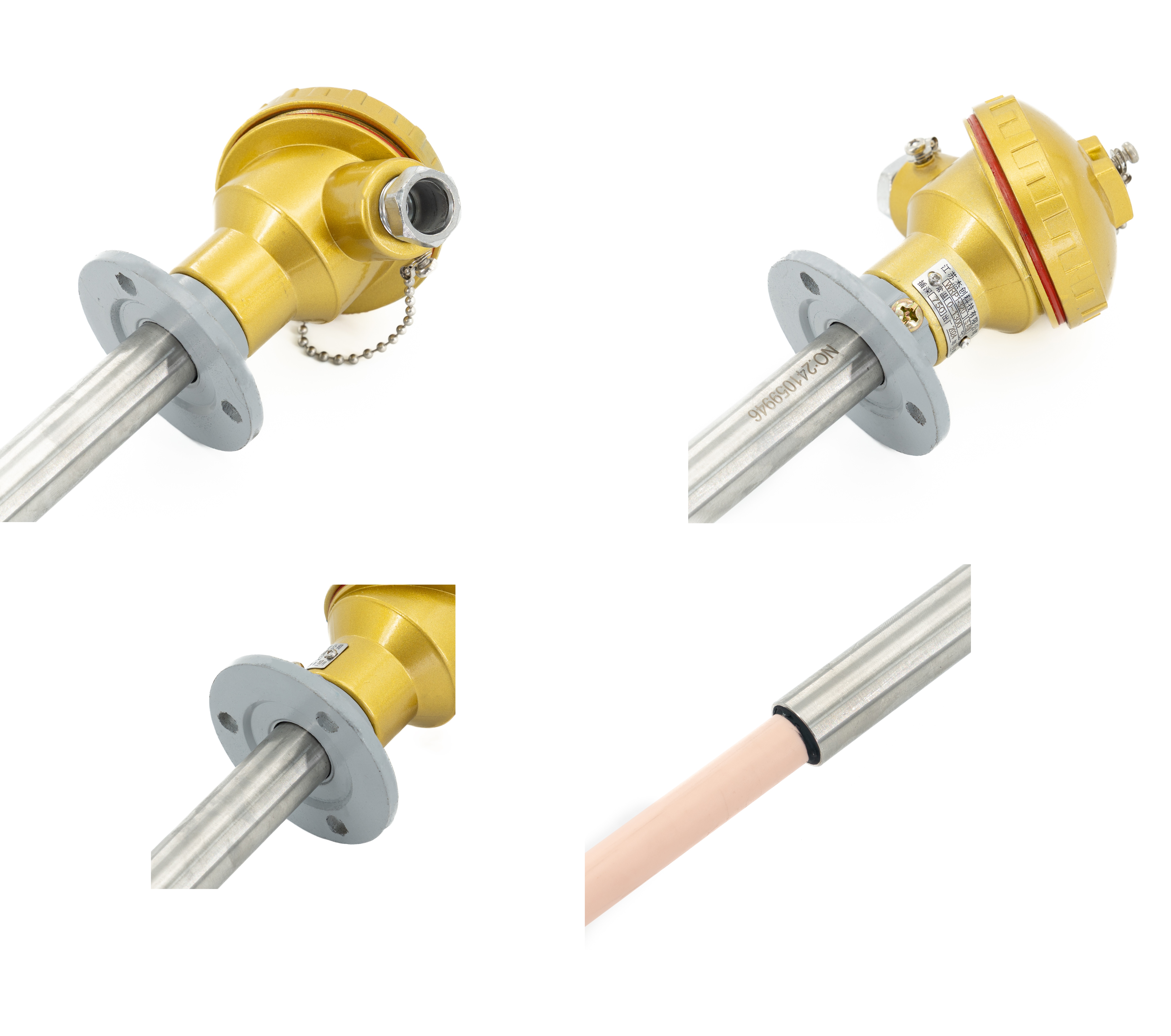

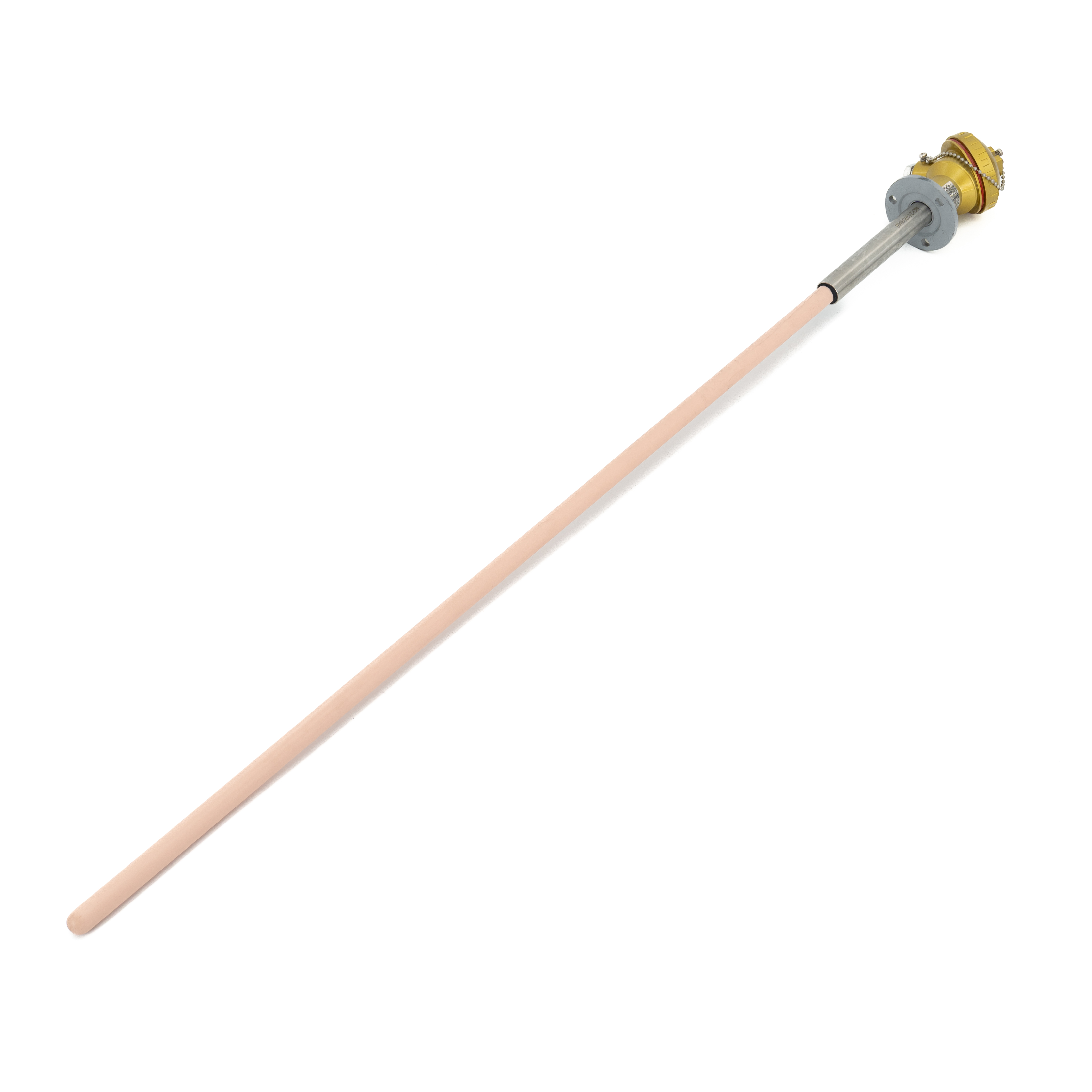

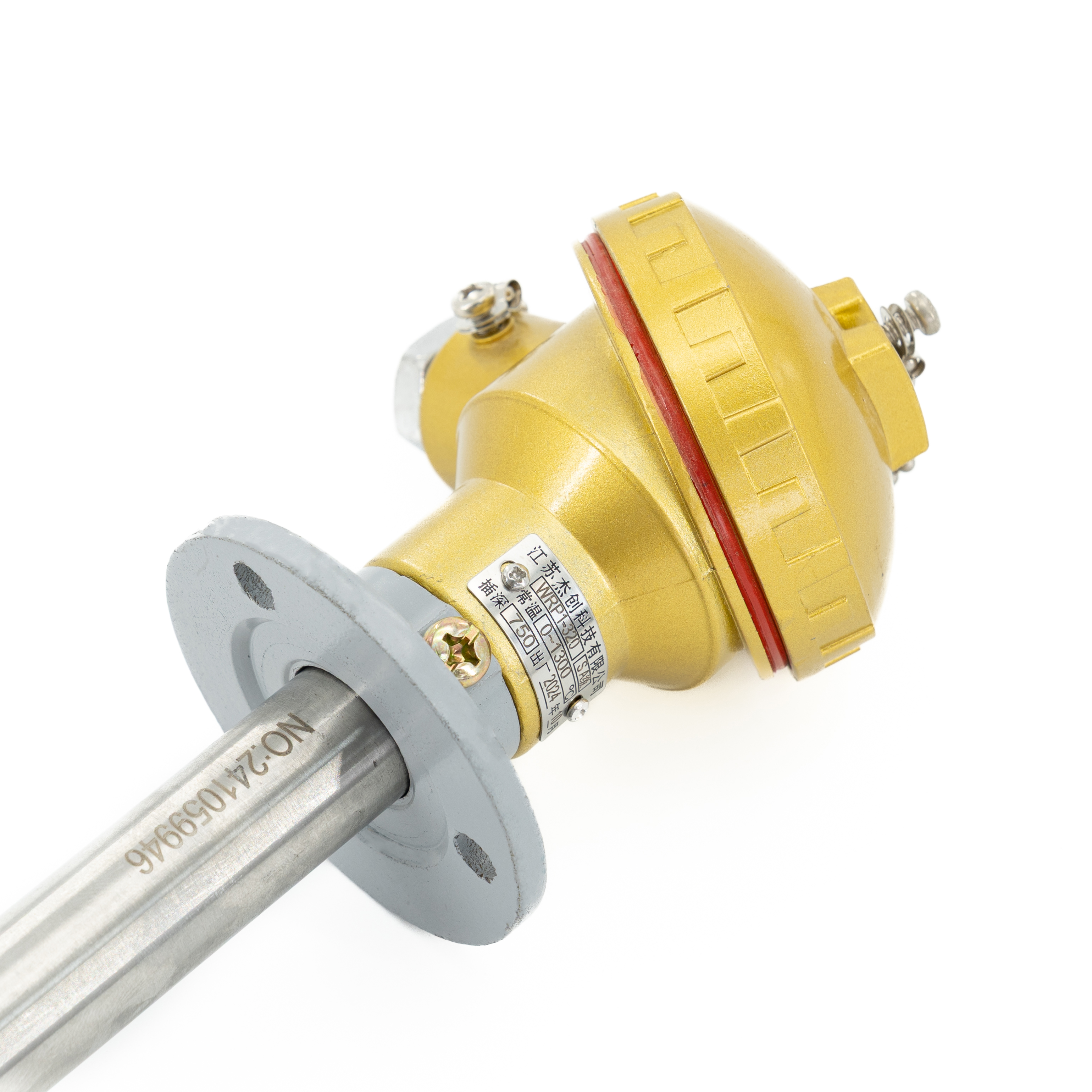

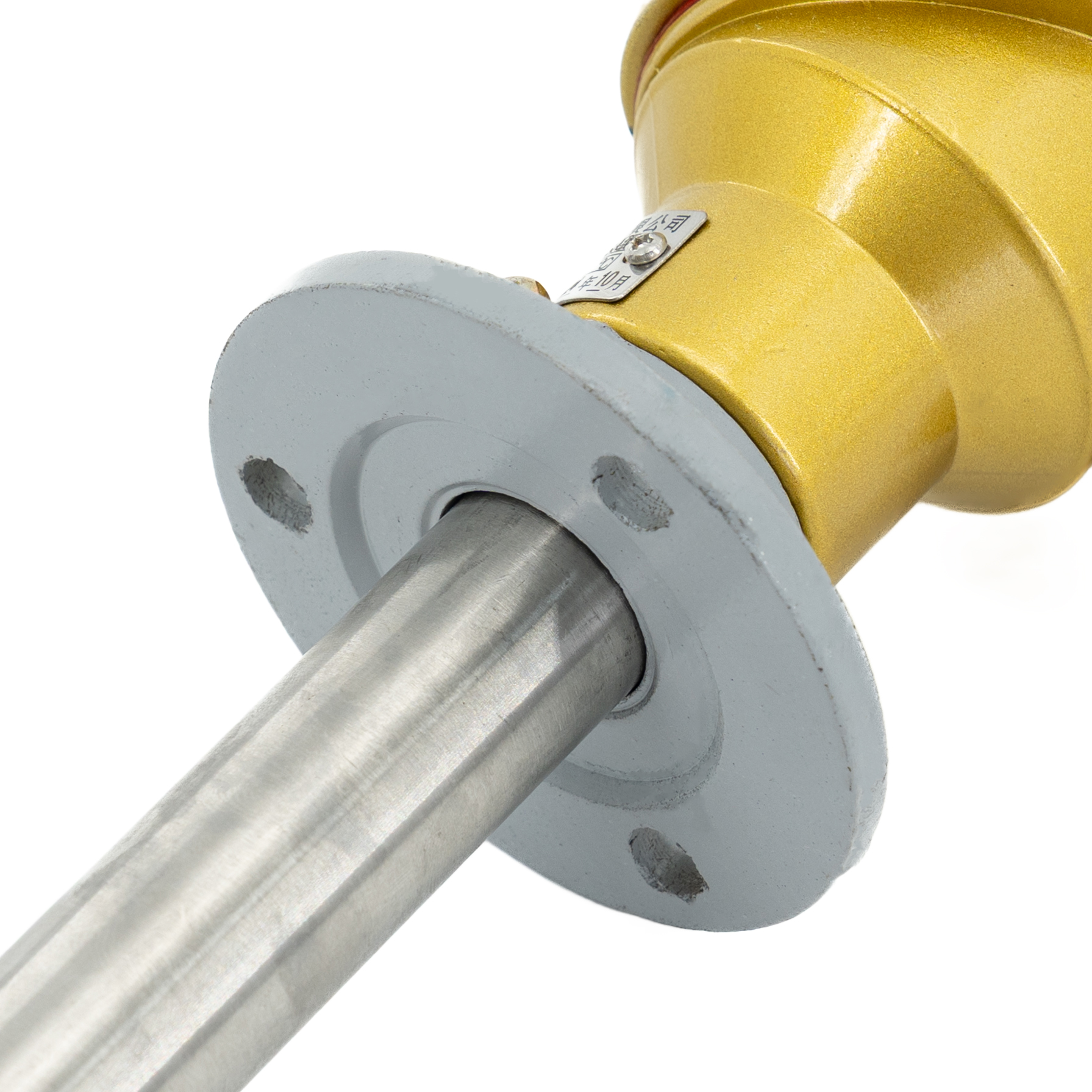

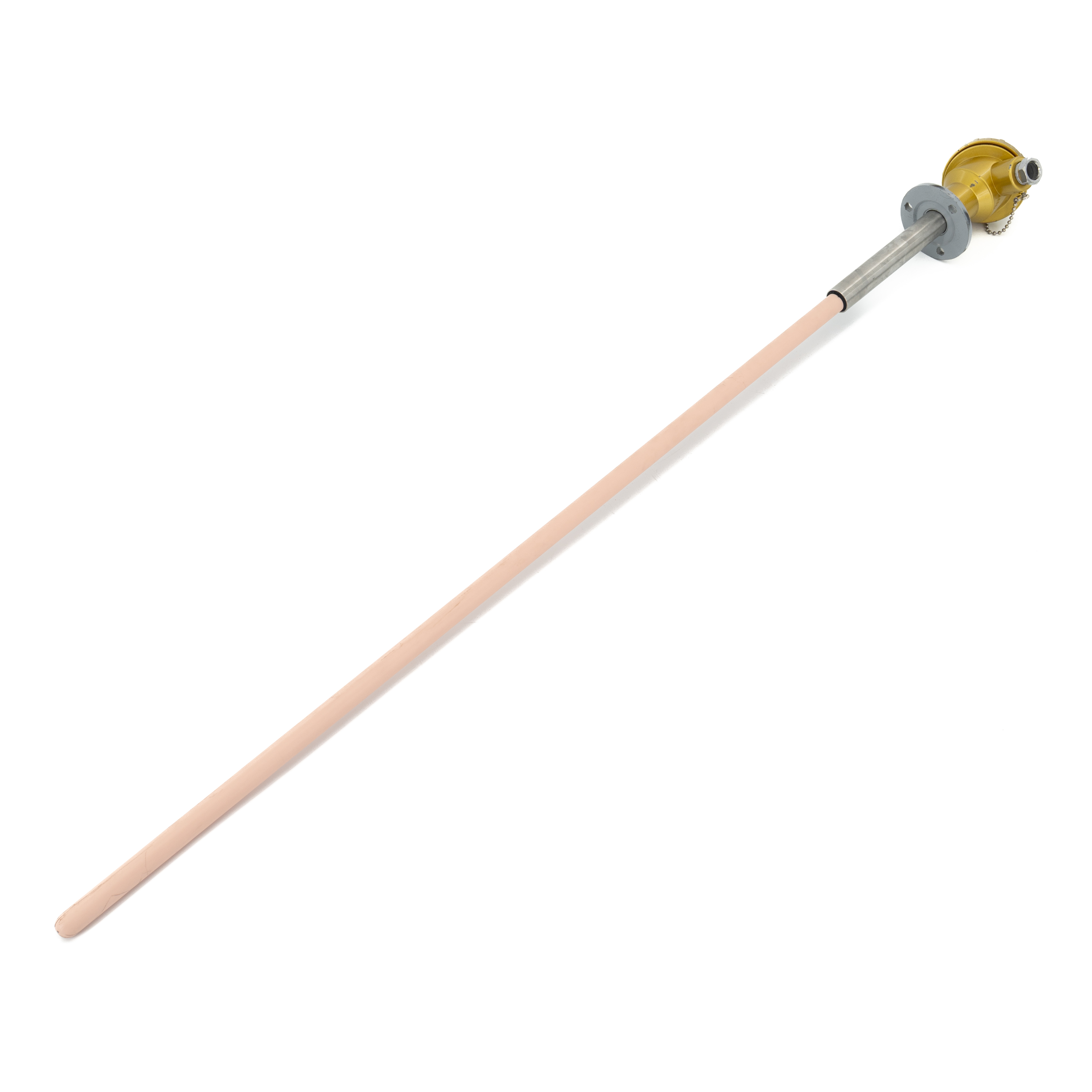

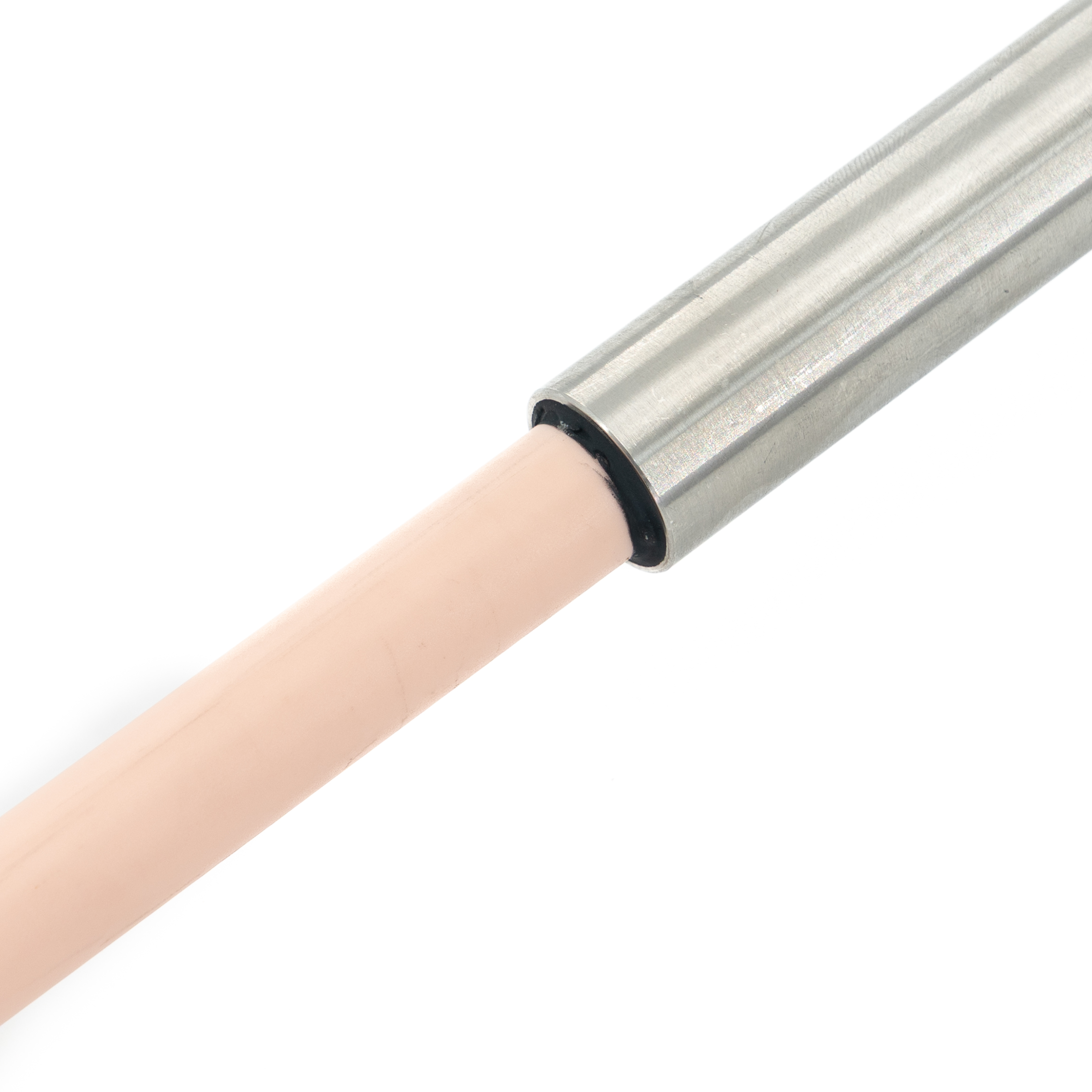

This is a high-temperature thermocouple with an alumina (corundum) ceramic sheath, designed for extreme temperature measurement in harsh industrial environments. The high-purity ceramic protection tube provides excellent resistance to high temperatures, oxidation, and chemical corrosion, making it ideal for measuring temperatures up to 1600℃. The assembly includes a flameproof terminal head and optional flanged connection for secure installation in furnaces, kilns, and high-temperature process equipment.
High-temperature industrial furnaces (steel, glass, ceramics)
Petrochemical and metallurgical processes
Power plant boilers and incinerators
Heat treatment and sintering furnaces
Refractory material manufacturing
High-temperature kilns and reactors
Parameters
Item | Specifications |
Product Name | Ceramic Sheathed Thermocouple |
Thermocouple Type | S (Pt10Rh-Pt), R (Pt13Rh-Pt), B (Pt30Rh-Pt6Rh) |
Temperature Range | 0 ~ 1300℃ (S/R Type), 0 ~ 1600℃ (B Type) |
Accuracy Class | Class 1 / Class 2 (IEC 584 standard) |
Protection Tube Material | High-purity alumina ceramic (Al₂O₃ ≥ 95% / 99%) |
Sheath Length | 100 ~ 2000mm (customizable) |
Connection Type | Flanged / Threaded / Fixed (customizable) |
Terminal Head | Flameproof type (IP65) |
Insulation Resistance | ≥ 1000MΩ at normal temperature |
Maximum Working Temperature | 1300℃ (continuous), 1600℃ (short-term) |
All parameters can be customized as required.
