The WZP Series Dual Pt100 RTD Temperature Sensor is an industrial resistance temperature detector designed for reliable temperature measurement in pipelines, equipment and process systems.
It uses two independent Pt100 sensing elements, with 3-wire wiring for each element, allowing temperature measurement with signal redundancy or connection to two separate measurement systems.

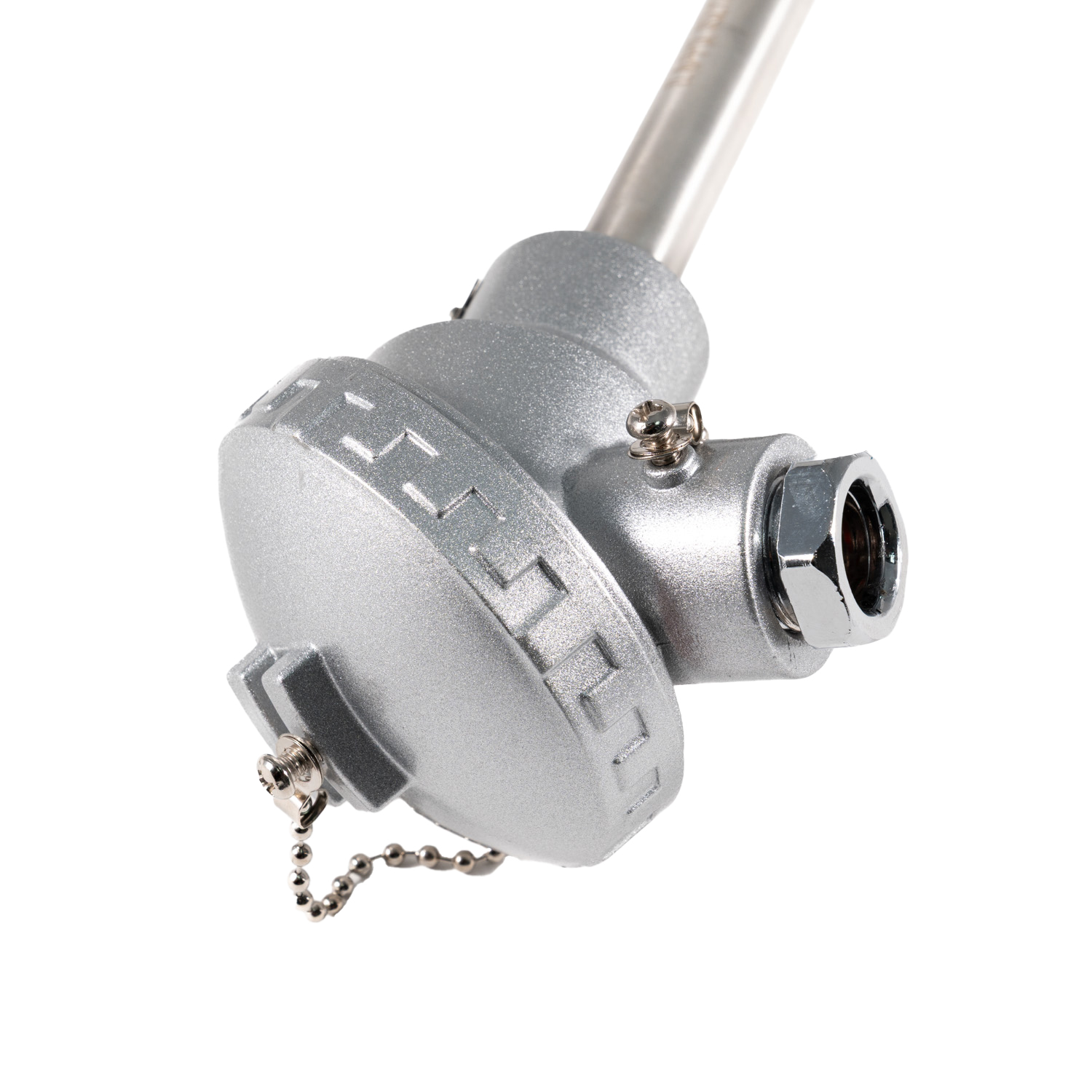

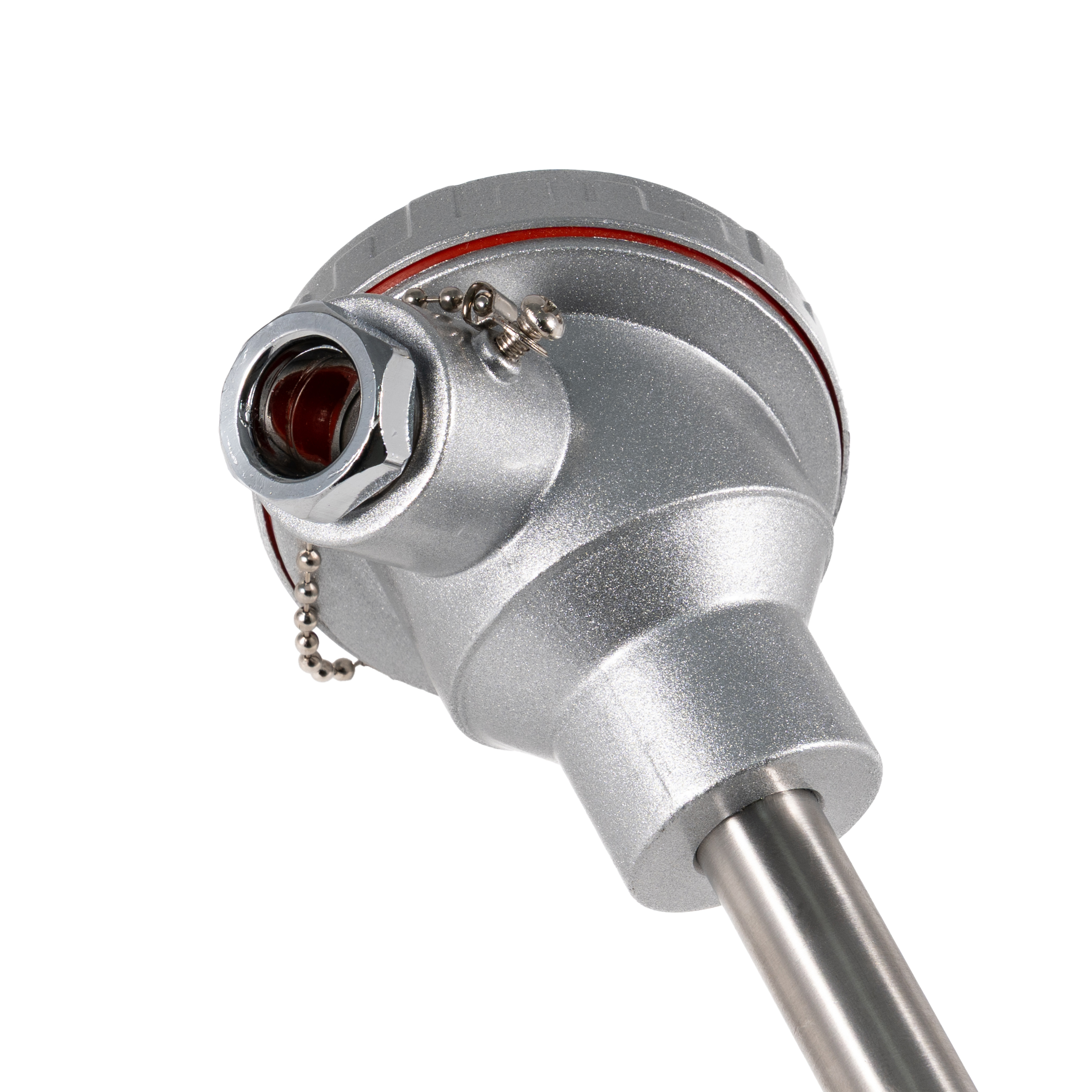

The sensor is equipped with a Φ16 mm SS304/SS316L protection tube, a waterproof die-cast aluminum alloy junction box and a removable measuring insert. Fixed threaded connections such as M27×2 and M20×1.5 are available.

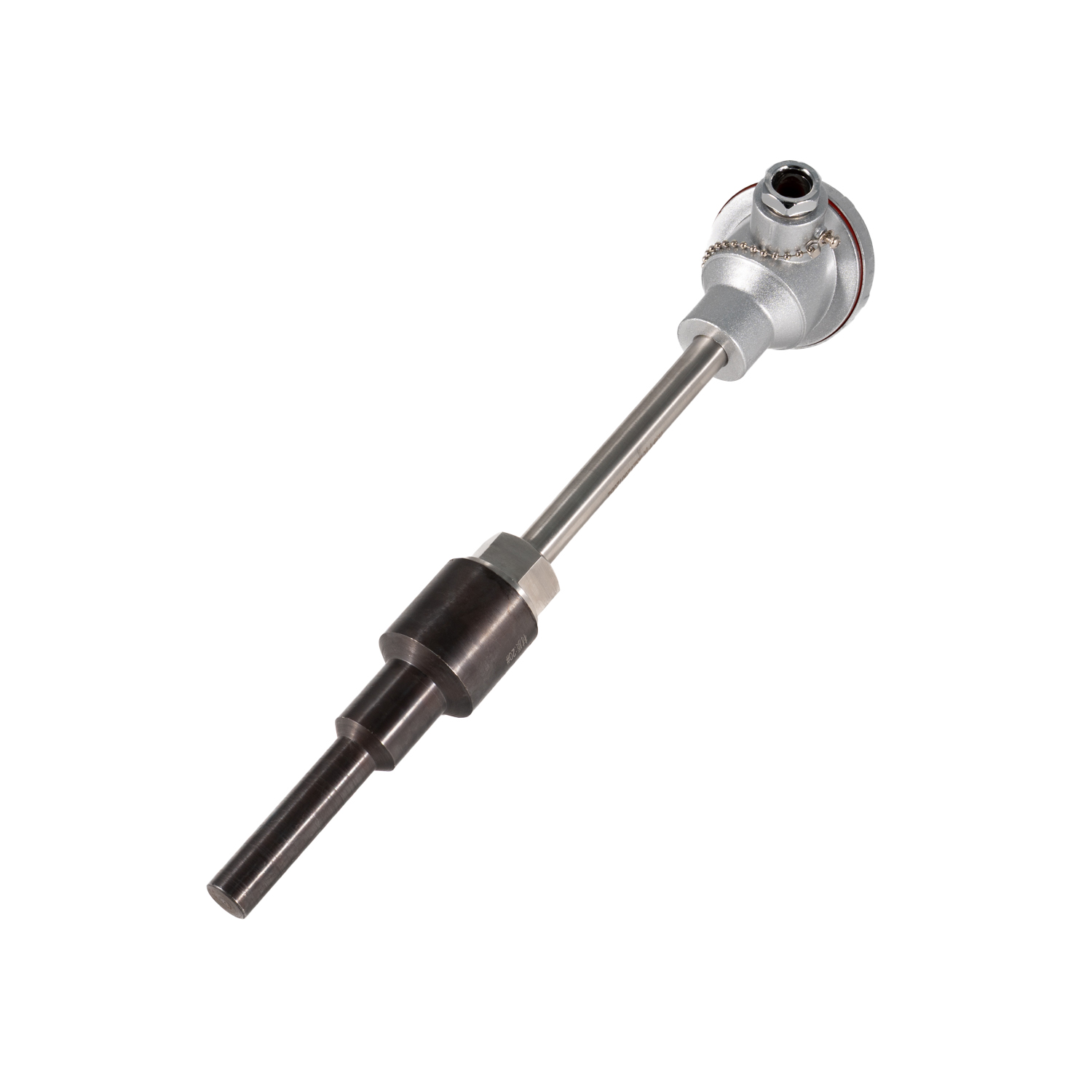

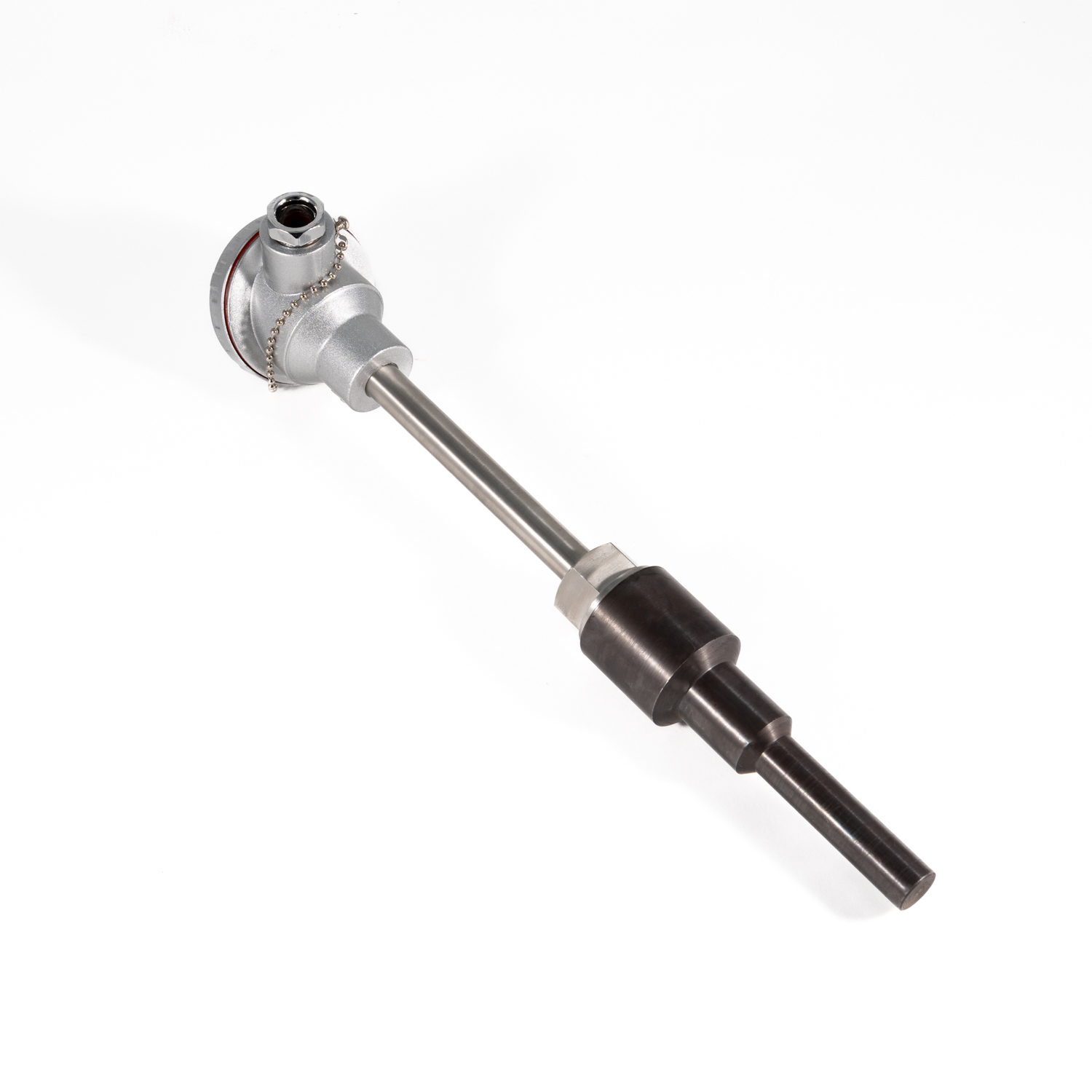

For applications requiring additional mechanical protection, the assembly can be supplied with an external carbon steel welded protection sleeve.
Pipeline temperature monitoring
Process equipment temperature measurement
Oil and gas production systems
Chemical process pipelines
Industrial reactors and process equipment
Temperature monitoring in production systems
Boiler and heating equipment
Steam systems
Auxiliary equipment temperature monitoring
Water treatment pipelines
Industrial storage tanks
Pumps and process machinery
Automated temperature monitoring systems
The dual-element design is particularly useful when two independent temperature measurement circuits are required at one installation point.
Dual Pt100 Elements: Two independent sensing elements support separate temperature measurement circuits.
3-Wire Connection: Each Pt100 element uses a 3-wire configuration to reduce the influence of lead-wire resistance.
Class A / Class B Accuracy: Select the sensor accuracy class according to the application requirements.

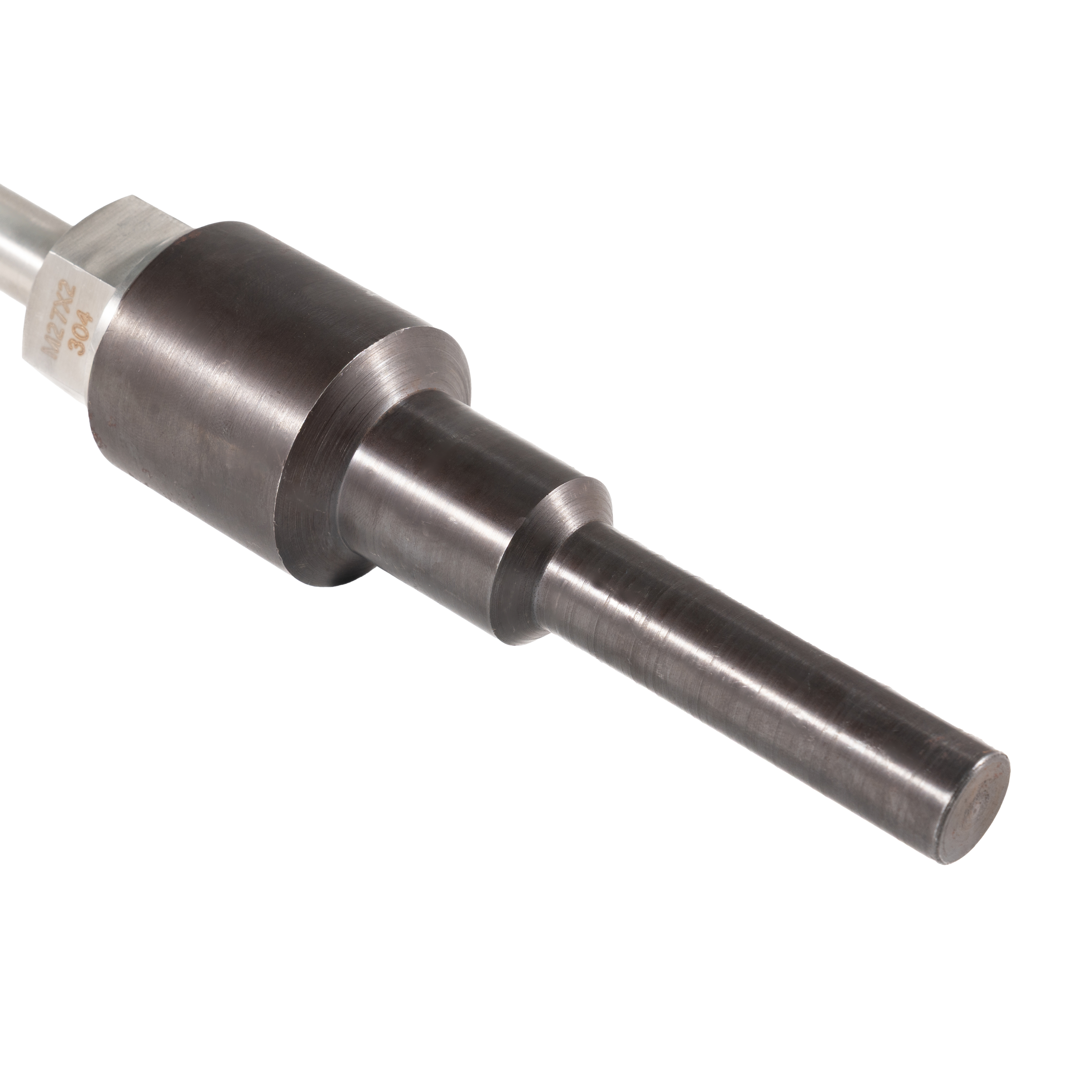

Carbon Steel Welded Thermowell: Provides additional mechanical protection for the installed temperature sensor.
SS304 / SS316L Protection Tube: Offers material options for different industrial environments.
Removable Measuring Insert: Simplifies inspection, maintenance and sensor replacement.

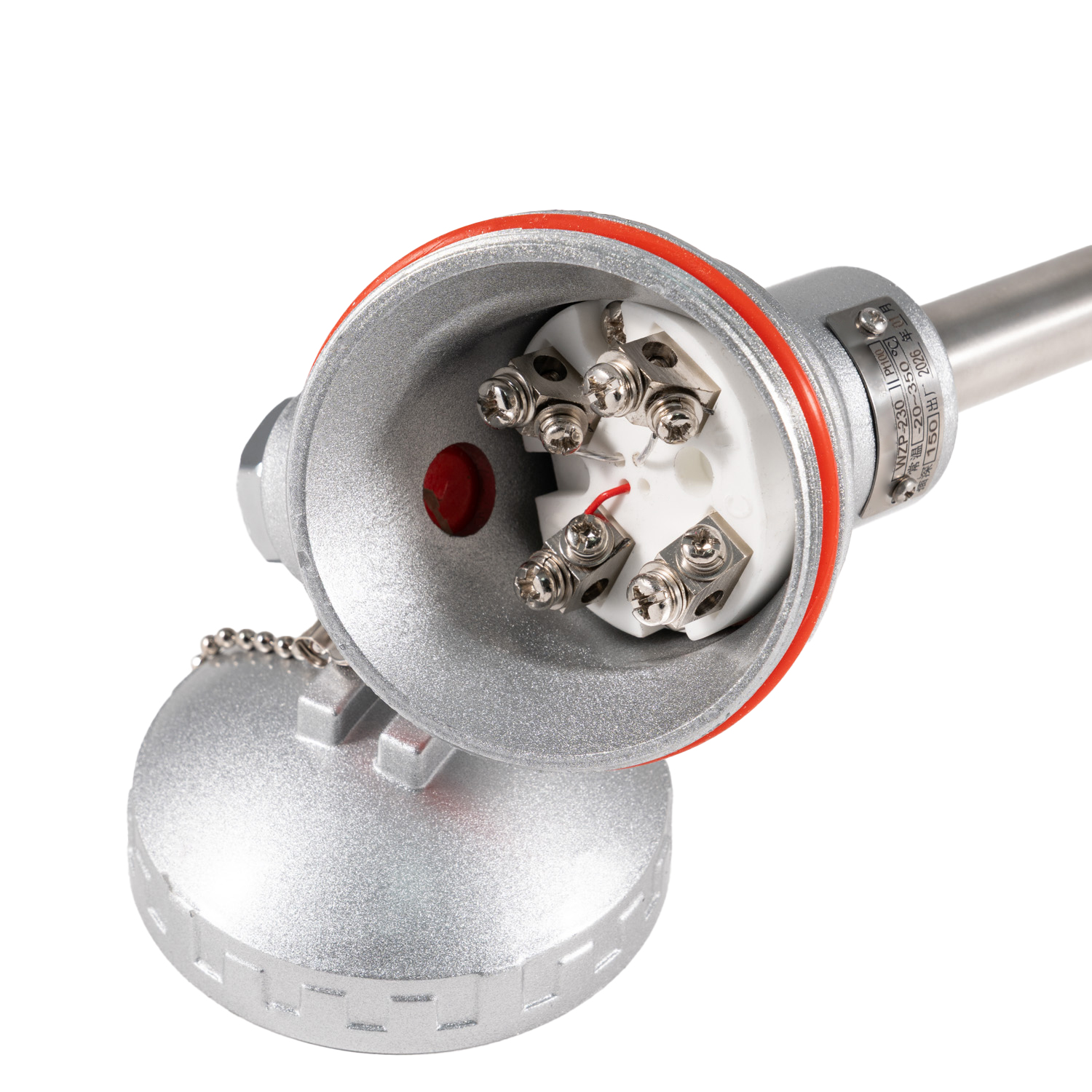

Waterproof Junction Box: The die-cast aluminum alloy junction box protects the electrical terminals during field installation.
Threaded Installation: M27×2 and M20×1.5 thread options support different equipment connections.
Optional Temperature Transmitter: A transmitter can convert the Pt100 signal into a standard 4–20mA output.
Item | Specification |
|---|---|
Product Type | Dual Pt100 RTD Temperature Sensor |
Model | WZP Series |
Sensor Element | Dual Pt100 |
Wiring Configuration | 3-wire per element |
Accuracy Class | Class A / Class B |
Measuring Range | -20 to 350 °C |
RTD Measuring Insert Diameter | Φ10 mm |
Protection Tube Diameter | Φ16 mm |
Protection Tube Material | SS304 / SS316L |
Process Connection | Fixed Thread |
Thread Options | M27×2 / M20×1.5 |
Overall Length L | 300 mm |
Insertion Length U | 150 mm |
Junction Box Material | Die-Cast Aluminum Alloy |
Junction Box Type | Waterproof Type |
Protection Grade | IP55 |
Cable Entry | M20×1.5 / 1/2" NPT |
Measuring Insert | Removable |
External Protection Sleeve | Carbon Steel, Welded Type |
Thermal Response Time | ≤90 s (t0.5, reference value) |
Output Signal | Pt100 Resistance Signal |
Temperature Transmitter | Optional |
Note: Specifications can be customized according to customer requirements.
The sensor can be configured according to the installation and measurement requirements.
Sensor Element: Dual Pt100
Accuracy Class: Class A or Class B
Wiring: 3-wire per Pt100 element
Protection Tube: Φ16 mm, SS304 or SS316L
External Protection: Carbon steel welded thermowell
Process Connection: M27×2, M20×1.5 or another specified thread
Dimensions: Overall length, insertion length and other dimensions
Junction Box: Waterproof die-cast aluminum alloy
Cable Entry: M20×1.5 or 1/2" NPT
Temperature Transmitter: Optional 4–20mA output configuration
For thermowell applications, provide the process medium, operating temperature, operating pressure and flow conditions to support suitable mechanical design.
Step 1 — Select the sensor accuracy.
Choose Class A or Class B according to the required measurement accuracy.
Step 2 — Confirm the temperature range.
Specify the normal and maximum operating temperatures.
Step 3 — Choose the protection tube material.
Select SS304 or SS316L according to the process medium and installation environment.
Step 4 — Specify the connection and dimensions.
Provide the thread size, overall length and insertion length to match the equipment.
Step 5 — Select the external thermowell.
Choose the carbon steel welded thermowell when additional mechanical protection is required.
Step 6 — Define the output signal.
Use the direct Pt100 resistance signal for a compatible temperature input, or select an optional transmitter for 4–20mA output.
A: It has two independent Pt100 sensing elements in one sensor assembly. Both elements can measure temperature separately.
A: Two elements provide two temperature measurement circuits at one installation point. They are useful for separate monitoring systems or measurement backup.
A: Each Pt100 element uses three connecting wires. This arrangement helps reduce the effect of wire resistance on the measurement.
A: It provides additional mechanical protection for the temperature sensor when installed on industrial equipment or pipelines.
A: Yes. The removable measuring insert makes inspection, maintenance and replacement easier.
A: The listed measuring range is -20 to 350°C. Select the sensor configuration according to the actual operating temperature.
A: The standard listed options are M27×2 and M20×1.5. Other thread specifications can be requested.
A: The sensor provides a Pt100 resistance signal as standard. An optional temperature transmitter can convert the signal to 4–20mA.
A: Please provide the temperature range, accuracy class, protection tube material, thread size, insertion length, thermowell requirements and output signal.
For an accurate quotation, please provide:
Sensor type: Dual Pt100
Accuracy class: Class A or Class B
Measuring range
Protection tube material
Process connection and thread size
Overall length and insertion length
Carbon steel welded thermowell requirements
Junction box and cable entry
Direct Pt100 signal or optional 4–20mA transmitter
Order quantity
JIECHUANG provides configurable industrial RTD temperature sensors for pipeline and process temperature measurement. Contact us with your application details for product selection and a quotation.
