Product Introduction

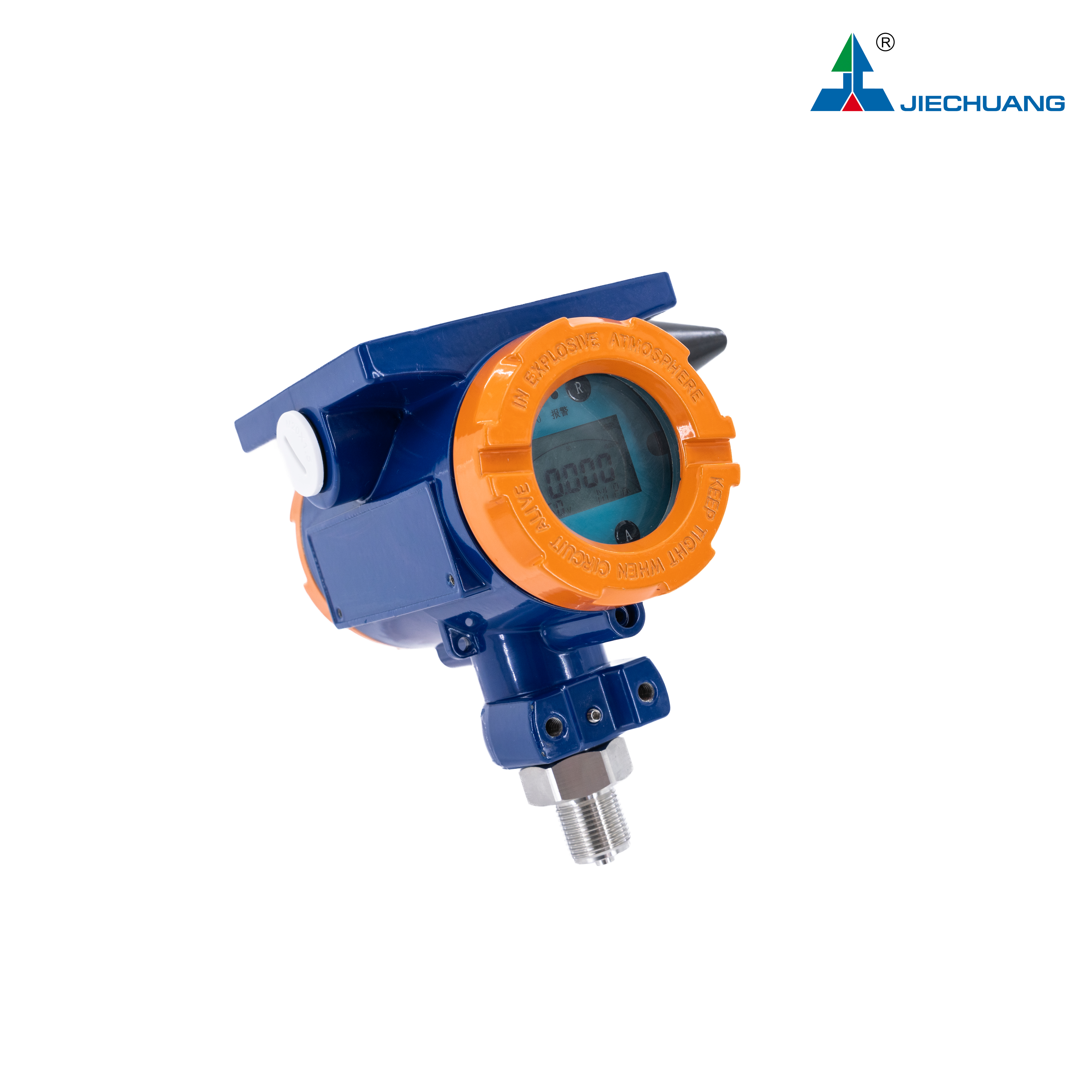

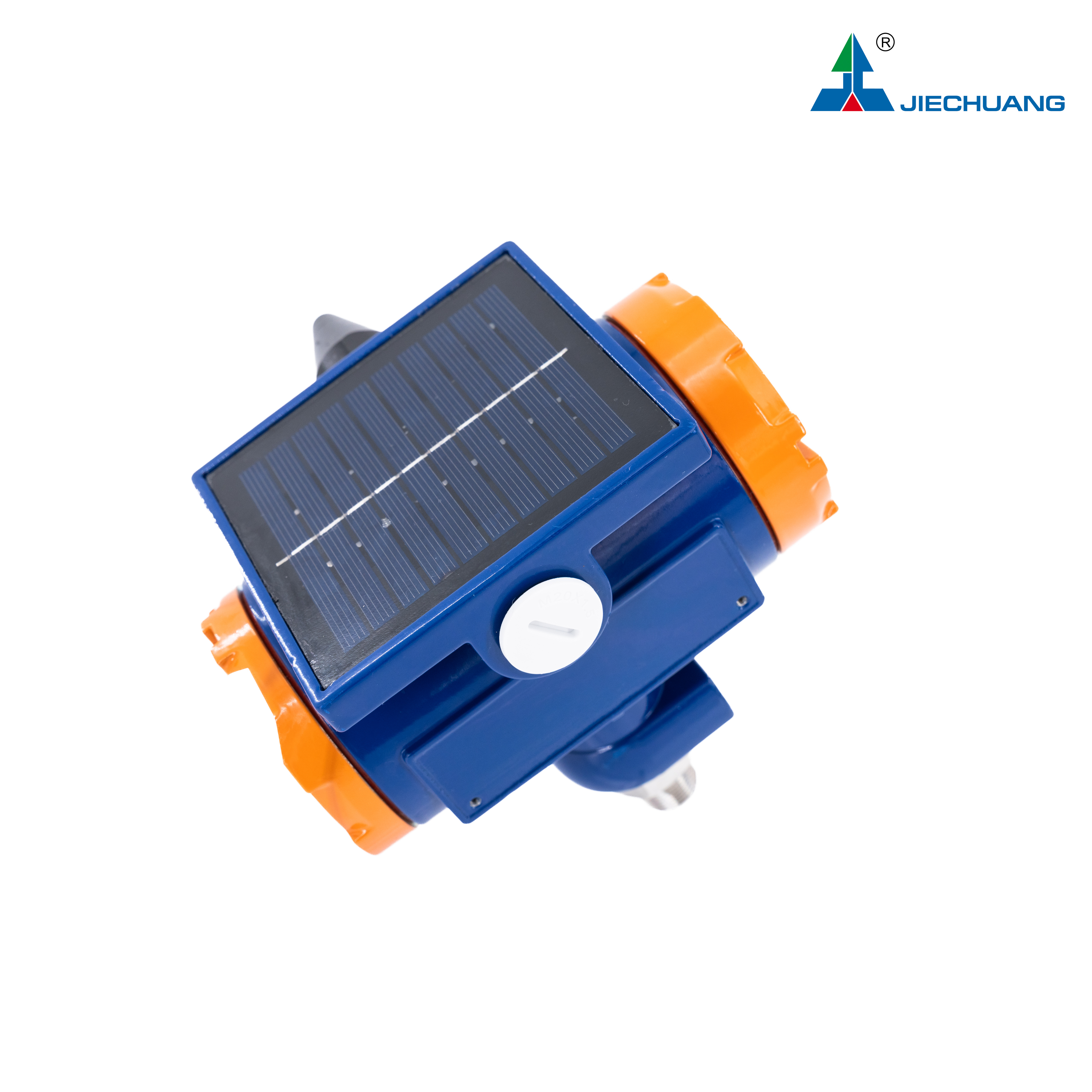

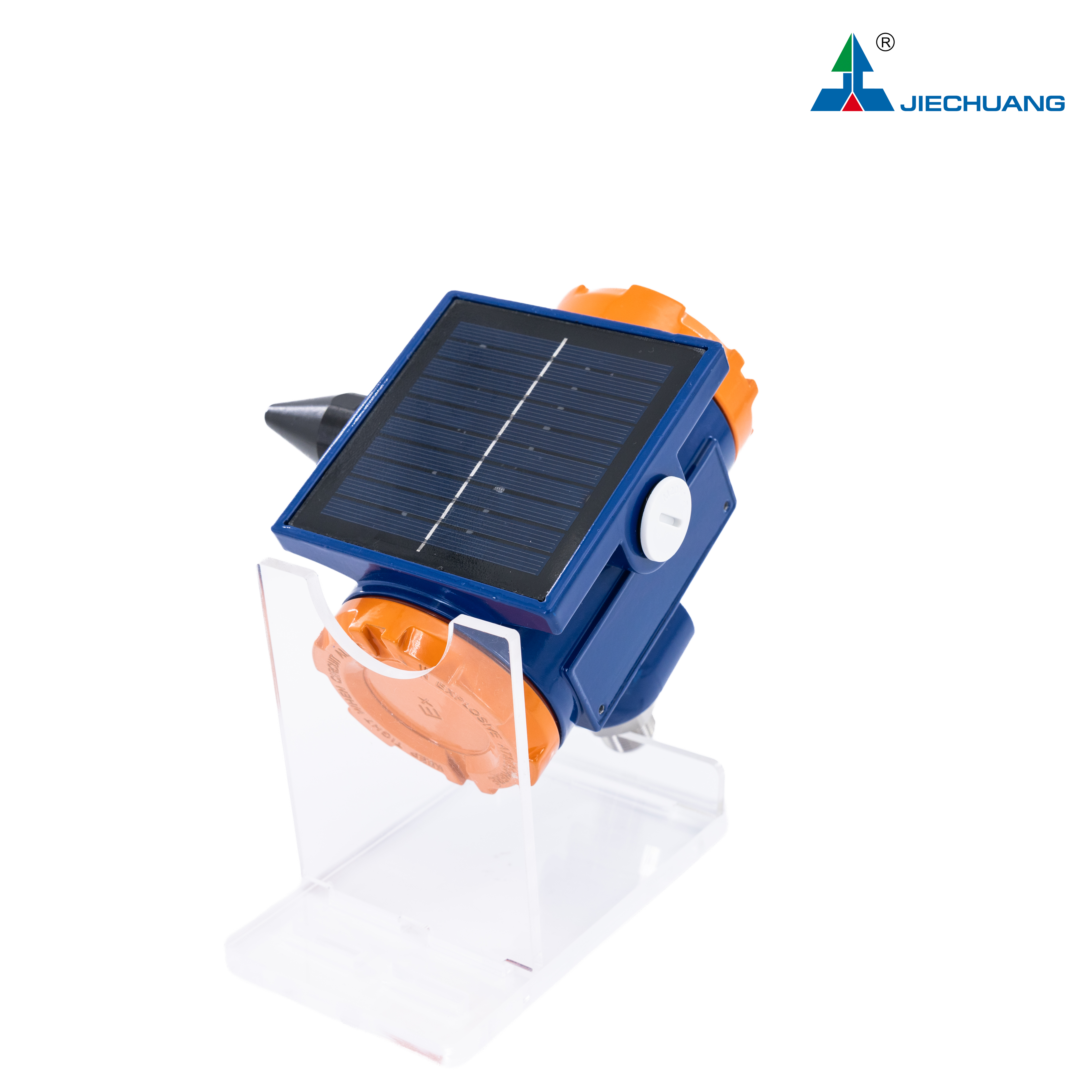

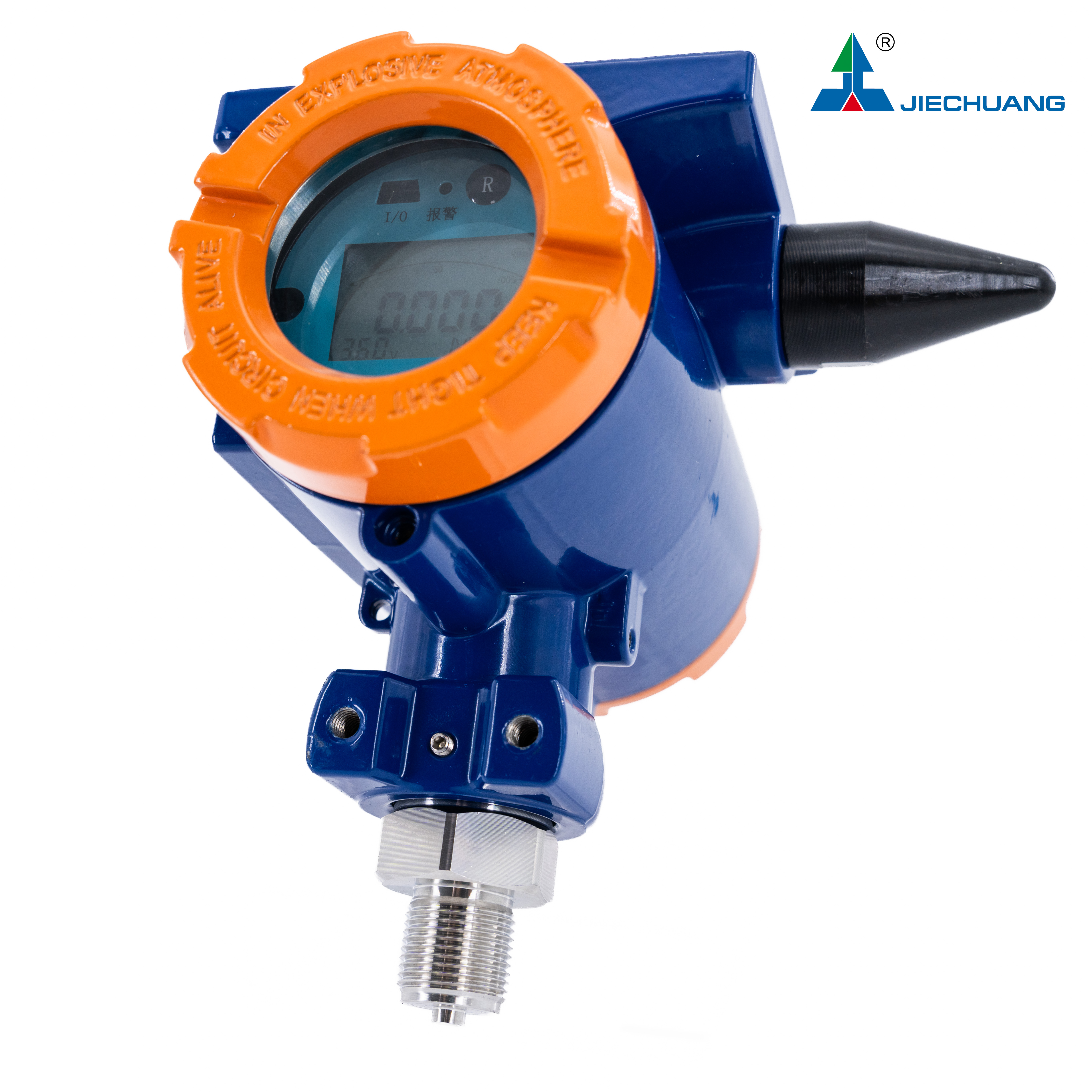

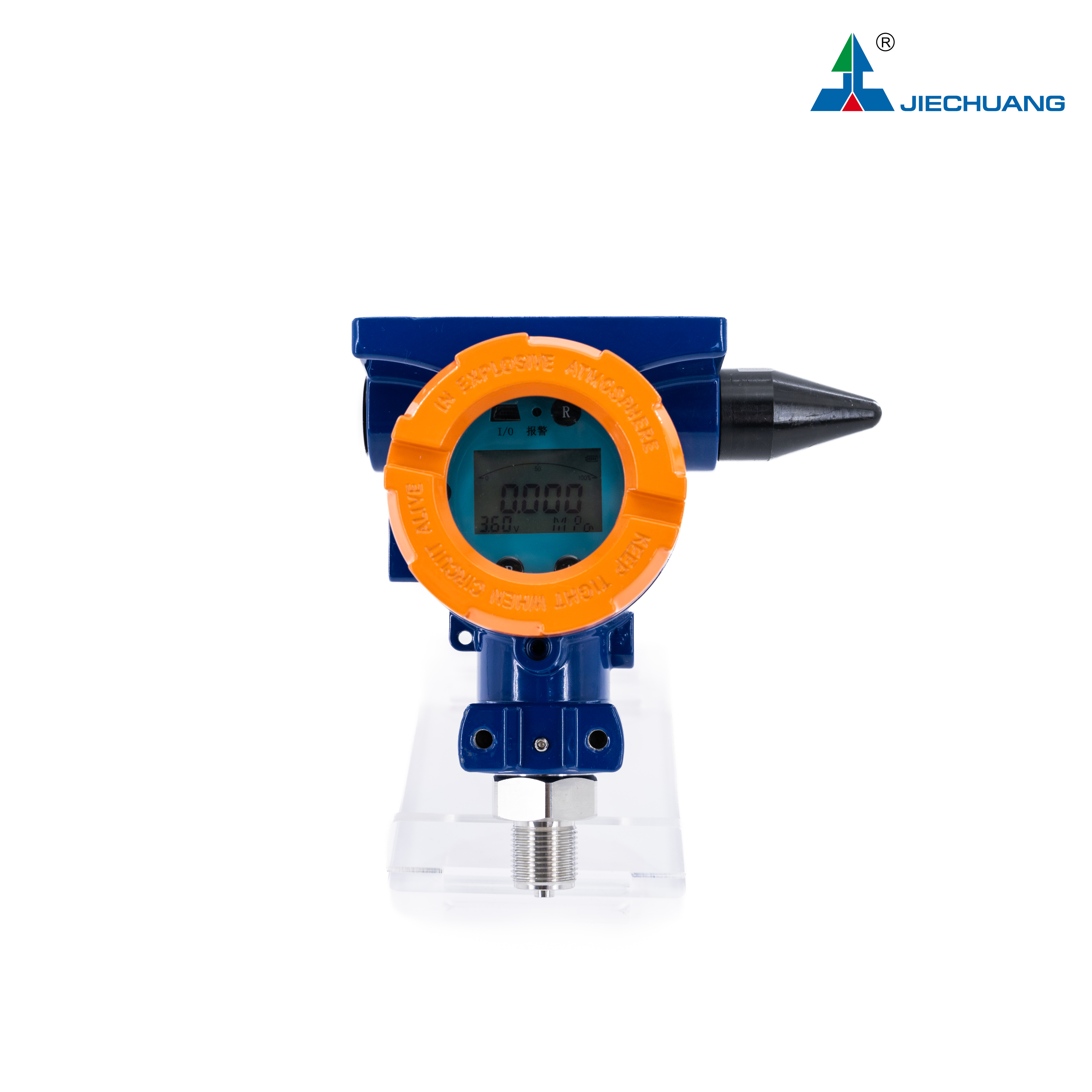

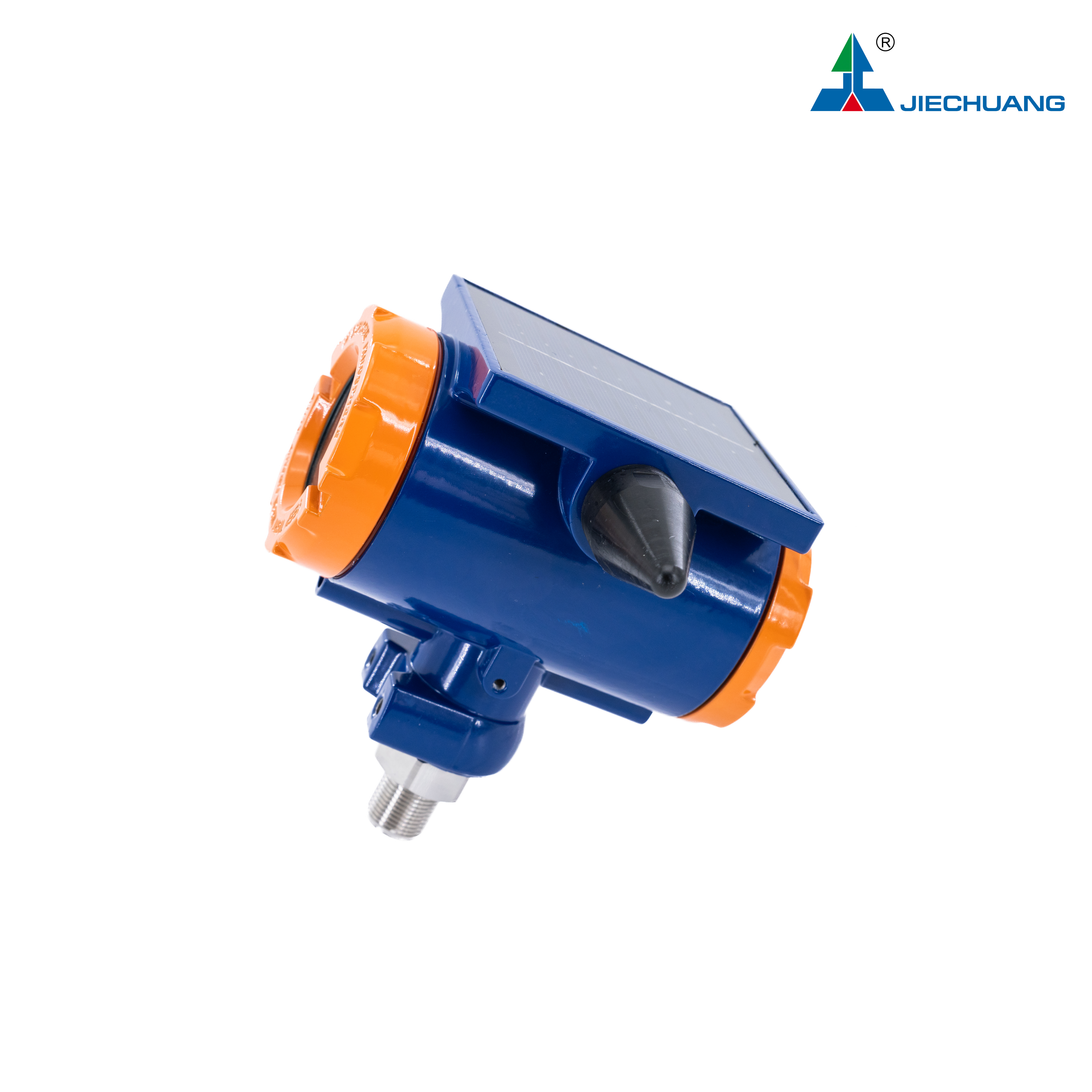

The Explosion-proof Wireless Pressure Transmitter is designed for remote measurement and monitoring of pressure in industrial processes.
It combines a pressure sensor, LCD display, wireless communication module and built-in lithium battery in one compact industrial housing.
With LoRa or NB-IoT wireless communication, the transmitter can send pressure data to a remote monitoring system without traditional signal wiring.
The explosion-proof design makes it suitable for pressure monitoring in oil & gas, chemical, tank, pipeline and other industrial applications, especially where cable installation is difficult or costly.
Applications
Oil & gas pressure monitoring
Chemical process monitoring
Tank pressure monitoring
Pipeline pressure monitoring
Oilfield and wellhead monitoring
Remote equipment monitoring
Industrial process pressure measurement
Pressure monitoring in hazardous areas
Remote and unattended measurement points
Sites where wiring is difficult
Features
Wireless remote pressure measurement
LoRa / NB-IoT communication options
Explosion-proof housing for hazardous areas
Local LCD digital display
Built-in lithium battery
Low-power design for long-term operation
316L stainless steel wetted parts
IP65 protection
Compact industrial construction
Multiple process connections available
Suitable for remote and difficult-to-wire locations
Technical Specifications
Item | Specification |
Product Type | Explosion-proof Wireless Pressure Transmitter |
Pressure Type | Gauge / Absolute Optional |
Pressure Range | 0~1.6 MPa / -0.1~0 MPa / 0~60 MPa / Other Optional |
Accuracy | ±0.1% FS; ±0.075% FS Optional |
Wireless Communication | LoRa / NB-IoT Optional |
Display | Local LCD Digital Display |
Power Supply | Built-in Lithium Battery |
Process Connection | M20×1.5,1/2" NPT, G1/2 Optional |
Wetted Parts | 316L Stainless Steel |
Process Temperature | -20~70ºC / Other Optional |
Protection Grade | IP67 |
Explosion-proof Type | Ex d / Ex i Optional |
Note: Specifications can be customized according to customer requirements.
