Product Introduction
The JC-61KA Tuning Fork Level Switch is a point level switch for detecting the presence or absence of liquid, slurry, and suitable powder materials.
It uses a vibrating fork to detect material at a preset level. When the fork is covered or uncovered, the switch changes its output state.

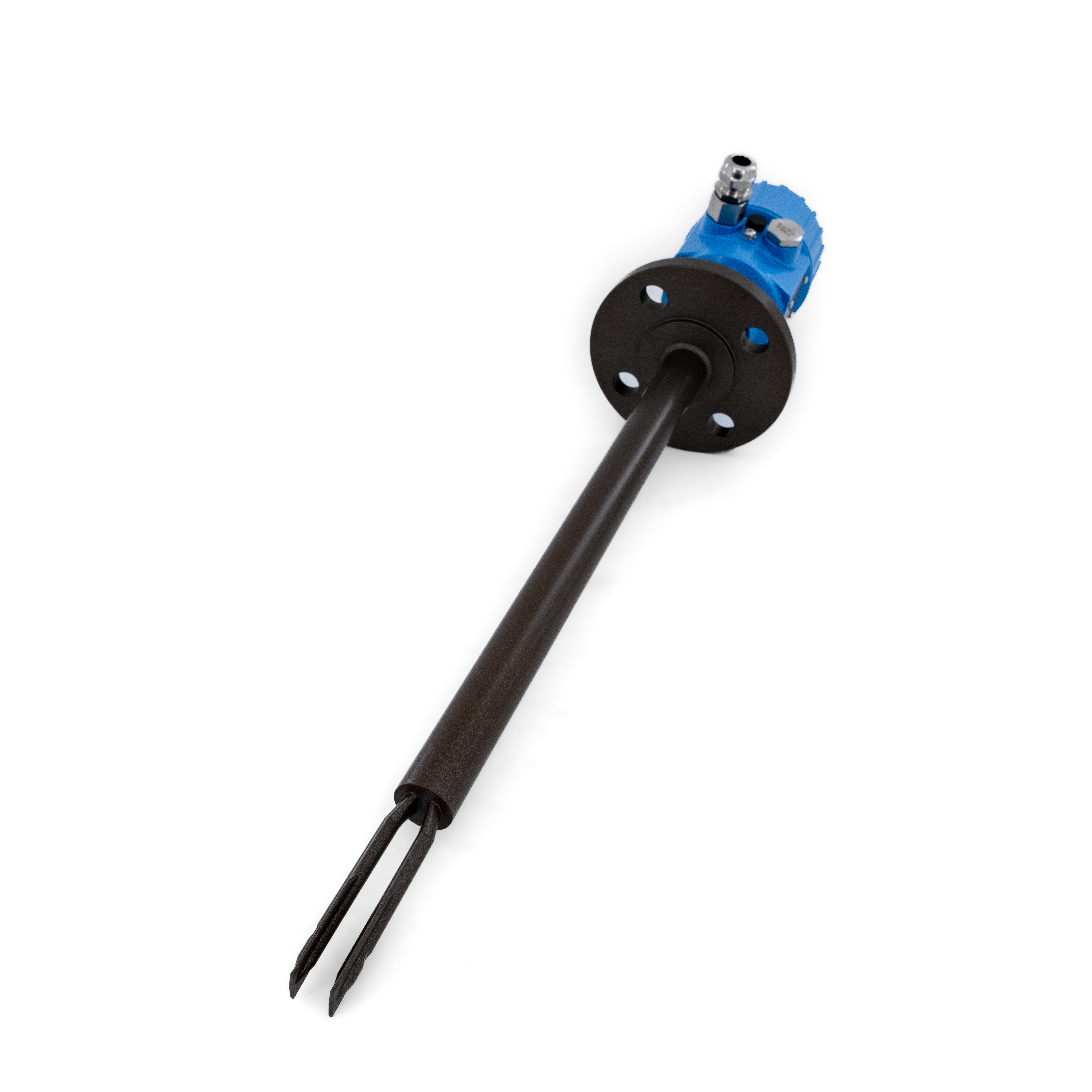

The long-stem design is suitable for deep tanks and vessels. The process connection uses a DN32 PN16 flange. Wetted parts are available with PTFE-coated SS316 for corrosive media.
The switch supports high or low level alarm selection and provides an SPDT relay output for alarm, pump control, overflow protection, or dry-run protection.
An Ex db IIC T6 Gb version is available for hazardous areas. The insertion length and fork length can be customized according to the application.
Applications
The JC-61KA is suitable for point level detection in:
Chemical storage tanks
Corrosive liquid tanks
Water and wastewater tanks
Oil and process tanks
Slurry tanks
Powder and bulk material tanks
Process vessels
Storage silos and hoppers
Typical Applications
High Level Alarm
Detects when the material reaches a high level.
Low Level Alarm
Detects when the material falls below a set level.
Overflow Protection
Helps prevent tank overfilling.
Pump Dry-Run Protection
Helps stop a pump when the liquid level becomes too low.
Level Interlock
Provides a switch signal for PLC or control systems.
Features
Vibrating fork point level detection

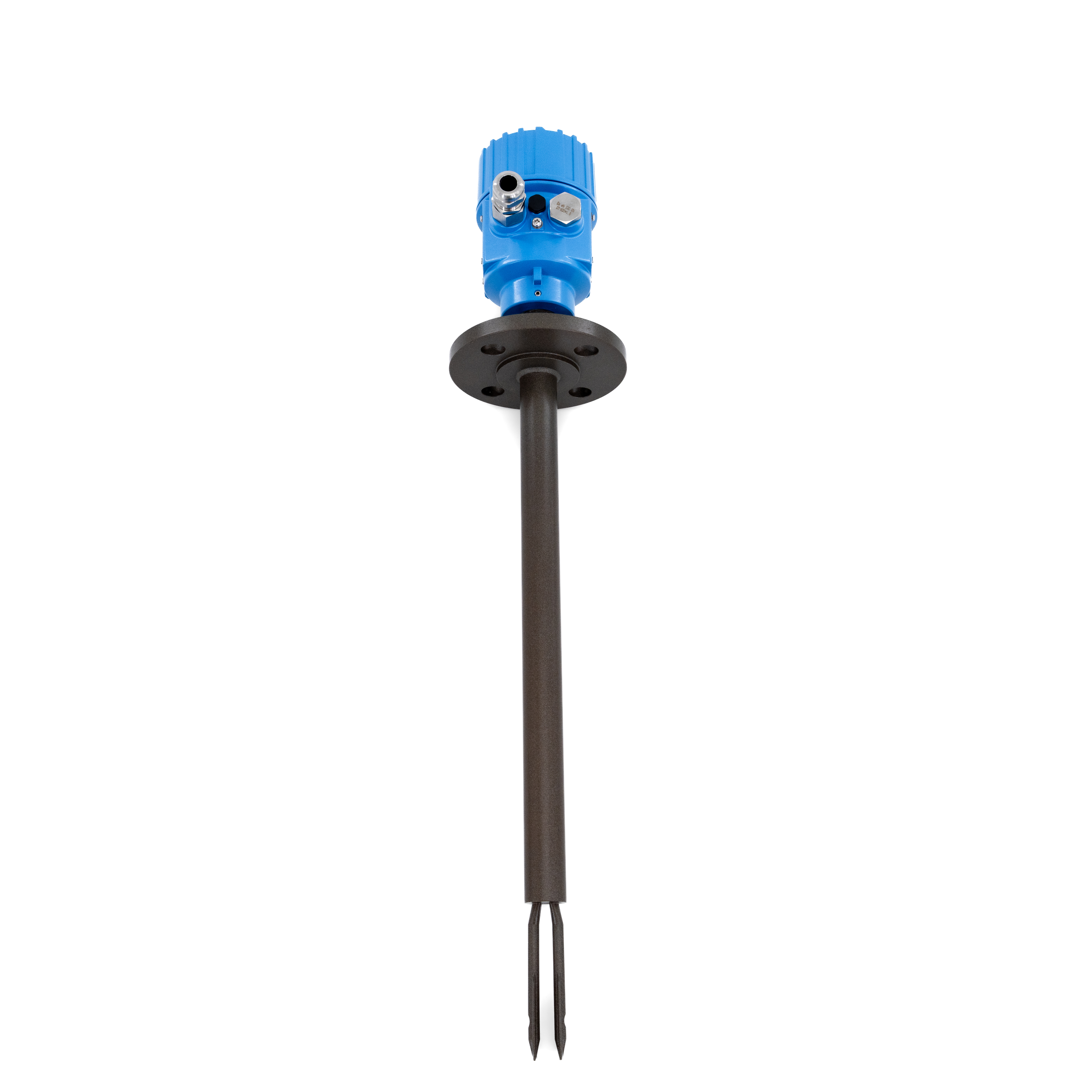

Top-mounted long-stem design
PTFE-coated SS316 wetted parts
Suitable for corrosive media

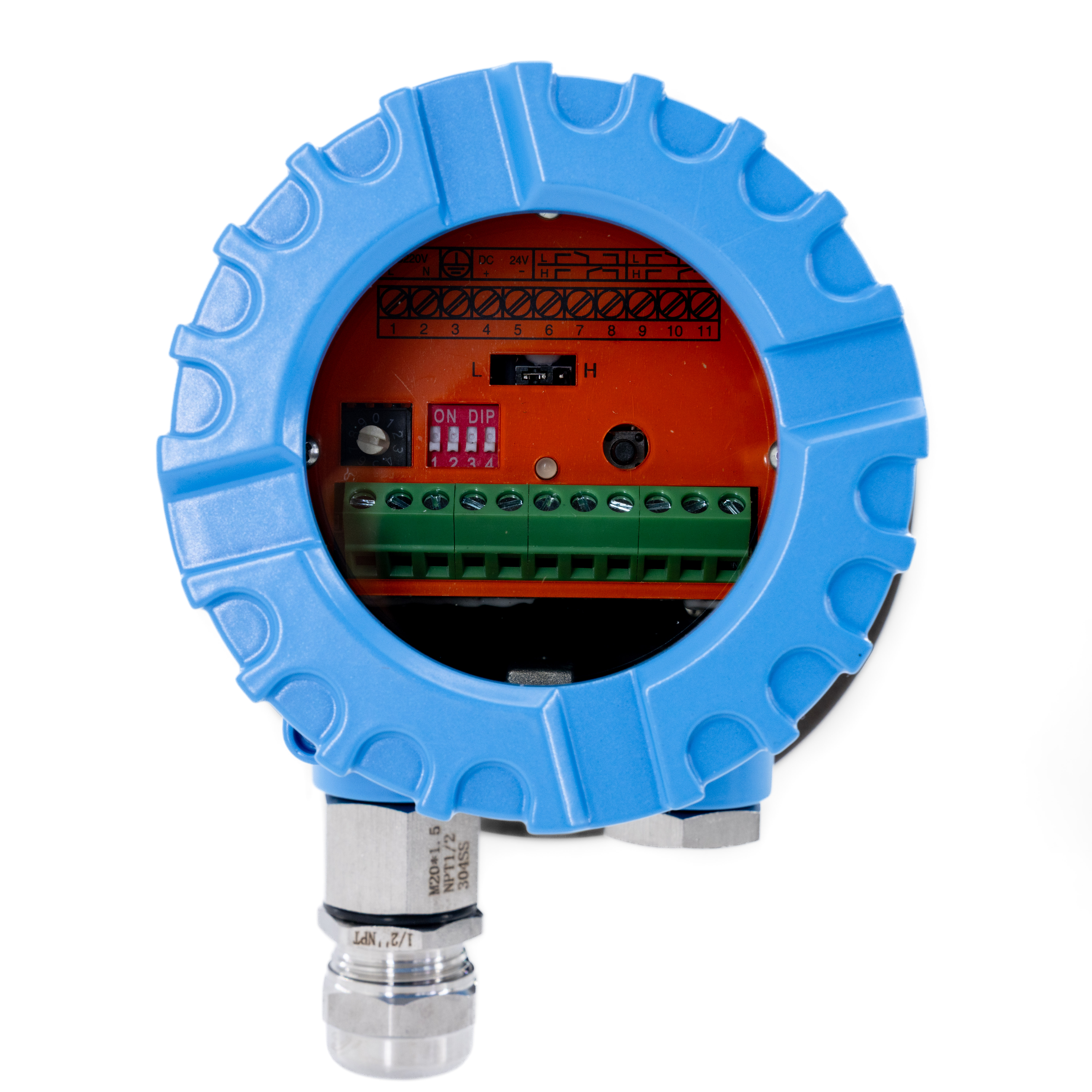

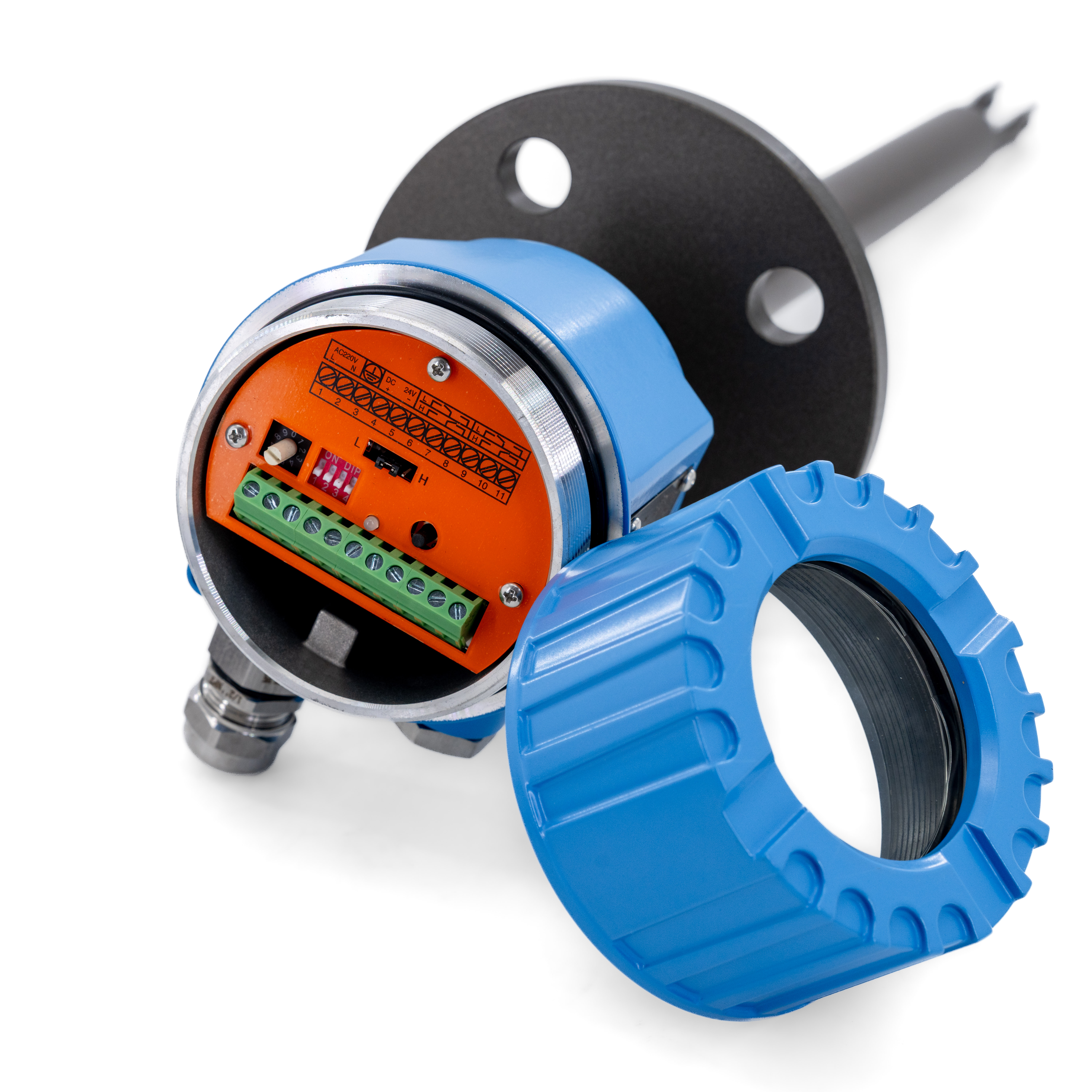

High / Low level alarm switchable
SPDT relay output
5A relay contact capacity
Long insertion length up to 800 mm, customizable
Fork length customizable
Ex db IIC T6 Gb explosion-proof version
IP66 protection
No moving mechanical parts
Suitable for tank level alarm and control
Technical Specifications
Parameter | Specification |
Model | JC-61KA |
Product Type | Tuning Fork Level Switch |
Mounting | Top-Mounted |
Detection Type | Point Level Detection |
Medium | Liquid, slurry, or suitable powder |
Density | To be specified by customer |
Viscosity | To be specified by customer for liquid/slurry |
Process Temperature | -40~80°C |
Process Pressure | <2.0 MPa |

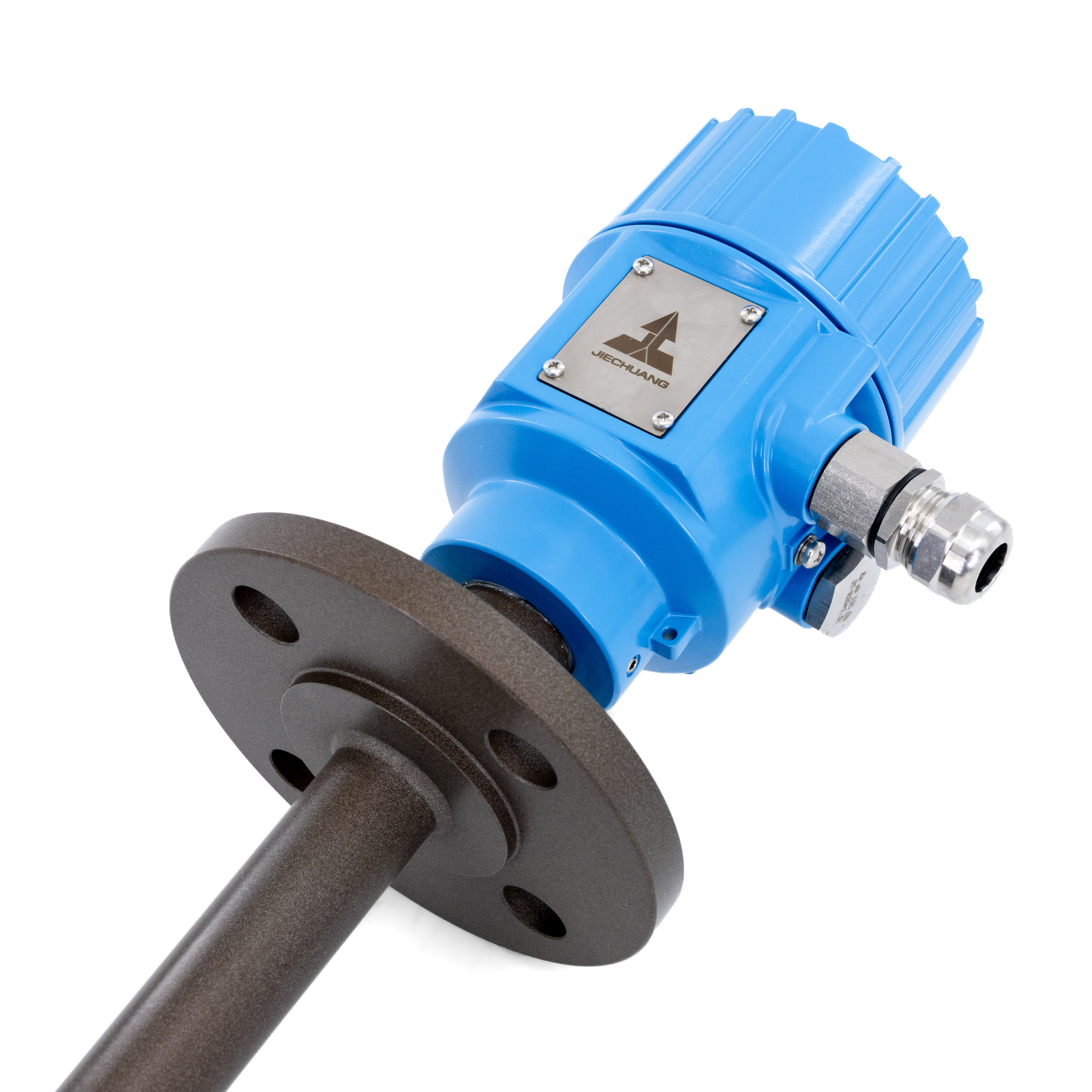

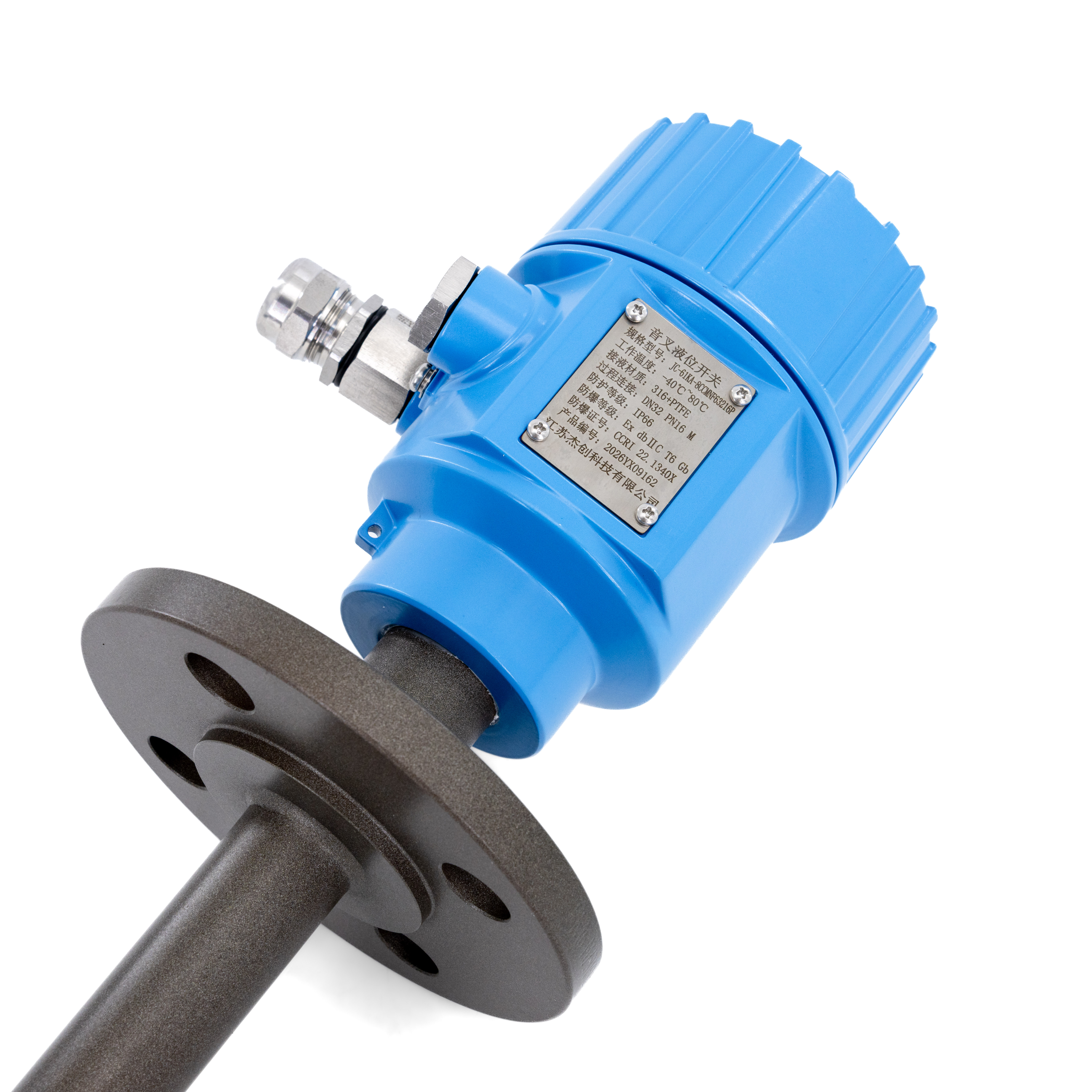

Process Connection | DN32 PN16 M Flange |
Insertion Length | 800 mm, customizable |
Fork Length | 100 mm, customizable |
Wetted Parts | PTFE-coated SS316 |
Power Supply | 24VDC or 220VAC, optional |
Output | SPDT Relay |
Relay Contact Rating | 5A @ 250VAC / 5A @ 30VDC, optional |
Alarm Mode | High / Low Level Alarm, switchable |
Cable Entry | M20×1.5 |
Ingress Protection | IP66 |
Explosion Protection | Ex db IIC T6 Gb |
Note: Specifications can be customized according to customer requirements.
