Product Introduction

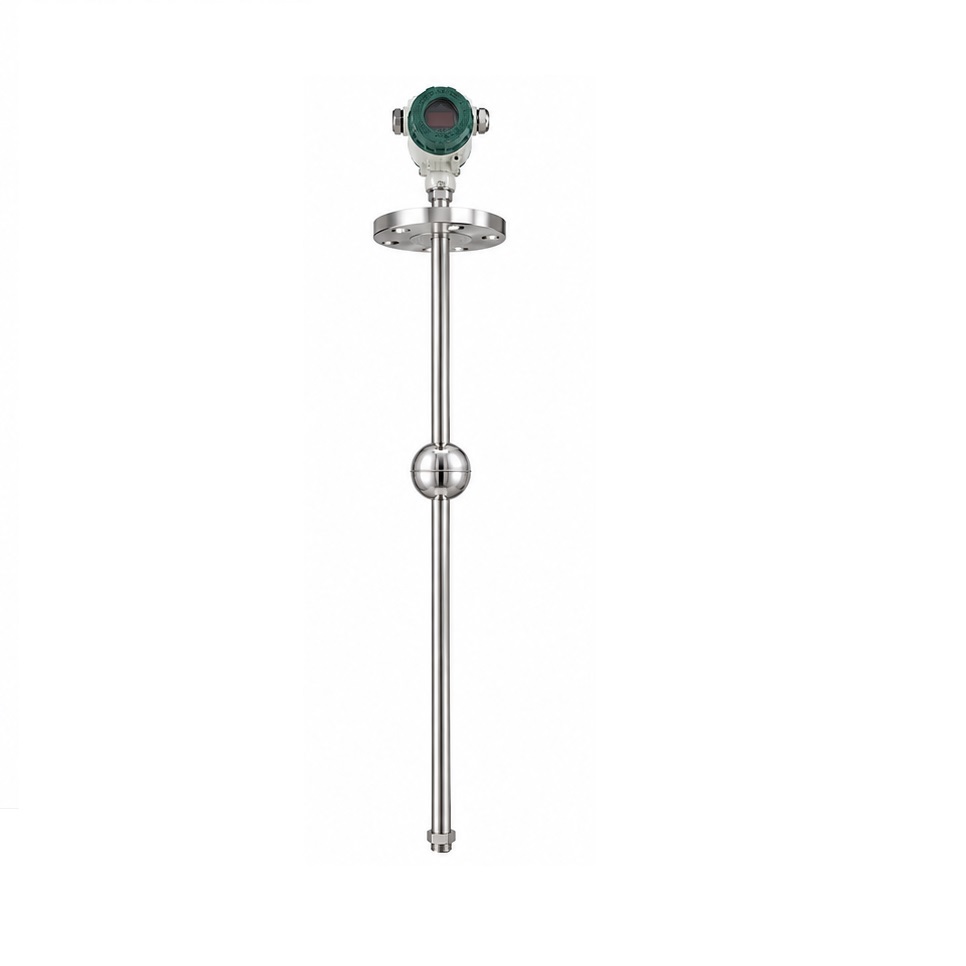

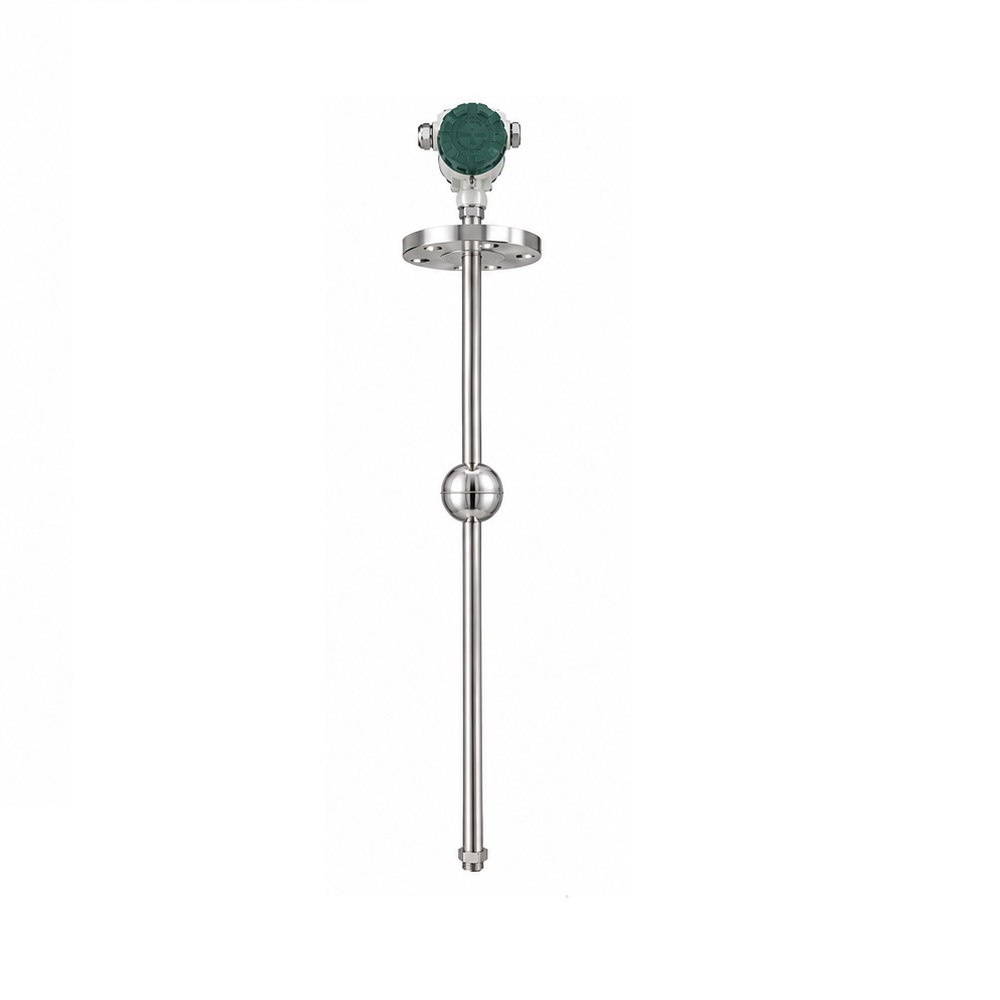

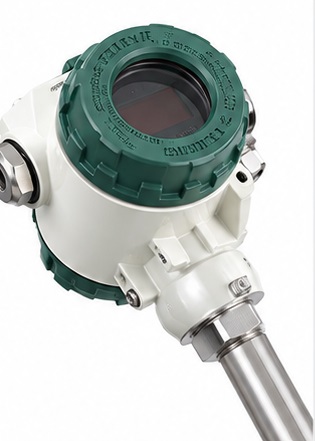

The top mounted magnetic float level transmitter is designed for continuous liquid level measurement in tanks and vessels.

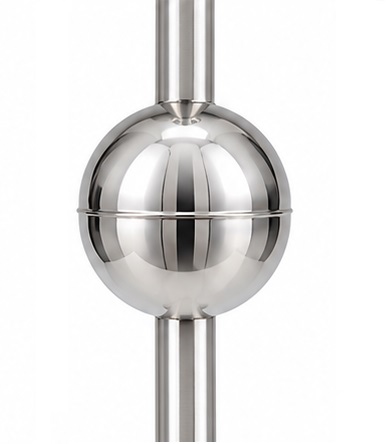

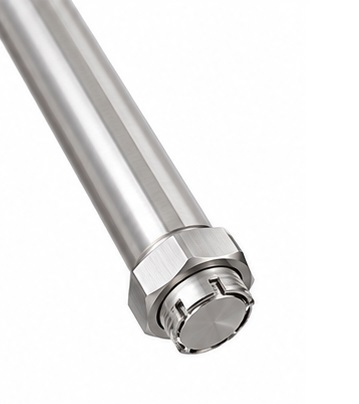

It uses a float and sensing probe to detect liquid level changes. The level signal is converted into a standard 4-20 mA output for remote monitoring and control.

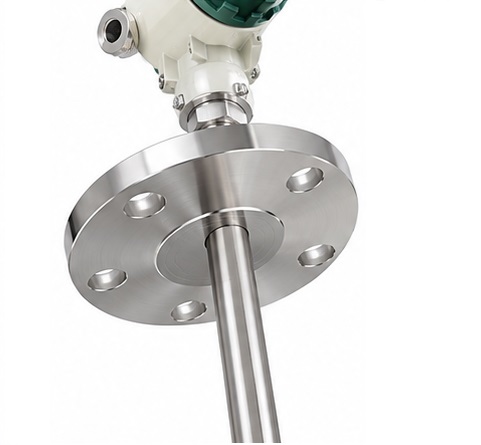

The transmitter is installed vertically from the top of the tank through a DN80 PN16 RF flange.
The stainless steel construction is suitable for industrial liquid level measurement. An explosion-proof version is available for hazardous areas.
Applications
Water and wastewater tanks
Oil and fuel tanks
Chemical storage tanks
Process vessels
Hydraulic oil tanks
Industrial storage tanks
Power and utility systems
General liquid level monitoring
Features
Top-mounted installation
Flange connection
Continuous liquid level measurement
4-20 mA standard output
24 VDC power supply
Stainless steel probe and flange
±10 mm measurement accuracy
Explosion-proof version available
IP65 / IP67 protection options
Measuring range can be customized
Technical Specifications
Item | Specification |
Product Type | Magnetic Float Level Transmitter |
Installation | Top Mounted / Top Insertion |
Measuring Range | 0-1300 mm |
Probe Length | 1400 mm |
Probe Diameter | Φ20 mm |
Accuracy | ±10 mm |
Process Connection | Flange |
Flange Size | DN80 |
Flange Rating | PN16 |
Flange Face | RF, Raised Face |
Flange Material | SS304 |
Probe Material | SS304 |
Output Signal | 4-20 mA |
Power Supply | 24 VDC |
Max. Working Pressure | ≤1.6 MPa |
Min. Medium Density | ≥0.5 g/cm³ |
Medium Temperature | -20~+120ºC |
Explosion-Proof | Ex db IIC T6 Gb |
Protection Rating | IP65 / IP67 Optional |
Installation Direction | Vertical |
Customization | Range, length, connection and other parameters can be customized |
Note: Specifications can be customized according to customer requirements.
