Product Introduction

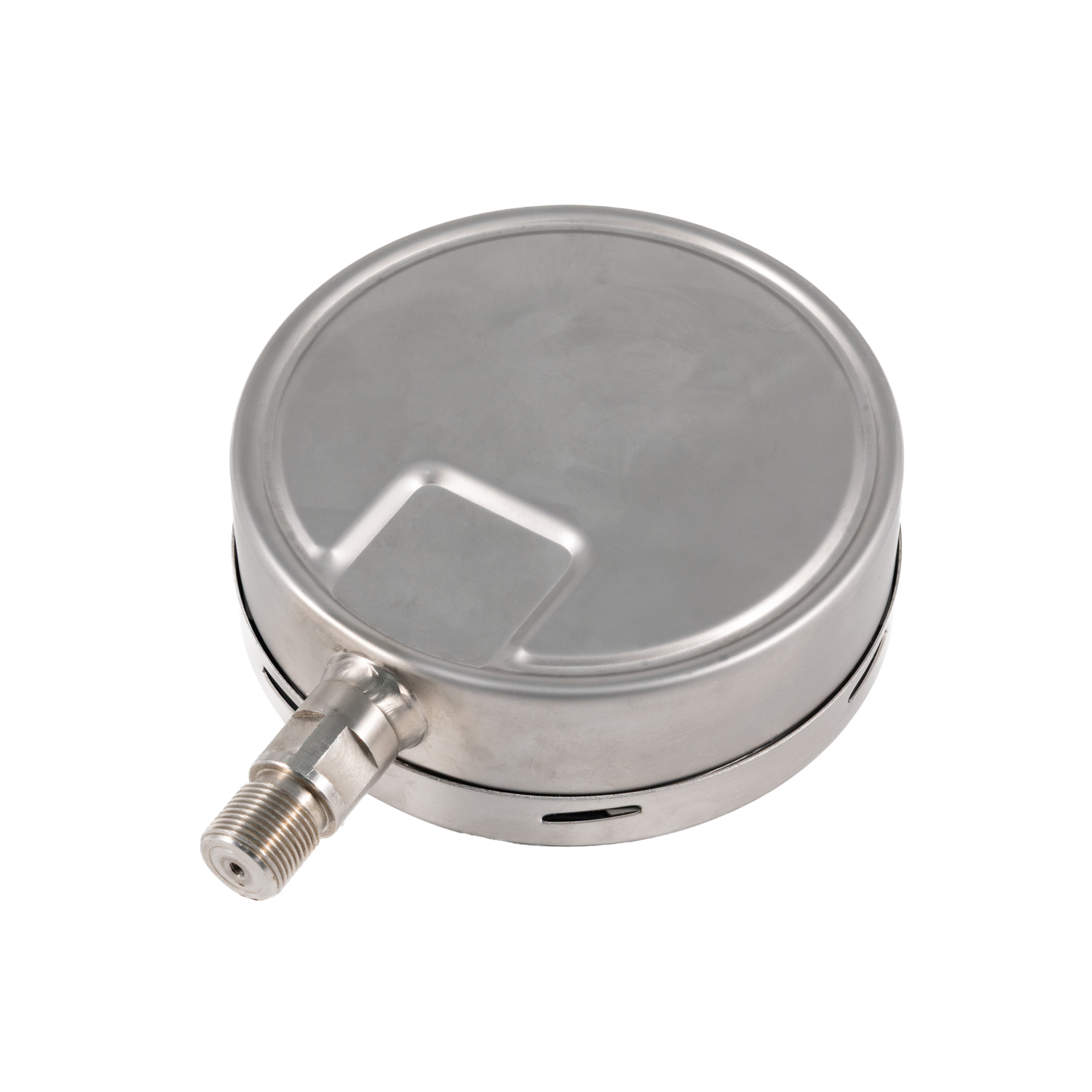

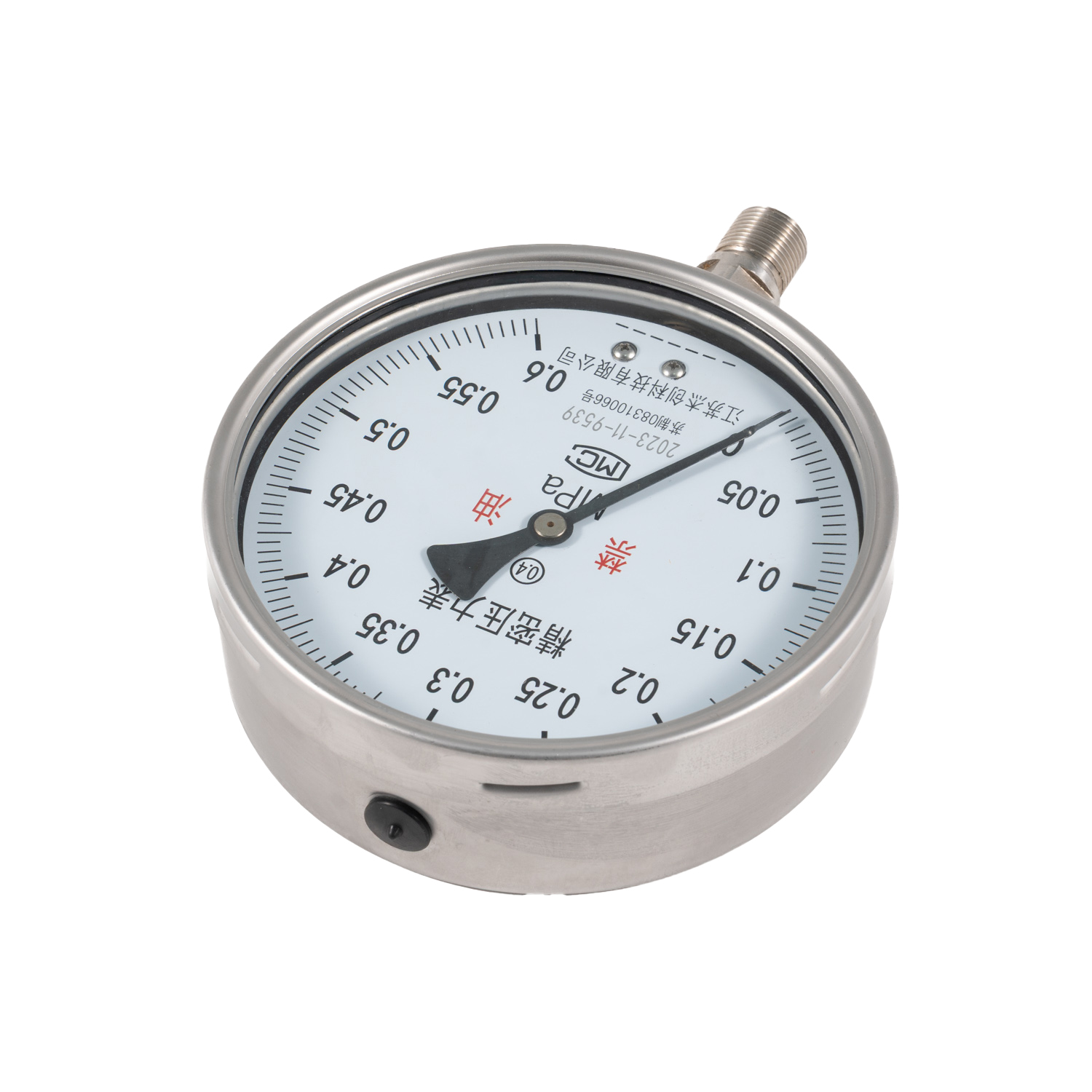

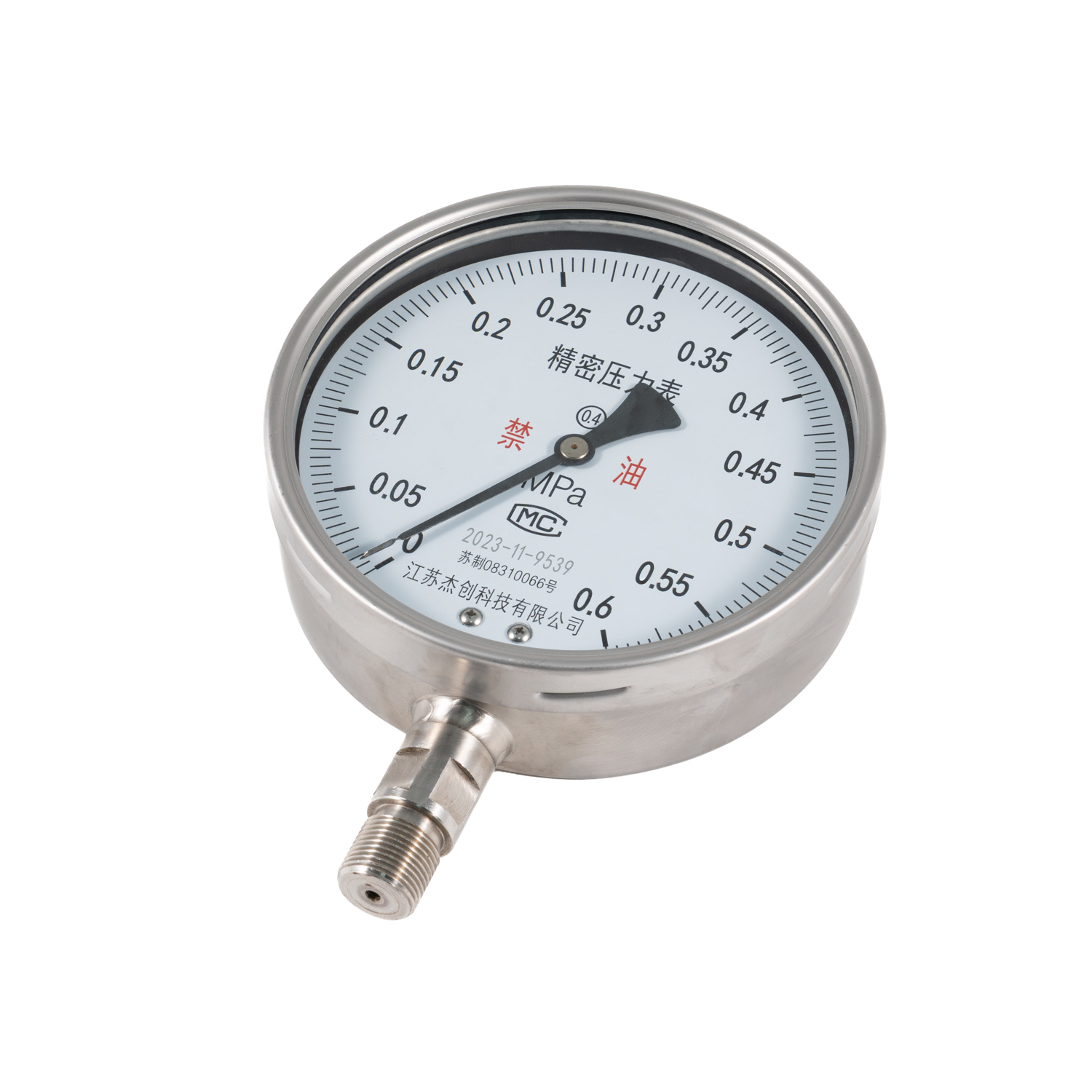

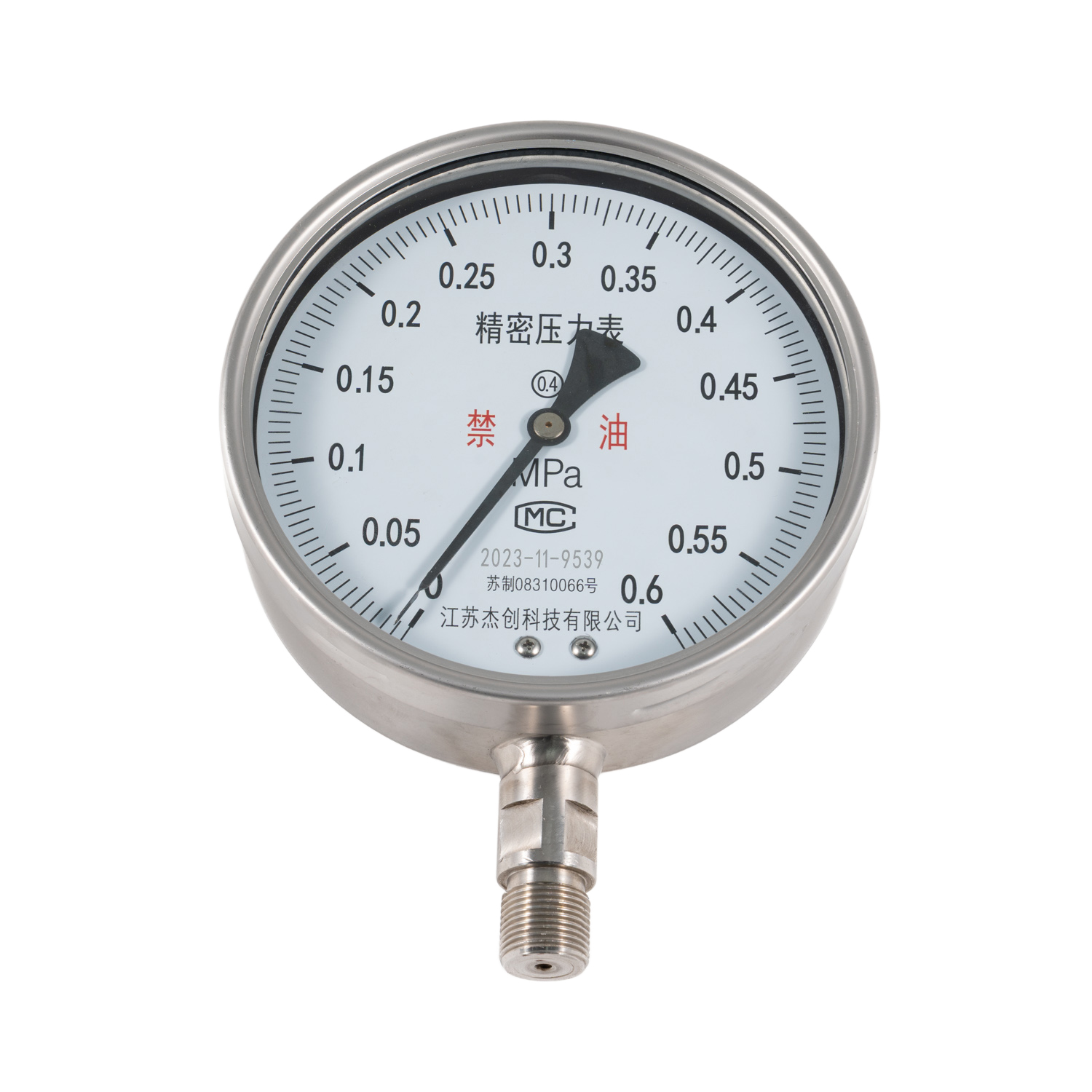

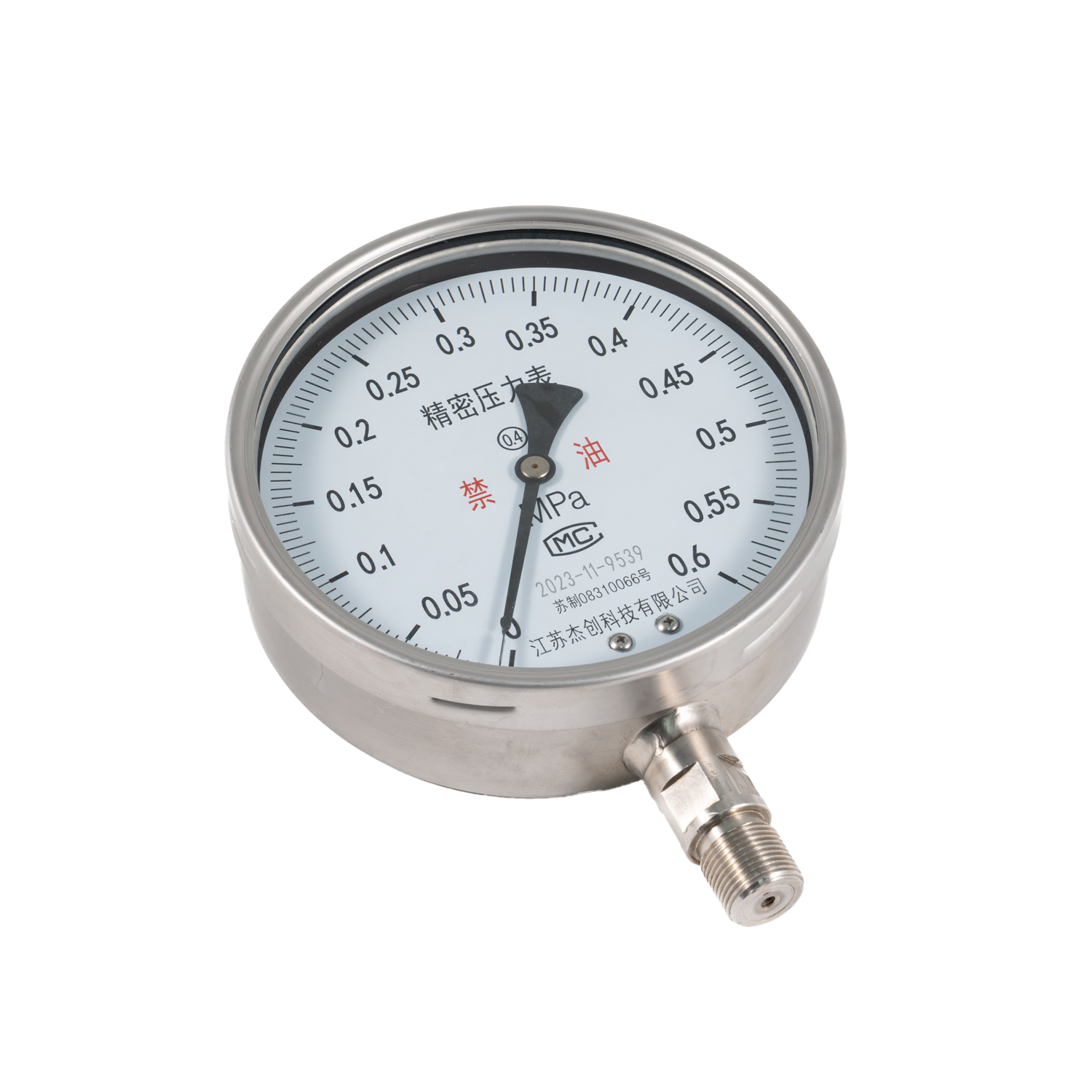

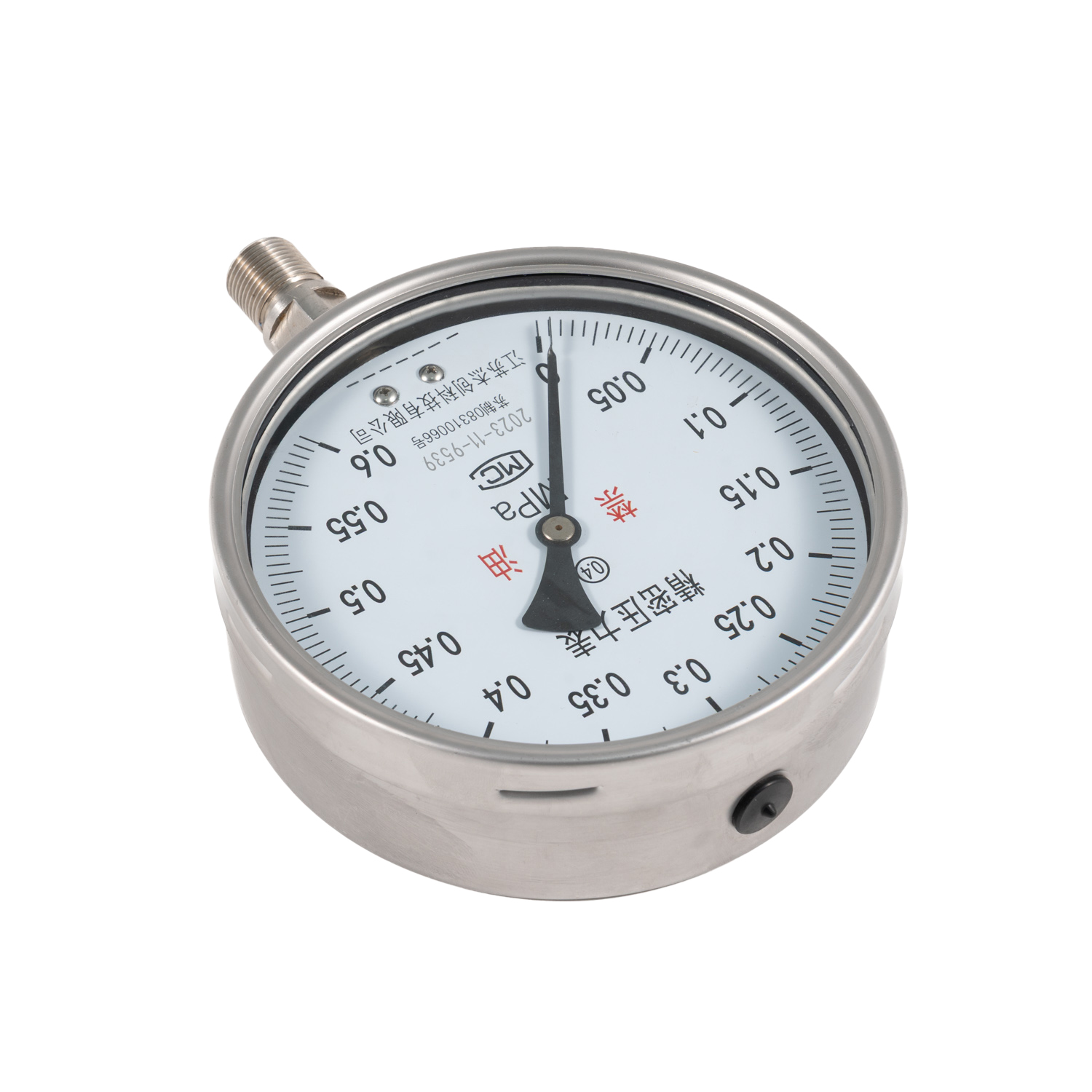

The All Stainless Steel Precision Pressure Gauge is designed for accurate pressure measurement in calibration, testing and industrial applications.

With a full stainless steel construction, high-quality Bourdon tube sensing element and precision movement mechanism, this gauge provides excellent durability, corrosion resistance and measurement accuracy.

This model features a 0~0.6MPa measuring range and Class 0.4 accuracy, making it suitable for applications requiring reliable and precise pressure indication.

Working Principle

The pressure medium enters the Bourdon tube through the pressure connection. Under pressure, the elastic deformation of the Bourdon tube is transferred through the precision movement mechanism to rotate the pointer, displaying the measured pressure value on the dial.

The precision mechanical structure improves measurement accuracy and repeatability.

Applications

• Pressure calibration and testing equipment

• Laboratory pressure measurement

• Hydraulic and pneumatic testing systems

• Industrial equipment inspection

• Process control systems

• Pump and compressor testing

• Machinery maintenance

• Quality inspection equipment

Features

• High Accuracy Class 0.4

• Provides precise pressure readings for testing and measurement applications.

• All Stainless Steel Construction

• Stainless steel case and connection provide excellent corrosion resistance and long service life.

• Precision Measurement

• Fine scale design improves reading resolution and measurement reliability.

• Durable Bourdon Tube Design

• Suitable for stable pressure measurement of liquids and gases.

• Excellent Environmental Resistance

• Suitable for harsh industrial environments.

• Multiple Customization Options

• Measuring range, connection type, dial size and filling liquid can be customized.

Technical Specifications


Note: Specifications can be customized according to customer requirements.
