JC-YBS Series
Jiangsu Jiechuang

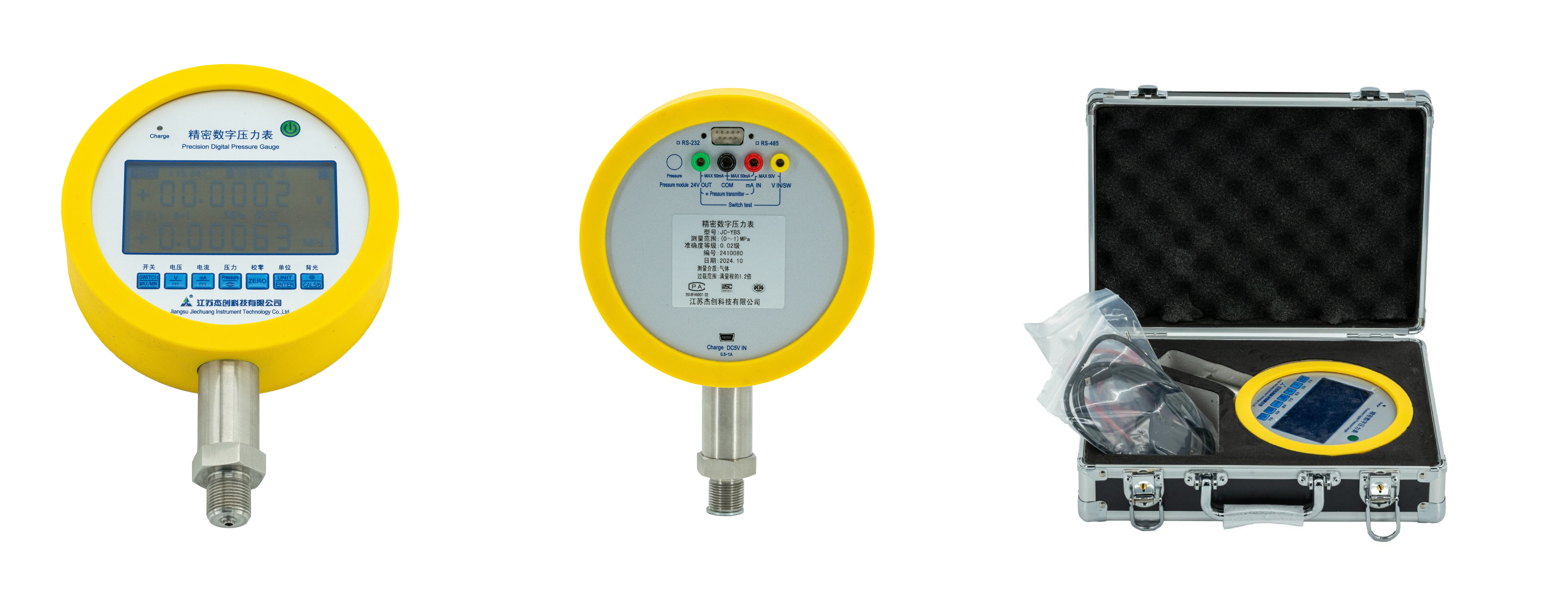

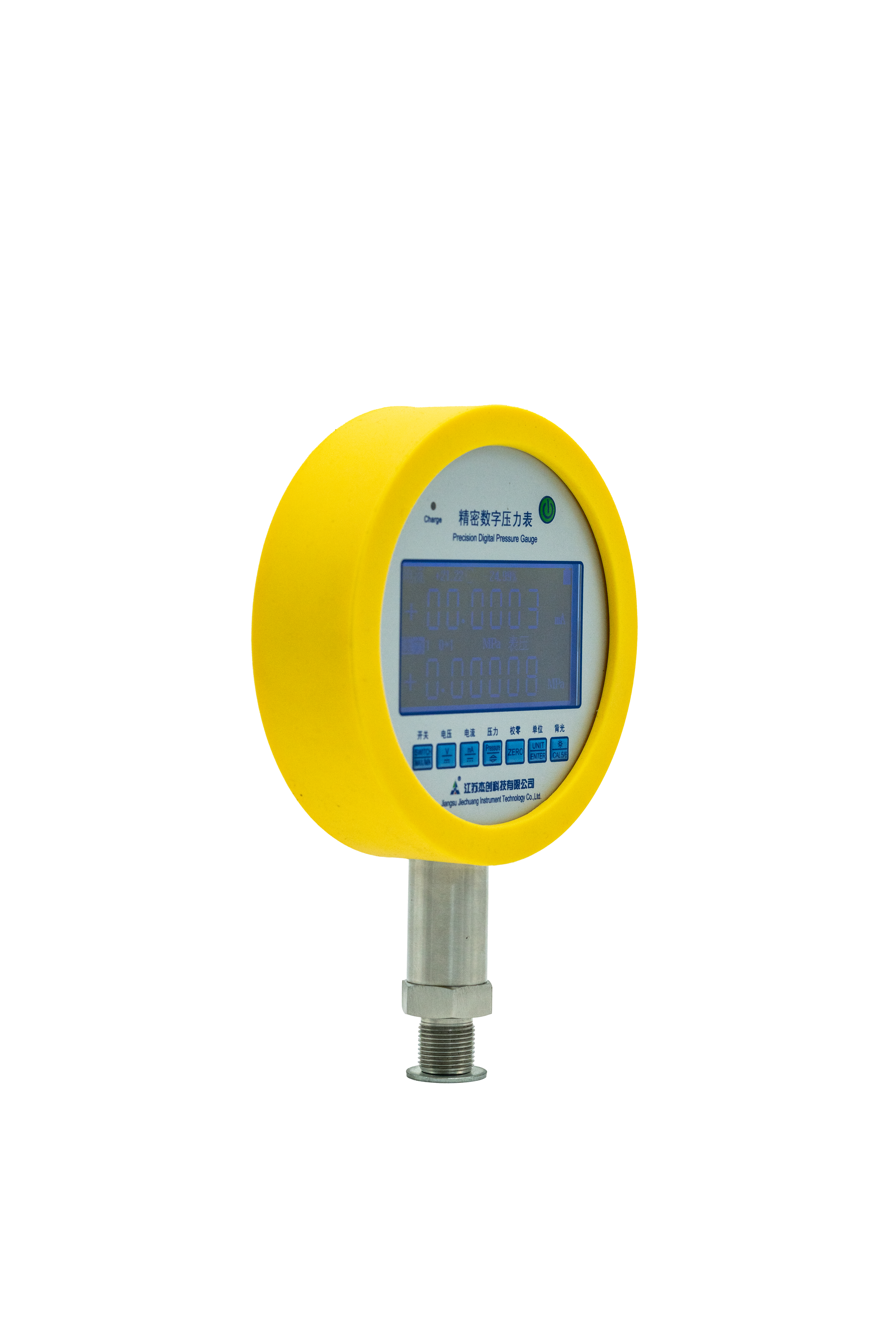

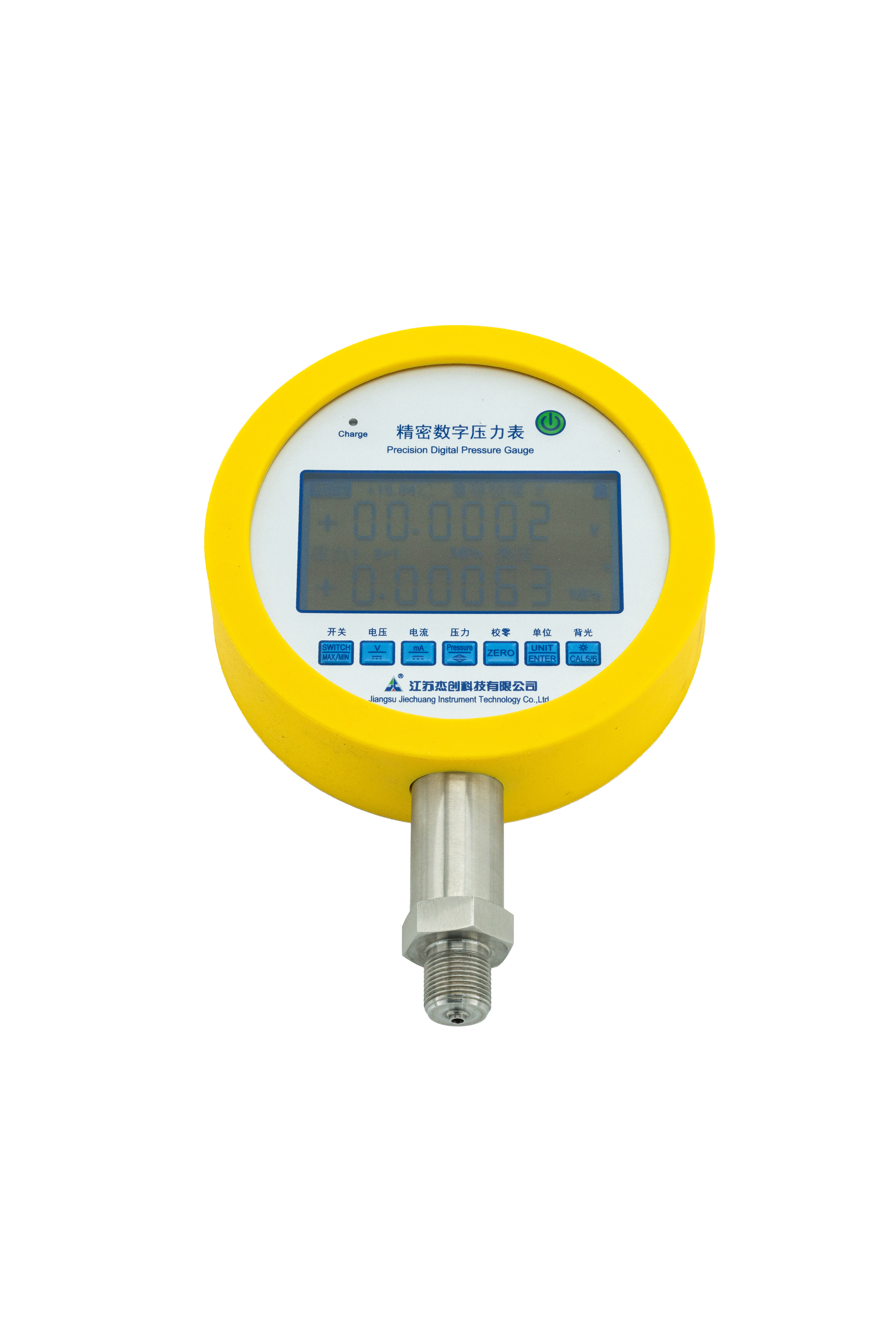

High Precision Handheld Digital Pressure Gauge, Portable Pressure Calibrator
Overview
This is a high-precision portable digital pressure gauge powered by lithium battery.
It can measure pressure, DC voltage and DC current simultaneously.
It supports multiple pressure units and automatic zero calibration.
This gauge is widely used for on-site calibration and pressure detection of industrial instruments.
Application
Pressure transmitter calibration
Bourdon tube analog pressure gauge testing
Pressure switch inspection
Industrial pipeline pressure monitoring
Laboratory precision pressure measurement
Hydraulic & pneumatic system detection
Features
Ultra-high accuracy: Optional 0.02% FS / 0.05% FS precision, meets industrial high-standard calibration requirements。

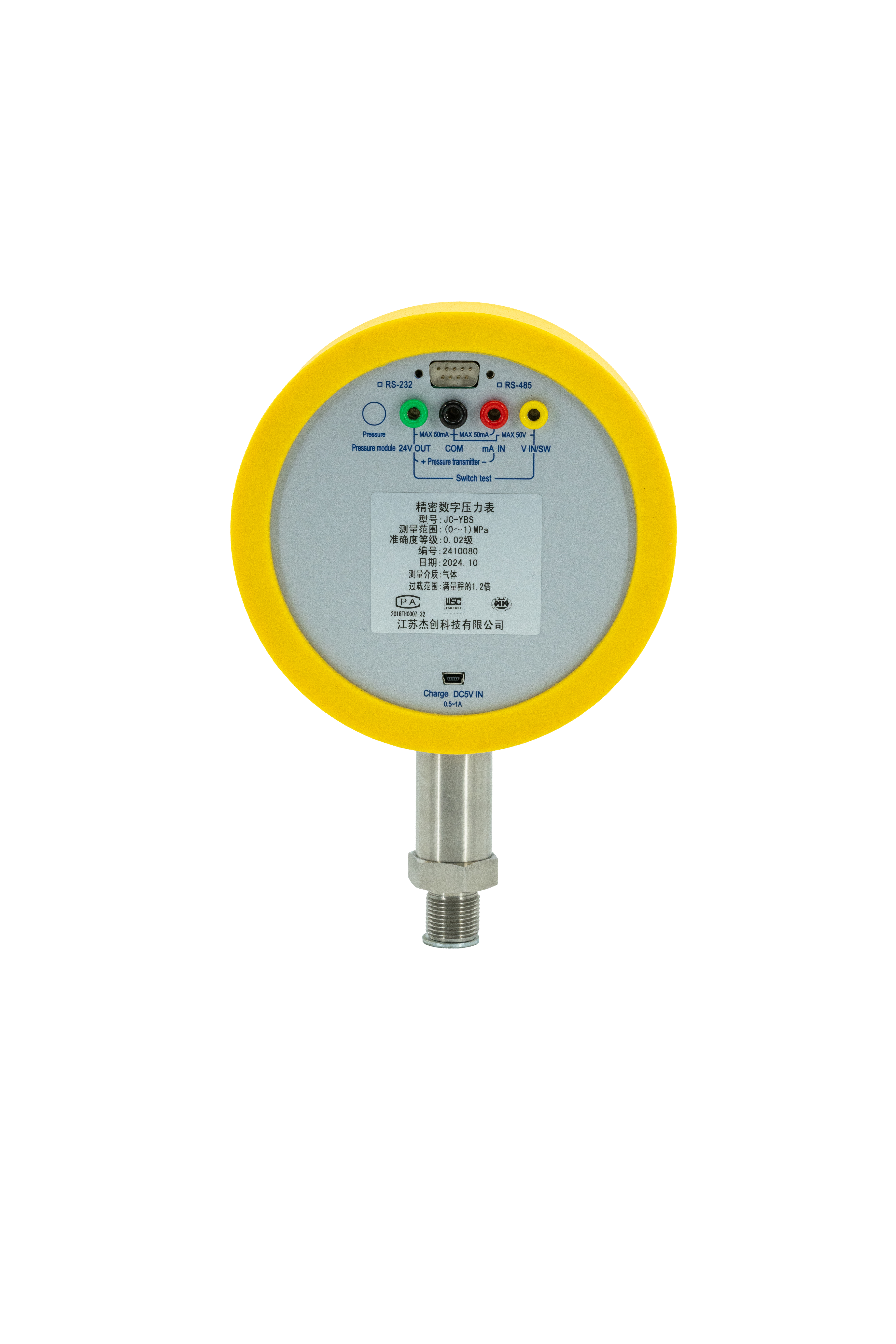

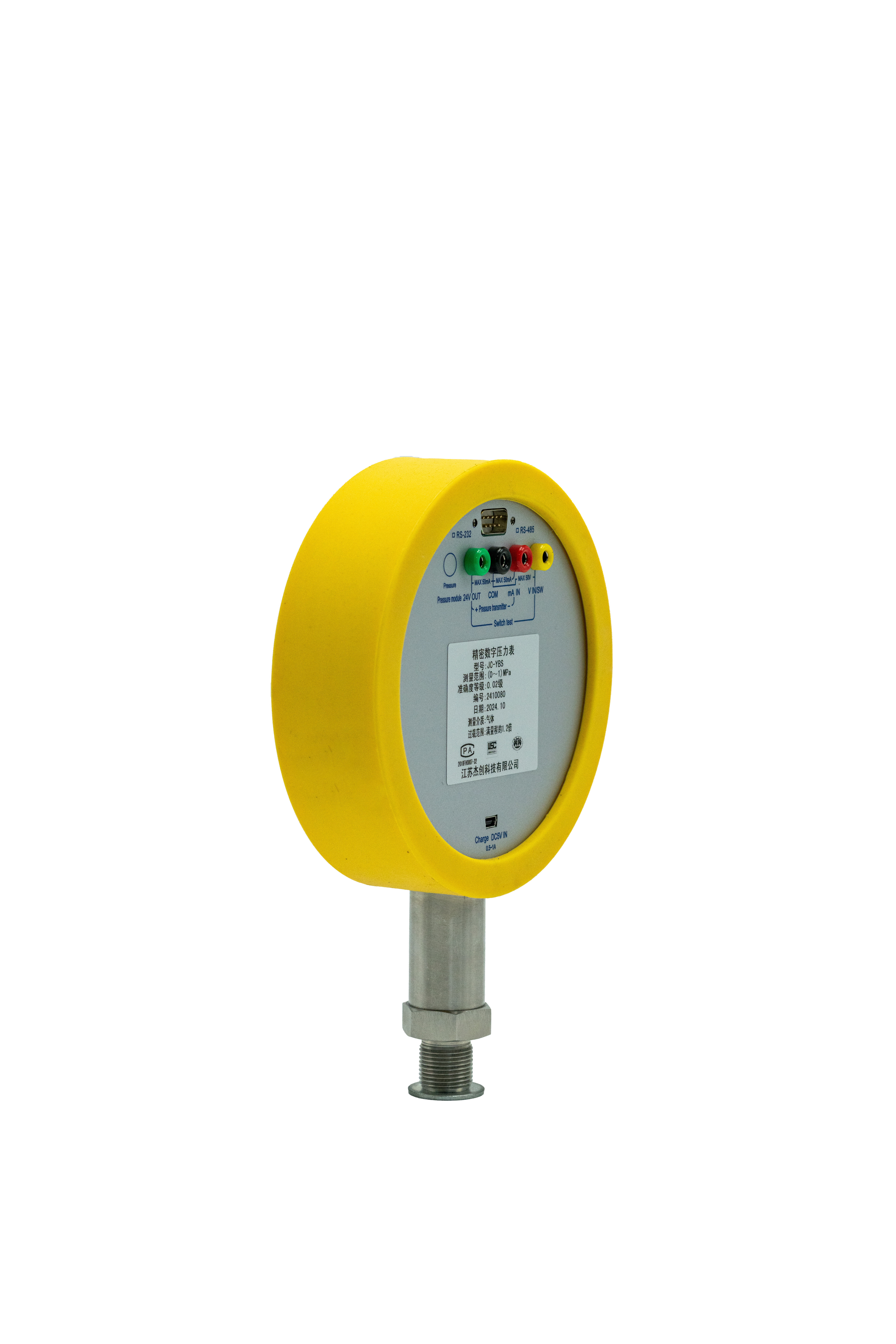

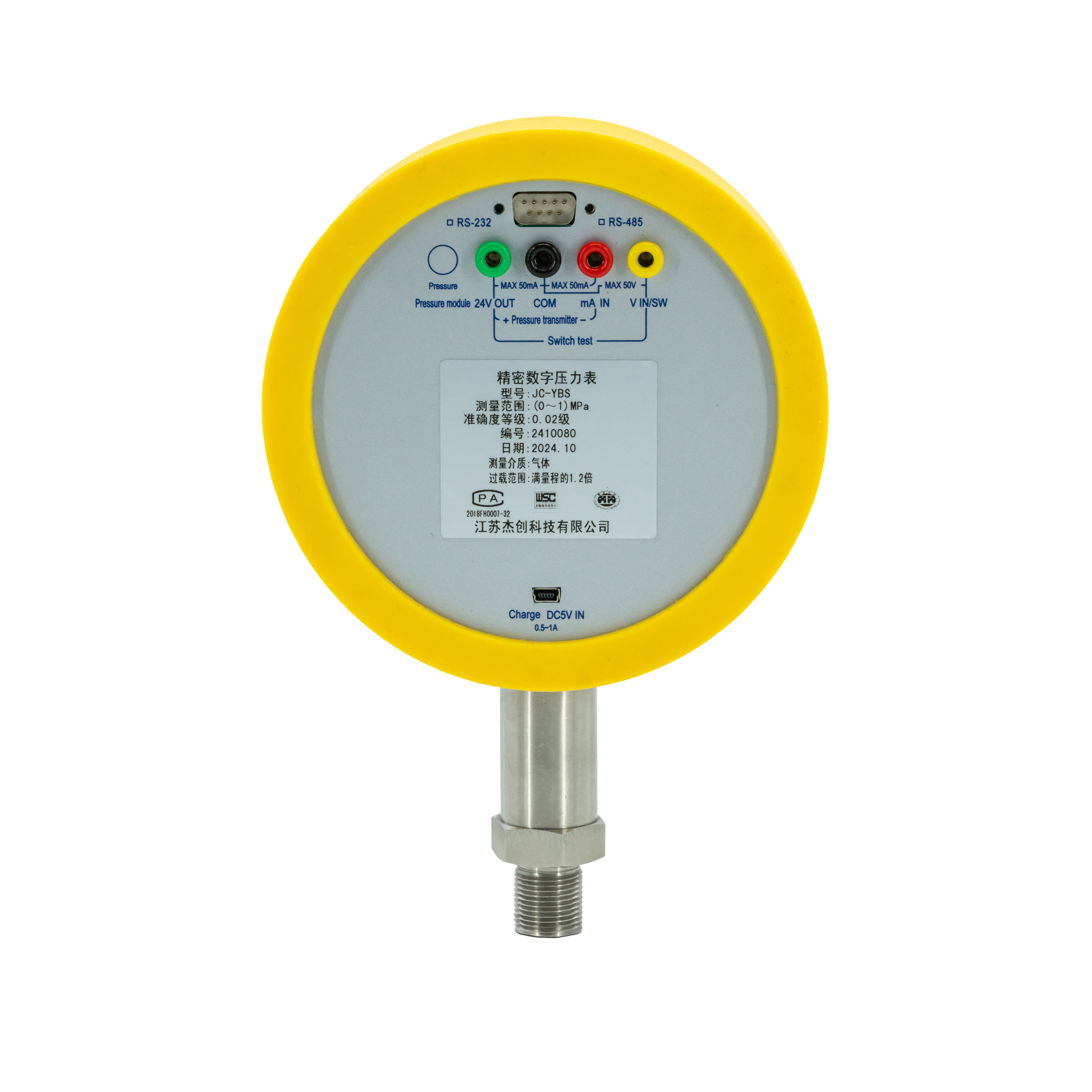

Multi-function integration: Combine pressure, DC voltage and DC current measurement in one device, 24VDC power output for transmitters.
Rich unit conversion: Freely switch between PSI, kPa, MPa, bar, mmHg and other 10+ common pressure units.
High resolution: Minimum resolution up to 0.1 Pa (pressure), 0.1 µA (current), 0.1 mV (voltage) for tiny data capture.

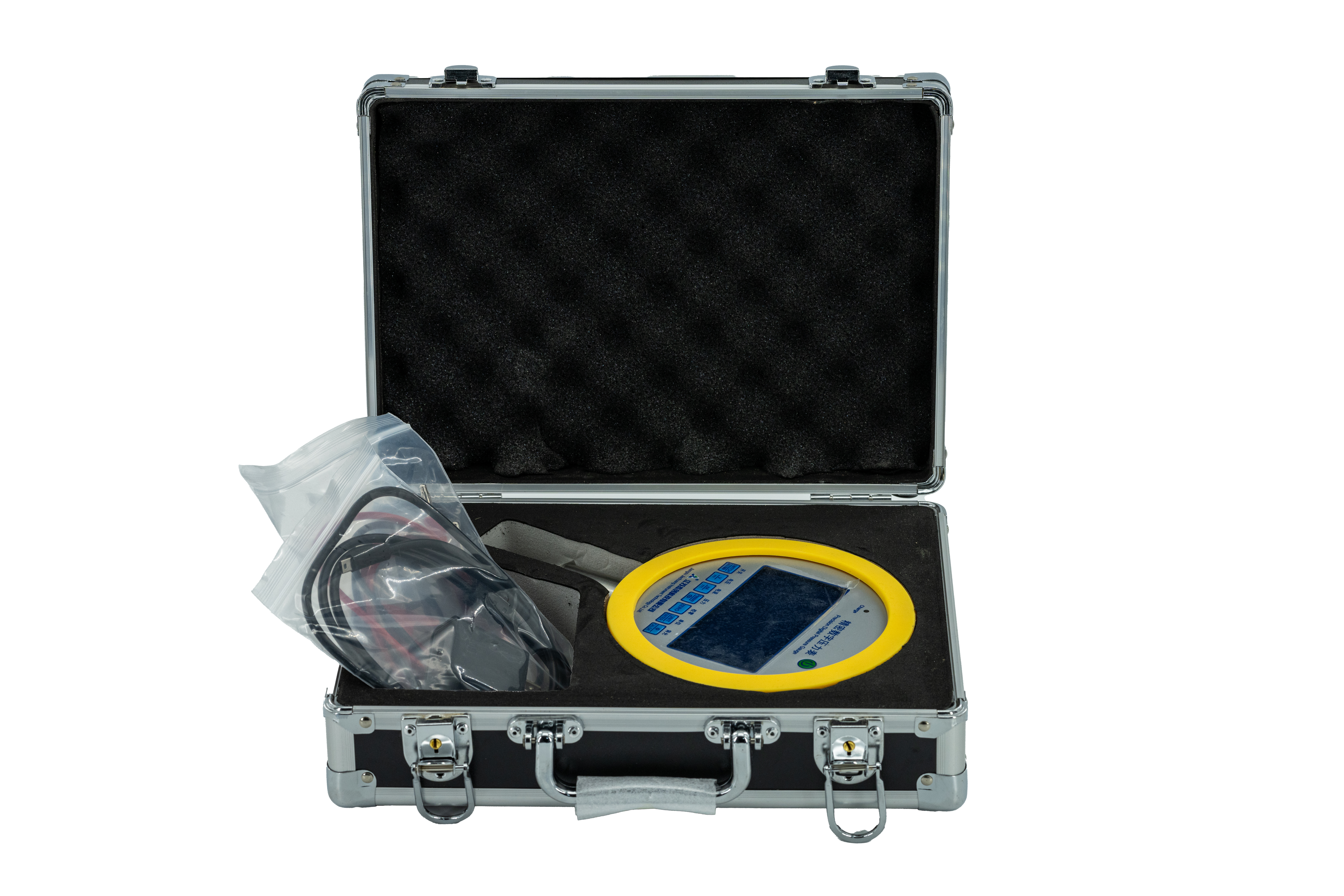

Lightweight & handheld design, easy to carry and use for field test and on-site calibration.
Long battery life: Built-in 3.7V lithium battery, continuous working time over 80 hours after full charge.
Overload protection: 120%~150% full scale overload capacity, built-in buzzer alarm for over-range protection.

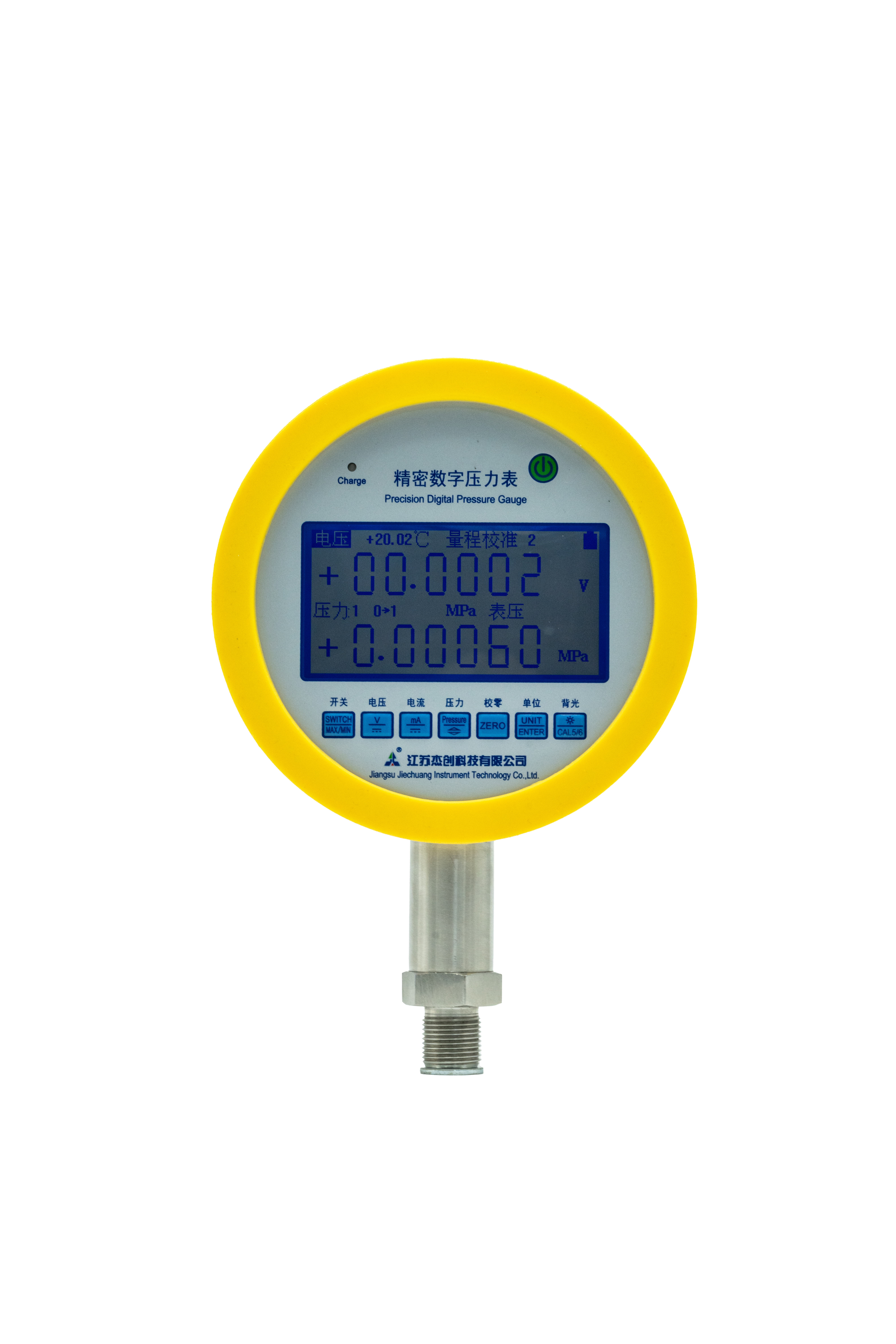

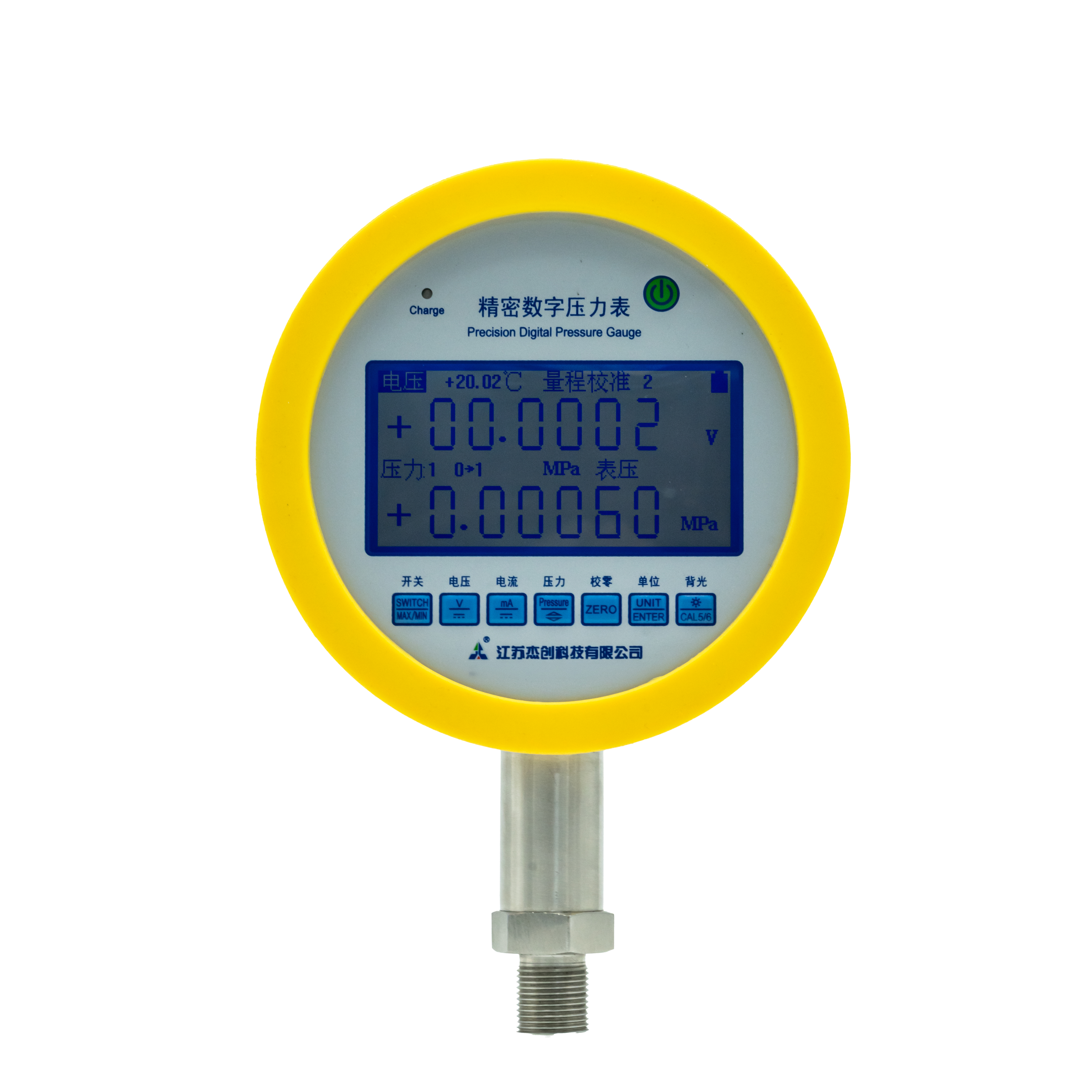

User-friendly design: With backlight, max/min value recording and one-key zero reset function.
Wetted part material: 316L stainless steel sensor, compatible with most gas and liquid media.
Technical Parameters
Item | Specification |
Product Model | JC-YBS Precision Digital Pressure Gauge |
Pressure Range | -0.1 ~ 100 MPa (custom multiple ranges available) |
Accuracy Class | 0.02% FS / 0.05% FS (optional) |
Pressure Resolution | Min 0.1 Pa |
Current Measuring Range | ±25.0000 mA, Resolution: 0.1 µA |
Voltage Measuring Range | ±50.0000 V, Resolution: 0.1 mV |
Output Power | 24 VDC ±10%, Max load 50 mA |
Display Mode | 5-digit / 6-digit LCD display (optional) |
Working Temperature | 0 ~ 50 °C |
Relative Humidity | ≤80% RH (non-condensing) |
Overload Capacity | 120% ~ 150% Full Scale |
Power Supply | 3.7V 4000mAh lithium-ion battery, 5V DC charging |
Overall Dimension | Main body: Ø155 mm × 47 mm; Sensor: Ø28 mm × 80 mm |
Net Weight | 1000 g |
Wetted Material | 316L Stainless Steel |
Measurement Mode | Gauge pressure / Absolute pressure / Differential pressure |
All parameters can be customized as required.
