Product Introduction

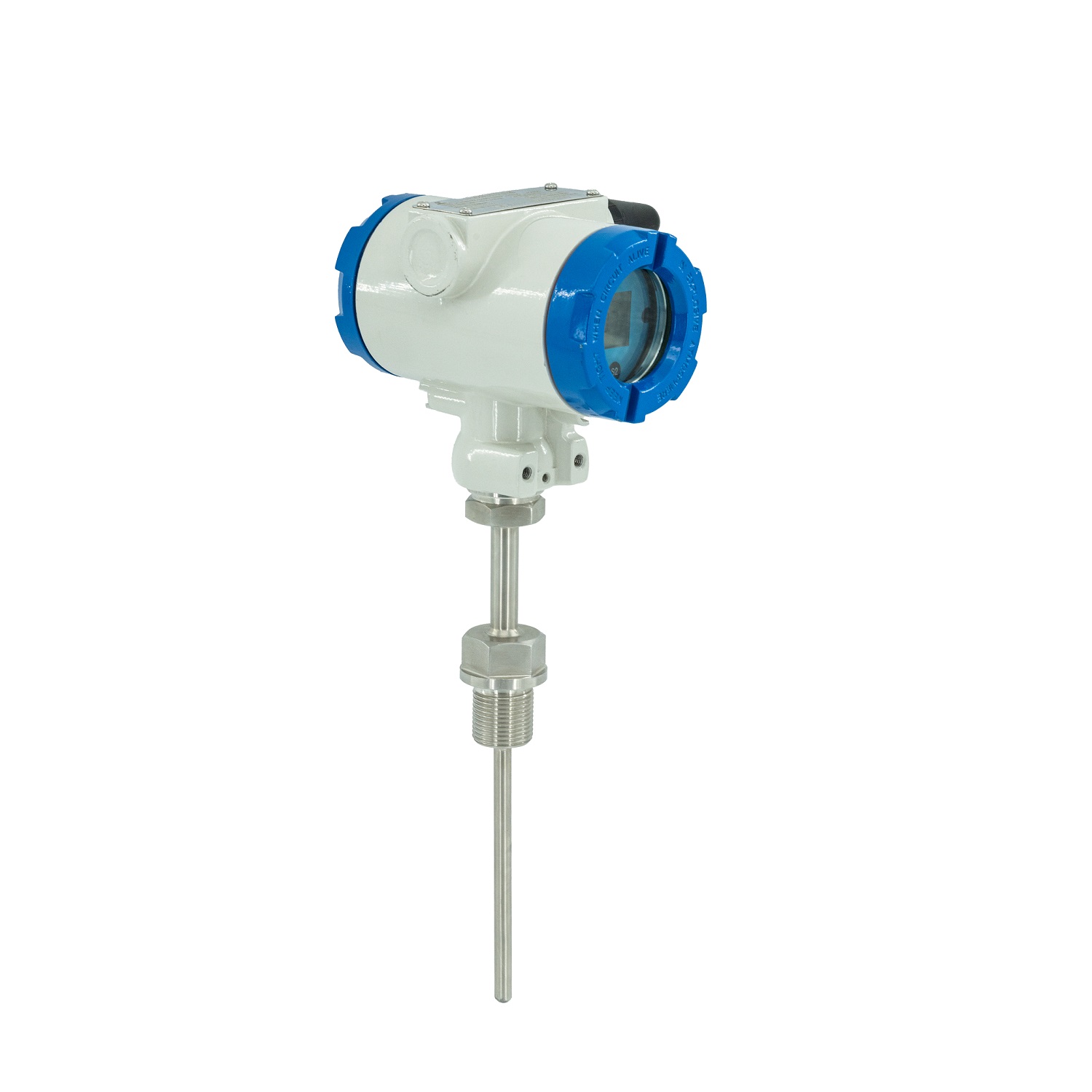

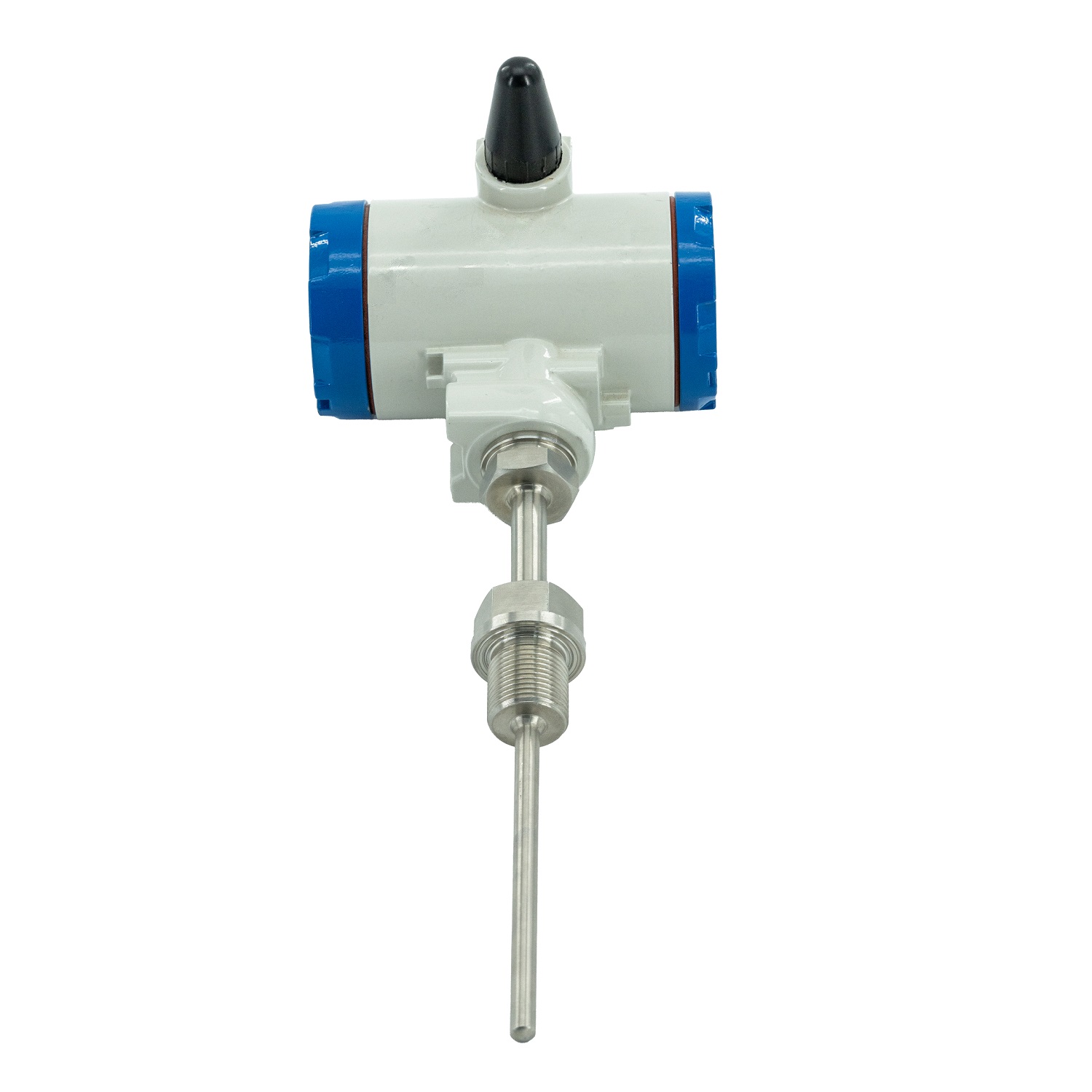

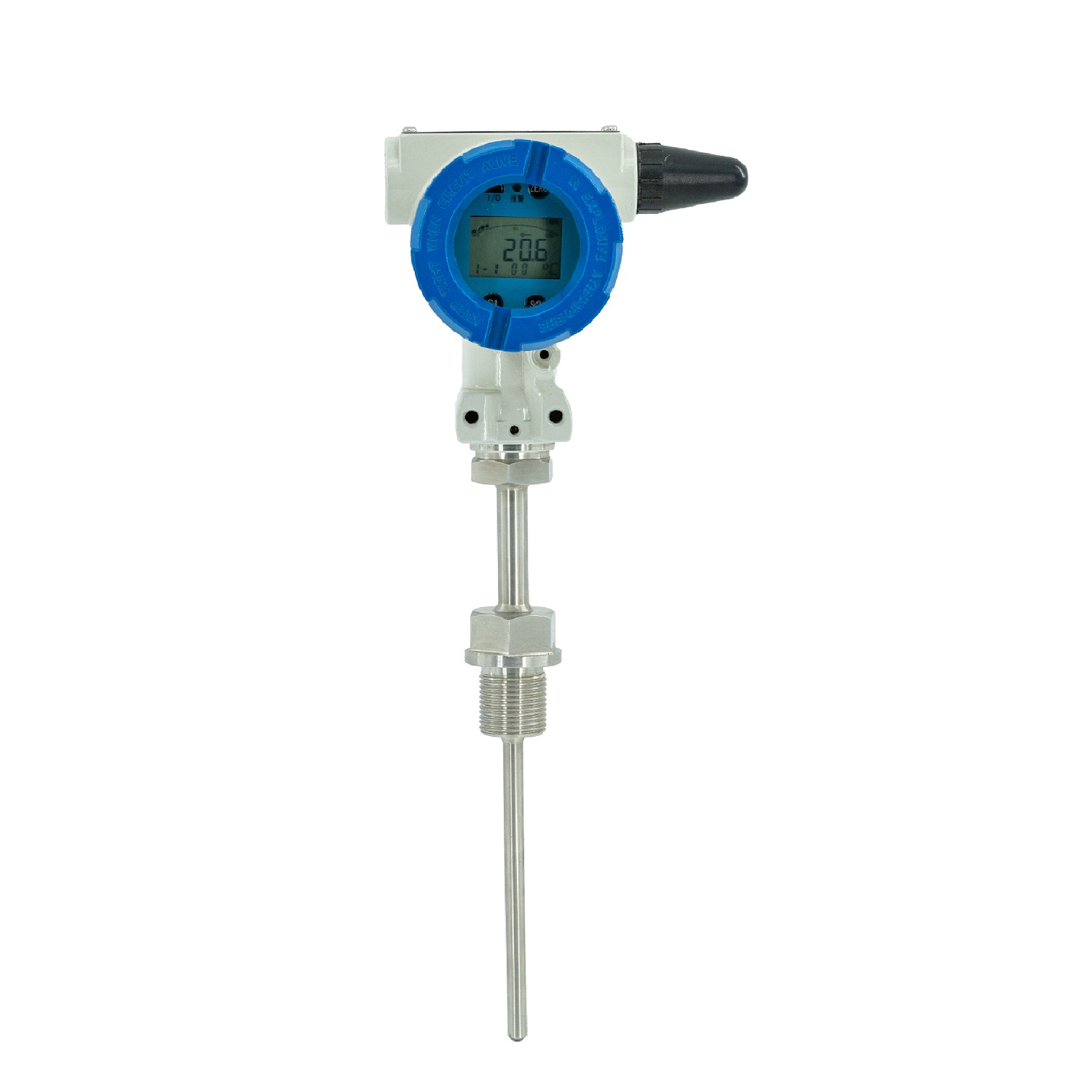

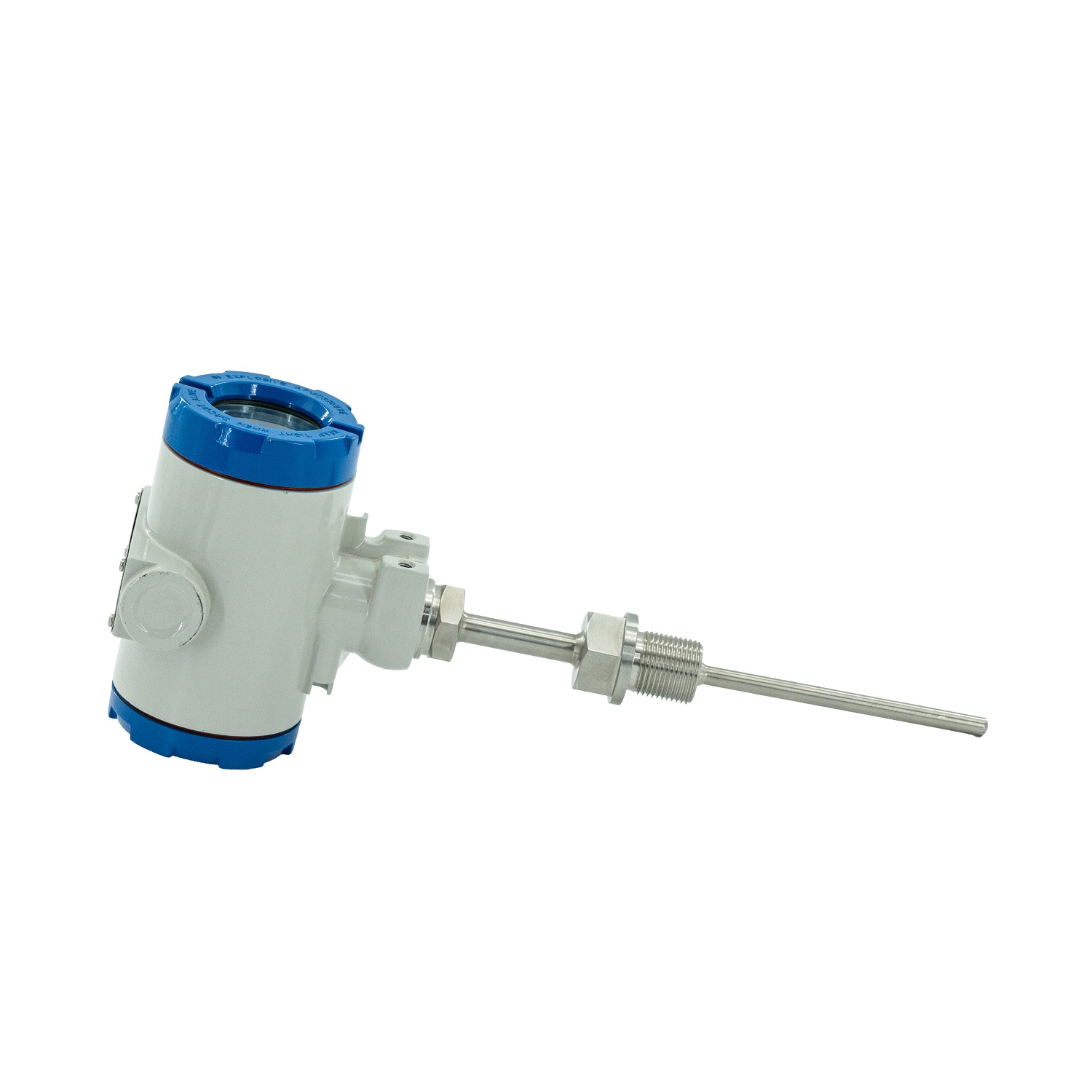

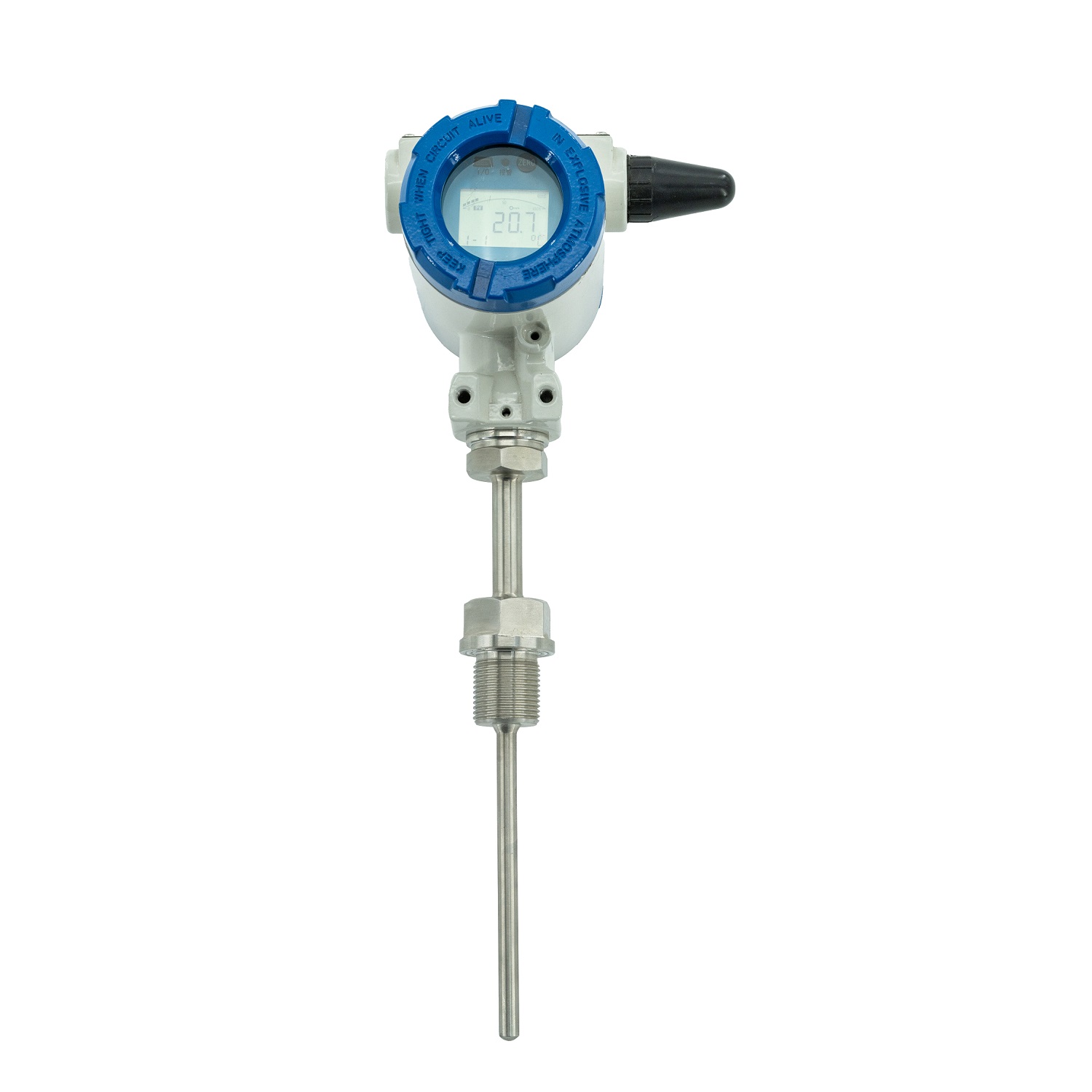

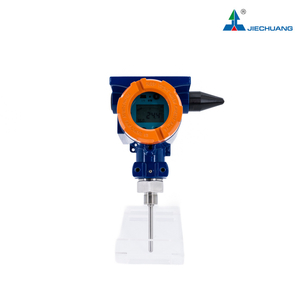

The Adjustable Probe Wireless Temperature Transmitter is designed for industrial temperature measurement and remote monitoring.
It integrates a temperature sensor, wireless communication module and LCD display into one compact device.
The stainless steel probe can be installed directly into pipelines, tanks and equipment through threaded connection.
The wireless design reduces cable installation cost and allows easy installation in remote or difficult-to-wire locations.
Pt100 RTD and thermocouple sensors are available for different temperature measurement requirements.
Applications
This wireless temperature transmitter is widely used in:
Oil and gas pipelines
Chemical processing equipment
Storage tanks
Steam pipelines
Heat exchanger systems
Boiler temperature monitoring
Power equipment
HVAC systems
Smart factory monitoring
Industrial IoT applications
Features
1. Wireless Remote Monitoring
Temperature data can be transmitted wirelessly to monitoring systems.
2. Adjustable Installation Design
The compression fitting allows flexible probe installation depth adjustment.
3. LCD Local Display
Easy checking of measured temperature on site.
4. Battery Powered Operation
Low power consumption design for long-term operation.
5. Stainless Steel Probe
Good corrosion resistance and mechanical strength.
6. Multiple Wireless Communication Options
LoRa, LoRaWAN, NB-IoT and 4G are available.
7. Compact Industrial Structure
Suitable for pipelines, tanks and industrial equipment.
Technical Specifications
Item | Specification |
Product Name | Wireless Temperature Transmitter |
Model | JC-SBW |
Temperature Sensor | Pt100 RTD / Thermocouple Optional |
Measuring Range | -40~150ºC / Customizable |
Accuracy | ±0.2%FS / ±0.5%FS |
Display | LCD Digital Display |
Wireless Communication | LoRa / LoRaWAN / NB-IoT / 4G Optional |
Transmission Distance | Up to 1~5 km (Depends on environment and protocol) |
Power Supply | Built-in Lithium Battery |
Probe Diameter | Φ6mm / Φ8mm / Φ10mm Optional |
Insertion Length | 200mm (Customizable) |
Installation Type | Thread Connection |
Probe Material | SS304 / SS316L Optional |
Process Connection | M20×1.5 / G1/2 / 1/2"NPT Optional |
Protection Class | IP65 / IP66 / IP67 Optional |
Explosion Proof Grade | Ex db / Ex ia Optional |
Note: Specifications can be customized according to customer requirements.
