Product Introduction

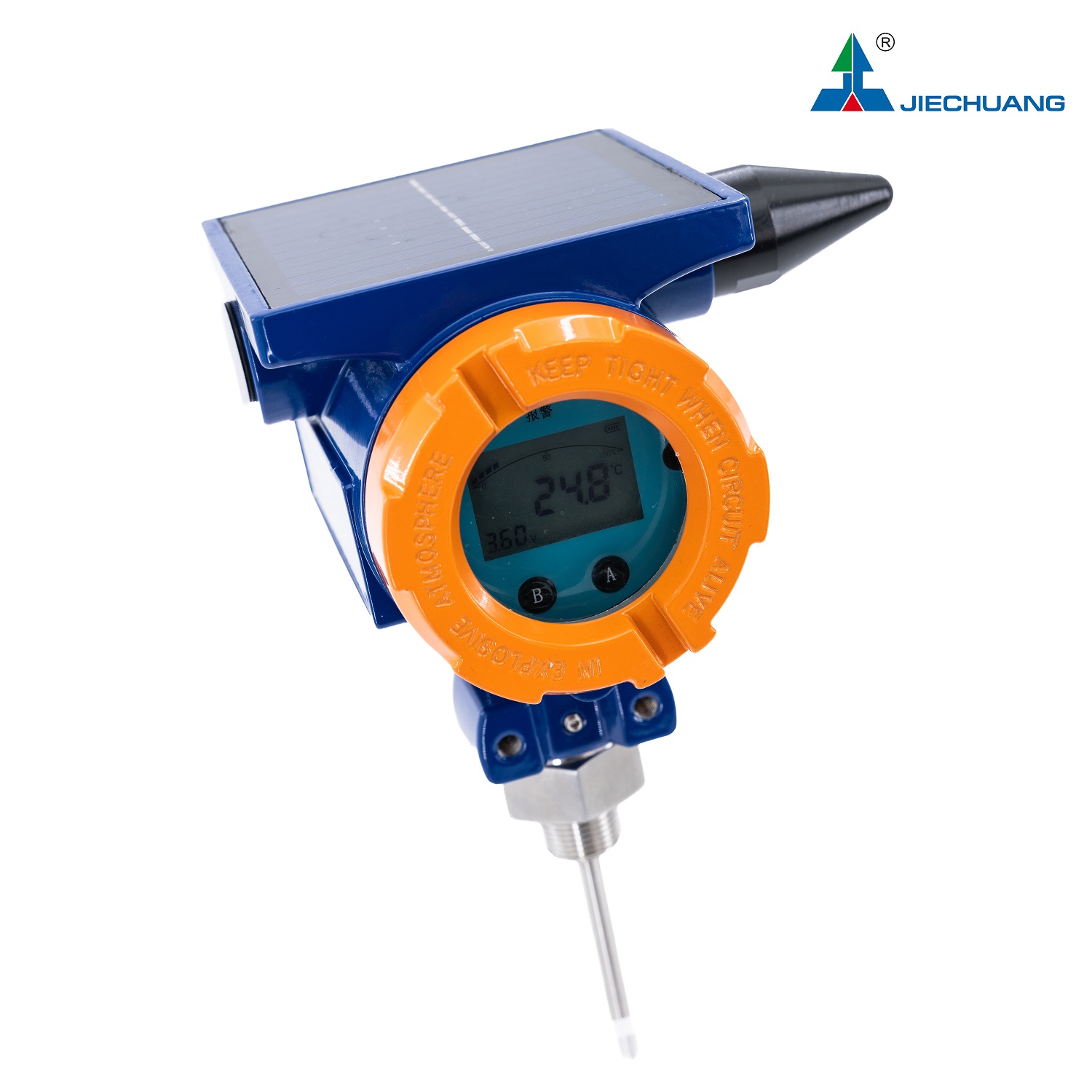

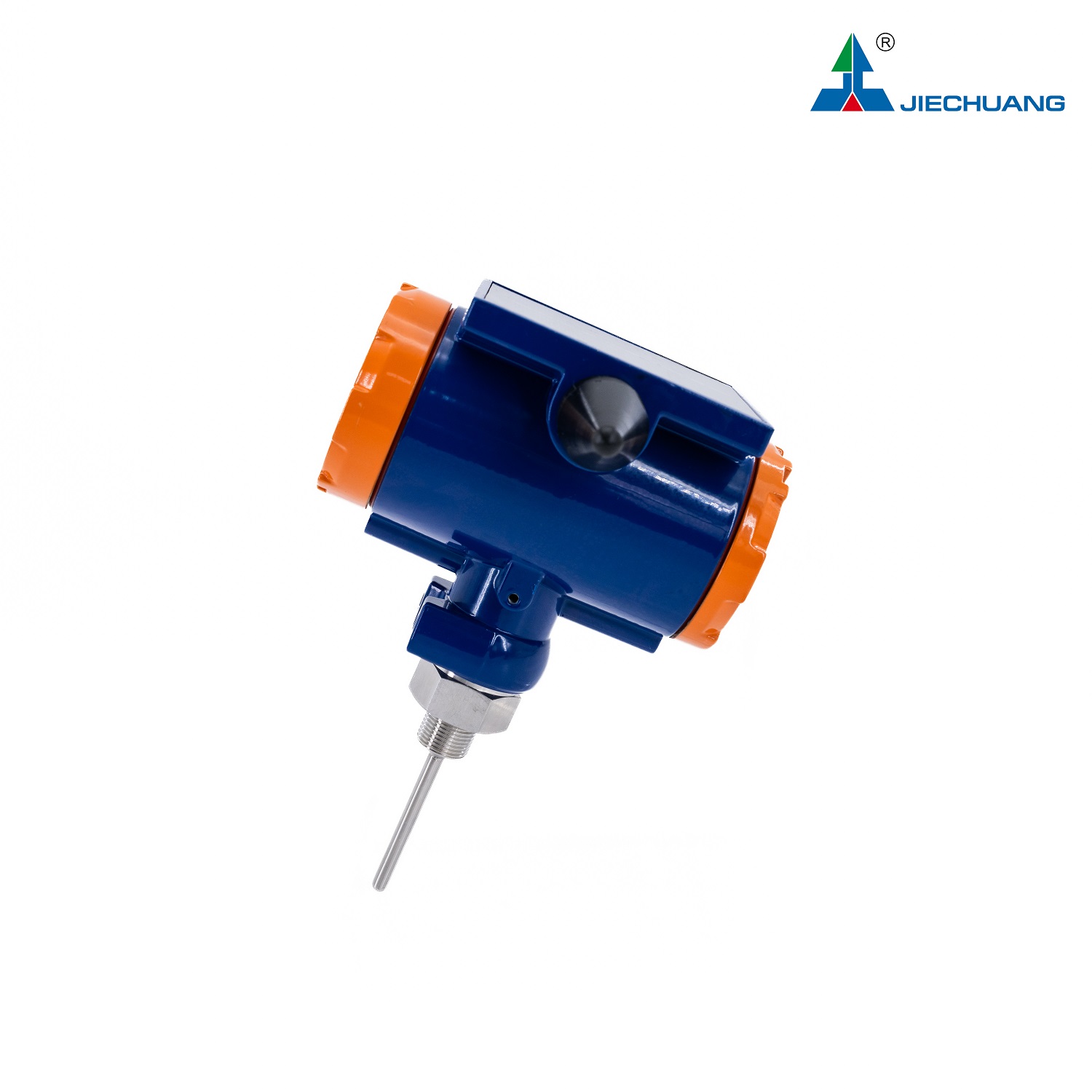

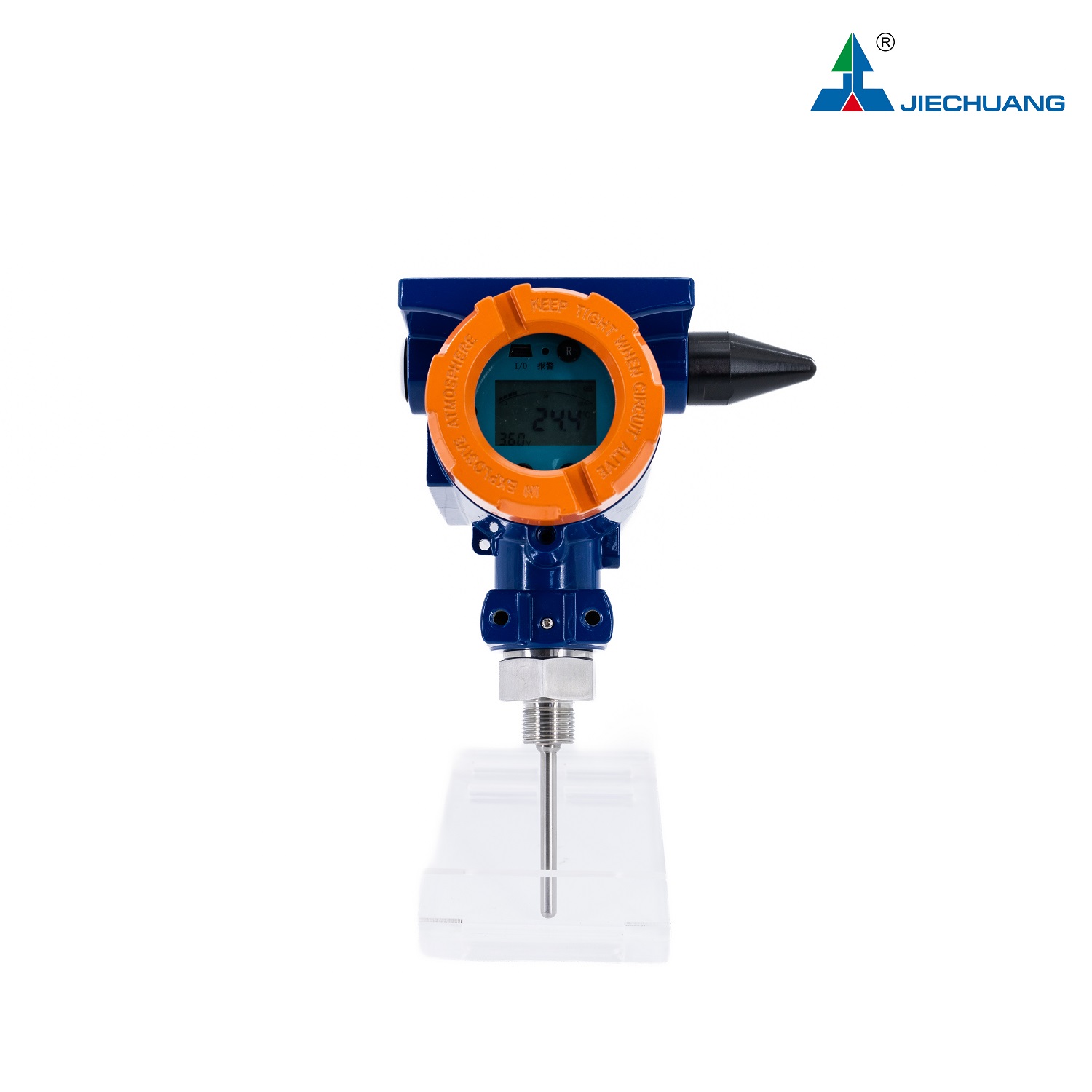

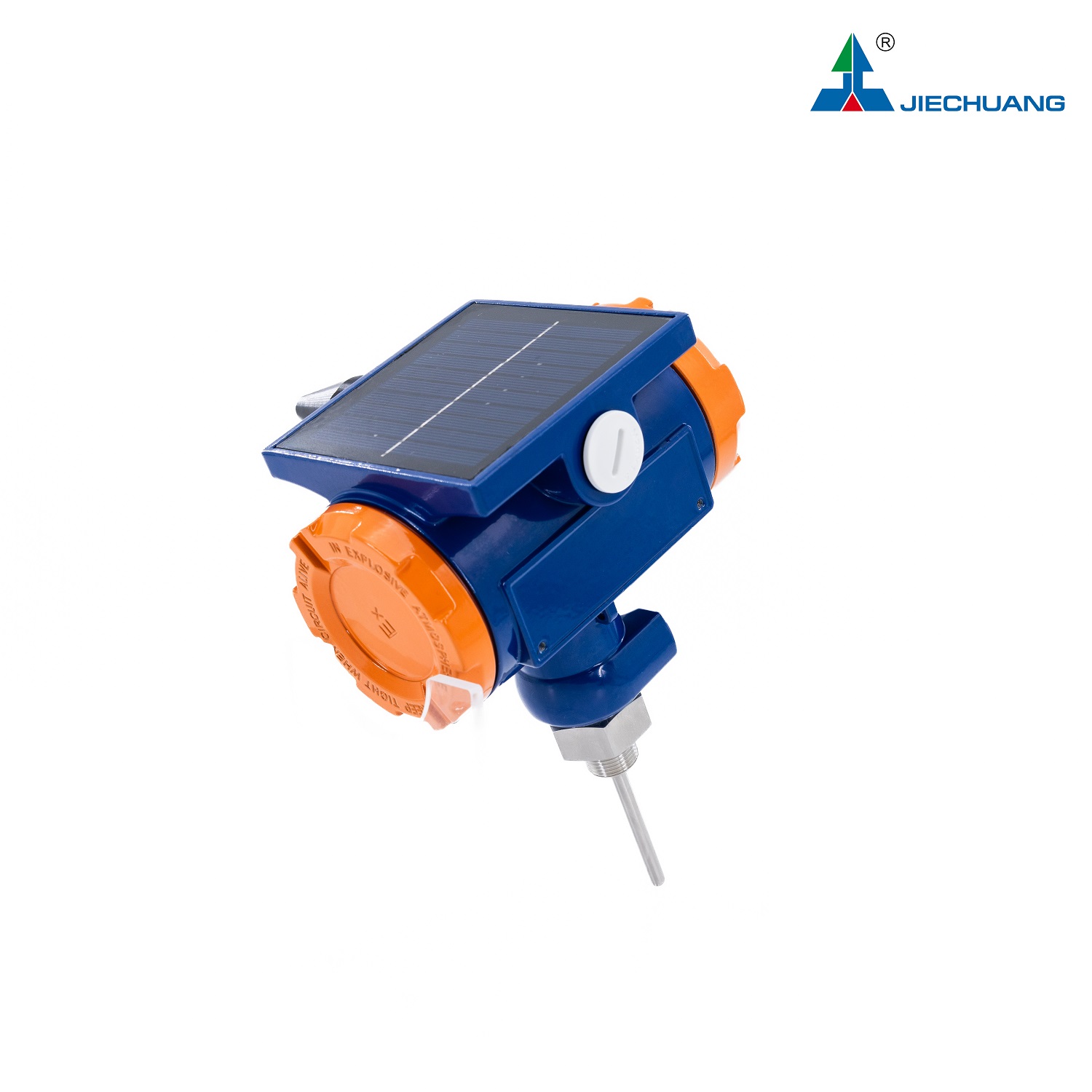

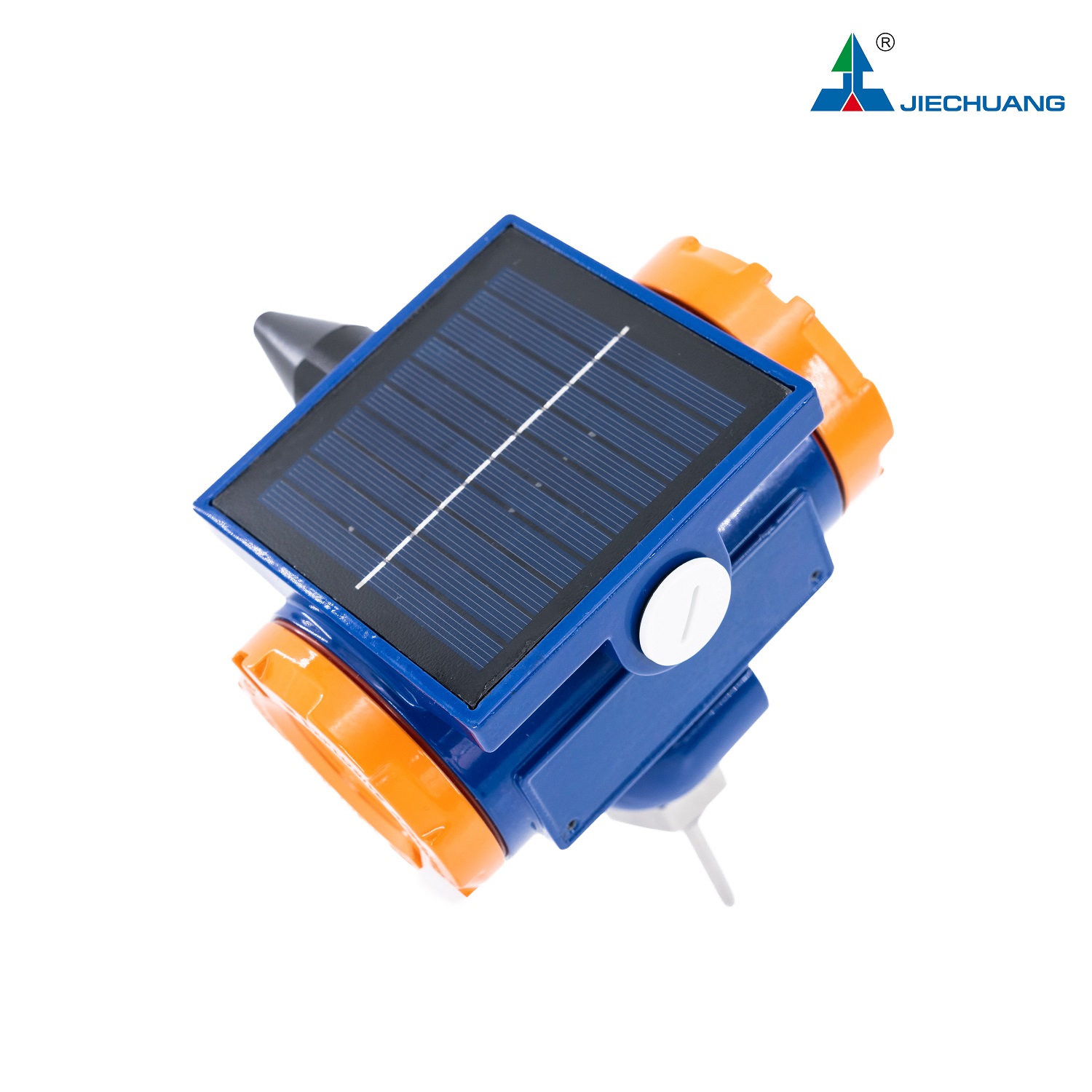

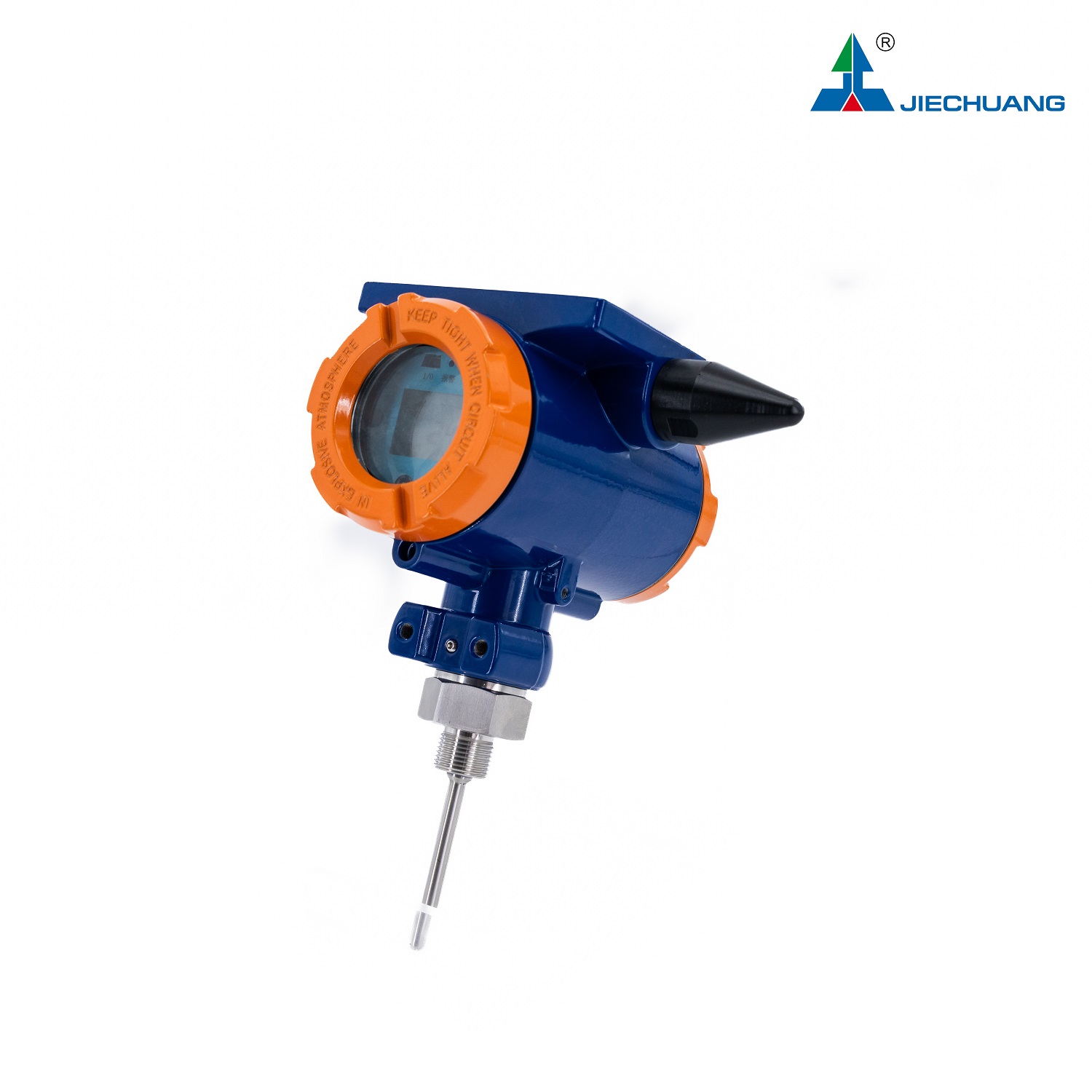

The Explosion Proof Wireless Temperature Transmitter is designed for remote temperature measurement in industrial applications.
It integrates a high accuracy temperature sensor, wireless communication module and LCD display.
The transmitter measures process temperature and sends data wirelessly to a gateway or monitoring system.
With battery power supply, compact design and explosion-proof housing, it is suitable for applications where cable installation is difficult or expensive.
Temperature sensors such as Pt100 RTD and thermocouple are available according to customer requirements.
Applications
Oil and gas industry
Chemical plants
Petrochemical equipment
Storage tanks
Steam pipelines
Boiler temperature monitoring
Power plants
Smart factories
Remote equipment monitoring
Industrial IoT temperature monitoring
Features
Wireless Data Transmission
No signal cable required. Easy installation and maintenance.
Explosion Proof Design
Suitable for hazardous industrial environments.
Battery Powered Design
Low power consumption and long service life.
LCD Local Display
Easy checking of real-time temperature values.
High Accuracy Temperature Measurement
Supports Pt100 RTD and thermocouple sensors.
Flexible Wireless Communication
LoRa, LoRaWAN, NB-IoT, 4G optional.
Customized Installation
Probe length, diameter and process connection can be customized.
Technical Specifications
Item | Specification |
Product Name | Explosion Proof Wireless Temperature Transmitter |
Model | JC-SBW |
Temperature Sensor | Pt100 RTD / Thermocouple Optional |
Measuring Range | -20~60ºC |
Accuracy | ±0.2%FS / ±0.5%FS |
Display | LCD Digital Display |
Wireless Communication | LoRa / LoRaWAN / NB-IoT / 4G Optional |
Transmission Distance | Up to 1~5 km (Depends on environment and protocol) |
Power Supply | Built-in Lithium Battery / 24VDC Optional |
Probe Diameter | Φ6mm / Φ8mm / Φ10mm Optional |
Insertion Length | 200mm (Customizable) |
Probe Material | SS304 / SS316L Optional |
Process Connection | M20×1.5 / G1/2 / 1/2"NPT Optional |
Protection Class | IP65 / IP66 / IP67 Optional |
Explosion Proof Grade | Ex db IIC T6 Gb Optional |
Installation Type | Thread / Flange / Customized |
Note: Specifications can be customized according to customer requirements.
