Choosing the right level meter helps improve process control, reduce maintenance, and prevent tank overfilling or empty running.
Different instruments work in different ways. Some measure liquid level continuously, while others detect whether a material has reached a specific point. Some are designed for liquids, while others can measure solids or powders.

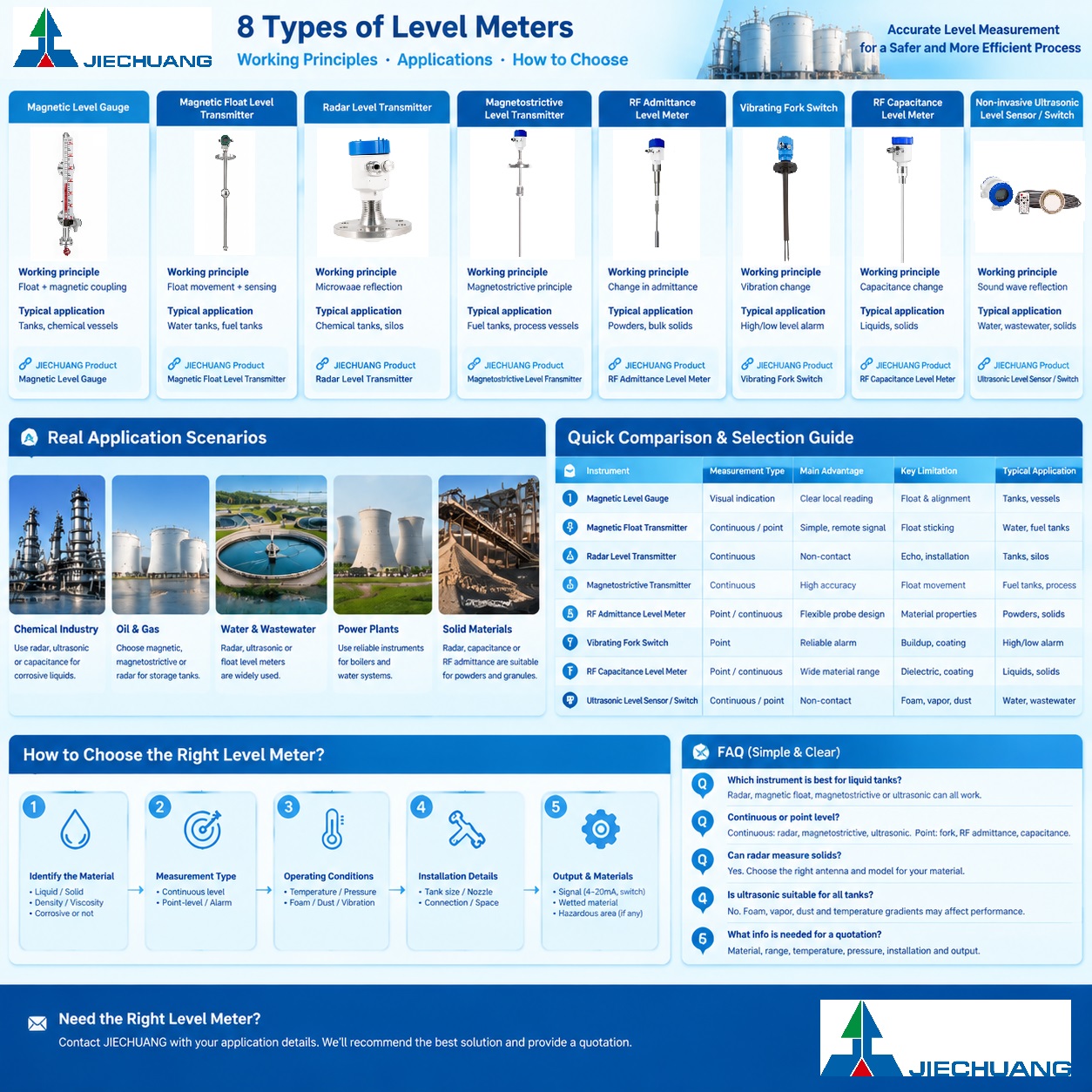

This guide introduces eight common level measurement instruments, explains their working principles and typical applications, and compares their main advantages and limitations.
A float inside a measuring chamber moves with the liquid level. A magnet in the float drives an external magnetic flap indicator, showing the level without direct contact between the liquid and the display.
Provides clear local level indication.
Does not require power for basic visual indication.
The measuring chamber can be designed for specific process conditions.
The float must match the liquid density and operating conditions.
Deposits or unsuitable liquid properties may affect float movement.
Industrial storage tanks, chemical vessels, and liquid process systems where operators need a direct visual level reading.
JIECHUANG Product: Magnetic Level Gauge
A float moves with the liquid level. A sensing mechanism converts the float position into an electrical signal. Depending on the model, the instrument can provide continuous level measurement or a switching signal.
Simple operating principle.
Suitable for many liquid storage and process tanks.
Transmitter models can provide remote level monitoring.
Moving parts may be affected by deposits or mechanical sticking.
The float must be compatible with the liquid density and chemical properties.
Water tanks, fuel tanks, hydraulic oil tanks, and chemical storage vessels.
JIECHUANG Product: Magnetic Float Level Transmitter
A radar level transmitter sends microwave signals toward the material surface and calculates the level from the reflected signal.
Non-contact measurement is available.
Suitable models can measure liquids and bulk solids.
Can be used in demanding process environments when the model is correctly selected.
Foam, dust, internal tank structures, and poor installation positions may affect signal quality.
Antenna design and process temperature and pressure must be checked.
Chemical tanks, water storage, oil tanks, and silos containing bulk solids.
JIECHUANG Product: Radar Level Transmitter
A float containing a magnet moves along a probe. The transmitter measures the position of the float using a magnetostrictive sensing principle and converts it into a level signal.
High measurement accuracy is available.
Provides continuous level measurement.
Suitable for applications requiring precise liquid level monitoring.
The float must move freely along the probe.
Float material and density must match the liquid and operating conditions.
The probe and float arrangement must suit the tank installation.
Fuel tanks, oil storage, chemical vessels, and applications requiring accurate liquid level measurement.
JIECHUANG Product: Magnetostrictive Level Transmitter
The instrument detects changes in electrical admittance between the sensing probe and the vessel. When the material reaches the probe or changes around it, the electrical measurement changes and triggers a level signal. The exact function depends on the model.
Suitable designs are available for liquids, powders, and bulk solids.
Can be used for level detection in challenging material conditions.
Different probe designs support different applications.
Material electrical properties and probe design must be considered.
Coating and buildup can affect performance if the instrument is not correctly selected or configured.
Chemical vessels, powder silos, bulk material storage, and high- or low-level alarm points.
JIECHUANG Product: RF Admittance Level Meter
Working Principle
A tuning fork-shaped sensor vibrates at a set frequency. When the material contacts the fork, its vibration changes. The instrument detects this change and provides a switching signal.
Reliable point-level detection in suitable applications.
Useful for high- or low-level alarms.
Can be used with compatible liquids or bulk solids, depending on the model.
Detects a level point rather than providing continuous level measurement.
Material buildup or unsuitable process conditions may affect operation.
Tank overfill alarms, pump protection, and high- or low-level detection in vessels and silos.
JIECHUANG Product: Vibrating Fork Switch
The sensor measures changes in capacitance between the probe and the tank wall or another electrode. As the material level changes, the electrical capacitance changes accordingly.
Suitable designs are available for liquids and solids.
Can be used in tanks and silos.
Offers different probe configurations for different materials.
Material dielectric properties affect measurement.
Coating, buildup, and changes in material conditions may influence performance.
Liquid tanks, powder silos, and process vessels where capacitance-based measurement is suitable.
JIECHUANG Product: RF Capacitance Level Meter
An ultrasonic instrument sends sound waves toward the material surface and detects the returning echo.
A level sensor can measure the distance to the surface for continuous level monitoring. An ultrasonic level switch detects whether material is present at a defined sensing point. Non-invasive designs can detect liquid level through a compatible tank wall without direct contact with the liquid.
Non-contact measurement is available.
No moving float is required.
Suitable models can simplify installation and reduce contact with the process medium.
Foam, vapor, dust, temperature gradients, and weak echoes can affect performance.
Tank wall material, thickness, and installation conditions must be checked for non-invasive models.
Water tanks, compatible chemical vessels, and applications requiring non-contact level measurement or point-level detection.
Instrument | Measurement Type | Main Advantage | Important Consideration |
|---|---|---|---|
Magnetic Level Gauge | Local visual indication | Easy visual reading without power for basic indication | Float compatibility and movement |
Magnetic Float Level Transmitter | Continuous or point level, depending on model | Simple structure and remote signal options | Float movement and liquid properties |
Radar Level Transmitter | Continuous | Non-contact measurement | Echo quality and installation |
Magnetostrictive Level Transmitter | Continuous | High accuracy for suitable liquid applications | Float and probe compatibility |
RF Admittance Level Instrument | Point or continuous, depending on model | Flexible probe designs | Material properties and buildup |
Vibrating Fork Switch | Point level | Reliable level alarm in suitable conditions | Buildup and process conditions |
RF Capacitance Level Meter | Point or continuous, depending on model | Suitable for selected liquids and solids | Dielectric properties and coating |
Ultrasonic Level Sensor / Switch | Continuous or point level, depending on model | Non-contact or non-invasive options | Echo conditions and installation |
Confirm whether the material is a liquid, slurry, powder, or bulk solid. For liquids, check density and corrosiveness. For solids, consider particle size, dust, and material buildup.
Continuous measurement: Choose a suitable radar, magnetostrictive, ultrasonic, magnetic float transmitter, or capacitance model.
Point-level detection: Consider a vibrating fork, RF admittance switch, RF capacitance switch, or ultrasonic level switch.
The final choice depends on the material and process conditions.
Confirm process temperature, pressure, tank dimensions, and whether foam, vapor, dust, or agitation is present. Check the specific model's limits before selection.
Review the tank top or side installation, available nozzle or flange, mounting space, and required measuring range. For non-invasive ultrasonic instruments, check the tank wall and mounting surface.
Specify the required output, such as 4–20 mA, switching output, or a compatible communication protocol. Confirm wetted materials, enclosure protection, and explosion-proof requirements where applicable.
To help select a suitable level instrument, please provide:
Material or medium
Continuous measurement or point-level detection
Measuring range or tank height
Process temperature and pressure
Tank material and installation connection
Required output signal and power supply
Corrosion, foam, dust, or explosion-proof requirements
Radar, magnetic float, magnetostrictive, and ultrasonic instruments may all be suitable. The best choice depends on the liquid and tank conditions.
A transmitter usually provides a continuous measurement signal. A switch detects whether the material has reached a set point.
Yes. Suitable radar models can measure bulk solids. Select the antenna and model according to the material and silo conditions.
No. Foam, vapor, dust, tank construction, and installation conditions can affect performance.
Provide the material, measuring range, temperature, pressure, installation details, and required output.
JIECHUANG supplies level measurement instruments for a range of industrial applications, including radar, guided wave radar, magnetic level gauges, magnetic float transmitters, magnetostrictive instruments, RF admittance, RF capacitance, vibrating fork, and ultrasonic products.
Visit our Level Measurement Product Range to explore available options.
Need help selecting a level meter for your tank, vessel, or silo? Send us your material details, measuring range, process conditions, installation dimensions, and required output. Our team can help review suitable options and provide a quotation for your application.
