Choosing the right temperature sensor is important for accurate measurement and reliable process control.

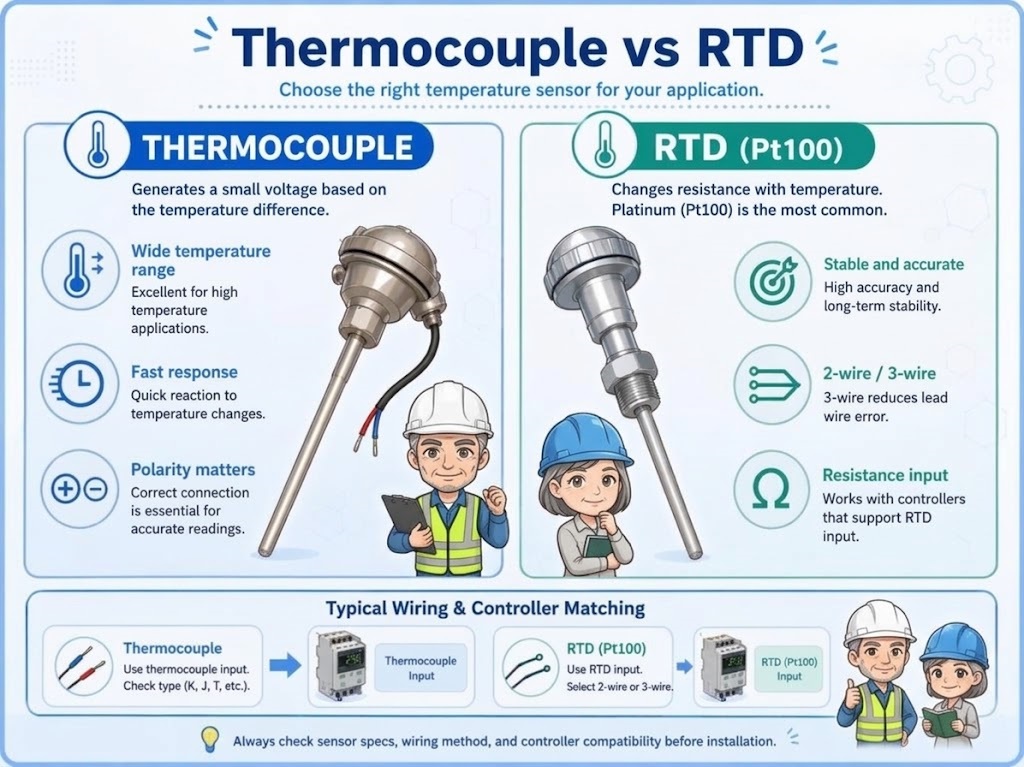

RTDs and thermocouples are two common types of industrial temperature sensors. Both measure temperature, but they work differently and suit different applications.
An RTD is often preferred for accurate and stable measurements, while a thermocouple is often chosen for higher temperatures and a wide measuring range. The best choice depends on your process conditions, accuracy requirements, response time and budget.
An RTD (Resistance Temperature Detector) measures temperature by detecting changes in electrical resistance.
As temperature changes, the resistance of its sensing element changes. The measuring instrument converts this resistance into a temperature reading.
A common industrial RTD is the Pt100 temperature sensor. It uses a platinum element with a nominal resistance of 100 ohms at 0°C.
RTDs are widely used in industrial process control, laboratory equipment, chemical processing and applications that require stable temperature measurement.
A thermocouple uses two different metal alloys joined at a measuring junction. When the junction temperature changes, it produces a small voltage.
The measuring instrument converts this voltage into a temperature reading.
Different metal combinations are identified by letter types, such as K, J, T, E, N, S, R and B. Each type has its own temperature characteristics and suitable applications.
Thermocouples are commonly used in furnaces, boilers, kilns, heat-treatment equipment and other high-temperature processes.

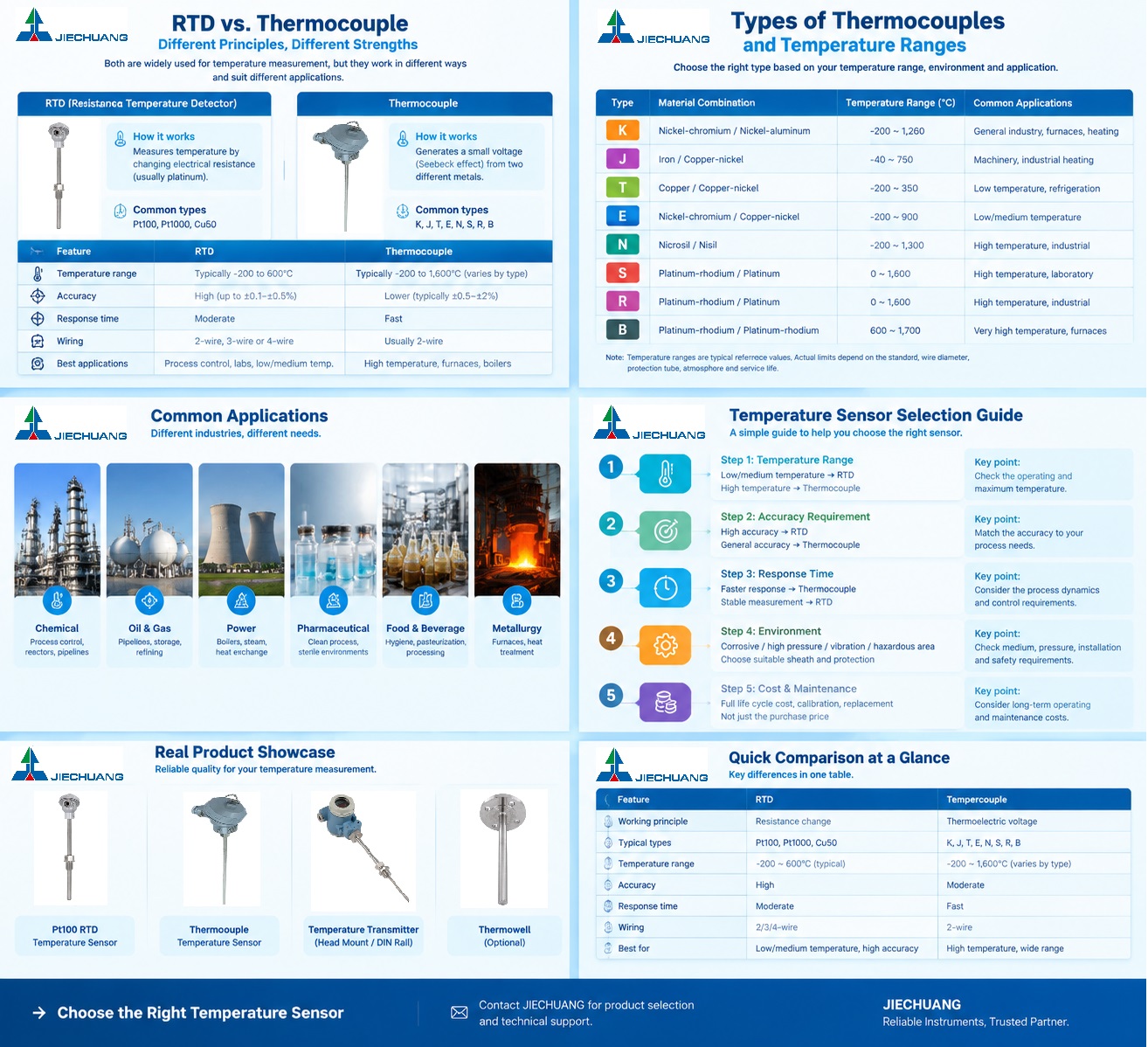

Comparison | RTD | Thermocouple |
|---|---|---|
Working principle | Resistance changes with temperature | Voltage generated by two different metals |
Common types | Pt100, Pt1000, Cu50 | K, J, T, E, N, S, R, B |
Temperature range | Common industrial Pt100 assemblies cover low and medium temperatures; some designs reach higher temperatures | Wide range, from cryogenic conditions to very high temperatures, depending on type and construction |
Accuracy and stability | Generally better stability and accuracy for many process applications | Depends on thermocouple type, temperature and installation; drift may increase with use |
Response time | Depends on probe size and construction | Often fast, especially with a small measuring junction |
Wiring | Commonly 2-wire, 3-wire or 4-wire | Commonly 2-wire with suitable thermocouple or extension cable |
Typical applications | Process control, laboratories, HVAC, chemical and pharmaceutical systems | Furnaces, boilers, kilns, heat treatment and high-temperature equipment |
Cost | Can cost more, depending on element and construction | Often economical for a wide range of industrial applications |
Note: Actual performance depends on the sensing element, probe diameter, sheath material, insertion depth, thermowell design and measuring instrument. Compare the complete sensor assembly rather than the sensor type alone.
Thermocouple type determines the metal combination, temperature characteristics and suitable operating range.
The following table provides general reference ranges for common thermocouple types. These are typical ranges, not guaranteed operating limits for every probe.
Type | Common material combination | Typical reference range (°C) | Common applications |
|---|---|---|---|
K | Nickel-chromium / nickel-aluminum | -200 to 1,260 | General industrial measurement, furnaces, heating equipment |
J | Iron / copper-nickel | -40 to 750 | General machinery and industrial heating |
T | Copper / copper-nickel | -200 to 350 | Low-temperature measurement, refrigeration and laboratory equipment |
E | Nickel-chromium / copper-nickel | -200 to 900 | Low and medium temperatures where good sensitivity is useful |
N | Nicrosil / Nisil | -200 to 1,300 | High-temperature industrial processes |
S | Platinum-rhodium / platinum | 0 to 1,600 | High-temperature furnaces and laboratory equipment |
R | Platinum-rhodium / platinum | 0 to 1,600 | High-temperature industrial and laboratory applications |
B | Platinum-rhodium / platinum-rhodium | 600 to 1,700 | Very high-temperature furnaces and specialist processes |
Temperature ranges are approximate reference values based on commonly used thermocouple specifications. Permitted limits depend on the applicable standard, wire diameter, protection tube, atmosphere and service life. Confirm the required range against the selected product specification.
Type K: A common general-purpose option for many industrial temperature measurements.
Type J: Suitable for many moderate-temperature applications, subject to the process atmosphere and probe materials.
Type T: A useful option for low-temperature measurements.
Type E: Offers relatively high thermoelectric sensitivity.
Type N: Often considered for high-temperature service where long-term stability is important.
Types S and R: Commonly used for high-temperature measurement requiring platinum-based thermocouples.
Type B: Used for very high-temperature applications, especially certain furnace processes.
Do not select a thermocouple based on temperature range alone. Also check the process atmosphere, corrosion risk, vibration, protection tube and required service life.
RTD types are identified by the sensing material and nominal resistance.
RTD type | Sensing material | Nominal resistance at 0°C | Typical use |
|---|---|---|---|
Pt100 | Platinum | 100 Ω | Industrial temperature measurement and process control |
Pt1000 | Platinum | 1,000 Ω | Temperature measurement systems designed for Pt1000 input |
Cu50 | Copper | 50 Ω | Selected low-temperature industrial applications |
Pt100 is widely used in industrial temperature measurement because platinum provides good stability and repeatability.
Pt1000 has a higher nominal resistance than Pt100, but it is not automatically more accurate. Accuracy depends on the element class, wiring, measuring instrument and complete installation.
Cu50 is used in some industrial systems, particularly within its suitable temperature range. Confirm compatibility with the measuring instrument before choosing it.
Temperature range is often the first selection factor.
For many low- and medium-temperature applications that require stable readings, consider an RTD such as Pt100.
For higher temperatures, especially furnace and heat-treatment applications, consider a suitable thermocouple type.
For temperatures near the sensor's operating limit, check the complete assembly rating, not just the sensing element.
If the process requires stable, repeatable readings and accurate temperature control, an RTD may be a suitable choice.
Thermocouples can also provide reliable measurements, but their accuracy varies with type, temperature, calibration and operating conditions.
Check the sensor tolerance class and the accuracy of the connected instrument.
A sensor with a smaller measuring tip often responds faster than a larger assembly of the same type.
Thermocouples can provide fast response in suitable designs. RTD response time also depends on element construction, probe diameter and whether a thermowell is installed.
If rapid temperature changes are important, specify the required response time and installation details.
Consider the following conditions:
Process medium and corrosiveness
Operating pressure and flow velocity
Vibration and mechanical impact
Ambient temperature and humidity
Required sheath or thermowell material
Hazardous-area requirements, if applicable
For example, a sensor used in a corrosive chemical pipeline may require a different sheath material from one used in a clean laboratory environment.
A thermowell can help protect the sensor and allow removal for maintenance, but its material, pressure rating and design must suit the process.
RTDs measure resistance. Common wiring options include 2-wire, 3-wire and 4-wire configurations. Three-wire and four-wire connections can reduce the effect of lead-wire resistance.
Thermocouples generate a small voltage and require the correct thermocouple or extension cable for the selected type. The measuring instrument must support that thermocouple type and suitable cold-junction compensation.
Before ordering, confirm that the sensor is compatible with the temperature transmitter, controller or data acquisition system.
Application | Sensor to consider | Why |
|---|---|---|
General pipeline temperature control | Pt100 RTD | Stable measurement for many low- and medium-temperature processes |
Chemical process monitoring | RTD or thermocouple | Selection depends on temperature, medium and material compatibility |
Laboratory temperature measurement | RTD | Often preferred when accuracy and repeatability are important |
Refrigeration and low-temperature systems | Pt100 or Type T thermocouple | Choose according to the required range and measurement system |
Industrial furnace | Type K, N, S, R or B, depending on temperature | Suitable type depends on the maximum temperature and furnace atmosphere |
Boiler and steam systems | RTD or thermocouple | Consider temperature, pressure, vibration and installation design |
Fast-changing process temperature | Either type, depending on probe design | Response time depends on the sensor and the complete assembly |
These are starting points for selection, not fixed rules. The operating conditions and required performance determine the final choice.
A sensor may cover the required temperature but still be unsuitable for the process medium or installation conditions.
Different thermocouple types have different operating limits. Protection tubes and process atmospheres also affect service life.
RTD accuracy depends on its tolerance class, wiring and measuring instrument. The full measurement system matters.
Probe diameter, insertion length, material and thermowell design affect response time, mechanical strength and measurement performance.
The sensor type, wiring configuration and input settings must match the connected transmitter or controller.
For a suitable recommendation and quotation, prepare the following information:
Required measuring range and normal operating temperature
Sensor type, if already specified: Pt100, Pt1000, Cu50 or thermocouple type
Required accuracy
Process medium and operating pressure
Probe diameter and insertion length
Sheath or thermowell material
Process connection: threaded, flanged or other
Wiring or output requirements
Ambient conditions and hazardous-area requirements, if applicable
Order quantity
Providing these details helps match the sensing element, mechanical assembly and measuring instrument to the actual application.
RTDs and thermocouples both play important roles in industrial temperature measurement.
Choose an RTD when stable, repeatable measurements are a priority. Consider a thermocouple when a wide temperature range, high-temperature operation or fast response is required.
The right choice depends on the temperature range, accuracy, response time, process medium, installation and instrument compatibility.
