Introduction

Choosing a flow meter is not just about matching the pipe size. The right meter depends on the fluid, flow rate, measurement requirements, and installation conditions.

Different flow meters work in different ways. Some are designed for conductive liquids, while others are suitable for gas, steam, or clean liquids. Choosing the wrong type may lead to unstable readings, unnecessary maintenance, or extra operating costs.

This guide explains five key factors to help you select a suitable industrial flow meter.

1. Define the Measurement Purpose

First, ask what you need the flow meter to do.

• Basic monitoring: You may only need to know whether fluid is flowing or to check the approximate flow rate.

• Process control: You may need continuous readings and a stable output signal for a PLC or DCS.

• Consumption monitoring: You need to record how much water, gas, or another fluid is used over time.

• Commercial or custody-transfer measurement: You may need stricter accuracy, traceability, and compliance with applicable metering requirements.

The required accuracy and functions depend on the application. Higher accuracy is not always necessary, and the most expensive meter is not automatically the best choice.

2. Check the Fluid Type and Properties

The fluid is one of the most important factors in flow meter selection.

Liquid, Gas, or Steam?

Different flow meters have different measurement capabilities.

• Electromagnetic flow meter: Suitable for electrically conductive liquids, such as many water, wastewater, and chemical applications. It is not suitable for gas, steam, or non-conductive liquids such as many oils.

• Vortex flow meter: Commonly used for liquids, gases, and steam, subject to the model's operating limits and flow conditions.

• Turbine flow meter: Often used for clean, low-viscosity liquids. Particles and excessive viscosity can affect the turbine and measurement performance.

• Ultrasonic flow meter: Can measure suitable liquids or gases, depending on the meter design. Fluid conditions, pipe condition, and installation affect performance.

• Thermal gas mass flow meter: Designed for gas flow measurement using heat transfer.

• Metal tube rotameter: Provides direct visual flow indication and is commonly used for suitable liquid and gas applications.

• Orifice plate flow meter: Measures flow using the pressure difference created by a restriction in the pipe. It is used in applications including gas, liquid, and steam measurement.

What else Should You Check?

Consider these questions before selecting a model:

• Is the fluid clean or does it contain particles?

• Is it corrosive or highly viscous?

• Does it contain bubbles or suspended solids?

• Is the temperature high or low?

• Does the application require hygienic connections?

For corrosive liquids, check the compatibility of the measuring tube, liner, electrodes, seals, and other wetted parts. For steam and high-temperature fluids, confirm the complete meter's temperature and pressure limits.

Important: Never select a flow meter based on fluid name alone. The fluid's actual properties and operating conditions must also be considered.

3. Confirm the Flow Rate and Pipe Size

A common mistake is choosing a flow meter simply because its nominal diameter matches the existing pipe.

Pipe size and flow rate must be checked together.

Before requesting a quotation, prepare three values:

• Minimum flow rate

• Normal operating flow rate

• Maximum flow rate

The meter must cover the required operating range. If the normal flow is too low for the selected meter, readings may become unstable or fall outside its specified measurement range. If the maximum flow is too high, the meter may exceed its operating limits.

Also check the expected flow velocity, pressure loss, and available pipe size. Some installations may require a different meter diameter or a suitable reducer.

The required flow range should always be checked against the manufacturer's specifications for the exact model.

4. Check the Installation Conditions

Even a suitable flow meter may not perform well if it is installed incorrectly.

Straight Pipe Length

Many flow meters require straight pipe sections upstream and downstream to help maintain a suitable flow profile. The required length depends on the meter type and the nearby pipe fittings, such as elbows, valves, and reducers.

Always follow the manufacturer's installation instructions.

Pipe Orientation and Full-Pipe Conditions

Some meters have specific installation requirements. For example, an electromagnetic flow meter generally needs a full measuring tube during operation. The installation should avoid air pockets and conditions that could cause the tube to run partially empty.

Check whether the meter can be installed horizontally, vertically, or in another orientation permitted by its manufacturer.

Vibration and Environment

Strong pipe vibration may affect some flow meters. Outdoor installation, high temperatures, humidity, and hazardous areas may also affect the required construction and protection rating.

Confirm the available installation space, connection type, power supply, output signal, and required protection or explosion-proof certification before ordering.

5. Consider Accuracy, Maintenance, and Total Cost

Purchase price is only one part of the cost of a flow meter.

Consider the following factors:

• Accuracy: Select the accuracy required by the process or measurement standard.

• Pressure loss: Some meters create a larger permanent pressure loss than others, increasing pumping energy requirements.

• Maintenance: Moving parts, deposits, wear, and fluid contamination may affect inspection and maintenance needs.

• Installation cost: Consider piping modifications, straight pipe requirements, wiring, and commissioning.

• Long-term operating cost: Include calibration, maintenance, spare parts, and energy consumption where relevant.

For example, an orifice plate may be suitable for certain high-temperature or high-pressure applications, but its pressure loss should be considered. An electromagnetic flow meter has no moving measuring parts and typically creates very little pressure loss, but it requires a conductive liquid.

The best choice is the meter that meets the process requirements at a reasonable total cost over its service life.

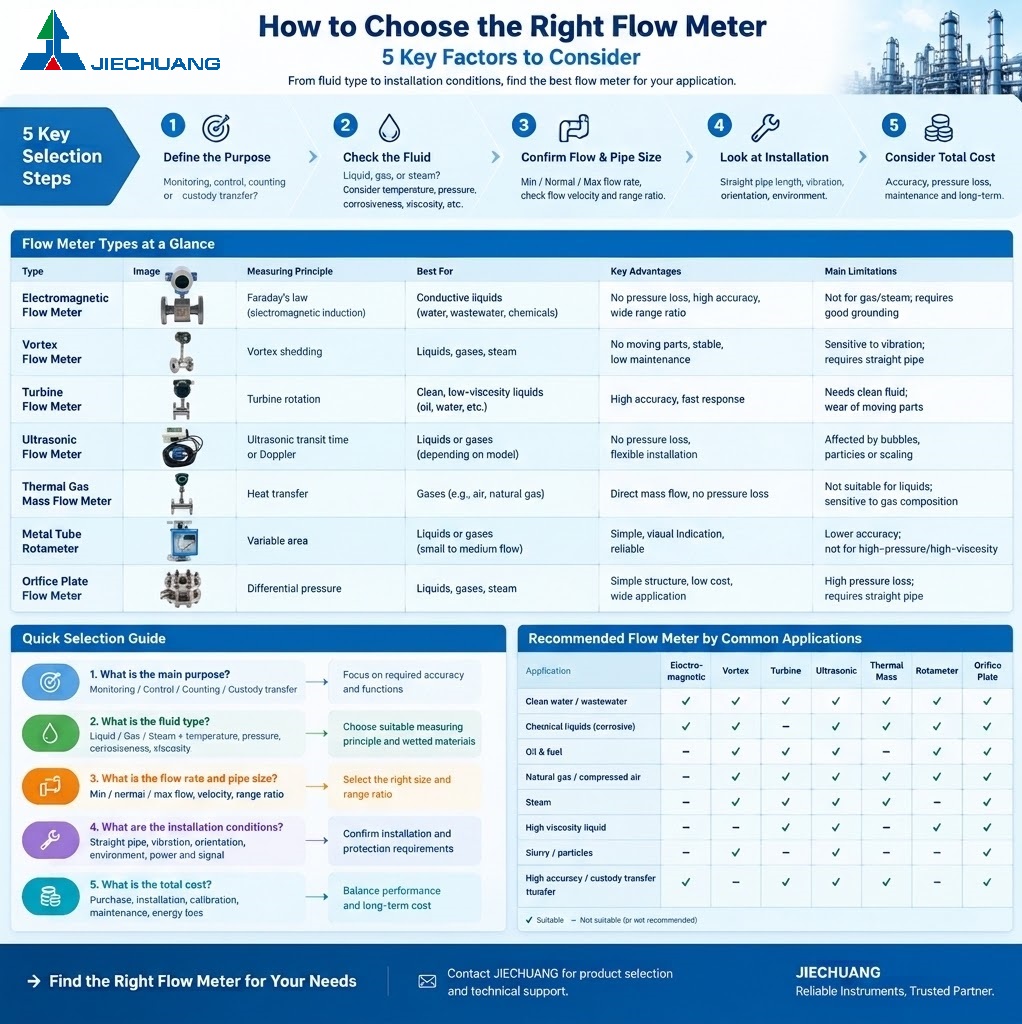

Which Flow Meter Is Right for Your Application?

Use this table as a starting point. Final selection depends on the exact fluid properties, operating range, and model specifications.

For a broader overview of available technologies, visit the JIECHUANG Flow Meter Product Range.

Common Flow Meter Selection Mistakes

Avoid these common problems when preparing your inquiry:

1. Providing only the pipe diameter.
The supplier also needs the minimum, normal, and maximum flow rates.

2. Ignoring fluid properties.
Conductivity, viscosity, particles, bubbles, and corrosiveness can affect which measuring principle is suitable.

3. Choosing accuracy without considering the application.
Determine the actual measurement requirement before comparing accuracy specifications.

4. Ignoring installation space.
Check straight pipe requirements, orientation, and available space before selecting the model.

5. Comparing only purchase prices.
Installation, energy consumption, calibration, and maintenance can also affect the total cost.

What Information Is Needed for Flow Meter Selection?

To help the supplier recommend a suitable model, prepare the following information:

• Fluid name and properties

• Liquid, gas, or steam

• Minimum, normal, and maximum flow rate, including units

• Pipe diameter and pipe material

• Operating temperature and pressure

• Required accuracy

• Process connection and installation conditions

• Required output signal, power supply, and local display

• Material, protection, or explosion-proof requirements, if applicable

• Quantity and project requirements

If some information is not yet available, provide the known operating conditions first and confirm the missing details with the supplier.

Conclusion

There is no single flow meter that is best for every application. The right choice depends on the measurement purpose, fluid properties, flow range, installation conditions, and total operating cost.

By checking these five factors before ordering, you can narrow down the suitable meter types and reduce avoidable selection problems.
