Product Introduction

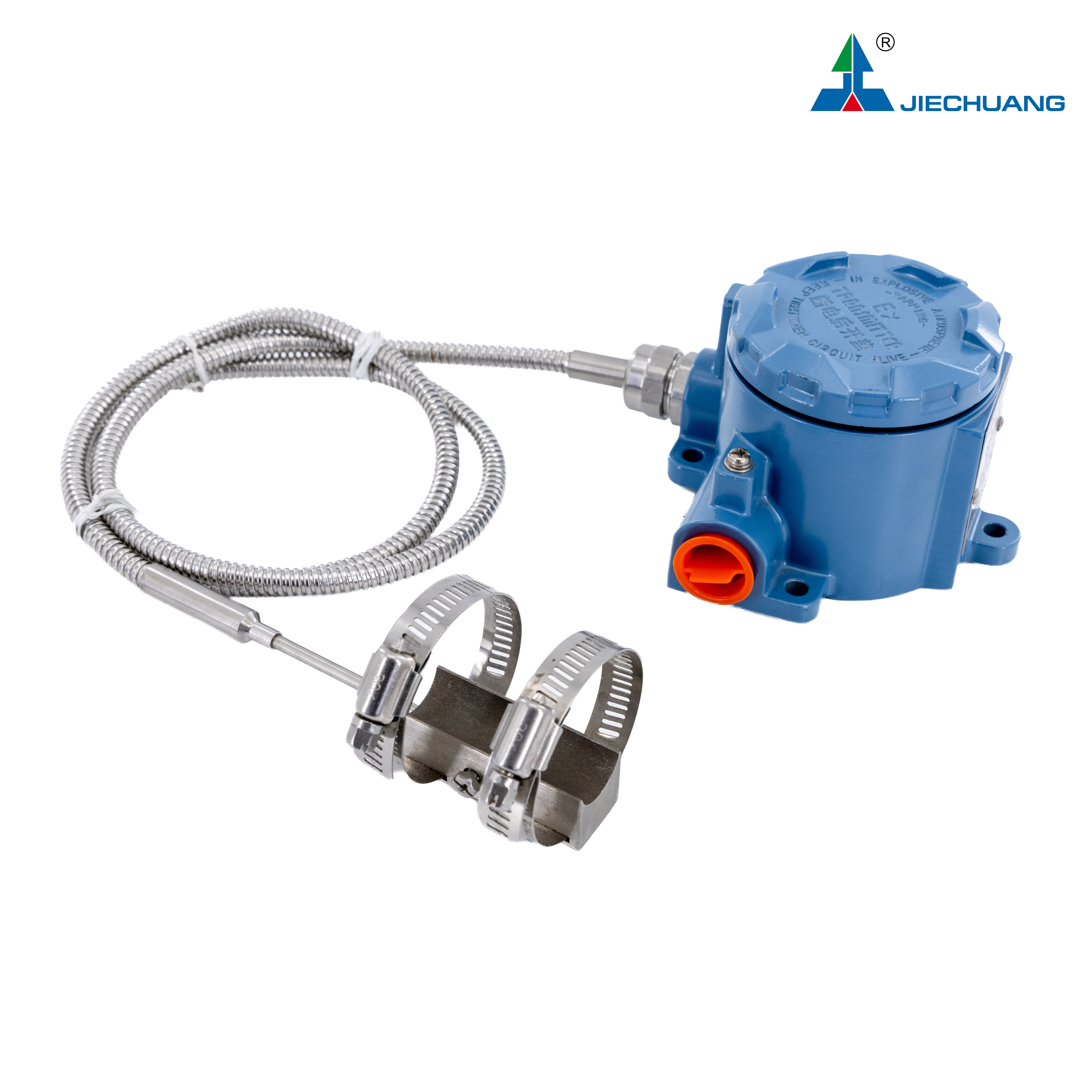

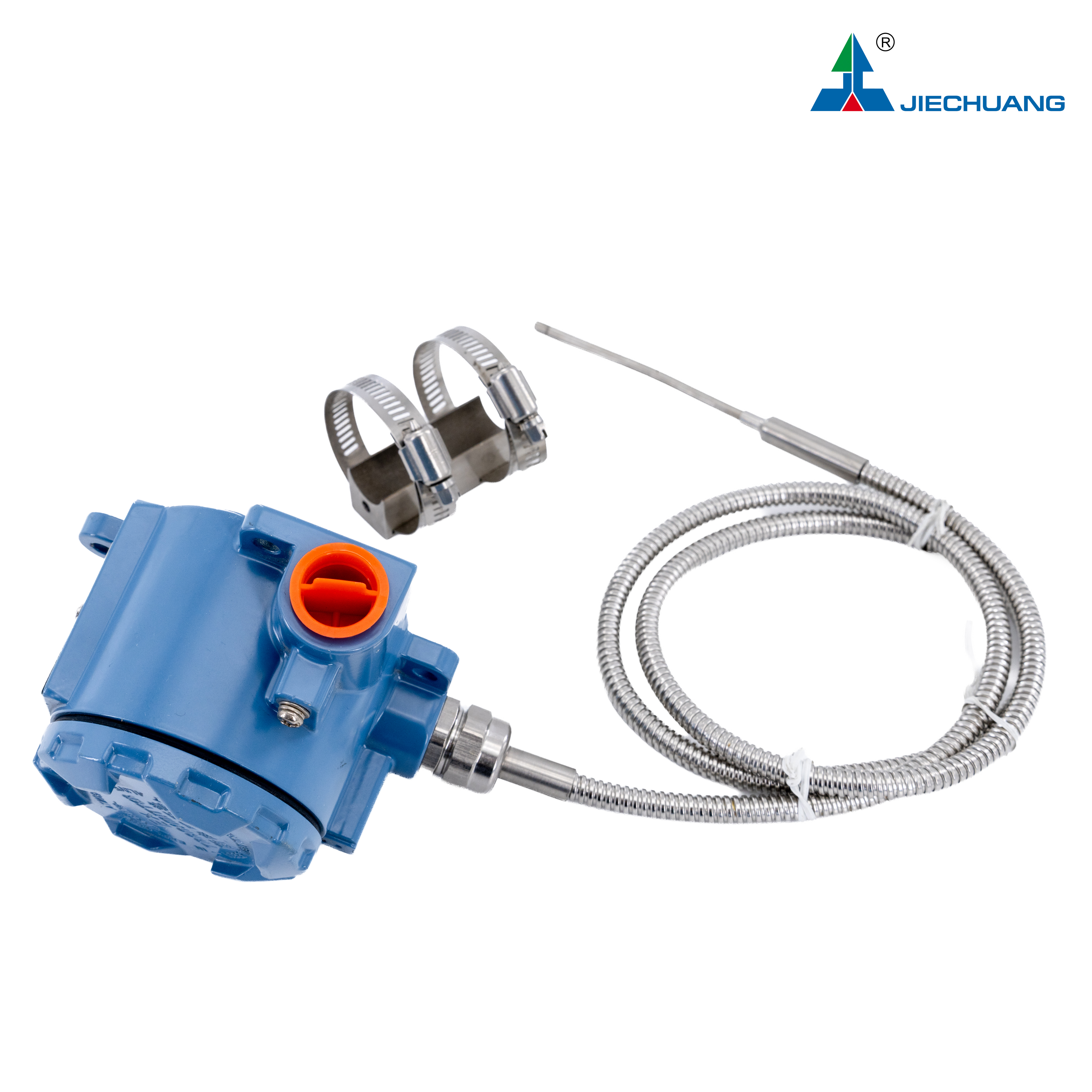

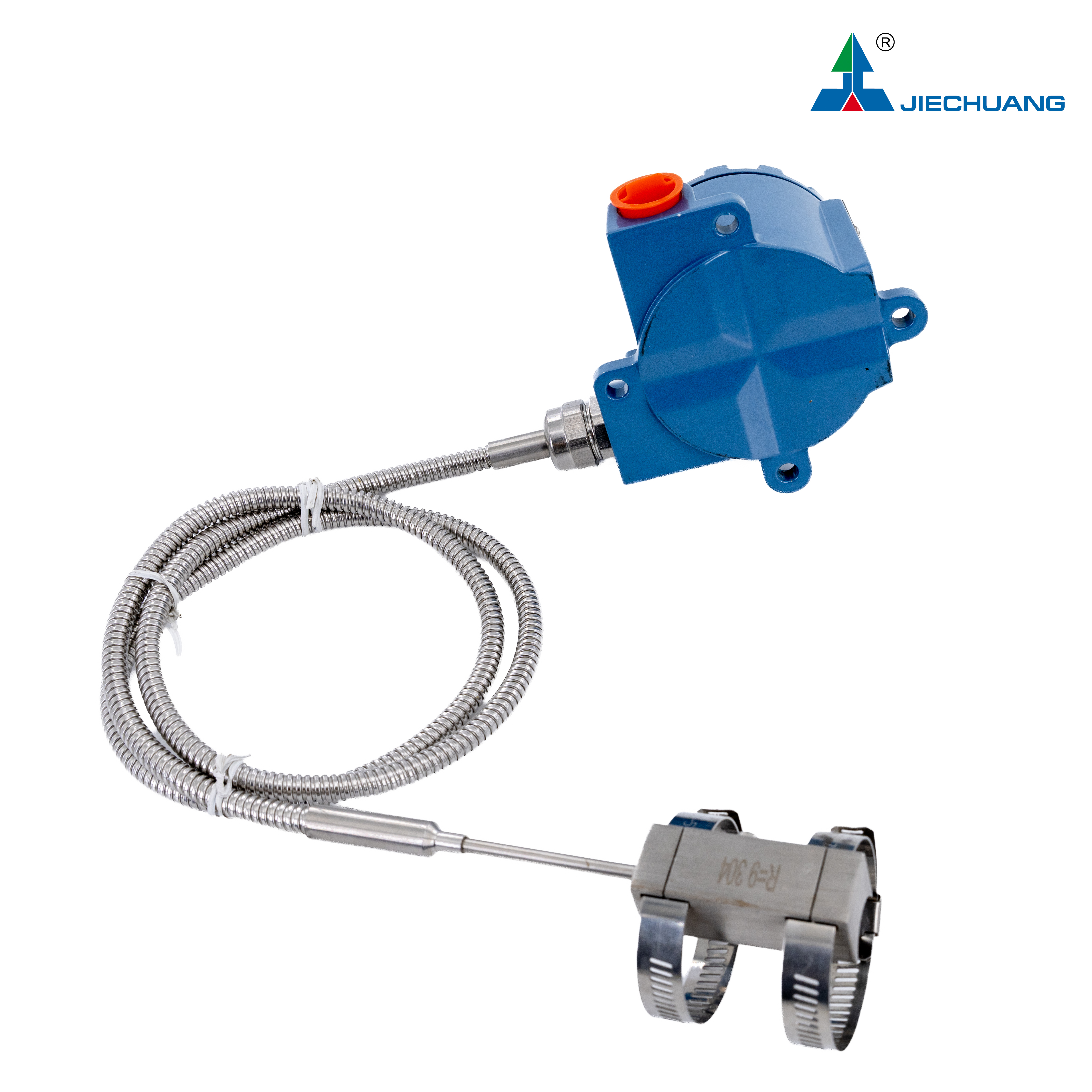

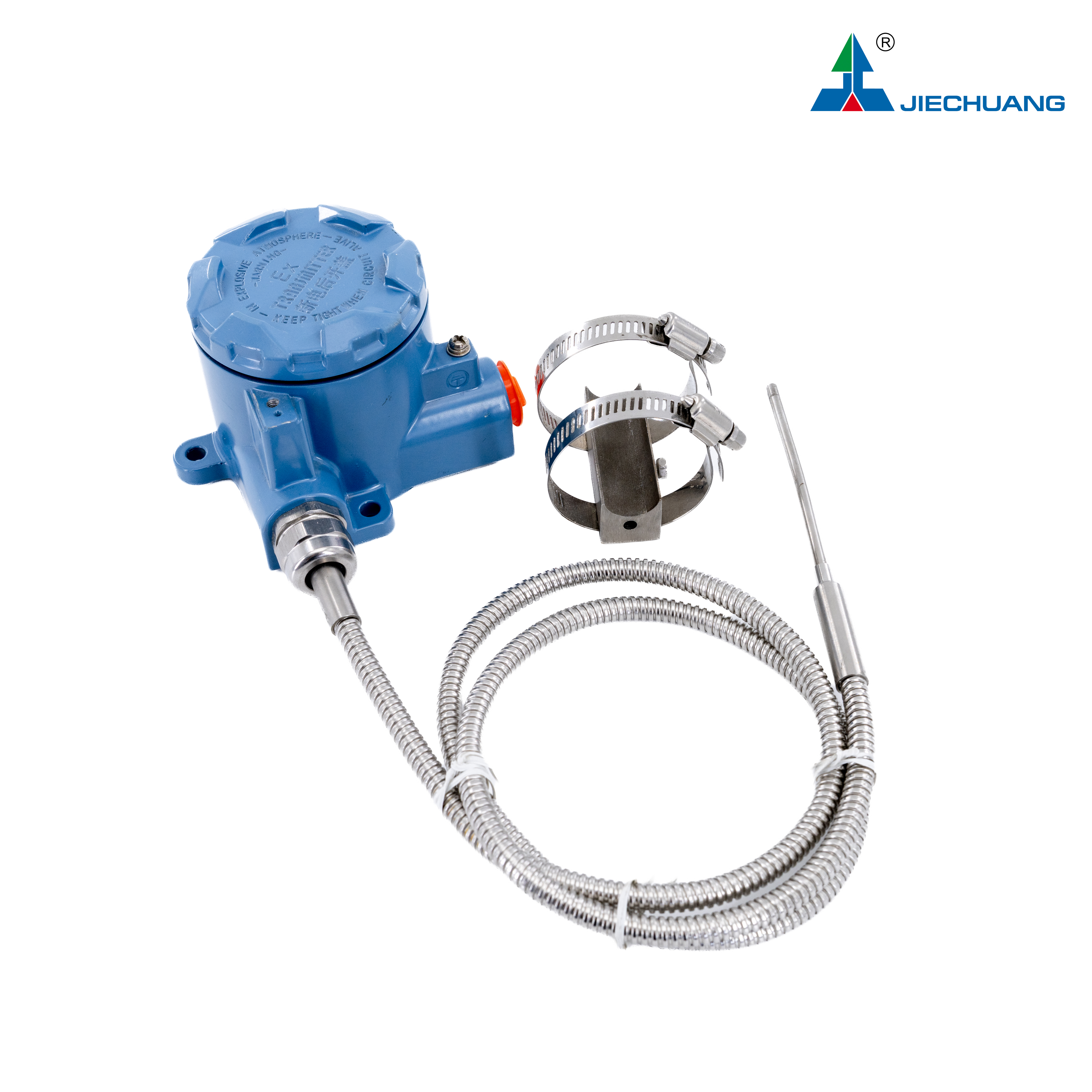

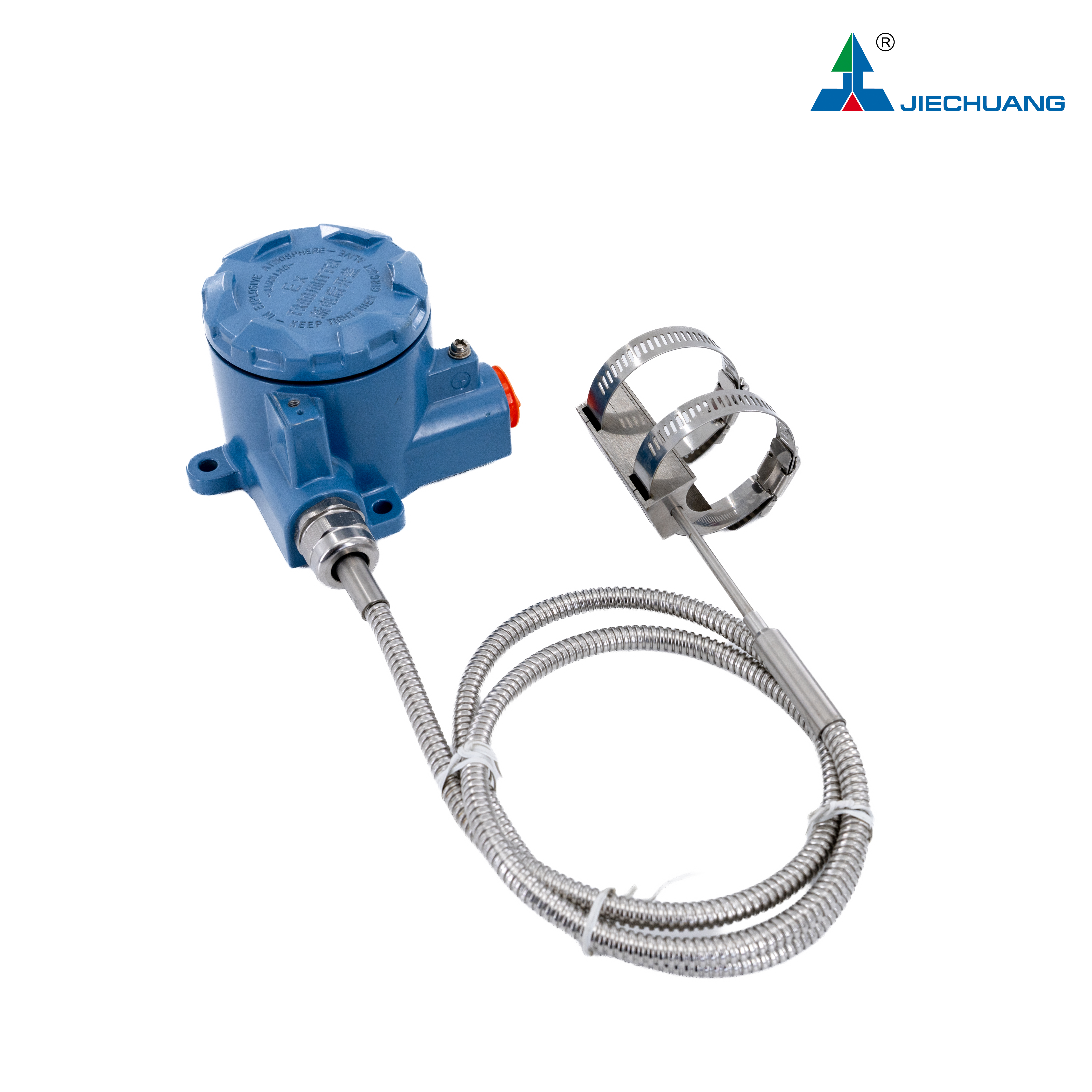

The Clamp-on Integrated Pt100 Temperature Transmitter is designed for temperature measurement on the outer wall of industrial pipes.

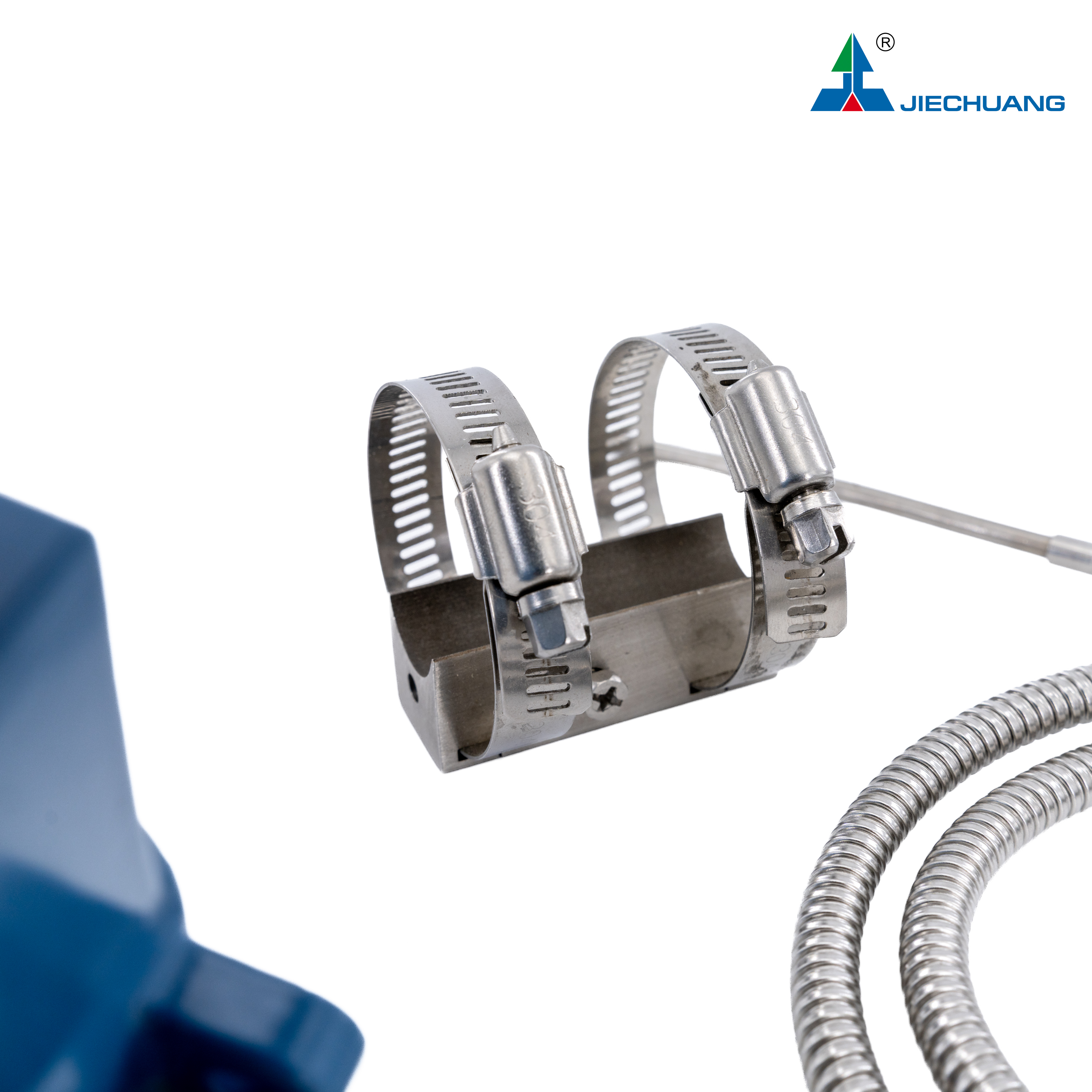

The Pt100 sensing element contacts the pipe surface through a clamp-mounted conductive plate and measures pipe wall temperature by heat conduction.
The integrated transmitter converts the Pt100 signal into a standard 4-20mA output.
The sensor is installed outside the pipe. No pipe drilling, cutting or welding is required, and there is no direct contact with the process medium.
The transmitter features an aluminum alloy enclosure and an explosion-proof design for industrial field applications.
It is suitable for temperature monitoring of existing pipelines where non-intrusive installation is preferred.
Applications
Chemical process pipelines
Petrochemical plants
Oil and gas systems
Power plants
Heating pipelines
Cooling water systems
HVAC systems
Water treatment
Industrial fluid pipelines
Process equipment
Existing pipeline monitoring
Industrial retrofit projects
Application Advantage
Suitable for applications where pipe temperature needs to be measured without penetrating or modifying the process pipe.
Features
Clamp-on pipe installation
No pipe drilling or welding
Non-intrusive temperature measurement
Pt100 RTD sensing element
Integrated temperature transmitter
Standard 4-20mA output
24VDC power supply
Measuring range: 0~200°C
Accuracy: ±0.5% F.S.
Pipe OD from approximately Φ50 to Φ300 mm
304 stainless steel sensing parts
304 stainless steel flexible armored hose
1250 mm standard hose length
Aluminum alloy field enclosure
Explosion-proof design
Ex d IIB T4 Gb
Clamp size and cable/hose configuration customizable
Technical Specifications
Item | Specification |
Product Type | Clamp-on Integrated Temperature Transmitter |
Sensor Type | Pt100 RTD |
Measuring Range | 0~200°C |
Accuracy | ±0.5% |
Output Signal | 4-20mA |
Power Supply | 24VDC |
Installation | Clamp-on / Pipe Clamp Mounting |
Pipe OD | Φ50~Φ300 mm |
Pipe OD Required for Order | Actual pipe OD to be specified |
Conductive Plate | 304 Stainless Steel |
Conductive Plate Option | T2 Copper |
Probe Material | 304 Stainless Steel |
Flexible Hose | 304 Stainless Steel Armored Flexible Hose |
Hose Length | 1250 mm |
Electrical Connection | G1/2 or M20×1.5, optional |
Ambient Temperature | -40~70°C |
Protection Rating | IP65 |
Explosion-proof | Ex d IIB T4 Gb |
Process Contact | Non-intrusive; sensor contacts pipe outer wall |
Process Medium Contact | No direct contact |
Note:Specifications can be customized according to customer requirements.
