Product Overview

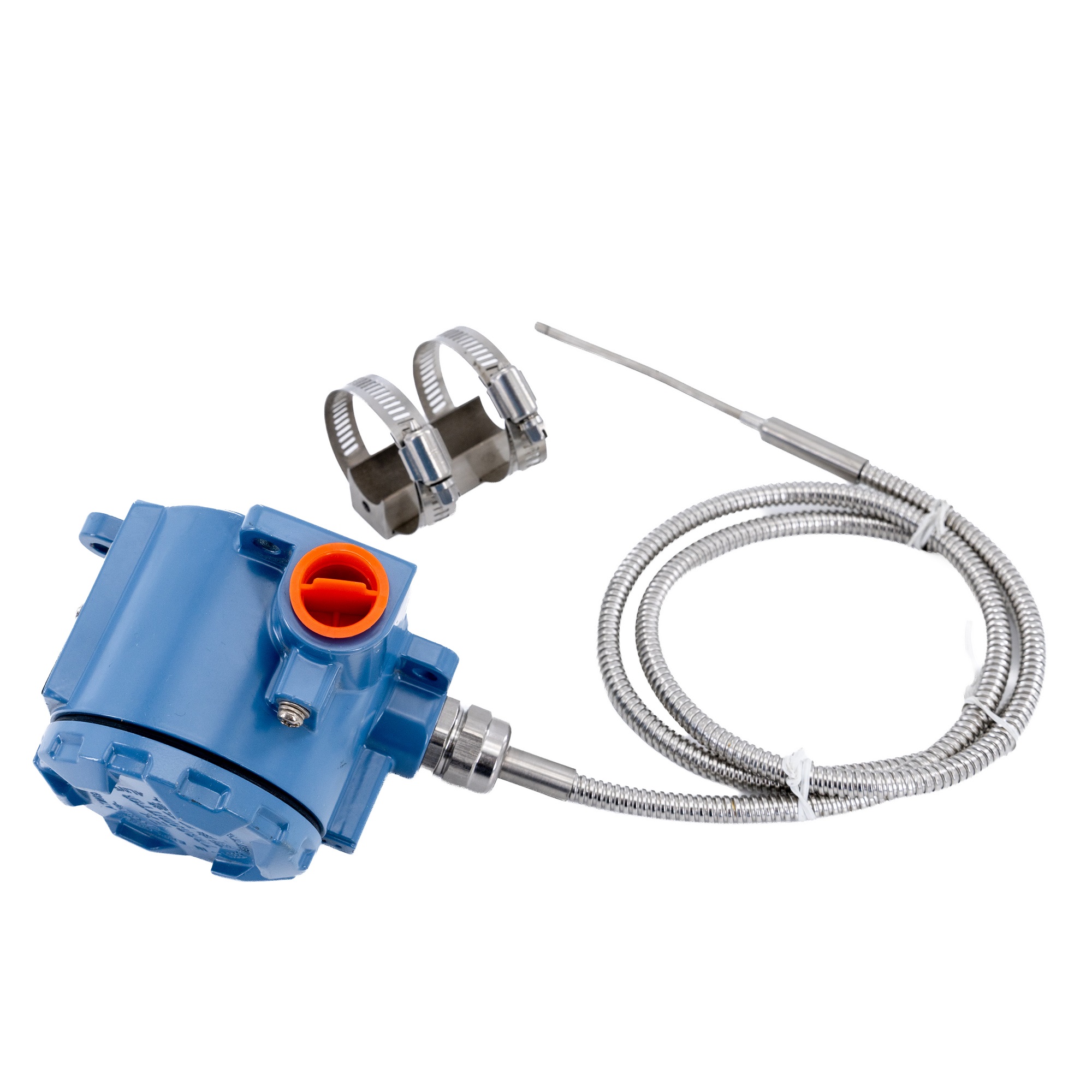

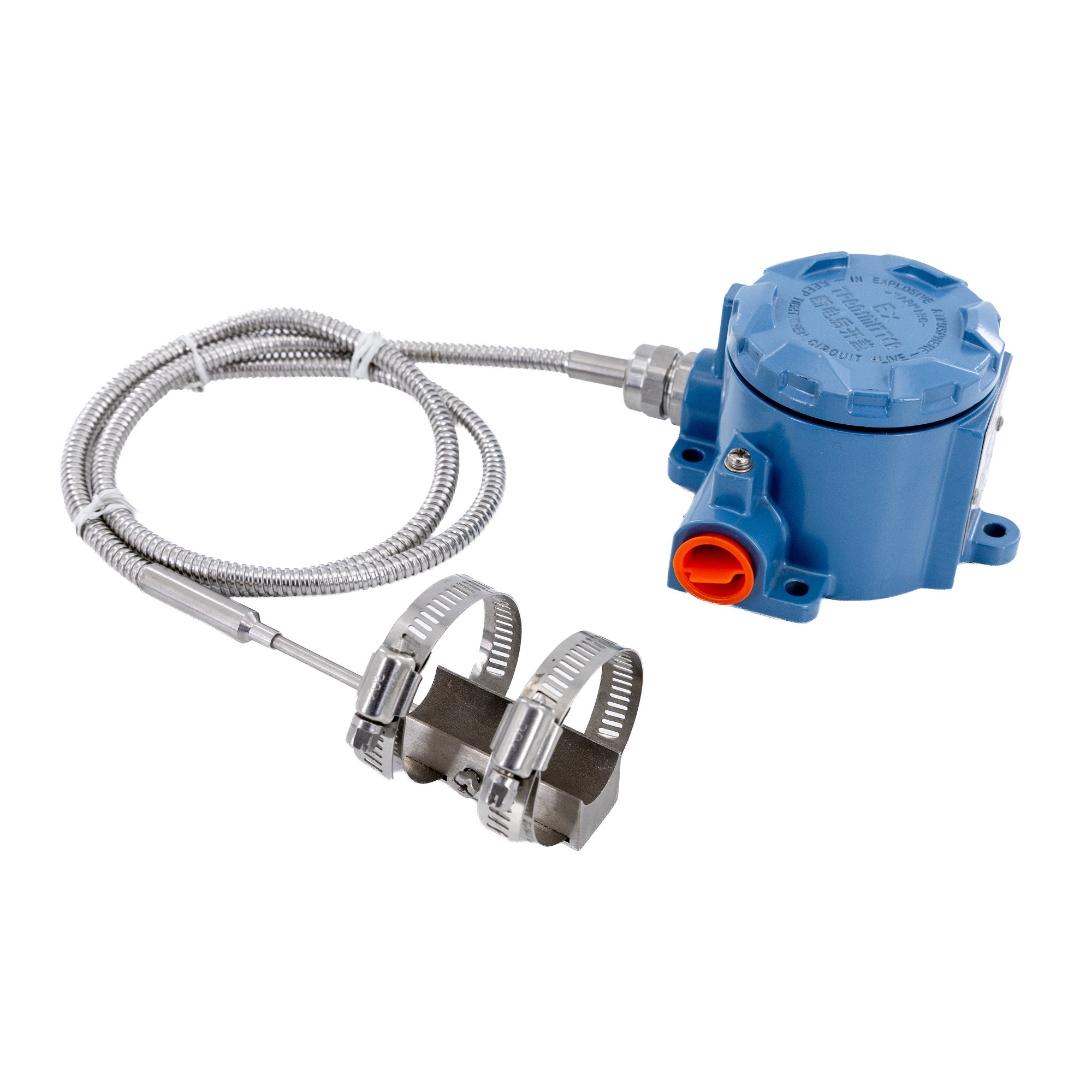

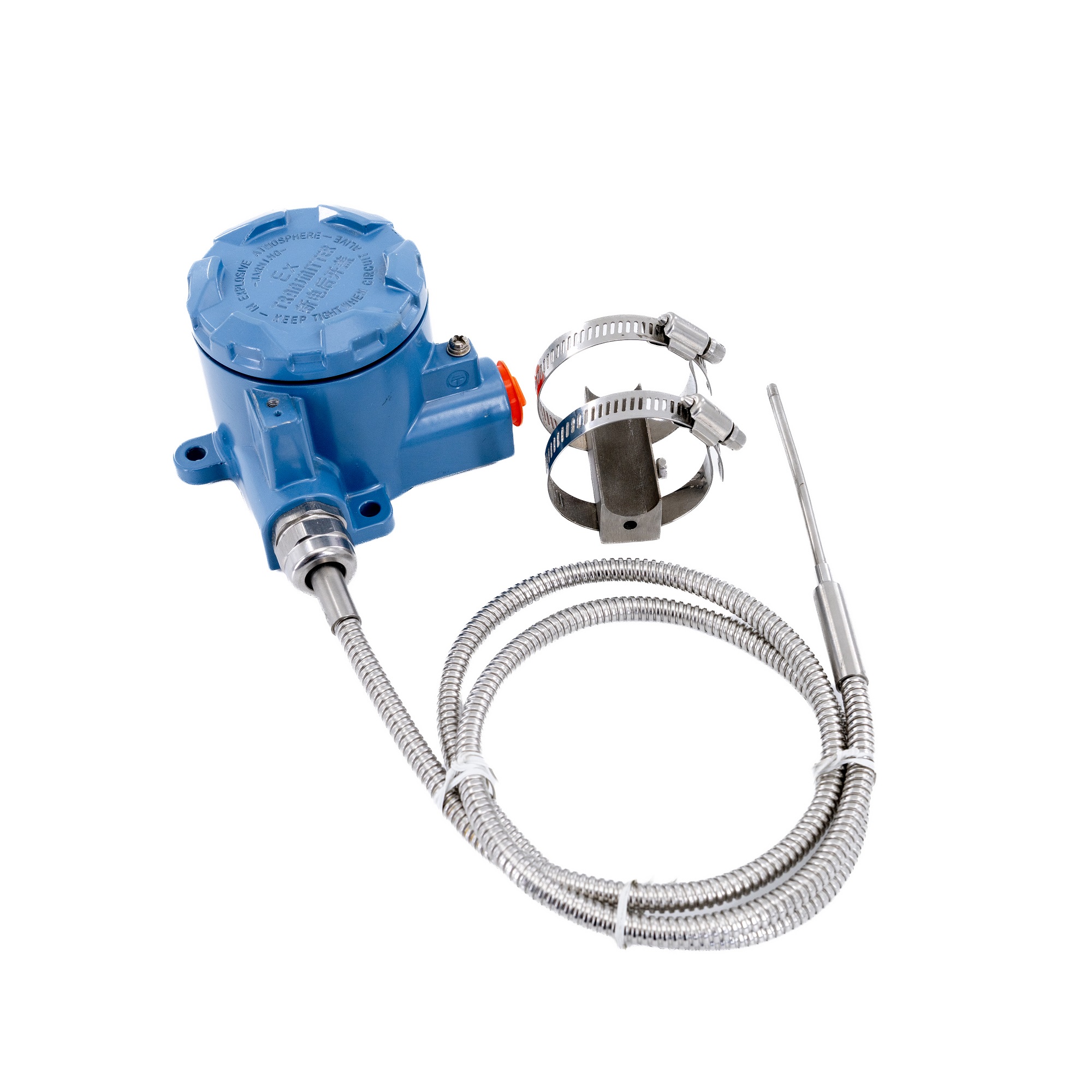

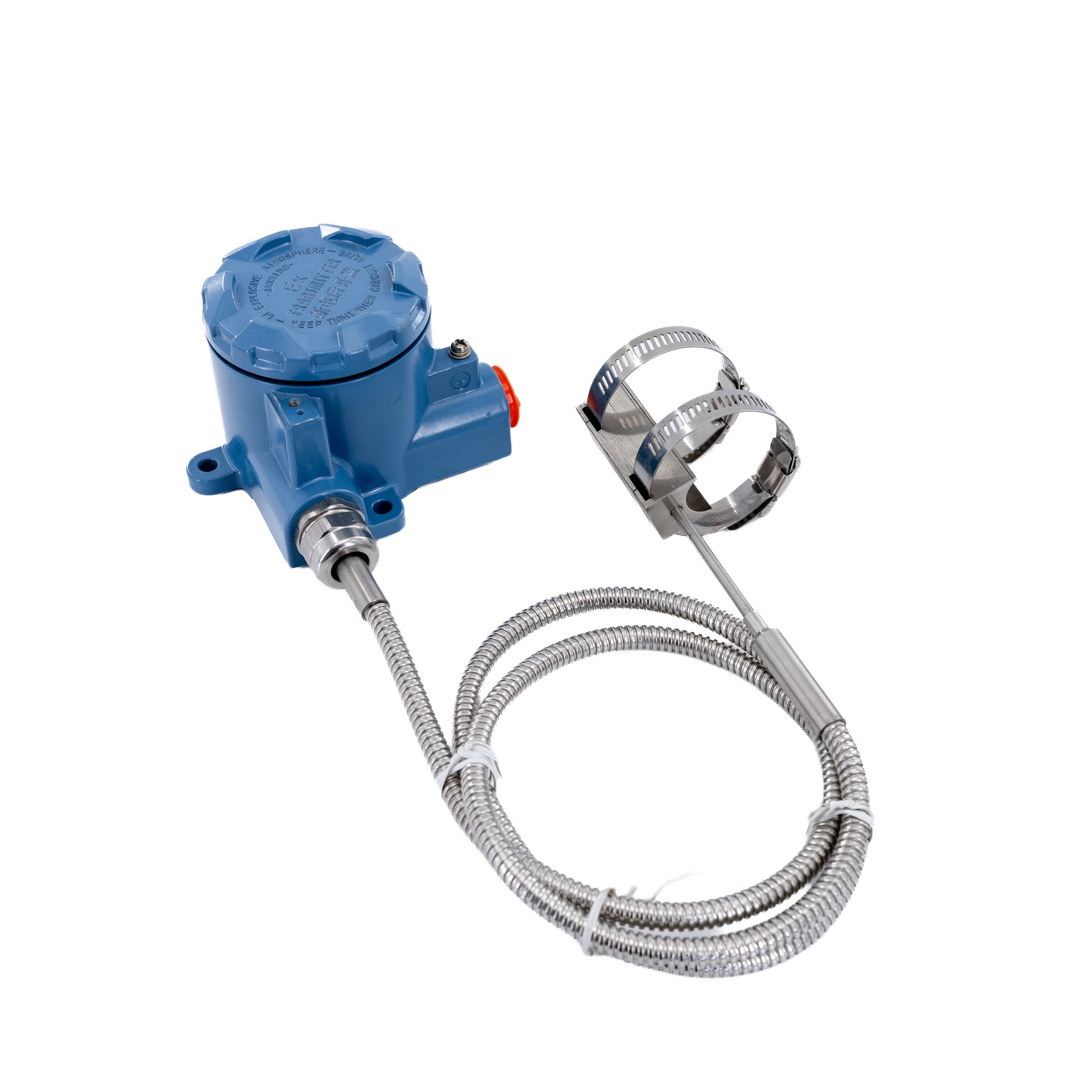

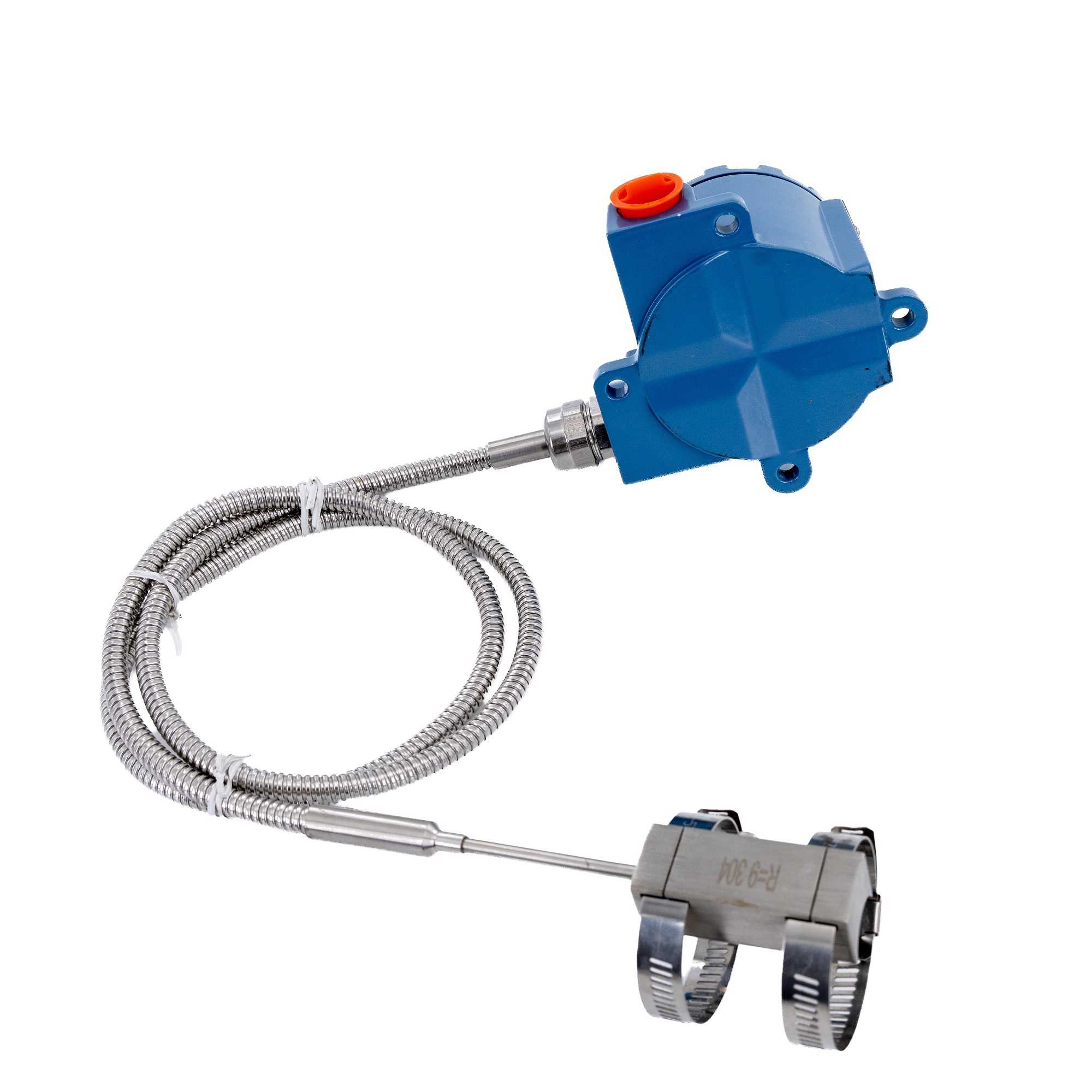

The JC-SBW Clamp-on Integrated PT100 Pipe Wall Temperature Transmitter is designed for measuring the external wall temperature of industrial pipelines without direct contact with the process medium.

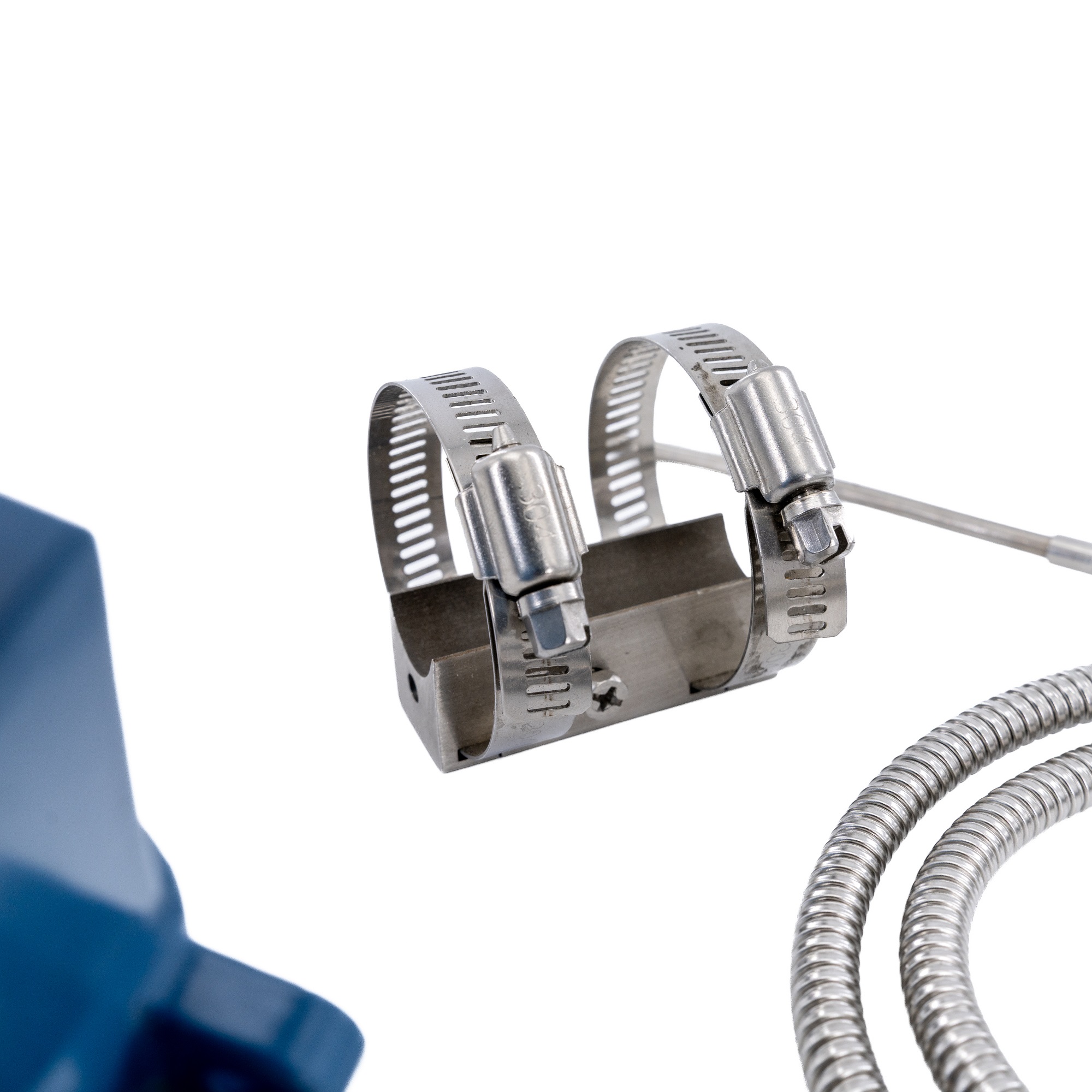

The Pt100 RTD sensing element contacts the pipe surface through a conductive plate mounted on a clamp. Heat is transferred from the pipe wall to the sensor, and the integrated transmitter converts the Pt100 signal into a standard 4-20mA output.
The clamp-on installation eliminates the need for pipe drilling, cutting, or welding, making it suitable for temperature monitoring of existing pipelines, retrofit projects, and applications where invasive temperature measurement is not preferred.
Applications
Chemical Process Pipelines
Used for monitoring external temperature of process pipes.
Petrochemical Systems
Suitable for retrofit temperature monitoring in oil and gas facilities.
Heating and Cooling Pipelines
Used in steam, hot water, and cooling water systems.
Power Plants
Suitable for pipeline temperature monitoring equipment.
HVAC Systems
Used for external pipe temperature measurement.
Key Features and Benefits
1. Non-Invasive Temperature Measurement
Measures pipe wall temperature without penetrating the pipeline or contacting the process fluid.
2. Easy Clamp-on Installation
No drilling, welding, or shutdown modification is required for installation.
3. Integrated Pt100 Temperature Transmitter
Combines RTD sensing and signal conversion in one compact device.
4. Standard 4-20mA Output
Compatible with PLC, DCS, and industrial control systems.
5. Suitable for Existing Pipeline Retrofit
Ideal for applications where traditional insertion temperature sensors are difficult to install.
6. Flexible Configuration Options
Pipe diameter, connection, hose length, and installation configuration can be customized.
Technical Specifications
Parameter | Specification |
Product Model | JC-SBW |
Product Type | Clamp-on Integrated PT100 Pipe Wall Temperature Transmitter |
Sensor Type | Pt100 RTD |
Measuring Range | 0~200℃ |
Accuracy | ±0.5% F.S. |
Output Signal | 4-20mA |
Power Supply | 24VDC |
Installation | Clamp-on Pipe Mounting |
Pipe Diameter | Φ50~Φ300mm |
Sensing Plate Material | Stainless Steel 304 |
Probe Material | Stainless Steel 304 |
Flexible Hose Material | Stainless Steel 304 Armored Hose |
Standard Hose Length | 1250mm |
Electrical Connection | G1/2 or M20×1.5 Optional |
Ambient Temperature | -40~70℃ |
Protection Rating | IP65 |
Explosion-proof | Ex d IIB T4 Gb Optional |
Process Contact | Non-intrusive; No Direct Contact with Medium |
Note: Specifications can be customized according to customer requirements.
Configuration Options
Available options:
Selection Guide
Please provide:
Pipe outer diameter
Pipe material
Installation location
Temperature Requirement
Measuring range
Expected accuracy
Electrical Requirement
Output signal
Power supply
Application Condition
FAQ
No. The sensor measures temperature through the external pipe wall and does not directly contact the medium.
Q2: Does installation require pipe modification?
No. The clamp-on design does not require drilling, cutting, or welding.
Q3: What is the output signal?
The standard output is 4-20mA with 24VDC power supply.
Q4: What pipe sizes can it fit?
The standard configuration supports approximately Φ50~Φ300mm pipe outer diameter, and customized clamp sizes are available.
