Temperature measurement lag quietly sabotages industrial process control loops. When sensors report data too slowly, delayed response times trigger dangerous system overshoots. They quickly compromise delicate batch quality. They also cause significant energy waste as heaters overwork to compensate for delayed readings. Process engineers often focus purely on basic sensor physics when evaluating these solutions. However, properly evaluating a thermocouple against a Resistance Temperature Detector (RTD) requires a much broader view. You must look at the entire measurement loop. This holistic view includes the transmitter electronics, potential signal degradation in the field, and long-term calibration demands.
We will provide an objective, data-driven comparison focusing on raw response speeds, signal stability, and environmental durability. This comprehensive guide will equip process engineers and procurement teams to make a highly defensible specification choice for their specific control loops.
Speed Advantage: Thermocouples typically deliver faster raw response times (often <0.5 seconds for mineral-insulated types) compared to RTDs (1–5 seconds) due to their point-contact junction and lower thermal mass.
Accuracy & Stability Trade-off: RTDs excel in long-term stability with minimal drift (<±0.1°C per year), whereas thermocouples are susceptible to oxidation drift (1–2°C per year), requiring more frequent calibration.
Signal Integration: A thermocouple temperature transmitter must handle complex cold-junction compensation and low-millivolt signals, making it more vulnerable to electromagnetic interference (EMI) than an RTD's resistance-based signal.
Decision Threshold: The "850°C (1562°F) Rule"—processes operating continuously above this threshold necessitate thermocouples, while lower-temperature precision applications heavily favor RTDs.
To understand performance differences, we must first examine how these sensors interact with heat. They operate on fundamentally different physics principles.
Thermocouples generate their own power through the Seebeck effect. Manufacturers join two dissimilar metal wires at a single end. This specific connection forms the measurement junction. When you expose this junction to process heat, a temperature gradient forms along the wires. This thermal difference creates a micro-voltage. The resulting voltage scales proportionately to temperature shifts.
Because of this physical mechanism, thermocouples act as active devices. They do not require external power to produce a raw signal. Furthermore, they measure heat at a highly exact, localized point. This pinpoint measurement makes them ideal for tracking localized thermal spikes inside complex machinery.
Resistance Temperature Detectors operate passively. They cannot generate a signal on their own. Instead, they require external excitation current. A connected transmitter must push a tiny electrical current through the sensor. As the sensor heats up, the electrical resistance of its internal metal element increases predictably.
Industry standards typically utilize pure Platinum for this internal element. Unlike the single-point measurement of a thermocouple, an RTD calculates an average. It measures the thermal impact across the entire surface area of the platinum element. This surface-area averaging provides a highly stable, representative temperature reading for bulk fluids.
Speed dictates success in fast-moving process control. A sluggish sensor causes valves to open late. It forces cooling jackets to activate after the product has already overheated.
Thermocouples dominate when you need instantaneous data. Their physical construction inherently minimizes thermal mass. Engineers frequently specify grounded or exposed junction thermocouples for high-speed applications. In an exposed junction design, the welded metal tip sits directly inside the process fluid. It lacks an insulating barrier.
This direct contact allows rapid heat transfer. Mineral-insulated thermocouples routinely achieve time constants under 0.5 seconds. They capture rapid temperature flashes effortlessly. This makes them indispensable in gas turbine exhaust monitoring and rapid-fire combustion chambers.
RTDs face inherent structural delays. Manufacturers build them using intricate internal wire-wound or thin-film elements. They must encapsulate these delicate internal structures inside protective ceramic or glass sheathing. They pack the surrounding void with insulating powders.
This heavy protective sheathing acts as a thermal barrier. It physically insulates the platinum element from immediate temperature changes. Heat takes time to penetrate the outer layers. Consequently, RTDs exhibit slower response profiles. They typically register thermal changes within 1 to 5 seconds. This lag makes them unsuitable for safety shutdown systems requiring millisecond reaction times.
Raw sensor speed only tells half the story. The electronic relay dictates the final control loop velocity. A blazing-fast sensor means nothing if the processing electronics lag behind. The update rate and processing speed of the Thermocouple Temperature Transmitter must match the sensor's raw capabilities. If the transmitter utilizes slow analog-to-digital converters, you will lose the thermocouple's speed advantage entirely. You must pair fast probes with equally responsive electronics to realize actual control improvements.
While thermocouples win the sprint, they often lose the marathon. Process engineers must balance raw speed against long-term data integrity.
Baseline precision sets the foundation for tight quality control. We measure RTDs against strict international tolerances. Class A RTDs deliver exceptional accuracy straight out of the box. They routinely hold variances tightly within ±0.15°C at freezing points.
Standard base-metal thermocouples struggle to match this microscopic precision. Typical Type K or Type J thermocouples exhibit a ±1°C to ±2°C variance. This wider tolerance band disqualifies them from strict biopharmaceutical validation processes. It also limits their use in high-precision food and beverage pasteurization.
Signal linearity complicates the digital translation process. RTDs feature a beautifully consistent, nearly linear temperature-to-resistance curve. This proportional relationship simplifies calculations. It reduces the processing load on your control system.
Thermocouples behave erratically across wide temperature spans. They generate a non-linear voltage output. Engineers refer to this output profile as an "S-curve." The millivolt change per degree at 100°C differs completely from the change at 800°C. This chaotic output requires intensive algorithmic linearization inside the transmitter electronics to ensure a smooth data feed.
Chemical realities dictate long-term maintenance cycles. Continuous operation inside industrial pipes degrades sensor materials. Thermocouples experience intense metallurgical changes under constant heat. Their dissimilar metals oxidize. This oxidation slowly alters their core voltage output over time.
This metallurgical degradation causes notable signal drift. You will typically see a drift of 1°C to 2°C per year. You must pull them from the process and recalibrate them every 6 to 12 months to maintain safety.
RTDs boast exceptional chemical stability. Pure platinum resists oxidation beautifully. High-quality RTDs experience minimal drift, often shifting less than ±0.1°C annually. Facilities can safely stretch their RTD calibration intervals to 12 or even 24 months. This stability sharply reduces ongoing maintenance burdens.
Industrial manufacturing floors present harsh electronic environments. Moving data from the sensor probe to the control room requires robust signal protection.
Massive motors, heavy generators, and variable frequency drives generate heavy electromagnetic interference. We call this EMI or electrical noise. Thermocouples output incredibly weak signals. These baseline signals range between 0 and 70 millivolts.
This microscopic amplitude makes them highly susceptible to EMI corruption. If you route thermocouple extension wire near a high-voltage conduit, the electrical noise can overpower the millivolt signal. Your control room will display erratic, jumping temperature readings.
Thermocouple architecture mandates Cold Junction Compensation. A thermocouple only measures the temperature difference between its hot tip and its cold connection point. The transmitter terminal block serves as this cold reference point.

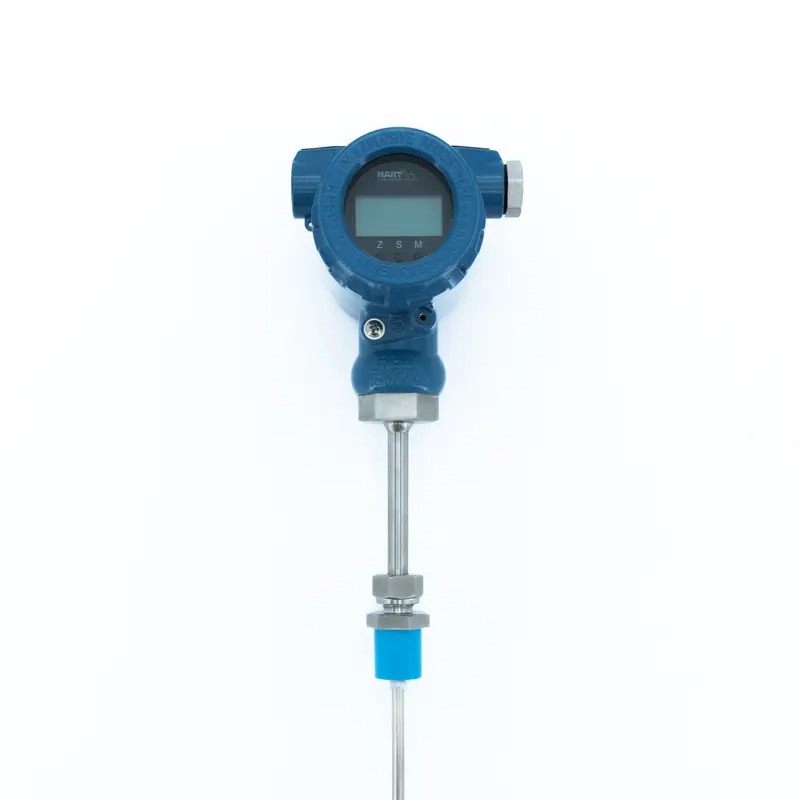

If ambient temperatures near the terminal fluctuate due to a draft or sunlight, calculation errors compound rapidly. A high-quality Thermocouple Temperature Transmitter manages this vulnerability. It embeds secondary precision sensors directly into the terminal block. These sensors monitor ambient fluctuations and correct the millivolt reading dynamically.
RTDs handle noisy electrical environments far more effectively. They operate using larger excitation currents. More importantly, modern RTDs utilize robust 3-wire and 4-wire circuit configurations.
These advanced wiring setups successfully measure and mathematically cancel out external lead wire resistance. They provide superior immunity against ground loops and ambient electrical noise. When routing cables across a crowded, electromagnetically noisy factory floor, RTDs represent the much safer signal choice.
Theoretical accuracy matters little if the sensor shatters during start-up. You must match the physical sensor construction to the mechanical realities of the pipe.
Thermocouples completely dominate extreme industrial environments. They thrive under intense conditions that would instantly destroy standard RTDs. Applications exceeding 850°C melt delicate platinum elements. Solid-wire thermocouple junctions comfortably measure temperatures surging up to 2000°C. They serve as the standard choice for blast furnaces, metal smelting, and industrial incinerators.
They also handle severe mechanical vibration. High-vibration environments snap delicate RTD coils. Compressors and heavy diesel engines produce high-frequency shaking. A robust, mineral-insulated thermocouple endures this massive physical shock without failing.
Facilities rarely install bare sensors directly into corrosive fluids. Both sensor types typically share standardized thermowells. A thermowell is a highly durable metal sleeve welded into the process pipe. It isolates the delicate sensor probe from high pressures and corrosive chemicals.
Standardized bore sizes provide excellent engineering flexibility. You can easily upgrade a control loop later. You can pull an aging thermocouple out of the thermowell and insert a high-stability RTD probe. You accomplish this swap without draining tanks, shutting down flow, or modifying vessel penetration points. You simply update the transmitter programming to accept the new resistance signal.
Selecting the right instrumentation requires balancing competing priorities. Use the following framework and comparison data to finalize your specification.
Performance Metric | RTD (Resistance Temperature Detector) | Thermocouple |
|---|---|---|
Optimal Temp Range | -200°C to 600°C | -200°C to 2000°C |
Raw Response Time | Moderate (1 to 5 seconds) | Extremely Fast (< 0.5 seconds) |
Annual Signal Drift | Minimal (< 0.1°C per year) | Noticeable (1°C to 2°C per year) |
Vibration Immunity | Poor (delicate internal coils) | Excellent (solid welded junctions) |
EMI Resistance | High (especially 4-wire setups) | Low (requires careful cable shielding) |
Process temperatures exceed 850°C: You operate blast furnaces, kilns, or heavy incineration equipment.
Sub-second response times are non-negotiable: You require immediate safety trip alerts for runaway exothermic reactions.
The installation faces severe mechanical shock: You monitor large compressors, turbines, or heavy stamping machinery.
Space is highly restricted: You require micro-probes to fit inside tight machine housings or narrow bearing journals.
Operating under 600°C with tight tolerance requirements: You run biopharma validation, strict chemical blending, or food pasteurization loops.
Long-term stability is heavily prioritized: You want to extend calibration intervals to 24 months to reduce ongoing maintenance overhead.
The environment contains heavy electromagnetic interference: Your plant floor features numerous variable frequency drives and high-voltage conduits.
Measuring narrow temperature spans: You need to track microscopic shifts in chilled water lines or cleanroom HVAC systems.
Choosing the correct measurement instrument impacts every facet of your production quality. While a thermocouple delivers the absolute fastest raw response time and unbeatable durability in extreme heat, it trades away critical long-term accuracy and signal stability. It will require more frequent calibration checks to combat oxidation drift.
Conversely, an RTD provides exceptional long-term stability and precise data linearity. It drastically reduces your maintenance overhead. However, it reacts slower to sudden thermal spikes and cannot survive severe mechanical vibration.
Before issuing a purchase order, audit your specific process control loop requirements. Determine your maximum temperature limit, acceptable signal lag, and background electrical noise. Consult with an instrumentation specialist to ensure you pair your chosen sensor with appropriate EMI shielding, correct extension wiring, and robust transmitter electronics. Proper integration maximizes performance and guarantees reliable control data for years to come.
A: Yes, if the probe dimensions match the thermowell bore. The mechanical housing remains standard across the industry. You can swap the physical probes easily. However, you must update the transmitter and control system programming to accept the completely different signal type (resistance versus millivolts).
A: PT100s have a base resistance of exactly 100 ohms at 0°C. PT1000s have a base resistance of 1000 ohms. PT1000s offer a much higher signal-to-noise ratio. Their greater sensitivity makes them better suited for 2-wire setups and factory environments plagued by heavy electrical interference.
A: Check the field wiring. Thermocouples almost always use two wires with distinct color codes (e.g., Red and Yellow for Type K). RTDs typically feature three or four wires, often using combinations of Red and White. Testing leads with an ohmmeter reveals ~100-1000 ohms for an RTD, while a thermocouple reads near zero.
A: Exposure to extreme industrial heat, chemical vapors, and ongoing mechanical stress degrades the metals. The welded junction oxidizes. This metallurgical change physically alters the Seebeck voltage output over time. You must perform regular calibration checks to detect and correct this inevitable drift.
