Operating critical industrial processes using legacy analog gauges forces technicians to estimate readings. This practice introduces costly human error into your daily operations. Relying on guesswork compromises system integrity and puts personnel at risk.
In high-stakes environments like petrochemical plants, water treatment facilities, and complex HVAC networks, precise readability is never just a luxury. Immediate visibility serves as a strict safety and compliance requirement. Operators must instantly see exact pressure values to prevent catastrophic failures.

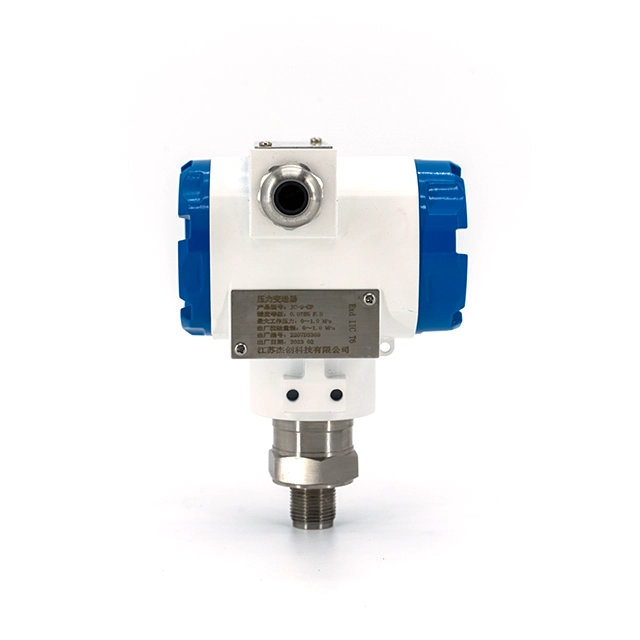

Transitioning to a Digital Display Pressure Transmitter equipped with a 5-digit LED backlight entirely removes this guesswork. You will learn how these advanced devices offer clear, high-resolution data regardless of poor ambient lighting or heavy machinery vibration. We will explore key evaluation criteria, implementation realities, and actionable procurement steps to modernize your facility.
Precision and Visibility: 5-digit LED displays eliminate parallax errors and provide unmatched readability in low-light, high-vibration, or heavy-glare environments.
Integration Readiness: Modern digital display pressure transmitters seamlessly connect with SCADA/PLC systems via standard 4-20mA, HART, or RS485 protocols.
Compliance Alignment: Upgrading to ruggedized, certified digital transmitters simplifies adherence to stringent industrial safety standards (e.g., SIL, ATEX).
Industrial facilities depend heavily on accurate fluid and gas monitoring. When you rely on outdated analog dials, you introduce immediate risks. Ambiguous readings trigger a chain reaction of operational inefficiencies.
Mechanical pressure gauges utilize physical components like bourdon tubes. These internal mechanisms degrade rapidly when subjected to continuous pulsation. Vibration causes the indicator needle to bounce erratically across the dial. This mechanical instability makes it impossible for operators to pinpoint the exact pressure.
Furthermore, analog dials suffer from the parallax effect. When a technician views the needle from an angle, the reading appears artificially high or low. This optical illusion leads to inaccurate data logging. Over time, these small miscalculations destabilize your entire process control loop. A Digital Display Pressure Transmitter directly solves this by displaying absolute numerical values.
Many facilities install pressure monitors in challenging physical locations. Basements, dense pipe galleries, and outdoor installations suffer from poor lighting. Standard passive LCD screens rely entirely on ambient light for visibility. When night falls, passive screens become invisible.
Technicians often resort to using flashlights to read passive displays. This manual workaround is inefficient and unsafe. Conversely, high-glare environments create equally severe blind spots. Direct sunlight washes out unlit LCDs. Your operators cannot make critical process decisions if they cannot read the instruments.
Poor visibility directly causes operational bottlenecks. If technicians struggle to read a gauge, inspection routes take longer. Slower inspections mean delayed incident responses. When a pipeline experiences a dangerous pressure spike, every second matters.
Inconsistent data logging is another direct consequence. Two different technicians might record two different values from the same bouncing analog dial. This inconsistent data corrupts your historical trend analysis. You cannot optimize a process using flawed baseline data.
Modernizing your instrumentation requires understanding specific technological benefits. A 5-digit LED setup provides distinct advantages over traditional 3-digit or 4-digit passive screens.
Resolution dictates the smallest measurable change your instrument can display. Moving from a standard display to a 5-digit format fundamentally upgrades your control capabilities. Consider the difference between reading 100.0 PSI and 100.00 PSI. That extra digit reveals micro-fluctuations in your system.
Why does this extra digit matter? Micro-adjustments are crucial in precision applications. Custody transfer operations require absolute volumetric accuracy. Chemical dosing systems depend on exact pressure metrics to dispense correct reagent volumes. A 5-digit display ensures you capture these fractional changes instantly.
Active LED technology represents a massive leap forward in display engineering. LEDs emit their own light, ensuring absolute clarity regardless of external conditions. They provide superior contrast ratios compared to standard liquid crystal displays.
To highlight these differences, review this technical comparison chart:
Feature | Standard Passive LCD | 5-Digit Active LED |
|---|---|---|
Light Source | Requires ambient external light | Self-illuminating semiconductor |
Contrast Ratio | Low (Washes out in sunlight) | High (Sharp characters, deep black background) |
Viewing Angle | Narrow (Requires direct head-on view) | Ultra-wide (Readable from acute side angles) |
Cold Weather Response | Sluggish refresh rates, freezing | Instantaneous refresh, unaffected by freezing |
LED components also boast incredible longevity. Industrial-grade LEDs rarely suffer from pixel degradation. They maintain consistent brightness levels across thousands of operating hours.
Effective process control requires dual-tier visibility. Field technicians need immediate local data. Control room operators need continuous remote telemetry. A robust digital display bridges this gap perfectly.
The bright 5-digit screen provides local verification instantly. Simultaneously, the internal sensor routes high-fidelity data back to your SCADA system. This synergy prevents discrepancies between field observations and automated control logic. Everyone works from the exact same data points.
You must evaluate potential suppliers using strict engineering parameters. Not all digital transmitters perform equally under industrial stress.
Accuracy defines how closely the reading matches the true physical pressure. You should define acceptable accuracy thresholds before procurement. Most industrial applications demand an accuracy of ±0.1% or ±0.25% of Full Scale (FS).
Long-term stability is equally critical. Sensors drift naturally over time. A high-quality transmitter specifies a minimal drift rate, usually less than 0.1% FS per year. Temperature compensation capabilities also matter heavily. The internal microprocessor must automatically adjust readings when ambient temperatures fluctuate wildly.
Industrial transmitters face harsh realities. Dust, high-pressure washdowns, and chemical exposure destroy weak enclosures. You must establish strict baselines for environmental survivability.
We recommend evaluating wetted parts carefully. Wetted parts are the components physically touching the process media. Here is a standard material compatibility matrix to guide your selection:
Wetted Material | Best Suited For | Common Applications |
|---|---|---|
316L Stainless Steel | Water, light oils, standard gases | HVAC, municipal water treatment |
Hastelloy C-276 | Highly corrosive acids and chlorides | Petrochemical refining, fertilizer plants |
Monel | Hydrofluoric acid, saltwater | Offshore platforms, marine environments |
Tantalum | Extreme corrosive environments | Specialty pharmaceutical manufacturing |
Beyond materials, demand high Ingress Protection (IP) ratings. An IP67 rating ensures the device survives temporary submersion. An IP68 rating guarantees survival during continuous submersion. Never settle for less in heavy industrial zones.
The physical screen is only half the equation. The device must communicate effectively with your infrastructure. The 4-20mA standard output remains the absolute backbone of industrial automation. It resists electrical noise beautifully over long cable runs.
For modern smart facilities, evaluate the need for HART protocols. HART superimposes a digital signal over the standard 4-20mA wiring. This allows remote diagnostics and easy parameter configuration. Alternatively, Modbus RTU (RS485) enables digital daisy-chaining. Daisy-chaining allows multiple transmitters to share a single communication cable, simplifying complex network topologies.
Transitioning from mechanical dials to digital electronics requires careful technical planning. You must acknowledge and manage specific engineering trade-offs during installation.
We must address physical realities. Active LED backlights draw significantly more power than passive liquid crystals. This power demand impacts your wiring architecture directly.
In a standard loop-powered (2-wire) setup, the device uses the 4-20mA current loop for both power and signaling. Because the baseline power is only 4mA, driving a brilliant 5-digit LED can be challenging. You must calculate your loop burden carefully. If the loop cannot supply enough power, the display may dim. For maximum brightness and complex relay outputs, you often need to deploy a 3-wire or 4-wire installation setup. These setups utilize dedicated external power supplies.
Replacing mechanical gauges involves physical piping modifications. You cannot simply unscrew an old dial and screw in a new transmitter without planning.
Power Drops: Mechanical gauges require zero electricity. Digital units require reliable power drops. You must route new conduit to previously unpowered zones.
Thread Matching: Ensure the new device matches your existing pipe threads. Standard 1/2 NPT or 1/4 NPT connections are common, but adapters introduce potential leak points.
Manifold Integration: Use 2-valve or 3-valve manifolds during installation. Manifolds allow technicians to isolate the transmitter safely without shutting down the entire process line.
Digital displays dramatically simplify ongoing maintenance. Mechanical gauges require tedious physical recalibration. Technicians must manually turn tiny potentiometers to adjust the zero and span settings.
Digital transmitters eliminate this physical manipulation. Technicians utilize simple push-button interfaces or remote HART communicators to reset the zero point. This digital zero/span adjustment process is highly accurate and incredibly fast. You can significantly extend the intervals between mandatory maintenance shutdowns.
Best Practice: Always perform a digital zero adjustment after installing a new device. Physical mounting orientation often causes minor gravitational shifts in the sensor diaphragm.
Procuring industrial instrumentation demands rigorous attention to safety certifications. Using uncertified devices in hazardous locations invites disaster and violates federal regulations.
Facilities handling oil, gas, or volatile chemicals operate under strict hazardous area codes. You must understand the difference between protection methods.
Intrinsic Safety (IS) prevents explosions by limiting electrical energy. An IS-rated device physically cannot generate a spark hot enough to ignite ambient gases. Explosion-proof (Ex d) housings use a different approach. They allow an internal explosion to occur but contain it entirely within a massive metal casing. You must verify that your chosen transmitter carries appropriate ATEX or IECEx certifications for your specific plant zones.
The hardware is only as reliable as the manufacturer behind it. You must establish strict criteria for choosing your supplier.
Always demand NIST-traceable calibration certificates out of the box. This document proves the sensor was tested against a recognized international standard. Evaluate the warranty length carefully. Industrial transmitters should offer multi-year protections. Finally, assess local technical support. When a communication protocol fails during a midnight startup, you need a responsive engineering team.
To streamline your procurement phase, follow this specific checklist. Provide these details to vendors before requesting any formal quotes.
Map the Process Media: Define exactly what fluid or gas you are measuring. Note its maximum temperature and corrosive properties.
Determine the Pressure Range: Calculate your normal operating pressure. Select a sensor where this normal pressure falls cleanly in the middle of the full-scale range.
Identify the Ambient Environment: Document the extreme temperatures, vibration levels, and light conditions at the installation point.
Verify Power Availability: Confirm whether the location supports 2-wire loop power or if dedicated 24VDC/110VAC power drops exist.
Specify the Output: Choose between standard 4-20mA, HART, or Modbus RS485 based on your PLC capabilities.
Relying on difficult-to-read analog gauges introduces unnecessary physical risks into automated environments. Obscured displays, parallax errors, and mechanical degradation directly undermine process integrity. Modern facilities simply cannot afford measurement ambiguity.
Upgrading to a 5-digit LED digital display pressure transmitter effectively bridges the gap between field-level visibility and control-room precision. The self-illuminating screen provides instant clarity to floor personnel. Simultaneously, the robust digital protocols deliver uncorrupted telemetry to your automation systems.
Audit your facility today. Identify your most problematic, hard-to-read measurement points. Consult with a technical specialist to scope a pilot replacement program. Modernizing a single critical loop will demonstrate the immediate operational superiority of digital measurement.
A: Yes, but with limitations. Due to the higher power draw of LEDs, loop-powered (4-20mA, 2-wire) configurations require careful calculation of the loop burden. Some models use ultra-low power LEDs or require external power (3/4-wire) for maximum brightness.
A: Standard LCDs can become sluggish or freeze in sub-zero temperatures and wash out in extreme heat. LED displays maintain their refresh rate, brightness, and contrast across a much wider operating temperature range.
A: For basic water or compressed air utilities, a 3- or 4-digit display is often sufficient. 5-digit displays are recommended for custody transfer, high-precision chemical dosing, or leak testing where fractional changes are critical.
A: Industrial-grade LED backlights typically last over 50,000 to 100,000 hours of continuous use. Degradation is minimal, ensuring the display remains readable for the operational life of the transmitter.
