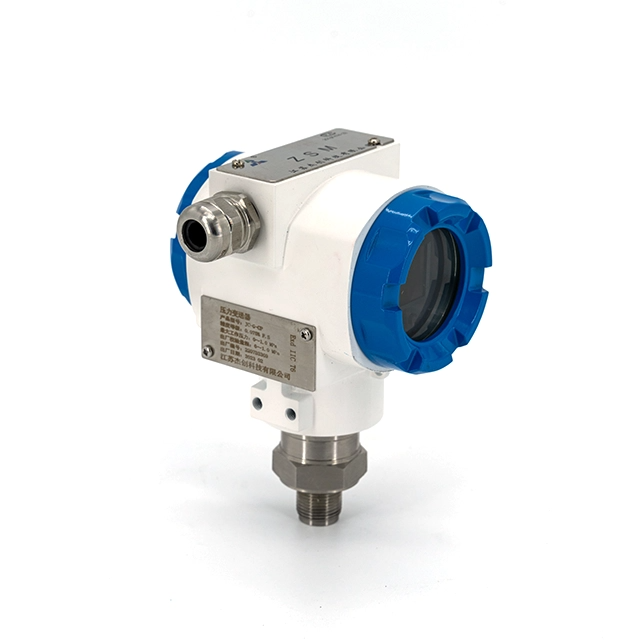

Falling for bold numbers on spec sheets is a common procurement trap. You select a device based solely on a ±0.075% "Reference Accuracy" printed on a datasheet. Months later, you experience unexplained process deviations. You wonder why your system fails to maintain precise control. The answer lies in how manufacturers define precision. "Reference Accuracy" only represents a controlled, room-temperature snapshot. In critical industrial applications, environments are rarely perfect. Long-term drift, thermal fluctuations, and static pressure completely rewrite the true operational precision of your instruments over time.
This guide will help you deconstruct spec-sheet number games. We will separate long-term stability from drift. We also provide engineering and procurement teams an evidence-based framework. You will learn to evaluate the true Total Error Band (TEB). Moving away from misleading baseline numbers will fundamentally improve your process reliability.
A ±0.075% reference specification rarely reflects field performance; real-world accuracy can degrade to 0.3% or worse when factoring in environmental variables.
Manufacturers often use Best Fit Straight Line (BFSL) calculations to make non-linearity errors appear smaller compared to stricter End Point adjustment methods.
Long-term stability and long-term drift are governed by different testing standards (DIN 16086 vs. EN 61298) and impact lifecycle maintenance differently.
Evaluating high precision pressure transmitters requires calculating the Total Error Band (TEB) using the Root Sum of Squares (RSS) method rather than simple linear addition.
Datasheets usually highlight a highly attractive percentage on the front page. This number often accounts for only three variables. We call these Non-Linearity, Hysteresis, and Repeatability (NLH). Manufacturers test this NLH value under ideal laboratory conditions. They usually keep the room temperature at a stable 75°F (24°C). The test fluid remains perfectly clean. Vibrations are completely nonexistent. This pristine environment never matches your actual field conditions. Relying on this single metric creates a false sense of security.
Consider the industry's open secret regarding baseline adjustments. Vendors can choose how they draw the mathematical reference line. Two common methods exist for calculating non-linearity. Engineers use Best Fit Straight Line (BFSL) and End Point adjustment.
BFSL draws a theoretical line through the center of the error curve. This mathematical trick minimizes the maximum apparent deviation. End Point draws a rigid line connecting the absolute zero and full-scale measurement points. It represents a much stricter reality. A ±0.075% error using BFSL might physically represent the exact same performance as a ±0.2% error using the End Point method. Vendors prefer BFSL because it makes their product look superior on paper.
Buyers must verify the exact mathematical method used. Ask your vendor direct questions before shortlisting their High Precision Pressure Transmitter. Do not accept a generic percentage. Demand to know if they use BFSL or End Point calculations. Documenting this distinction helps you compare different brands fairly. It also protects your plant from unexpected measurement errors during commissioning.
Engineers often treat stability and drift as interchangeable terms. They are very different concepts. Understanding this distinction prevents premature equipment failure. Different international standards govern how we measure these two phenomena. Knowing these standards helps you read spec sheets accurately.
Let us define the standardized differences clearly. The testing methodology completely changes the resulting data.
Metric | Governing Standard | Testing Condition | Duration |
|---|---|---|---|
Long-Term Drift | EN 61298 | Measured under active stress (90% of full scale pressure applied). | 30 days |
Long-Term Stability | DIN 16086 | Measured under natural component aging without applied pressure. | 1 full year |
Long-Term Drift measures signal deviation under active physical stress. Technicians hold the sensor at 90% of its full-scale capacity continuously. Long-Term Stability measures natural material aging. Technicians leave the sensor entirely unpressurized on a shelf. Field operations resemble the drift test much more closely than the stability test.
Signal degradation is not infinite. It follows an exponential curve over time. Initial drift happens relatively quickly during the first few months. Eventually, the metal fatigue saturates. The drift curve then flattens out.
The business impact remains severe regardless of this flattening. Suppose you install a premium instrument. It has a high drift rate exceeding 0.1% per year. Within 24 to 36 months, it will fail to meet critical process tolerances. You will face intensive recalibration cycles to maintain safety margins. Frequent recalibration requires costly downtime and specialized labor. You must factor this physical degradation into your initial purchasing decision.
Baseline precision looks great on paper. Real-world physical forces quickly destroy it. You must understand these hidden error sources to protect your process integrity. Environmental factors interact unpredictably. We can categorize the most destructive factors into three main areas.
Re-Ranging and Turndown Ratios: Smart devices allow you to adjust the measurement range via software. You might buy a 100-bar sensor and set it to measure only 10 bar. This creates a 10:1 turndown ratio. Doing so degrades resolution severely. The underlying baseline error remains constant in absolute terms. If your baseline error is 0.1 bar, it now represents 1.0% of your new 10-bar span. You just multiplied your percentage error by ten.
Static (Line) Pressure Effects: Differential measurements often occur under high line pressure. You might measure a 1-bar difference across a filter inside a 200-bar pipeline. This intense physical stress inherently shifts the zero point. It also alters the measurement span. Field technicians find this specific error notoriously difficult to calibrate out. The physical housing of the sensor actually warps under the static load.
Thermal Offsets: Precision always shifts outside the standard 20–25°C laboratory window. Industrial environments feature extreme heat or sudden cold snaps. Temperature changes cause internal fluid expansion. Sensor diaphragms stiffen in the cold. Temperature error does not grow linearly across the spectrum. Engineers must calculate thermal offset per every 10 Kelvin deviation from the baseline room temperature.
You cannot simply stack individual errors linearly. Adding 0.1% NLH to 0.2% thermal error and 0.1% drift does not equal a 0.4% total error. Doing so creates unrealistically high failure projections. Instead, you should calculate the real-world Total Error Band (TEB). We use a specific mathematical formula to find this realistic range.
We use the Root Sum of Squares (RSS) methodology. Statistical probability tells us individual errors rarely peak simultaneously. The RSS calculation squares each individual error source. It adds these squared values together. Finally, it takes the square root of the total sum. This provides a much more realistic measurement uncertainty. It prevents engineering teams from over-specifying equipment out of unnecessary fear.
Let us compare how environment dictates performance. The difference between laboratory conditions and field conditions is staggering.
Scenario Parameter | Best-Case Environment | Worst-Case Environment |
|---|---|---|
Turndown Ratio | 1:1 (No re-ranging) | 10:1 (Significant turndown) |
Ambient Temperature | Stable room temperature (24°C) | Extreme fluctuations (-10°C to 60°C) |
Static Pressure | None (Gauge measurement) | High static line pressure present |
Device Age | Brand new (Day 1) | One year of continuous active drift |
Expected Actual Error | ±0.075% to ±0.15% Full Scale | ±0.5% to ±1.0% Full Scale |
In the best-case scenario, you avoid re-ranging completely. The room temperature remains stable. The power supply stays perfectly clean. Under these rare conditions, the results closely mirror the ±0.075% datasheet claim.
The worst-case scenario introduces significant turndown. Temperature extremes batter the sensor housing. Static pressure effects warp the diaphragm. Finally, you add one year of natural component drift. The actual field error expands massively. It can easily hit ±0.5% to ±1.0% of Full Scale.
TEB matters tremendously. It serves as the only authoritative metric for system design. You must use it when evaluating any High Precision Pressure Transmitter for absolute measurement applications. Designing safety systems around baseline accuracy leads to inevitable process alarms. Designing around TEB ensures your plant operates safely under all expected weather conditions.
Your specifications must match your actual business outcomes. Not every application requires absolute perfection. Overspending on unnecessary specifications wastes capital budgets. Underspending on critical loops compromises plant safety. You must categorize your measurement goals first.
Consider whether you need incremental control or absolute measurement. Some systems only trigger based on relative pressure changes. A pump control system is a good example. If you only need to measure relative spikes, prioritize NLH. Repeatability and precision matter most here. You just need the device to behave the exact same way every time the pump strokes.
Other systems require exact absolute values. Custody transfer and aerospace testing fall into this category. The environmental conditions will vary wildly during operation. Here, you must prioritize the comprehensive TEB specification. An error here means giving away expensive product for free. It could also mean failing a critical compliance audit.
Use this evaluation checklist before issuing a purchase order. Hold your vendors accountable to physical realities.
Demand comprehensive TEB charts. Do not accept just baseline accuracy numbers. Ask the vendor to plot the error curve across your specific operating temperature range.
Check for active digital temperature compensation. Ensure the onboard electronics actively correct for thermal drift. Modern smart devices use internal thermistors to dynamically adjust the output signal.
Review baseline drift warranties. Check the recommended calibration cycles to project long-term maintenance needs. A cheaper unit might require calibration every six months, erasing any initial savings.
True precision is not found in a single highlighted datasheet number. It lives in the physical resilience of the device. A quality instrument resists compounding environmental errors. It maintains signal integrity over years of continuous operation. Thermal shifts, static pressure, and time all erode baseline perfection. Acknowledging this physical reality is the first step toward better system design.
You must urge your engineering teams to move beyond reference accuracy comparisons. Always request worst-case RSS error modeling from manufacturers. Review these calculations thoroughly before committing to a pilot installation. Implementing this strict evaluation framework prevents massive operational headaches. It ensures your process control remains stable, safe, and highly profitable for years to come.
A: No. High resolution simply means the transmitter can output highly granular signal increments. If the underlying sensor has poor precision or high hysteresis, it is just outputting highly detailed, inaccurate data. Resolution represents how finely a system can divide a signal, not how truthful that signal actually is.
A: It depends on the manufacturer's stated long-term stability. However, for processes requiring better than 0.1% accuracy, annual unpressurized zero-point calibration is the industry standard to mitigate drift. Harsh environments involving extreme vibrations or temperature swings may require calibration every six months.
A: Yes, changing the installation angle can cause the weight of the internal fluid or diaphragm to create a "zero shift." However, this typically does not affect the full-scale span. You can easily correct this zero shift during initial field commissioning using a simple calibration tool.
