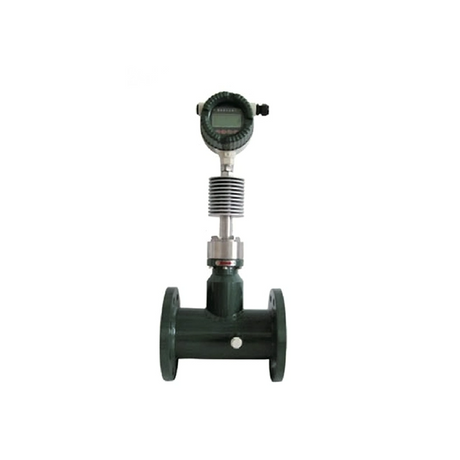

Measuring high-viscosity or ultra-low-flow fluids presents a severe engineering challenge. Plant operators know this struggle well. Standard devices routinely fail in these harsh environments. Moving parts in turbine meters seize up from heavy clogging. Electromagnetic meters fall short because heavy hydrocarbons lack conductivity. You need a robust, reliable solution. Enter the Target Flowmeter. This instrument combines a legacy physical-force design with modern digital strain gauges. Under strict parameters, it achieves an impressive 0.2% accuracy. It steps in exactly where conventional technologies break down.
This article provides an objective framework for decision-makers. We will help you evaluate if this technology aligns perfectly with your operational and financial requirements. You will discover how these meters handle complex fluids. We will compare them to alternative measurement devices. You will also learn the strict installation practices they demand for peak performance.
Target flowmeters leverage mechanical force and digital strain gauges to measure non-conductive, highly viscous, and low-flow fluids with up to 0.2% accuracy.
They provide a cost-effective alternative to Coriolis meters for heavy oils, asphalt, and slurries, though they do introduce a permanent pressure drop.
Modern variations include digital transmitters for smart diagnostics and jacketed thermal designs to prevent fluid solidification.
Successful implementation requires strict adherence to straight-pipe run requirements and regular calibration to account for mechanical wear.
Deploying the wrong measurement technology in harsh fluid environments carries steep operational penalties. Process engineers constantly battle equipment failure when handling difficult media. Inaccurate flow data leads directly to lost yield. Unplanned maintenance causes expensive system downtime. Choosing the right meter prevents these cascading failures.
Moving-part meters simply cannot handle highly viscous fluids. Turbine meters rely on delicate rotors spinning freely in the fluid stream. When exposed to heavy oils or sticky resins, these rotors quickly seize up. The thick fluid acts like glue. It destroys bearings and halts measurement completely.
Electromagnetic meters offer no moving parts, but they face a different hurdle. They operate on Faraday’s law of electromagnetic induction. This principle requires a conductive fluid to generate a measurable voltage. Heavy hydrocarbons, crude oils, and many chemical solvents hold zero electrical conductivity. An electromagnetic meter will read absolutely nothing when measuring these fluids.
Ultra-low flow velocities present another massive hurdle. Facilities frequently need to dose tiny amounts of chemical additives. Ultrasonic and vortex flowmeters struggle here. Ultrasonic meters measure the time-of-flight difference of sound waves. At very low speeds, the signal delta becomes too small. Background noise easily drowns it out.
Vortex meters depend on a bluff body creating alternating pressure swirls. Fluid must move fast enough to actually shed these vortices. If the velocity drops below a critical threshold, no vortices form. The meter registers zero flow despite fluid moving through the pipe. A digital Target Flowmeter circumvents these physical limitations entirely.

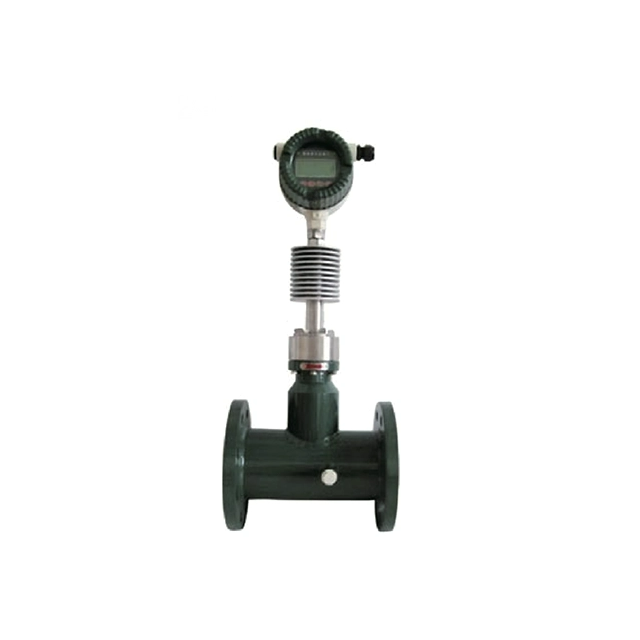

To understand how this technology achieves precision, we must look at fluid mechanics. The core engineering principle remains elegantly simple. The device suspends a solid plate directly in the flow stream. Fluid pushes against this obstruction. This physical push generates mechanical force.
The fluid exerts a drag force on the suspended target plate. This force transfers directly up a rigid sensor rod. Older mechanical versions used complex linkages to measure this movement. Modern designs eliminate those mechanical linkages. Instead, they bond high-precision digital strain gauges directly to the sensor rod. As the rod bends microscopically, the strain gauge changes electrical resistance. The fluid velocity determines the exact amount of force applied.
Digital target flowmeters translate this microscopic physical bending into actionable data. A localized Wheatstone bridge circuit captures the changing resistance. A microprocessor then converts this raw analog data into a standardized electronic signal. You typically see outputs like 4-20mA, HART, or RS485 Modbus. This modernization bridges the gap between rugged physical measurement and modern plant automation systems.
Manufacturers frequently advertise up to 0.2% accuracy. We must validate this claim transparently. This highly precise figure represents a best-case scenario. You do not achieve 0.2% accuracy automatically out of the box.
Several strict conditions must align:
The fluid density must remain entirely stable during operation.
The operator must perform a rigorous baseline calibration under actual process conditions.
The installation must feature perfect straight-pipe runs to eliminate turbulent swirl.
If fluid viscosity fluctuates wildly, the drag coefficient changes. This alters the force calculation. Therefore, achieving 0.2% requires deep engineering discipline and controlled environmental factors.
Engineers must weigh competing technologies before finalizing a purchase. You rarely find a perfect solution. Every meter type forces you to accept certain trade-offs. We often compare target technology against Coriolis and Electromagnetic alternatives.
Coriolis meters dominate the high-accuracy market. They measure direct mass flow. They handle changing fluid densities effortlessly.
Pros of Target: The target meter requires significantly lower capital expenditure (CapEx). When dealing with large line sizes (like 8-inch pipes or larger), Coriolis meters become astronomically expensive and massive. Target meters remain compact and affordable regardless of pipe diameter.
Cons of Target: Coriolis provides direct mass flow measurement and superior baseline accuracy. A Coriolis meter also avoids inducing the severe permanent pressure drop you get from a target plate.
Mag meters serve as the default choice for water and wastewater applications.
Pros of Target: Target technology works flawlessly on completely non-conductive fluids. Mag meters fail instantly on heavy oils, asphalts, and synthetic resins. Target meters ignore electrical conductivity altogether.
Cons of Target: Mag meters feature an empty, unobstructed pipe. They present zero obstruction to the flow profile. Target plates purposely obstruct the flow, requiring the system pump to work slightly harder.
Use this simple mental model. Choose target technology when your fluid is highly viscous, non-conductive, and your project budget strictly prohibits Coriolis meters. We structured a comparison chart below to simplify this evaluation.
Flowmeter Technology Comparison Matrix | |||
Feature / Requirement | Target Flowmeter | Coriolis Meter | Electromagnetic Meter |
|---|---|---|---|
Best For | Viscous, low-flow, non-conductive | Direct mass flow, high accuracy | Conductive liquids, wastewater |
Conductivity Needed? | No | No | Yes (Strictly required) |
Capital Expenditure (CapEx) | Low to Medium | Very High | Low |
Pressure Drop Profile | Permanent / Moderate to High | Low to Moderate | Zero (Unobstructed) |
Large Pipe Scalability | Excellent (Cost stays manageable) | Poor (Cost and weight explode) | Excellent |
Specifying the exact hardware configuration determines long-term success. You cannot simply order a generic model off the shelf. Certain fluids demand highly specialized mechanical features. Carefully review the following specification criteria.
Many heavy industrial fluids solidify at ambient temperatures. Consider molten sulfur, liquid asphalt, or heavy crude. If these fluids cool down inside the pipe, they harden. Hardened fluid will snap the internal sensor rod instantly upon startup.
Manufacturers solve this using jacketed thermal designs. They weld a secondary containment shell around the meter body. Plant operators circulate hot steam or thermal oil through this jacket. The heat transfers into the primary flow tube. This keeps the measured fluid above its solidification point. If you pump asphalt, a thermal jacket is absolutely mandatory.
The target plate takes a constant physical beating. Standard 316L stainless steel works fine for clean oils. However, chemical slurries require upgraded metallurgy.
Hastelloy C-276: Choose this alloy when measuring highly corrosive acids or aggressive chemical solvents.
Titanium: Select titanium for environments with high chloride concentrations, such as brine or seawater.
Tungsten Carbide Coating: Apply this hard-facing treatment if the fluid contains abrasive sand or rock particulates.
Matching the material to the exact chemical composition prevents premature sensor failure.
Modern process control relies on smart diagnostics. A raw 4-20mA signal only tells you the flow rate. It tells you nothing about the health of the meter. You should prioritize digital communication protocols.
Integrating HART or Modbus RTU protocols allows the meter to communicate directly with your SCADA or DCS system. Smart transmitters actively monitor the internal strain gauge health. They can flag anomalous vibrations. They alert maintenance teams if the sensor calibration drifts. Predictive maintenance saves immense capital by preventing catastrophic sudden failures.
Installing this instrument requires rigorous engineering foresight. Many field failures stem directly from poor installation practices rather than faulty hardware. You must acknowledge and mitigate specific physical realities.
You must objectively acknowledge the obstruction. The internal plate literally blocks a percentage of the pipe area. Fluid must squeeze around it. This creates a permanent pressure drop across the device. Energy is lost as friction and turbulence.
Your system pumps must overcome this loss. During the design phase, ask the manufacturer for the specific pressure loss coefficient. Calculate the expected head loss at maximum flow. If the pressure drop exceeds your pump capacity, you may need to resize the pipe or reconsider the technology.
Flow profile uniformity dictates accuracy. The internal plate expects a smooth, predictable wall of fluid pushing against it. Valves, elbows, and pumps create chaotic, swirling flow. If swirling fluid hits the plate off-center, the strain gauge reads inaccurate force.
You must provide strict upstream and downstream straight pipe runs. Industry standards generally mandate 10 pipe diameters (10D) of straight pipe upstream. You need 5 pipe diameters (5D) downstream. Do not install control valves immediately before the meter. If space constraints prevent these straight runs, you must install physical flow conditioners.
Mechanical wear remains unavoidable over long periods. Abrasive fluids act like liquid sandpaper. Over several years, sand or grit will erode the outer edges of the target plate. As the plate becomes smaller, it catches less fluid. Less fluid means less force. Less force means the meter reads artificially low.
You must establish regular maintenance cycles. Scheduled recalibration accounts for this gradual geometric wear. Technicians can adjust the digital transmitter to compensate for a slightly worn plate. Highly abrasive slurry applications may require annual calibration checks. Clean oil applications often run for several years without noticeable drift.
Process engineers face few challenges as frustrating as measuring thick, non-conductive fluids. A Target Flowmeter resolves this headache by returning to physical fundamentals. It combines mechanical drag force with hyper-sensitive digital strain gauges. You achieve up to 0.2% accuracy under optimal conditions.
The shortlisting logic remains straightforward. Specify this technology when your fluid is viscous, low-flow, and completely non-conductive. It shines brightest when capital constraints eliminate Coriolis options for large pipe sizes. You bypass the clogging risks of turbines and the conductivity limits of mag meters.
Your next step requires active calculation. Review your piping isometric drawings to guarantee space for the 10D/5D straight runs. Calculate your acceptable system pressure drop carefully. Finally, consult an application engineer to verify metallurgy compatibility. Proper sizing and material selection ensure this robust instrument provides decades of reliable data.
A: No, they generally struggle with multi-phase fluids. The force calculation relies on a consistent fluid density. Gas bubbles or air pockets dramatically lower the density and create erratic velocity profiles. When gas pockets hit the internal plate, they cause unpredictable force spikes. This severely skews the data output. The fluid must remain homogeneous for accurate measurement.
A: Calibration frequency depends entirely on fluid abrasiveness. For clean, lubricating fluids like pure oils, the meter can operate accurately for three to five years. For highly abrasive slurries containing sand or particulates, the internal plate degrades faster. In those harsh cases, you should schedule recalibration every 12 months to compensate for physical wear.
A: The minimum threshold depends on the strain gauge sensitivity. The fluid must generate enough physical drag to bend the sensor rod microscopically. Typically, fluid velocities below 0.1 meters per second fail to register reliably. The mechanical force drops into the background noise threshold. Always consult the manufacturer sizing software for your specific density.
A: Standard models are strictly uni-directional. The internal sensor rod and strain gauge bond sit designed to flex in one specific direction against a physical backstop. Reverse flow can permanently damage the standard sensor. However, manufacturers can build custom bi-directional versions using symmetrical plates and specialized dual-bridge strain gauges upon request.
