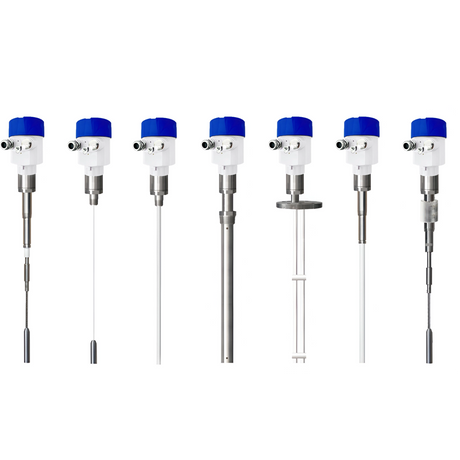

RF Admittance Level Transmitter: No Moving Parts, Zero Downtime

Industrial processes often handle viscous, sticky, or highly conductive materials. These harsh media create severe challenges for standard level sensing equipment. False level alarms disrupt production and compromise plant safety.

Traditional mechanical switches routinely fail because moving parts jam or break. Standard capacitive sensors struggle to distinguish true liquid volume from lingering material coating on the probe wall. Consequently, operators face unnecessary shutdowns, hazardous overspills, and damaged pumps.

The RF Admittance Level Transmitter solves these issues entirely. It eliminates mechanical failure points and uses advanced active shielding technology to ignore conductive build-up. You will learn how to technically evaluate, specify, and implement this technology for reliable continuous and interface level measurement.

Key Takeaways

• Immunity to Buildup: Active equipotential shielding eliminates false signals caused by material coating, moisture, or condensation.

• Continuous Accuracy: Converts capacitance changes ($dC$) directly into proportional 4-20mA signals, providing reliable continuous level tracking.

• Maintenance-Free Durability: Zero moving parts significantly reduces planned maintenance and mitigates seasonal temperature drift in modern digital units.

• Application Versatility: Highly effective for complex interface measurements (e.g., oil/water separators) and harsh conditions (up to 300°C / 2.0MPa).

Why Traditional Capacitance Fails (And How RF Admittance Solves It)

Standard capacitive sensors measure total capacitance between the sensor probe and the vessel wall. This basic design presents a major operational flaw. Sticky or conductive materials easily coat the probe during normal operations. Wet powders and heavy slurries leave thick residues behind. The sensor registers this leftover coating as a true material level. It then triggers false high alarms or transmits inaccurate continuous readings.

RF admittance hardware introduces a crucial structural innovation. Engineers designed a unique three-part probe structure to overcome coating errors. This structure includes the main measuring probe, an active shield (often called a shaded pole), and the ground reference. This architecture forms the foundation of reliable measurement.

The equipotential shield mechanism actively prevents false readings. The system applies a high-frequency RF signal to both the measuring probe and the active shield simultaneously. The transmitter maintains the exact same voltage across both components. Because no potential difference exists between the probe and the shield, no electrical current flows through the coating material near the vessel wall.

The system electrically ignores the coating entirely. It only measures the "Sense-to-Earth" capacitance of the actual bulk material inside the tank. You get an accurate representation of the true liquid or solid level. This precise measurement prevents disastrous pump dry-runs and dangerous vessel overflows.

Core Measurement Mechanics: The Physics of Continuous Level

To understand how an RF admittance instrument quantifies material height, we must look at basic physics. The system treats the entire industrial vessel as a giant capacitor. We use a three-variable mathematical model to define this relationship: C = E × A / D.

In this equation, "A" represents the surface area of the conductive plates (the probe and the vessel wall). "D" represents the distance between them. In any fixed tank installation, Area and Distance remain constant. This leaves the Dielectric Constant (E) as the only moving variable. The transmitter simply measures changes in this specific variable.

Baseline calibration follows a highly logical sequence. An empty vessel contains only air. Air establishes the baseline capacitance (CA). The dielectric constant of air equals approximately 1. Target industrial materials always possess higher dielectric constants. For example, oil measures around 2.5. Water measures closer to 80. As target materials displace air inside the vessel, capacitance increases proportionally until reaching a full-vessel state (CB).

Common Industrial Dielectric Constants

Signal translation converts this physical change into actionable data. The transmitter calculates the difference between the full and empty states (dC = CB - CA). A typical installation yields an effective variation range between 25 and 2000 pF. The internal processor reliably converts this specific delta into a continuous 4-20mA analog signal. Digital outputs are also available. The final output signal remains perfectly proportional to the actual material height.

Key Evaluation Criteria for RF Admittance Level Transmitters

Selecting the right transmitter requires careful technical evaluation. You must first decide between analog and digital circuitry. Legacy analog circuits require tedious manual calibration. Modern digital circuits offer one-key zeroing. This feature eliminates repetitive empty-and-full calibration cycles. Digital processors also actively compensate for environmental temperature shifts and humidity changes. This capability drastically reduces routine seasonal maintenance.

Process environment extremes dictate your temperature and pressure ratings. Always verify your chosen probe materials match the process limits. Industrial standards typically support configurations handling up to 300°C and 2.0MPa. Using improper seals in high-temperature applications leads to catastrophic blowouts.

Compliance and safety certifications protect your facility and personnel. Different industries demand specific protective ratings. Review your plant requirements before finalizing any specification.

• Hazardous Areas: Look for intrinsic safety ratings. Select explosion-proof housings for environments containing volatile gases or combustible dust.

• Functional Safety: Demand SIL2 compliance for critical overfill protection loops. This ensures the device fails safely during an internal fault.

• Hygienic Standards: Food and beverage plants require 3A-approved designs. Specify crevice-free, FDA-compliant materials. Ensure the probe survives aggressive CIP/SIP chemical washdowns.

High-Stakes Applications: Where RF Admittance Excels

Certain industrial environments overwhelm standard instrumentation. Interface level measurement represents one of the most complex challenges. RF admittance uniquely detects the electrical interface between insulating and conducting liquids. Desalters and oil production separators rely heavily on this capability. The sensor accurately tracks the emulsion layer even during severe process temperature fluctuations.

Heavy industrial solids present another ideal use case. Silos containing fly ash, cement, and granules generate massive dust clouds during filling. Optical lasers scatter blindly in these conditions. Ultrasonic acoustic signals absorb into the powder bed and fail. RF admittance ignores the airborne dust completely. It delivers reliable continuous measurement regardless of the atmospheric opacity.

Sticky and viscous slurries destroy moving parts. Chemical mixing tanks and wastewater treatment facilities handle thick sludges daily. Heavy build-up renders vibrating forks useless. Standard mechanical floats sink or jam. The active equipotential shield cuts through the sludge. Plant managers deploy these transmitters specifically to conquer severe coating applications.

Technology Application Chart

Implementation Realities: Installation Guardrails and Risks

Proper installation guarantees long-term reliability. Careless mounting introduces immediate performance errors. You must follow strict mechanical and electrical guidelines during the commissioning phase.

Placement and mechanical protection require careful engineering. Probes must never sit directly in the path of the incoming feed stream. Falling material damages the sensing rod and causes erratic spikes. If you cannot avoid the feed path, you must engineer protective baffle plates into the vessel design. The baffle shields the probe while allowing material to equalize naturally.

Side-mount penetration rules dictate specific insertion depths. For lateral tank installations, the active shield section must fully penetrate the vessel wall. The shield must extend past the mounting nozzle into the open interior. If the shield remains trapped inside the nozzle, it cannot function correctly. False alarms will inevitably occur.

Calibration realities vary based on your selected hardware. You must execute precise mechanical adjustments for manual models.

1. Fill the vessel to the desired alarm point.

2. Turn the internal potentiometer slowly until the indicator light changes state.

3. Apply specific turn-backs based on material properties.

4. Use minimal turn-backs for non-conductive media.

5. Apply aggressive turn-backs for highly conductive slurries.

Chemical compatibility warnings apply to the housing installation. Never use single-component RTV silicones containing acetic acid during conduit sealing. Acetic acid off-gassing heavily corrodes internal circuit board components over time. Always specify non-corrosive, two-part sealants for all electrical gland connections.

Conclusion

Transitioning to an RF Admittance Level Transmitter requires a higher initial specification effort. Engineers must carefully evaluate process temperatures, dielectric constants, and mounting locations. However, this upfront diligence pays off exponentially. The technology permanently eliminates mechanical downtime. It decisively stops false-alarm-induced production halts. Your facility gains unmatched reliability in the harshest sticky and viscous applications.

Audit your current sensor failure logs immediately. Look specifically for "coating-induced" or "jammed mechanism" failures. These entries highlight ideal replacement opportunities. Consult your instrumentation vendors to verify target dielectric constants. Confirm exact probe lengths and shield insertion requirements before final procurement. Actionable data collection ensures a flawless upgrade to RF admittance technology.

FAQ

Q: What is the difference between an RF admittance transmitter and an RF admittance switch?

A: Transmitters provide 4-20mA continuous level data based on $dC$. They track the exact height of the material continuously. Switches provide point-level relay outputs at specific thresholds. You use switches for simple high or low alarms.

Q: Can RF admittance measure materials with very low dielectric constants?

A: Yes. High-sensitivity digital units detect changes as low as $\le 0.3$ pF. This extreme sensitivity makes them perfectly suitable for dry powders, light hydrocarbons, and refined oils.

Q: How often does an RF Admittance Transmitter need recalibration?

A: Digital models feature active temperature compensation. They rarely require seasonal recalibration. You only need to recalibrate the unit if the core process material changes significantly.
