RF Admittance Level Transmitter For Extreme Temperatures (-100°C To 800°C)

Operating industrial processes at extreme temperatures creates severe headaches for plant engineers. Ranging from -100°C cryogenic environments to 800°C super-heated vessels, these harsh conditions destroy traditional measurement instruments. Heavy material build-up compounds the difficulty, leading to an incredibly high rate of sensor failure. Mechanical switches simply break down under these stresses. They fail rapidly because continuous thermal expansion and contraction degrade their moving parts. Standard capacitance sensors also struggle in these environments. Sticky process materials coat the measuring probes, causing continuous false signaling and dangerous overflow risks. Plant managers need a robust solution to eliminate these costly inaccuracies. An RF Admittance Level Transmitter solves these critical issues directly. It uses active equipotential shielding and specialized thermal decoupling mechanisms. You get highly reliable, blind-zone-free measurement without needing continuous recalibration. In this comprehensive guide, you will learn how high-frequency impedance processing actively ignores material build-up. We will explore the rigorous physical design required to survive 800°C heat. Finally, we will guide you through specifying the exact transmitter required for your most demanding applications.

Key Takeaways

• Anti-Coating Physics: RF Admittance eliminates false readings from sticky materials by using equipotential shielding and high-frequency impedance processing.

• Extreme Thermal Tolerance: Specialized 3-electrode probe designs and heat-dissipating extensions allow consistent operation from -100°C up to 800°C.

• Versatile Media Profiling: Capable of measuring complex interfaces (e.g., oil-water emulsions), heavy foams, and abrasive solids (e.g., foundry sand) regardless of minor dielectric shifts.

• Reduced Maintenance: "No moving parts" design translates to lower process downtime and reduced exposure for maintenance personnel in hazardous zones.

The Business Problem: Why Extreme Temperatures Break Conventional Sensors

Rapid temperature fluctuations cause profound material fatigue in industrial sensors. Mechanical devices rely on floats, displacers, or vibrating tuning forks to detect media. Extreme heat causes their internal metallic components to expand rapidly. Cryogenic cold causes them to contract just as fast. This constant physical stress compromises internal seal integrity over a short period. Moisture enters the housing, electronics degrade, and the sensors drift severely out of tolerance. Ultrasonic devices face similar, yet distinct, hurdles. Changes in vapor space temperature fundamentally alter the speed of sound. This phenomenon creates massive measurement blind spots.

High-temperature processes often bake media directly onto the sensor probe. We call this the coating dilemma. Traditional capacitance systems interpret this baked-on layer as actual product. They cannot distinguish between a coated probe and a full tank. This limitation creates dangerous dry-run risks for industrial transfer pumps. It also triggers hazardous tank overflows, exposing facilities to severe environmental fines. The system effectively lies to the control room.

Relying on vulnerable sensors introduces unacceptable business risks. Unplanned maintenance shutdowns cripple your daily production targets. Compromised process safety escalates Safety Integrity Level (SIL) risks across the plant. Batch inconsistencies ruin product quality, forcing operators to scrap entire runs. When operators cannot trust their instruments, they resort to manual dipping. This exposes personnel to hazardous chemical vapors. The underlying costs of poor measurement ripple through the entire operation.

RF Admittance vs. Capacitance: The Physics of Anti-Coating

People frequently confuse RF admittance with basic capacitance. They are completely different technologies. Let us start with basic capacitance principles. The standard engineering formula is C = (E * A) / D. In this equation, "C" represents total capacitance, "E" is the dielectric constant of the material, "A" is the surface area, and "D" is the distance between plates. An empty storage tank contains only air. Air has a baseline dielectric constant of exactly 1. As process media fills the vessel, it displaces the air. Because liquids and solids have higher dielectric constants, total capacitance rises proportionally.

Basic sensors fail instantly when media coats the probe. However, RF admittance circuitry ignores this build-up. We use the capacitive reactance formula to explain this phenomenon: Xc = 1 / (2πfC). Here, "Xc" represents capacitive reactance, and "f" represents the radio frequency. A much higher frequency drastically lowers the reactance. This high-frequency processing fundamentally nullifies the electrical impact of thin, baked-on coating layers. The instrument looks right through the coating and reads only the true bulk level.

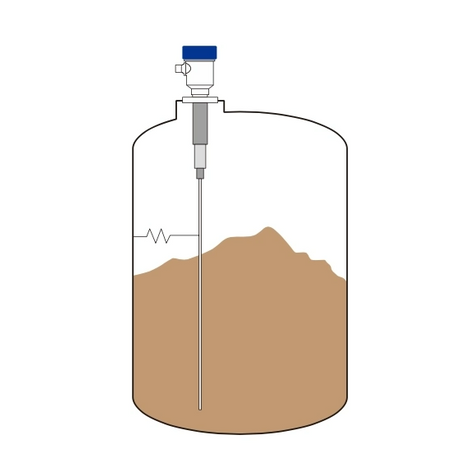

The real operational magic happens through equipotential shielding. We utilize a highly specialized 3-electrode design. The physical probe contains a measuring electrode, a shield electrode, and a system ground. The transmitter applies the exact same radio frequency potential to both the measuring and shield electrodes. Because they share the identical electrical potential, no voltage difference exists between them. This brilliant design cuts off parasitic electrical current. Current cannot flow through the sticky coating to the tank wall. The system is physically forced to measure only the actual bulk material.

Engineering for the Extremes: Designing for -100°C to 800°C

Standard industrial sensors melt at 800°C or shatter at -100°C. Building an RF Admittance Level Transmitter requires extreme metallurgical engineering. Probe material selection dictates operational survival. You cannot use basic commercial plastics. We rely entirely on high-grade ceramics and specialized heavy-duty alloys. We use robust insulators to prevent electrical shorting against the tank wall. Teflon (PTFE) works exceptionally well for lower temperatures and moderate heat applications. However, it fails rapidly in extreme heat. For processes reaching 800°C, engineers must specify dense ceramic or aluminum oxide insulators.

We also deploy active thermal decoupling techniques. Process heat must never reach the sensitive processing electronics. We design long standoff lengths, commonly known as cooling extensions. These extensions physically separate the transmitter head from the high-temperature process vessel. Integrated aluminum fins dissipate extreme heat into the ambient air. This keeps the internal circuit boards well within safe operating limits.

Extreme process temperatures almost always correlate with high vessel pressures. You must maintain complete pressure integrity at all times. Robust process connections are absolutely mandatory. We incorporate secondary process barriers into the internal probe design. These barriers prevent catastrophic gas blowouts. If the primary process seal fails due to corrosion, the secondary barrier contains the hazardous gas. You protect your maintenance personnel and secure your plant environment.

High-Value Applications and Technical Substitution

Many facilities proactively replace failed conventional sensors with RF technology. We see this successful substitution across several highly demanding industries.

• Oil & Gas Refining (Emulsion Layers): Desalters and dehydrators contain complex, unpredictable emulsion layers. An RF admittance sensor reliably reads the true electrical interface. It completely ignores heavy emulsion bands. It also bypasses highly insulating residues like liquid sulfur, ensuring precise separation control.

• Water / Wastewater (Heavy Foam): Anaerobic digesters produce thick, heavy, conductive foam. Traditional ultrasonic devices lose their acoustic signal in this foam. RF admittance completely ignores the heavy foam layer. It accurately measures the actual liquid level beneath. It also tracks biological gas volume above a floating roof.

• Abrasive & High-Viscosity Solids: Mechanical wear destroys basic probes rapidly. Extreme stickiness causes continuous false alarms. We use heavy-duty RF probes for fly ash in power plant precipitators. They excel in monitoring foundry machinery sand, molten glass, and high-viscosity food products like thick syrups.

• Low-Conductivity Fluids: Pharmaceutical facilities rely on ultra-pure deionized water. Traditional capacitance sensors experience severe signal drift here. They drift because deionized water has a very low dielectric constant. Micro-changes in conductivity confuse basic sensors. The RF circuitry ignores these minor shifts, ensuring stable pharmaceutical batch control.

Evaluation Framework: Specifying the Right RF Admittance Transmitter

You must rigorously evaluate process variables before purchasing a new sensor. The dielectric constant (DK) matrix strictly dictates your physical probe selection.

If you measure conductive media, fully insulated probes are critical. They prevent catastrophic short-circuiting against the metallic tank wall. If you measure non-conductive media in non-metallic vessels, you need a stable reference ground. Concentric metallic ground tubes serve this exact purpose perfectly.

Let us translate these technical specifications into actionable business value using the FLEX approach.

1. Efficiency: Look for standard two-wire 4-20mA loop-powered systems. They drastically simplify your wiring requirements and reduce initial installation time.

2. Safety: Ensure the electronics housing meets strict explosion-proof standards. You need intrinsically safe designs for all hazardous area classifications.

3. Handling: Assess the physical customizability of the probe. Can the vendor supply bendable probes for extremely tight installation spaces? You might also need remote electronics options for high-vibration tanks.

Pay close attention to your specific vessel internals. Does the tank contain active mechanical agitators? Does it experience violent turbulent mixing? If so, you must physically protect the probe. We strongly advise installing metallic pipe shields. Engineers often call these stilling wells. They block turbulent physical forces and stabilize the immediate measurement area.

Implementation Realities and Rollout Risks

Deploying a new RF admittance system involves practical field challenges. Do not assume simple plug-and-play simplicity for extreme industrial processes. You must manage specific rollout risks.

First, understand the strict calibration assumptions. Initial setup always requires accurate baseline capacitance mapping. You must capture data points for a completely empty tank and a fully loaded tank. This routine establishes your exact measurement scale. Without this baseline mapping, proportional outputs remain wildly inaccurate.

Second, respect the physical probe length limits. Continuous level probes face very real physical constraints. Rigid metallic rods work perfectly for standard tanks up to three meters deep. However, deep grain or cement silos demand a totally different approach. You must transition from rigid rods to flexible cable probes when measuring bulk solids in massive silos. Heavy-duty cable probes handle the extreme downward physical pull of settling materials.

Third, address severe interference risks. Modern industrial plants generate massive electromagnetic interference (EMI). Large variable frequency drives (VFDs) and nearby high-voltage equipment will distort your sensitive signal. Proper grounding requirements are absolutely critical. You must directly ground the instrument shell to the true vessel ground. This crucial step eliminates electrical noise and ensures clean, proportional signal transmission.

Conclusion

RF Admittance level transmitters are not a generic solution. They serve as a highly specific, engineered fix for extreme temperature variations and severe material build-up. Standard sensors simply cannot survive 800°C heat or ignore heavy, baked-on coatings. You need active shielding to maintain process safety. We recommend starting your procurement process with a thorough fluid dielectric assessment. You must also map the thermal profile of your specific process vessel before shortlisting vendors. Finally, ask your manufacturer for proven field trial data. Request exact case studies matching your complex emulsion or severe coating scenarios to guarantee long-term performance.

FAQ

Q: Does RF Admittance work in non-metallic (plastic/fiberglass) tanks?

A: Yes, but it requires a reference ground. Standard systems rely on a metallic tank wall to complete the measuring circuit. For plastic or fiberglass vessels, you achieve this by installing a concentric metallic ground tube around the probe. Alternatively, you can install a secondary metallic grounding rod parallel to the main sensor.

Q: What is the difference between point level and continuous level RF Admittance?

A: Point level acts as a simple on/off switch. It triggers high or low alarms to prevent overflows or dry pump runs. Continuous level provides a real-time, proportional 4-20mA signal across the entire probe length, showing exactly how much material remains inside the vessel at any given moment.

Q: How does a change in the medium's composition affect measurement?

A: Minor shifts in conductivity are generally ignored by the advanced RF circuitry. However, drastic changes in the base dielectric constant will require recalibration. For example, switching a storage tank from highly conductive water to completely non-conductive pure oil changes the baseline capacitance entirely, requiring a new setup.
