Stainless Steel Capillary Remote Reading Thermometer

Product Introduction

The Stainless Steel Capillary Thermometer is a mechanical thermometer for remote temperature measurement.

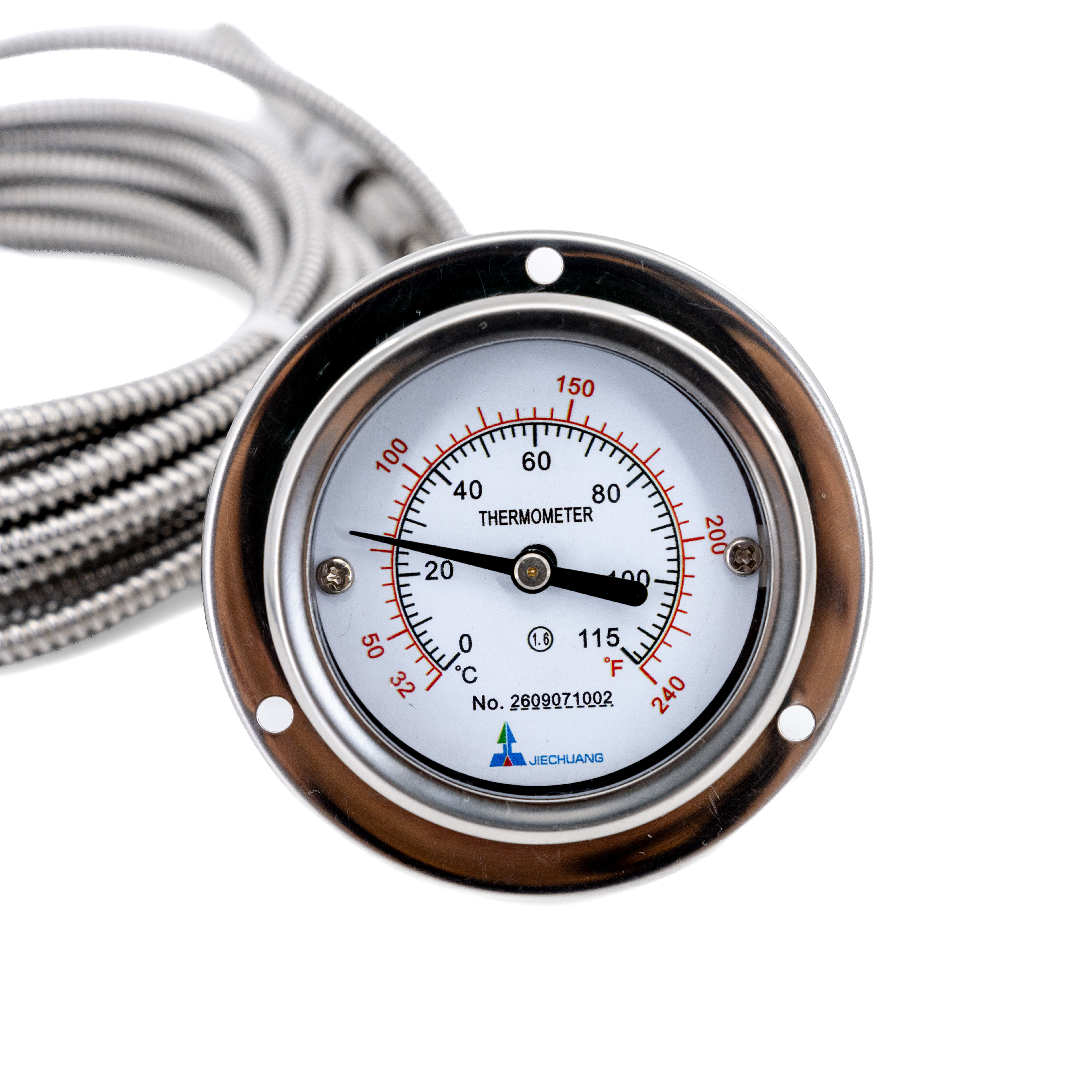

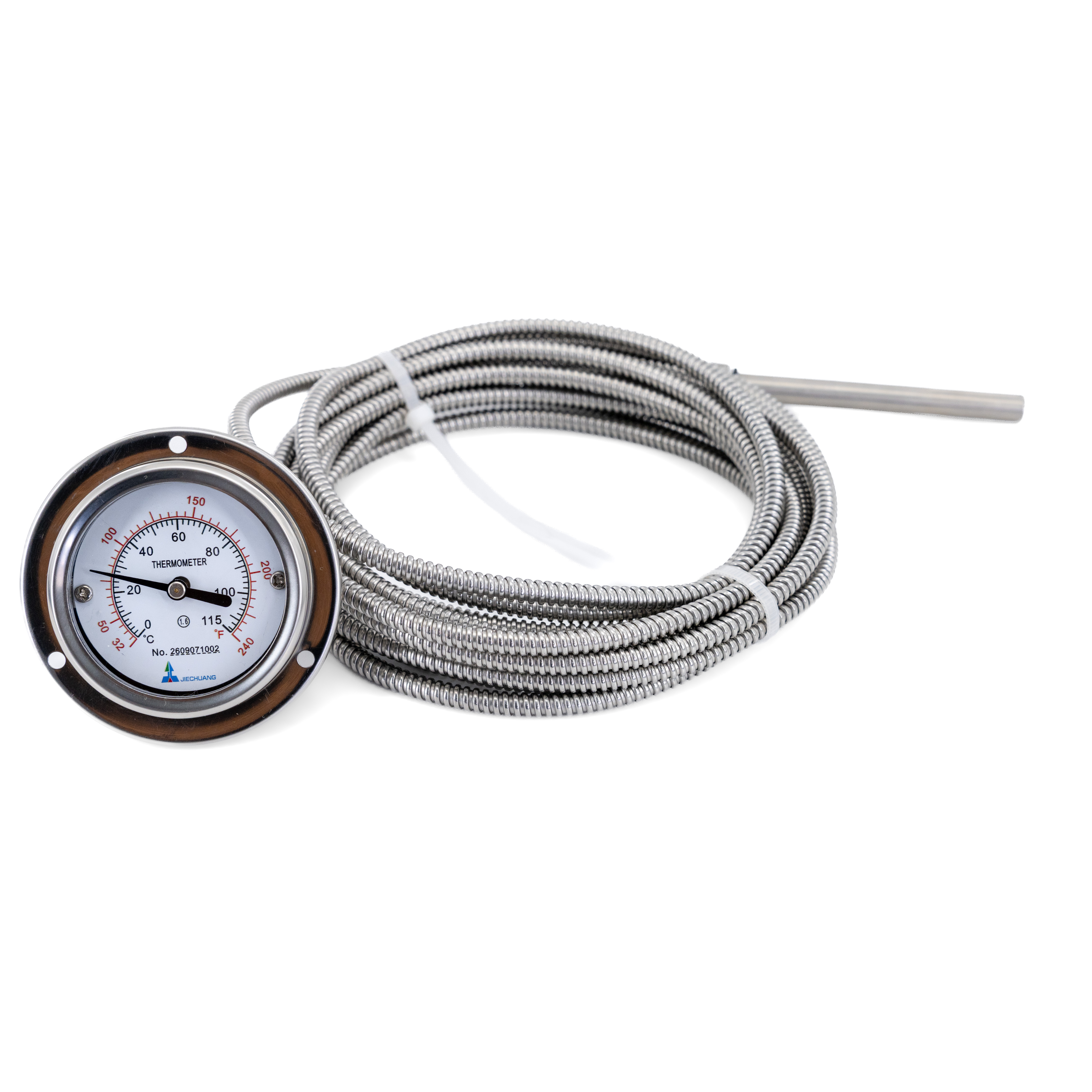

It has a 60 mm dial and a 5 m stainless steel capillary. The long capillary allows the dial to be installed away from the measuring point.

The thermometer features a dual °C/°F scale and a temperature range of 0-115°C / 32-240°F.

The stainless steel construction is suitable for industrial temperature monitoring. Dry and liquid-filled versions are available.

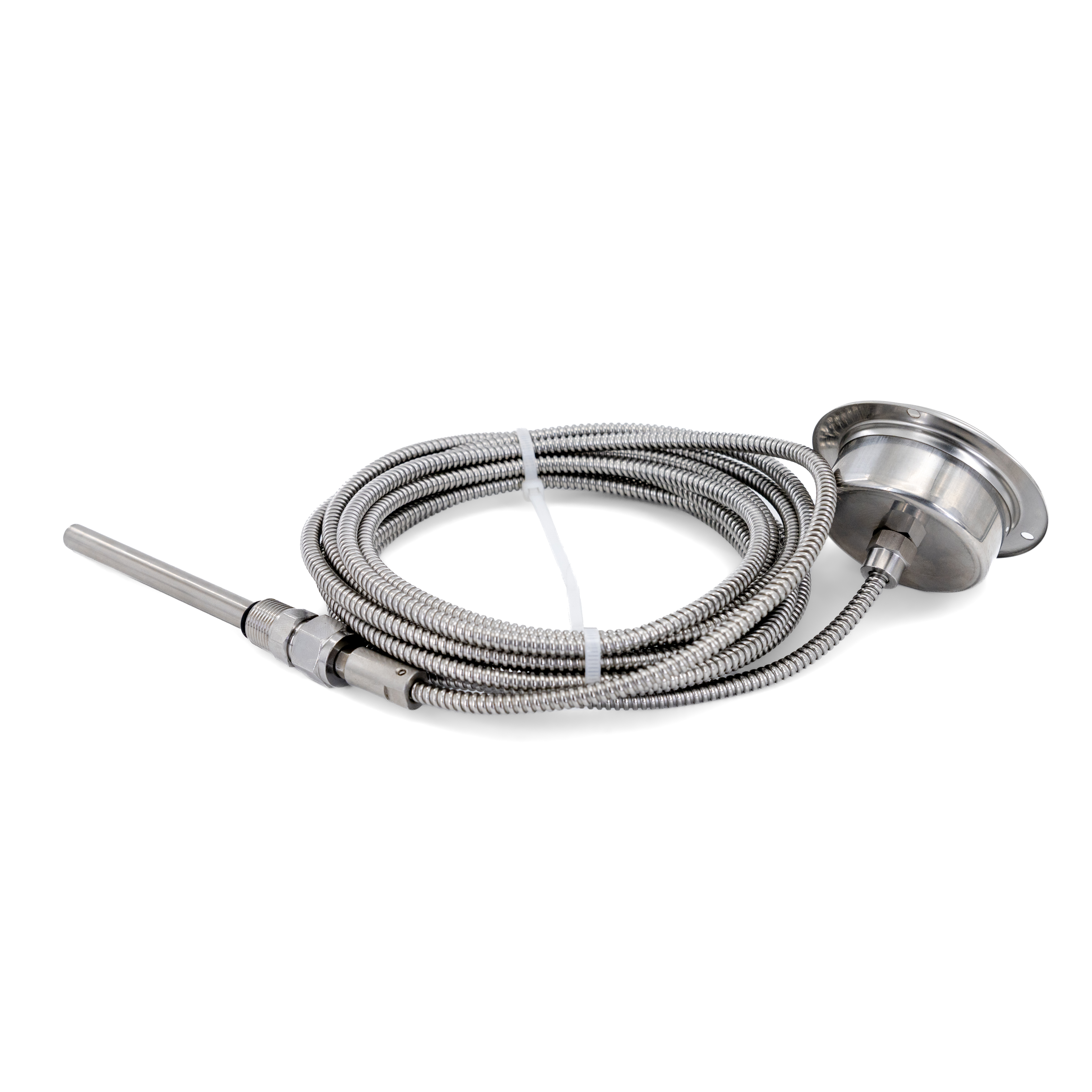

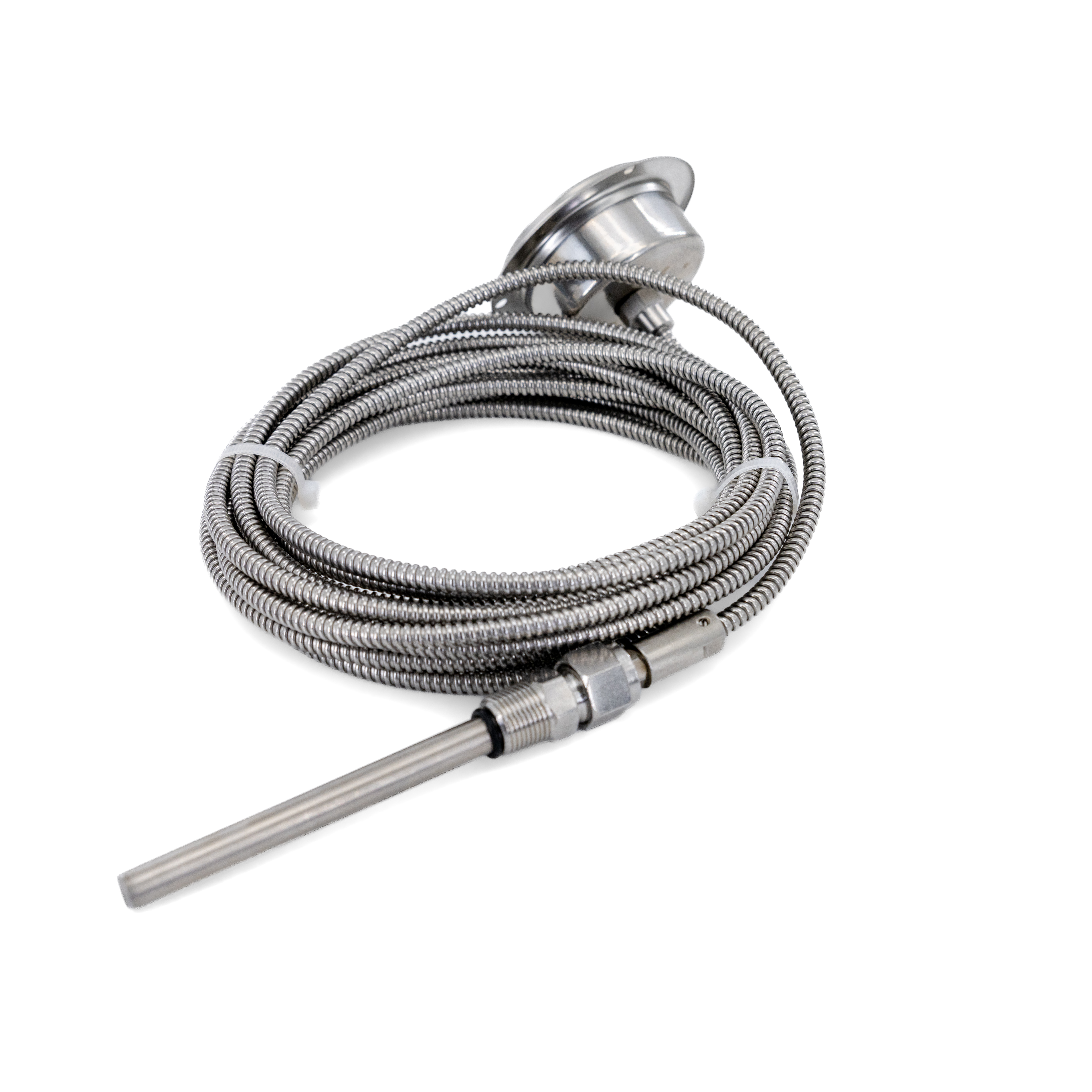

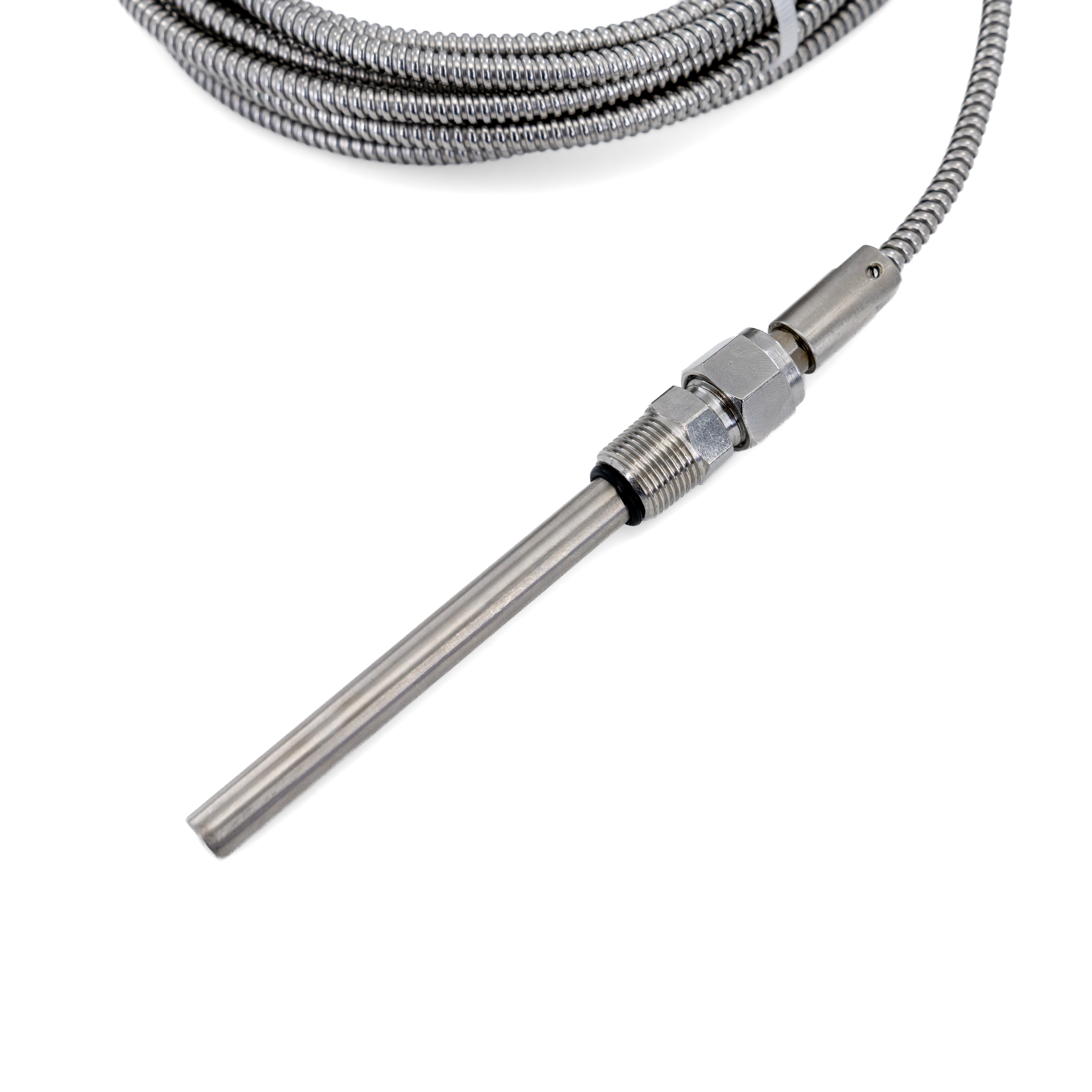

The 3/8" process connection, 100 mm insertion length and Ø10 mm stem are suitable for various equipment and process installations.

The capillary length, connection, stem size and other specifications can be customized.

Applications

• Industrial process temperature measurement

• Water and oil temperature measurement

• Boilers and heating systems

• Tanks and vessels

• HVAC and cooling systems

• Pumps and process equipment

• Chemical and general industrial equipment

• Applications where the display needs to be away from the measuring point

Main advantage:
The long capillary allows the thermometer to be installed at a convenient viewing position while the sensing stem is installed at the process point.

Features

• 60 mm compact dial

• 5 m long capillary

• Remote temperature reading

• Dual °C/°F scale

• 0-115°C / 32-240°F range

• Stainless steel construction

• 3/8" process connection

• Dry or liquid filled optional

• 100 mm insertion length

• Φ10 mm stem

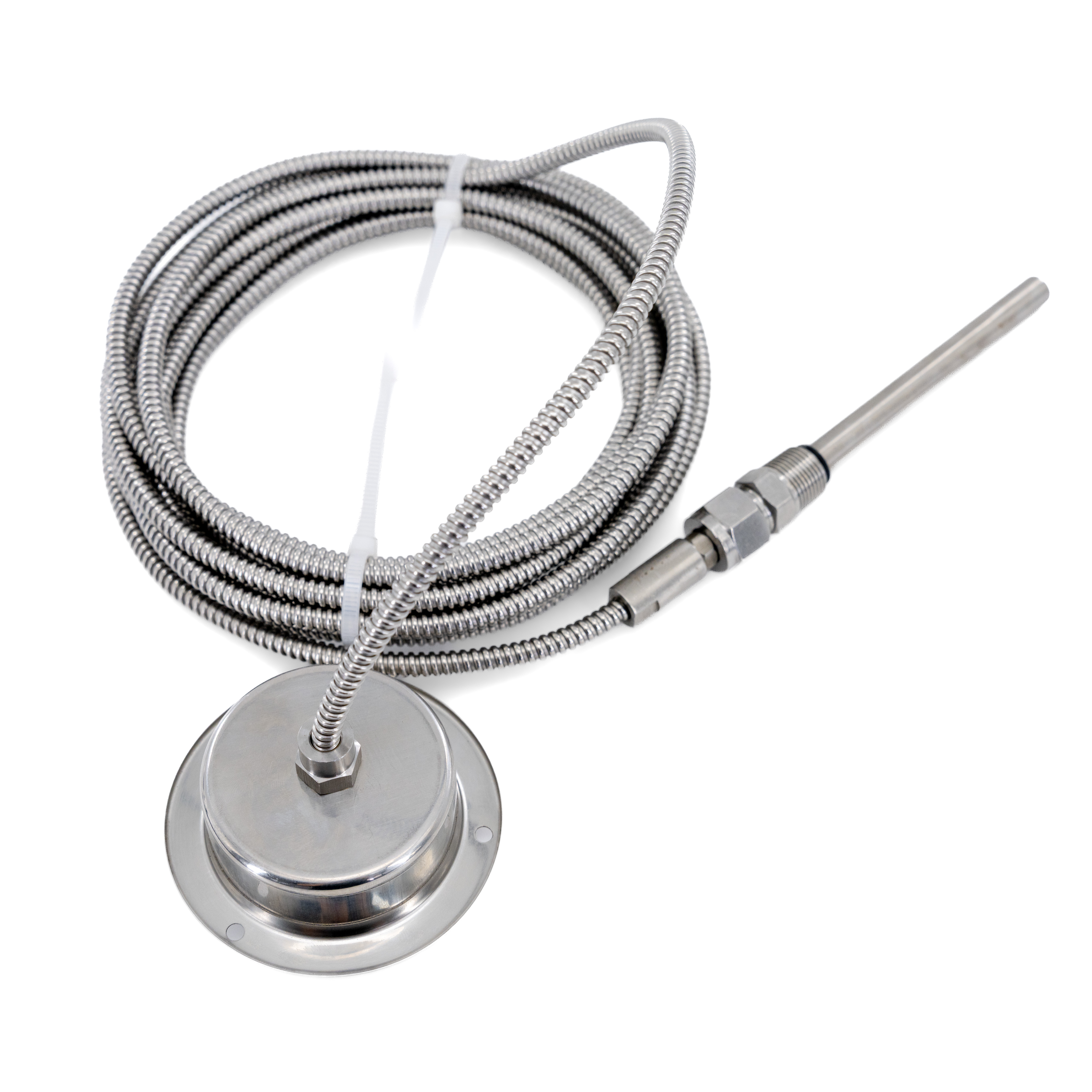

• Front flange mounting

• Custom specifications available

Technical Specifications

Note: Specifications can be customized according to customer requirements.
