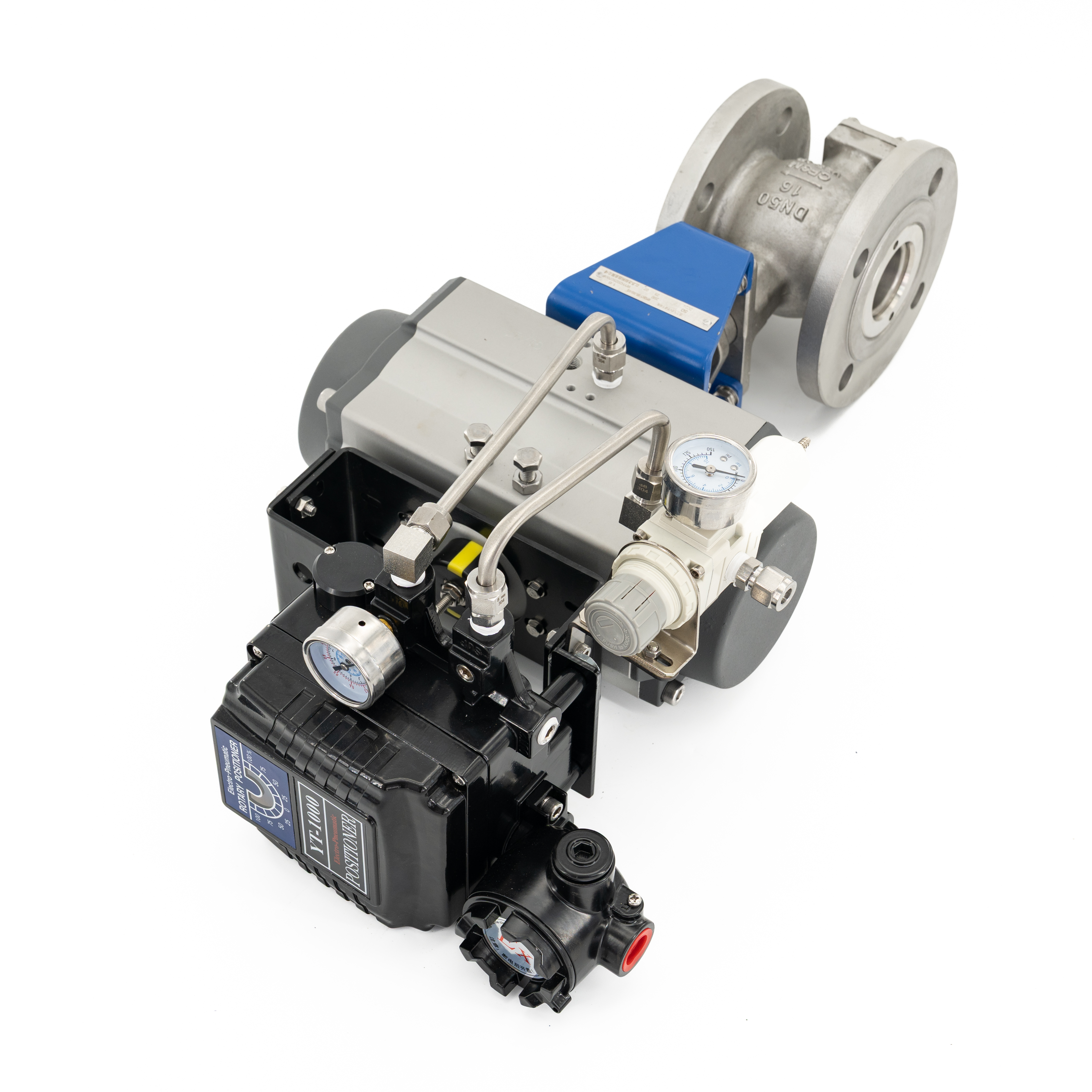

Pneumatic V-type Modulating Control Ball Valve

Pneumatic V-type Modulating Control Ball Valve

Product Overview

• This V-port ball valve adopts V-cut sphere for stable flow adjustment.

• It matches YT-1000 electro-pneumatic positioner to receive 4-20mA signal for 0~100% opening control.

• Stainless steel structure resists abrasion from slurry and corrosive liquid.

• Whole set is pre-assembled and tested in factory for quick field installation.

Application

• Pulp & Paper: pulp fiber slurry flow regulation

• Chemical Industry: acid, solvent and corrosive medium flow control

• Water Treatment: chemical dosing and pipeline flow adjustment

• Metallurgy: mineral slurry and granular medium throttling

• Food & Pharmacy: raw material liquid precise modulating

Product Features

1. Optimized V-notch ball design forms equal-percentage flow characteristic, realizing stable proportional flow control from 0% to 100% stroke.

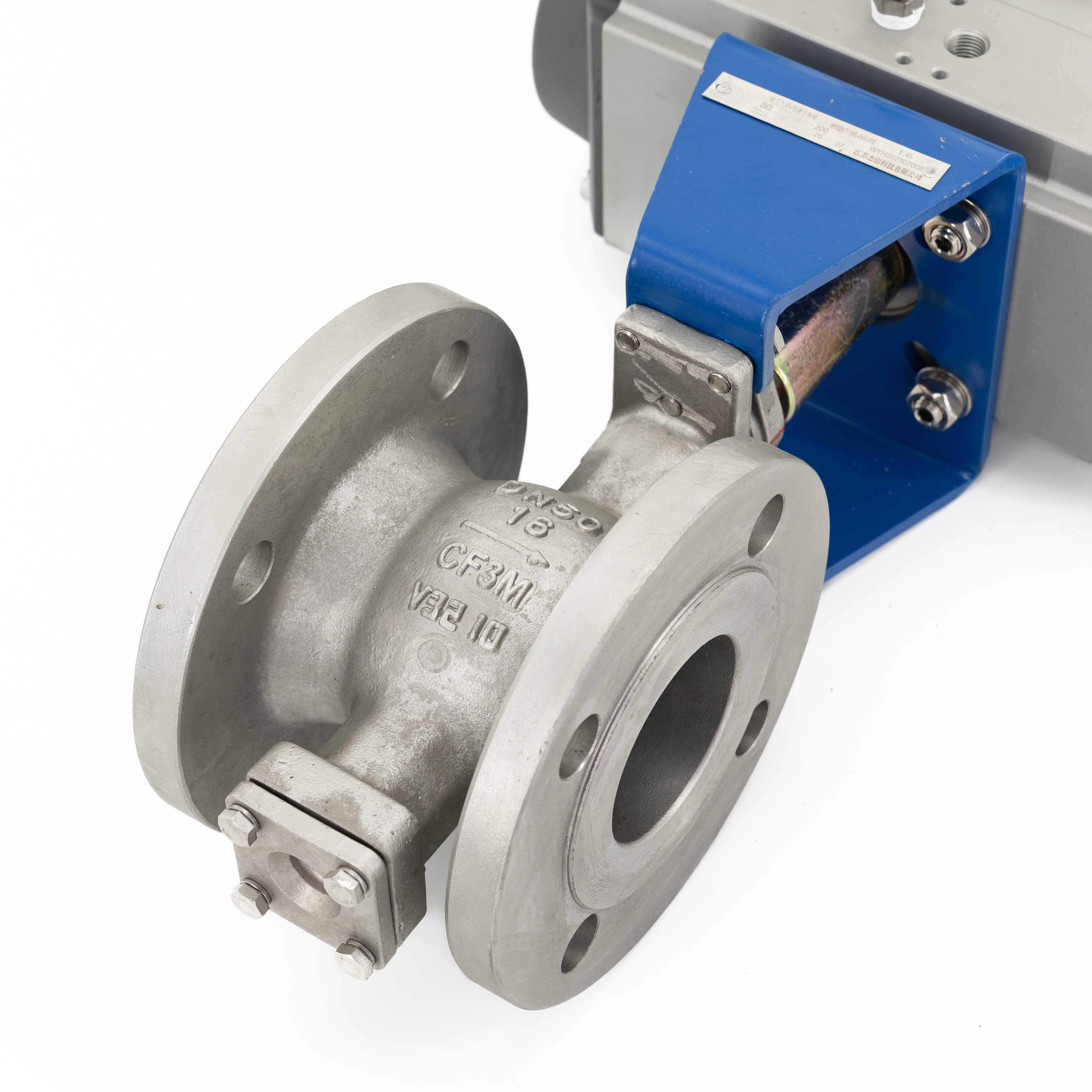

2. CF8/CF3M stainless steel body and ball improve wear resistance, well suited for slurry, fiber and easy-scouring medium.

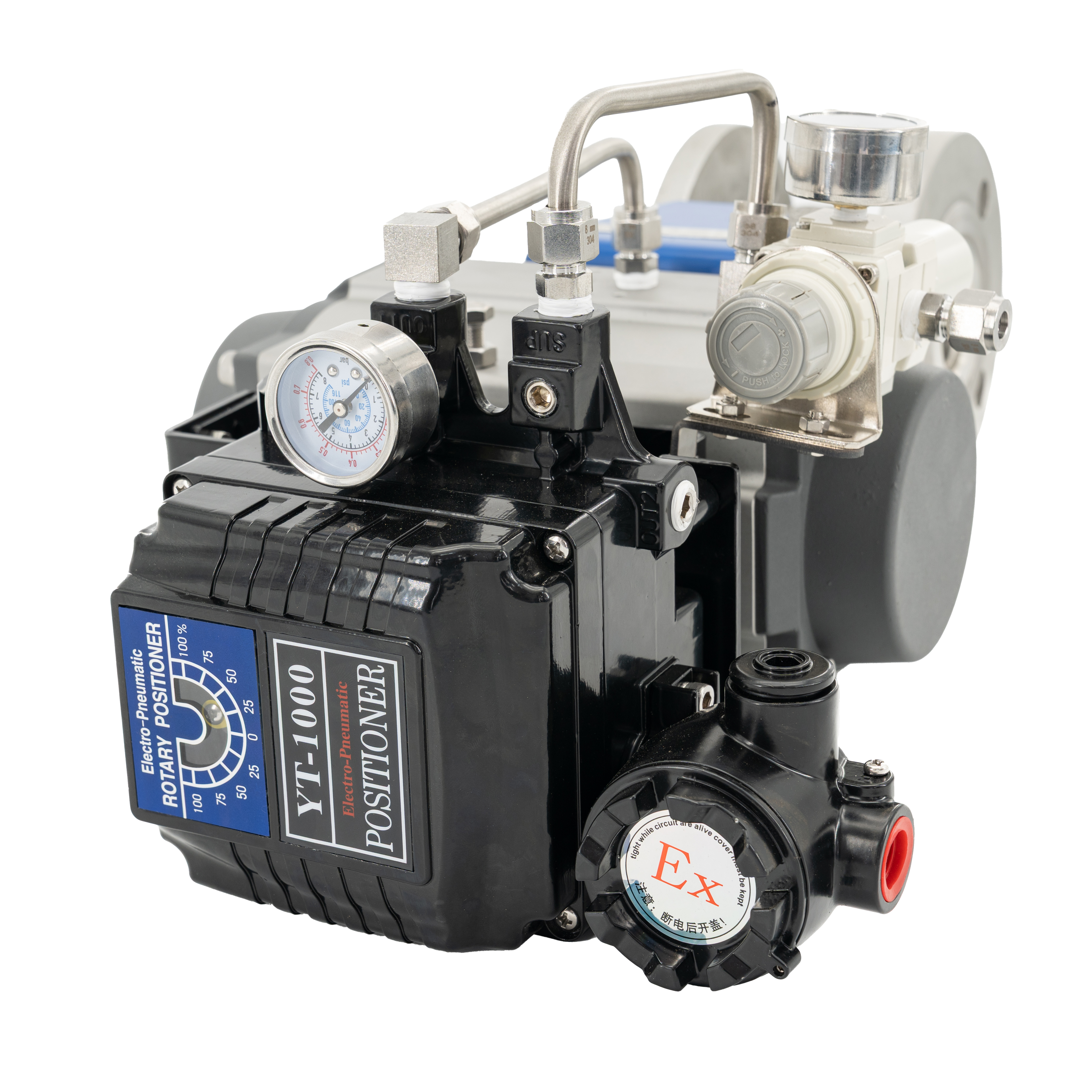

3. Supporting YT-1000 series electro-pneumatic positioner with standard 4-20mA DC input signal; EX explosion-proof structure is optional for flammable site.

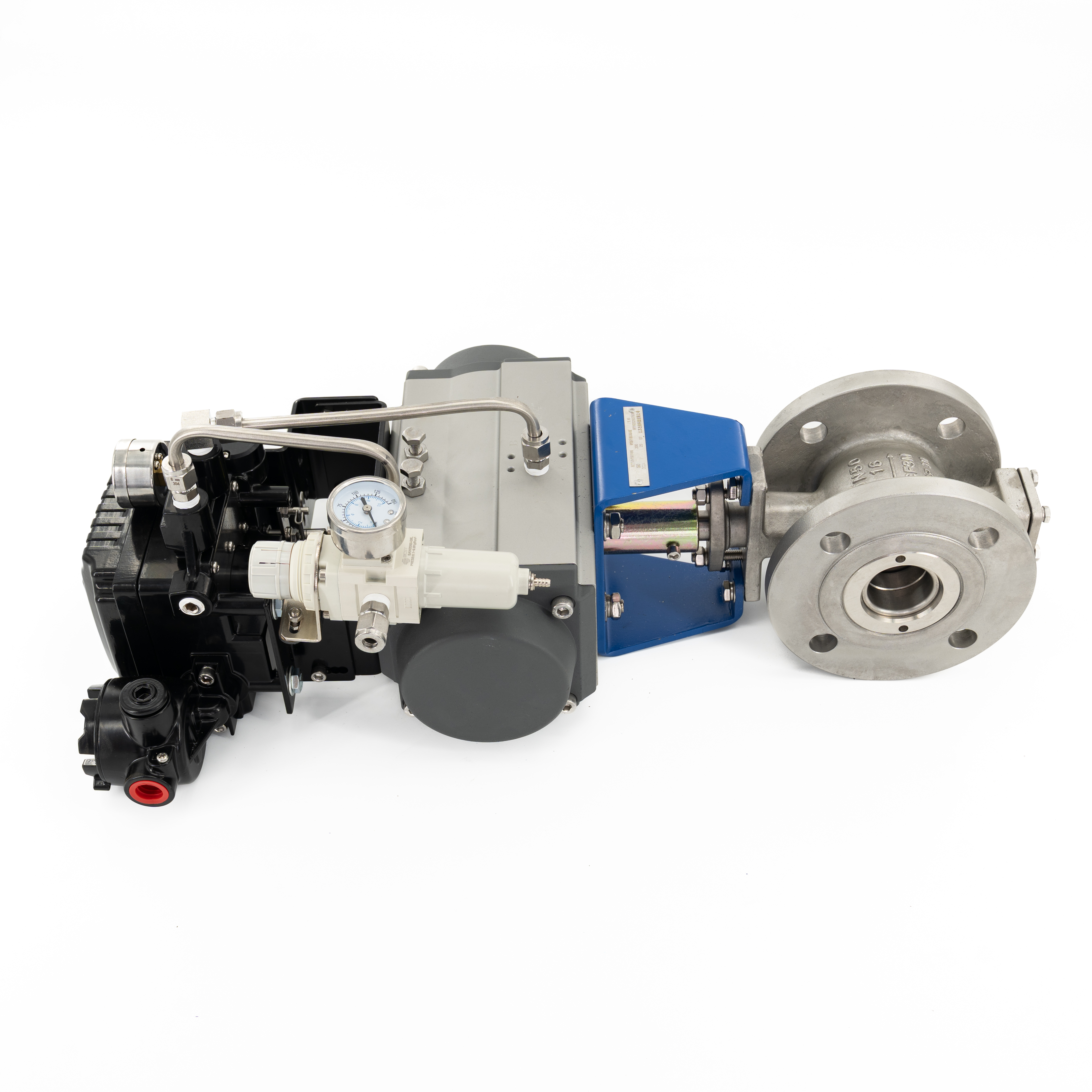

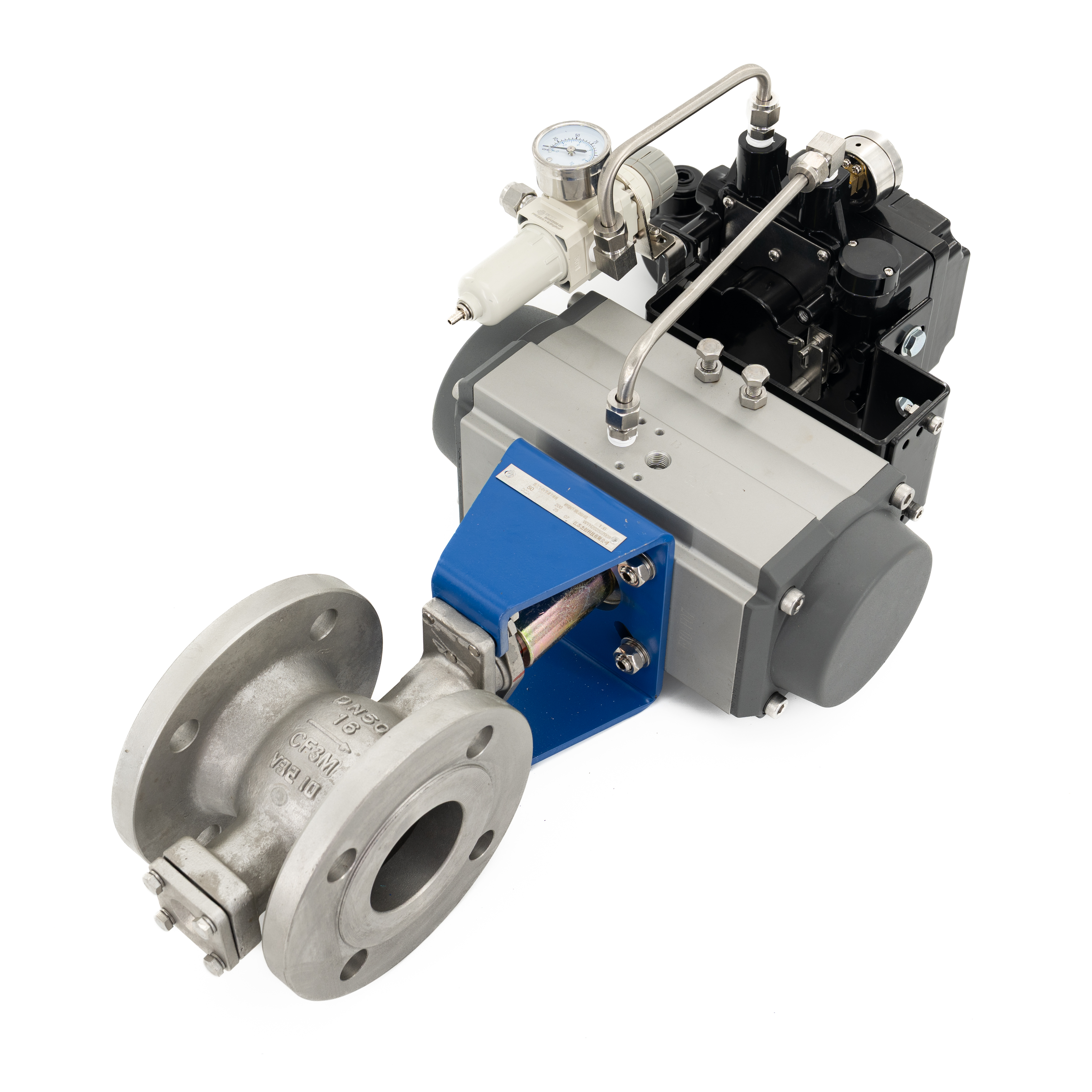

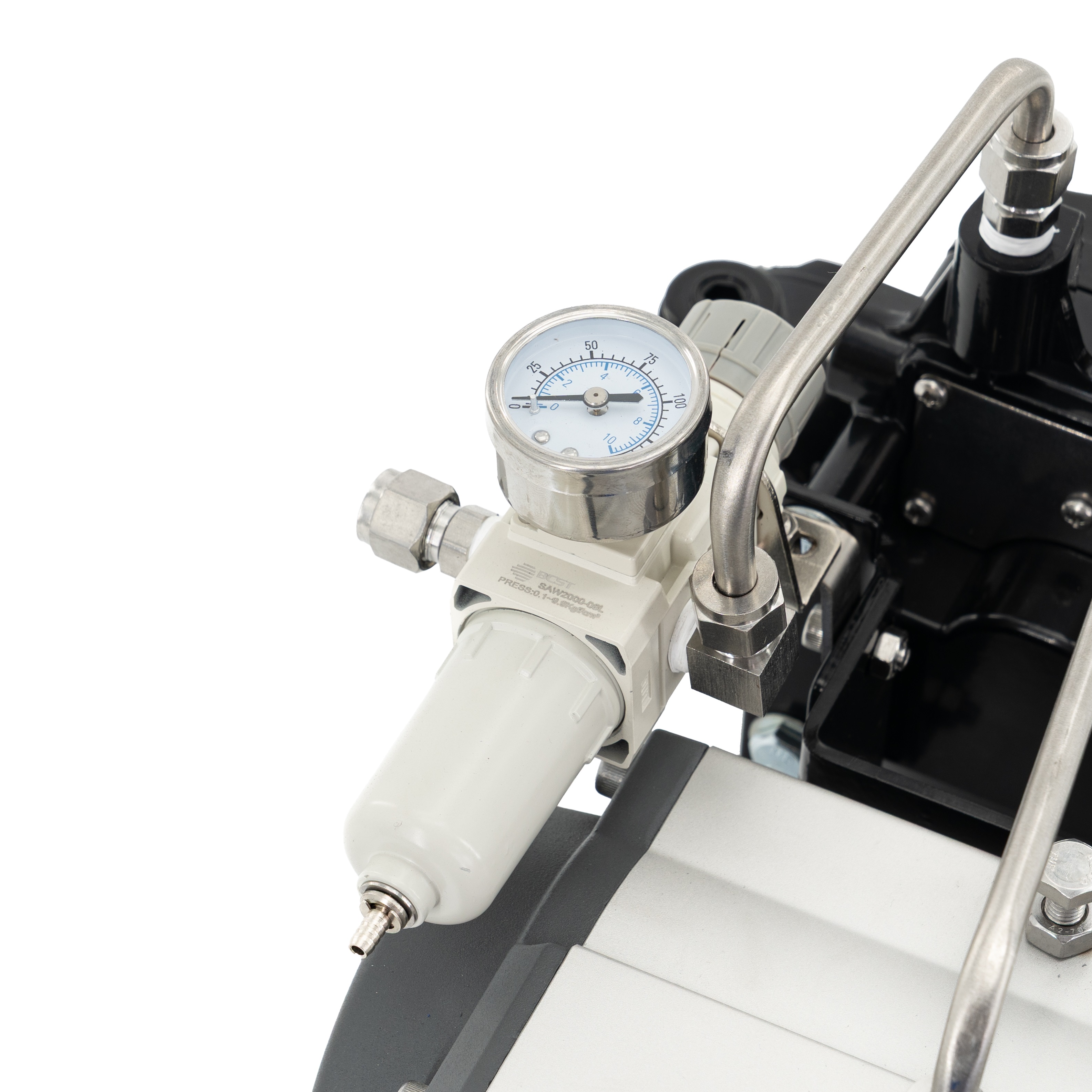

4. Complete combination of pneumatic actuator, air filter regulator, positioner and pressure gauge, finished full performance test before leaving factory.

5. Fixed ball + spring preloaded valve seat structure, realizes reliable tight shut-off besides precise throttling, meets dual requirement of regulating and shut-off.

6. Standard ISO5211 top flange connection, convenient for daily maintenance and accessory replacement on site.

7. Standard anti-blowout stem prevents medium leakage; anti-static configuration can be customized for combustible fluid working condition.

Technical Parameters

All parameters can be customized as required.
