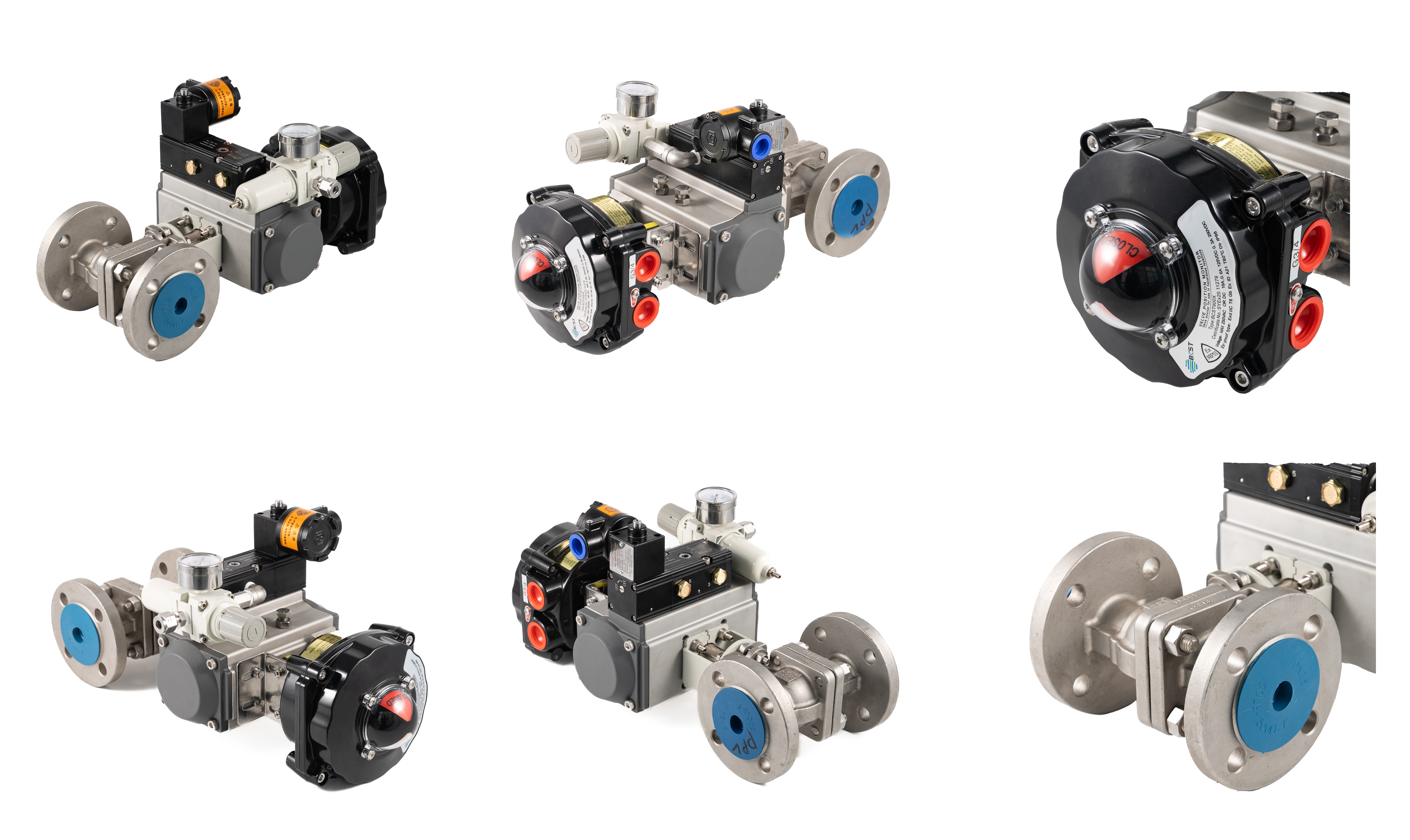

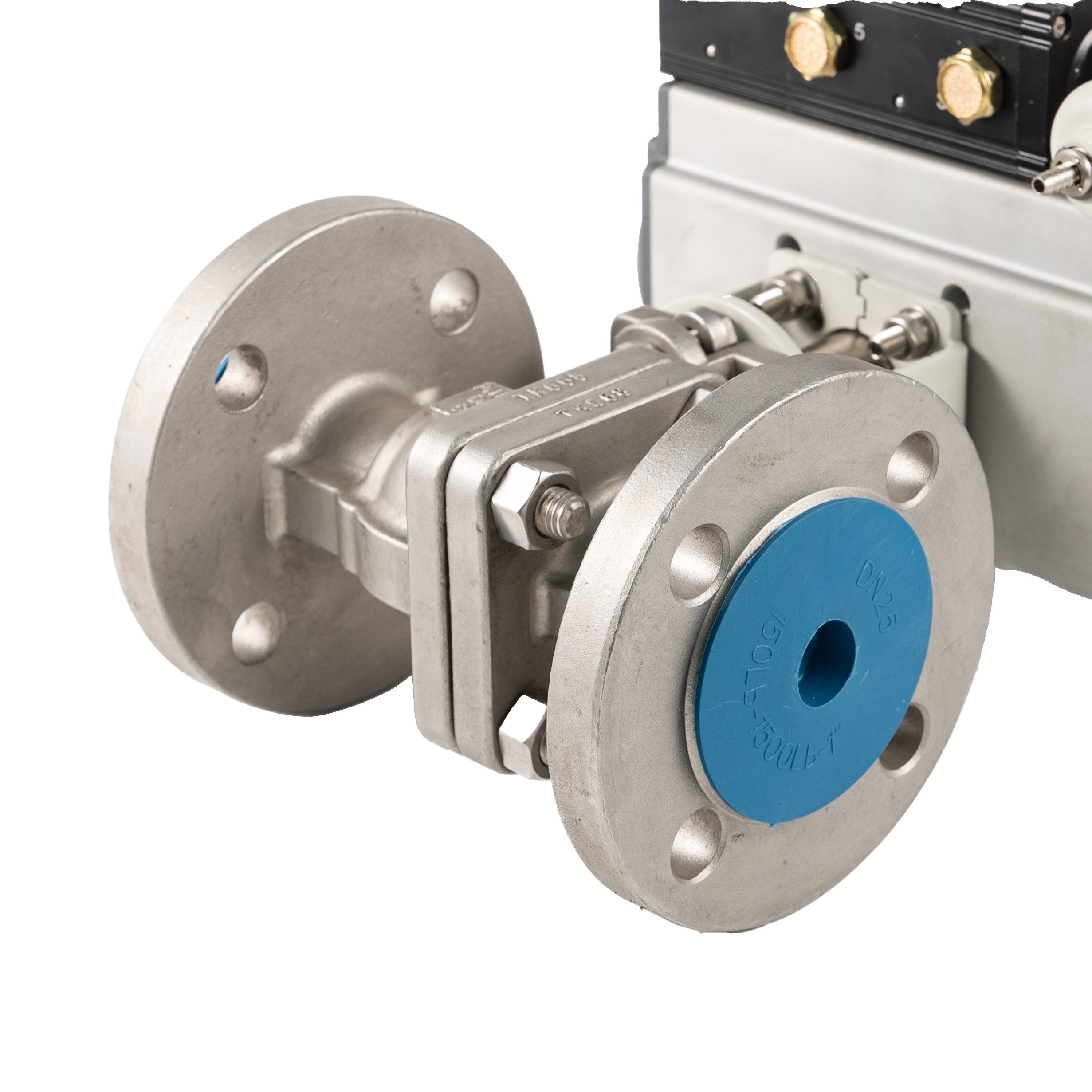

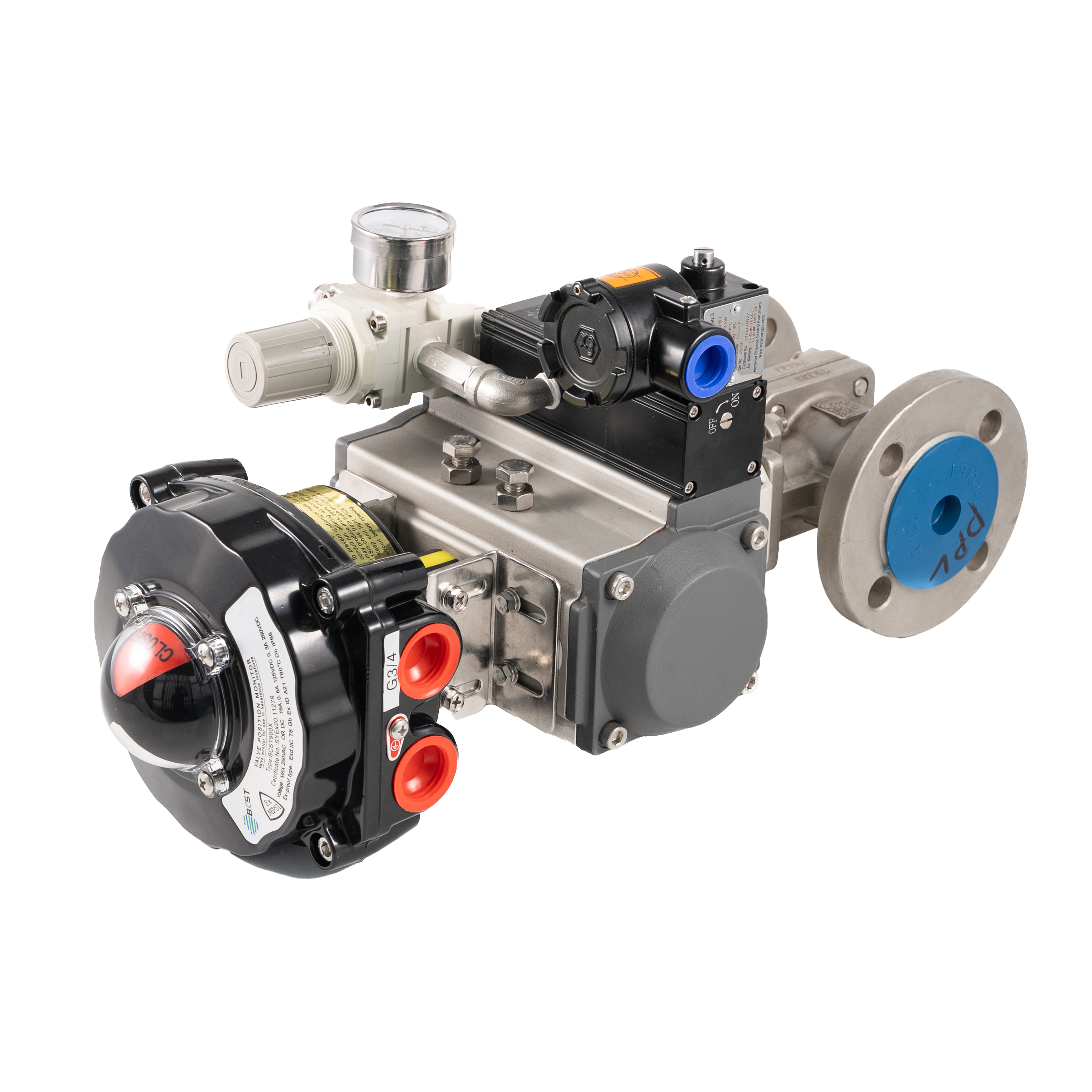

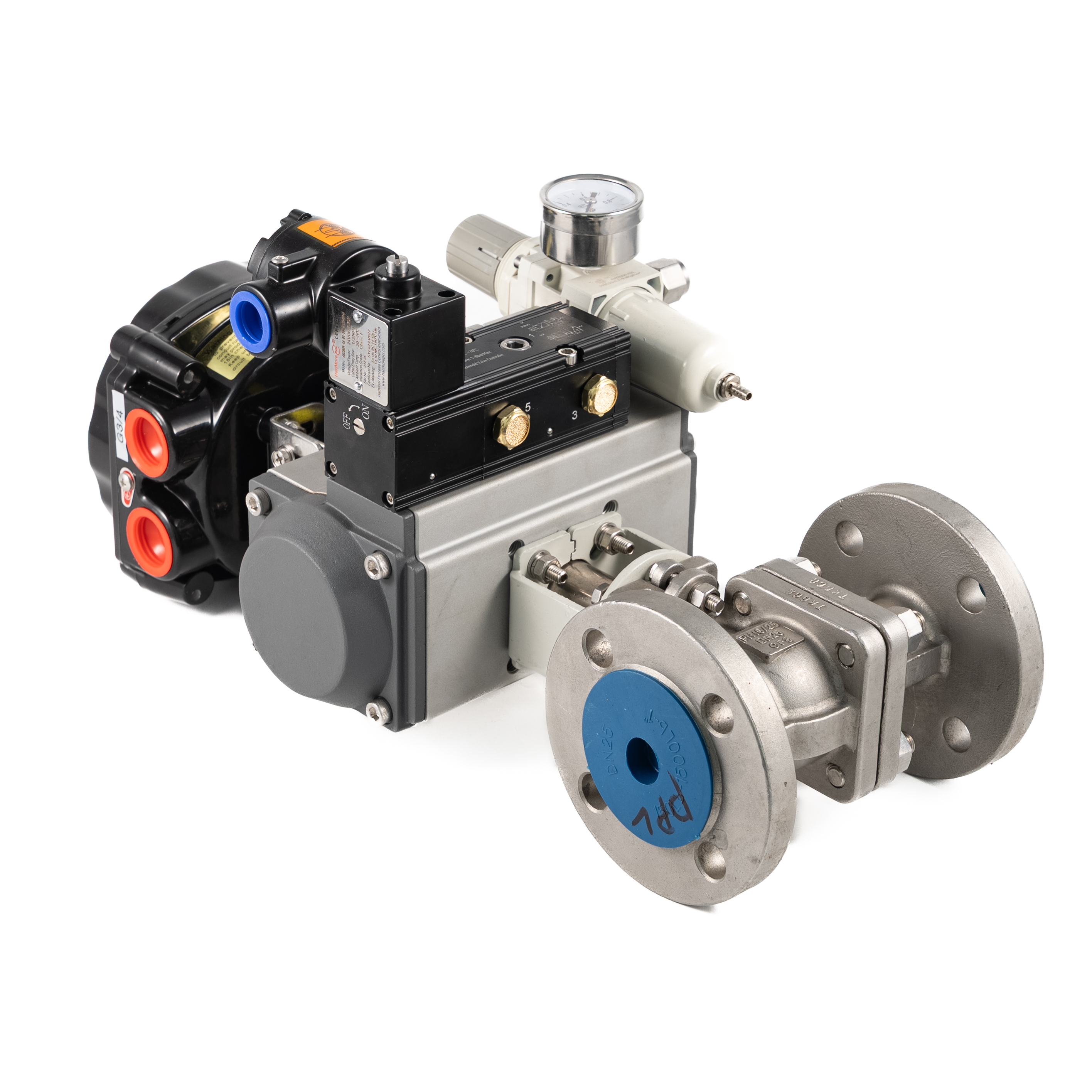

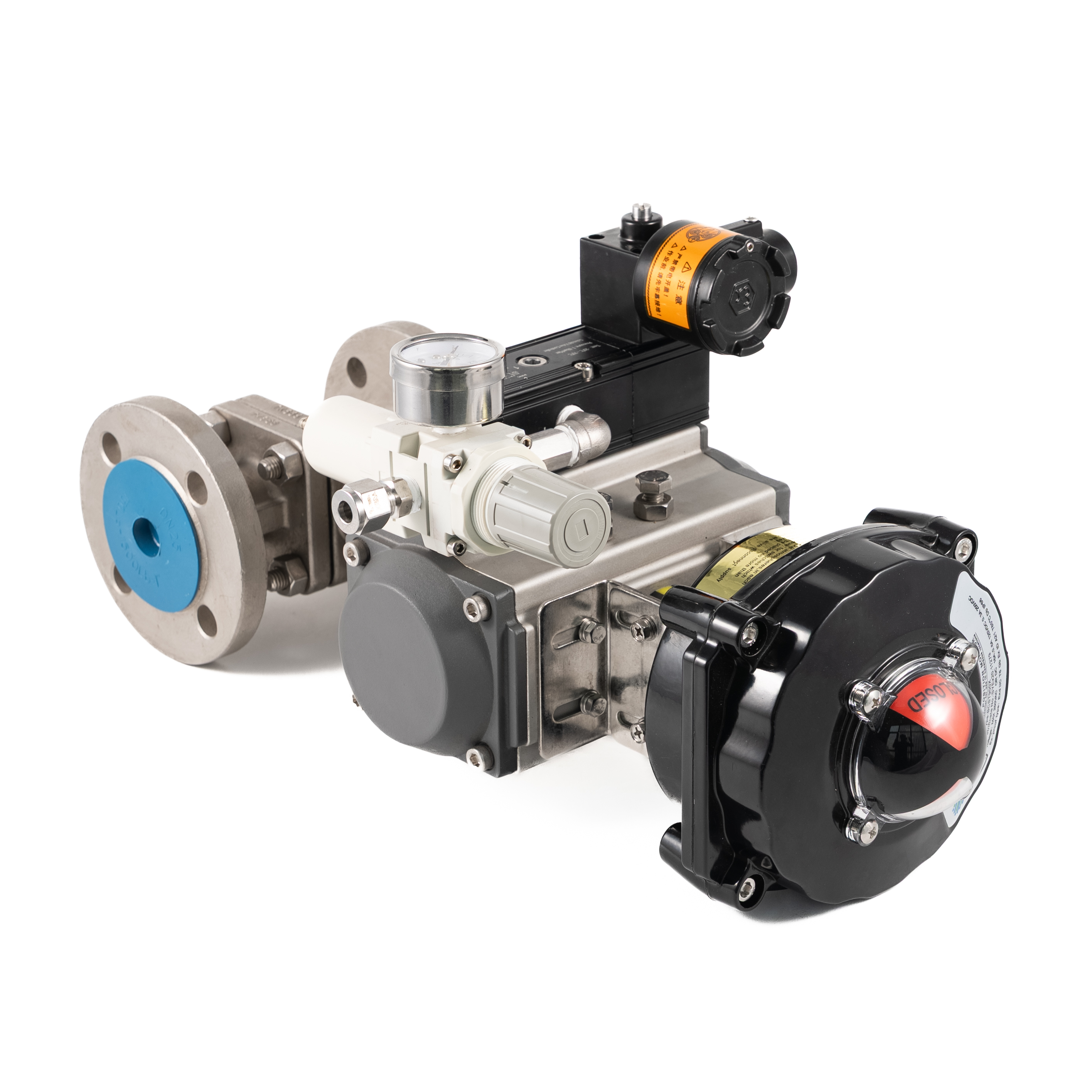

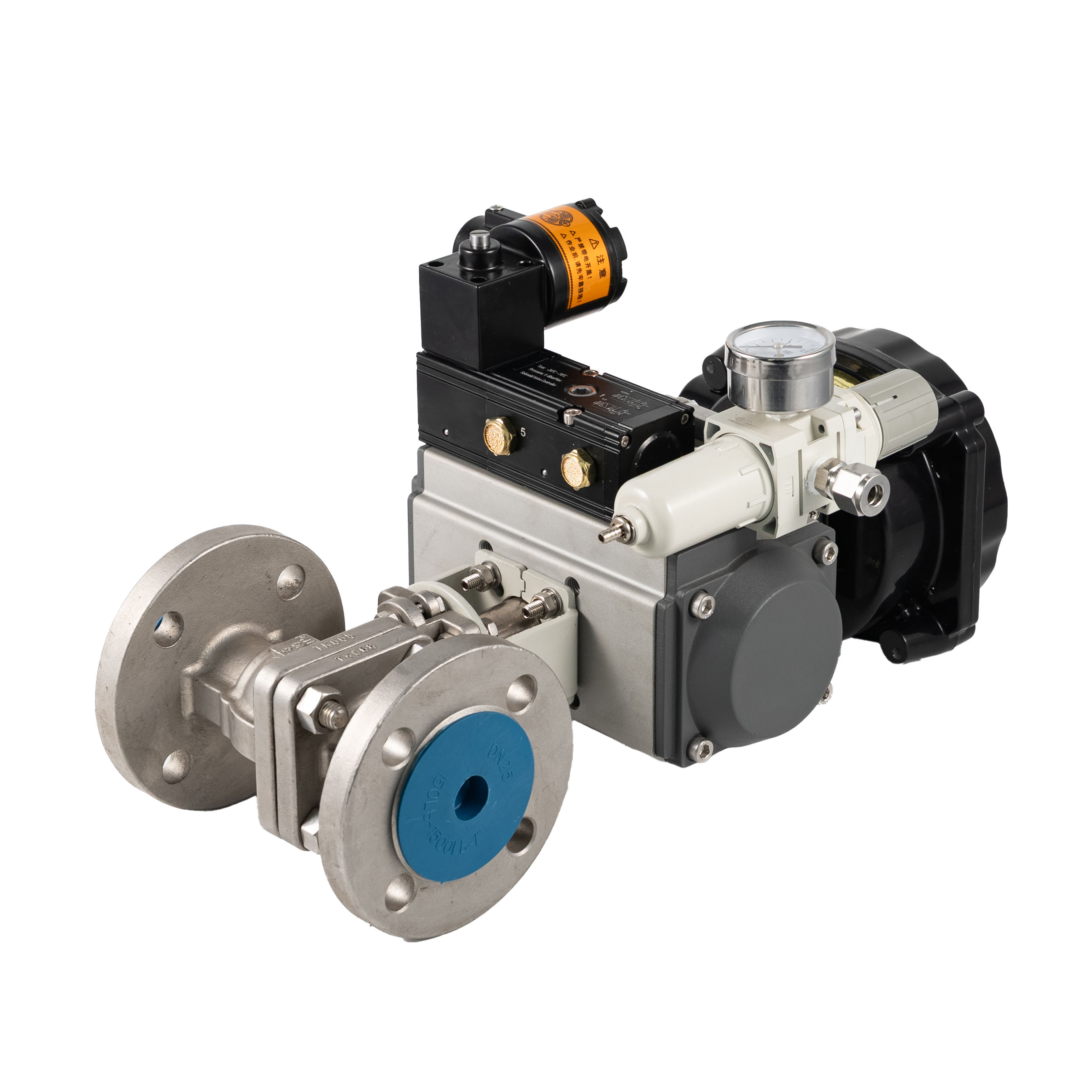

Pneumatic Flanged Stainless Steel O-type Cut-off Ball Valve
Product Overview
This pneumatic O-type shut-off ball valve has big flow rate, compact size, reliable seal and long service life. Low cost and easy maintenance.
Commonly used in petrochemical, gas, power, metallurgy, food and medicine for tight shut-off of water, steam, oil and liquefied gas. Fire-safe or special hardening treatment can be customized as needed.
Product Features
Valve body is cast or forged, compact and good-looking. The fixed ball stays close to seat while rotating, good for cutting dirt.
Spring-loaded seat auto-compensates wear, seals itself and releases cavity pressure, fits high temp & high pressure.
Fixed ball runs smoothly and cuts operating force.
Double-block & bleed fully opens/closes the valve. Choose front-seat, back-seat or double-side seal; soft or metal hard seal optional.
Inner cavity releases extra pressure automatically when liquid expands, no extra safety valve needed.
Grease fitting connects grease gun to fix sudden leakage from dirt or fire damage.
Optional: fire-safe, anti-static and anti-blowout stem.
Longer stem is available for low temperature use.
Technical Parameters
Item | Specification |
|---|---|
PN | PN1.6~6.4MPa、ANSI150LB~600LB |
DN | DN15~DN400 |
Connection mode | Flange PN16 convex surface, PN40,64 concave convex surface |
Body material | LCB、WCB、CF8、CF8M、CF3、CF3M |
Flow characteristics | ON-OFF |
Opening degree | 90° |
Valve core movement | Close the valve clockwise |
Seat form | Soft seat, metal seat(seal cover hardening) |
Suitable temperature | Soft seat: -20~+250℃ Metal seat: -60~+450℃ |
Leakage level | Soft seat: ANSI VI Metal seat: ANSI IV |
Design standard | GB/T 12237、ASME B16.34 |
Face To Face | GB/T12221、ASME B16.10 |
Test standard | GB/T13927、API598 |
Operation mode | Handle, gear, pneumatic |

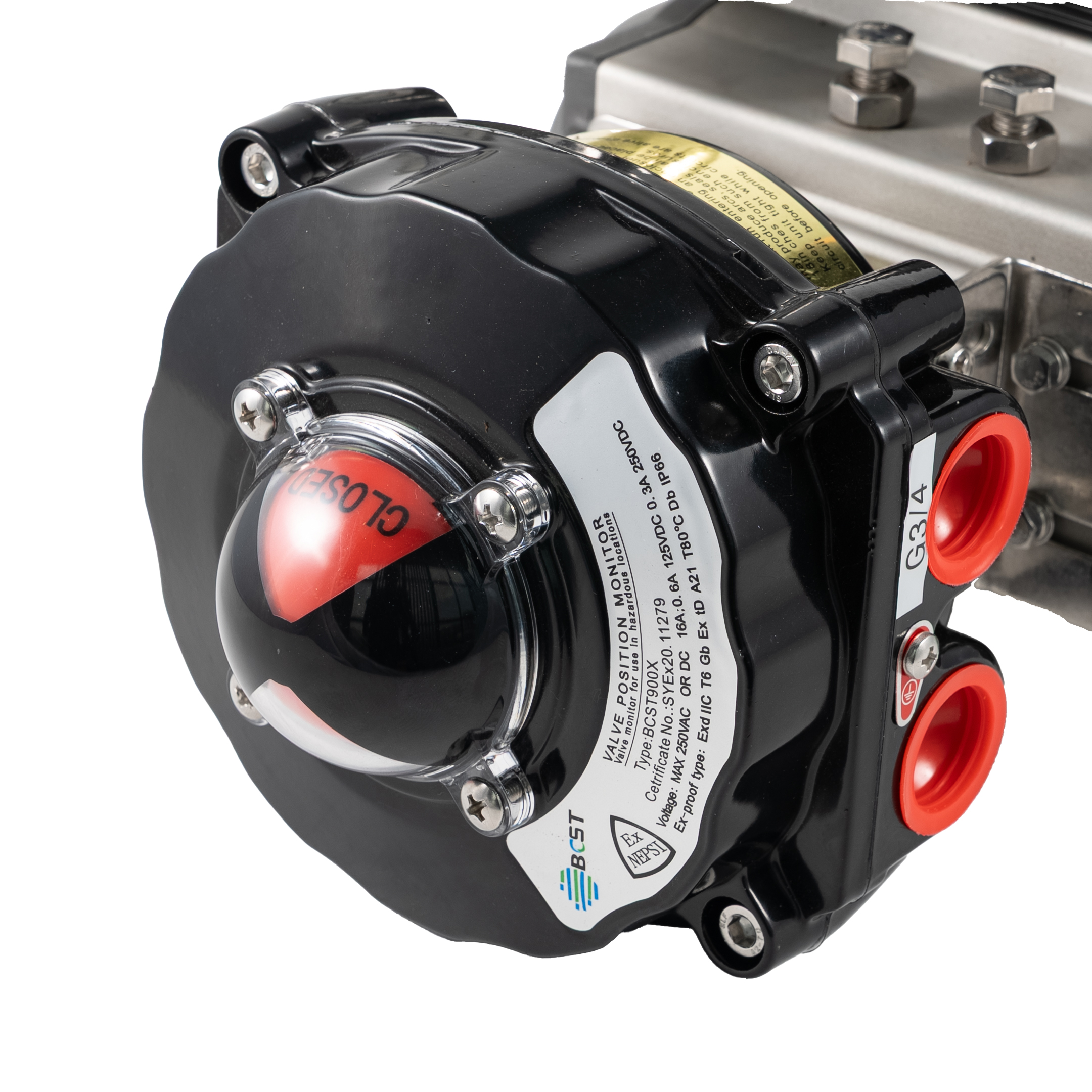

Pneumatic accessories | Solenoid valve, limit switch, air filtration reducing valve, protection valve, manual operation mechanism, quick discharge valve, etc. |
Optional Configuration
Fire-safe & anti-static available
Oil & water free cleaning service
Manual override available
Copper-free construction
Custom ball surface treatment
Custom flange & end connections
Custom coating as per request
Vacuum service available
Special inspection available
Sandproof / Low temp / Salt resistance optional
Part Material
Part name | Materials |
|---|---|
Body | WCB, CF8, CF8M, CF3, CF3M |
Ball | 2Cr13, SS304, SS316, 316+STL, etc. |
Sealing ring | PTFE, PPL, SS304, SS316, 316+STL, etc. |
Stem | 2Cr13, SS304, SS316, etc. |
Seat spring | Inconel, etc. |
Seat support ring | 2Cr13, SS304, SS316 |
Gasket | Spiral Wound Stainless Steel Graphite |
Thrust bushing | PTFE, Graphite |
Packing | V-PTFE, Graphite |

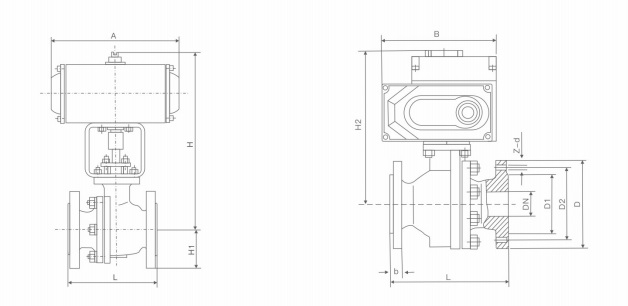

DN (mm) Nominal diameter | Floating ball PN16 | Fixed ball PN40,64 | D | D1 | D2 | b | Z-d | H | H1 | H2 | A | B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
25 | 150 | 165 | 115 | 65 | 85 | 14 | 4-14 | 320 | 60 | 182 | 222 | 161 |
32 | 165 | 178 | 135 | 78 | 100 | 16 | 4-18 | 350 | 70 | 188 | 222 | 161 |
40 | 180 | 190 | 145 | 85 | 110 | 16 | 4-18 | 370 | 75 | 198 | 294 | 161 |
50 | 200 | 216 | 160 | 100 | 125 | 16 | 4-18 | 380 | 85 | 203 | 294 | 161 |
65 | 220 | 241 | 180 | 120 | 145 | 18 | 4-18 | 410 | 95 | 222 | 300 | 188 |
80 | 250 | 283 | 195 | 135 | 160 | 20 | 8-18 | 420 | 105 | 237 | 300 | 188 |
100 | 280 | 305 | 215 | 155 | 180 | 20 | 8-18 | 555 | 115 | 281 | 380 | 268 |
125 | 320 | 381 | 245 | 185 | 210 | 22 | 8-18 | 660 | 125 | 300 | 380 | 268 |
150 | 360 | 403 | 280 | 210 | 240 | 24 | 8-23 | 724 | 140 | 300 | 450 | 268 |
200 | 457 | 502 | 335 | 265 | 295 | 26 | 12-23 | 774 | 170 | 368 | 603 | 268 |
250 | 533 | 568 | 405 | 320 | 335 | 30 | 12-25 | 885 | 205 | 418 | 683 | 268 |
