Product Introduction

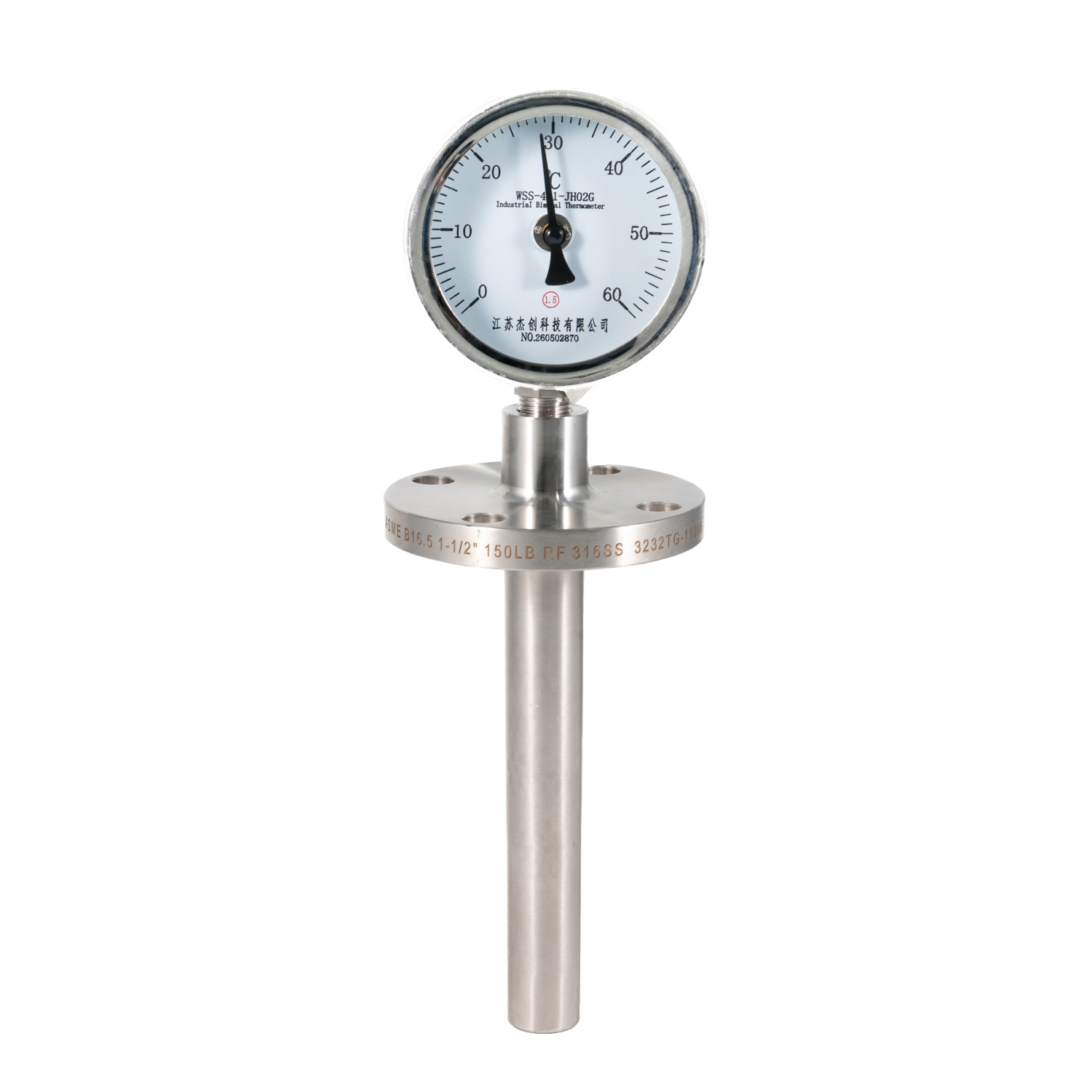

The WSS-481-JH02G Flanged Bimetal Thermometer is a mechanical temperature measuring instrument designed for direct local temperature indication in industrial processes.
It uses a helical bimetallic sensing element to convert temperature changes into mechanical pointer movement. No external power supply, battery or electrical wiring is required.

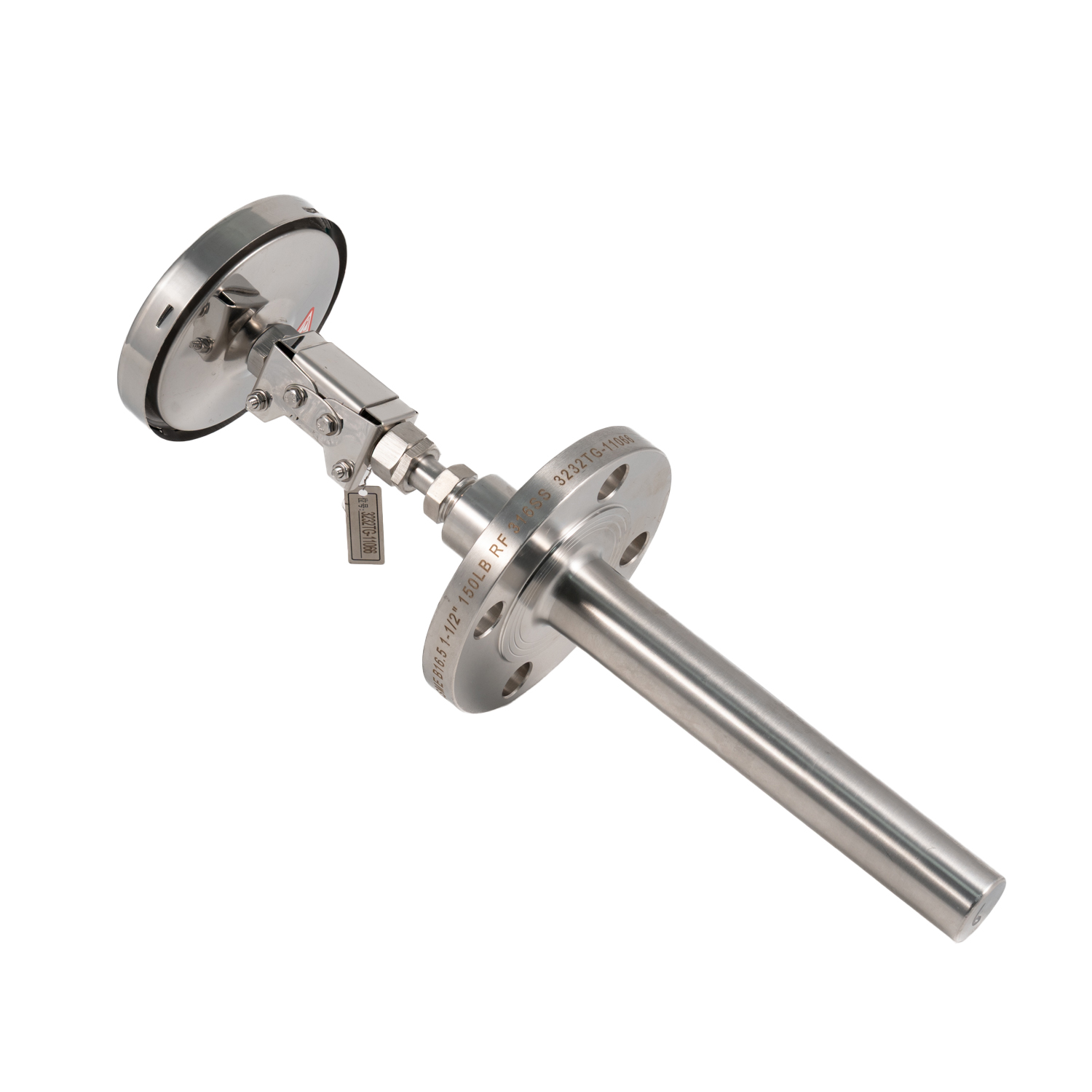

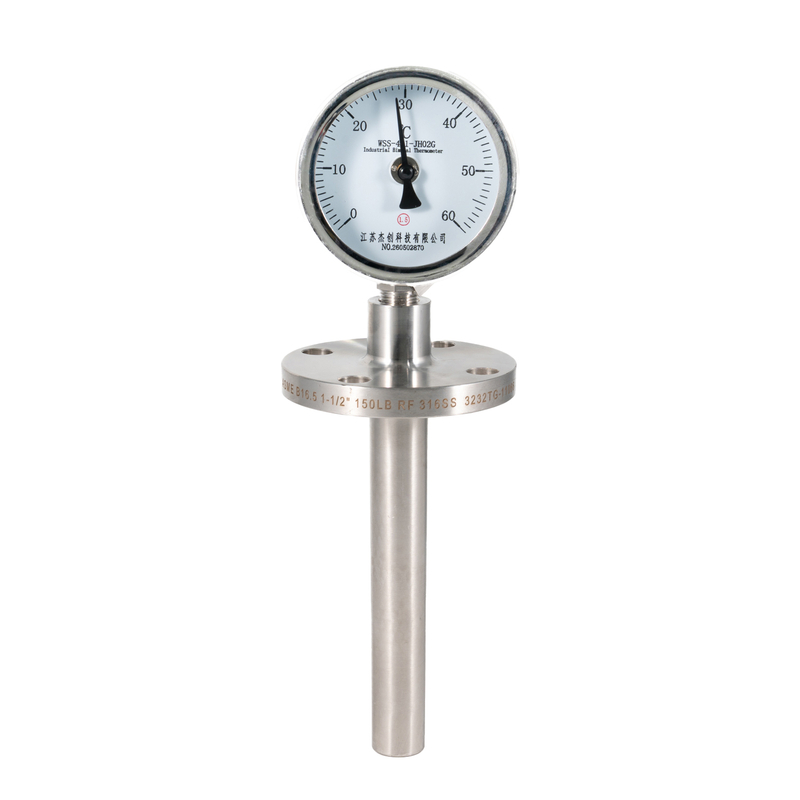

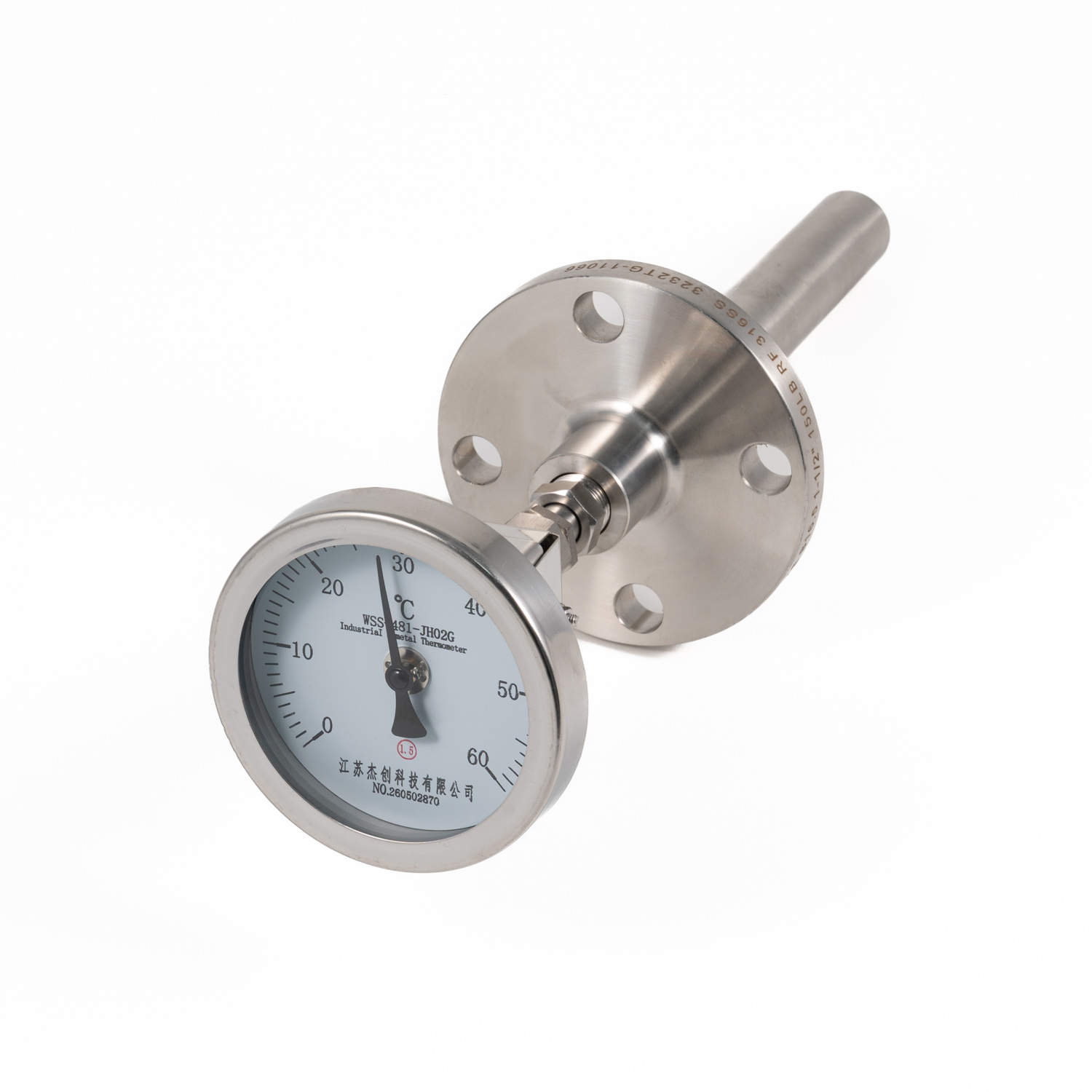

This model is equipped with a custom JH02G 316 stainless steel thermowell with a 1-1/2" (DN40) Class 150 RF flange. The thermowell provides mechanical protection for the sensing probe and separates the thermometer from the process medium.

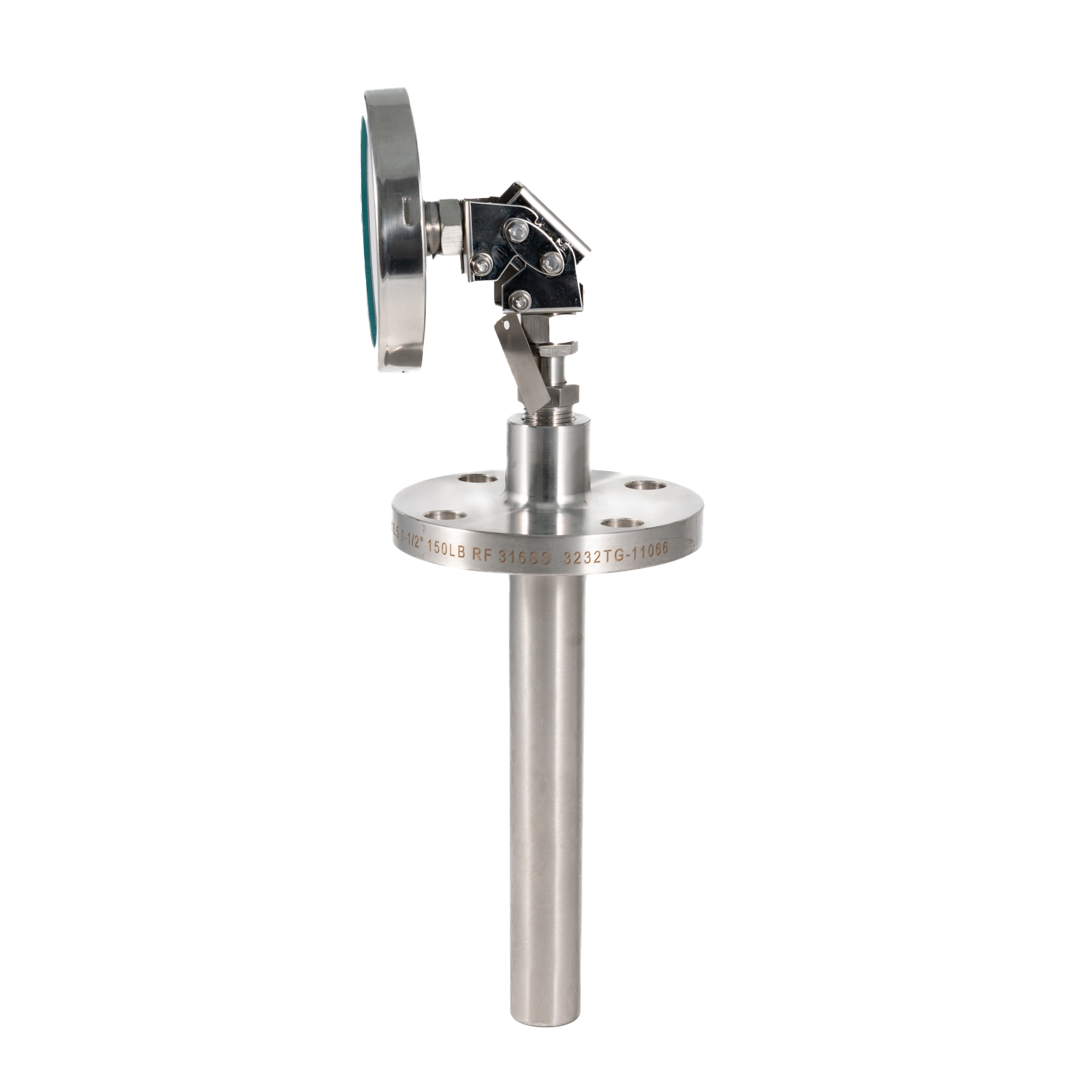

The adjustable-angle design allows the dial to be positioned for convenient viewing after installation.

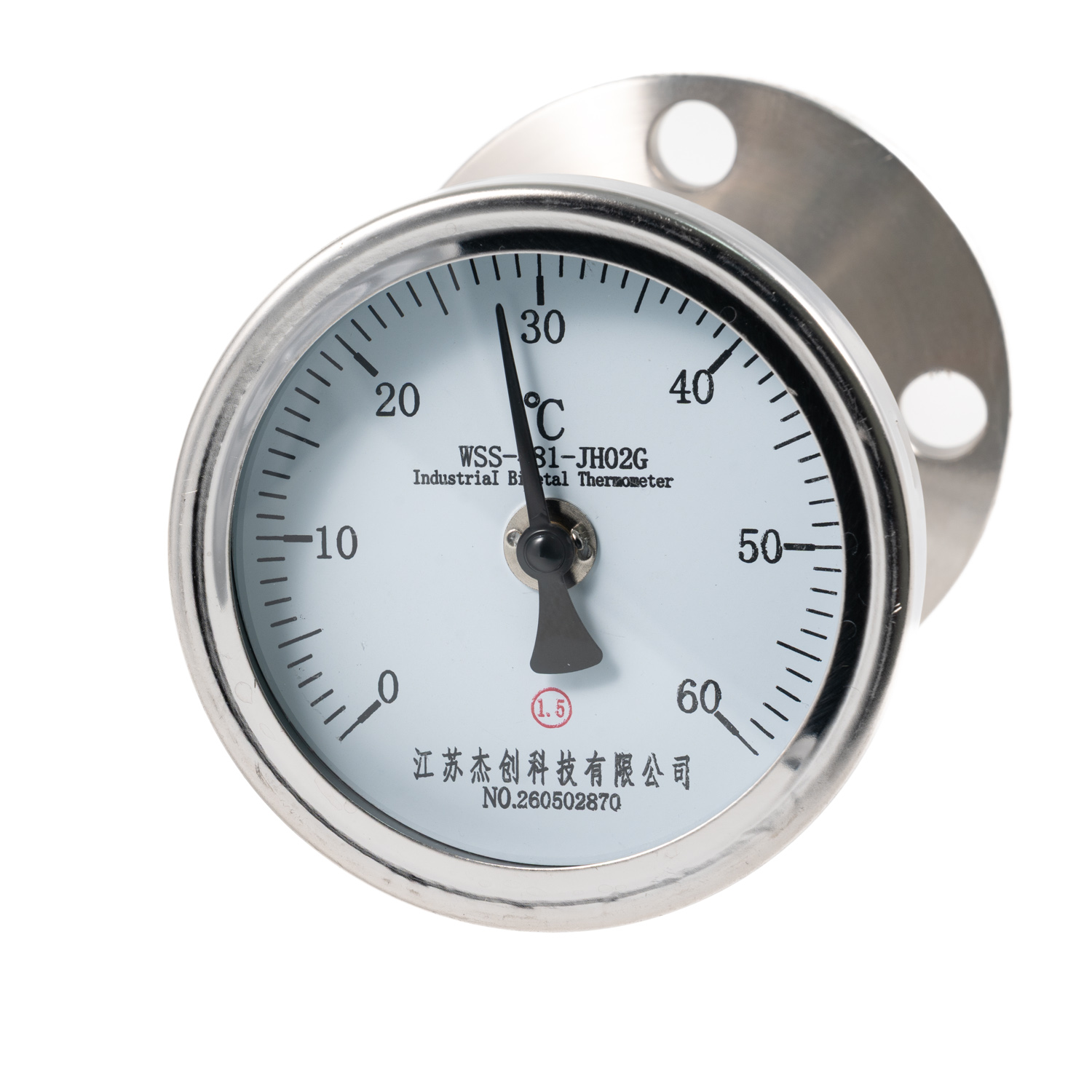

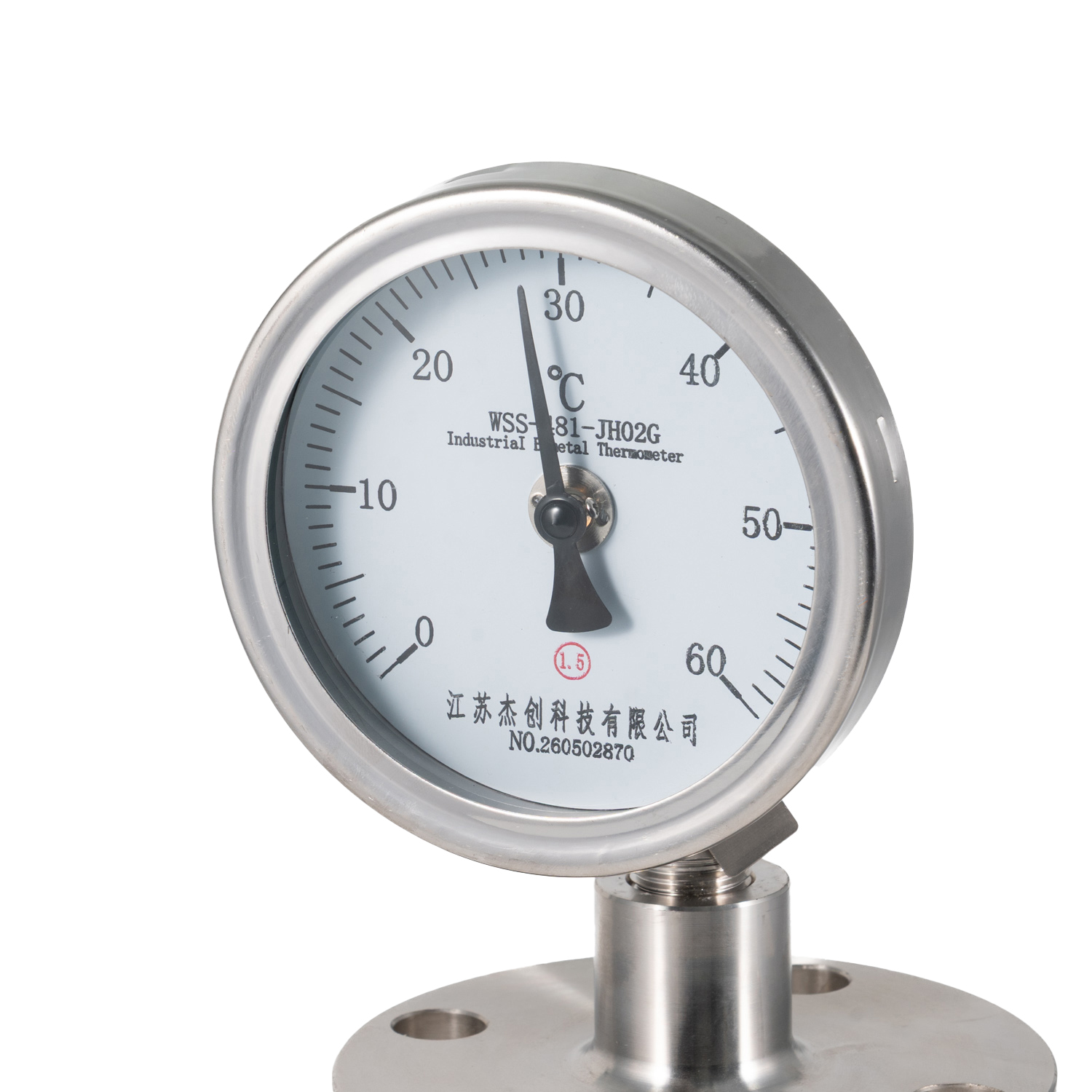

With a 100 mm dial, 0~60°C measuring range, Class 1.5 accuracy and 200 mm insertion length, it is suitable for temperature monitoring in industrial pipelines, tanks, vessels and process equipment.
Applications
Industrial process pipelines
Chemical processing equipment
Petrochemical equipment
Storage tanks
Process vessels
Water treatment systems
Heating and cooling systems
Industrial machinery
Power and utility systems
General process temperature monitoring
The 316 stainless steel thermowell provides a protective barrier between the sensing probe and the process medium.
Features
Pure Mechanical Design: No external power supply or battery required.
Direct Local Indication: Easy-to-read analog pointer display.
316SS Thermowell: Provides mechanical protection for the sensing element.
Flanged Process Connection: 1-1/2" (DN40) Class 150 RF flange.
Adjustable Viewing Angle: Flexible dial positioning for convenient reading.
100 mm Large Dial: Clear temperature indication for industrial applications.
Class 1.5 Accuracy: Suitable for general industrial temperature measurement.
IP55 Protection - IP65 protection is available as an optional configuration.
Technical Specifications
Item | Specification |
Product Type | Flanged Bimetal Thermometer with Thermowell |
Model | WSS-481 Series |
Display Type | Mechanical Analog Pointer |
Measuring Range | 0~60°C |
Accuracy Class | Class 1.5 |
Scale Division | 1°C |
Nominal Dial Size | Φ100 mm |
Mounting Type | Universal Adjustable-Angle Type |
Thermometer Connection | Movable Male Thread |
Thread Options | M27×2 / G3/4" |
Sensing Element Diameter | Φ10 mm |
Thermowell Type | Custom Flanged Thermowell |
Thermowell Material | Stainless Steel 316 |
Thermowell OD | Φ20 mm |
Flange Standard | ASME B16.5 |
Flange Size | 1-1/2" (DN40) |
Pressure Class | Class 150 |
Flange Facing | RF (Raised Face) |
Insertion Length U | 200 mm |
Thermowell Length L | 280 mm |
Thermal Response Time | ≤40 s |
Angle Adjustment Error | ≤1.0% of Measuring Range |
Protection Grade | IP55, IP65 Optional |
Local Indication | Yes |
Note: Specifications can be customized according to customer requirements.
