Product Introduction

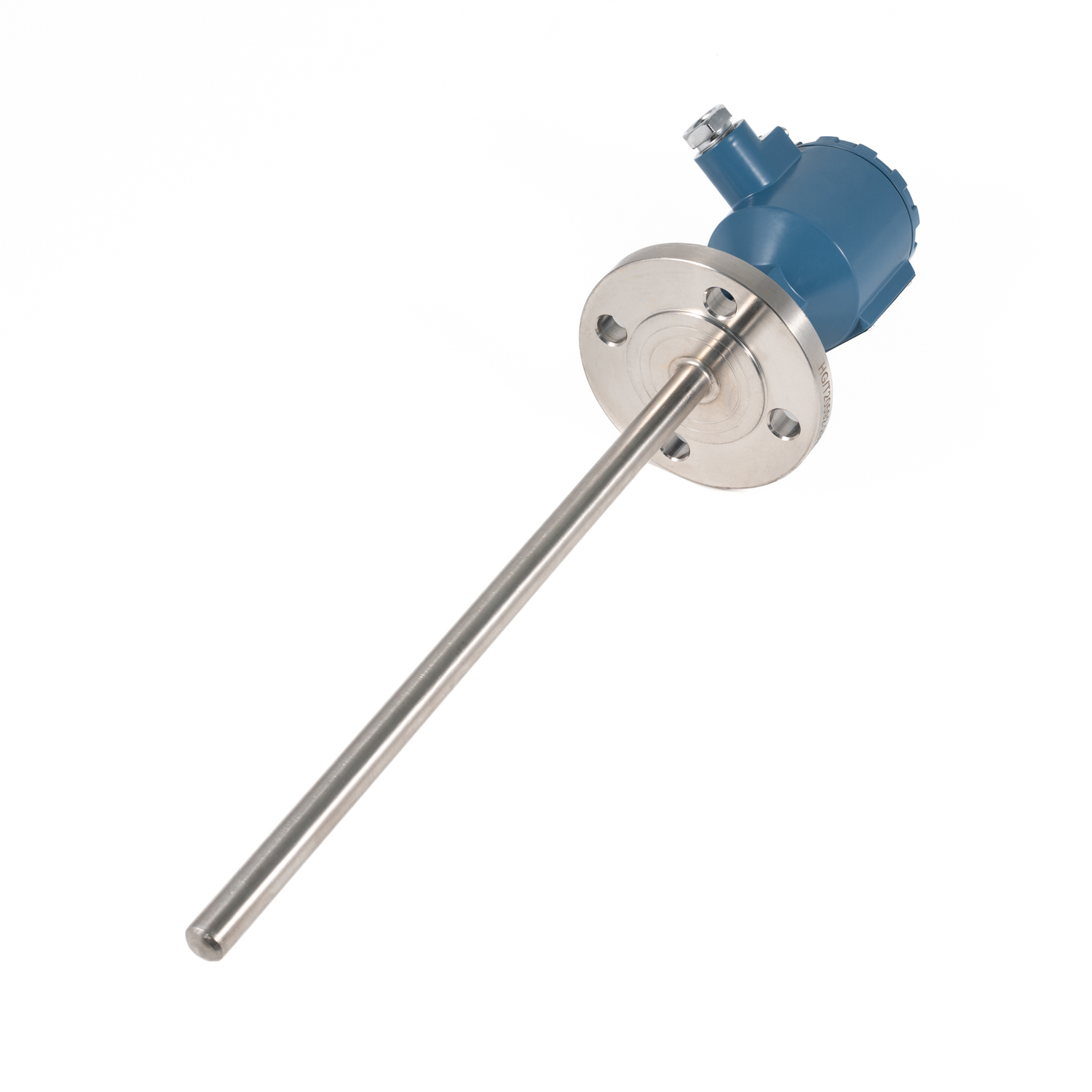

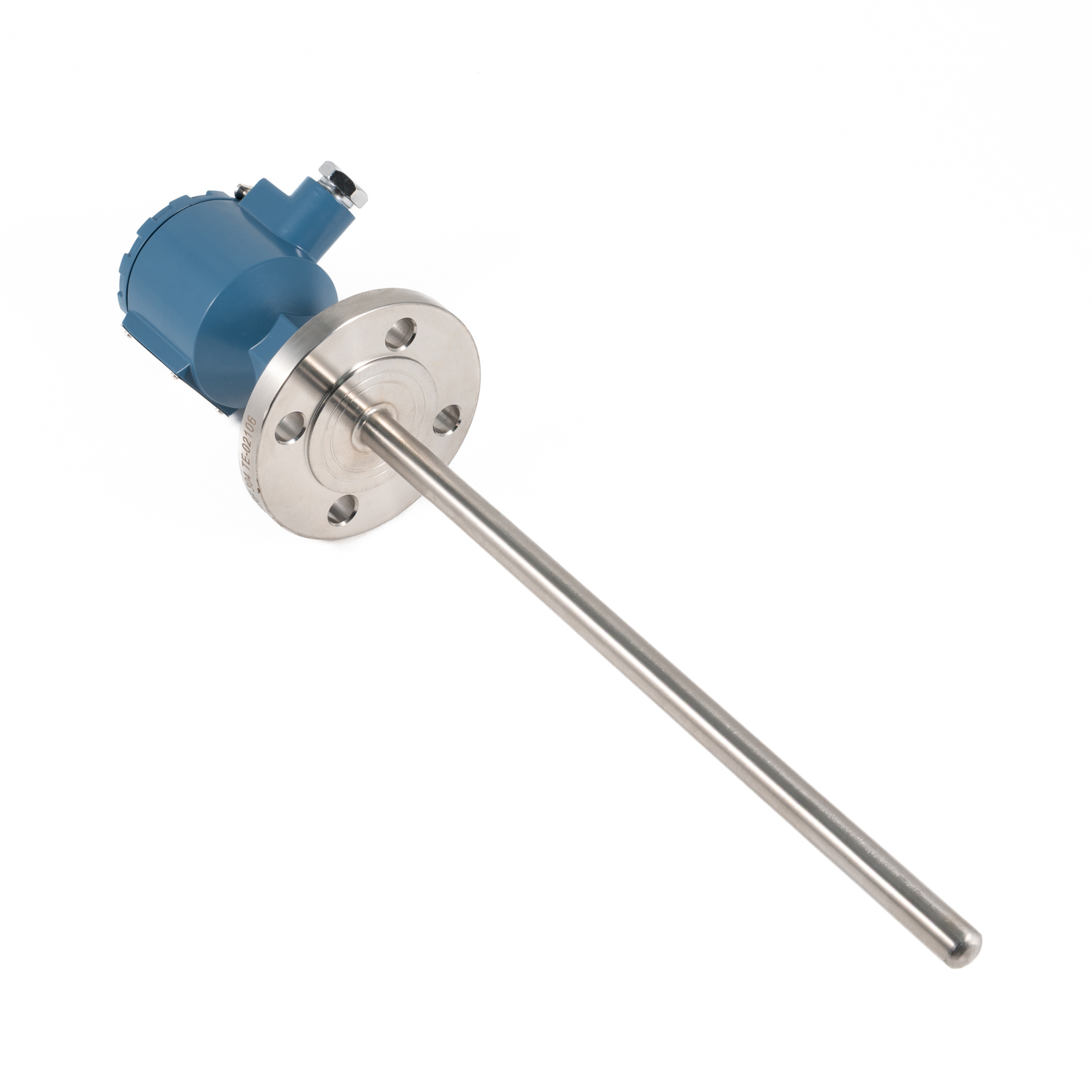

The WZPK-440 Explosion Proof Pt100 RTD Temperature Sensor is an industrial temperature sensor designed for reliable temperature measurement in hazardous and industrial environments.
The sensor uses a Pt100 platinum resistance element with Class A accuracy and an Ex ia IIC T4 explosion protection configuration.
It features a DN25 PN16 RF fixed flange, 304 stainless steel protection tube and an explosion-proof terminal head. The sensor is a non-display type, without a local temperature display.
The Φ16 × 2 mm SS304 protection tube provides mechanical protection for the internal measuring element and allows stable installation in industrial process equipment.
With a 350 mm insertion length, the WZPK-440 is suitable for temperature measurement in tanks, pipelines and other industrial process equipment.
The configuration can be customized according to the customer's temperature range, process connection, insertion length, protection tube material and hazardous-area requirements.
Applications
The WZPK-440 is suitable for temperature measurement in:
It is designed for applications where reliable temperature measurement is required in potentially explosive environments.
Features
Ex ia IIC T4 explosion protection
Pt100 platinum resistance element
Class A accuracy
0~200°C measuring range

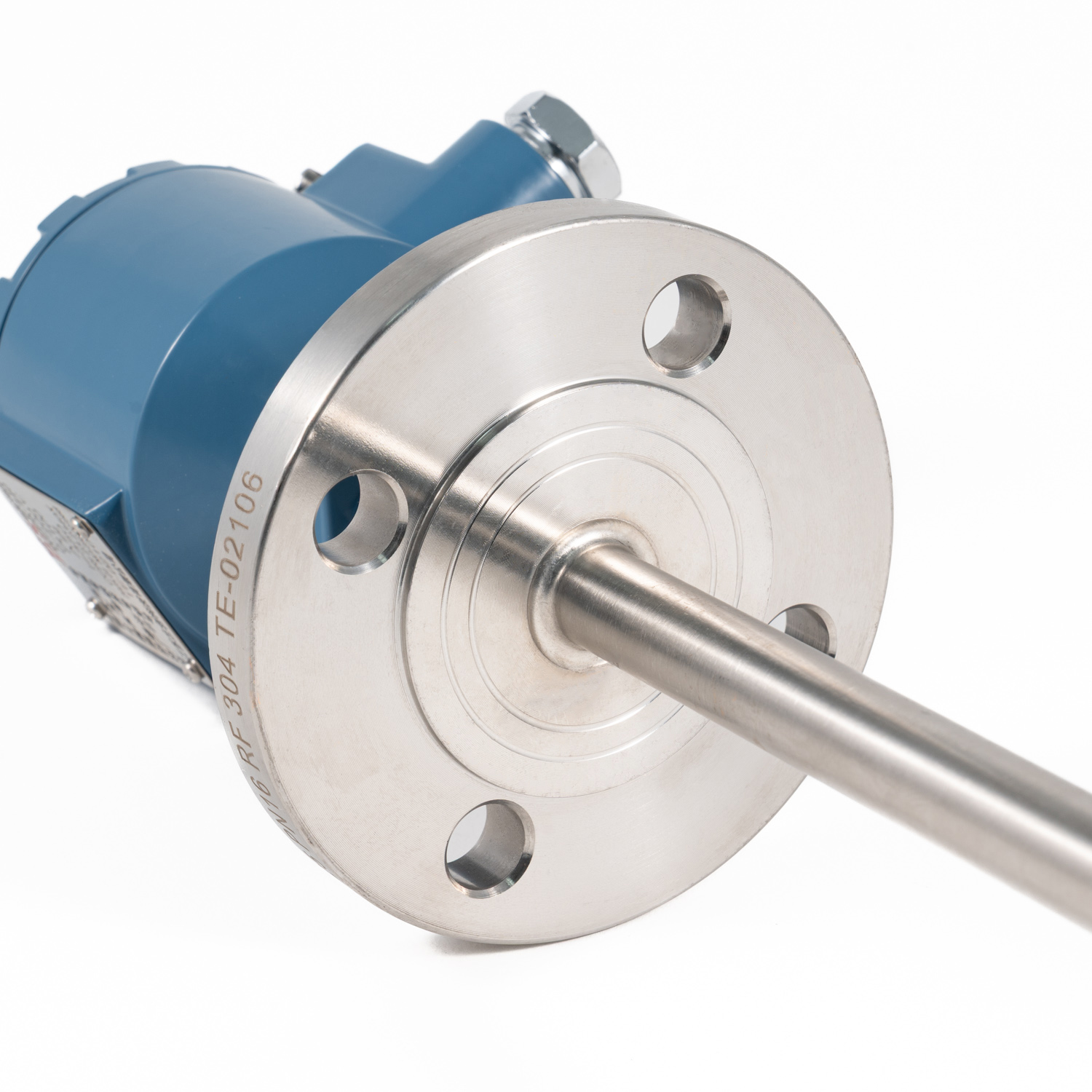

DN25 PN16 RF fixed flange
304 stainless steel protection tube
Φ16 mm protection tube outside diameter
2 mm protection tube wall thickness
350 mm insertion length
Φ5 mm armored core
1/2" NPT electrical connection
Non-display design
Suitable for hazardous-area industrial applications
Customized configurations available
Technical Specifications
Item | Specification |
Product Type | Flanged Explosion Proof Pt100 RTD |
Model | WZPK-440 |
Measuring Principle | Resistance Temperature Detection |
Sensor Element | Pt100 Platinum Resistance Element |
Number of Elements | Single Element |
Wire Configuration | 2-wire / 3-wire / 4-wire Optional |
Accuracy Class | Class A |
Measuring Range | 0~200°C |
Explosion Protection | Ex ia IIC T4 |
Display | Non-Display Type |
Process Connection | Fixed Flange |
Flange Size | DN25 |
Pressure Rating | PN16 |
Flange Facing | RF (Raised Face) |
Flange Material | SS304 |
Protection Tube Material | SS304 |
Protection Tube Outside Diameter | Φ16 mm |
Protection Tube Wall Thickness | 2mm |
Insertion Length | 350 mm |
Armored Core Diameter | Φ5 mm |
Electrical Connection | 1/2" NPT |

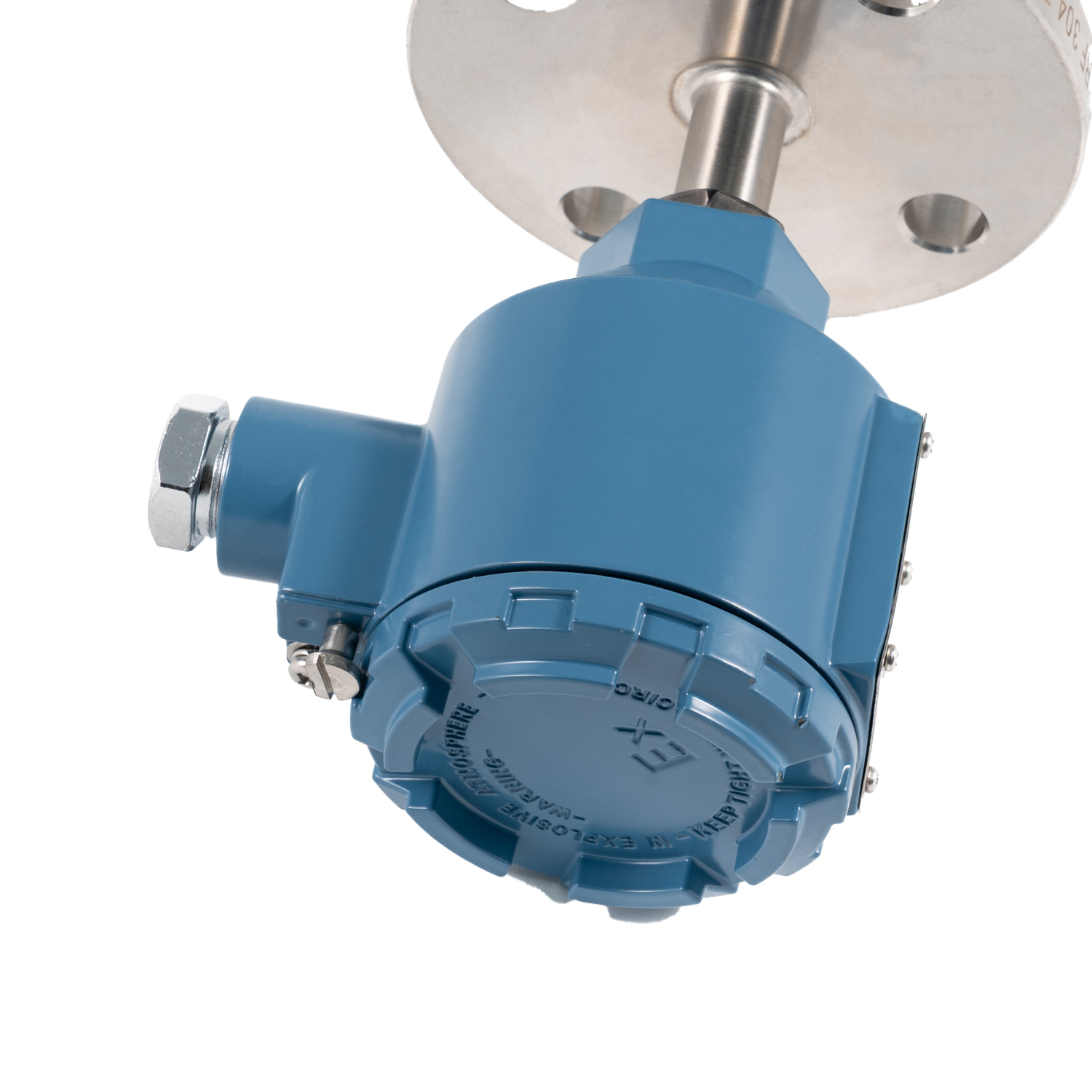

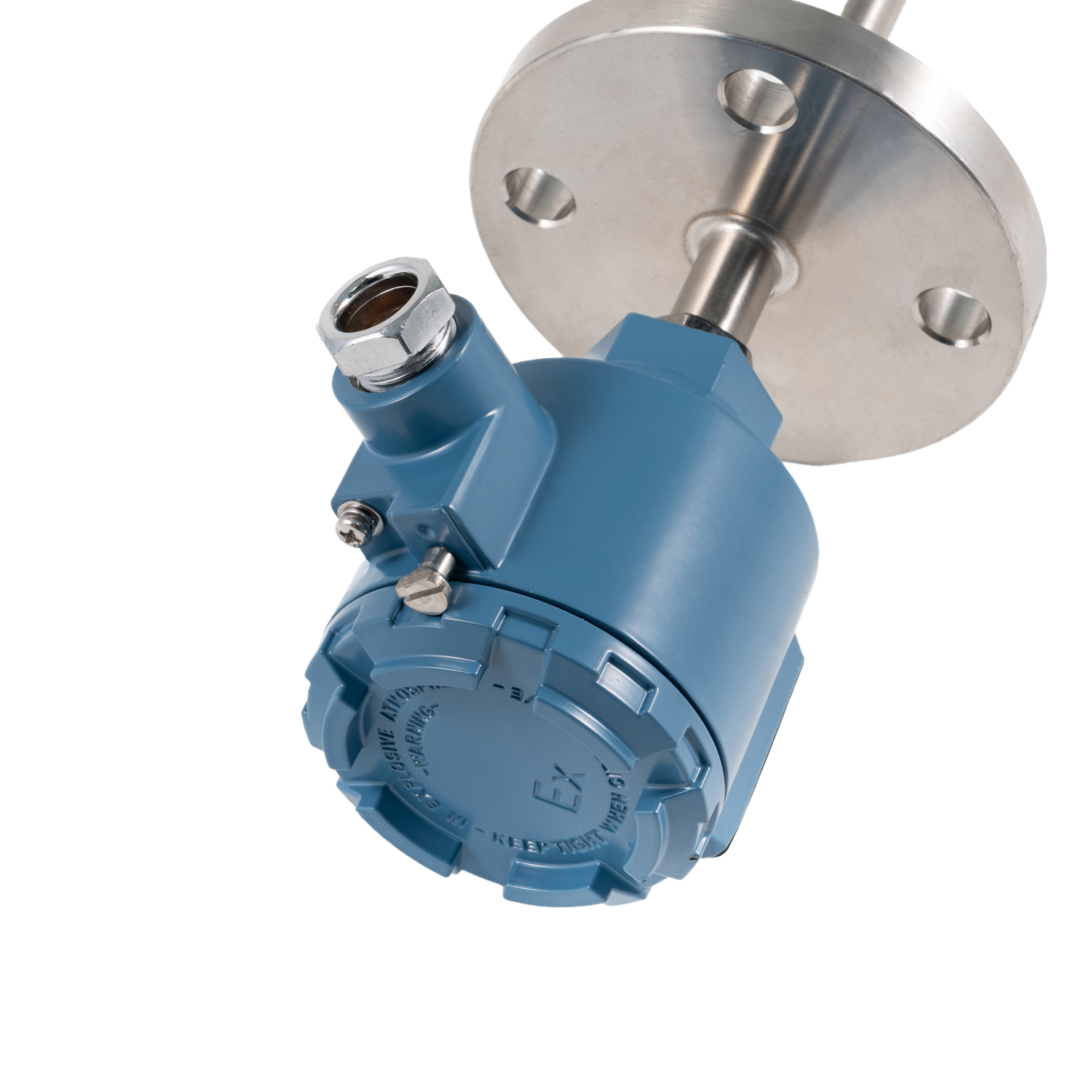

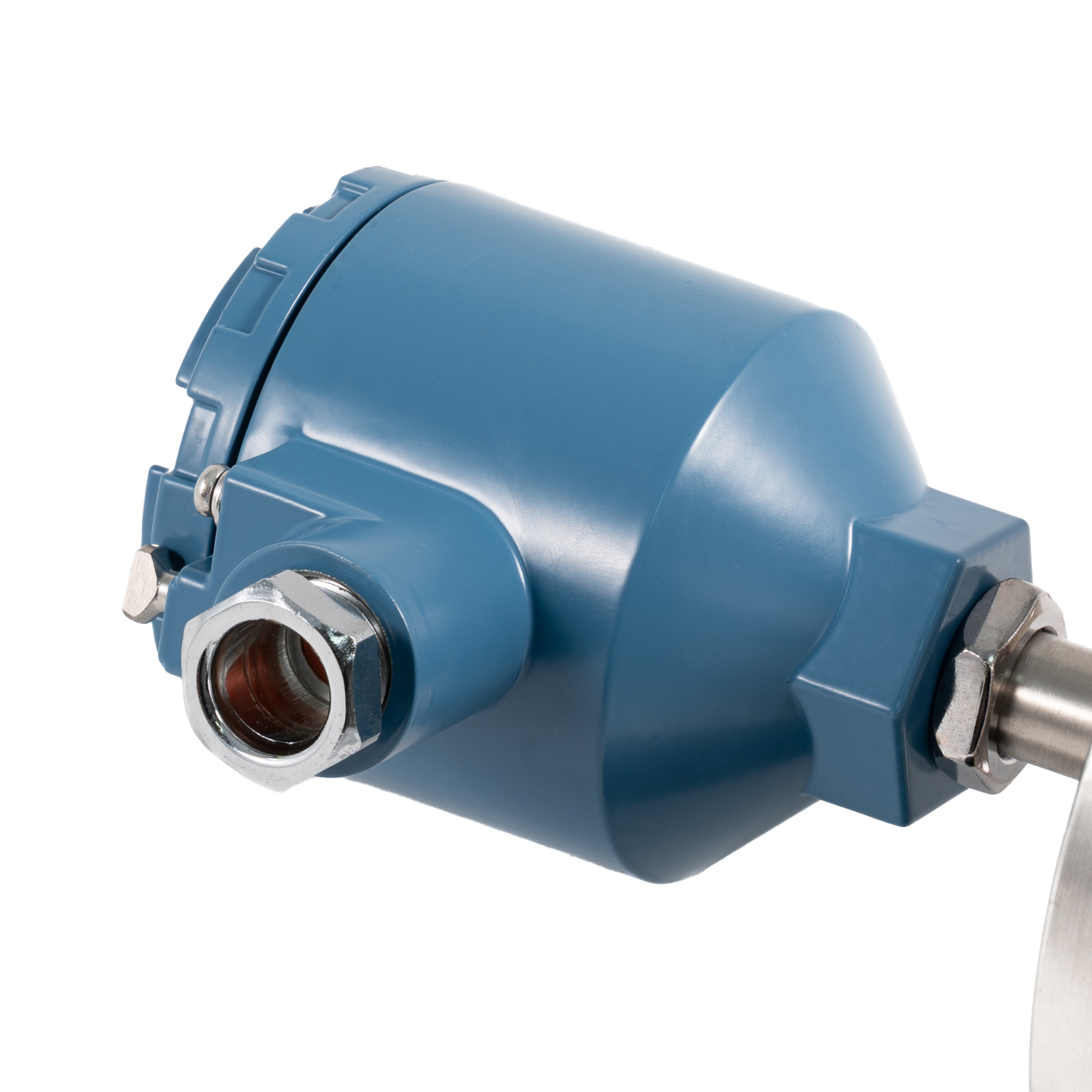

Terminal Head | Explosion-Proof Type |
Installation | Flange Mounted |
Application | Hazardous Area / Industrial Temperature Measurement |
Note: Specifications can be customized according to customer requirements.
