Product Introduction

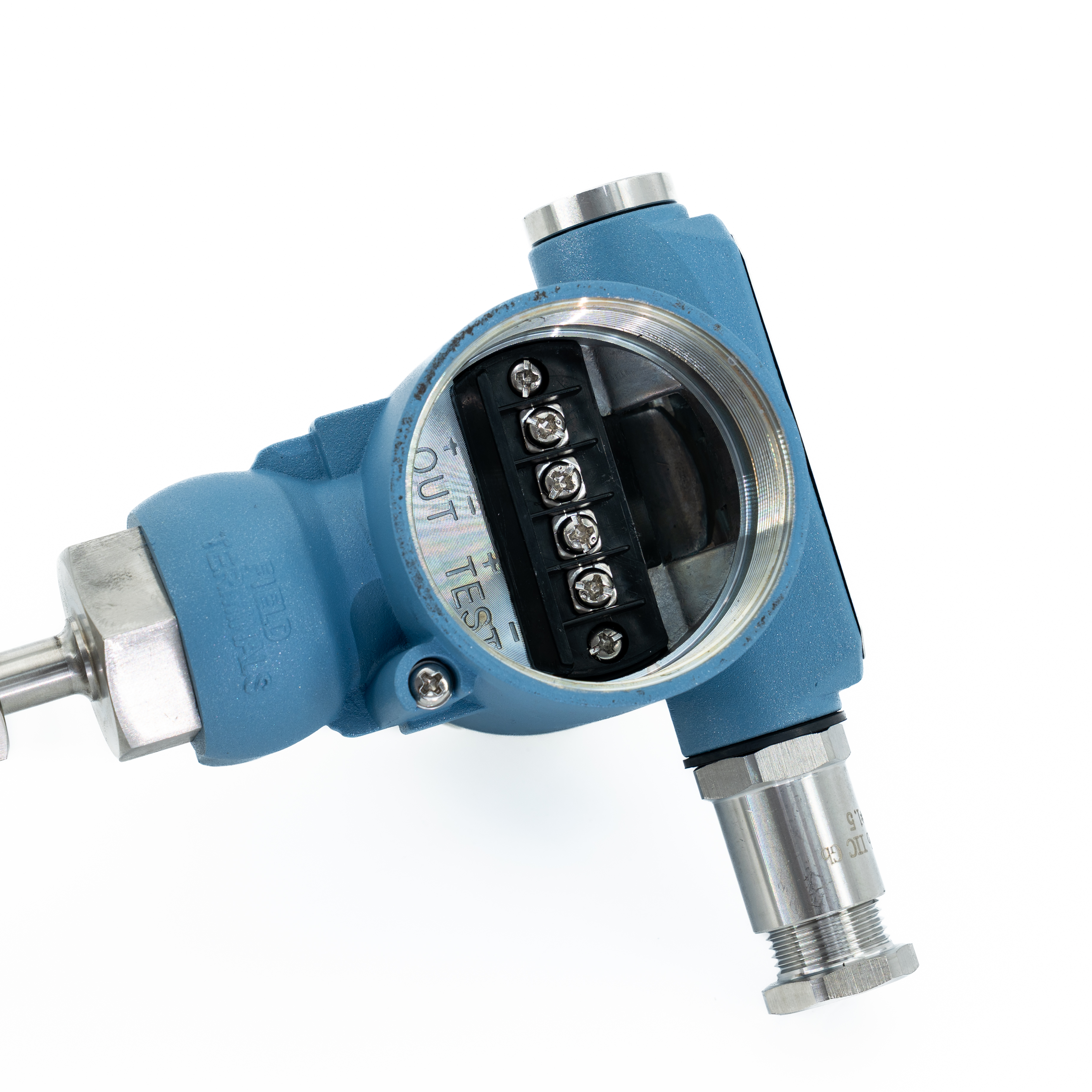

The JC-SBW corrosion resistant integrated temperature transmitter is specially designed for accurate temperature measurement in highly corrosive environments such as strong acids, strong alkalis, and aggressive chemical media. The instrument combines a corrosion resistant temperature sensor with a built in transmitter, providing reliable temperature monitoring and signal transmission in harsh industrial processes.

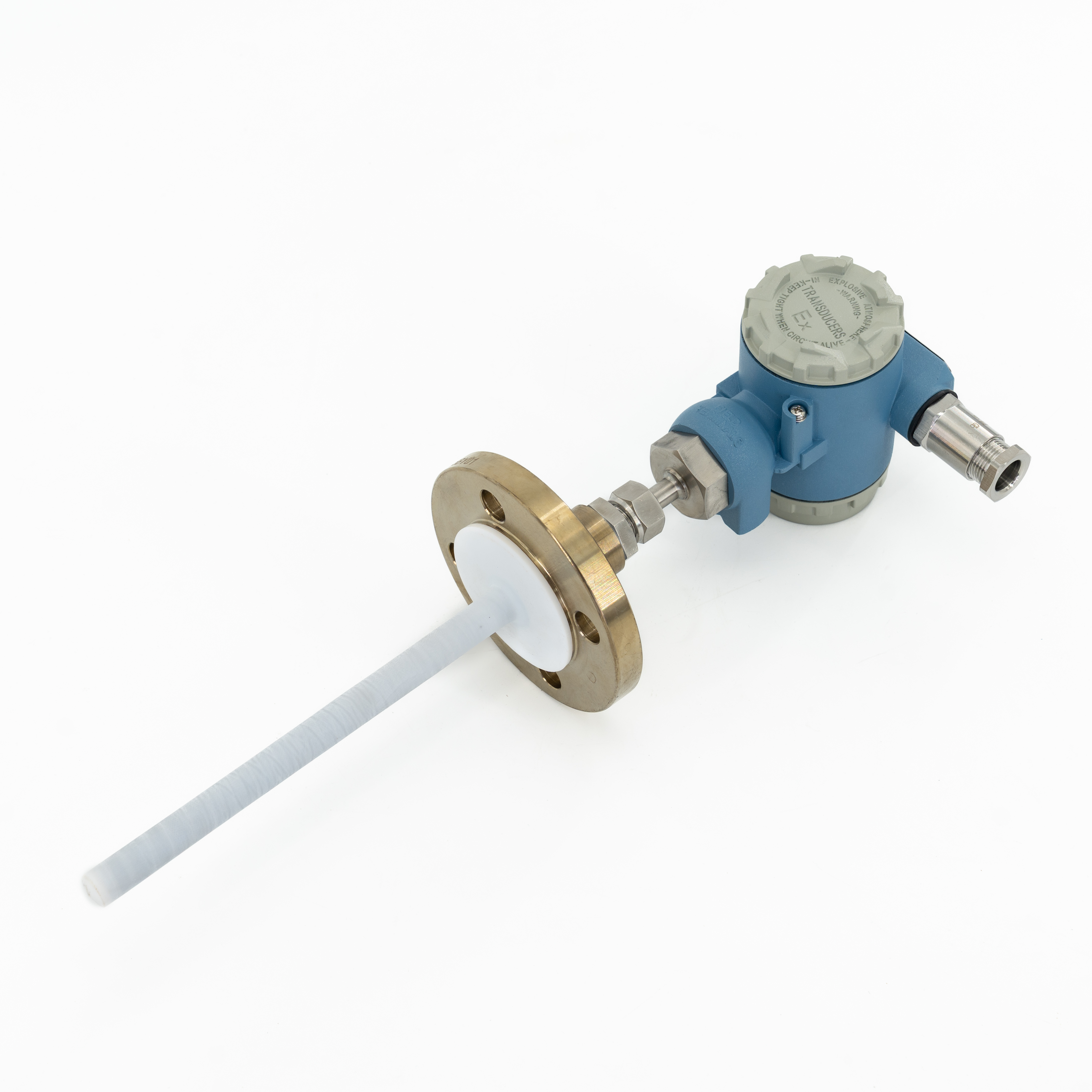

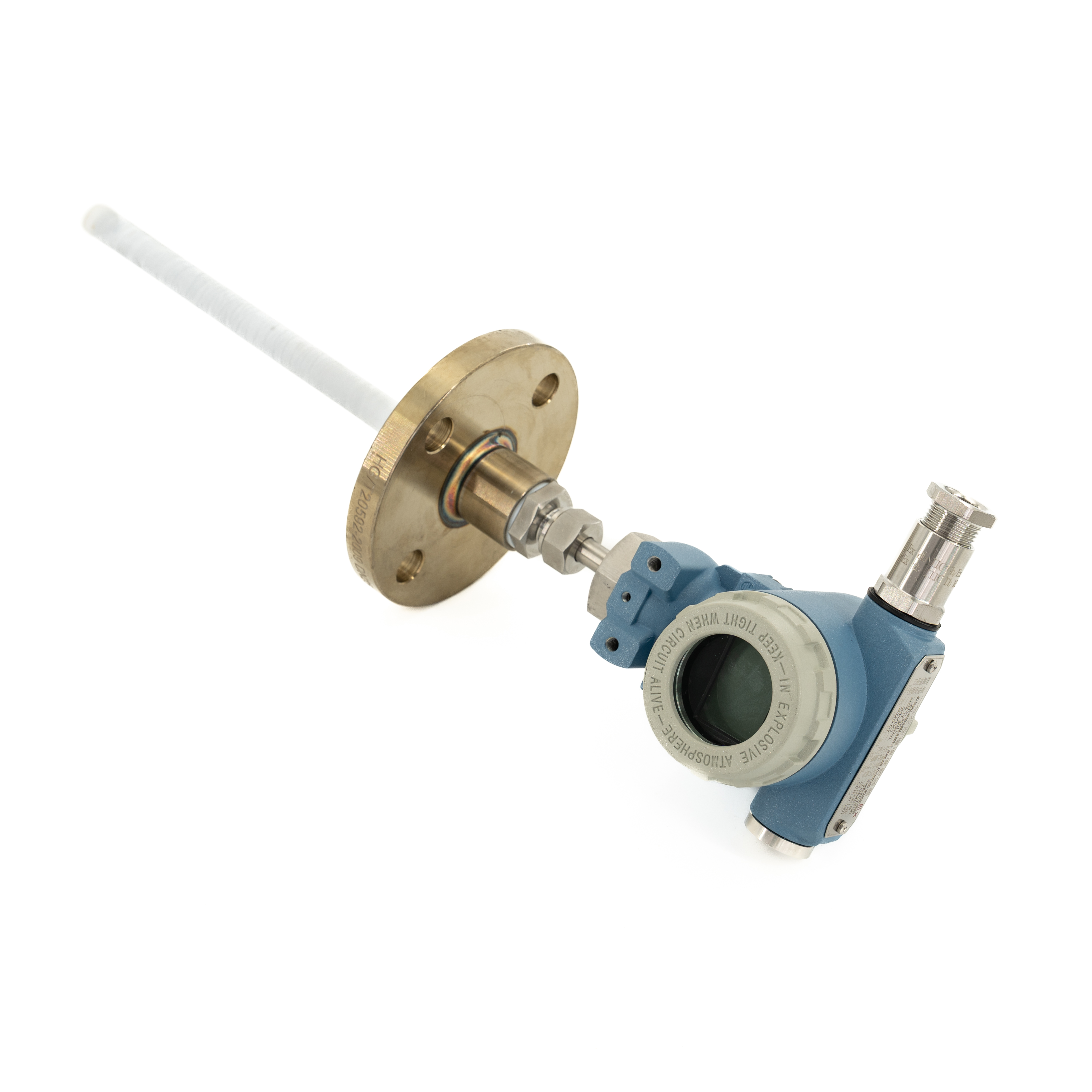

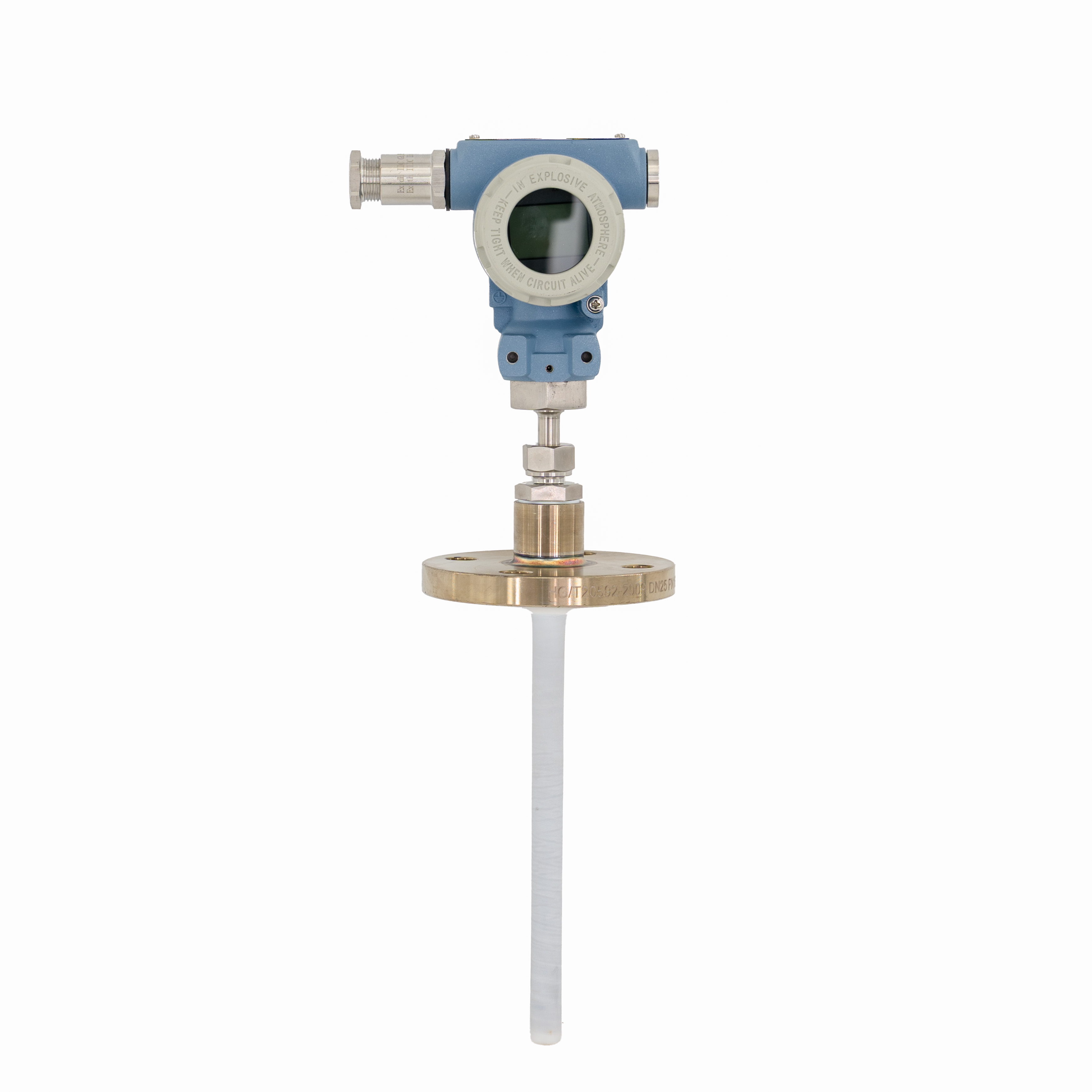

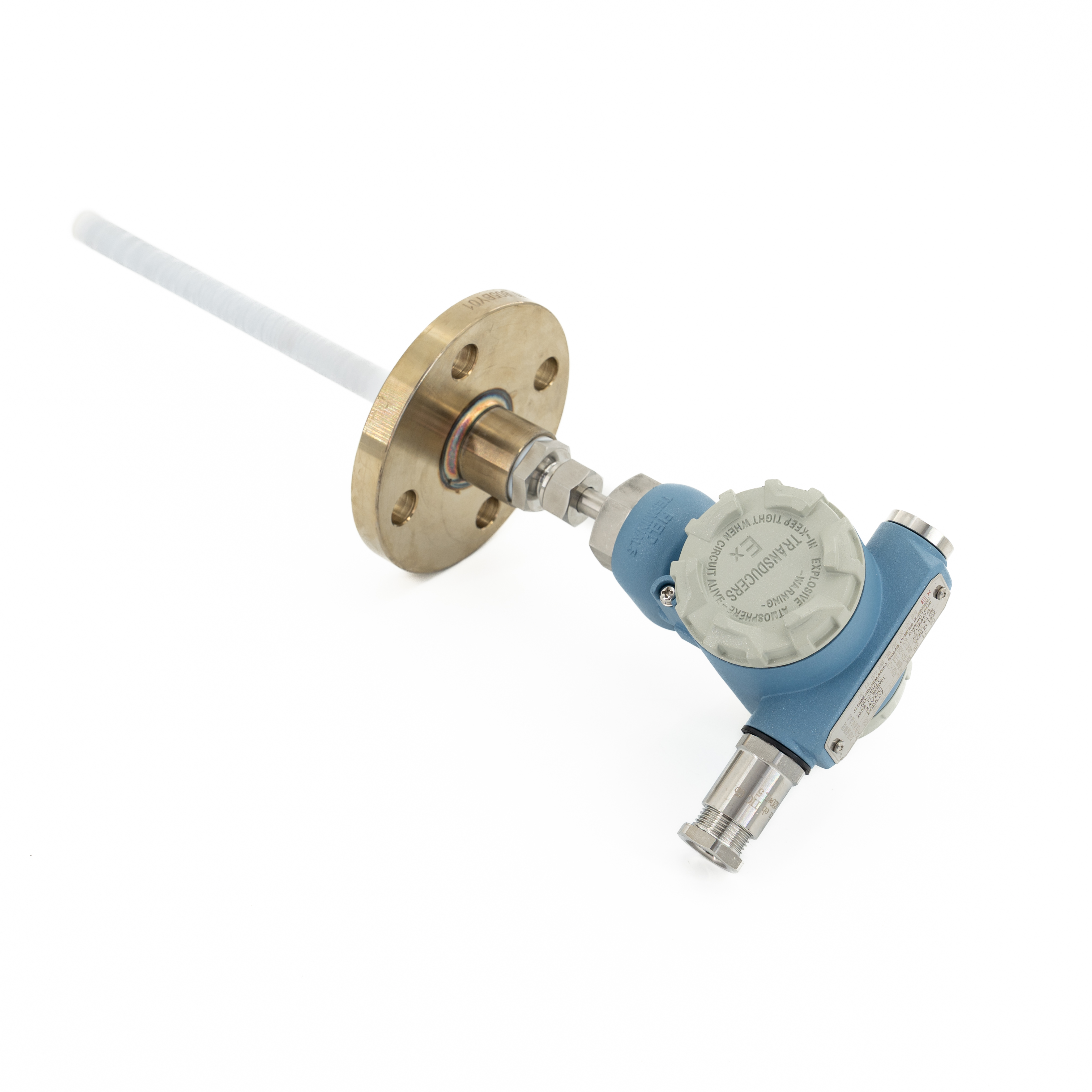

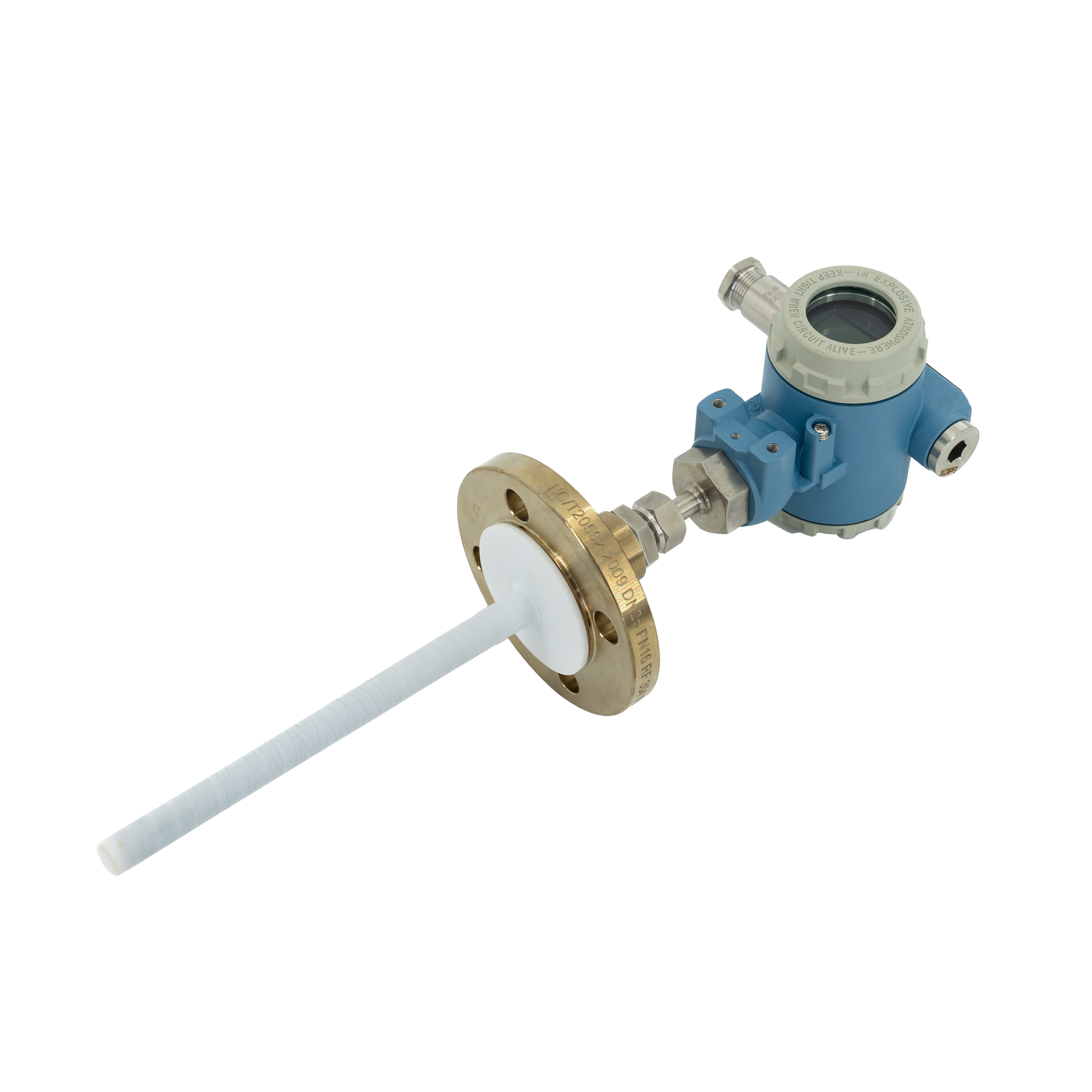

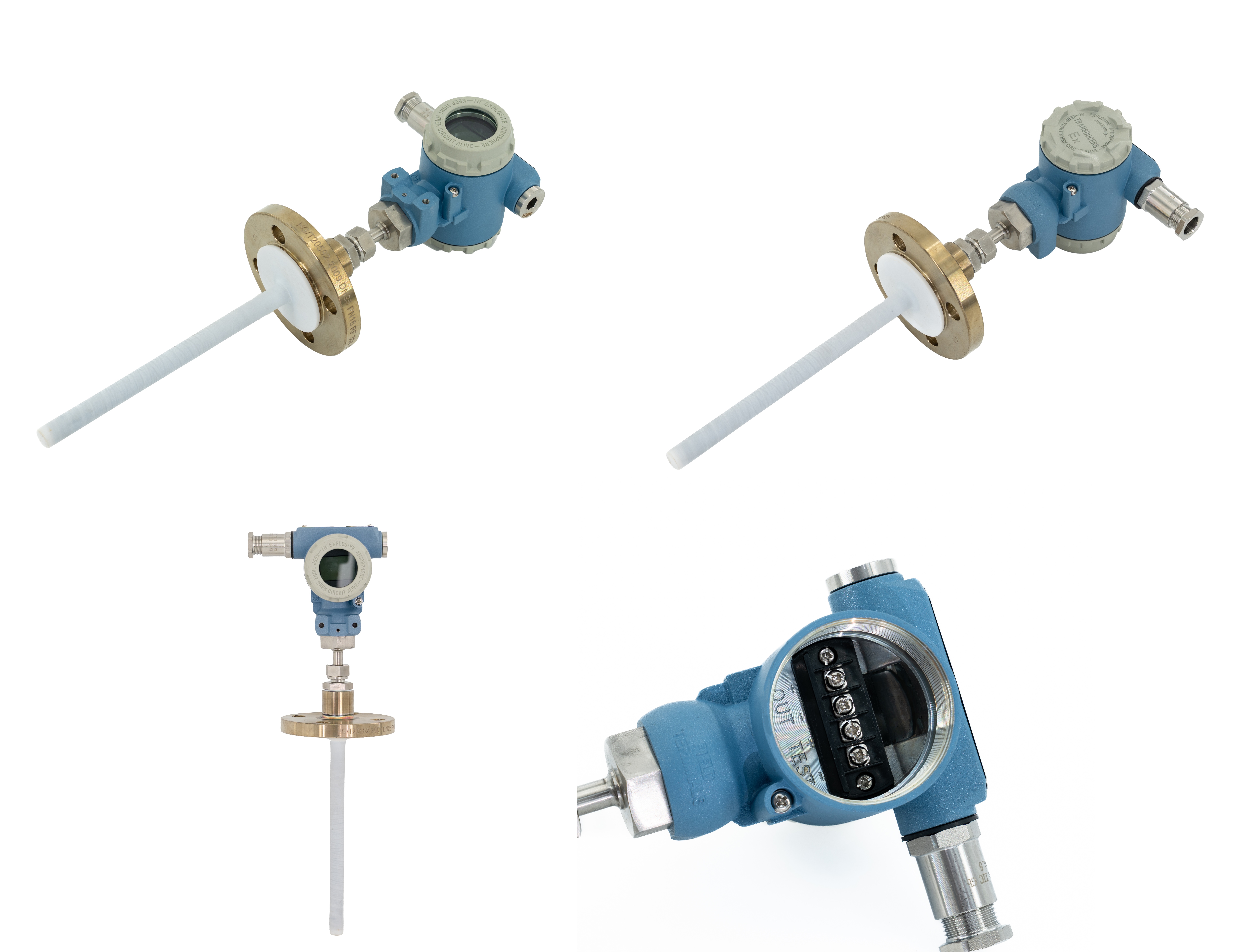

The sensing element is a corrosion resistant RTD sensor protected by PTFE material, which offers excellent chemical stability and resistance to acid and alkali corrosion. The PTFE protection can be applied in several forms, including full protective sheath, two section protective tube structure, or PTFE coating directly on the protection tube. Depending on application requirements, the anti corrosion layer can be manufactured through spraying, sintering, or sealed PTFE sleeve methods, ensuring long term durability in aggressive environments.

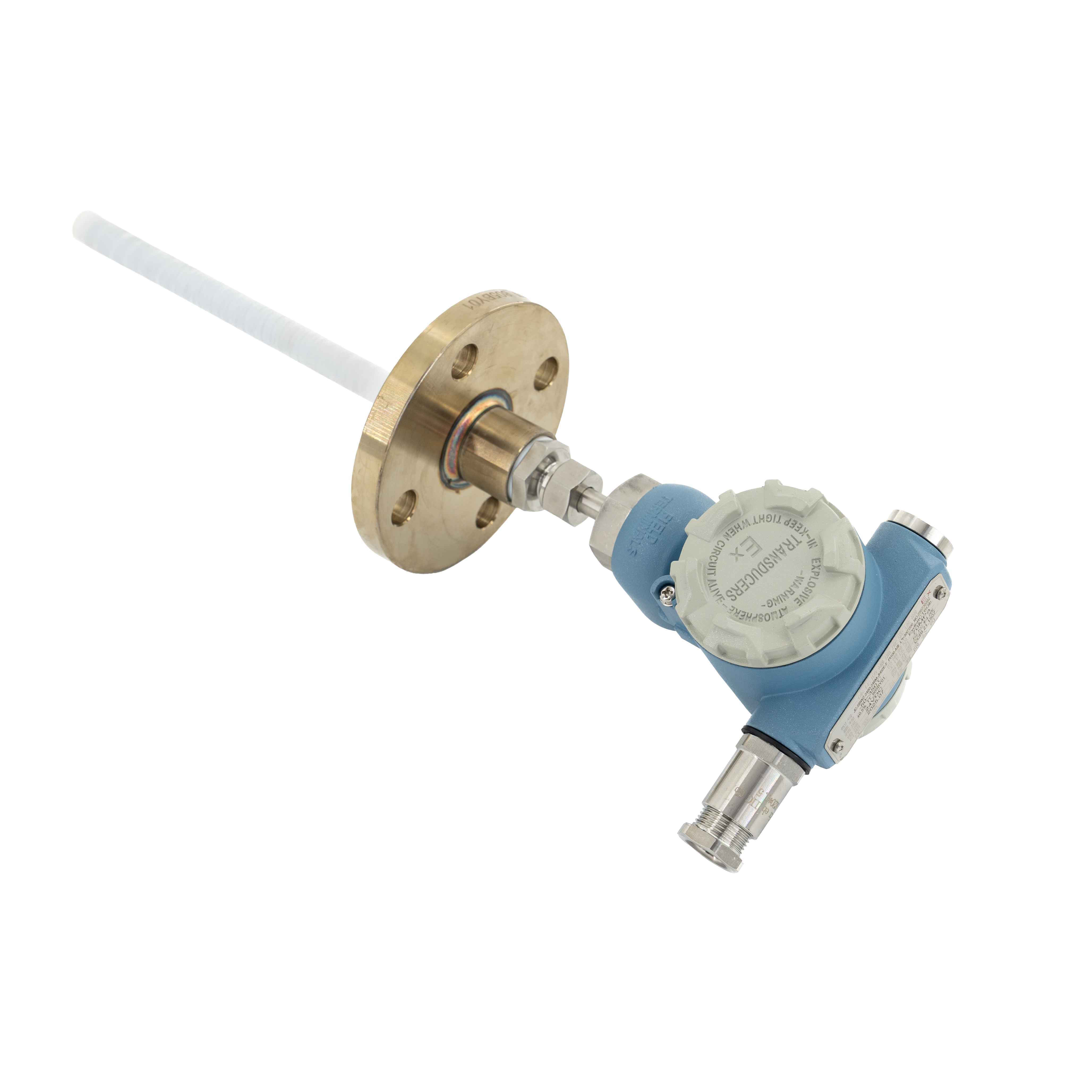

The transmitter is suitable for operating temperatures up to 250°C, making it ideal for chemical processing and other demanding industrial applications. For fixed installation, process connections such as PTFE threaded fittings, PTFE flanges, or compression fittings can be provided so that all media contacting parts maintain full corrosion resistance.
Key Advantages
Excellent Corrosion Resistance
The sensing probe is protected with PTFE anti corrosion material, providing excellent resistance to strong acids, strong alkalis, and aggressive chemical media.
High Temperature Capability
Designed for operating temperatures up to 250°C, ensuring reliable performance in demanding industrial environments.
Integrated Transmitter Design
The compact integrated structure combines the temperature sensor and transmitter in one unit, simplifying installation and improving measurement reliability.
Multiple Anti Corrosion Protection Methods
PTFE protection can be applied through spraying, sintering, or sealed PTFE sleeve construction, offering flexible solutions for different corrosion conditions.
Flexible Installation Options
Available with PTFE lining flanges, or compression fittings, ensuring all media contacting parts maintain full corrosion resistance.
Stable Industrial Signal Output
Provides reliable signal transmission for integration with PLC, DCS, and SCADA systems for process monitoring and control.
Product Features
Corrosion resistant PTFE protective tube
RTD sensing element with high measurement stability
Integrated transmitter structure for compact installation
Suitable for strong acid and strong alkali environments
Excellent sealing and long service life in harsh environments
Application Scenarios
The corrosion resistant integrated temperature transmitter is widely used in industrial processes involving highly corrosive media, including:
Chemical processing plants
Acid and alkali storage tanks
Electroplating and surface treatment equipment
Wastewater and environmental treatment systems
Pharmaceutical and chemical production lines
Chemical pipelines and reactors
Typical Measurement Environments
Strong acid environments
Strong alkali environments
Corrosive chemical liquids
Acid and alkali gas processing systems
Industrial wastewater treatment processes
