Product Introduction

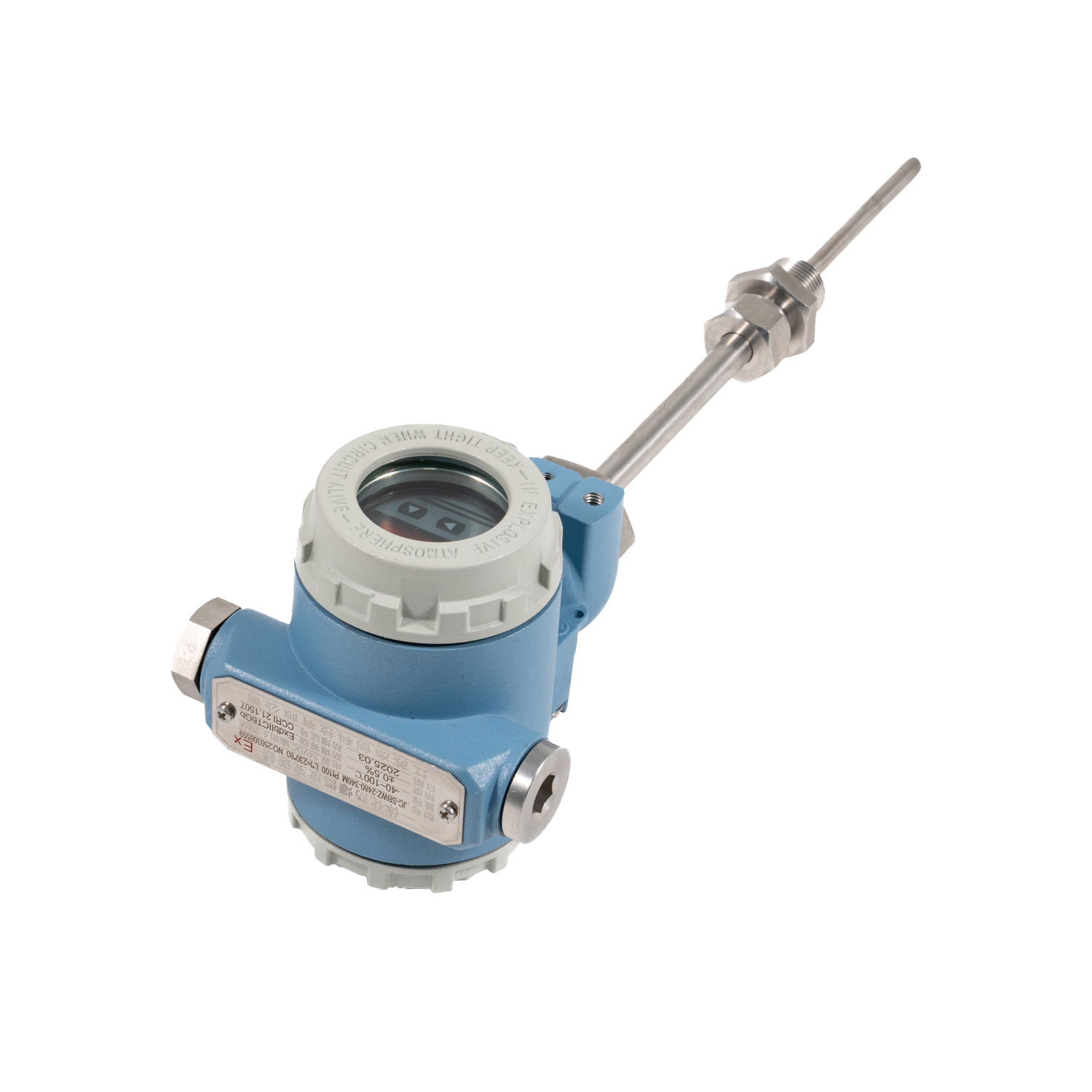

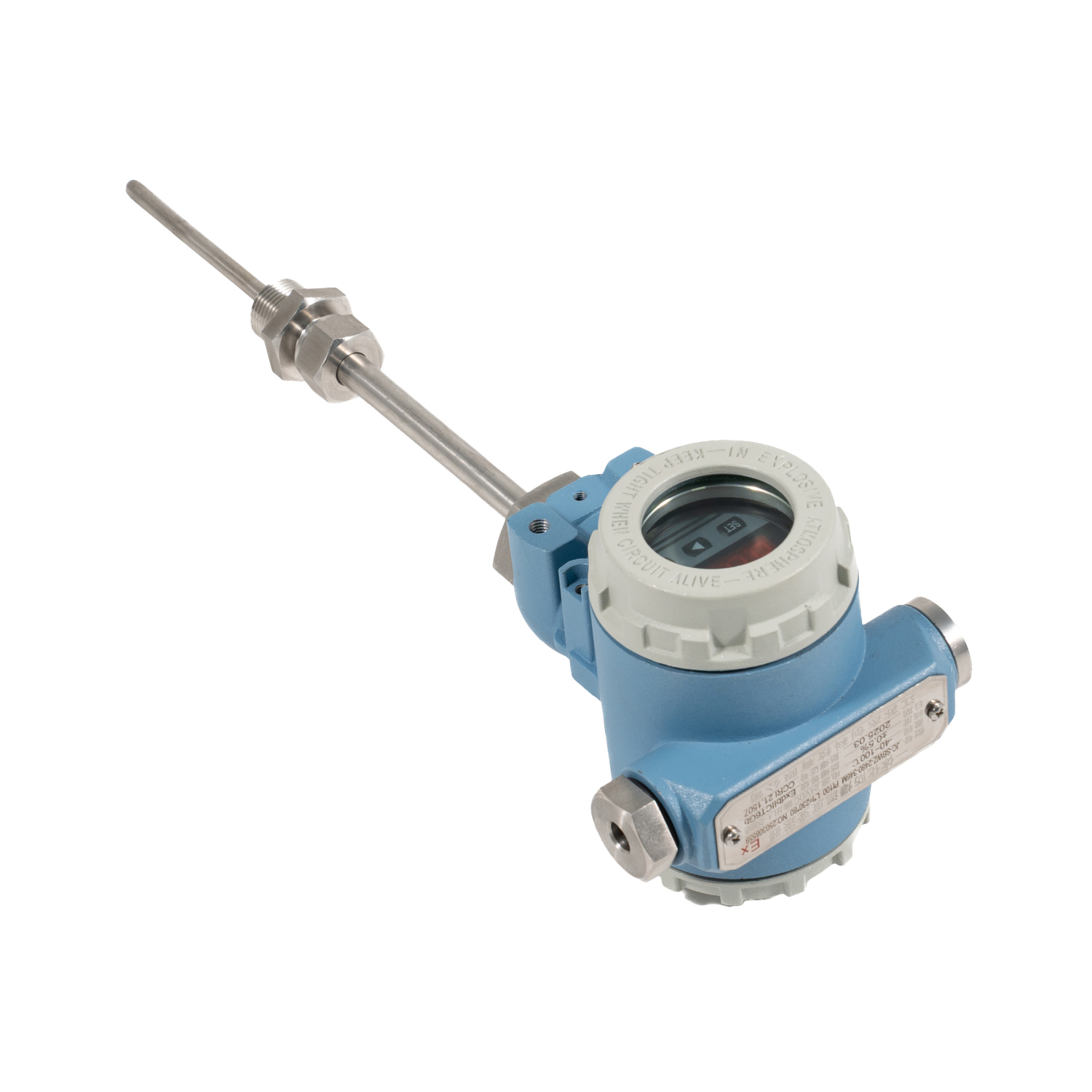

The Explosion-Proof Integrated Pt100 Temperature Transmitter with LED Display combines a Pt100 RTD sensor, temperature transmitter and local digital display into one compact unit.

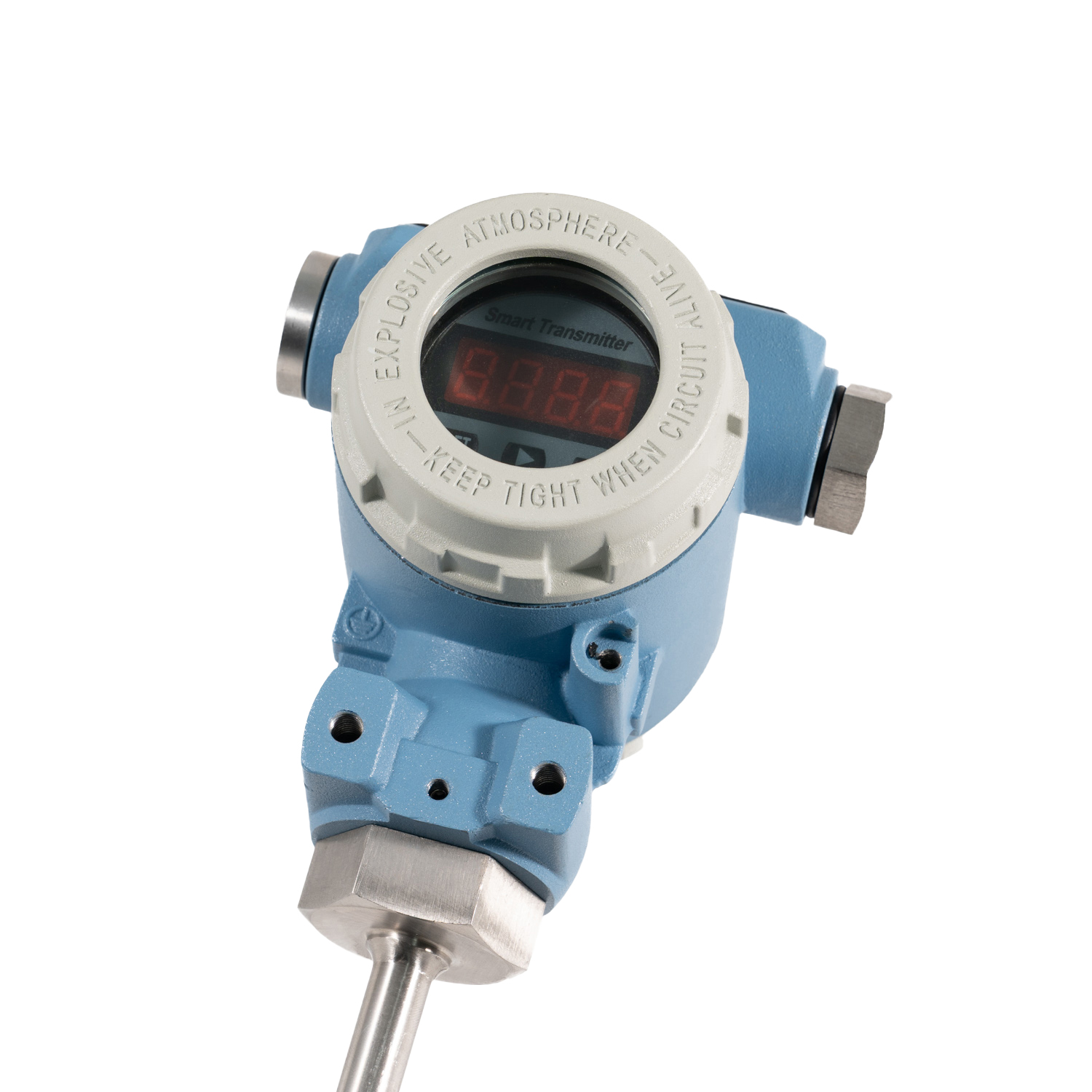

It measures process temperature and converts the Pt100 signal into a standard 4-20 mA output for remote monitoring and control. The red LED display allows users to check the measured temperature directly at the installation point.
The transmitter is designed for hazardous industrial environments and features Ex db IIC T6 Gb explosion-proof construction.

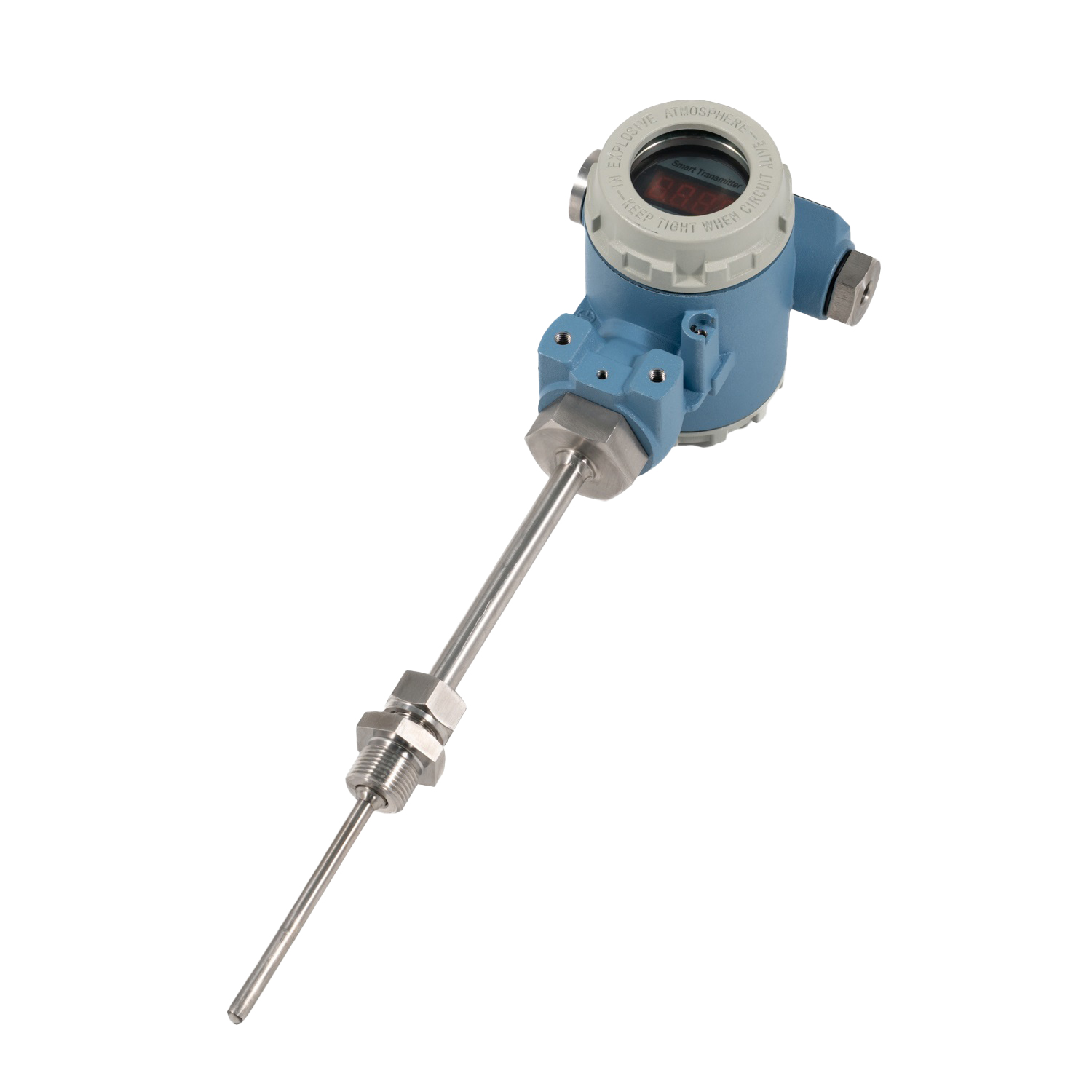

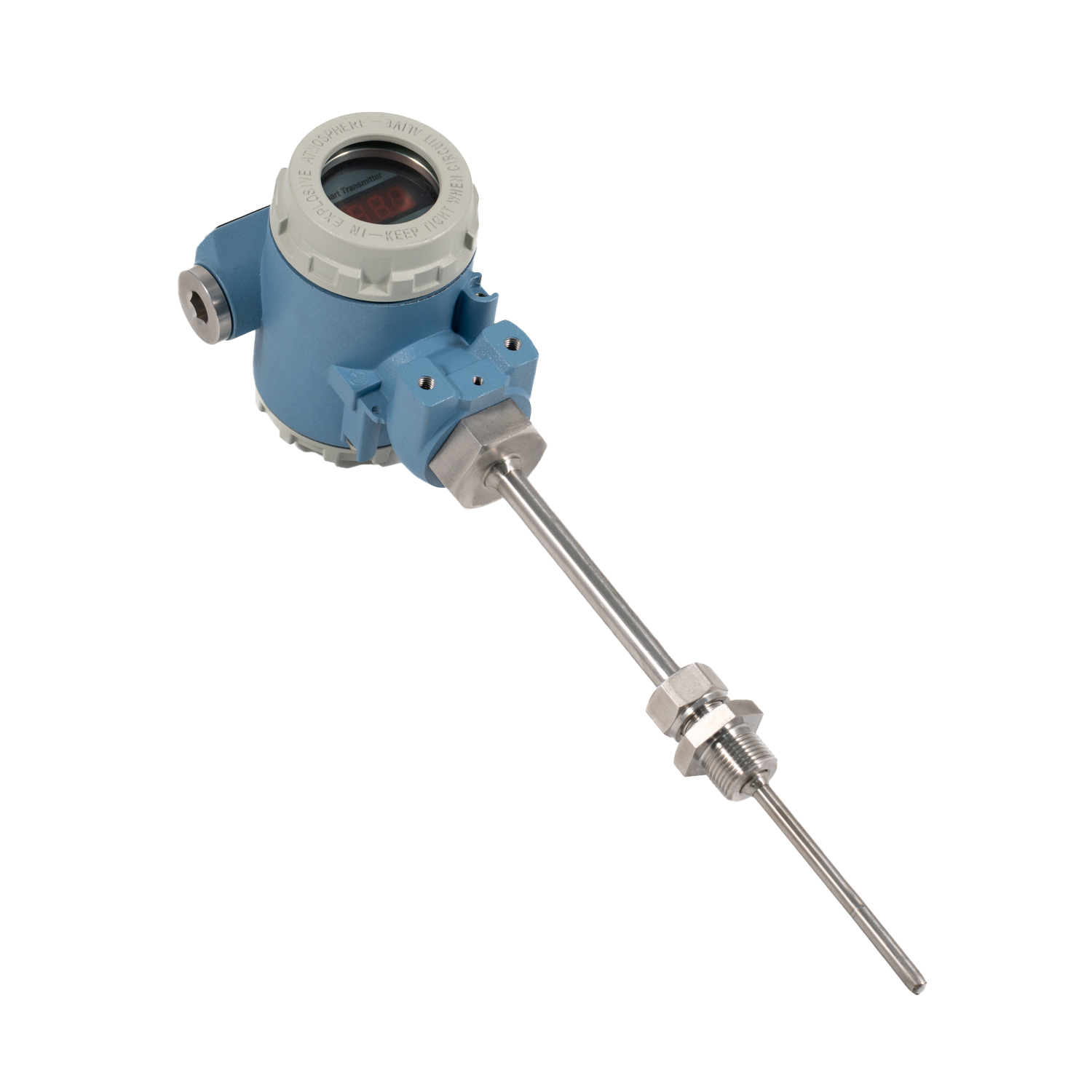

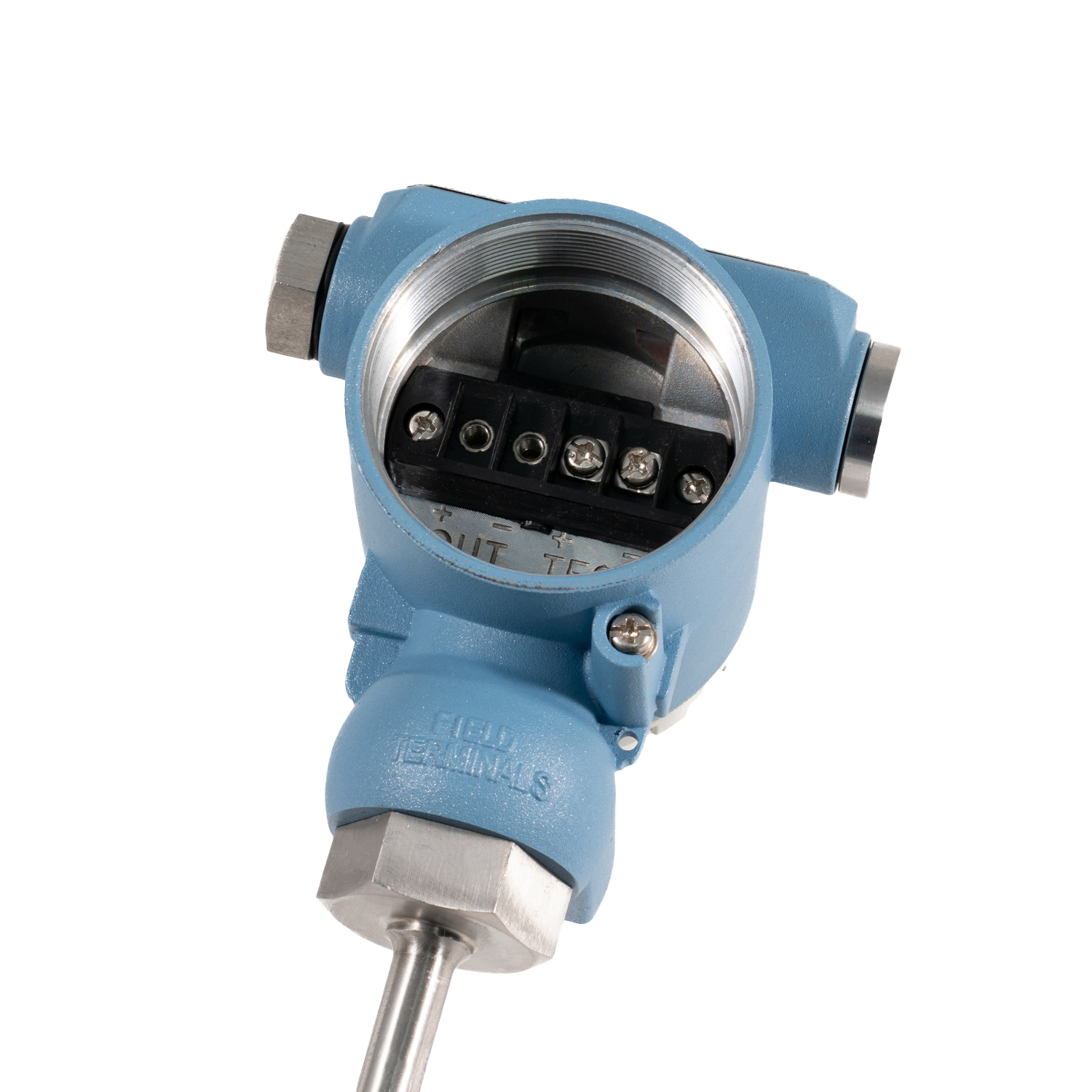

The sensor uses a Φ6 mm mineral insulated (MI) sheathed section connected to a Φ10 × 1.9 mm SS304 protection tube. An M20 × 1.5 adjustable compression fitting allows the insertion position to be adjusted according to installation requirements.
The standard configuration is Pt100, 3-wire input, 24 VDC power supply and 4-20 mA 2-wire output. Customized ranges, insertion lengths, wiring and process connections are available.
Applications
This explosion-proof temperature transmitter is suitable for temperature measurement and signal transmission in industrial process systems.
Oil & Gas Processing
Petrochemical Plants
Chemical Processing
Power Generation
Natural Gas Systems
Refineries
Industrial Equipment
Pumps and Compressors
Storage Tanks and Process Vessels
Hazardous Area Temperature Monitoring
Process Automation and Control
It can measure the temperature of liquids, gases and process equipment surfaces, depending on the installation configuration and protection tube design. Similar integrated transmitters are commonly used in petroleum, chemical, power and process automation applications.
Features
Explosion-proof design for hazardous industrial environments
Integrated Pt100 sensor and temperature transmitter
Red LED digital display for local temperature reading
Standard 4-20 mA output for remote transmission
24 VDC power supply
Pt100 3-wire input as standard
2-wire / 4-wire Pt100 input optional
M20 × 1.5 adjustable compression fitting
SS304 protection tube for good corrosion resistance
Φ6 mm mineral insulated sheathed sensor section
Compact structure and easy installation
Adjustable / customized insertion length
Suitable for continuous industrial temperature monitoring
Technical Specifications
Item | Specification |
Product Type | Explosion-Proof Integrated Temperature Transmitter |
Model | JC-SBWZ Series |
Sensor Type | Pt100 Platinum RTD |
RTD Wiring | 3-wire standard; 2-wire / 4-wire optional |
Measuring Range | -40 to 100°C |
Accuracy | ±0.5% |
Power Supply | 24 VDC |
Output Signal | 4-20 mA |
Output Wiring | 2-wire |
Display | Red LED Digital Display |
Explosion-Proof Rating | Ex db IIC T6 Gb |
Protection Tube Material | SS304 |
Protection Tube Size | Φ10 × 1.9 mm |
Protection Tube Length | 150 mm |
Sheathed Sensor Diameter | Φ6 mm |
Sheathed Sensor Type | Mineral Insulated (MI) RTD |
Exposed Φ6 MI Section | 80 mm |
Overall Length | 230 mm |
Upper Adapter | M27 × 2 |
Adjustable Fitting | M20 × 1.5 |
Fitting Material | SS304 |
Insertion Length | Adjustable / Customized |
Note: Specifications can be customized according to customer requirements.
