Product Introduction

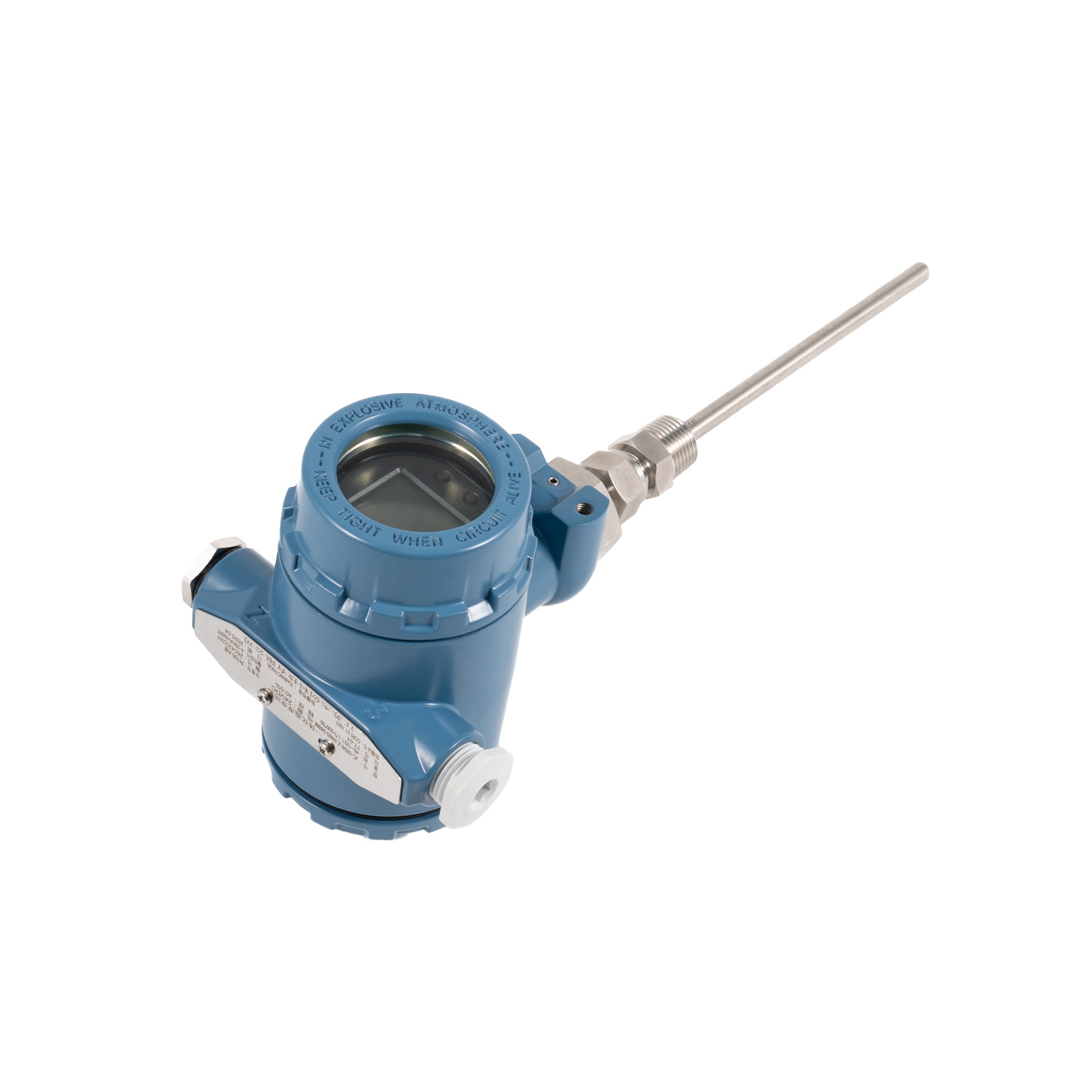

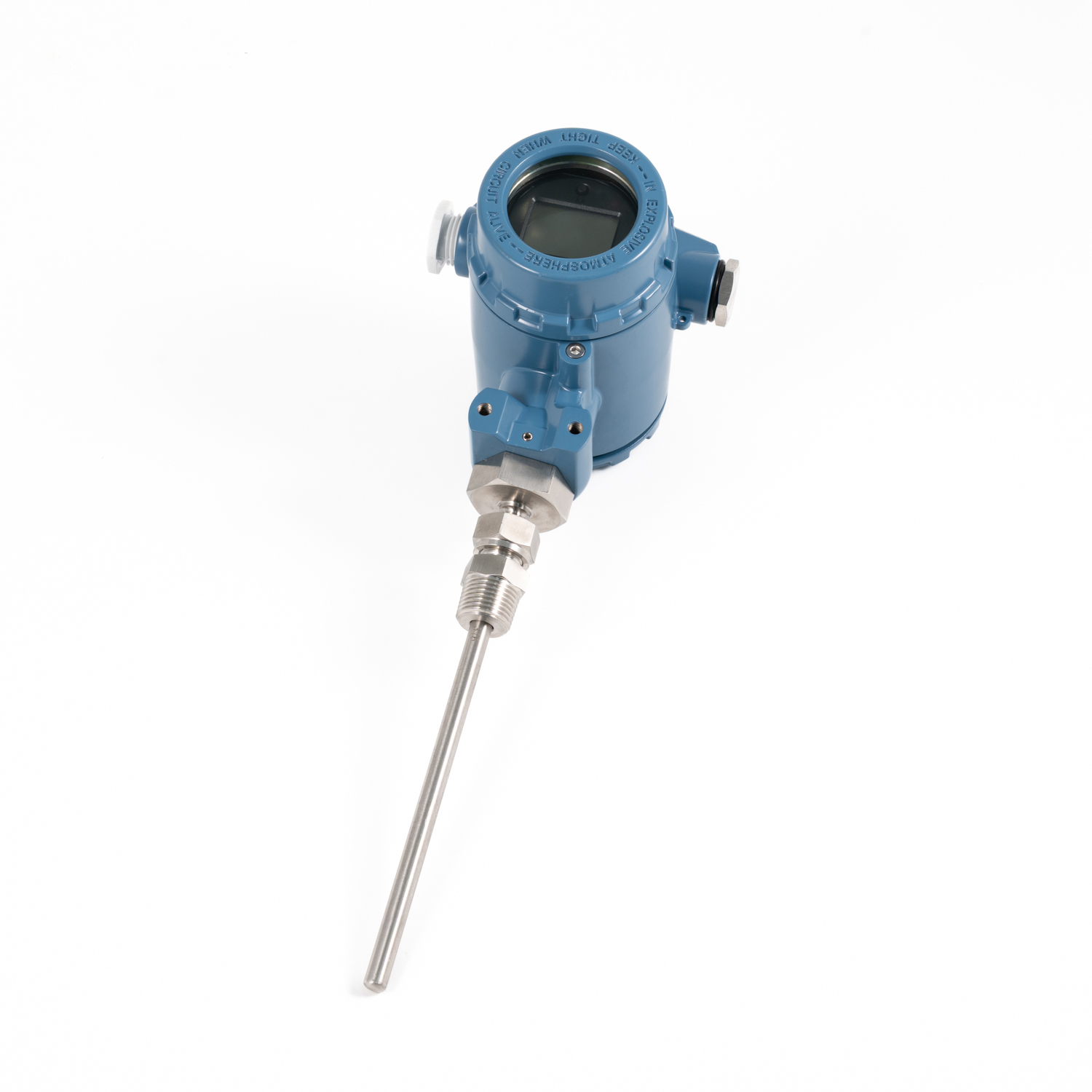

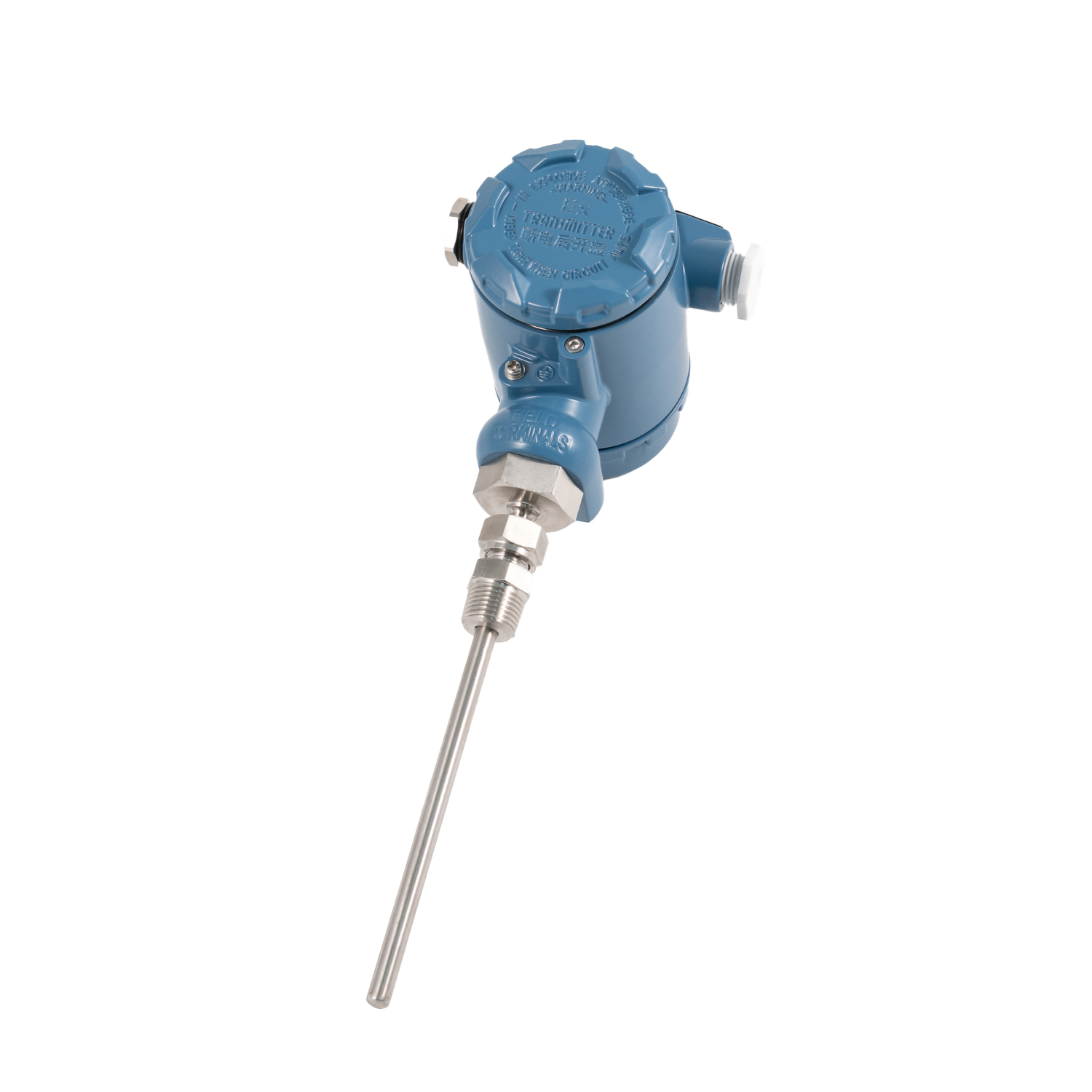

The JC-SBWZ Series Explosion Proof Pt100 Temperature Transmitter is an integrated industrial temperature measurement device with a local LCD display, Pt100 RTD sensor and built-in temperature transmitter.
The Pt100 Class A sensing element measures the process temperature, while the transmitter converts the signal into a standard 4-20mA output with HART communication for connection to PLC, DCS and other industrial control systems.
The transmitter is housed in a flameproof Ex db IIC T6 Gb enclosure for industrial hazardous-area applications.
The sensing assembly uses a Φ8 × 0.9 mm 316 stainless steel protection tube with an internal Φ5 mm mineral-insulated (MI) armored core.
A 1/2" NPT adjustable compression fitting allows the insertion position to be adjusted during installation.
The local LCD display provides convenient on-site temperature reading while the 4-20mA + HART signal supports remote monitoring and configuration.
Applications
The explosion-proof integrated temperature transmitter is suitable for temperature measurement and process control in:
The Ex db protection concept is commonly used for flameproof equipment in hazardous gas areas such as Zone 1 and Zone 2, subject to the applicable certification and installation requirements.
Features

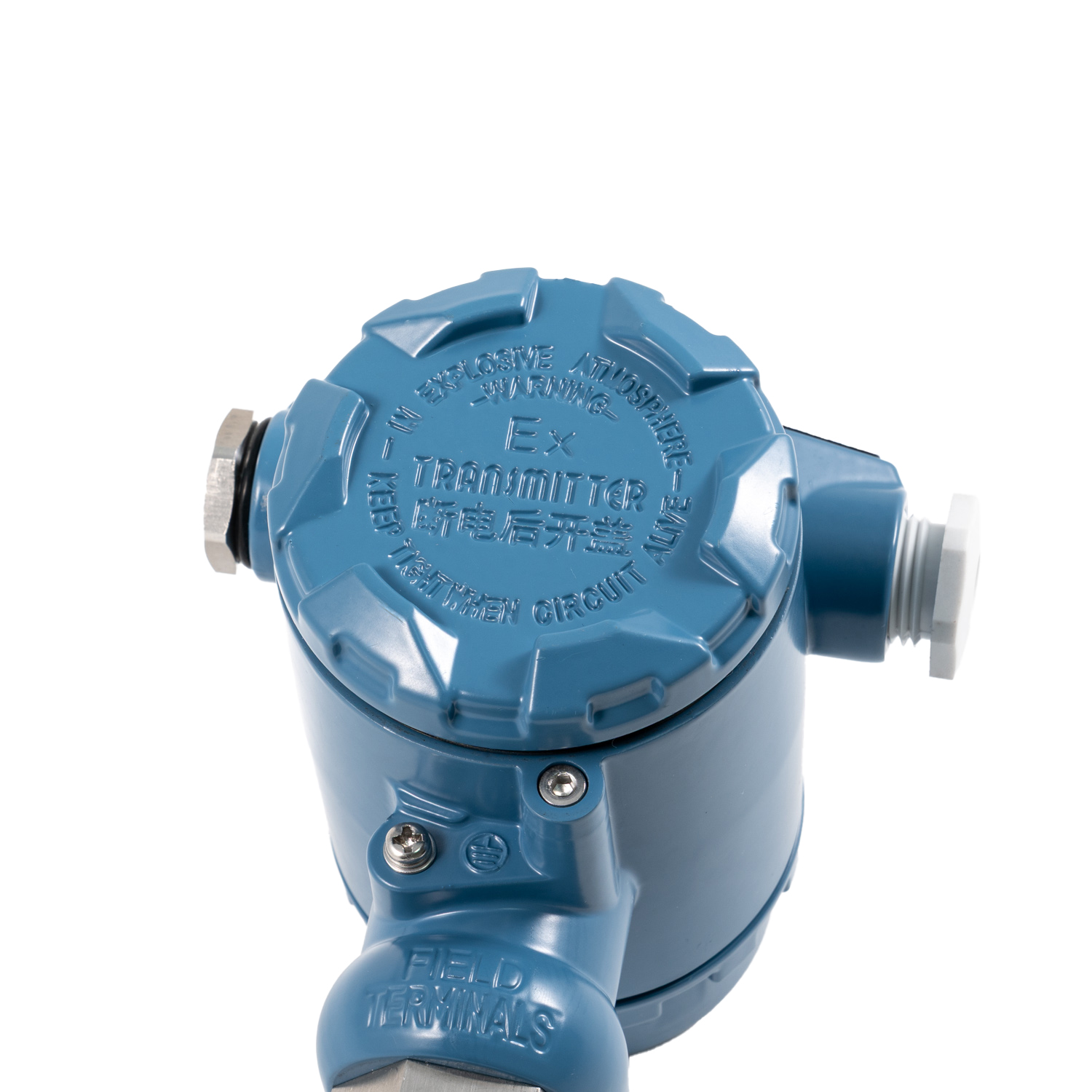

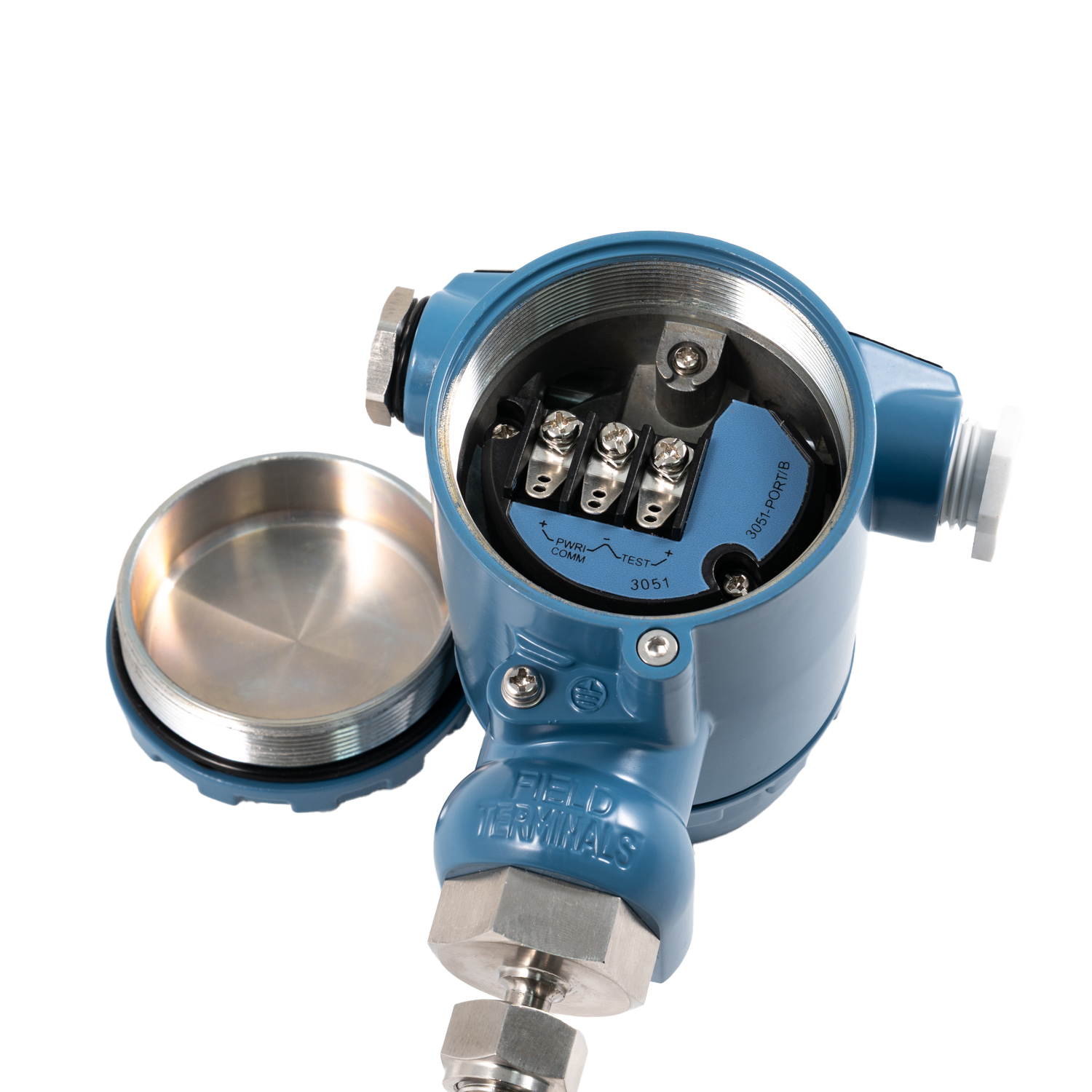

1. Explosion-Proof Flameproof Housing
Ex db IIC T6 Gb housing for industrial hazardous-area temperature measurement.
2. Pt100 Class A RTD
High-stability platinum resistance temperature sensing element.

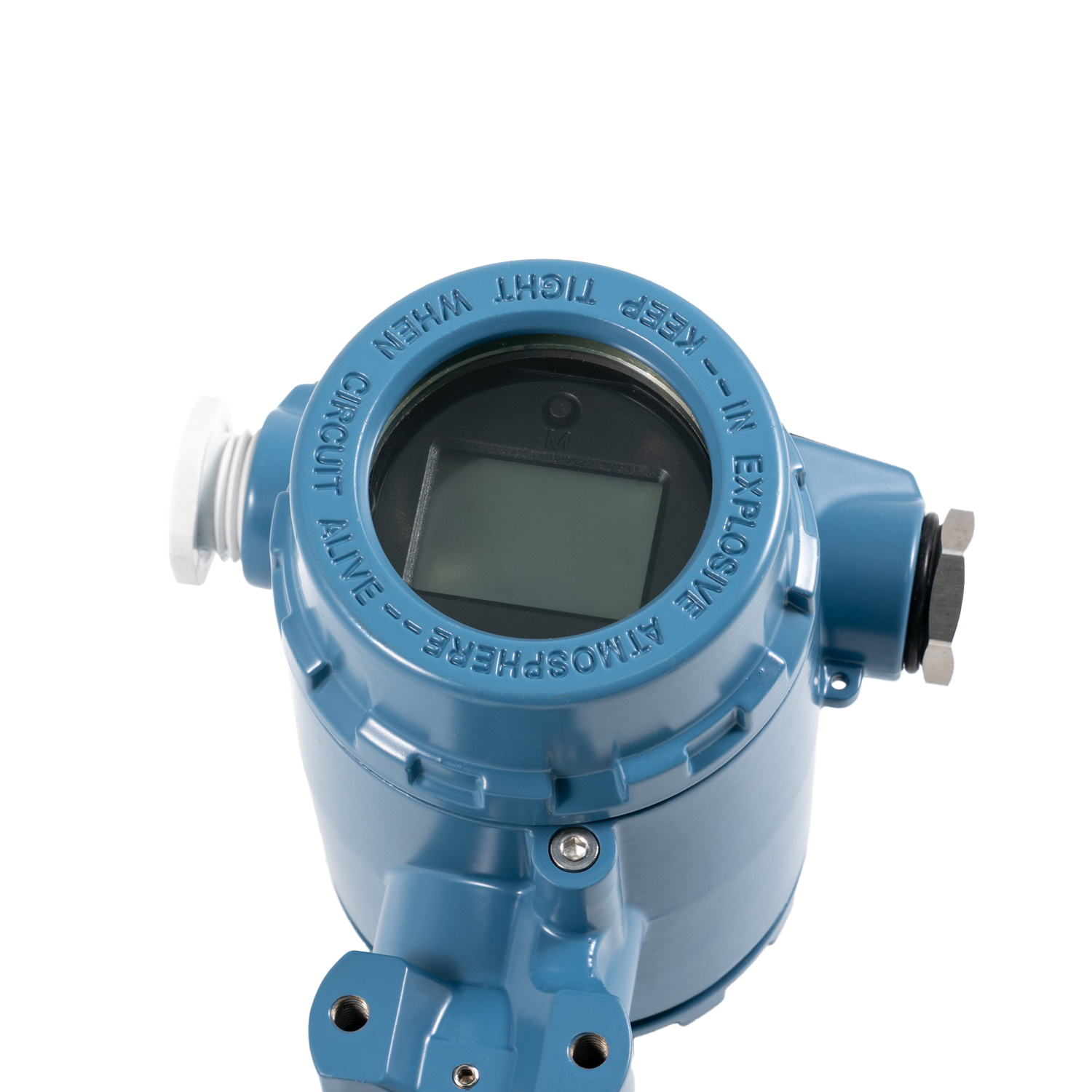

3. Local LCD Display
Provides direct temperature indication at the installation site.
4. 4-20mA + HART
Standard analog output with HART digital communication.
5. 316 Stainless Steel Protection Tube
Φ8 × 0.9 mm protection tube provides mechanical protection and good corrosion resistance.
6. Adjustable Insertion Depth
The 1/2" NPT adjustable compression fitting allows flexible positioning during installation.
7. Compact Integrated Design
Sensor, transmitter and local display are integrated into one field-mounted instrument.
8. Customized Configuration
Temperature range, probe length, process connection and other parameters can be customized.
Technical Specifications
Item |
Specification |
Product Type |
Explosion Proof Integrated Temperature Transmitter |
Model |
JC-SBWZ Series |
Temperature Sensor |
Pt100 RTD |
Accuracy Class |
Class A |
Measuring Range |
-40 to +120°C |
Transmitter Accuracy |
±0.5% FS |
Display |
Local LCD Display |
Output Signal |
4-20mA + HART |
Power Supply |
24VDC |
Explosion-Proof Rating |
Ex db IIC T6 Gb |
Protection Tube Diameter |
Φ8 mm |
Protection Tube Wall Thickness |
0.9 mm |
Protection Tube Material |
316 Stainless Steel |
Internal Core |
Φ5 mm Mineral Insulated (MI) Armored Core |
Process Connection |
1/2" NPT Adjustable Compression Fitting |
Compression Fitting Material |
SS304 |
Upper Adapter Thread |
M27 × 2 |
Electrical Connection |
1/2" NPT |
Protection Tube Length |
200 mm |
Nominal Insertion Length |
50 mm |
Adjustable Insertion Range |
0-150 mm |
Installation |
Adjustable Threaded Installation |
Sensor/Transmitter Construction |
Integrated |
Customization |
Available |
Note: Specifications can be customized according to customer requirements.
