JC-SBW Series
JIECHUANG

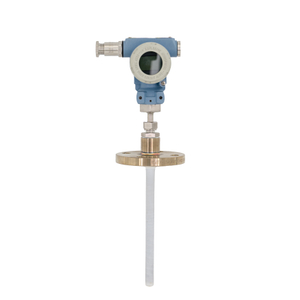

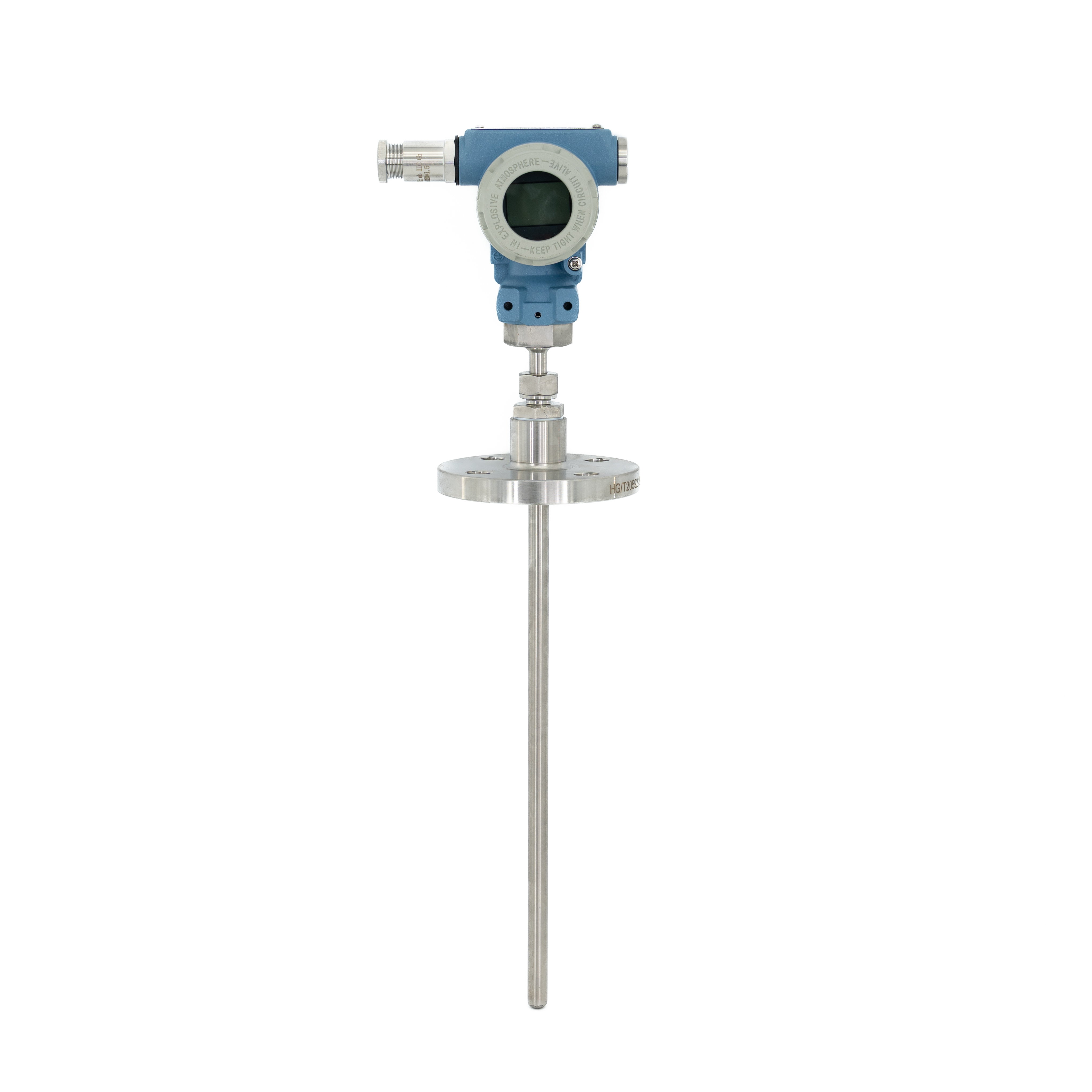

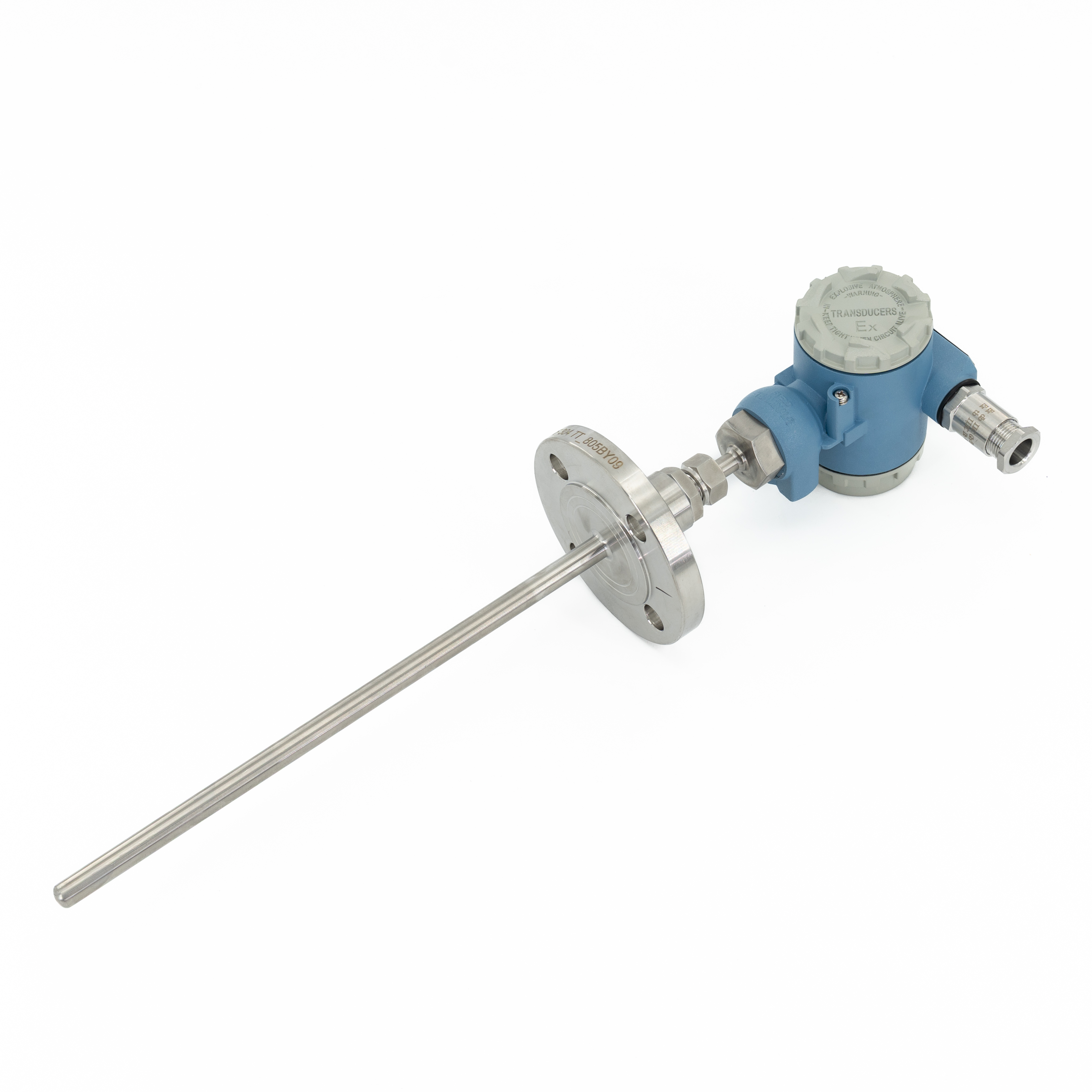

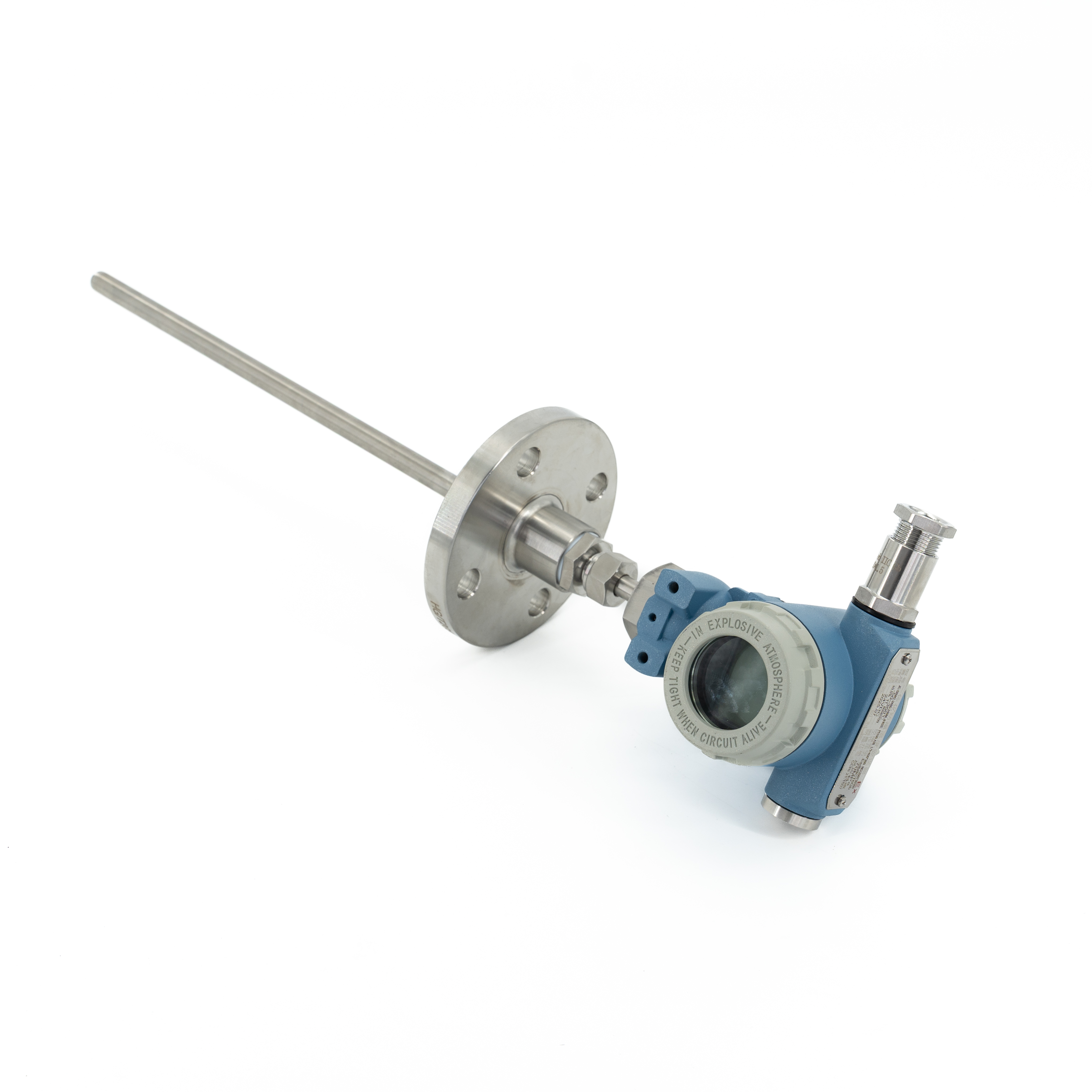

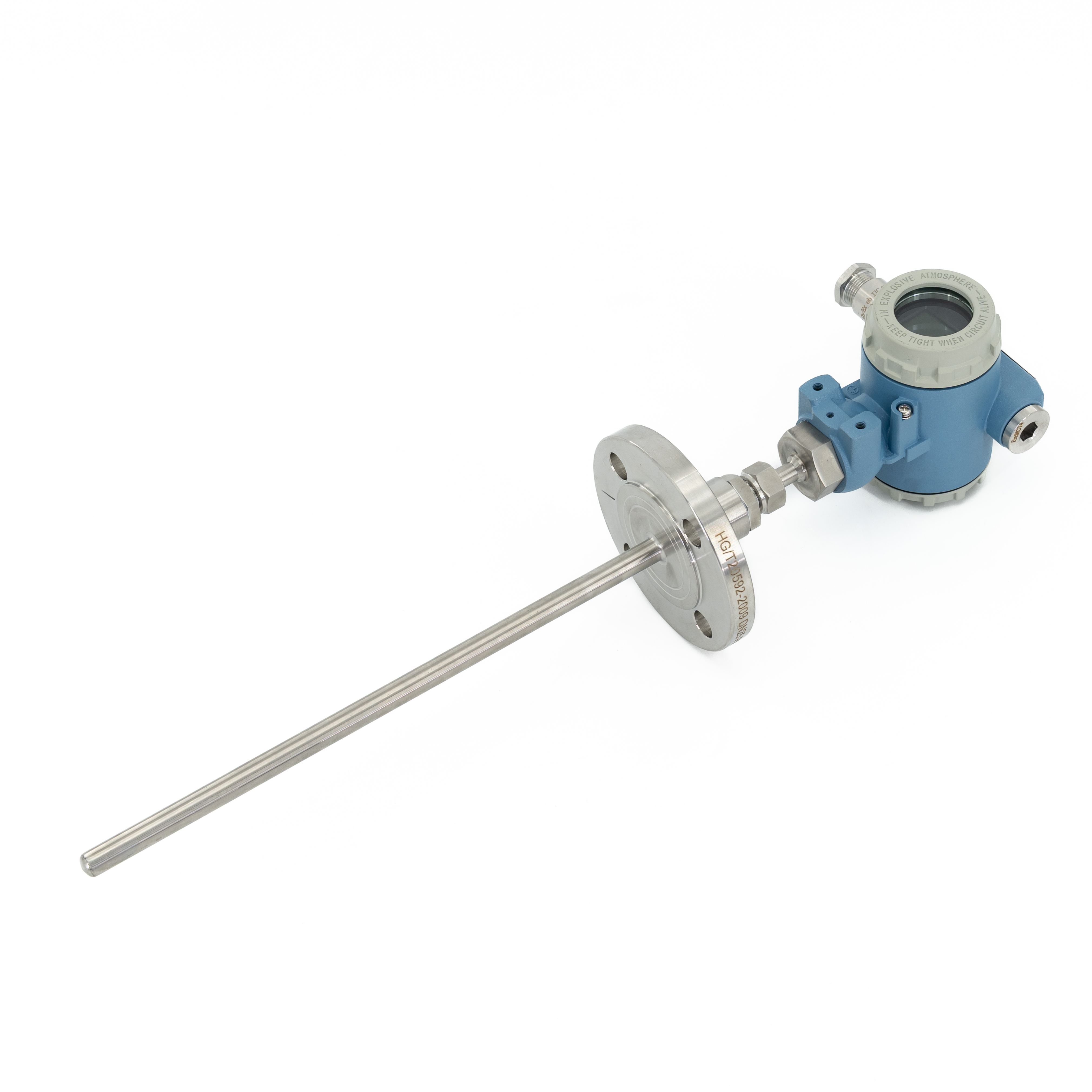

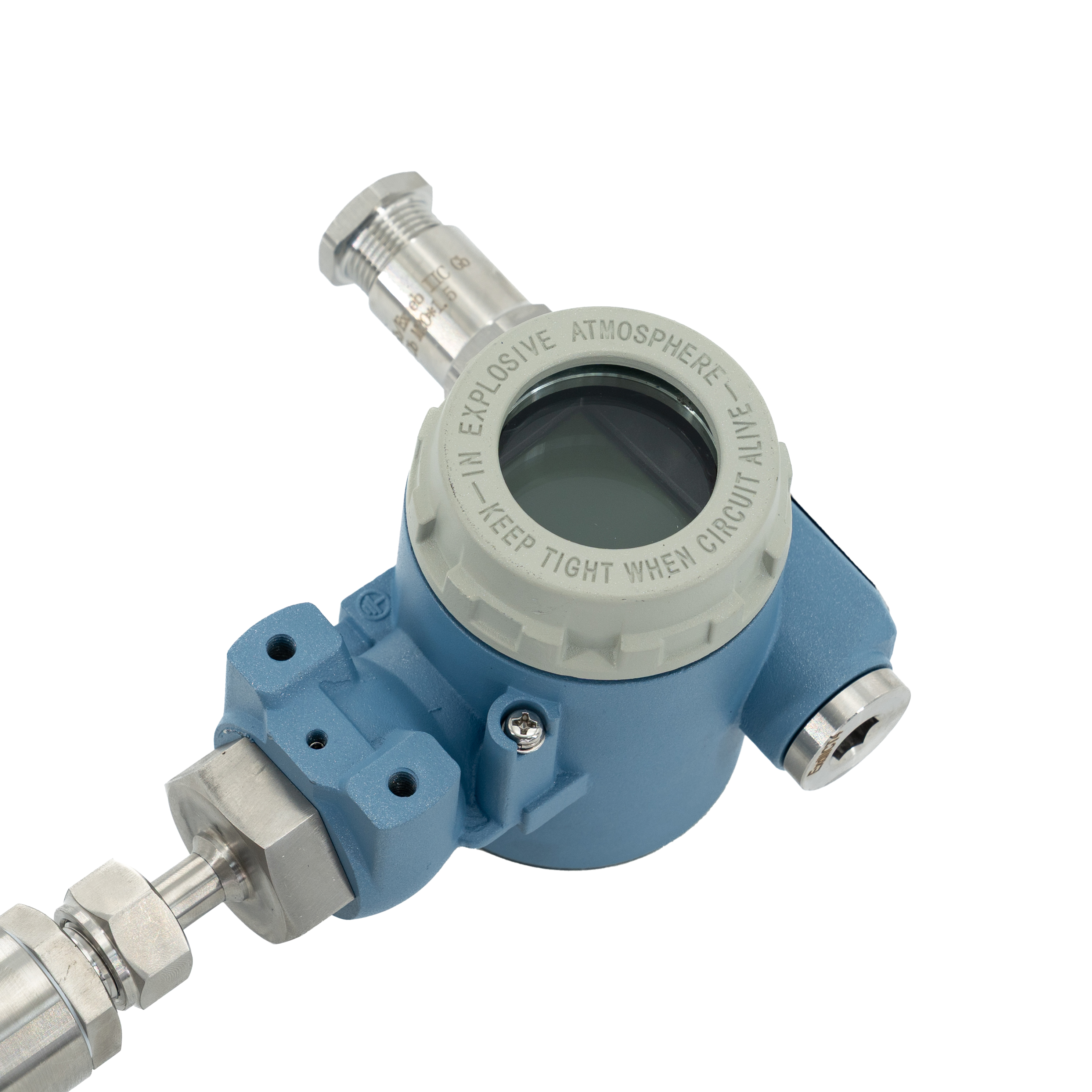

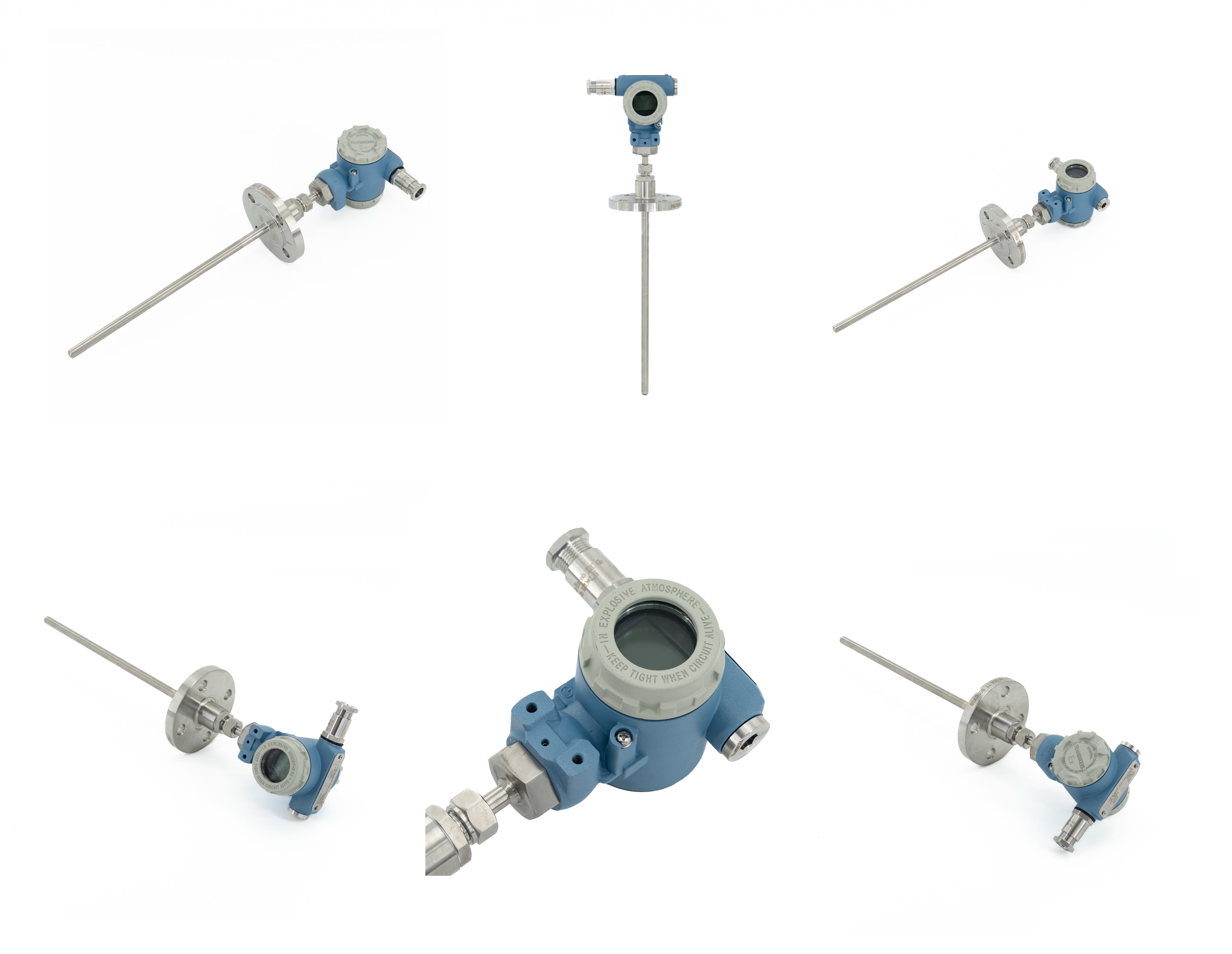

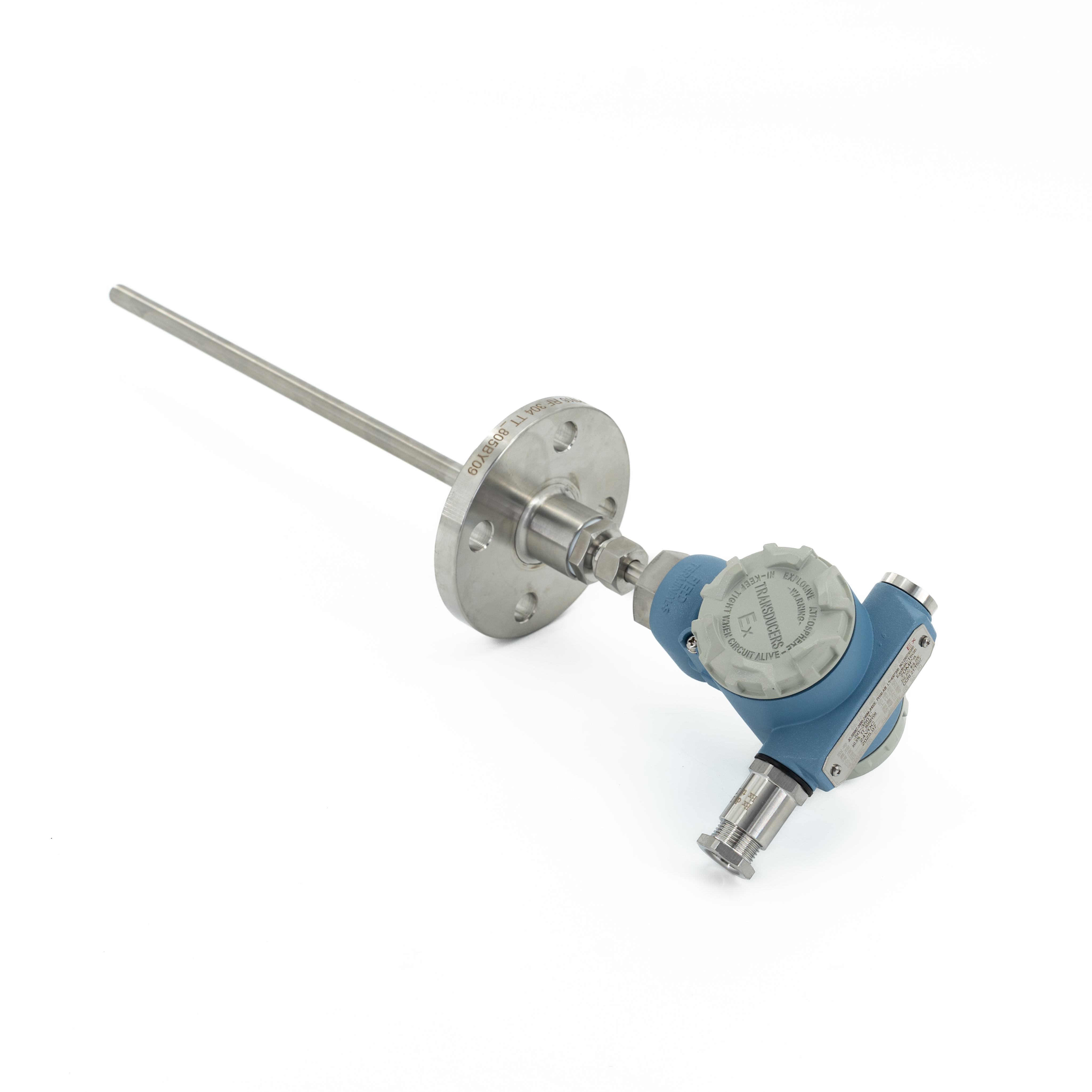

This is an integrated temperature transmitter with a protective thermowell, designed for reliable temperature measurement in industrial pipelines and vessels. The stainless steel sheath fully protects the internal RTD sensor from corrosion, abrasion, high pressure, and high flow rates, allowing safe removal for maintenance without process shutdown. It converts temperature signals into a standard 4-20mA output, with optional explosion-proof certification for hazardous areas, making it suitable for demanding process applications.
Petrochemical and oil & gas pipelines
Power plant boilers and thermal systems
Refineries and chemical processing plants
Pharmaceutical and food & beverage manufacturing
Water treatment and HVAC systems
Metallurgy and high-temperature industrial furnaces
Marine and offshore platforms
Parameters
Item | Specifications |
Product Name | Temperature Transmitter with Thermowell |
Sensor Type | Pt100 RTD (Class A / Class B) |
Measuring Range | -200℃ ~ +600℃ (customizable) |
Accuracy Class | ±0.15℃ / ±0.2%FS |
Output Signal | 4-20mA / HART / RS485 Modbus (optional) |
Sheath / Thermowell Material | Stainless Steel 304 / 316L (customizable) |
Sheath Length | 100~2000mm (customizable) |
Connection Type | Flanged (ANSI/DIN standard, DN25~DN100 customizable) |
Process Pressure | PN16 / PN25 / PN40 (customizable) |
Protection Class | IP65 / IP67 |
Explosion-proof Grade | Ex d IIB T4 / Ex ia IIC T6 (optional) |
Ambient Temperature | -40℃ ~ +85℃ |
All parameters can be customized as required.
