JC-050 Series
Jiechuang

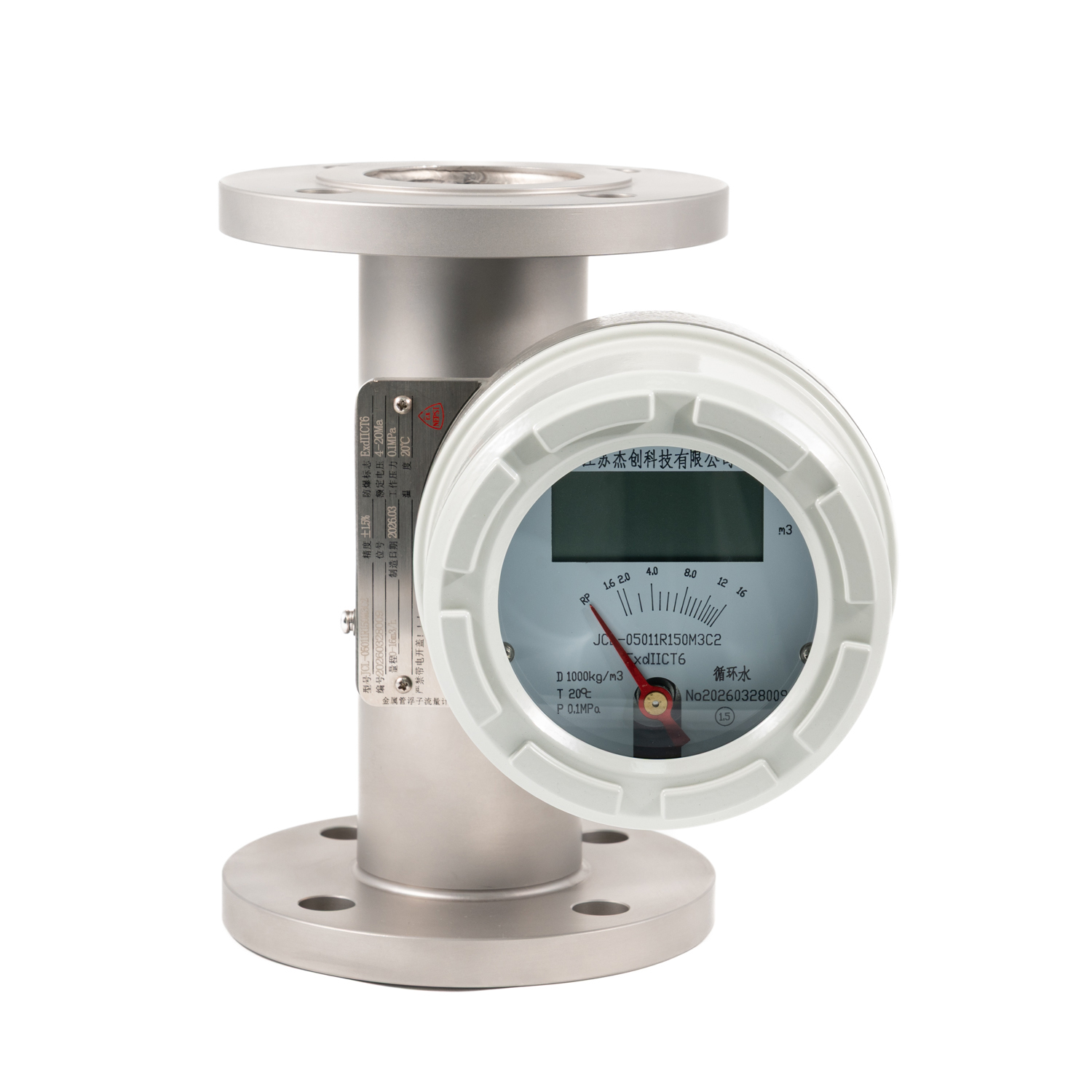

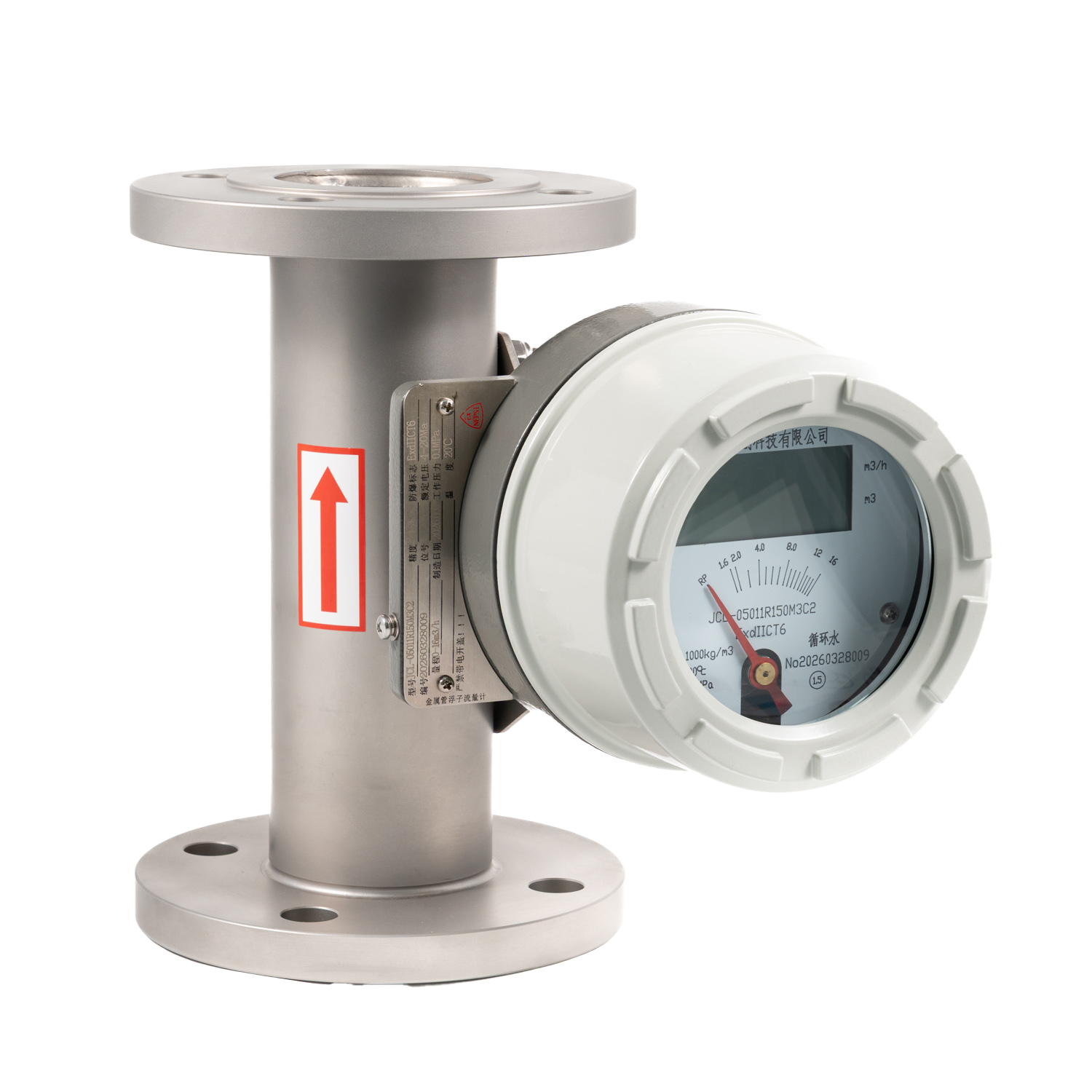

The JC-050 Series Metal Tube Rotameter is a variable area flow meter designed for continuous liquid flow measurement in industrial pipelines.
It operates through a float inside a tapered metal measuring tube. As the flow rate changes, the float moves to a corresponding position. A magnetic coupling mechanism transfers this movement to the indicator without direct mechanical contact between the float and the indicating mechanism.
The meter combines a metal measuring tube with LCD digital display and local pointer indication. Its 4–20 mA output allows flow signals to be transmitted to compatible PLC, DCS, and other industrial control systems.
The JC-050 Series is suitable for industrial liquid flow monitoring, including water treatment, cooling water circulation, and chemical processing applications. Its measuring range, process connection, and wetted materials should be selected according to actual operating conditions.
For monitoring water flow in industrial water treatment and circulation pipelines.
For local flow indication and remote flow monitoring in industrial cooling systems.
For measuring compatible liquid media in chemical production pipelines. Wetted material selection should consider chemical compatibility.
For industrial liquid flow monitoring where the selected meter configuration meets the process and hazardous-area requirements.
For monitoring circulating water and other compatible liquid flows in auxiliary process systems.

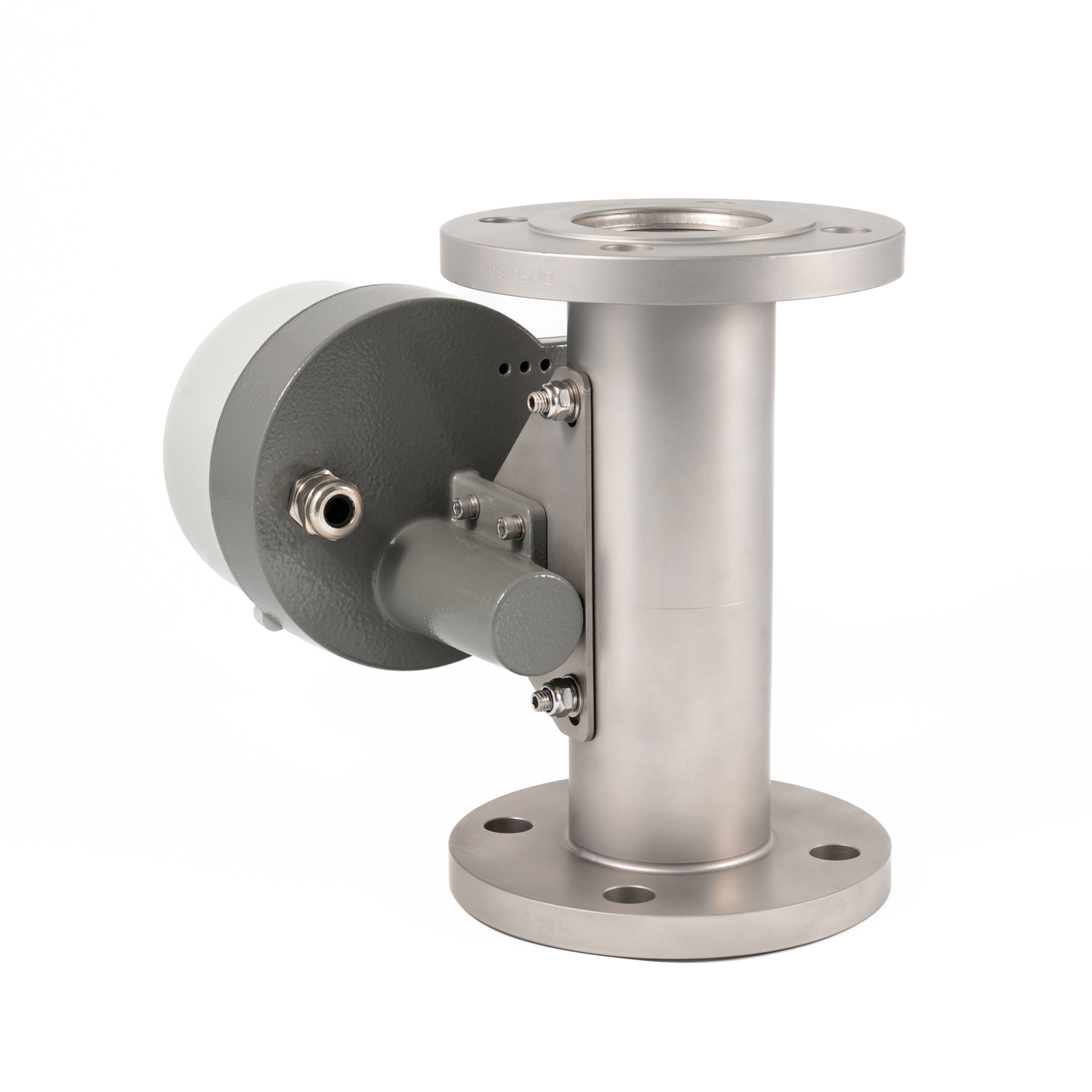

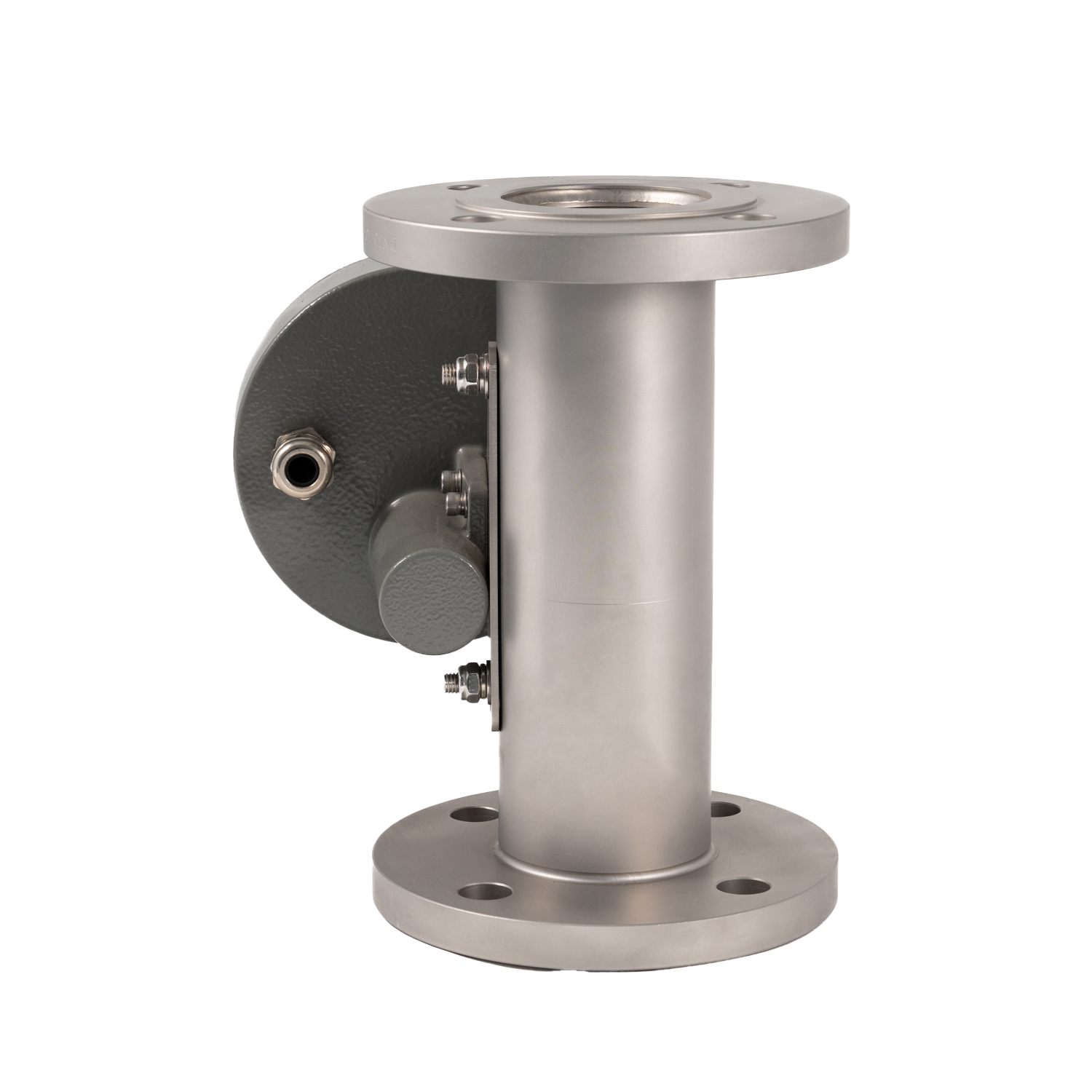

The metal measuring tube provides a robust construction for industrial pipeline flow measurement.
The magnetic coupling mechanism transfers float movement to the indicator without direct mechanical contact, supporting stable local indication.
The combination of digital and mechanical indication allows operators to read flow information locally.
The current output supports connection to compatible PLC and DCS systems for remote flow monitoring.
The electronic indicator uses a 24 VDC power supply according to the published standard configuration.
Stainless steel measuring tube and float construction are specified. SS304 and SS316 wetted material options are listed, subject to configuration confirmation.

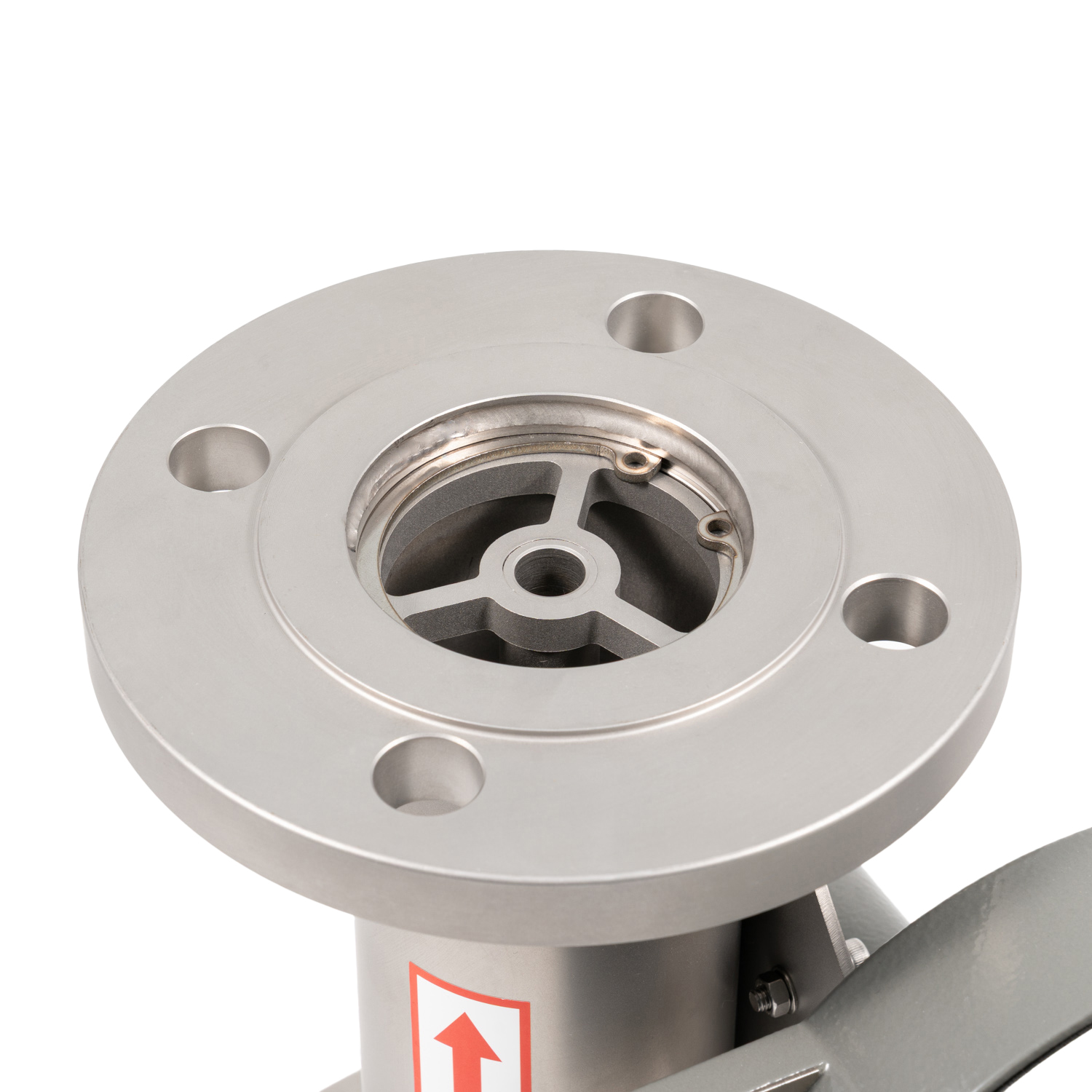

Flanged and threaded connections are listed as available configurations. The connection type and dimensions should be confirmed before ordering.
Parameter | Specification |
|---|---|
Product Name | Metal Tube Rotameter Flow Meter |
Model | JC-050 Series |
Measuring Principle | Variable Area Flow Measurement |
Medium | Circulating Water |
Medium Density | 1000 kg/m³ |
Flow Range | 0-16 m³/h |
Accuracy | ±1.5% |
Measuring Tube Material | Stainless Steel |
Float Material | Stainless Steel |

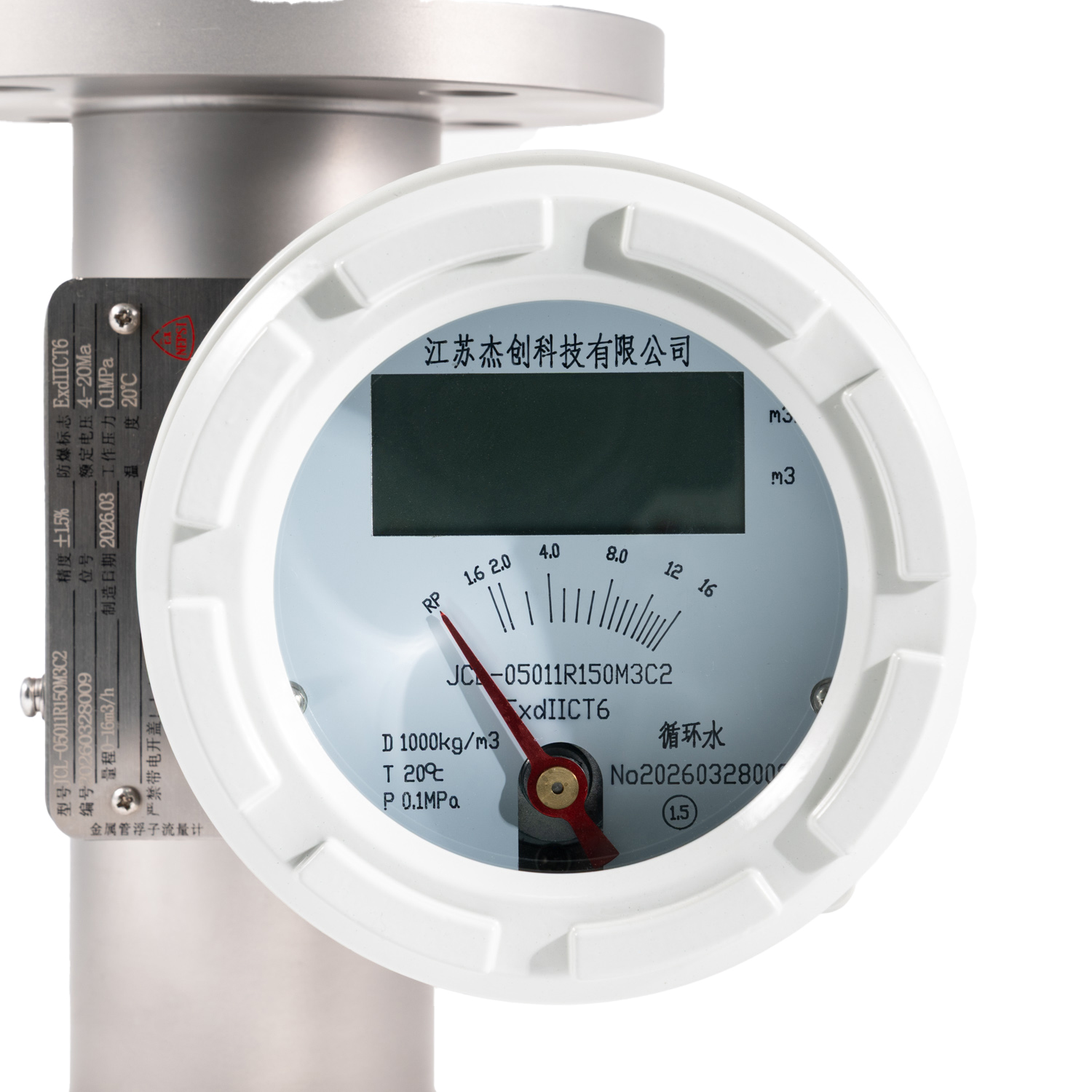

Display Type | LCD Digital Display + Pointer Indication |
Output Signal | 4-20mA |
Power Supply | 24VDC (Standard) |
Explosion Proof Grade | ExdIICT6 |
Medium Temperature | 20ºC |
Working Pressure | 0.1 MPa |
Process Connection | Flange Connection |
Flange Standard | Customized (According to Customer Requirement) |
Nominal Size | DN50 |
Protection Grade | IP65 / IP67 Optional |
Installation Direction | Vertical Installation |
Cable Entry | M20×1.5 / Customized |
Indicator Housing Material | Aluminum Alloy / Stainless Steel Optional |
Wetted Material | SS304 / SS316 Optional |
Note: Specifications can be customized according to customer requirements.
It uses the variable area principle. A float moves inside a tapered measuring tube according to the flow rate, and its position is transferred to the indicator through magnetic coupling.
Yes. The published configuration includes a 4–20 mA output for connection to compatible industrial control systems.
Yes. The published configuration combines an LCD digital display with local pointer indication.
The product page lists SS304 and SS316 as optional wetted materials. Final material selection depends on the process medium and operating conditions.
Flanged and threaded connections are listed as available options. Please provide the pipeline size and required connection standard for confirmation.
Please provide the medium, flow range, density, operating pressure, temperature, pipe size, process connection, required output, and hazardous-area requirements.
To help us select the appropriate JC-050 Metal Tube Rotameter, please provide:
Measuring Medium
Minimum / Normal / Maximum Flow Rate
Medium Density and Viscosity
Operating Pressure
Operating Temperature
Pipe Size and Process Connection
Required Wetted Material
Output Signal and Power Supply
Required Explosion-Proof Specification, if applicable
Please specify any requirements for display, protection rating, flange standard, installation direction, or special operating conditions.
JIECHUANG provides industrial flow measurement solutions based on actual process and installation requirements. Contact our team for technical selection and quotation.
