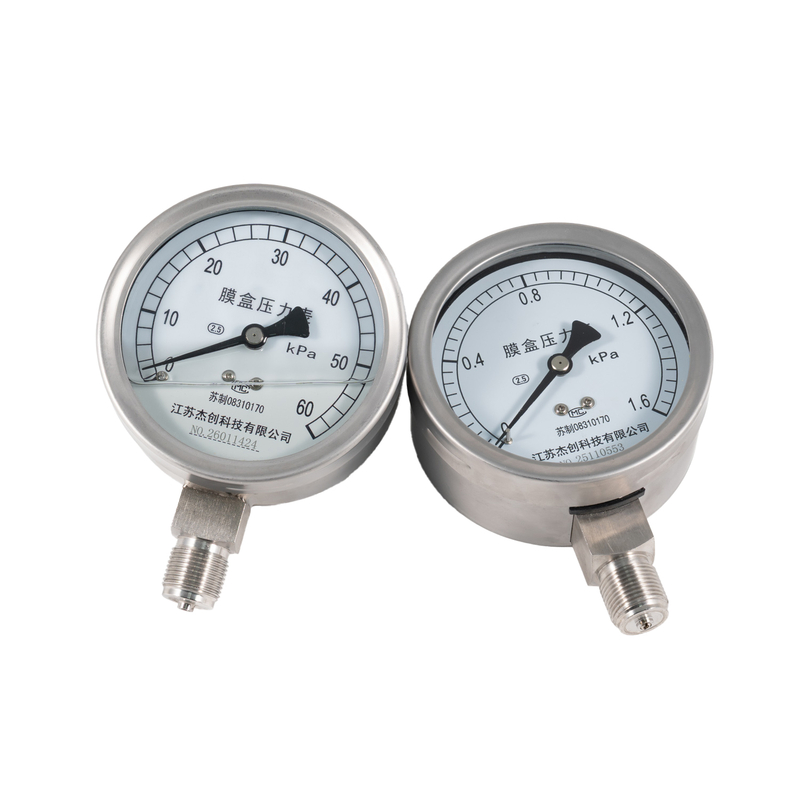

All Stainless Steel Capsule Pressure Gauge for Micro Pressure Measurement 0~1.6kpa

Overview

The Stainless Steel Capsule Pressure Gauge is specially designed for micro pressure and very low pressure measurement.

It uses a highly sensitive capsule sensing element, which is composed of two elastic diaphragm discs welded together. When pressure enters the capsule, the small deformation is transferred through the mechanical movement system to display the pressure value on the dial.

Compared with traditional Bourdon tube pressure gauges, the capsule pressure gauge provides higher sensitivity and better measurement performance at extremely low pressure ranges, making it ideal for applications such as air, gas, ventilation and cleanroom pressure monitoring.

This model features:

• Measuring range: 0~1.6 kPa

• Accuracy class: 2.5

• Fully stainless steel construction

• Suitable for low pressure gas measurement

Application

Capsule Pressure Gauges are mainly used for measuring very low pressure and micro pressure of gases.

Typical applications include:

• HVAC ventilation systems

• Clean room pressure monitoring

• Gas pipelines

• Gas burners

• Boiler ventilation systems

• Pneumatic equipment

• Filter monitoring systems

• Laboratory equipment

• Environmental control systems

Features

• Designed for micro pressure and very low pressure measurement

• High sensitivity capsule sensing element

• Full stainless steel construction

• Suitable for air and gas pressure monitoring

• Clear dial display with stable indication

• Mechanical operation, no power supply required

• Good corrosion resistance

• Suitable for industrial and environmental applications

• Customized pressure range available

Technical Specifications

Note: Specifications can be customized according to customer requirements.
