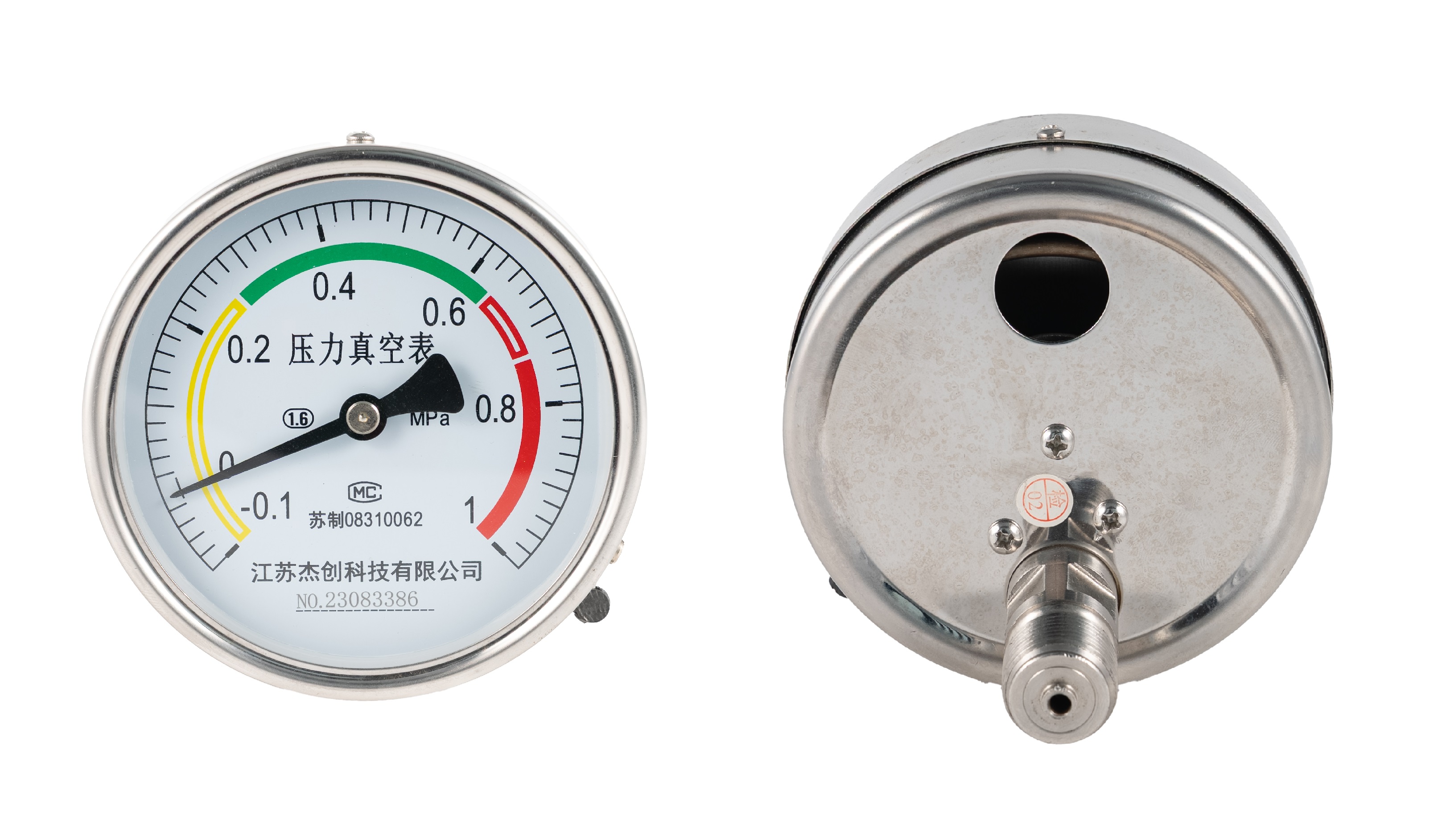

Y Series Pressure Vacuum Gauge
Product Overview:
This is a Y-series compound pressure vacuum gauge designed to measure both negative (vacuum) and
positive pressures simultaneously, widely used in industrial processes where both vacuum and pressure
conditions exist.

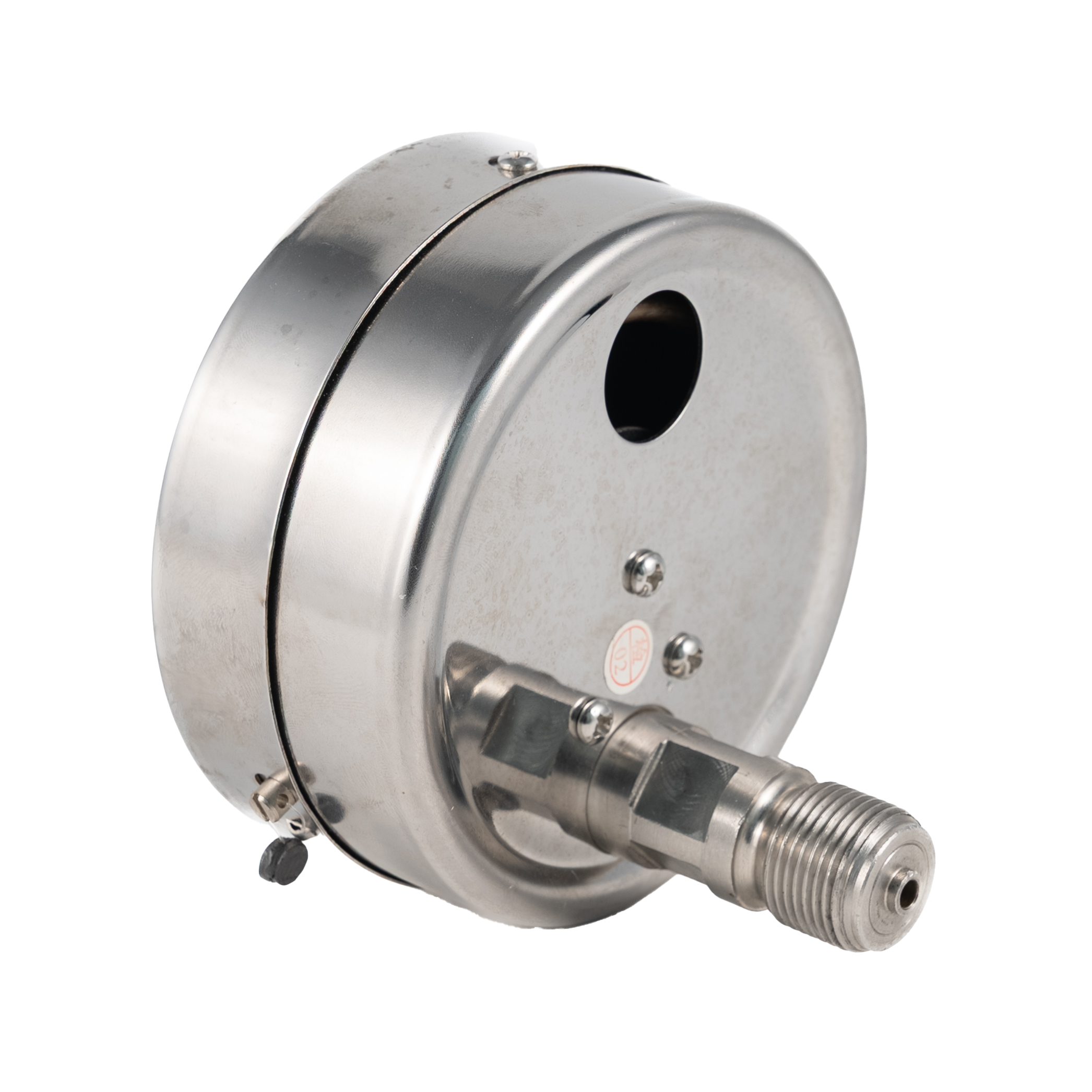

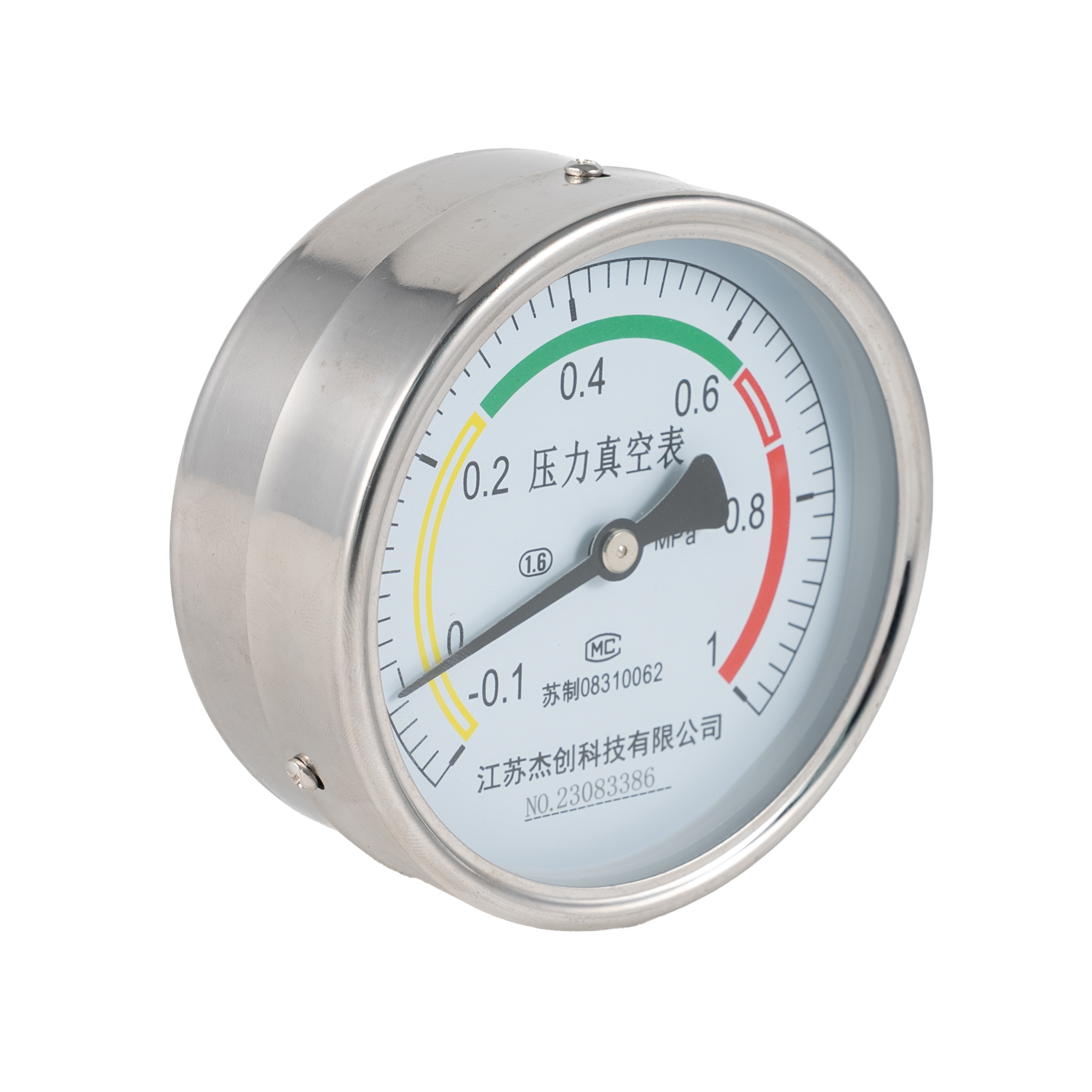

The gauge features a durable stainless steel case for excellent corrosion resistance and long service life, with a
clear color-coded scale for quick visual pressure status checks.
The high-precision movement ensures reliable readings, and all core parameters including range, dial size,
connection thread, and material can be fully customized according to customer requirements.
It is suitable for use in non-corrosive gases and liquids in general industrial environments.
Main Applications:
Vacuum systems and compressors
Refrigeration and HVAC systems
Industrial pumps and vacuum equipment
Chemical and pharmaceutical processes
Food and beverage production
General industrial machinery with vacuum/pressure cycles
Parameters:
Parameter | Standard & Customizable Options |
Model Series | Y Series (Y-60 / Y-100 / Y-150 / Y-200) |
Dial Size | 60mm / 100mm / 150mm / 200mm (customizable) |
Accuracy Grade | 1.6 / 2.5 (customizable) |
Measuring Range | Standard -0.1~1.0 MPa; custom ranges (e.g., -0.1~0.6 MPa, -0.1~1.6 MPa) available |
Case Material | Standard Stainless Steel; black powder-coated iron optional |
Wetted Part Material | Standard Copper Alloy; SS304/SS316L optional (customizable) |

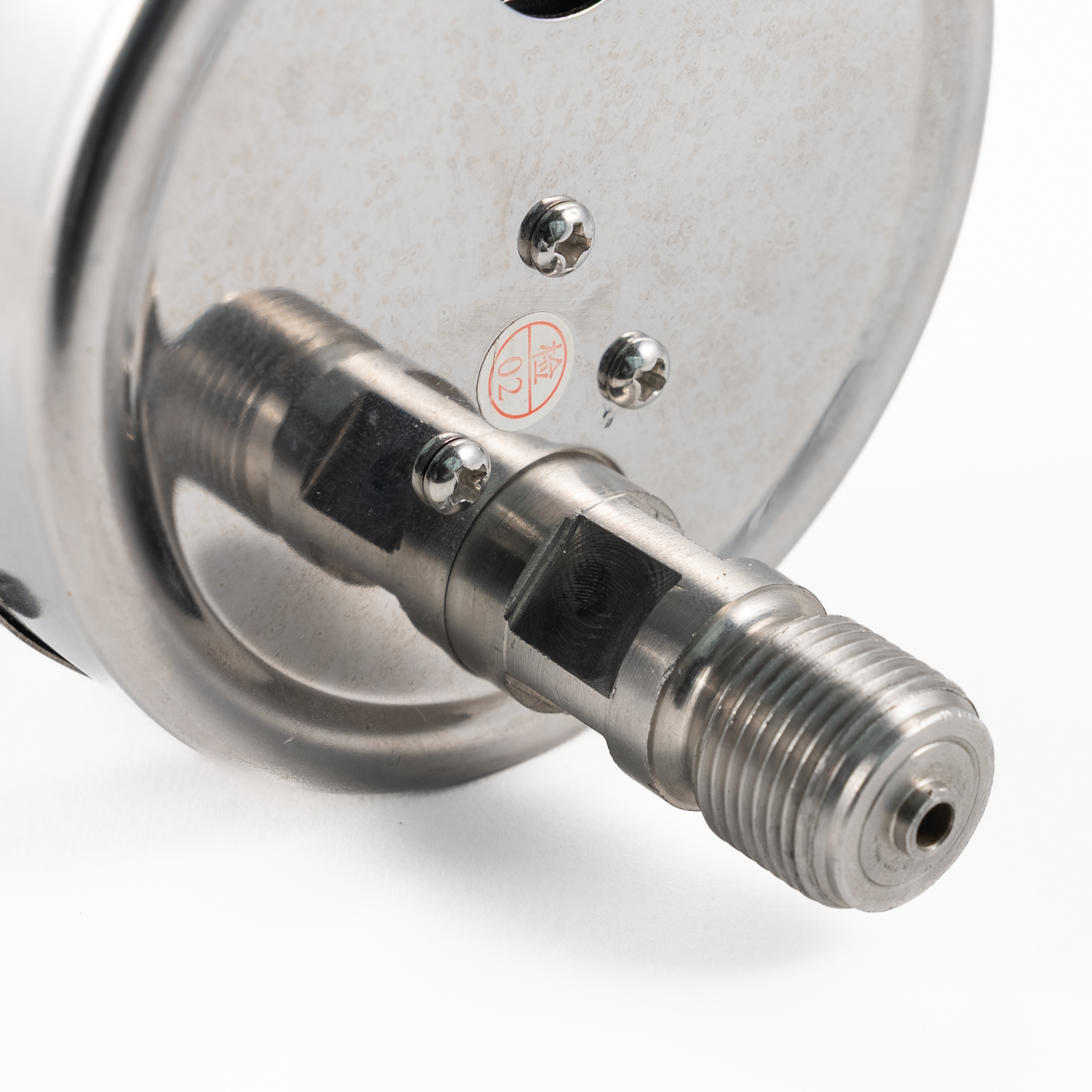

Connection Thread | Standard M20×1.5; 1/2" NPT / G1/2" / R1/2" / 1/4" NPT etc. (customizable) |

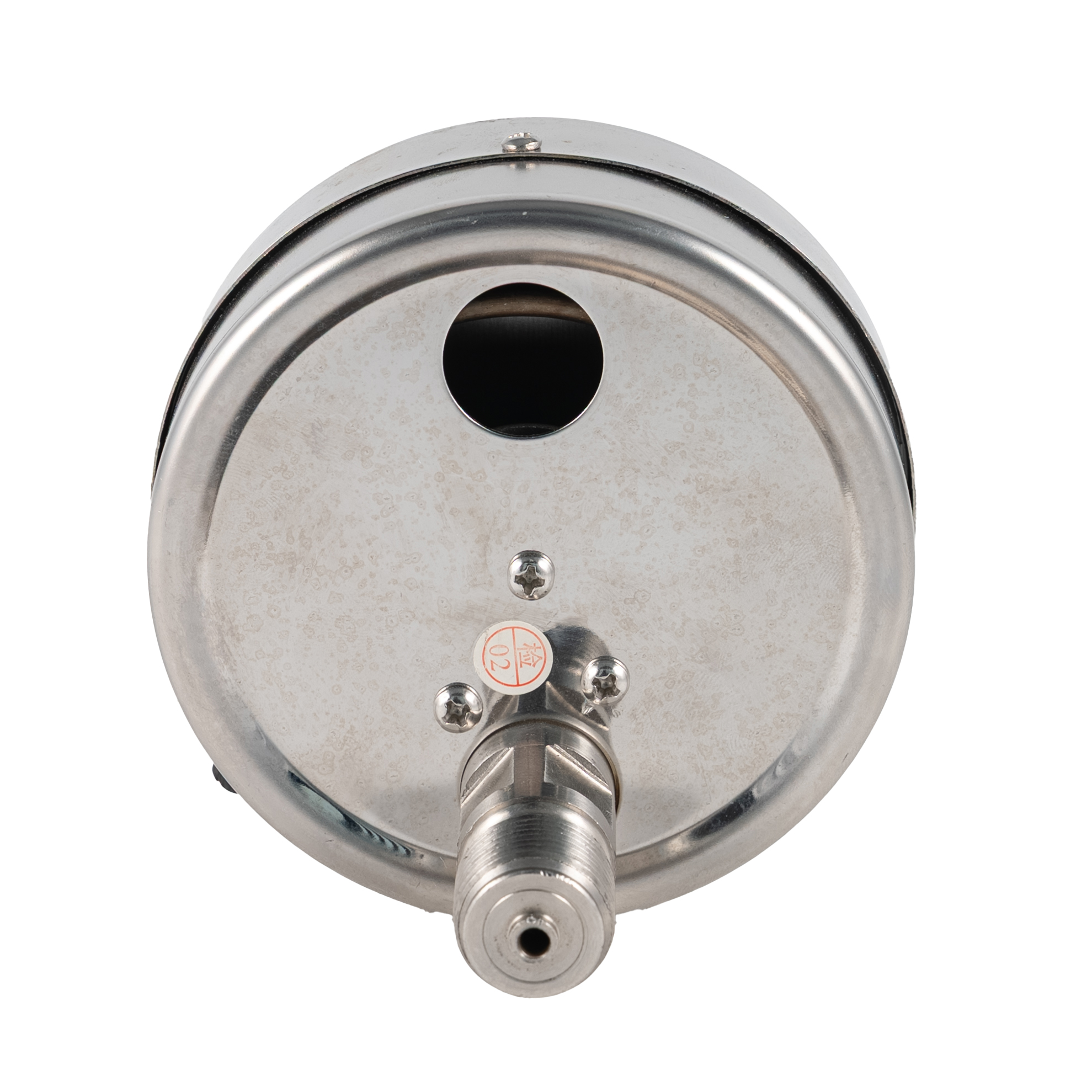

Mounting Type | Standard Back Mount (Axial); Front Flange / Panel Mount optional |
Dial Window | Standard Clear Glass; Tempered Glass optional |

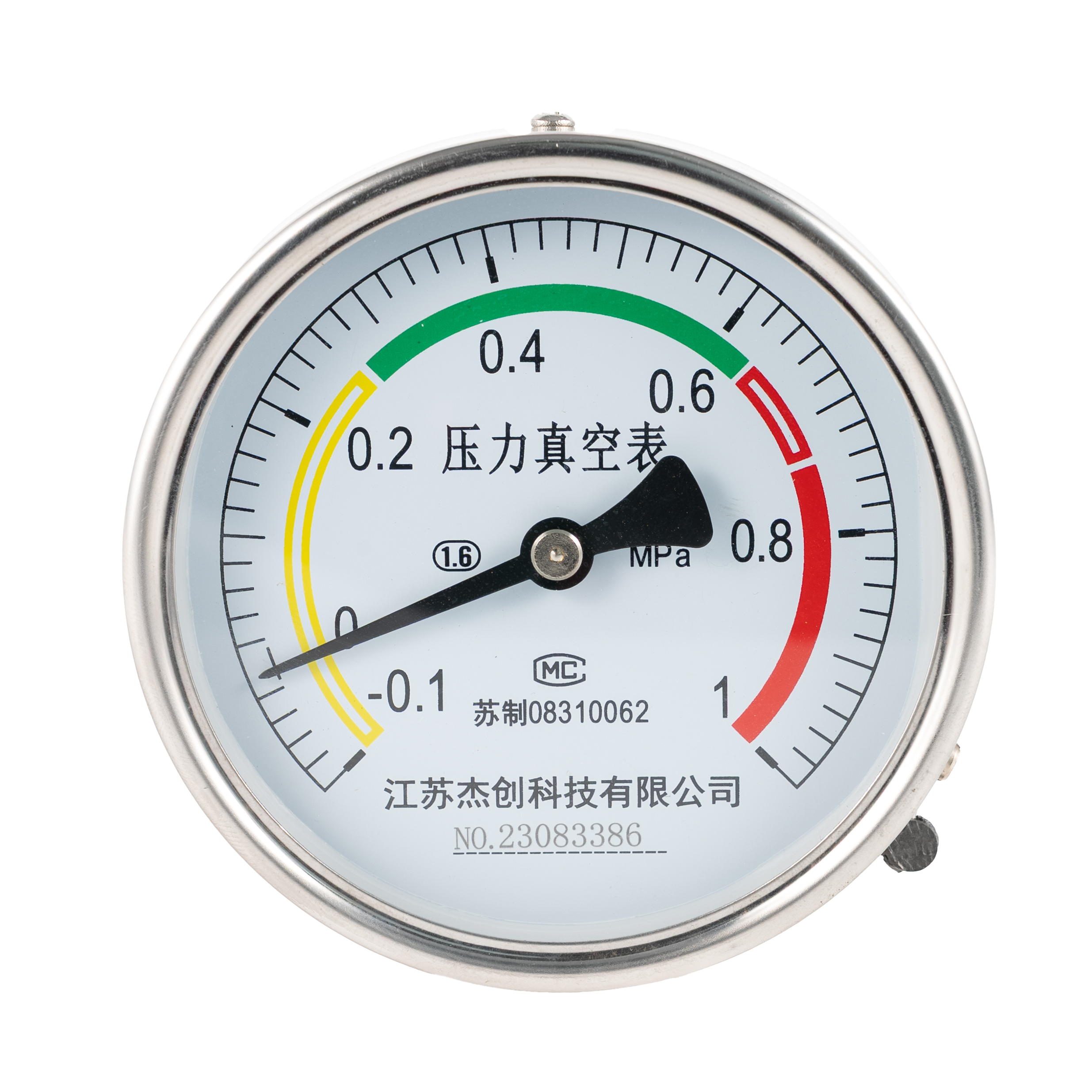

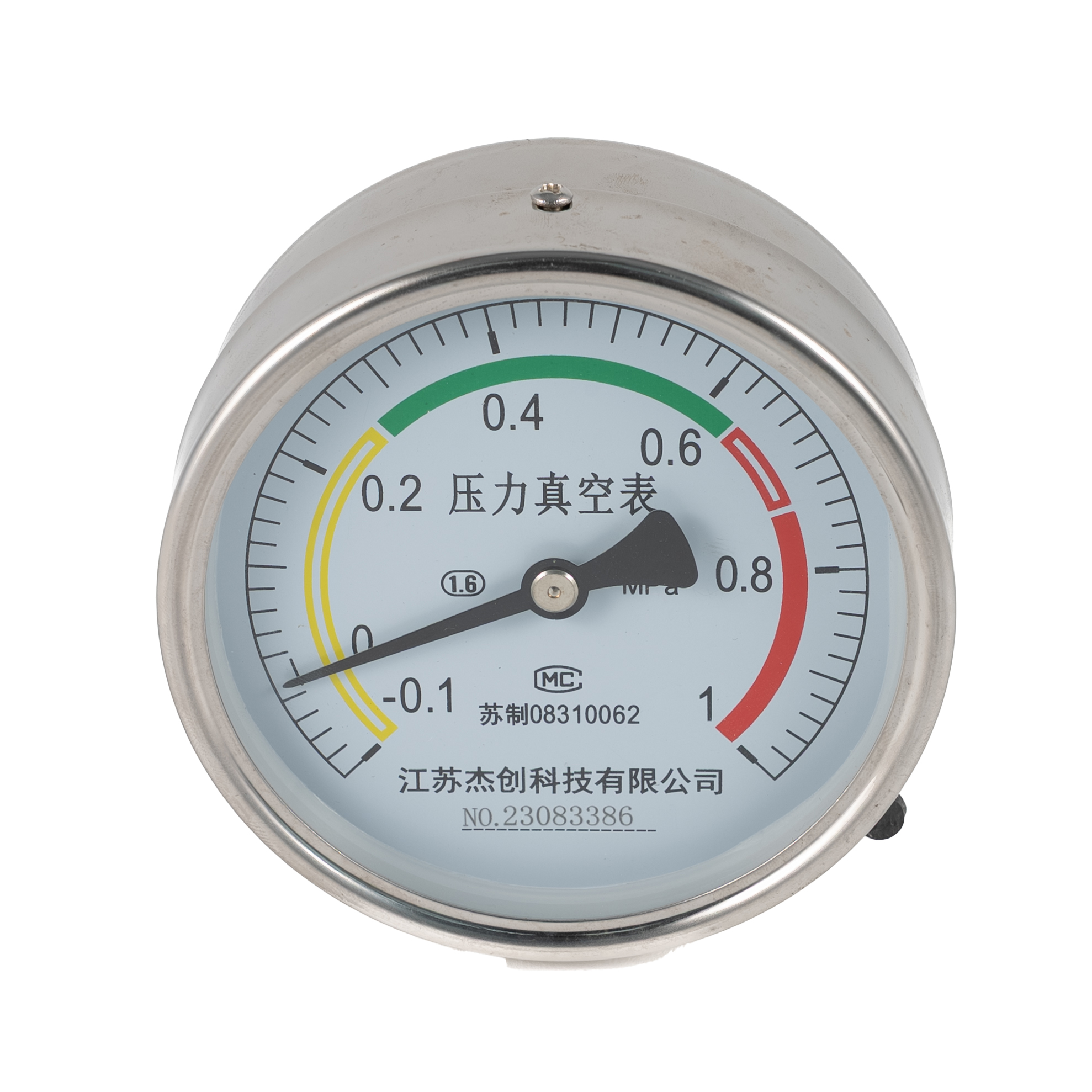

Color-Coded Scale | Standard 3-Zone (Yellow/Green/Red); custom zones/colors available |
Operating Temperature | -40℃ ~ +70℃ (standard); high/low temperature options available |
Protection Grade | IP54 (standard); IP65 optional |
Note: All parameters can be customized as required.
