Product Introduction

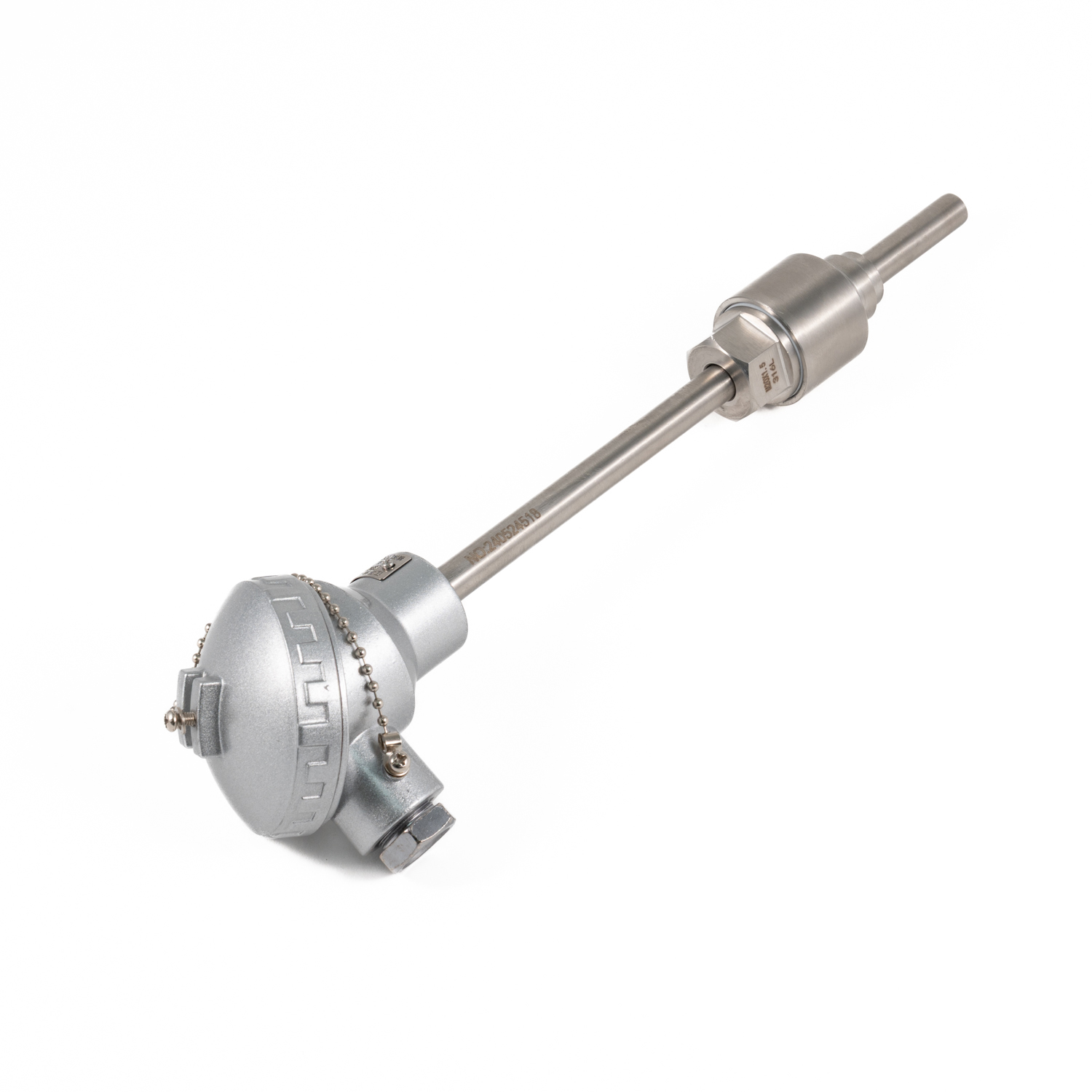

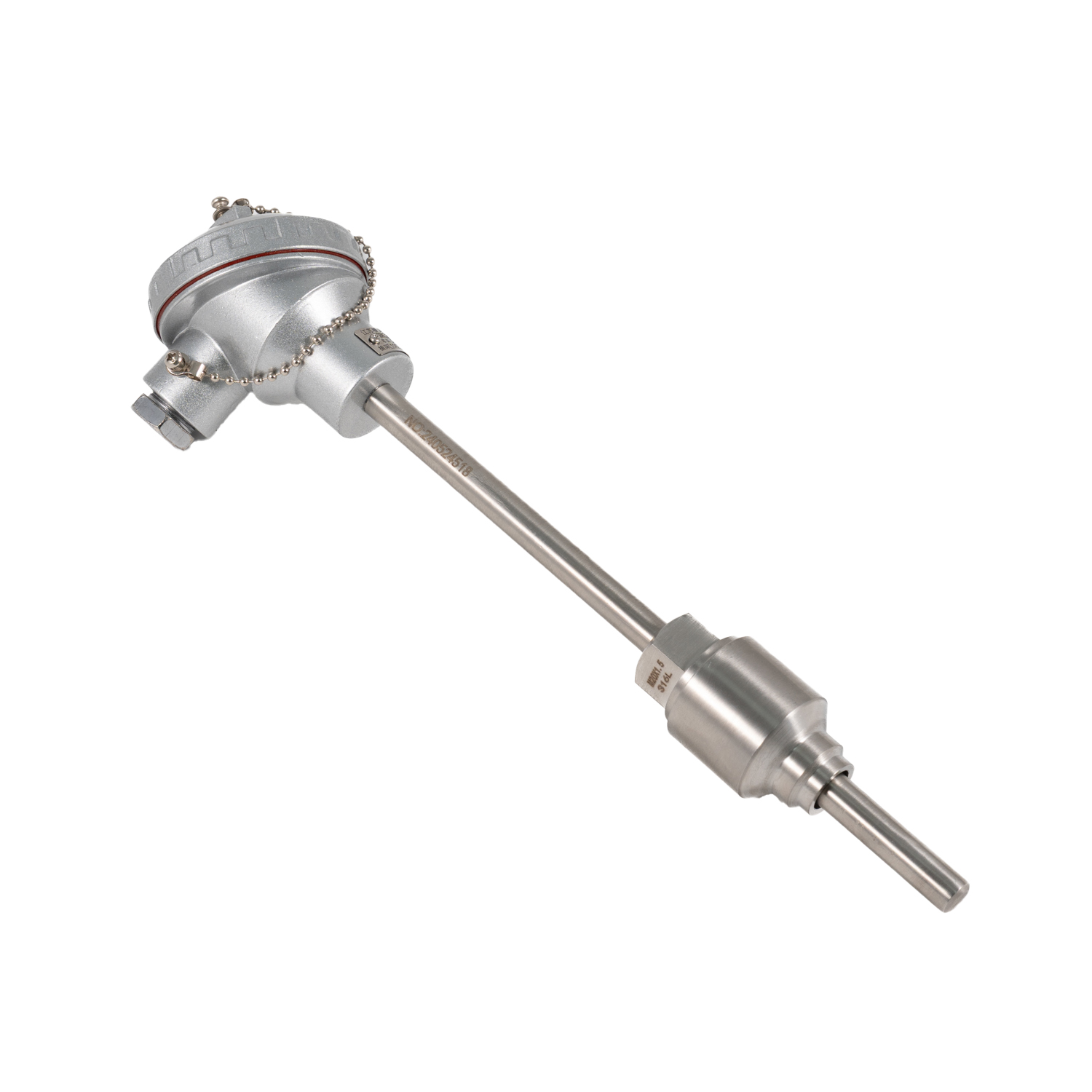

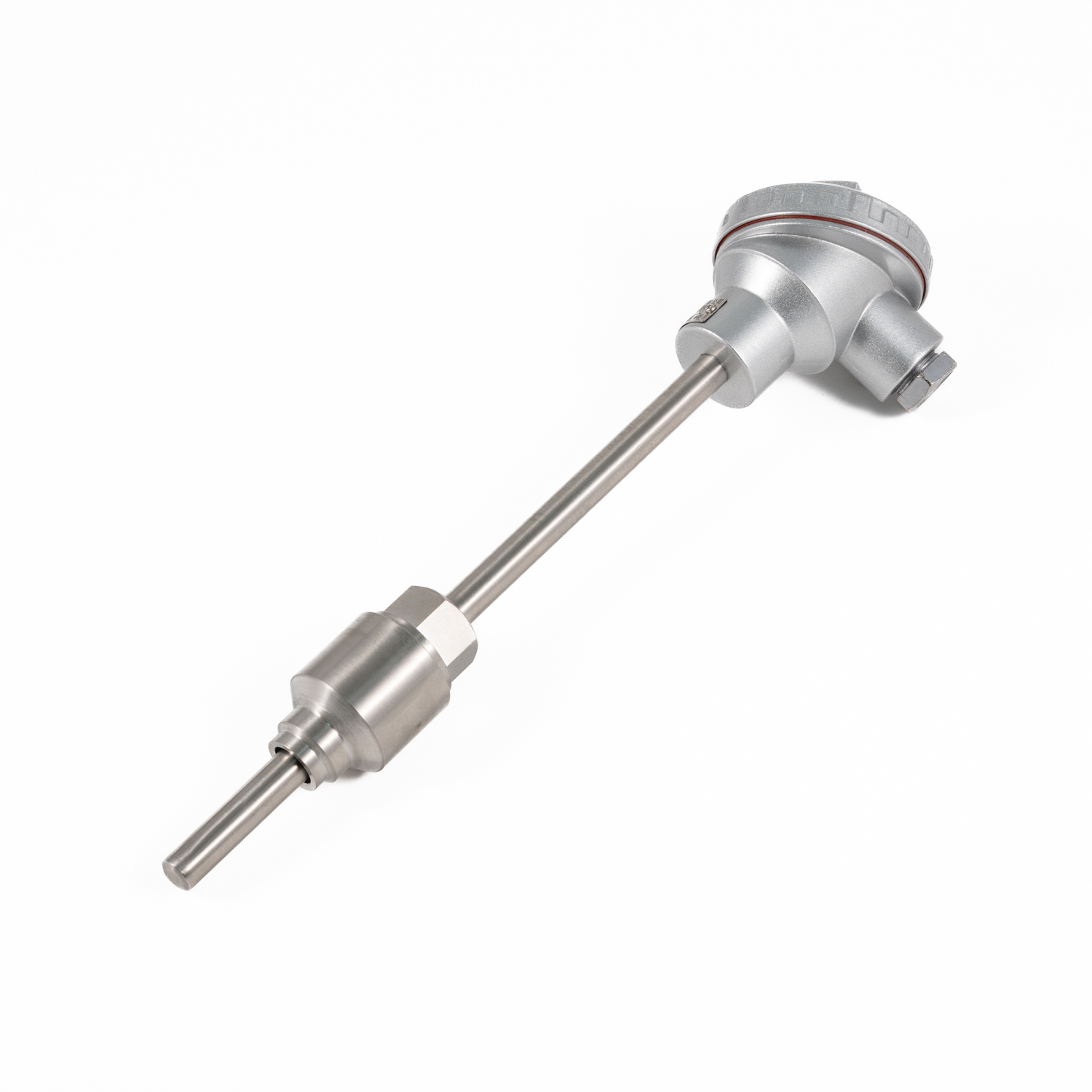

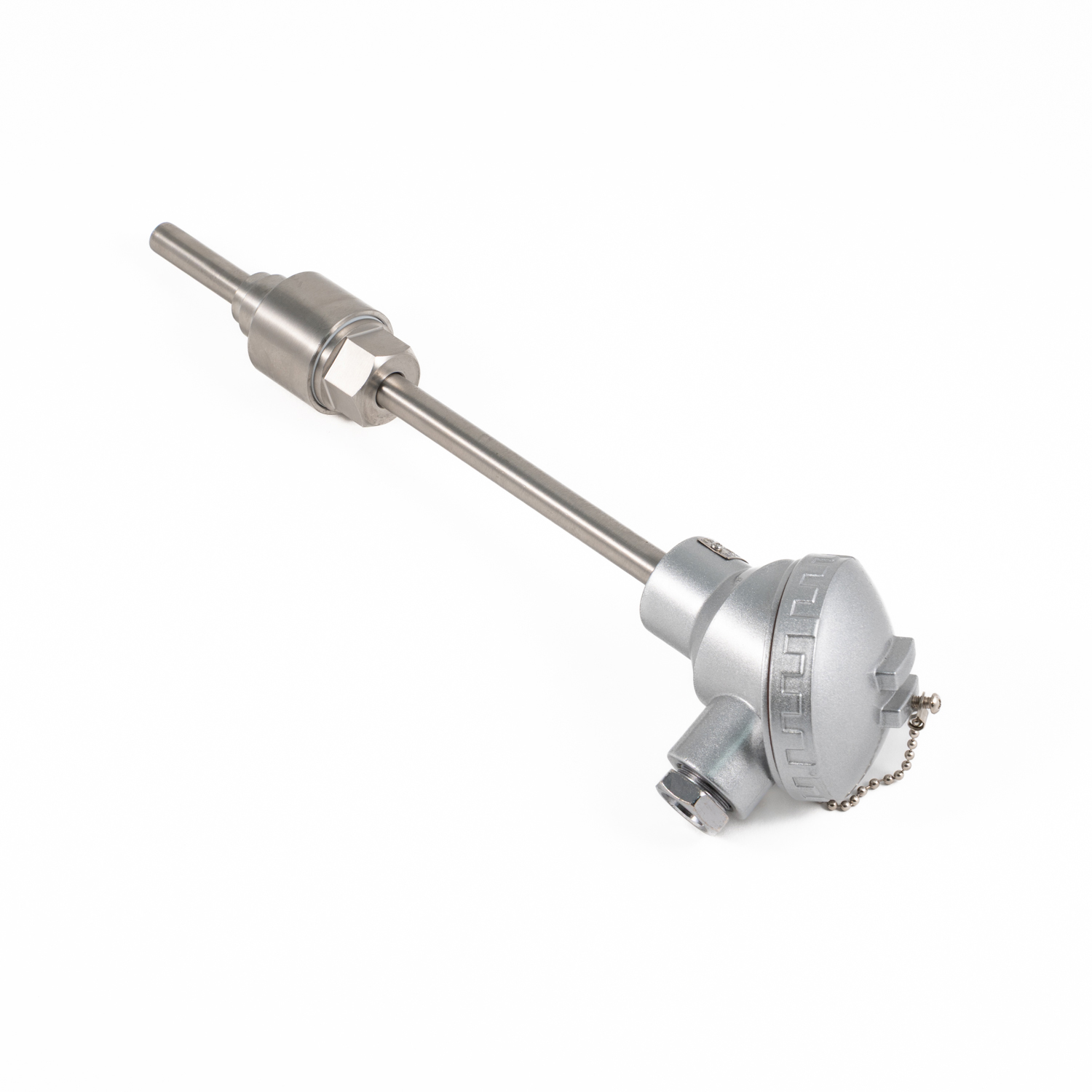

The SBWZ Series Integrated Temperature Transmitter combines a Pt100 RTD temperature sensor and a temperature transmitter module into one compact industrial temperature measuring device.
The built-in transmitter converts the Pt100 resistance signal into a standard two-wire 4-20mA output signal, which can be directly connected to PLC, DCS and industrial control systems.
The sensor adopts a 3-wire Pt100 measuring element, Φ6mm mineral insulated RTD probe, and SS316L protection tube, providing excellent corrosion resistance, vibration resistance and long service life.

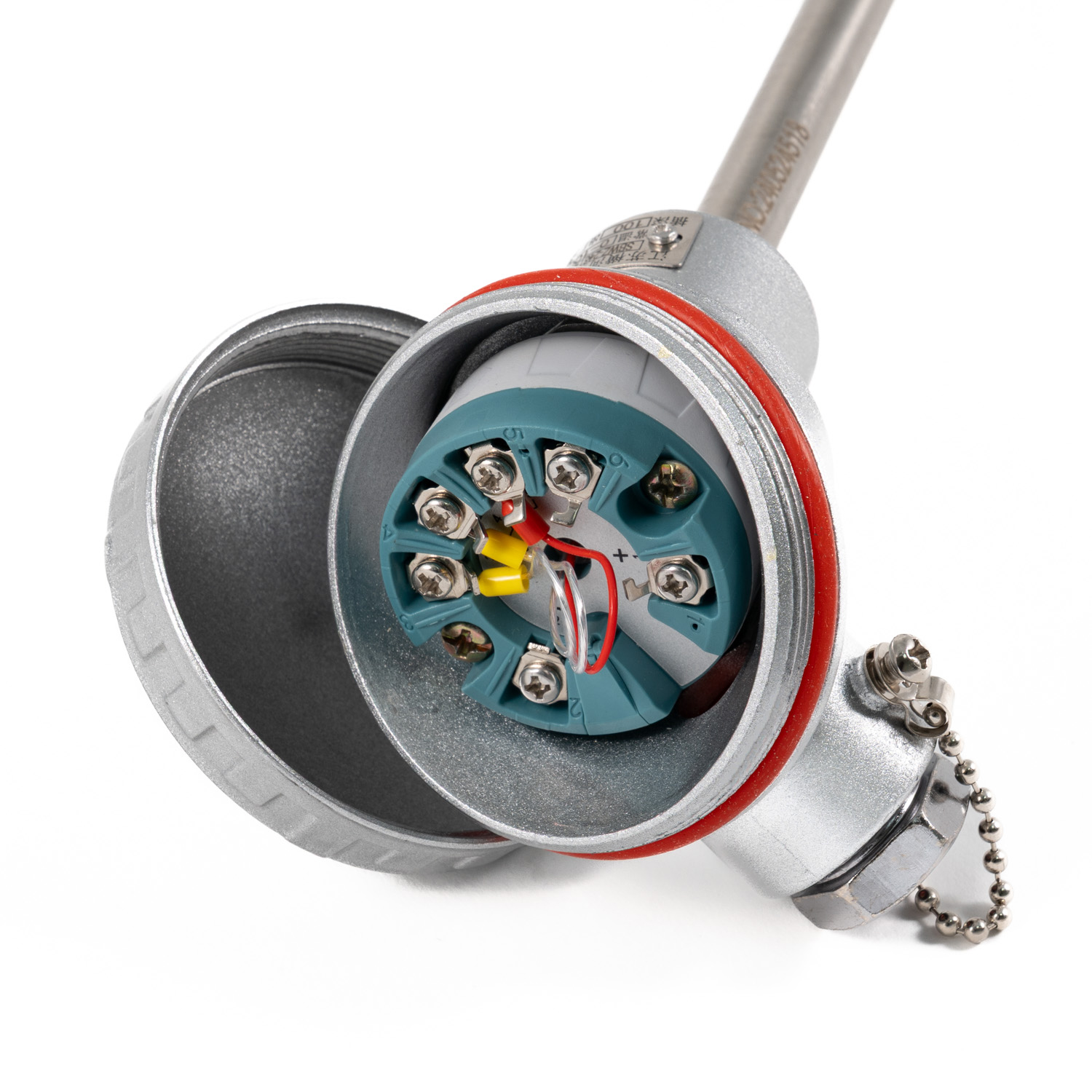

The aluminum alloy waterproof terminal box protects the internal transmitter module and wiring connection, making it suitable for industrial field installation.

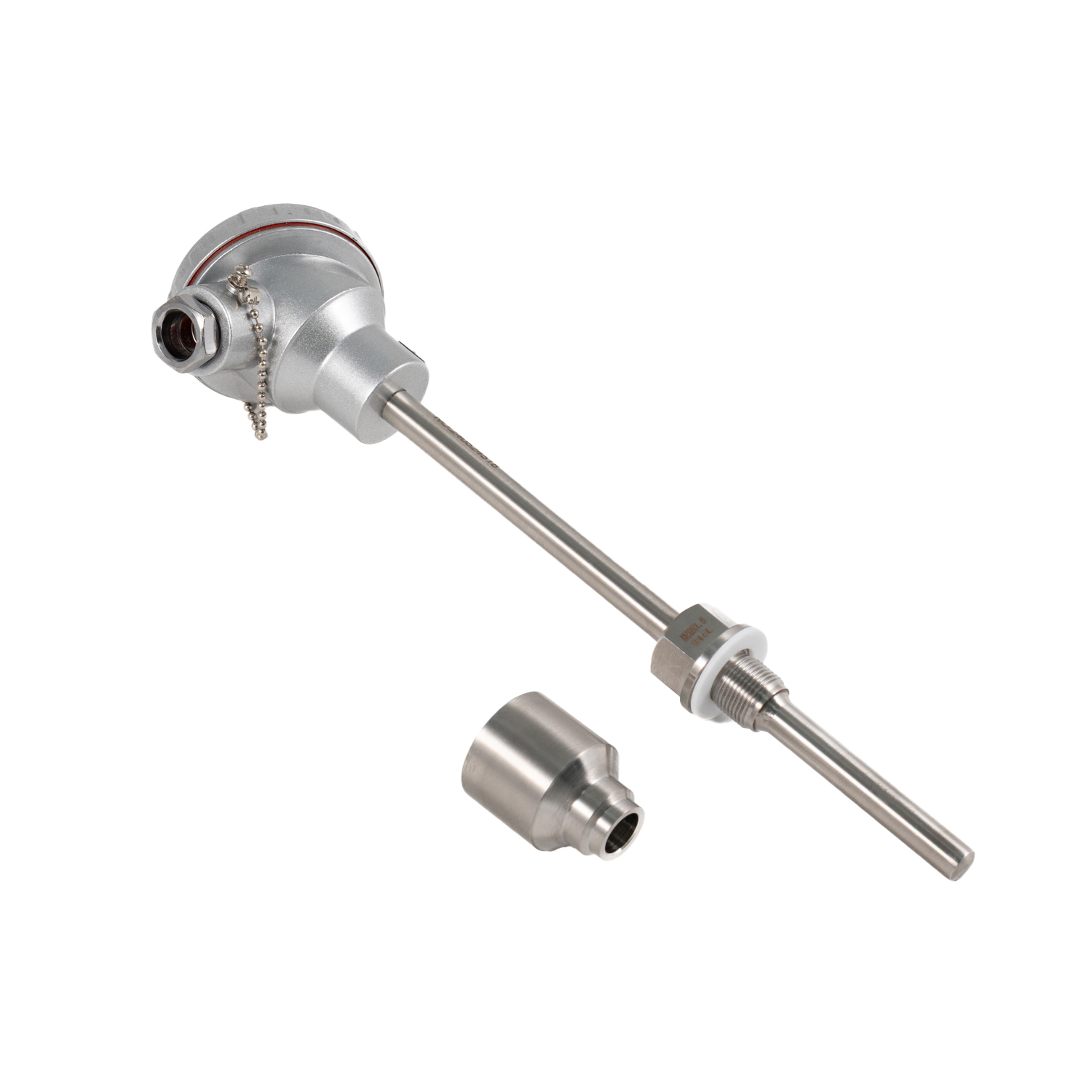

An independent SS304 thermowell is included to provide additional protection and easy maintenance.
Applications
Chemical processing equipment
Petrochemical pipelines
Oil and gas industry
Boiler and heating systems
Water treatment equipment
Food processing machinery
Pharmaceutical equipment
HVAC systems
Industrial automation systems
Storage tanks and reactors
Features
1. Integrated Sensor and Transmitter Design
Combines Pt100 RTD sensor and temperature transmitter into one unit, simplifying installation and wiring.
2. Standard 4-20mA Output
Provides stable two-wire current output suitable for PLC, DCS and control instruments.
3. High Corrosion Resistance
SS316L protection tube provides excellent resistance to corrosive industrial media.
4. Mineral Insulated RTD Probe
Φ6mm armored RTD element provides fast response, high vibration resistance and reliable measurement.
5. Waterproof Aluminum Alloy Terminal Box
Japanese style aluminum alloy terminal box protects the transmitter module in industrial environments.
6. Thermowell Protection Design
Independent SS304 thermowell improves mechanical protection and allows easier sensor replacement.
7. Flexible Customization
Temperature range, probe length, connection type, output signal and communication functions can be customized.
Technical Specifications
Item | Specification |
Product Type | Integrated Temperature Transmitter |
Model | SBWZ Series |
Sensor Type | Pt100 RTD Temperature Sensor |
Sensor Element | Single Element / Dual Element Optional |
RTD Wiring Configuration | 3-wire Standard / 2-wire / 4-wire Optional |
Transmitter Type | Head Mounted Temperature Transmitter |
Input Signal | Pt100 |
Output Signal | 4-20mA DC (Two-wire) |
Communication | HART Optional |
Power Supply | 12~36VDC |
Measuring Range | 0~100ºC |
Accuracy | Class A / Class B Optional |
Probe Type | Mineral Insulated RTD Probe |
Internal MI Probe Diameter | Φ6mm |
Protection Tube Diameter | Φ12mm OD × 2mm Wall Thickness |
Protection Tube Material | SS316L |
Thermowell Material | SS304 |
Thermowell Length | H=50mm |
Thermowell Inner Hole | Φ14mm |
Thermowell Bottom Step OD | Φ20mm |
Overall Length | 250mm |
Insertion Length | 100mm |
Process Connection | M20×1.5 Thread with Sealing Step |
Gasket Material | PTFE |
Terminal Box Material | Aluminum Alloy |
Terminal Box Type | Waterproof Terminal Box |
Protection Grade | IP65 Standard / IP67 Optional |
Installation | Threaded Installation |
Optional Function | HART Communication |
Note: Specifications can be customized according to customer requirements.
